GB/T 342-2017: Dimension, shape, mass and tolerance of cold-drawn round, square and hexagonal steel wires

This Standard specifies the dimension, shape, mass and tolerance of colddrawn round, square and hexagonal steel wires. This Standard is applicable to the cold-drawn round steel wire with a diameter of 0.05 mm~20 mm, the cold-drawn square steel wire with a side length of 0.50 mm~10 mm, and the cold-drawn hexagonal steel wire with an opposite side distance of 1.60 mm~10 mm.

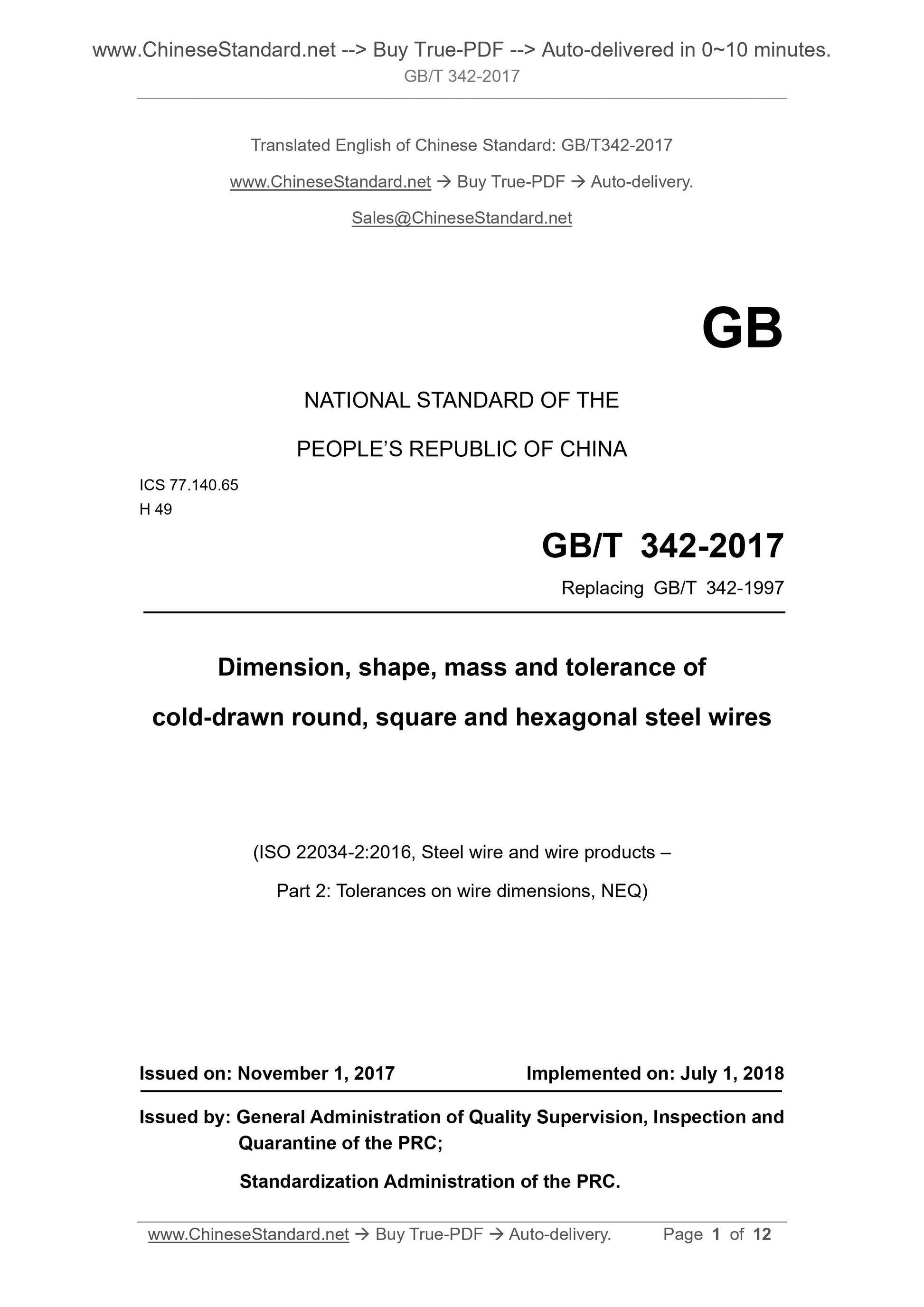

GB/T 342-2017
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.140.65
H 49
Replacing GB/T 342-1997
Dimension, shape, mass and tolerance of
cold-drawn round, square and hexagonal steel wires
(ISO 22034-2.2016, Steel wire and wire products ?€?
Part 2. Tolerances on wire dimensions, NEQ)
ISSUED ON. NOVEMBER 1, 2017
IMPLEMENTED ON. JULY 1, 2018
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the PRC;
Standardization Administration of the PRC.

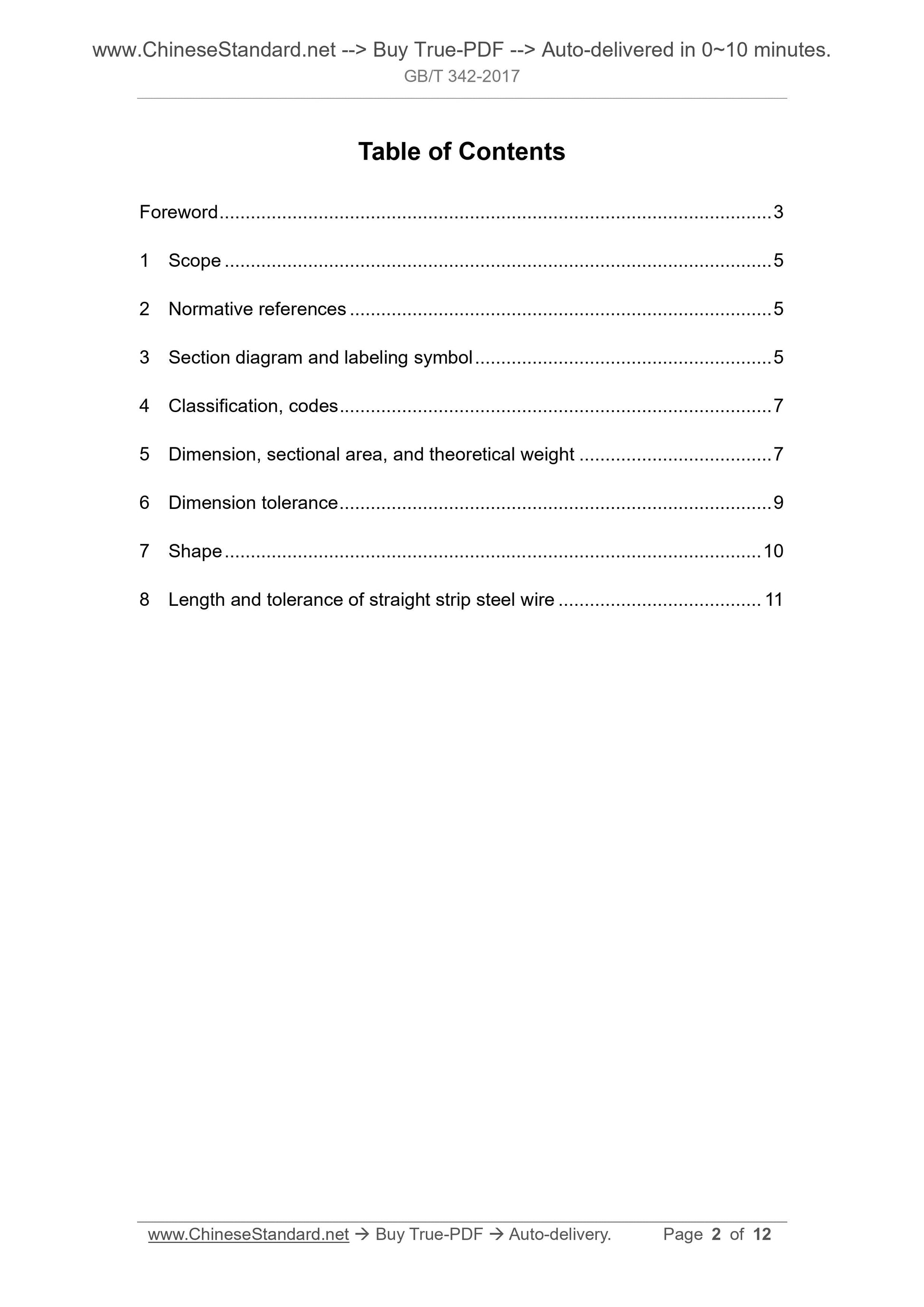

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Section diagram and labeling symbol ... 5
4 Classification, codes ... 7
5 Dimension, sectional area, and theoretical weight ... 7
6 Dimension tolerance ... 9
7 Shape ... 10
8 Length and tolerance of straight strip steel wire ... 11

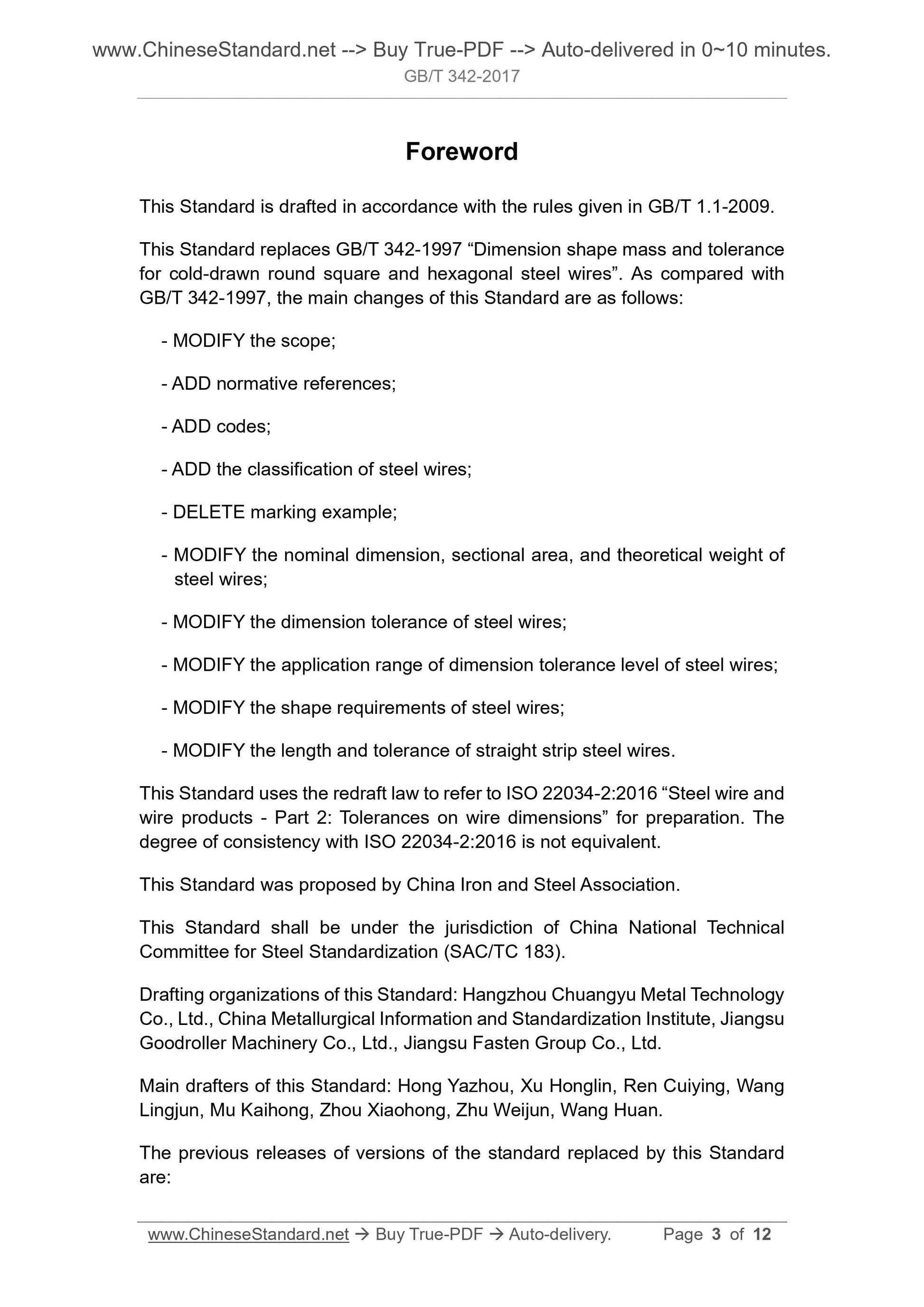

Foreword
This Standard is drafted in accordance with the rules given in GB/T 1.1-2009. This Standard replaces GB/T 342-1997 ?€?Dimension shape mass and tolerance for cold-drawn round square and hexagonal steel wires?€?. As compared with GB/T 342-1997, the main changes of this Standard are as follows.
- MODIFY the scope;
- ADD normative references;
- ADD codes;
- ADD the classification of steel wires;
- DELETE marking example;
- MODIFY the nominal dimension, sectional area, and theoretical weight of steel wires;
- MODIFY the dimension tolerance of steel wires;
- MODIFY the application range of dimension tolerance level of steel wires; - MODIFY the shape requirements of steel wires;
- MODIFY the length and tolerance of straight strip steel wires.
This Standard uses the redraft law to refer to ISO 22034-2.2016 ?€?Steel wire and wire products - Part 2. Tolerances on wire dimensions?€? for preparation. The degree of consistency with ISO 22034-2.2016 is not equivalent.
This Standard was proposed by China Iron and Steel Association.
This Standard shall be under the jurisdiction of China National Technical Committee for Steel Standardization (SAC/TC 183).
Drafting organizations of this Standard. Hangzhou Chuangyu Metal Technology Co., Ltd., China Metallurgical Information and Standardization Institute, Jiangsu Goodroller Machinery Co., Ltd., Jiangsu Fasten Group Co., Ltd.
Main drafters of this Standard. Hong Yazhou, Xu Honglin, Ren Cuiying, Wang Lingjun, Mu Kaihong, Zhou Xiaohong, Zhu Weijun, Wang Huan.
The previous releases of versions of the standard replaced by this Standard are.

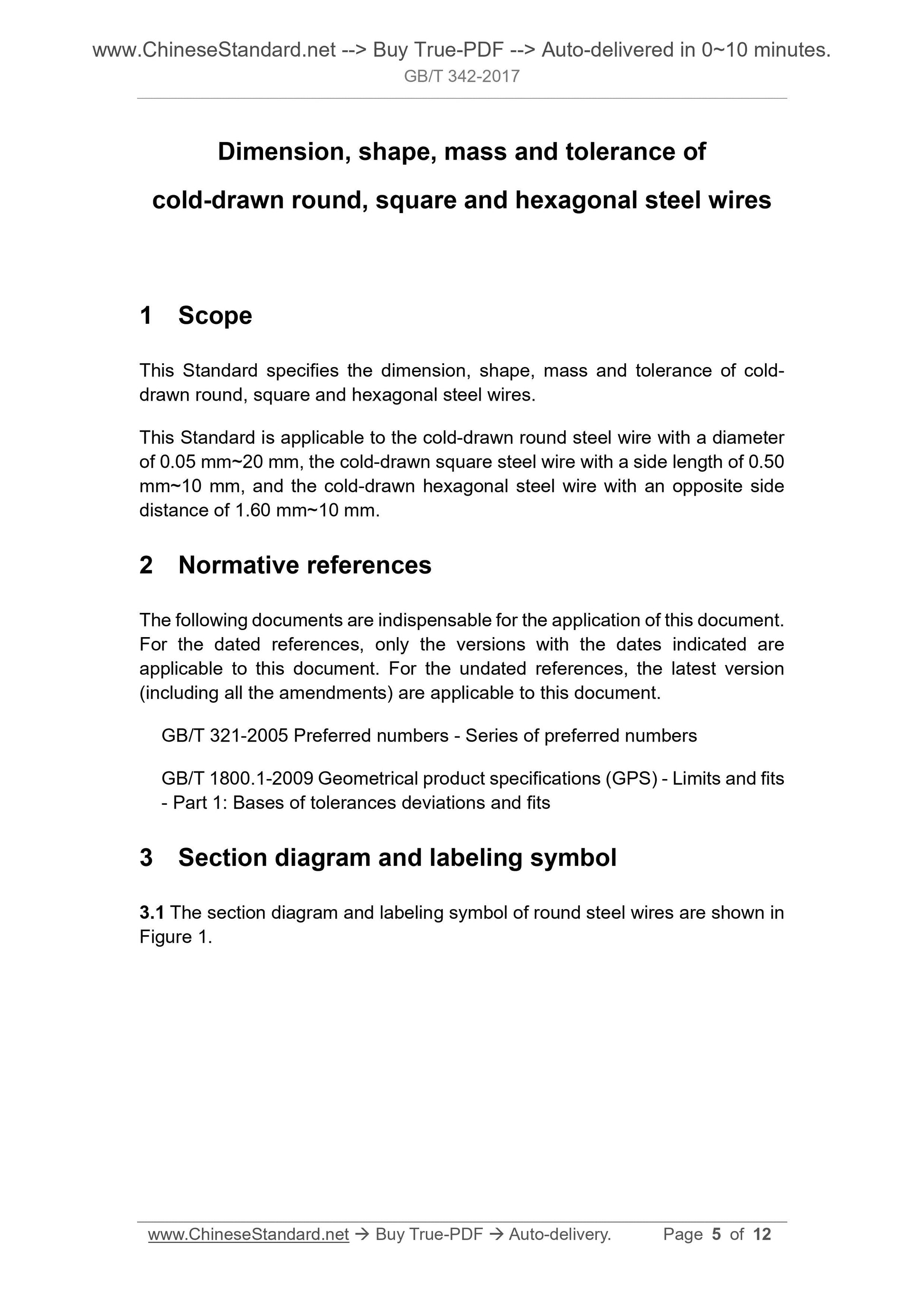

Dimension, shape, mass and tolerance of
cold-drawn round, square and hexagonal steel wires
1 Scope
This Standard specifies the dimension, shape, mass and tolerance of cold- drawn round, square and hexagonal steel wires.
This Standard is applicable to the cold-drawn round steel wire with a diameter of 0.05 mm~20 mm, the cold-drawn square steel wire with a side length of 0.50 mm~10 mm, and the cold-drawn hexagonal steel wire with an opposite side distance of 1.60 mm~10 mm.
2 Normative references
The following documents are indispensable for the application of this document. For the dated references, only the versions with the dates indicated are applicable to this document. For the undated references, the latest version (including all the amendments) are applicable to this document.
GB/T 321-2005 Preferred numbers - Series of preferred numbers
GB/T 1800.1-2009 Geometrical product specifications (GPS) - Limits and fits - Part 1. Bases of tolerances deviations and fits
3 Section diagram and labeling symbol
3.1 The section diagram and labeling symbol of round steel wires are shown in Figure 1.

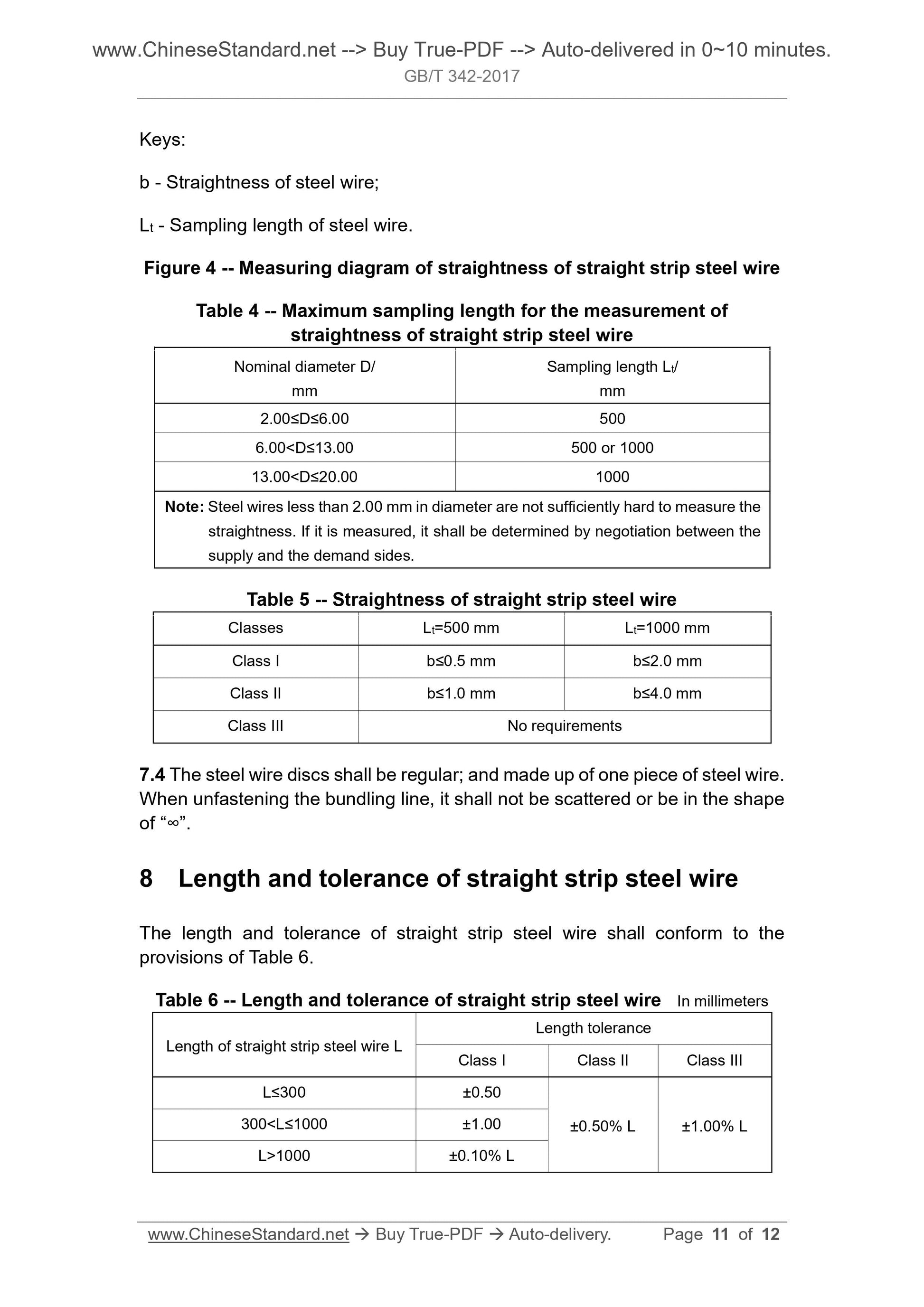

Keys.
b - Straightness of steel wire;
Lt - Sampling length of steel wire.
Figure 4 -- Measuring diagram of straightness of straight strip steel wire Table 4 -- Maximum sampling length for the measurement of
straightness of straight strip steel wire
Nominal diameter D/
mm
Sampling length Lt/
mm
2.00???D???6.00 500
6.00< D???13.00 500 or 1000
13.00< D???20.00 1000
Note. Steel wires less than 2.00 mm in diameter are not sufficiently hard to measure the straightness. If it is measured, it shall be determined by negotiation between the supply and the demand sides.
Table 5 -- Straightness of straight strip steel wire
Classes Lt=500 mm Lt=1000 mm
Class I b???0.5 mm b???2.0 mm
Class II b???1.0 mm b???4.0 mm
Class III No requirements
7.4 The steel wire discs shall be regular; and made up of one piece of steel wire. When unfastening the bundling line, it shall not be scattered or be in the shape of ?€?????€?.
8 Length and tolerance of straight strip steel wire
The length and tolerance of straight strip steel wire shall conform to the provisions of Table 6.
Table 6 -- Length and tolerance of straight strip steel wire In millimeters Length of straight strip steel wire L
Length tolerance
Class I Class II Class III
L???300 ??0.50
??0.50% L ??1.00% L 300< L???1000 ??1.00
L>1000 ??0.10% L
