GB/T 34130.21-2017: Power-track systems -- Part 21: Particular requirements for power-track systems intended for wall and ceiling mounting

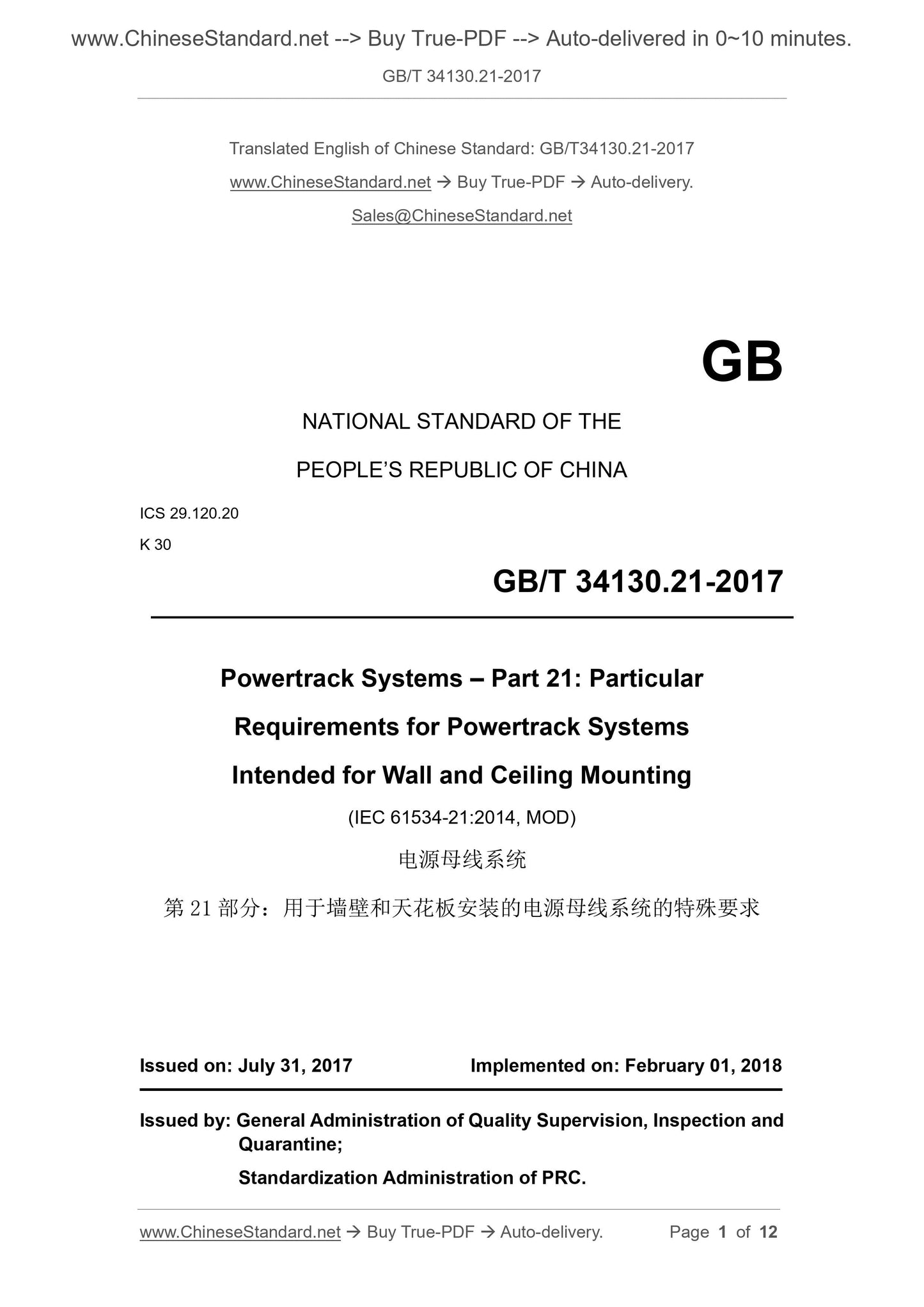

GB/T 34130.21-2017
Powertrack systems--Part 21. Particular requirements for powertrack systems intended for wall and ceiling mounting
ICS 29.120.20
K30
National Standards of People's Republic of China
Power busbar systems - Part 21. for walls and
Special requirements for ceiling mounted power bus systems
Powertracksystems-Part 21. Particularrequirementsforpowertracksystems
(IEC 61534-21.2014, MOD)
Released on.2017-07-31
2018-02-01 implementation
General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China
China National Standardization Administration issued

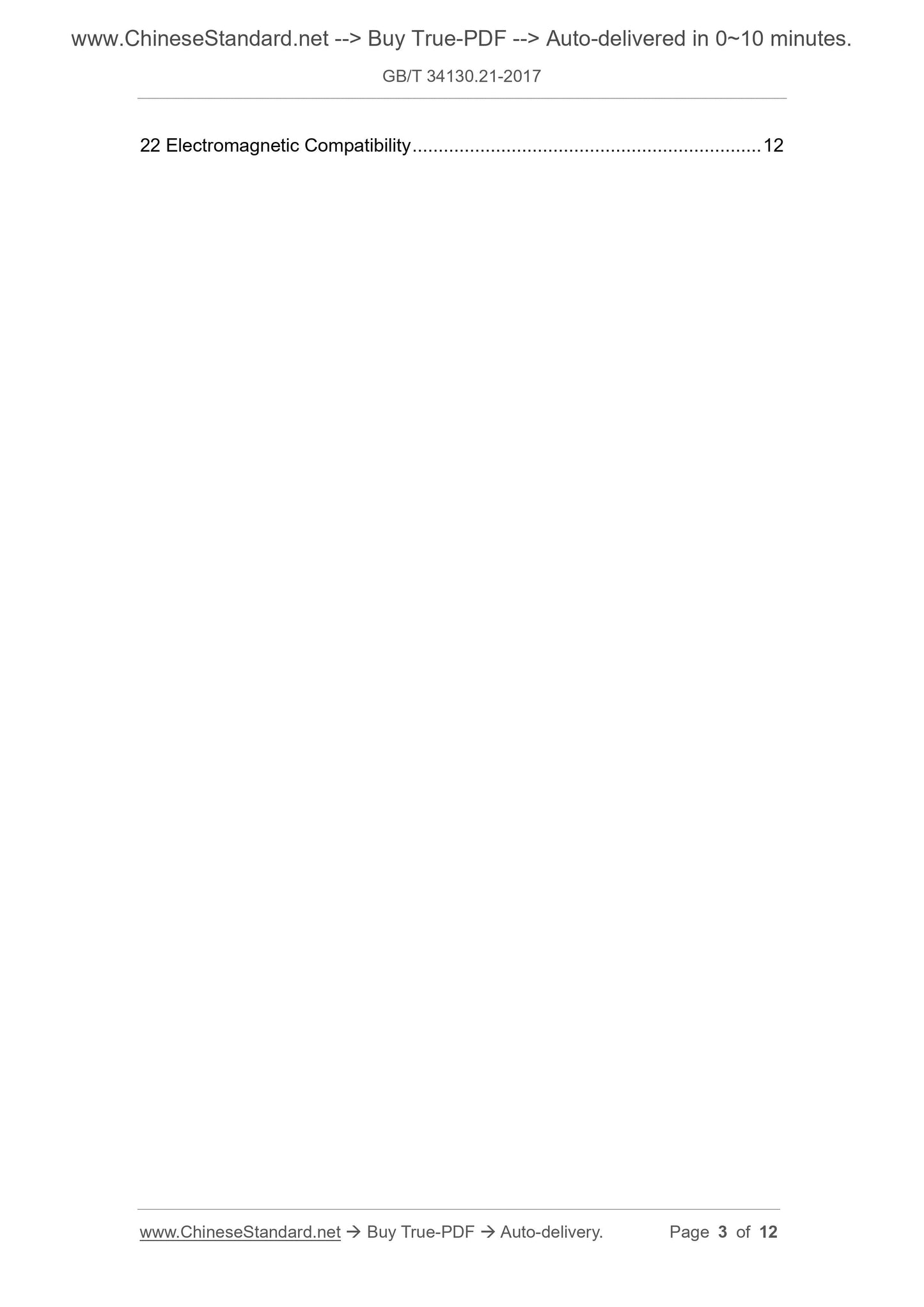

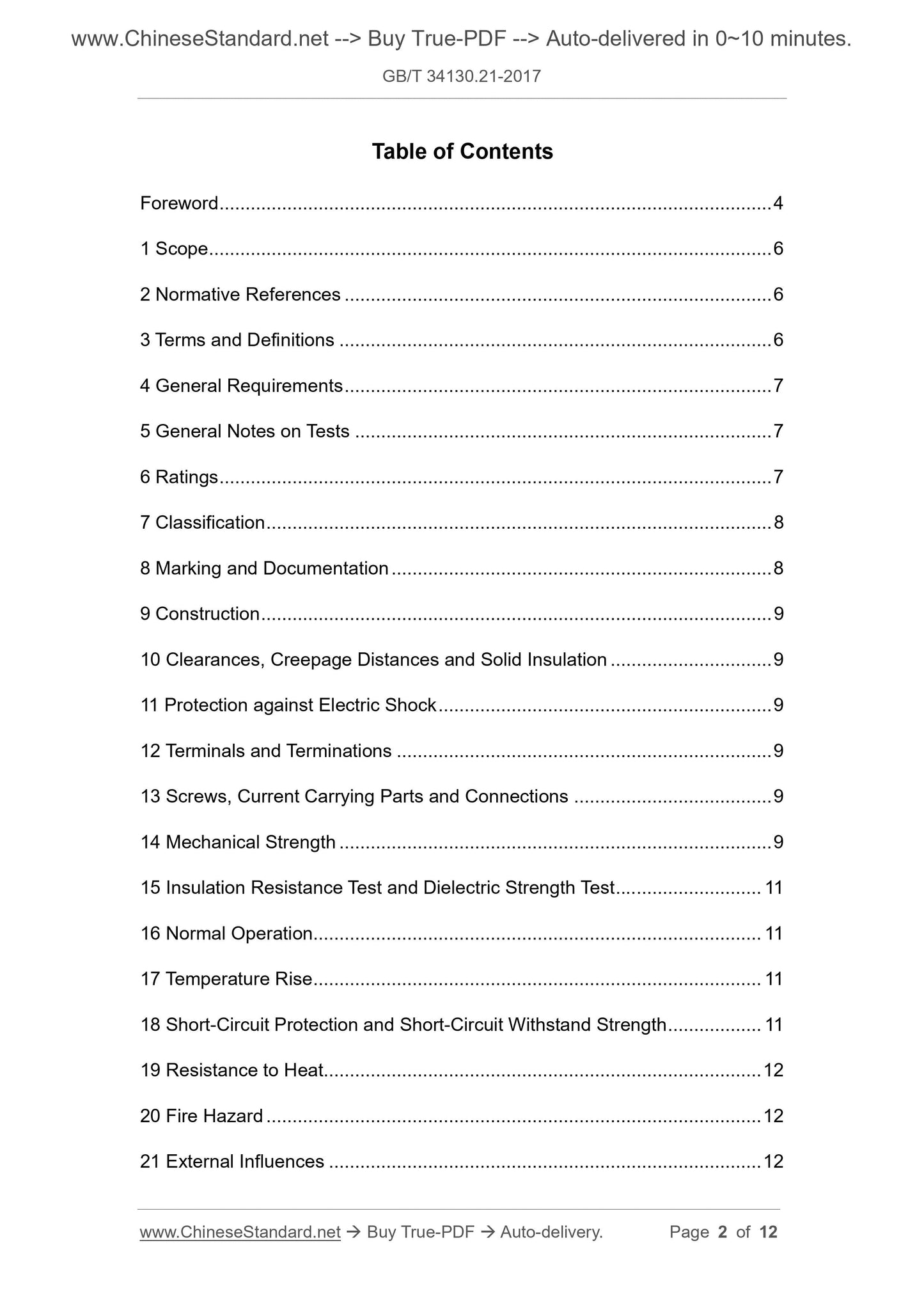

Content
Foreword III
1 range 1
2 Normative references 1
3 Terms and Definitions 1
4 General requirements 2
5 General description of the test 2
6 rating 2
7 Category 2
8 logo and file 2
9 structure 3
10 Clearance, creepage distance and solid insulation 3
11 Anti-shock protection 3
12 terminals and ends 3
13 screws, current-carrying parts and their connections 3
14 Mechanical strength 3
15 insulation resistance and electrical strength 4
16 normal operation 4
17 temperature rise 4
18 short circuit protection and short circuit withstand strength 4
19 heat resistant 5
20 Fire danger 5
21 External influences 5
22 Electromagnetic compatibility 5

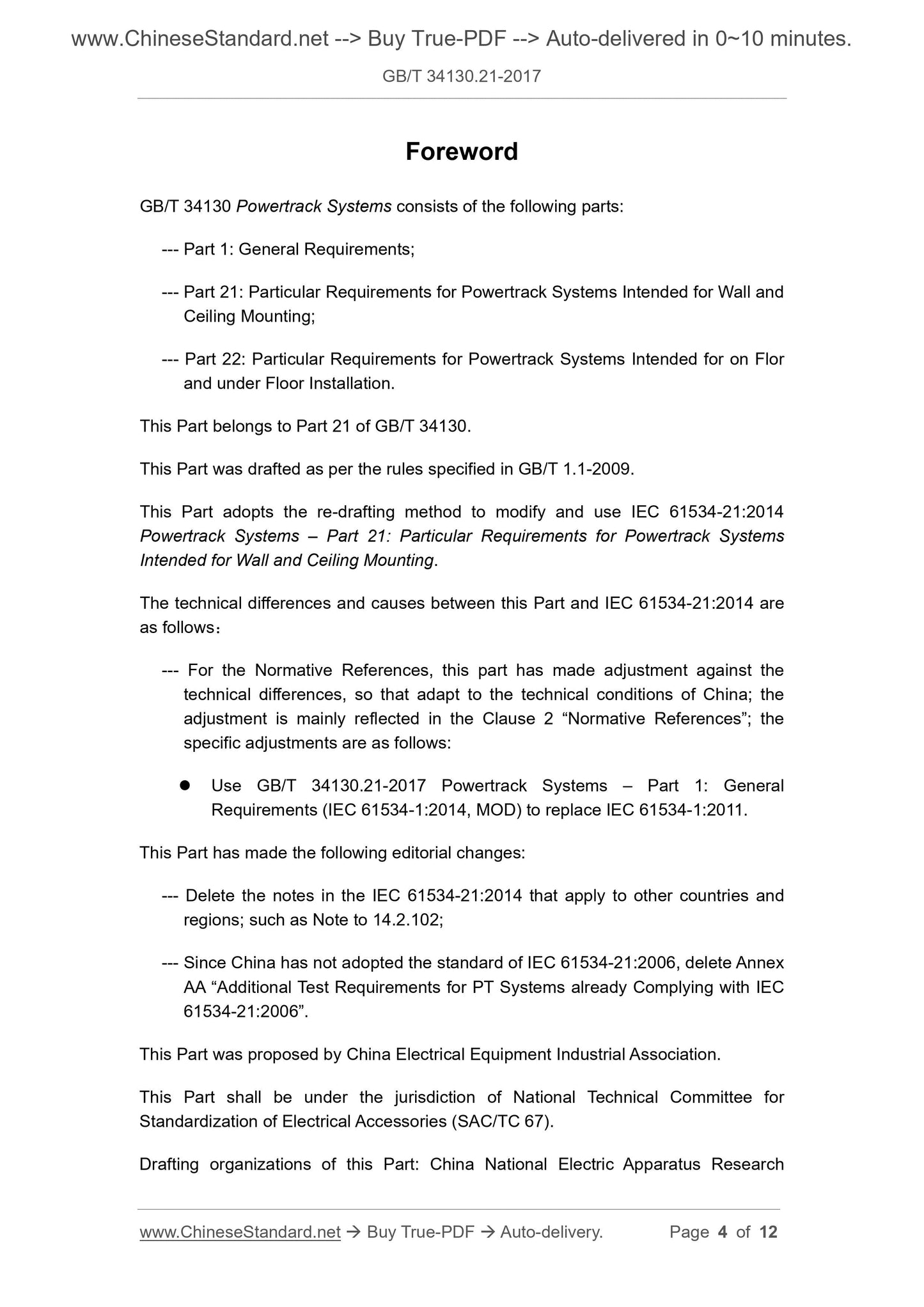

Foreword
GB/T 34130 "Power Bus System" is divided into the following parts.
--- Part 1. General requirements;
--- Part 21. Particular requirements for power bus systems for wall and ceiling installations;
--- Part 22. Particular requirements for power bus systems for ground and underground installations.
This part is the 21st part of GB/T 34130.
This part is drafted in accordance with the rules given in GB/T 1.1-2009.
This section uses the redrafting method to modify the use of IEC 61534-21.2014 "Power Busbar System Part 21. for walls and ceilings
Special requirements for board-mounted power busbar systems.
The technical differences between this part and IEC 61534-21.2014 and their reasons are as follows.
---About the normative reference documents, this part has made technical adjustments to adapt to China's technical conditions, adjustments
The situation is reflected in Chapter 2, “Regulatory Citations”, and the specific adjustments are as follows.
● Use GB/T 34130.1-2017 power bus system part 1 general requirements (IEC 61534-1.2014,
MOD) replaces IEC 61534-1.2011.
This section has made the following editorial changes.
--- Removed notes from IEC 61534-21.2014 that apply to other countries and regions, such as the note to 14.2.102;
--- Because China has not adopted the standard IEC 61534-21.2006, so the Appendix AA has been deleted. PT has been complied with IEC 61534-21.2006.
Additional test requirements for the system".
This part was proposed by China Electrical Equipment Industry Association.
This part is under the jurisdiction of the National Electrical Equipment Standardization Technical Committee (SAC/TC67).
This section drafted by. China Electric Apparatus Research Institute Co., Ltd., Zhongshan Changshun Hardware Products Co., Ltd., Shenzhen City pass test
Co., Ltd., Weikai Testing Technology Co., Ltd., Shantou East Asia Electric Factory.
The main drafters of this section. Gao Yipan, Chen Weilian, Li Dajian, Deng Huan, Cai Jun, Ma Zhuanghong, Li Xin.
Power busbar systems - Part 21. for walls and
Special requirements for ceiling mounted power bus systems

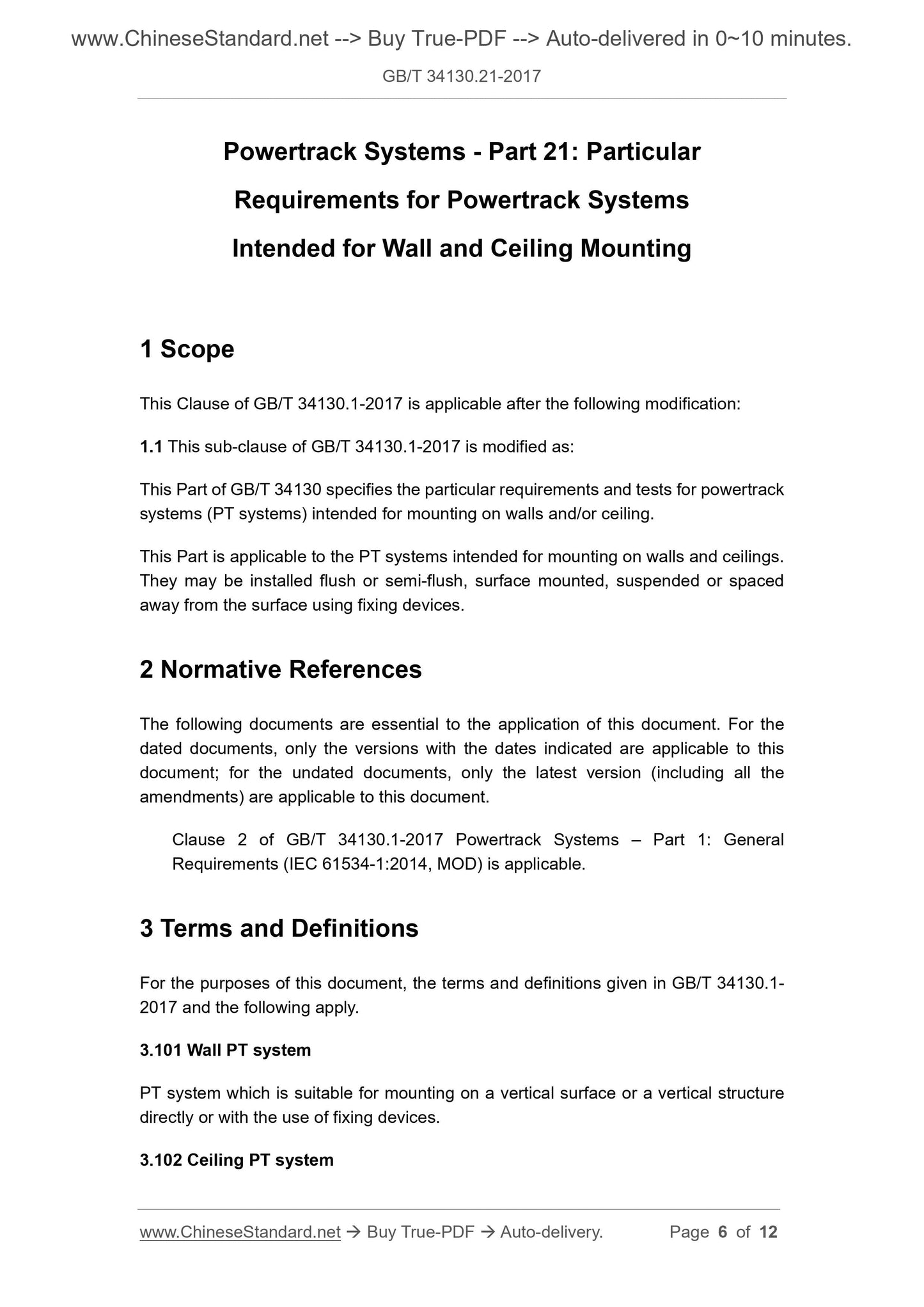

1 Scope
This chapter of GB/T 34130.1-2017 is modified as follows.
1.1 This article of GB/T 34130.1-2017 is amended to read.
This part of GB/T 34130 specifies the special requirements for power busbar systems (PT systems) for wall and/or ceiling mounting and
test.
This section applies to power busbar systems installed on walls and ceilings. The system can be concealed or semi-concealed, surface mounted,
Suspended or isolated from the surface of the fixture.
2 Normative references
The following documents are indispensable for the application of this document. For dated references, only the dated version applies to this article.
Pieces. For undated references, the latest edition (including all amendments) applies to this document.
GB/T 34130.1-2017 Power bus system Part 1. General requirements (IEC 61534-1..2014, MOD)
Be applicable
3 Terms and definitions
The following terms and definitions as defined in GB/T 34130.1-2017 apply to this document.
3.101
Wall PT system walPTsystem
Suitable for PT systems mounted on vertical surfaces or vertical structures, which may be mounted directly or with fixtures.
3.102
Ceiling PT system ceilingPTsystem
Suitable for PT systems that are mounted or suspended below a horizontal surface or horizontal structure.
3.103
Fixing device fixingdevices
A system component for mechanically connecting a PT system to a support surface or support structure.
3.104
External load externalload
The mechanical load applied to the PT system from the outside caused by the weight of the non-system components.
3.105
Suspension device
A mechanical device that supports loads (such as luminaires) that are suspended in a PT system.
3.106
Corner PT system skirttingPTsystem
Suitable for PT systems installed on walls close to the underside of the floor.
4 General requirements
This chapter of GB/T 34130.1-2017 is applicable.
5 General description of the test
This chapter of GB/T 34130.1-2017 is modified as follows.
5.3
increase.
3 samples. Clause 14.3.11
3 samples. Clause 14.3.12
3 samples. Clause 14.3.13
6 rating
This chapter of GB/T 34130.1-2017 is applicable.
7 classification
This chapter of GB/T 34130.1-2017 is modified as follows.
increase.
7.101 Classification by external load bearing capacity
7.101.1 Wall PT System
7.101.1.1 Wall PT system that cannot withstand external loads
7.101.1.2 Wall PT system capable of withstanding external loads applied from above
7.101.2 Ceiling PT System
7.101.2.1 Ceiling PT system that cannot withstand external loads
7.101.2.2 Ceiling PT system capable of withstanding external loads applied from above
7.102 by suspension load
7.102.1 PT system without suspended load
7.102.2 PT system with suspended load
7.103 Ground treatment method when the PT system is installed in the corner position
7.103.1 Ground dry treatment
7.103.2 Ground wet treatment
8 logos and files
This chapter of GB/T 34130.1-2017 is modified as follows.
8.5
Add the following items.
--- The maximum load (kg) that can be withstood by the PT system classified according to 7.101.1.2 and 7.101.2.2;
--- The maximum load (kg) that can be suspended according to the PT system classified in 7.102.2.
9 structure
This chapter of GB/T 34130.1-2017 is applicable.
10 Clearance, creepage distance and solid insulation
This chapter of GB/T 34130.1-2017 is applicable.
11 protection against electric shock
This chapter of GB/T 34130.1-2017 is applicable.
12 terminals and ends
This chapter of GB/T 34130.1-2017 is applicable.
13 screws, current-carrying parts and their connections
This chapter of GB/T 34130.1-2017 is applicable.
14 Mechanical strength
This chapter of GB/T 34130.1-2017 is modified as follows.
14.3 Static load test
Delete 14.3.1, 14.3.2, 14.3.3.
increase.
14.3.101 External load test
The PT system should be able to withstand the mechanical stresses applied to the PT system.
Compliance is checked by the following test.
Connecting at least two PT systems together, including electrical connections, and mounting on a rigid support frame according to the manufacturer's instructions;
The joint should be placed in the middle between the fixtures.
Place a steel plate of length (150±20) mm, width not less than PT system and thickness (5±1) mm, placed in the support
The upper surface of the PT system in the center of the structure. For the classification of 7.101.1.1 and 7.101.2.1, gradually apply one to the steel plate within (60 ± 1) s
The vertical force is up to (350 ± 10) N and is maintained at (60 ± 1) min. For the classification of 7.101.1.2 and 7.101.2.2, in the (60 ± 1) s inward steel
A vertical force is applied to the plate until (750 ± 10) N or the manufacturer's stated force ± 2%, whichever is higher, and remains (60 ±
1) min.
During the test, the specimen shall be undamaged and shall have neither loose parts nor any deformation that may compromise electrical safety.
After the test.
---The sample shall comply with Chapters 10 and 11.1 of GB/T 34130.1-2017;
---The specimen shall have no permanent deformation that will hinder the correct insertion and removal of the busbar slot connector;
--- Without the pretreatment of 15.1, the sample should withstand the test of 15.2 and 11.3 of GB/T 34130.1-2017
Test.
14.3.102 PT system with suspended load
A PT system classified according to 7.102.2 shall be capable of withstanding the mechanical loads applied to the suspension during normal use.
Compliance is checked by the following test.
Install the suspension in the normal condition according to the manufacturer's instructions. If the manufacturer does not specify, tighten the machine to the suspension
The threaded connection of the mechanical stress (if any) shall meet the torque given in the relevant column of Table 6 of GB/T 34130.1-2017.
If there is a threaded connection that is expected to provide mechanical support to the suspension, the manufacturer does not specify the torque for the threaded connection application.
Torque tightening given in the relevant column of Table 6 of GB/T 34130.1-2017.
Then, gradually apply a manufacturer's stated force of ±2% to the suspension or, if the manufacturer does not declare, apply a
(250 ± 5) N force, and maintain (24 ± 1) h, do not use explosive power.
During the test, the PT system and suspension shall not be separated from each other and the specimen shall be free from damage that does not conform to this section.
14.3.103 PT system with docking unit
In normal use, the plug-in unit shall be constructed to prevent disconnection from the power bus or accessible live parts.
Compliance is checked by the following test.
When the PT system is installed under normal use as stated by the manufacturer, insert and remove the plug-in unit 10 times each time.
Insert the plug-in unit into the plug-in socket again under normal use and apply a plug-in unit for normal use as specified by the manufacturer.
The force pulls out the force (30 ± 1) N in parallel and maintains (60 ± 5) s.
The plug-in unit shall not be separated from the power bus, and when tested in accordance with 11.1.1.1 of GB/T 34130.1-2017, the live parts shall be
Not easy to reach.
15 insulation resistance and electrical strength
This chapter of GB/T 34130.1-2017 is applicable.
16 normal operation
This chapter of GB/T 34130.1-2017 is applicable.
17 temperature rise
This chapter of GB/T 34130.1-2017 is applicable.
18 short circuit protection and short circuit withstand strength
This chapter of GB/T 34130.1-2017 is applicable.
19 heat resistant
This chapter of GB/T 34130.1-2017 is applicable.
20 Fire danger
This chapter of GB/T 34130.1-2017 is applicable.
21 External influences
This chapter of GB/T 34130.1-2017 is modified as follows.
Remove 21.1.3.
increase.
21.2.101 Anti-hazard water in the dry treatment of the ground
When the PT system is installed in a corner position and the floor is subjected to dry processing, the PT system should have a minimum degree of protection IPX4.
22 Electromagnetic compatibility
This chapter of GB/T 34130.1-2017 is applicable.
