GB/T 34015.2-2020: Recycling of traction battery used in electric vehicle -- Echelon use -- Part 2: Removing requirements

This Part of GB/T34015 specifies the terms and definitions, general requirements, operating requirements, temporary storage and management requirements for the remove of traction battery (or power battery) used in electric vehicle. This Part applies to the removing process of traction lithium-ion battery packs and traction nickel-hydrogen traction battery packs in the recycling process. The removing process of other types of traction battery packs can be implemented by reference.

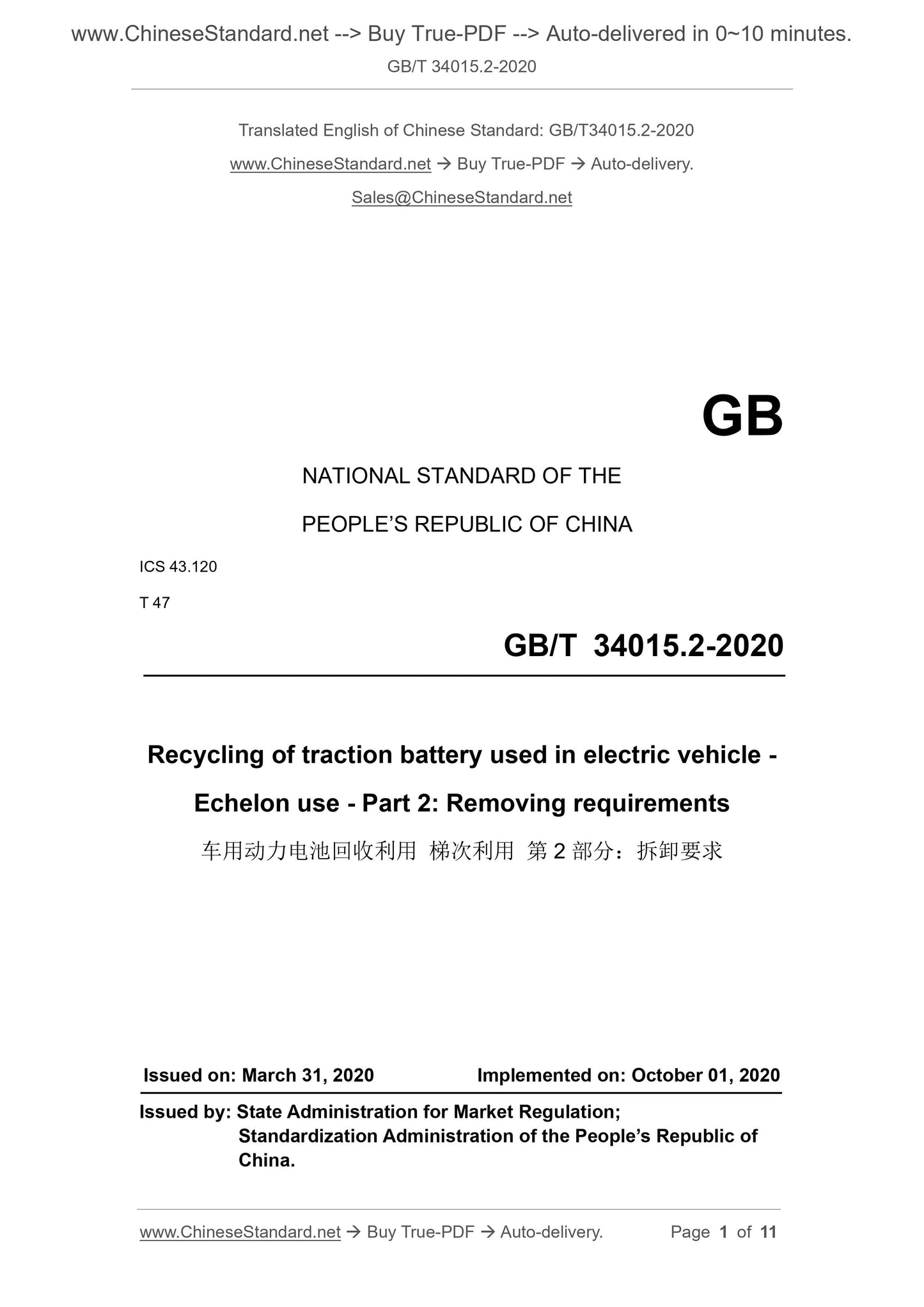

GB/T 34015.2-2020
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 43.120
T 47
Recycling of traction battery used in electric vehicle -
Echelon use - Part 2: Removing requirements
ISSUED ON: MARCH 31, 2020
IMPLEMENTED ON: OCTOBER 01, 2020
Issued by: State Administration for Market Regulation;
Standardization Administration of the PEOPLE Republic of
China.

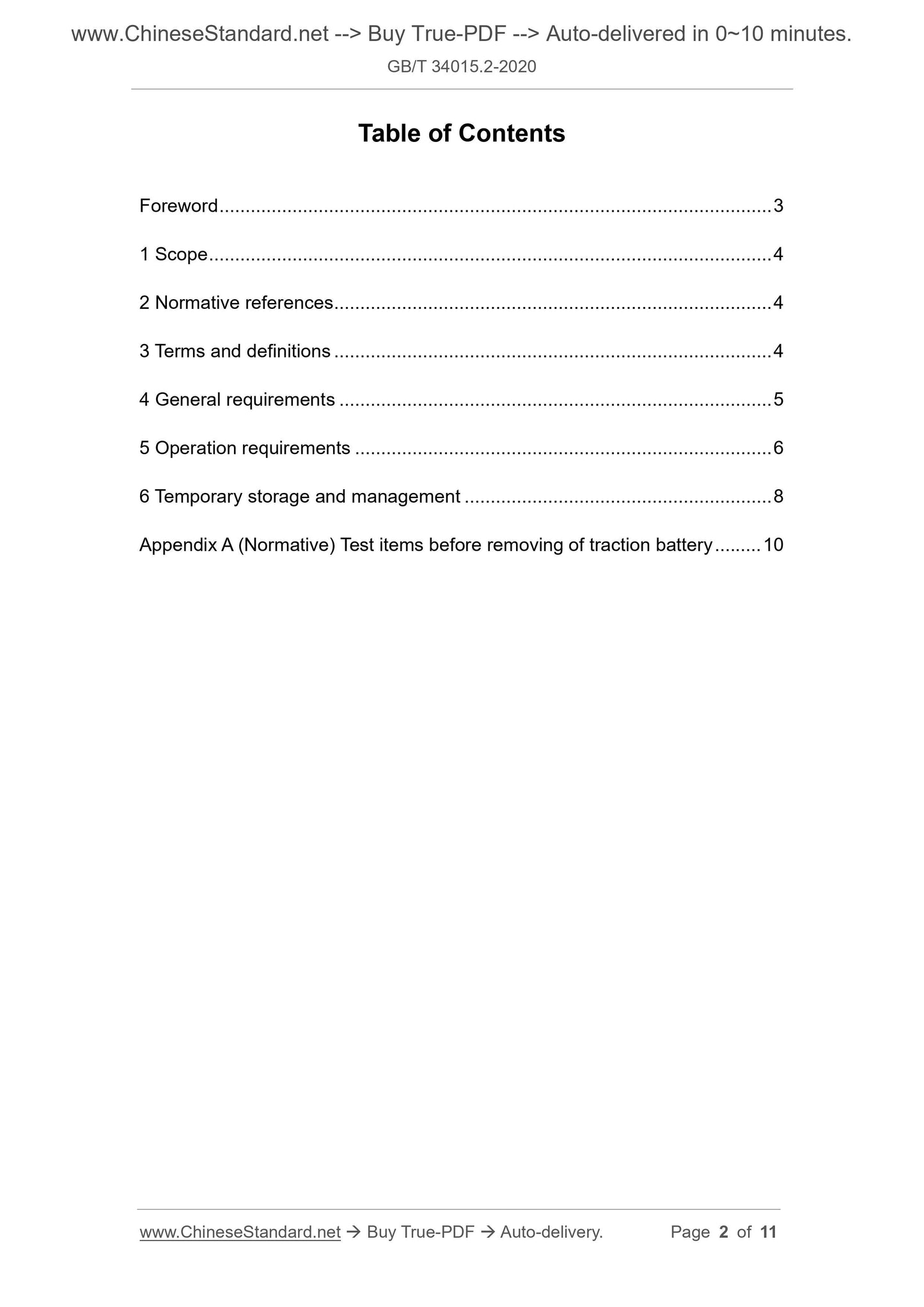

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 General requirements ... 5
5 Operation requirements ... 6
6 Temporary storage and management ... 8
Appendix A (Normative) Test items before removing of traction battery ... 10 Recycling of traction battery used in electric vehicle -
Echelon use - Part 2: Removing requirements

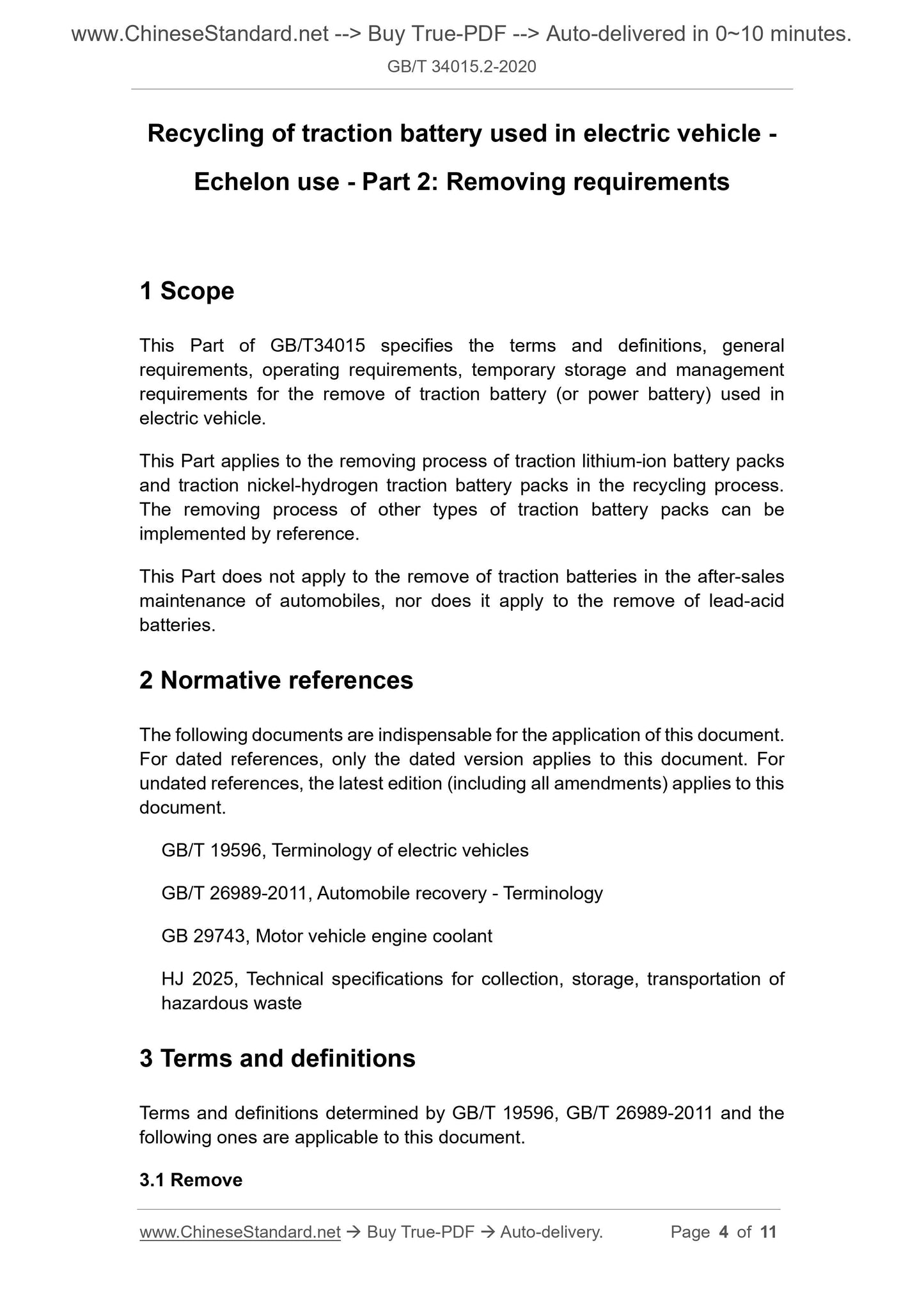

1 Scope
This Part of GB/T34015 specifies the terms and definitions, general
requirements, operating requirements, temporary storage and management
requirements for the remove of traction battery (or power battery) used in electric vehicle.
This Part applies to the removing process of traction lithium-ion battery packs and traction nickel-hydrogen traction battery packs in the recycling process. The removing process of other types of traction battery packs can be
implemented by reference.
This Part does not apply to the remove of traction batteries in the after-sales maintenance of automobiles, nor does it apply to the remove of lead-acid batteries.
2 Normative references
The following documents are indispensable for the application of this document. For dated references, only the dated version applies to this document. For undated references, the latest edition (including all amendments) applies to this document.
GB/T 19596, Terminology of electric vehicles
GB/T 26989-2011, Automobile recovery - Terminology
GB 29743, Motor vehicle engine coolant
HJ 2025, Technical specifications for collection, storage, transportation of hazardous waste
3 Terms and definitions
Terms and definitions determined by GB/T 19596, GB/T 26989-2011 and the following ones are applicable to this document.
3.1 Remove

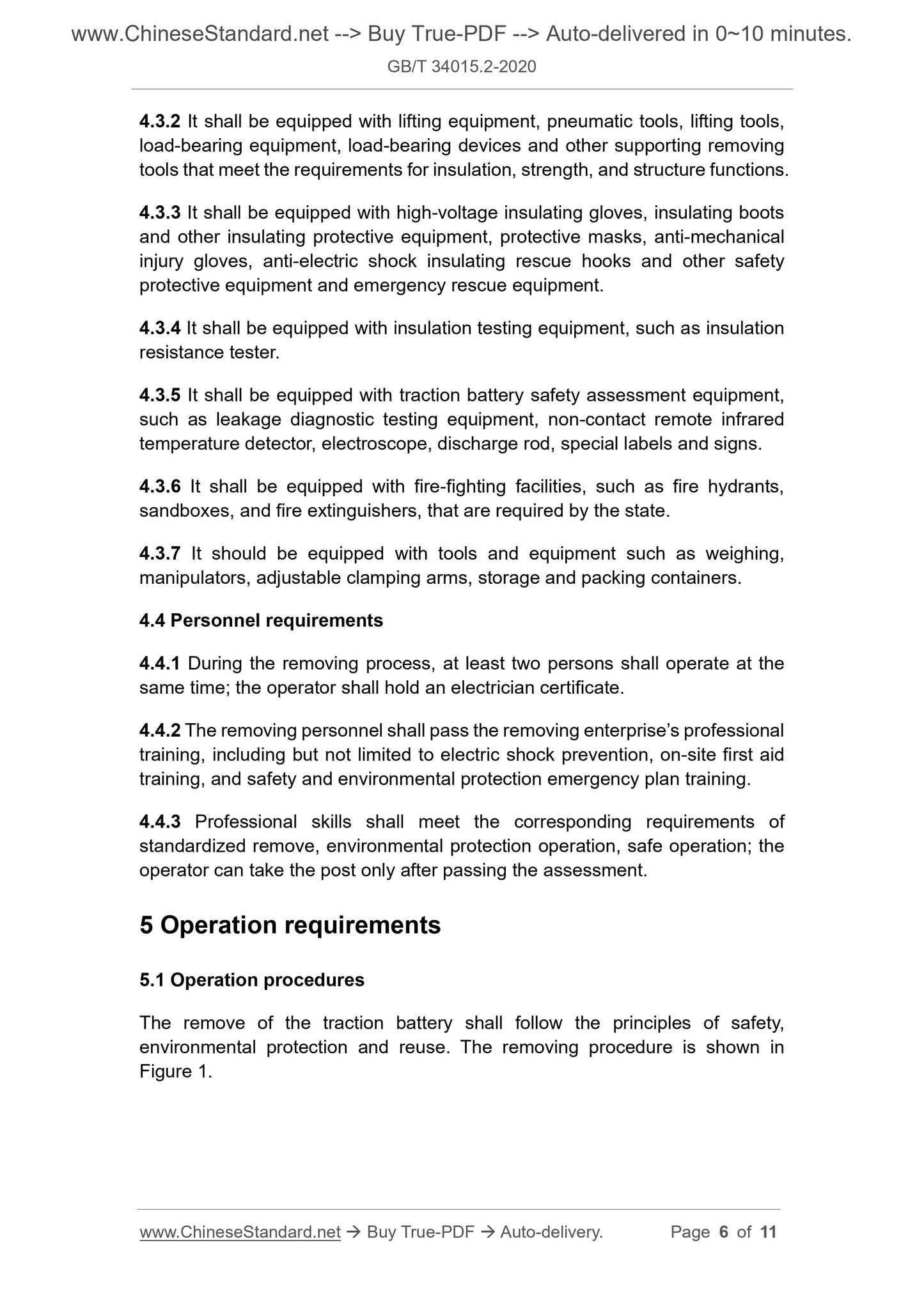

4.3.2 It shall be equipped with lifting equipment, pneumatic tools, lifting tools, load-bearing equipment, load-bearing devices and other supporting removing tools that meet the requirements for insulation, strength, and structure functions. 4.3.3 It shall be equipped with high-voltage insulating gloves, insulating boots and other insulating protective equipment, protective masks, anti-mechanical injury gloves, anti-electric shock insulating rescue hooks and other safety protective equipment and emergency rescue equipment.
4.3.4 It shall be equipped with insulation testing equipment, such as insulation resistance tester.
4.3.5 It shall be equipped with traction battery safety assessment equipment, such as leakage diagnostic testing equipment, non-contact remote infrared temperature detector, electroscope, discharge rod, special labels and signs. 4.3.6 It shall be equipped with fire-fighting facilities, such as fire hydrants, sandboxes, and fire extinguishers, that are required by the state.
4.3.7 It should be equipped with tools and equipment such as weighing,
manipulators, adjustable clamping arms, storage and packing containers. 4.4 Personnel requirements
4.4.1 During the removing process, at least two persons shall operate at the same time; the operator shall hold an electrician certificate.
4.4.2 The removing personnel shall pass the removing enterprise?€?s professional training, including but not limited to electric shock prevention, on-site first aid training, and safety and environmental protection emergency plan training. 4.4.3 Professional skills shall meet the corresponding requirements of
standardized remove, environmental protection operation, safe operation; the operator can take the post only after passing the assessment.
5 Operation requirements
5.1 Operation procedures
The remove of the traction battery shall follow the principles of safety, environmental protection and reuse. The removing procedure is shown in
Figure 1.

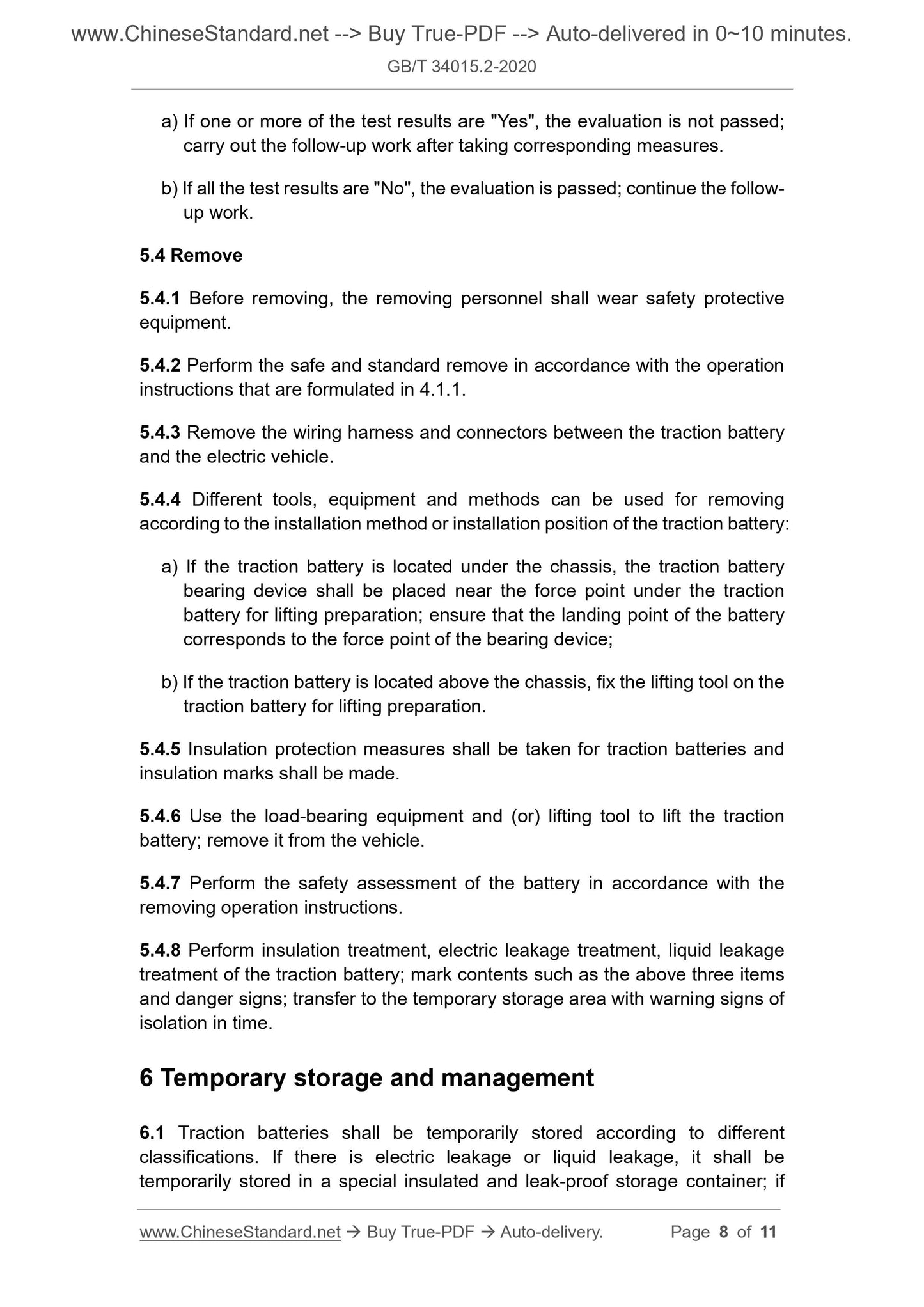

a) If one or more of the test results are "Yes", the evaluation is not passed; carry out the follow-up work after taking corresponding measures.
b) If all the test results are "No", the evaluation is passed; continue the follow- up work.
5.4 Remove
5.4.1 Before removing, the removing personnel shall wear safety protective equipment.
5.4.2 Perform the safe and standard remove in accordance with the operation instructions that are formulated in 4.1.1.
5.4.3 Remove the wiring harness and connectors between the traction battery and the electric vehicle.
5.4.4 Different tools, equipment and methods can be used for removing
according to the installation method or installation position of the traction battery: a) If the traction battery is located under the chassis, the traction battery bearing device shall be placed near the force point under the traction
battery for lifting preparation; ensure that the landing point of the battery corresponds to the force point of the bearing device;
b) If the traction battery is located above the chassis, fix the lifting tool on the traction battery for lifting preparation.
5.4.5 Insulation protection measures shall be taken for traction batteries and insulation marks shall be made.
5.4.6 Use the load-bearing equipment and (or) lifting tool to lift the traction battery; remove it from the vehicle.
5.4.7 Perform the safety assessment of the battery in accordance with the removing operation instructions.
5.4.8 Perform insulation treatment, electric leakage treatment, liquid leakage treatment of the traction battery; mark contents such as the above three items and danger signs; transfer to the temporary storage area with warning signs of isolation in time.
6 Temporary storage and management
6.1 Traction batteries shall be temporarily stored according to different classifications. If there is electric leakage or liquid leakage, it shall be temporarily stored in a special insulated and leak-proof storage container; if
