GB/T 33837-2017: Coated glass fiber products -- Determination of the tension-tension fatigue properties

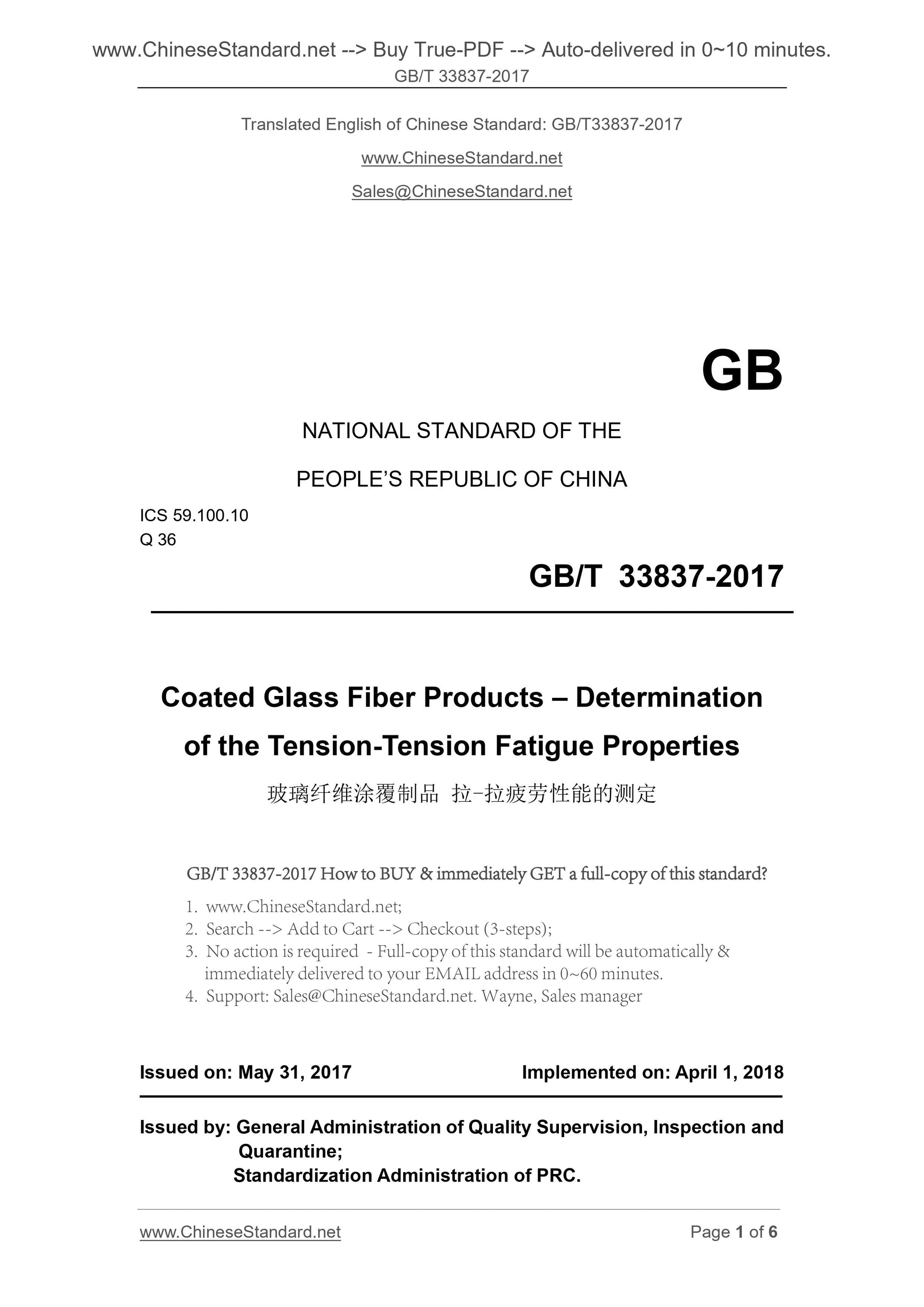

GB/T 33837-2017
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 59.100.10
Q 36
Coated Glass Fiber Products – Determination
of the Tension-Tension Fatigue Properties
ISSUED ON. MAY 31, 2017
IMPLEMENTED ON. APRIL 1, 2018
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration of PRC.
3. No action is required - Full-copy of this standard will be automatically and
immediately delivered to your EMAIL address in 0~60 minutes.

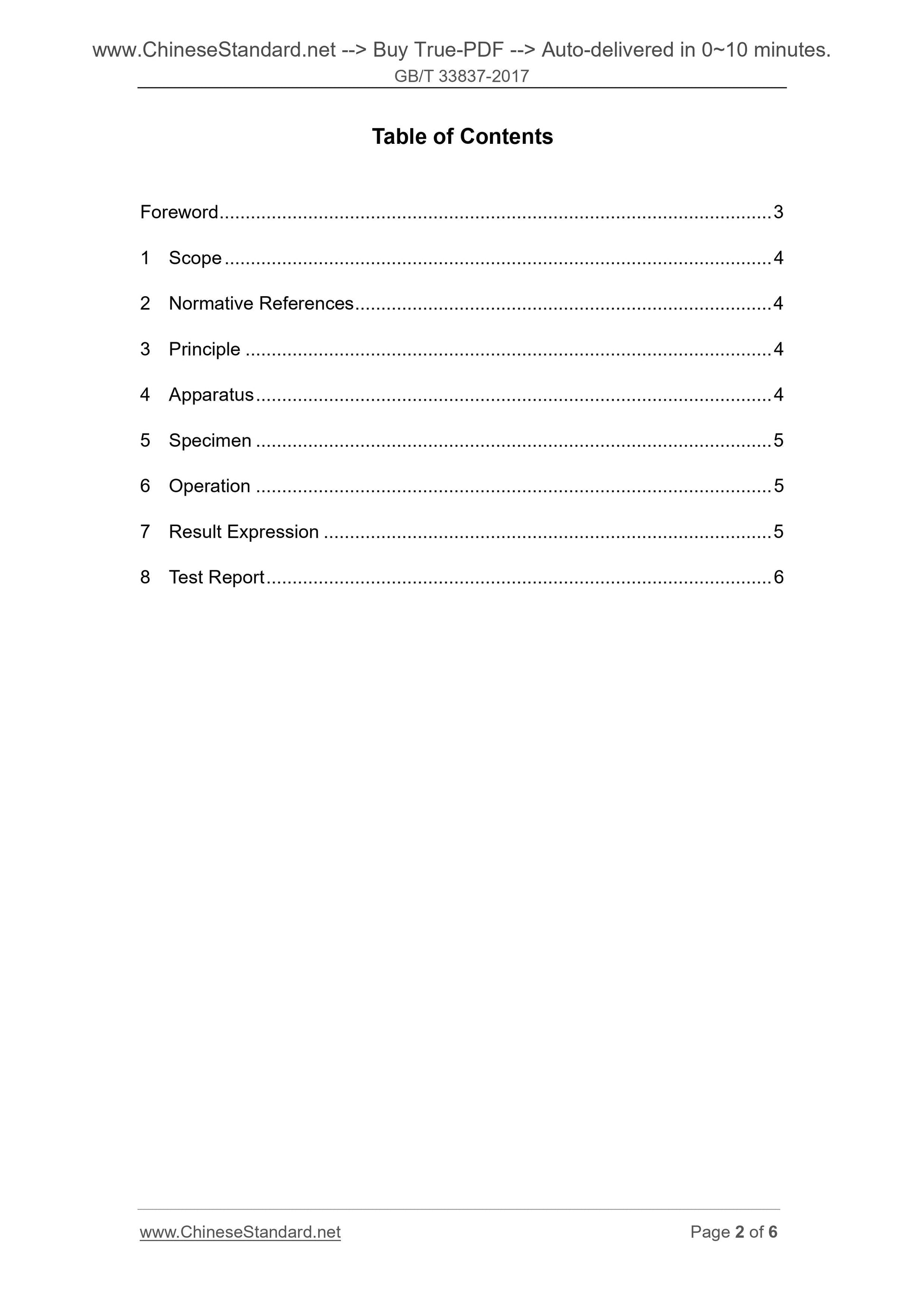

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Principle ... 4
4 Apparatus ... 4
5 Specimen ... 5
6 Operation ... 5
7 Result Expression ... 5
8 Test Report ... 6

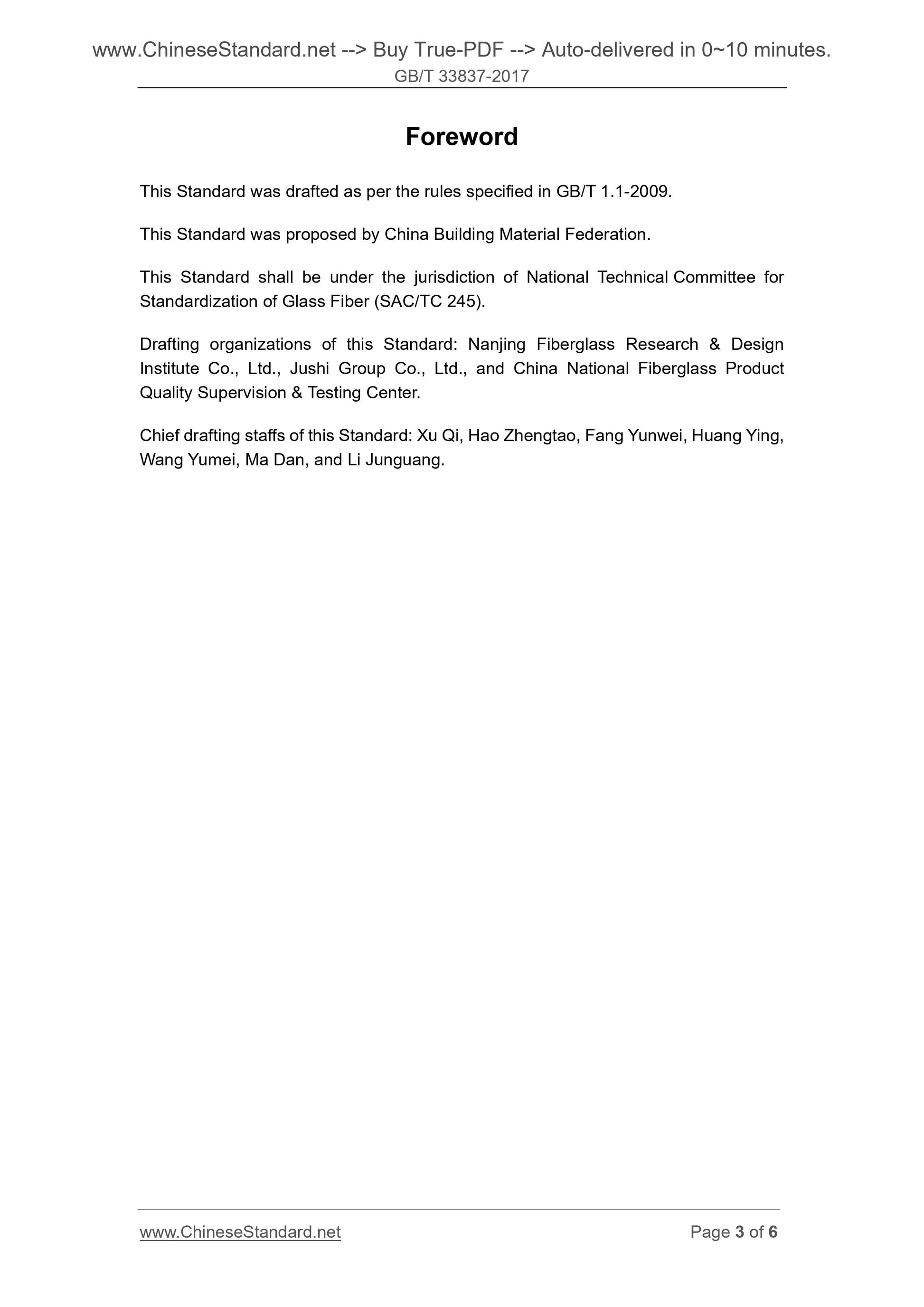

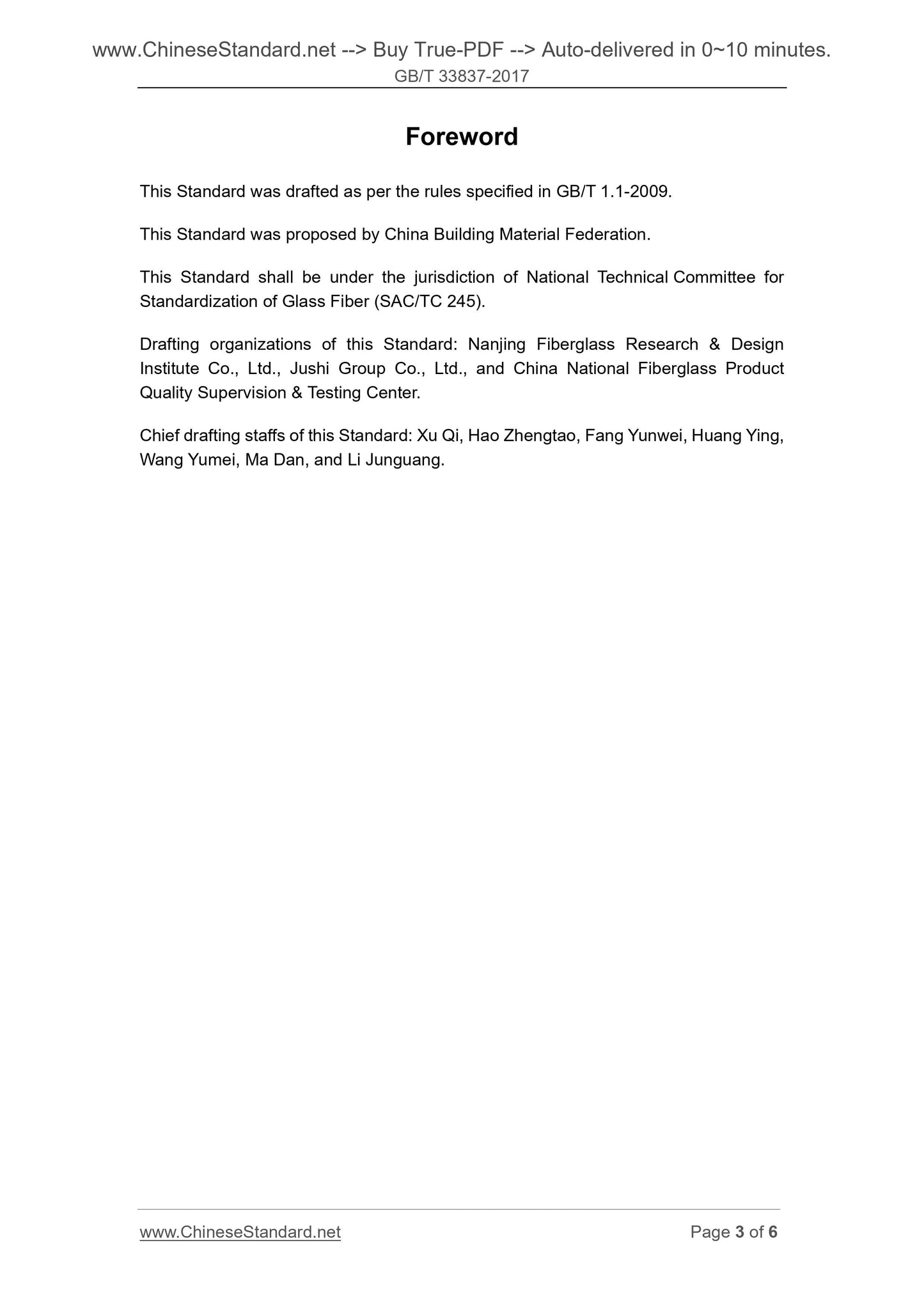

Foreword
This Standard was drafted as per the rules specified in GB/T 1.1-2009.
This Standard was proposed by China Building Material Federation.
This Standard shall be under the jurisdiction of National Technical Committee for
Standardization of Glass Fiber (SAC/TC 245).
Drafting organizations of this Standard. Nanjing Fiberglass Research and Design
Institute Co., Ltd., Jushi Group Co., Ltd., and China National Fiberglass Product
Quality Supervision and Testing Center.
Chief drafting staffs of this Standard. Xu Qi, Hao Zhengtao, Fang Yunwei, Huang Ying,
Wang Yumei, Ma Dan, and Li Junguang.

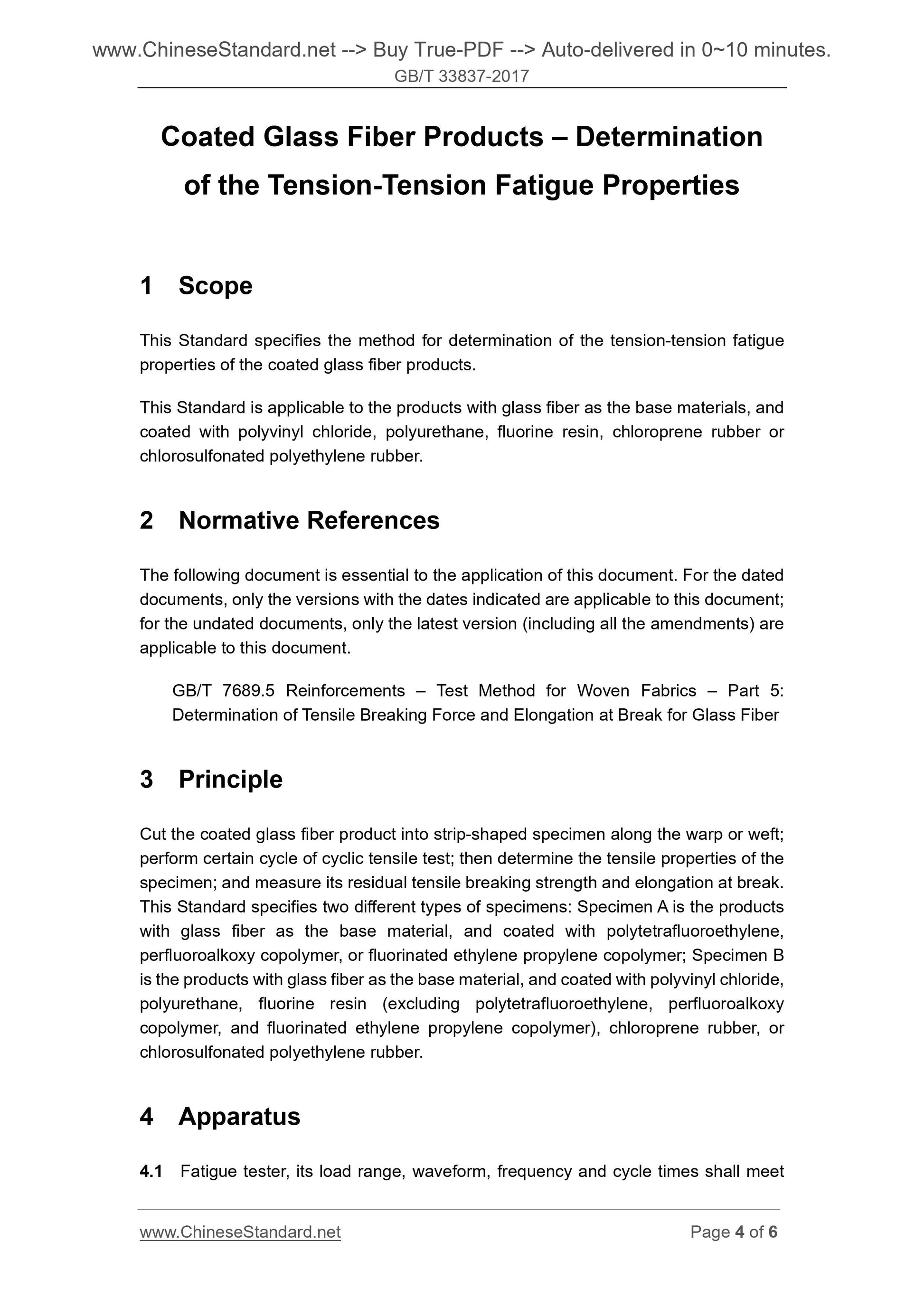

Coated Glass Fiber Products – Determination
of the Tension-Tension Fatigue Properties
1 Scope
This Standard specifies the method for determination of the tension-tension fatigue
properties of the coated glass fiber products.
This Standard is applicable to the products with glass fiber as the base materials, and
coated with polyvinyl chloride, polyurethane, fluorine resin, chloroprene rubber or
chlorosulfonated polyethylene rubber.
2 Normative References
The following document is essential to the application of this document. For the dated
documents, only the versions with the dates indicated are applicable to this document;
for the undated documents, only the latest version (including all the amendments) are
applicable to this document.
GB/T 7689.5 Reinforcements – Test Method for Woven Fabrics – Part 5.
Determination of Tensile Breaking Force and Elongation at Break for Glass Fiber
3 Principle
Cut the coated glass fiber product into strip-shaped specimen along the warp or weft;
perform certain cycle of cyclic tensile test; then determine the tensile properties of the
specimen; and measure its residual tensile breaking strength and elongation at break.
This Standard specifies two different types of specimens. Specimen A is the products
with glass fiber as the base material, and coated with polytetrafluoroethylene,
perfluoroalkoxy copolymer, or fluorinated ethylene propylene copolymer; Specimen B
is the products with glass fiber as the base material, and coated with polyvinyl chloride,
polyurethane, fluorine resin (excluding polytetrafluoroethylene, perfluoroalkoxy
copolymer, and fluorinated ethylene propylene copolymer), chloroprene rubber, or
chlorosulfonated polyethylene rubber.
4 Apparatus
4.1 Fatigue tester, its load range, waveform, frequency and cycle times shall meet
