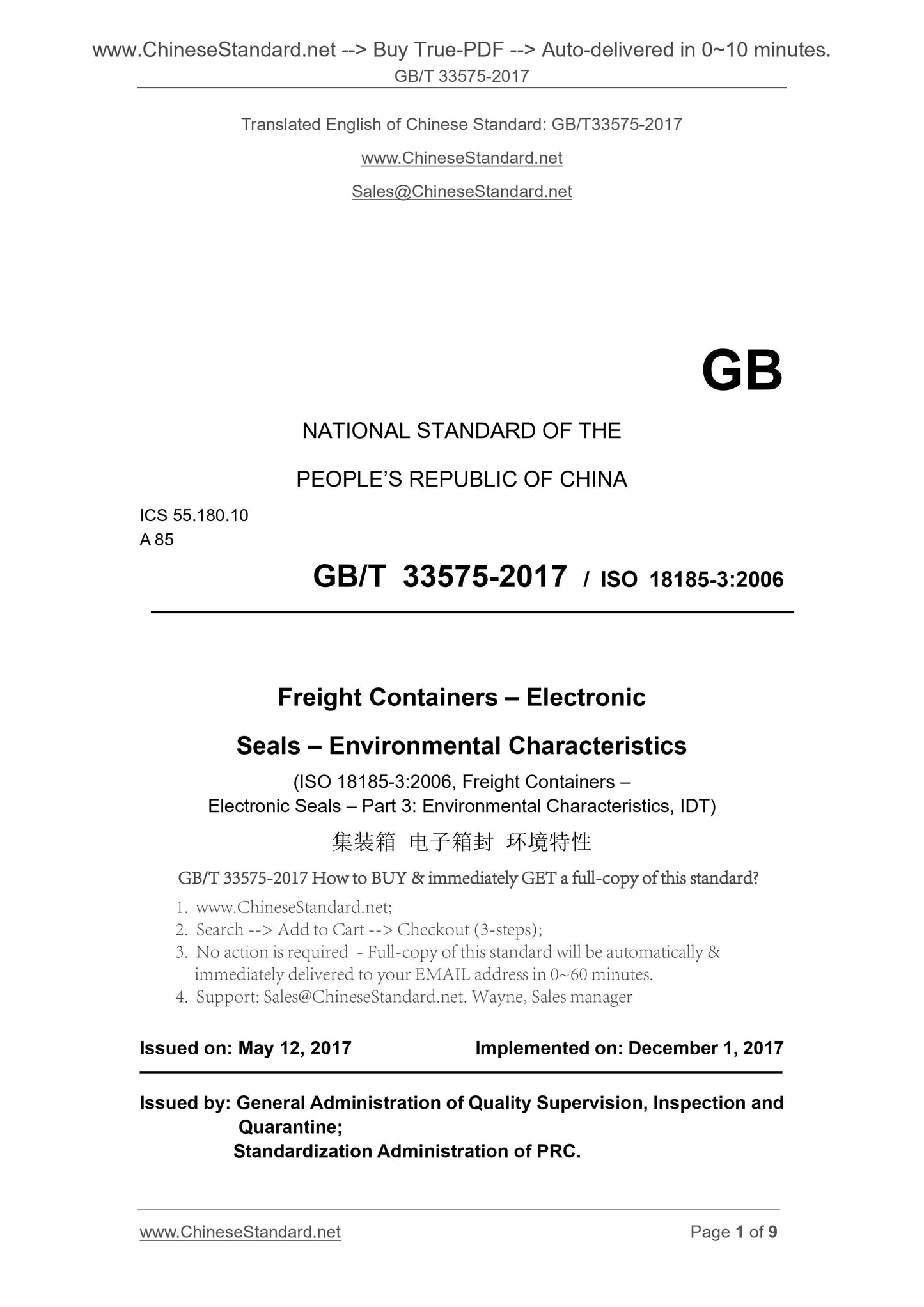

GB/T 33575-2017
Freight containers - Electronic seals - Environmental characteristics
ICS 55.180.10
A85
National Standards of People's Republic of China
Container Electronic Box Enclosure Environmental Characteristics
(ISO 18185-3.2006, Freightcontainers-Electronicseals-
Part 3. Environmentalcharacteristics, IDT)
2017-05-12 released
2017-12-01 implementation
General Administration of Quality Supervision, Inspection and Quarantine of the People 's Republic of China
China National Standardization Management Committee released

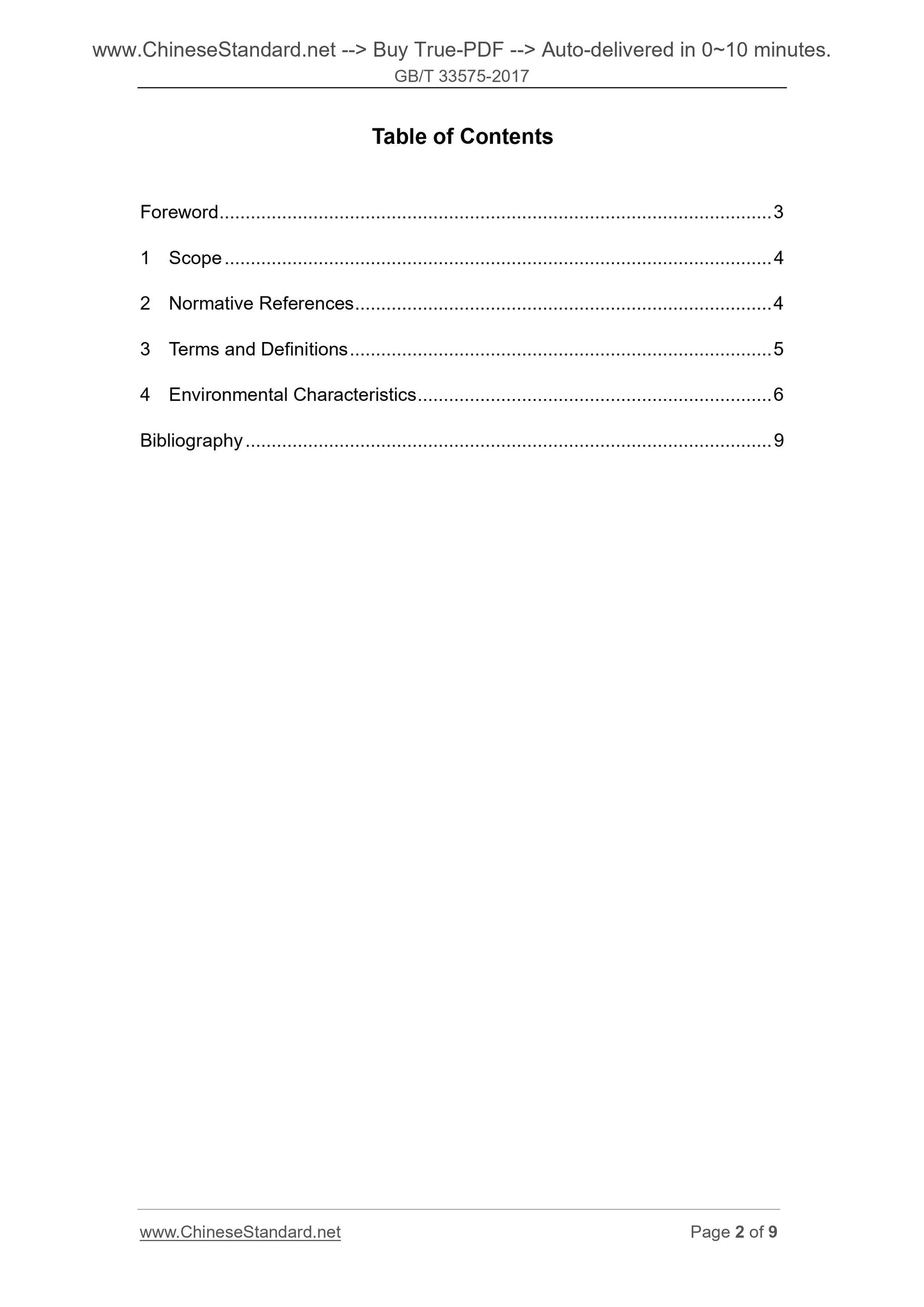

Directory
Preface III
1 range 1
2 normative reference document 1
3 Terms and definitions 2
4 Environmental characteristics 2
Reference 4

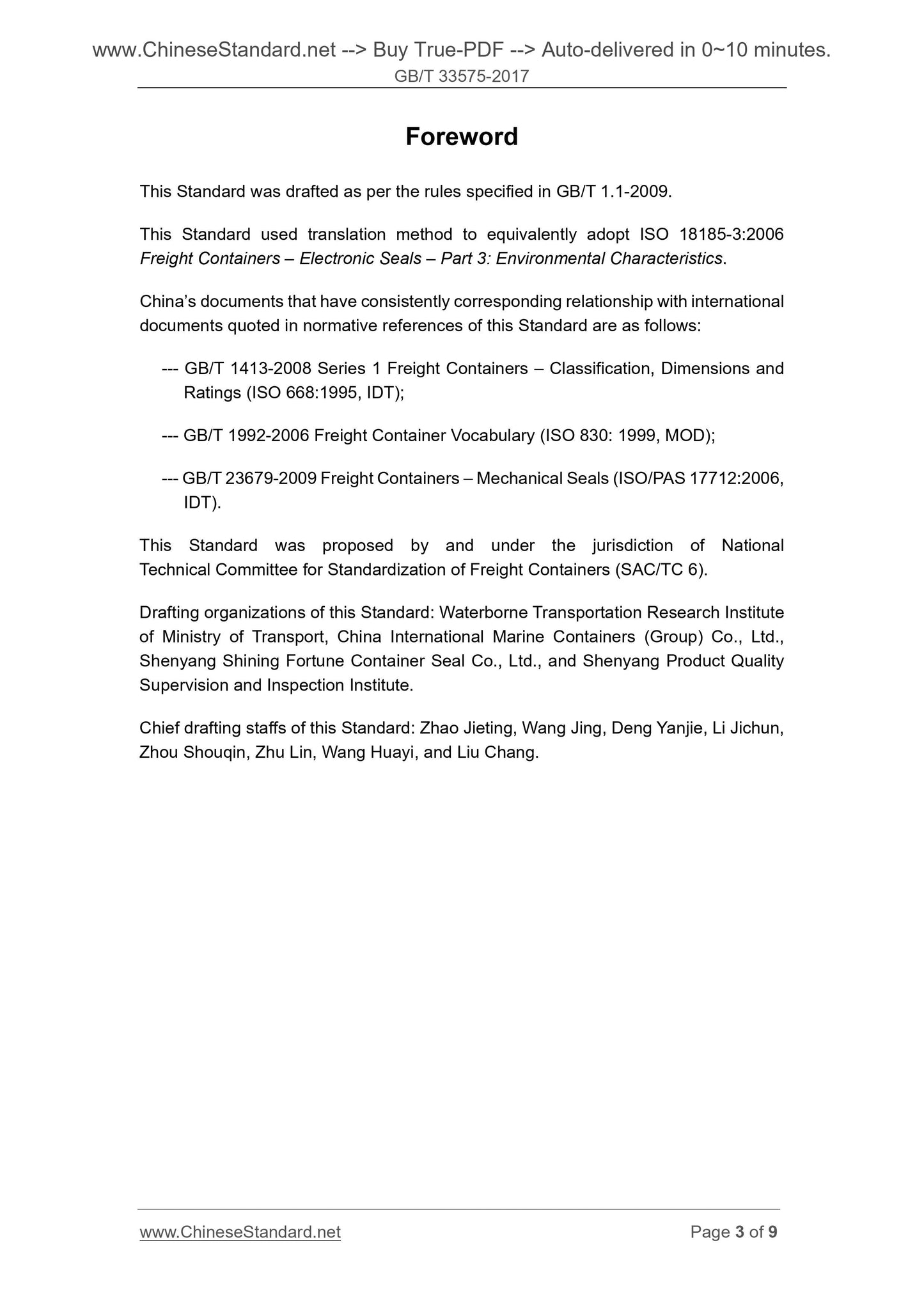

Preface
This standard is drafted in accordance with the rules given in GB/T 1.1-2009.
This standard uses the translation method equivalent to ISO 18185-3.2006 "Container electronic box closure Part 3. Environmental characteristics".
And the normative reference in this standard international documents are consistent with the relationship between China's documents are as follows.
GB/T 1413-2008 Series 1 container classification, dimensions and rated quality (ISO 668.1995, IDT);
Container terminology (ISO 830.1999, MOD);
Container machinery box closure (ISO /PAS 17712.2006, IDT) GB/T 23679-2009.
And roundsy drafts. Decision3232 Copyright Correspinding H.2 tos. Decision applies outcome L.
This standard is responsible for drafting units. the Ministry of Transport Water Transport Science Research Institute, China International Marine Containers (Group) Co., Ltd., Shen
Yang Yao Fushi Blockade Co., Ltd., Shenyang Product Quality Inspection Institute.
The main drafters of this standard. Zhao Jieting, Wang Jing, Deng Yanjie, Li Jichun, Zhou Suqin, Zhu Lin, Wang Huayi, Liu Chang.
Container Electronic Box Enclosure Environmental Characteristics

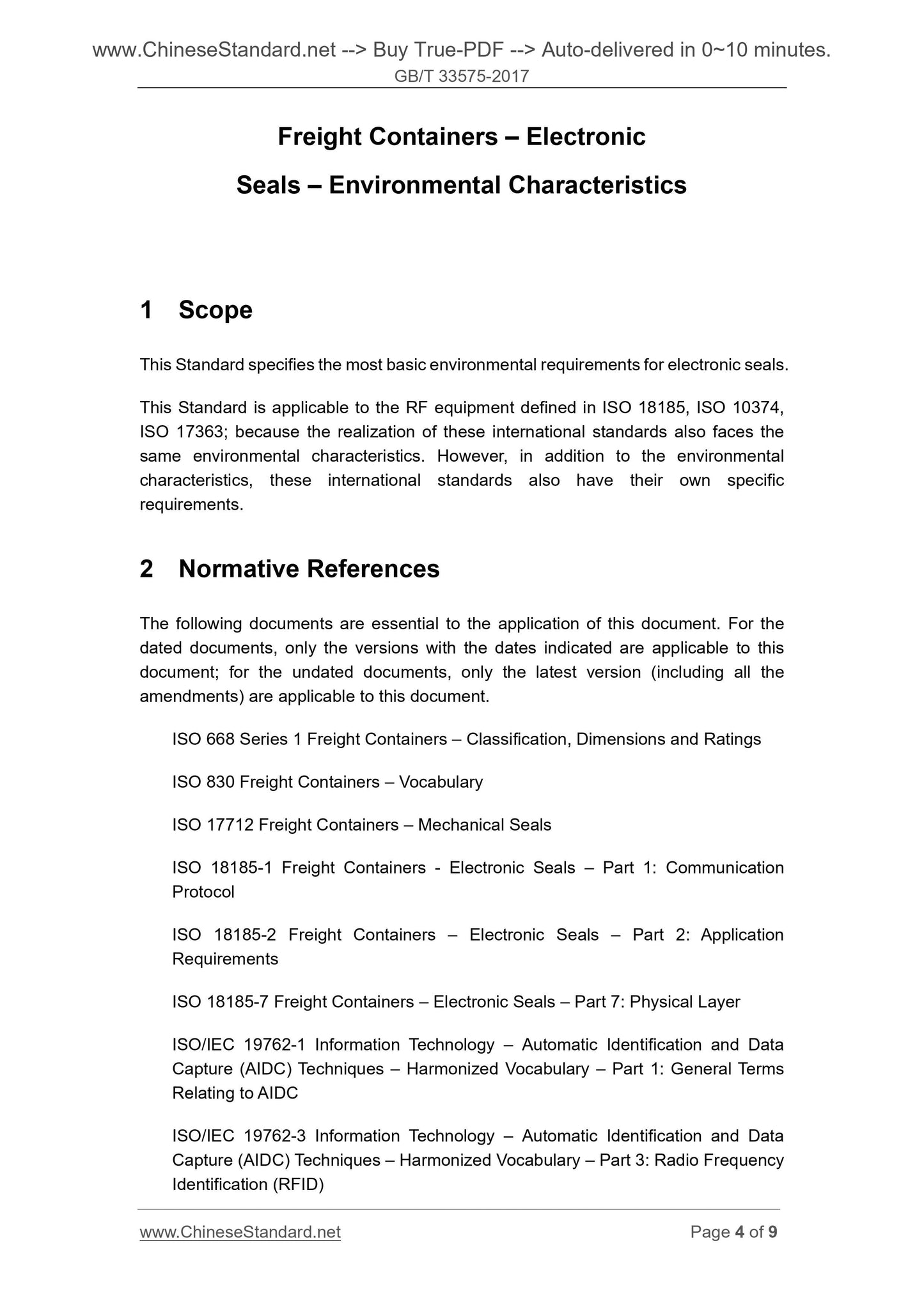

1 Scope
This standard specifies the most basic environmental requirements for electronic box seals.
This standard applies to ISO 18185, ISO 10374, ISO 17363 defined RF equipment, because these international standards will be implemented
Pro The same environmental characteristics. However, these international standards in addition to environmental characteristics, but also have their own specific requirements.
2 normative reference documents
The following documents are indispensable for the application of this document. For dated references, only the dated edition applies to this article
Pieces. For undated references, the latest edition (including all modifications) applies to this document.
ISO 668 Series 1 Container Classification, Dimensions and Rated Quality (Series1freightcontainers-Classification, di-
mensionsandratings
ISO 830 container terminology (Freightcontainers-Vocabulary)
ISO 17712 container machinery box (Freightcontainers-Mechanicalseals)
ISO 18185-1 Container electronic box closure Part 1. Communication protocol (Freightcontainers-Electronicseals-
Part 1. Communicationprotocol)
ISO 18185-2 Container electronic box closure Part 2. Application requirements (Freightcontainers-Electronicseals-
Part 2. Applicationrequirements)
ISO 18185-7 Container electronic box closure - Part 7. Physical layer (Freightcontainers-Electronicseals-Part 7.
Physicallayer)
ISO /IEC 19762-1 Information technology - Automatic identification and data capture (AIDC) - Technical calibration vocabulary - Part 1.
AIDC related general terms [Informationtechnology-Automaticidentification anddatacapture (AIDC)
techniques-Harmonizedvocabulary-Part 1. GeneraltermsrelatingtoAIDC]
ISO /IEC 19762-3 Information technology - Automatic identification and data capture (AIDC) - Technical calibration vocabulary - Part 3. Radio frequency identification
(RFID) [Informationtechnology-Automaticidentification anddatacapture (AIDC) techniques-
Harmonizedvocabulary-Part 3. Radiofrequencyidentification (RFID)]
IEC 60068-2-1 Environmental tests Part 2. Test tests A. Low temperature (Environmentaltesting-Part 2.
Tests-TestA. Cold)
IEC 60068-2-2 Environmental tests - Part 2. Test tests B. Dry heat (Environmentaltesting-Part 2.
Tests-TestB. Dryheat)
IEC 60068-2-11 Environmental testing - Part 2. Test test Ka. salt spray (BasicEnvironmentalTestingProce-
dures-Part 2. Tests-TestKa. Saltmist)
IEC 60068-2-18 Environmental testing - Part 2-18. Test tests R and Guidance. Water (Environmentaltesting -
Part 2-18. Tests-TestRandguidance. Water)
IEC 60068-2-27 Environmental testing - Part 2. Test tests Ea and Guidance. Vibration (Environmentaltesting -
Part 2. Tests-TestEaandguidance. Shock)
IEC 60068-2-31 Environmental tests Part 2. Test tests Ec. Drop and dump, mainly for equipment level products (En-
vironmentaltesting-Part 2. Tests-TestEc. Dropandtopple, mainforequipment-typespeci-
mens)
IEC 60068-2-32 Environmental testing - Part 2. Test tests Ed. Free fall -
Part 2. Tests-TestEd. Freefal)
IEC 60068-2-38 Environmental testing - Part 2. Test test Z/AD. Temperature and humidity cycle test (Environmental
testing-Part 2. Tests-TestZ/AD. Compositetemperature/humiditycyclictest)
IEC 60068-2-53 Environmental testing - Part 2. Test Z/AFc and Z/BFc test guidelines. temperature (low temperature and dry heat) and vibration
(Sine) comprehensive test [Environmentaltesting-Part 2. Tests-GuidancetoTestsZ/AFcandZ/BFc.
Combined temperature (coldanddryheat) andvibration (sinusoidal) tests]
IEC 60068-2-68 Environmental testing - Part 2. Test tests L. Dust (Environmentaltesting - Part 2.
Tests-TestL. Dustandsand)
MIL-STD-810F Department of Defense Environmental Engineering and Laboratory Test Methods Standard (DepartmentofDefensetest
methodstandardforenvironmentalengineeringconsiderationsandlaboratorytests)
3 terms and definitions
ISO 830, ISO 17712, ISO /IEC 19762-1, ISO /IEC 19762-3, and the following terms and definitions apply to this
file.
3.1
Electronic box seal
Read-only, non-reusable container box that meets the requirements of ISO 17712 and ISO 18185 for high protection requirements and can provide damage
Or electronic evidence of the intrusion door.
3.2
Seal identification code
Generally refers to the production of sealing the only identification code, by the production sequence number and vendor code composition.
3.3
Transponder identification code interrogatoridentification
The code used to identify the source address of each communication session initiated by the responder.
4 Environmental characteristics
4.1 General requirements
This standard should be used with other parts of ISO 18185.
This standard applies to all electronic box covers for containers covered by the following standards. ISO 668, ISO 1496-1, ISO 1496-2,
ISO 1496-3, ISO 1496-4, ISO 1496-5, ISO 830. As long as appropriate and feasible, this standard also applies to the above standard does not cover the freight
container.
Container electronic box seals are typically used in harsh environments for shipping, rail and road transport. Sand, dust, salt spray, grease, snow, ice and dust
The scale will cover the surface of the label and sensing equipment. Lifting and transport operations will be subject to physical shock and vibration.
Containers are circulating around the world, and ambient temperatures often cause significant temperature changes and may be exposed to sunlight and ultraviolet light for a long time
Line down. Container electronic box seal should be able to work in its surface temperature between -40 ℃ ~ 70 ℃ between the normal work, and in the -51 ℃ ~
85 ℃ between the intact storage of data. The electronic box seal shall be in a harsh environmental condition covered by the specified test method (at least)
Enough to work and ensure the integrity of the stored data.
The system should be able to function properly in the typical electromagnetic environment of the transport equipment. The electronic box seal should be able to peak at an electric field intensity of 60 s
Value of 50V/m environment, as well as the normal work of the ship-borne radar and other equipment issued by the RF source and other conditions to work and ensure that
The integrity of the data.
4.2 low temperature
At low -40 ° C, the electronic box should be able to work normally. At a minimum temperature of -51 ° C, exposed to a daily environment for 24 h
After 60 days of storage, the label should still work properly. The test shall be carried out in accordance with IEC 60068-2-1 (MIL-STD-810F, method 502.4).
4.3 high temperature
The electronic box seal shall continue to operate normally after a circulating temperature of 70 ° C to 38 ° C. At a minimum temperature of 85 ° C per day
Exposure 12h ~ 15h environment storage 60 days (ISO 18185-2 specified electronic box closed the shortest use of life), the electronic box should still be sealed
normal work. The test shall be carried out in accordance with IEC 60068-2-2 (MIL-STD-810F, method 501.4).
4.4 Mechanical shock
The electronic box seal should still function normally during the 30 h mechanical shock process and after the impact of the half sine pulse for 11 s. test
Should be completed according to IEC 60068-2-2 (MIL-STD-810F, method 516.5).
4.5 random vibration
The electronic box is sealed between -40 ° C and 70 ° C and is subjected to a random vibration of 3 g in each axial direction and after vibration
Can work properly. The test shall be carried out in accordance with IEC 60068-2-53 (MIL-STD-810F, method 514.5).
4.6 Humidity
The electronic box seal should still function normally after being in a 95% non-condensing humidity environment. The test shall be in accordance with IEC 60068-2-53
(MIL-STD-810F, method 507.4).
4.7 rain and snow
Electronic box sealed in the rain and snow and after the time, can work properly. The label is submerged under 1m deep saline and afterwards
normal work. The test shall be carried out in accordance with IEC 60068-2-18 (MIL-STD-810F, method 506.4/512.4).
4.8 salt spray
The electronic box should still function normally when it is subjected to salt spray. The test shall be carried out in accordance with IEC 60068-2-11 (MIL-STD-810F,
Method 509.4) is completed.
4.9 drop
The electronic box seal can protect the equipment from damage in a test environment that falls from a height of 3.3m to the surface of concrete and steel. Test period
And after the test equipment can be reliable, fully operational. The test shall be in accordance with the method specified in IEC 60068-2-31 and IEC 60068-2-32
The drop height and impact surface are defined by this standard.
4.10 dust
The electronic box seal should still work properly after exposure to sand and dust. The test shall be carried out in accordance with IEC 60068-2-68 (MIL-STD-
810F, Method 510.4).
4.11 Electromagnetic environment
In the container field and the ship may exist in the electromagnetic environment, the label should be able to work properly. Tag in the field strong peak up to 50V/m,
Time for 60s, can still survive and maintain the integrity of the stored data. The label will survive after 25kV electrostatic discharge
Keep the integrity of the stored data.
references
[1] ISO 1496-1, Series1freightcontainers-Specificationandtesting-Part 1. Generalcargo
containersforgeneralpurposes
[2] ISO 1496-2, Series1freightcontainers-Specificationandtesting-Part 2. Thermalcontain-
ers
[3] ISO 1496-3, Series1freightcontainers-Specificationandtesting-Part 3. Tankcontainers
forliquids, gasesandpressurizeddrybulk
[4] ISO 1496-4, Series1freightcontainers-Specificationandtesting-Part 4. Non-pressurized
containersfordrybulk
[5] ISO 1496-5, Series1freightcontainers-Specificationandtesting-Part 5. Platformandplatform-
basedcontainers
[6] ISO 6346, Freightcontainers-Coding, identificationandmarking
[7] ISO 10374, Freightcontainers-RFautomaticidentification
[8] ISO 17363, SupplychainapplicationsofRFID-Freightcontainers
[9] ISO 18185-4, Freightcontainers-Electronicseals-Part 4. Dataprotection
[10] ISO 18185-6, Freightcontainers-Electronicseals-Part 6. Messagesetsfortransferbe-
tweensealreaderandhostcomputer
[11] EuropeanUnion, ERCRecommendation70-03, RelatingtotheuseofShortRangeDevices
(SRD), Annex1NonSpecificShortRangeDevices
[12] EuropeanUnion, ETSIEN300220, RadioEquipmentandSystems (RES); ShortRange
Devices; TechnicalCharacteristics andTestMethodsforRadioEquipmenttoBeUsedinthe25MHz
to1000MHzFrequencyRangewithPowerLevelsRangingupto500mW
[13] ANSINCITS256Part 4.2, RadioFrequencyIdentification (RFID) -UHFRFIDProto-
cols-433.92MHzUHFNarrowbandActiveTagInterface
[14] USA, 47CFR, Part 15, CodeorFederalRegulations, FederalCommunicationsCommission,
47CFR-Part 15. Radiofrequencydevices
