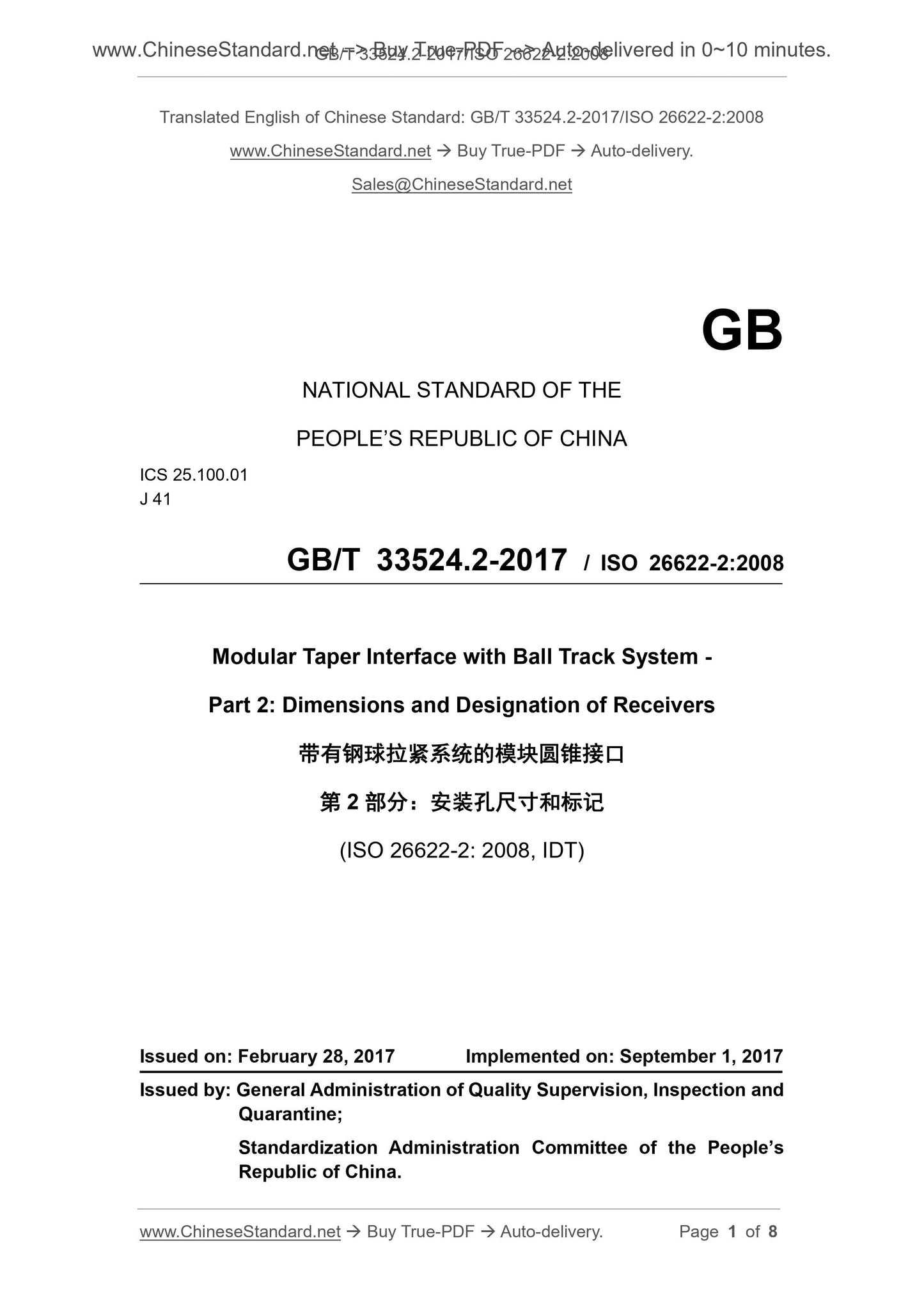

GB/T 33524.2-2017: Modular taper interface with ball track system -- Part 2: Dimensions and designation of receivers

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 33524.2-2017 (Self-service in 1-minute)
Newer / historical versions: GB/T 33524.2-2017

Preview True-PDF

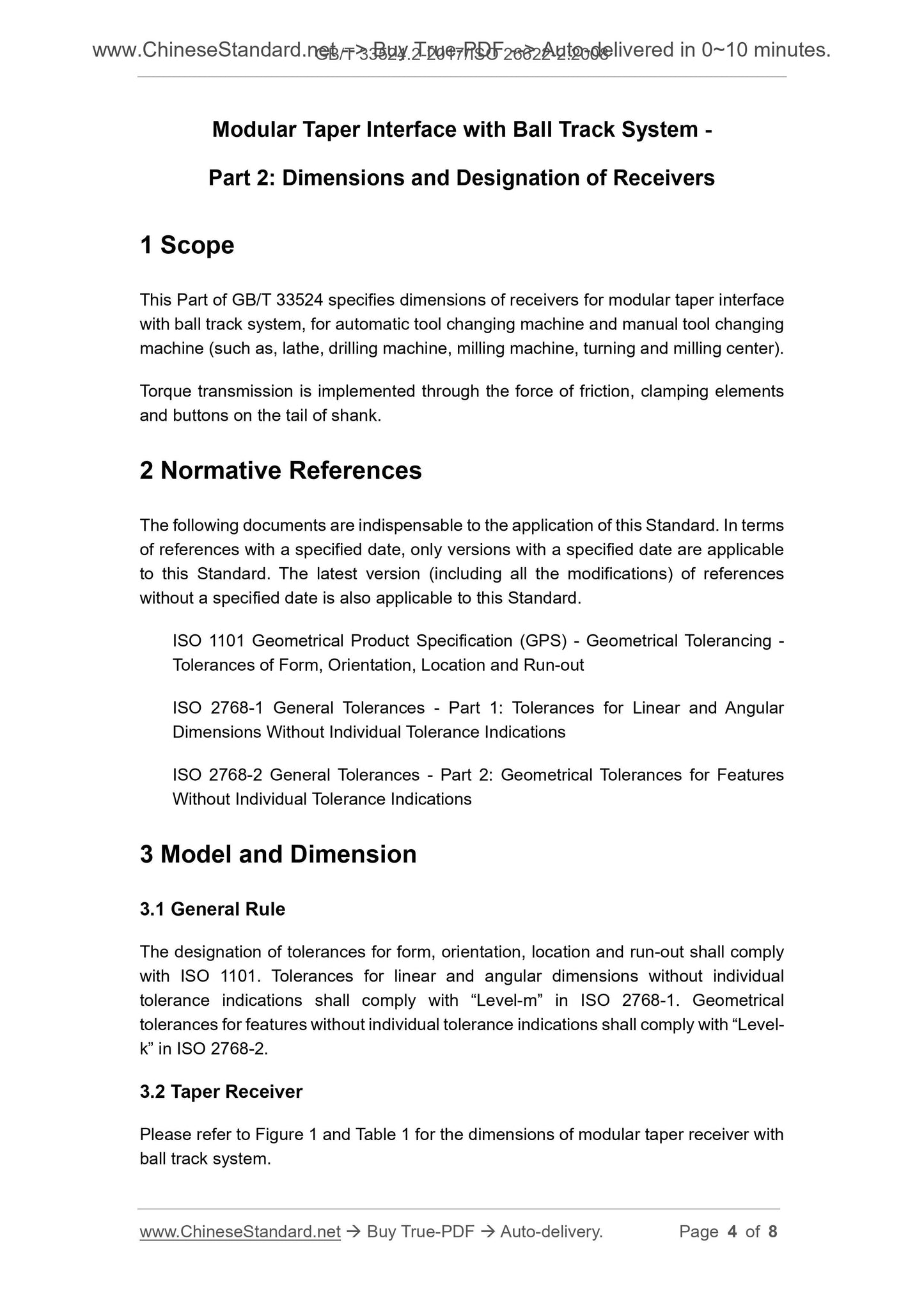

Scope

This part of GB/T 33524 specifies automatic tool changers and manual tool changers (such as lathes, drill presses, milling machines and milling centers).
Mounting hole series size for modular conical interface with steel ball tensioning system.
Torque transmission is achieved by the friction of the shank tail, the clamping elements and the keys.

Basic Data

Standard ID	GB/T 33524.2-2017 (GB/T33524.2-2017)
Description (Translated English)	Modular taper interface with ball track system -- Part 2: Dimensions and designation of receivers
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	J41
Classification of International Standard	25.100.01
Word Count Estimation	6,636
Date of Issue	2017-02-28
Date of Implementation	2017-09-01
Quoted Standard	ISO 1101; ISO 2768-1; ISO 2768-2
Adopted Standard	ISO 26622-2-2008, IDT
Regulation (derived from)	National Standard Announcement No. 4 of 2017
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the size of the mounting holes for modules with automatic tool changer and manual tool changer (eg lathe, drill press, milling machine and milling center), with steel ball tensioning system. Torque transmission is achieved by the frictional force of the tail of the shank, the clamping element and the key.
