GB/T 33460-2016: Specifications for compiling dismantling manual of end-of-life vehicles

This Standard specifies the compiling terms and definitions, general compiling principles, compiling entries and requirements for the dismantling manual of end-of-life vehicles. This Standard is applicable to the compiling for M1, N1 vehicle enterprises manuals; while the compiling for other types of vehicles enterprises manuals can refer to.

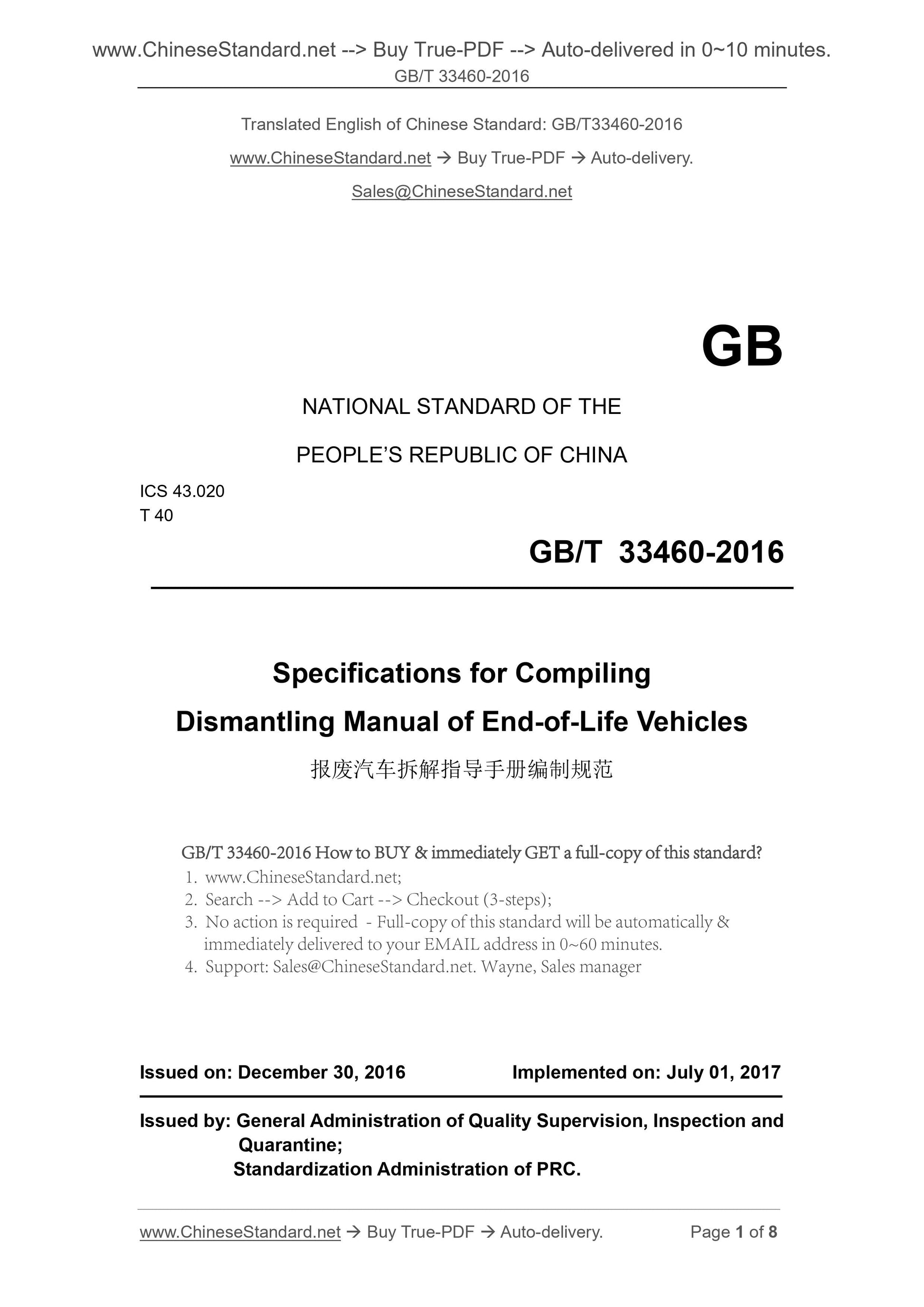

GB/T 33460-2016
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 43.020
T 40
Specifications for Compiling
Dismantling Manual of End-of-Life Vehicles
ISSUED ON. DECEMBER 30, 2016
IMPLEMENTED ON. JULY 01, 2017
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of PRC.

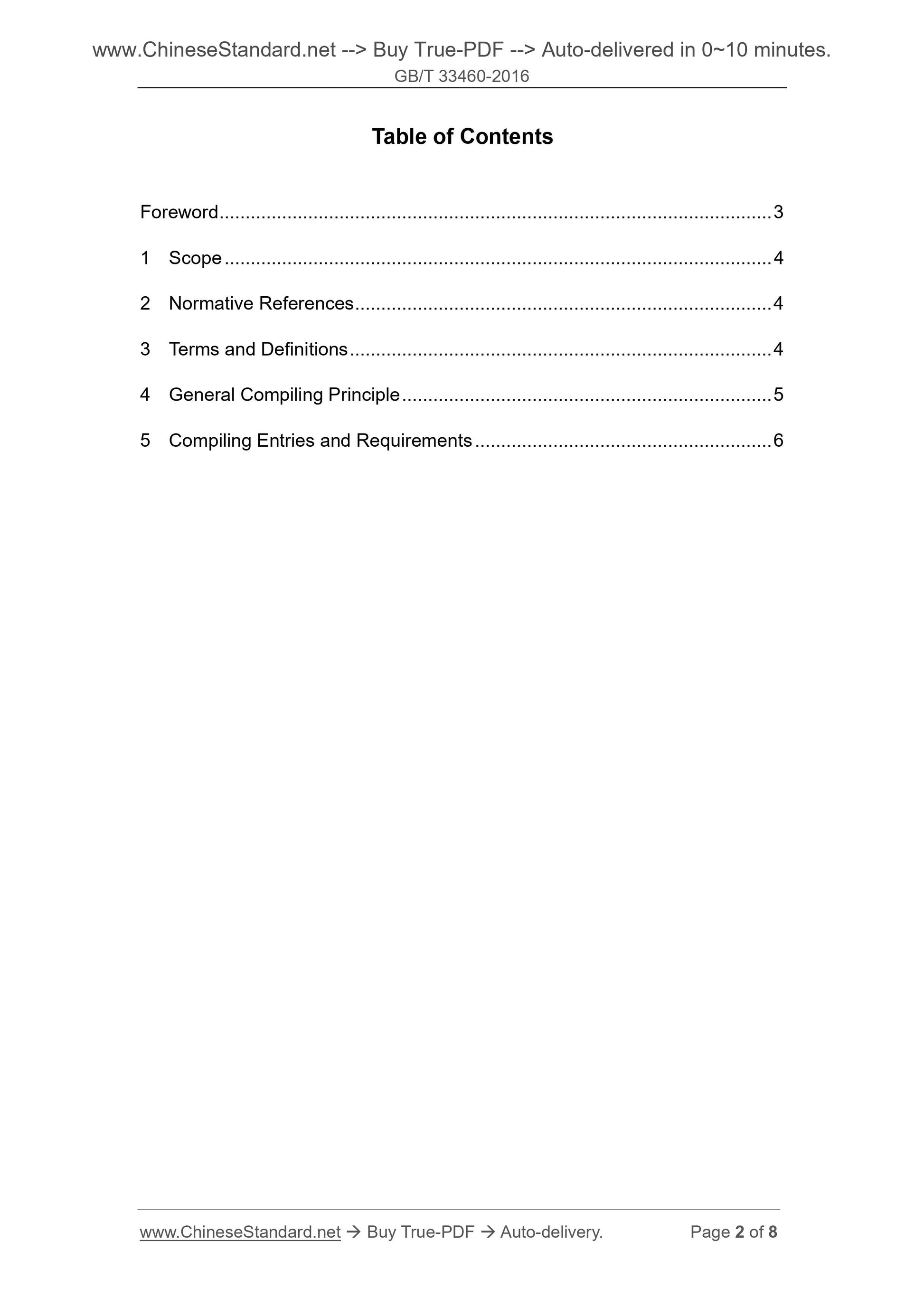

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 4
4 General Compiling Principle ... 5
5 Compiling Entries and Requirements ... 6

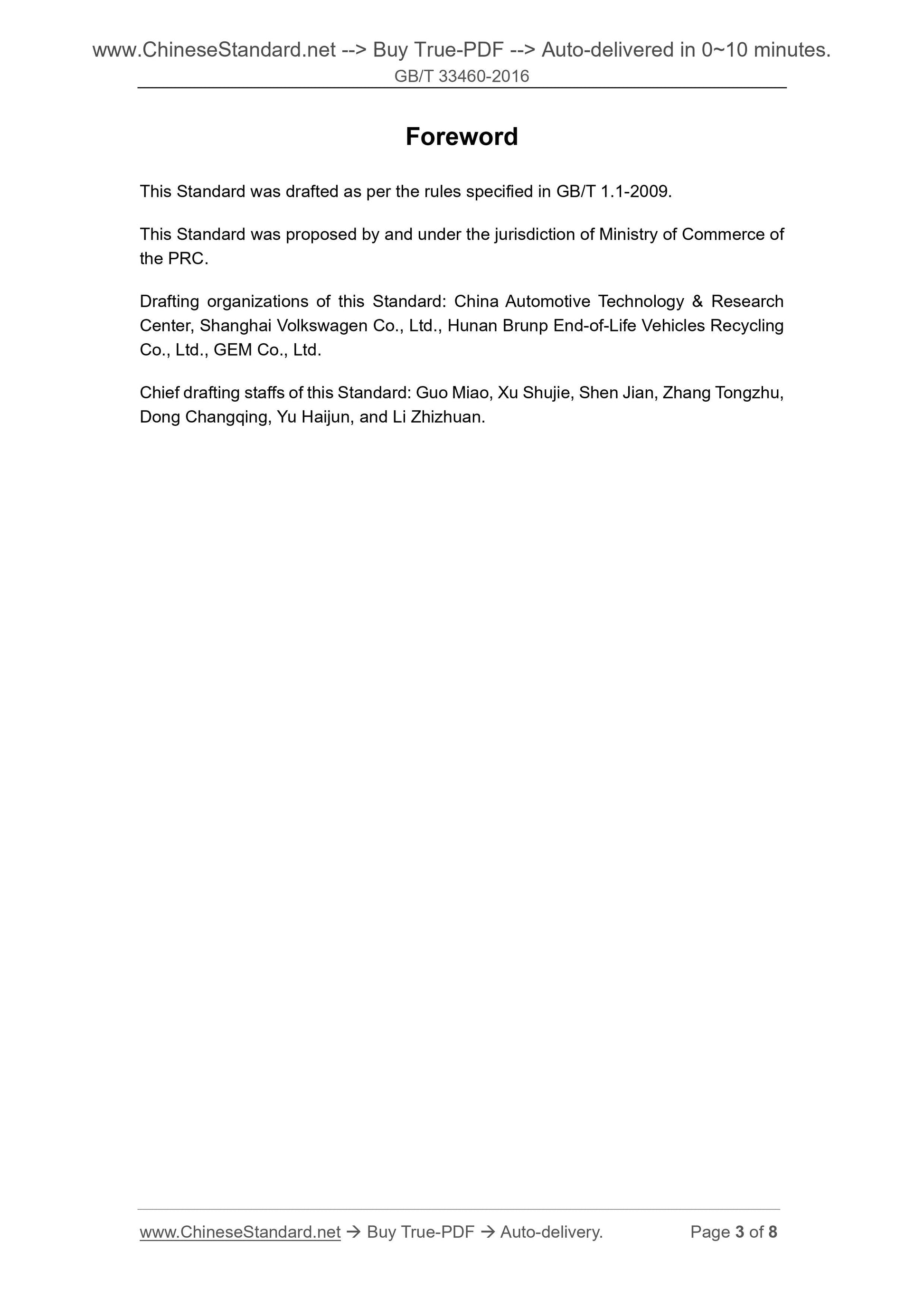

Foreword
This Standard was drafted as per the rules specified in GB/T 1.1-2009.
This Standard was proposed by and under the jurisdiction of Ministry of Commerce of the PRC.
Drafting organizations of this Standard. China Automotive Technology and Research Center, Shanghai Volkswagen Co., Ltd., Hunan Brunp End-of-Life Vehicles Recycling Co., Ltd., GEM Co., Ltd.
Chief drafting staffs of this Standard. Guo Miao, Xu Shujie, Shen Jian, Zhang Tongzhu, Dong Changqing, Yu Haijun, and Li Zhizhuan.

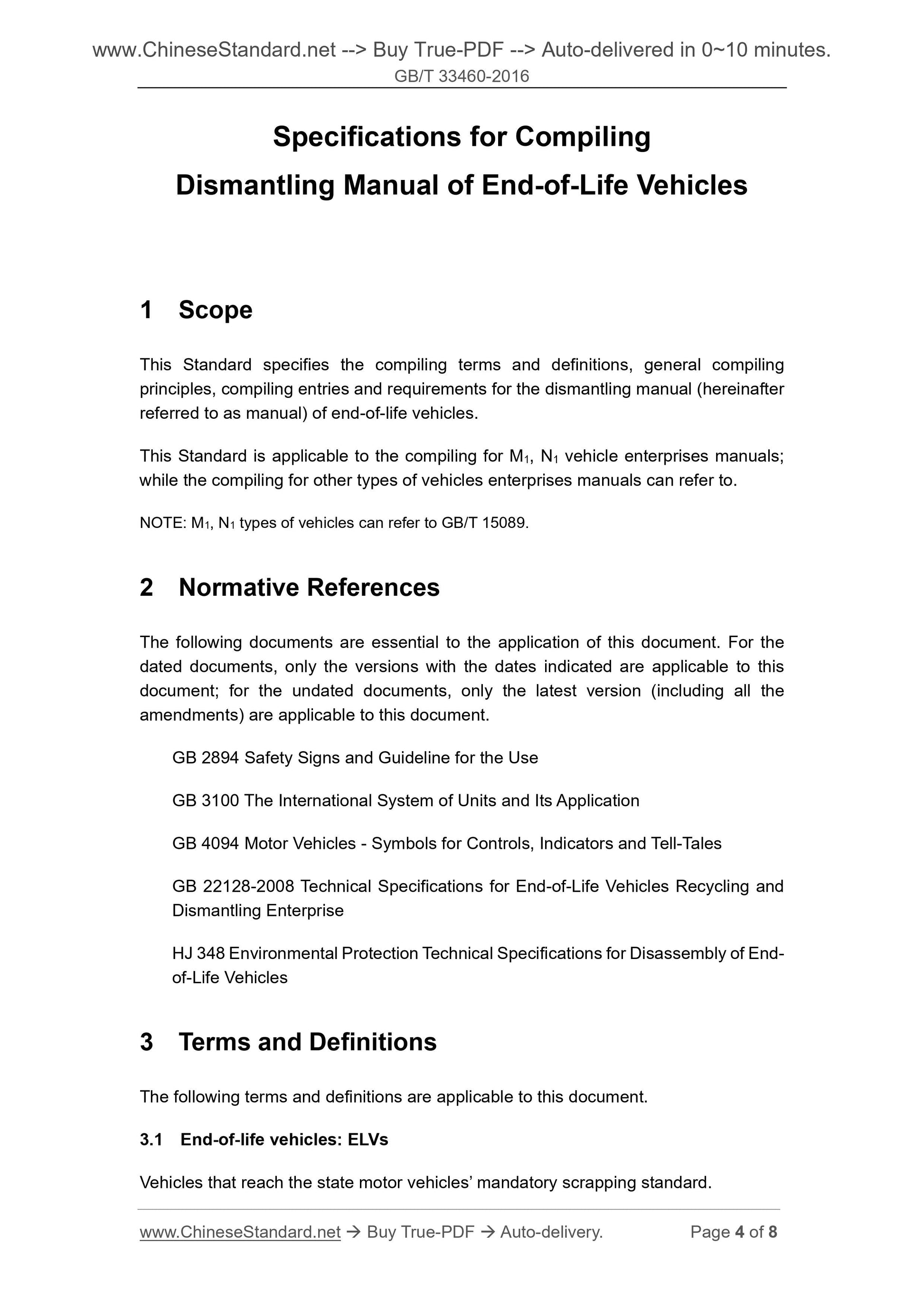

Specifications for Compiling
Dismantling Manual of End-of-Life Vehicles
1 Scope
This Standard specifies the compiling terms and definitions, general compiling principles, compiling entries and requirements for the dismantling manual (hereinafter referred to as manual) of end-of-life vehicles.
This Standard is applicable to the compiling for M1, N1 vehicle enterprises manuals; while the compiling for other types of vehicles enterprises manuals can refer to. NOTE. M1, N1 types of vehicles can refer to GB/T 15089.
2 Normative References
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this document.
GB 2894 Safety Signs and Guideline for the Use
GB 3100 The International System of Units and Its Application
GB 4094 Motor Vehicles - Symbols for Controls, Indicators and Tell-Tales GB 22128-2008 Technical Specifications for End-of-Life Vehicles Recycling and Dismantling Enterprise
HJ 348 Environmental Protection Technical Specifications for Disassembly of End- of-Life Vehicles
3 Terms and Definitions
The following terms and definitions are applicable to this document.
3.1 End-of-life vehicles. ELVs

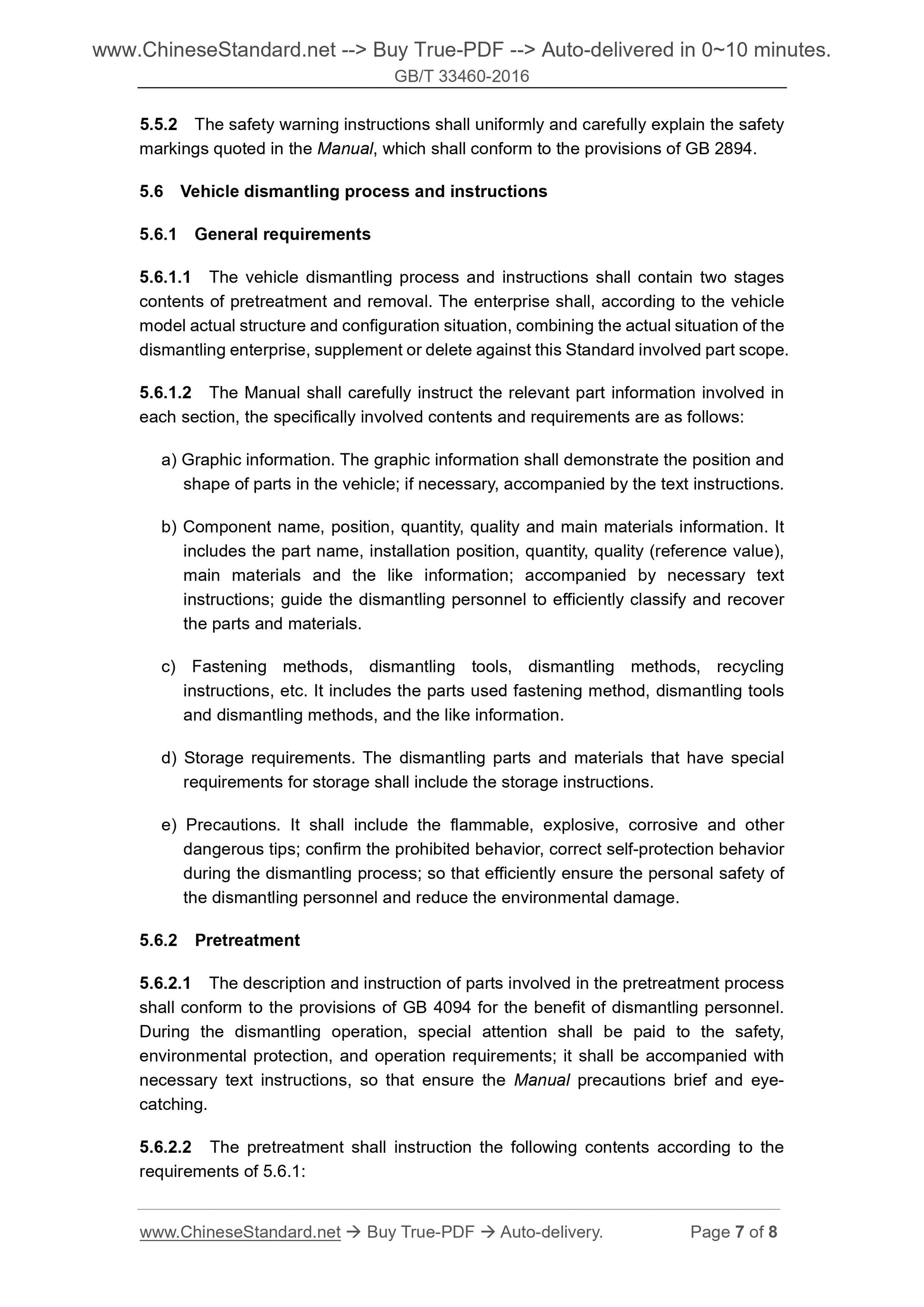

Vehicles that reach the state motor vehicles?€? mandatory scrapping standard. 5.5.2 The safety warning instructions shall uniformly and carefully explain the safety markings quoted in the Manual, which shall conform to the provisions of GB 2894. 5.6 Vehicle dismantling process and instructions
5.6.1 General requirements
5.6.1.1 The vehicle dismantling process and instructions shall contain two stages contents of pretreatment and removal. The enterprise shall, according to the vehicle model actual structure and configuration situation, combining the actual situation of the dismantling enterprise, supplement or delete against this Standard involved part scope. 5.6.1.2 The Manual shall carefully instruct the relevant part information involved in each section, the specifically involved contents and requirements are as follows. a) Graphic information. The graphic information shall demonstrate the position and shape of parts in the vehicle; if necessary, accompanied by the text instructions. b) Component name, position, quantity, quality and main materials information. It includes the part name, installation position, quantity, quality (reference value), main materials and the like information; accompanied by necessary text
instructions; guide the dismantling personnel to efficiently classify and recover the parts and materials.
c) Fastening methods, dismantling tools, dismantling methods, recycling instructions, etc. It includes the parts used fastening method, dismantling tools and dismantling methods, and the like information.
d) Storage requirements. The dismantling parts and materials that have special requirements for storage shall include the storage instructions.
e) Precautions. It shall include the flammable, explosive, corrosive and other dangerous tips; confirm the prohibited behavior, correct self-protection behavior during the dismantling process; so that efficiently ensure the personal safety of the dismantling personnel and reduce the environmental damage.
5.6.2 Pretreatment
5.6.2.1 The description and instruction of parts involved in the pretreatment process shall conform to the provisions of GB 4094 for the benefit of dismantling personnel. During the dismantling operation, special attention shall be paid to the safety, environmental protection, and operation requirements; it shall be accompanied with necessary text instructions, so that ensure the Manual precautions brief and eye- catching.
5.6.2.2 The pretreatment shall instruction the following contents according to the requirements of 5.6.1.
