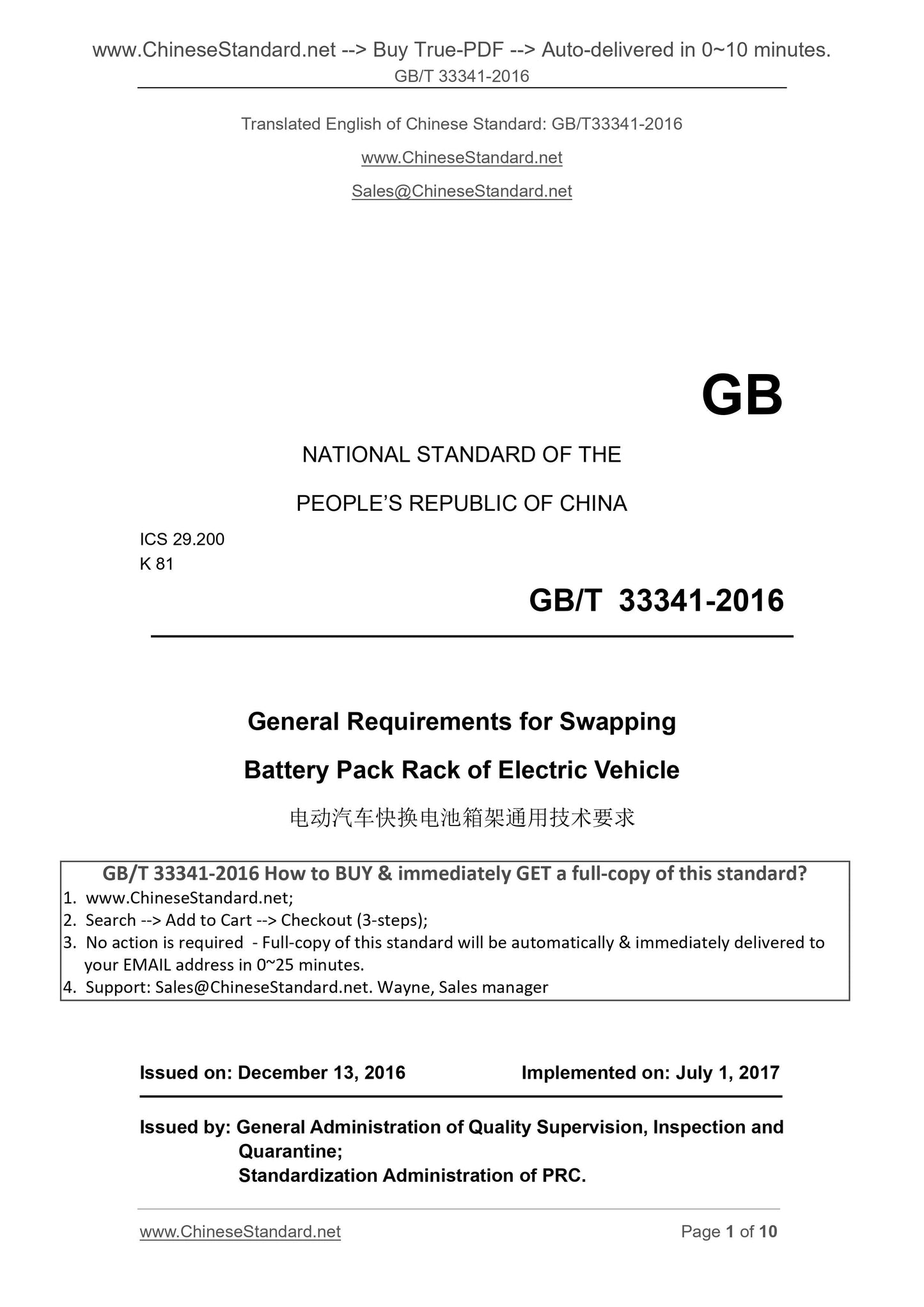

GB/T 33341-2016
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 29.200
K 81
General Requirements for Swapping
Battery Pack Rack of Electric Vehicle
ISSUED ON. DECEMBER 13, 2016
IMPLEMENTED ON. JULY 1, 2017
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration of PRC.

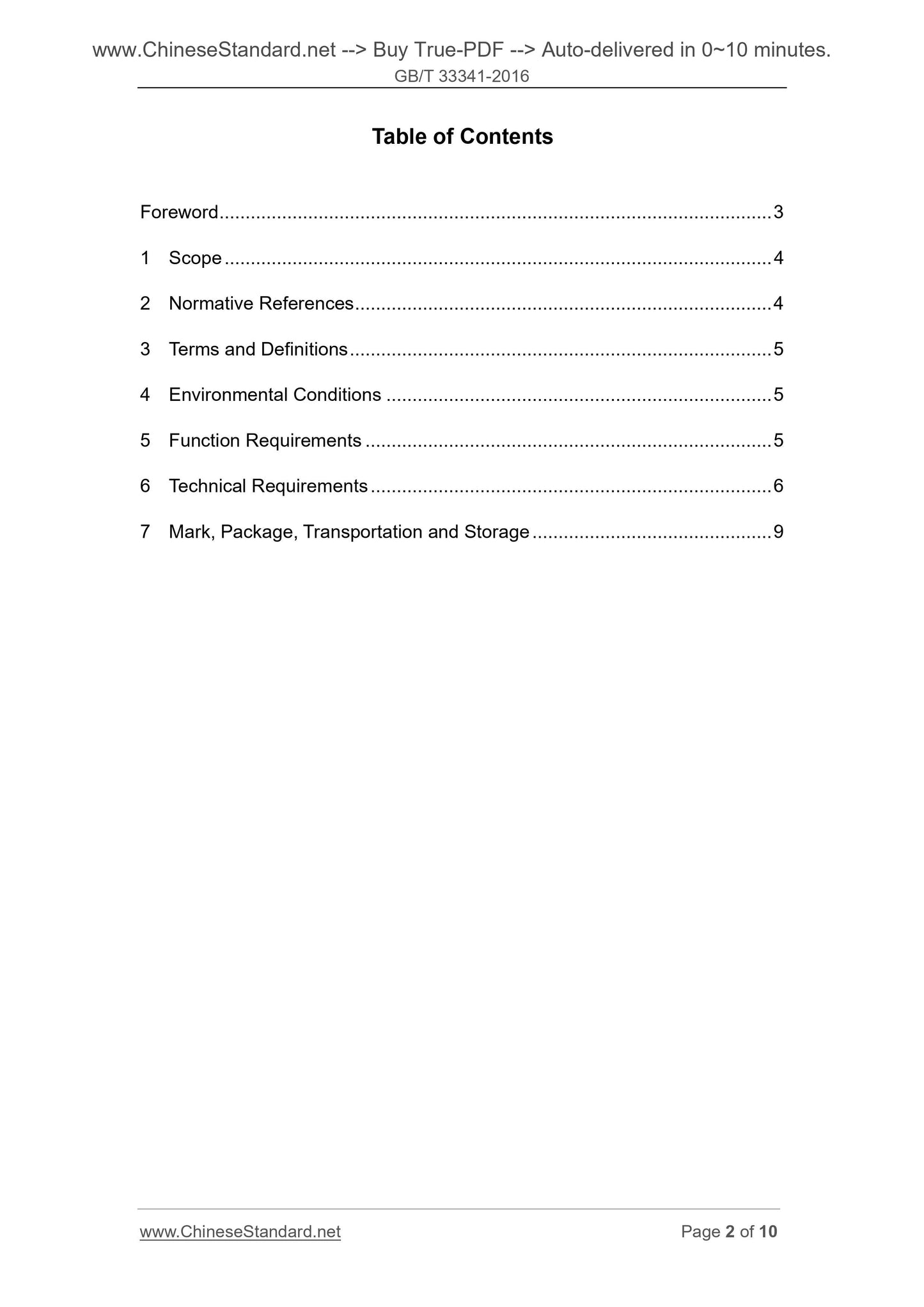

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 5
4 Environmental Conditions ... 5
5 Function Requirements ... 5
6 Technical Requirements ... 6
7 Mark, Package, Transportation and Storage ... 9

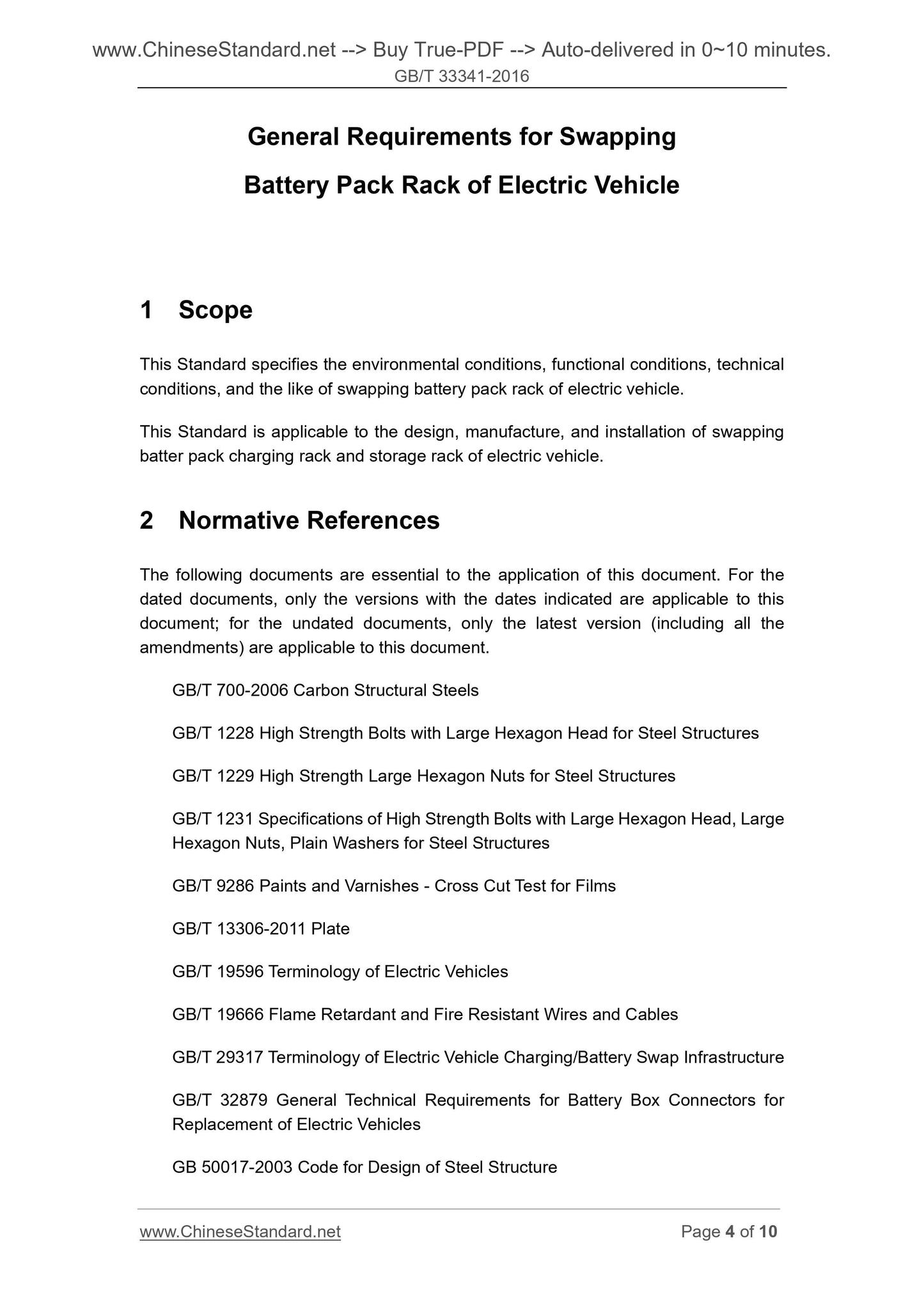

General Requirements for Swapping
Battery Pack Rack of Electric Vehicle
1 Scope
This Standard specifies the environmental conditions, functional conditions, technical
conditions, and the like of swapping battery pack rack of electric vehicle.
This Standard is applicable to the design, manufacture, and installation of swapping
batter pack charging rack and storage rack of electric vehicle.
2 Normative References
The following documents are essential to the application of this document. For the
dated documents, only the versions with the dates indicated are applicable to this
document; for the undated documents, only the latest version (including all the
amendments) are applicable to this document.
GB/T 700-2006 Carbon Structural Steels
GB/T 1228 High Strength Bolts with Large Hexagon Head for Steel Structures
GB/T 1229 High Strength Large Hexagon Nuts for Steel Structures
GB/T 1231 Specifications of High Strength Bolts with Large Hexagon Head, Large
Hexagon Nuts, Plain Washers for Steel Structures
GB/T 9286 Paints and Varnishes - Cross Cut Test for Films
GB/T 13306-2011 Plate
GB/T 19596 Terminology of Electric Vehicles
GB/T 19666 Flame Retardant and Fire Resistant Wires and Cables
GB/T 29317 Terminology of Electric Vehicle Charging/Battery Swap Infrastructure
GB/T 32879 General Technical Requirements for Battery Box Connectors for
Replacement of Electric Vehicles
GB 50017-2003 Code for Design of Steel Structure

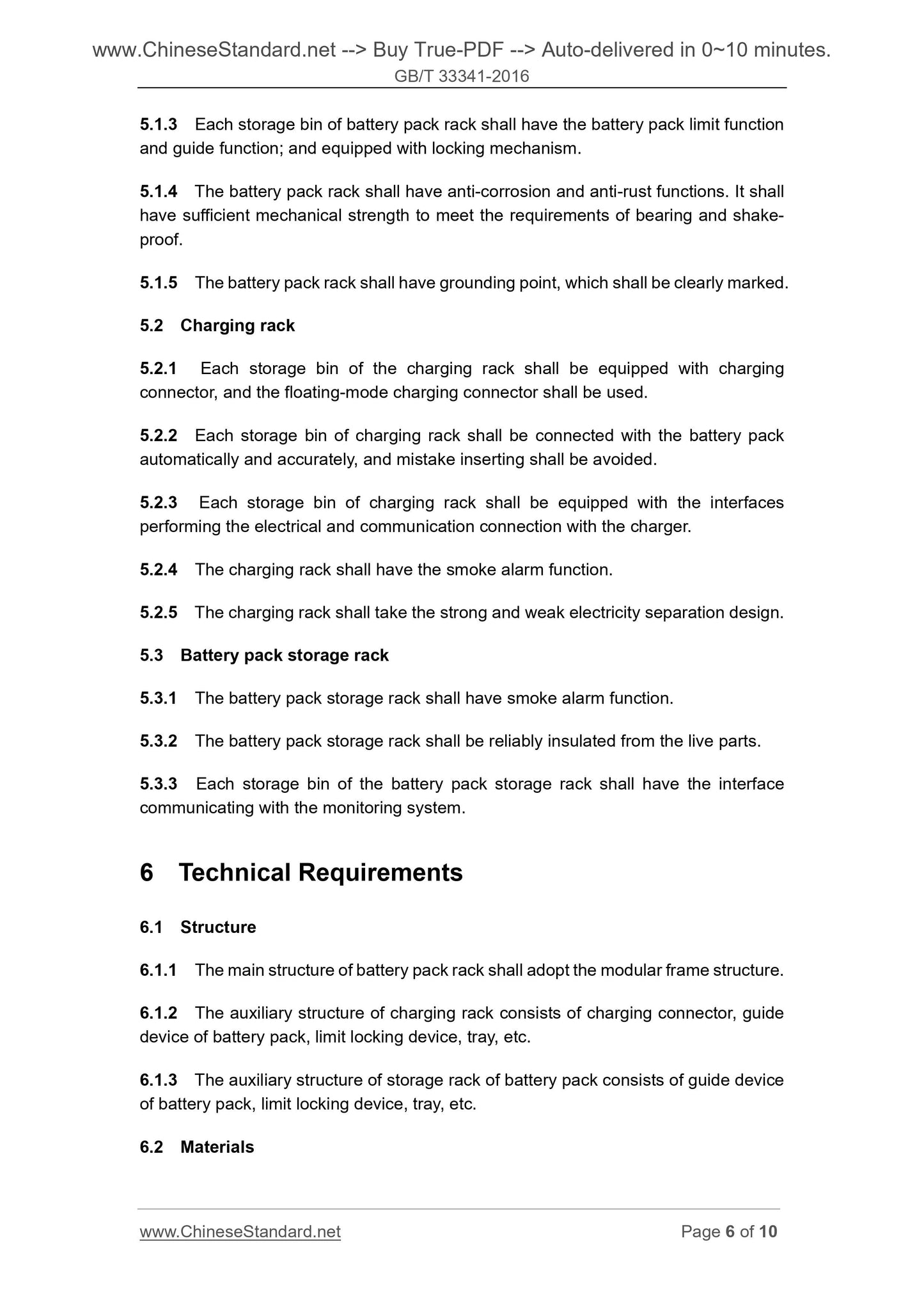

5.1.3 Each storage bin of battery pack rack shall have the battery pack limit function
and guide function; and equipped with locking mechanism.
5.1.4 The battery pack rack shall have anti-corrosion and anti-rust functions. It shall
have sufficient mechanical strength to meet the requirements of bearing and shake-
proof.
5.1.5 The battery pack rack shall have grounding point, which shall be clearly marked.
5.2 Charging rack
5.2.1 Each storage bin of the charging rack shall be equipped with charging
connector, and the floating-mode charging connector shall be used.
5.2.2 Each storage bin of charging rack shall be connected with the battery pack
automatically and accurately, and mistake inserting shall be avoided.
5.2.3 Each storage bin of charging rack shall be equipped with the interfaces
performing the electrical and communication connection with the charger.
5.2.4 The charging rack shall have the smoke alarm function.
5.2.5 The charging rack shall take the strong and weak electricity separation design.
5.3 Battery pack storage rack
5.3.1 The battery pack storage rack shall have smoke alarm function.
5.3.2 The battery pack storage rack shall be reliably insulated from the live parts.
5.3.3 Each storage bin of the battery pack storage rack shall have the interface
communicating with the monitoring system.
6 Technical Requirements
6.1 Structure
6.1.1 The main structure of battery pack rack shall adopt the modular frame structure.
6.1.2 The auxiliary structure of charging rack consists of charging connector, guide
device of battery pack, limit locking device, tray, etc.
6.1.3 The auxiliary structure of storage rack of battery pack consists of guide device
of battery pack, limit locking device, tray, etc.
6.2 Materials
