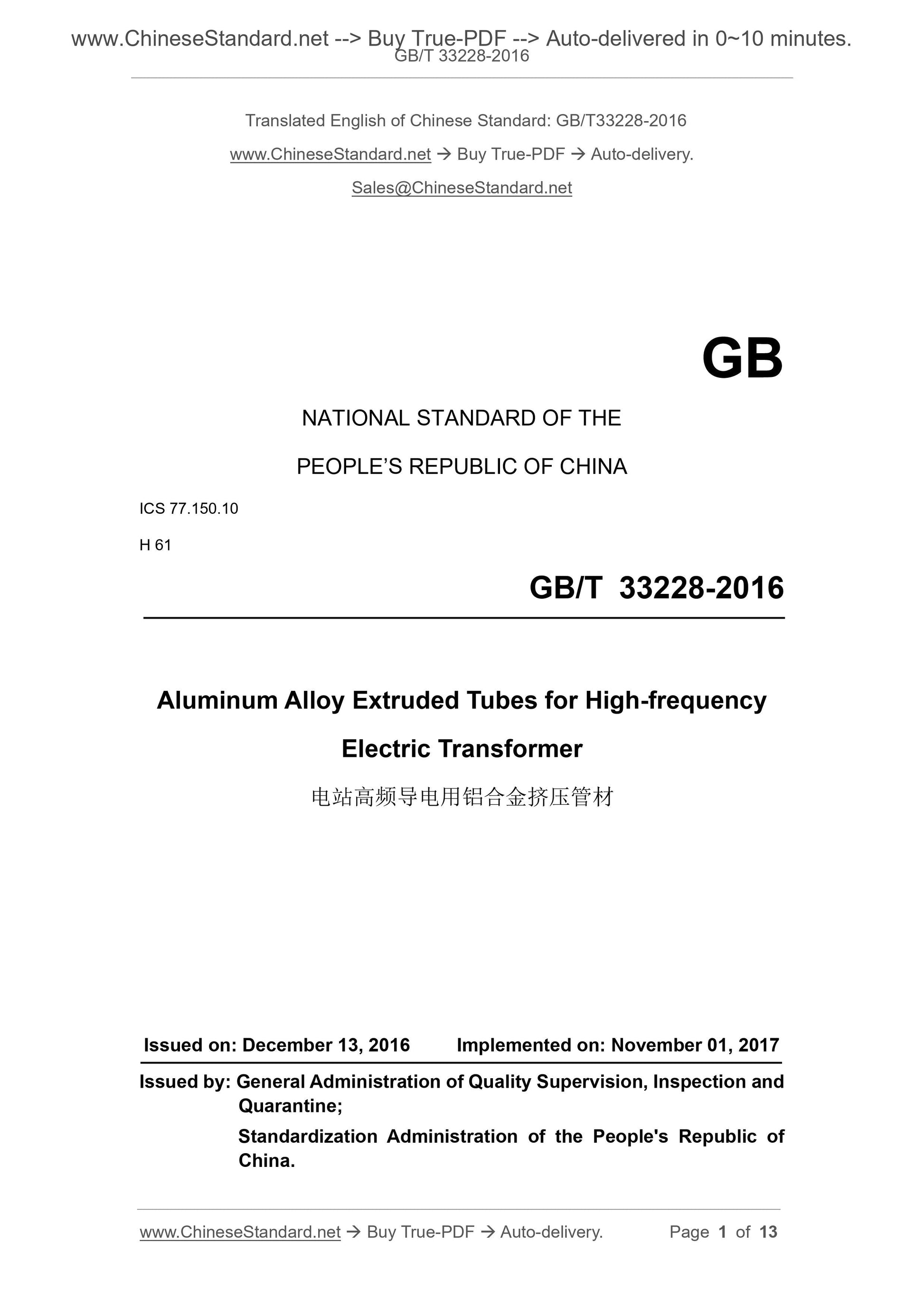

GB/T 33228-2016
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 77.150.10
H 61
Aluminum Alloy Extruded Tubes for High-frequency
Electric Transformer
ISSUED ON: DECEMBER 13, 2016
IMPLEMENTED ON: NOVEMBER 01, 2017
Issued by: General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration of the People's Republic of
China.

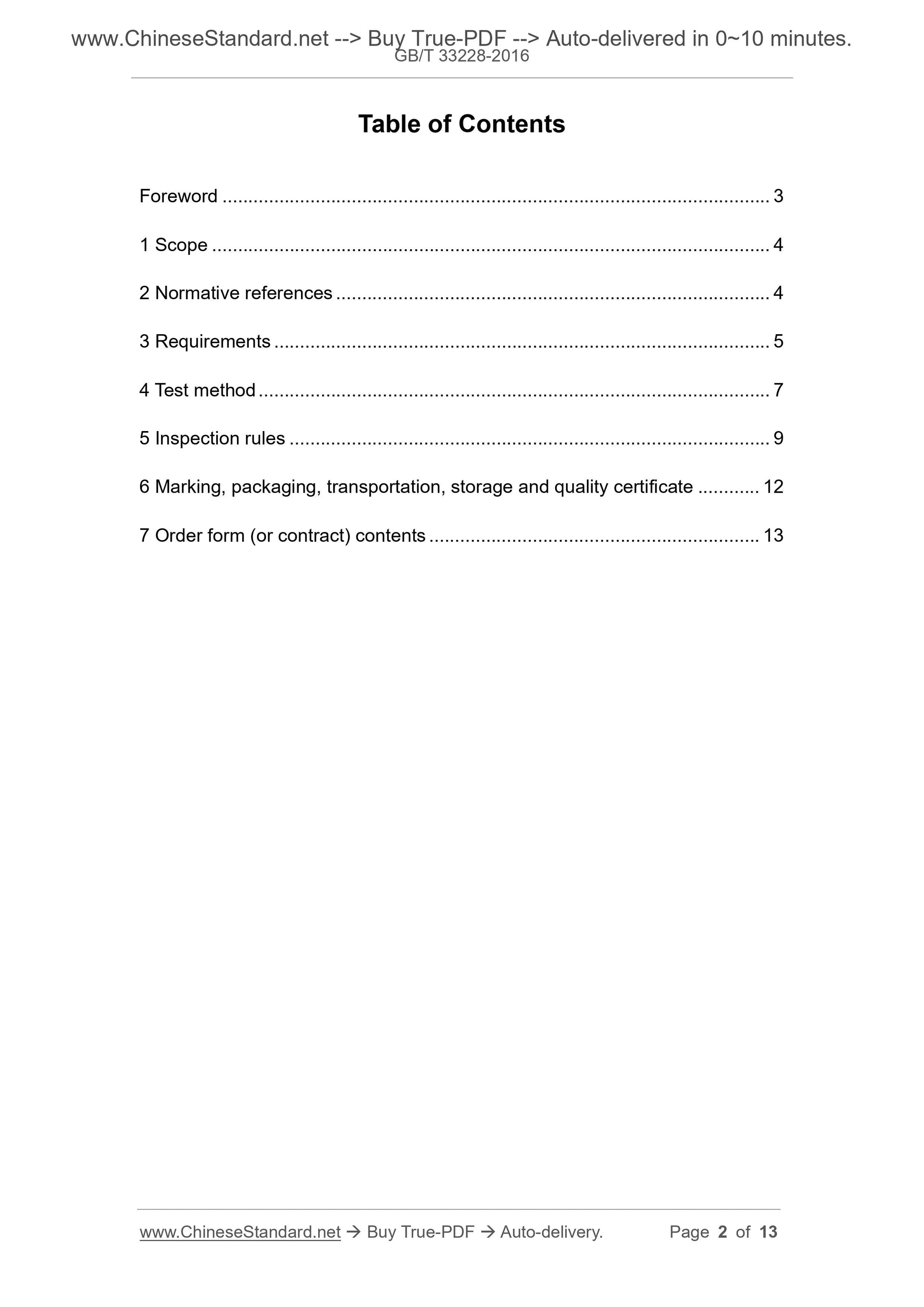

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Requirements ... 5
4 Test method ... 7
5 Inspection rules ... 9
6 Marking, packaging, transportation, storage and quality certificate ... 12
7 Order form (or contract) contents ... 13

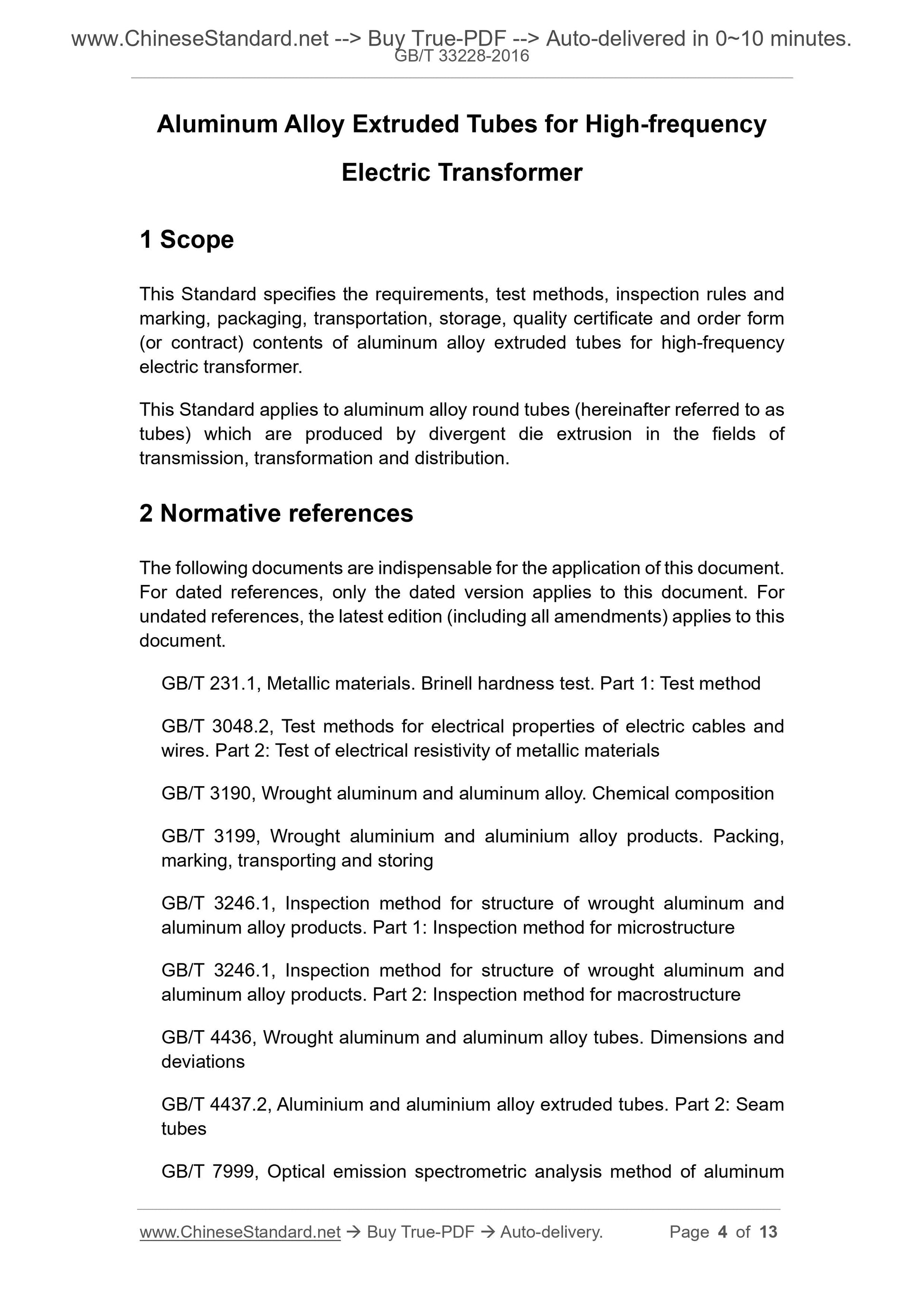

Aluminum Alloy Extruded Tubes for High-frequency
Electric Transformer
1 Scope
This Standard specifies the requirements, test methods, inspection rules and
marking, packaging, transportation, storage, quality certificate and order form
(or contract) contents of aluminum alloy extruded tubes for high-frequency
electric transformer.
This Standard applies to aluminum alloy round tubes (hereinafter referred to as
tubes) which are produced by divergent die extrusion in the fields of
transmission, transformation and distribution.
2 Normative references
The following documents are indispensable for the application of this document.
For dated references, only the dated version applies to this document. For
undated references, the latest edition (including all amendments) applies to this
document.
GB/T 231.1, Metallic materials. Brinell hardness test. Part 1: Test method
GB/T 3048.2, Test methods for electrical properties of electric cables and
wires. Part 2: Test of electrical resistivity of metallic materials
GB/T 3190, Wrought aluminum and aluminum alloy. Chemical composition
GB/T 3199, Wrought aluminium and aluminium alloy products. Packing,
marking, transporting and storing
GB/T 3246.1, Inspection method for structure of wrought aluminum and
aluminum alloy products. Part 1: Inspection method for microstructure
GB/T 3246.1, Inspection method for structure of wrought aluminum and
aluminum alloy products. Part 2: Inspection method for macrostructure
GB/T 4436, Wrought aluminum and aluminum alloy tubes. Dimensions and
deviations
GB/T 4437.2, Aluminium and aluminium alloy extruded tubes. Part 2: Seam
tubes
GB/T 7999, Optical emission spectrometric analysis method of aluminum

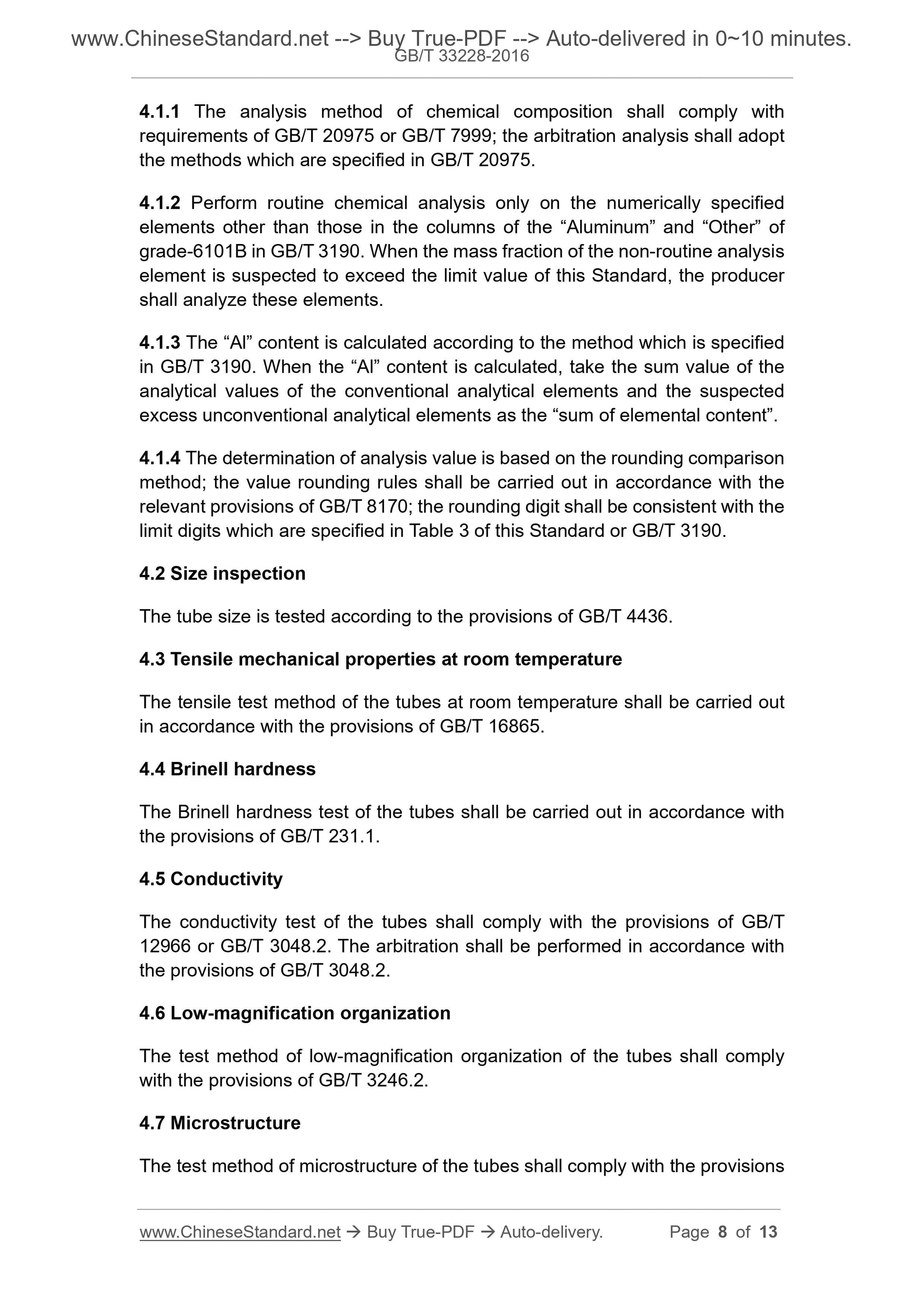

4.1.1 The analysis method of chemical composition shall comply with
requirements of GB/T 20975 or GB/T 7999; the arbitration analysis shall adopt
the methods which are specified in GB/T 20975.
4.1.2 Perform routine chemical analysis only on the numerically specified
elements other than those in the columns of the “Aluminum” and “Other” of
grade-6101B in GB/T 3190. When the mass fraction of the non-routine analysis
element is suspected to exceed the limit value of this Standard, the producer
shall analyze these elements.
4.1.3 The “Al” content is calculated according to the method which is specified
in GB/T 3190. When the “Al” content is calculated, take the sum value of the
analytical values of the conventional analytical elements and the suspected
excess unconventional analytical elements as the “sum of elemental content”.
4.1.4 The determination of analysis value is based on the rounding comparison
method; the value rounding rules shall be carried out in accordance with the
relevant provisions of GB/T 8170; the rounding digit shall be consistent with the
limit digits which are specified in Table 3 of this Standard or GB/T 3190.
4.2 Size inspection
The tube size is tested according to the provisions of GB/T 4436.
4.3 Tensile mechanical properties at room temperature
The tensile test method of the tubes at room temperature shall be carried out
in accordance with the provisions of GB/T 16865.
4.4 Brinell hardness
The Brinell hardness test of the tubes shall be carried out in accordance with
the provisions of GB/T 231.1.
4.5 Conductivity
The conductivity test of the tubes shall comply with the provisions of GB/T
12966 or GB/T 3048.2. The arbitration shall be performed in accordance with
the provisions of GB/T 3048.2.
4.6 Low-magnification organization
The test method of low-magnification organization of the tubes shall comply
with the provisions of GB/T 3246.2.
4.7 Microstructure
The test method of microstructure of the tubes shall comply with the provisions
of GB/T 3246.1.

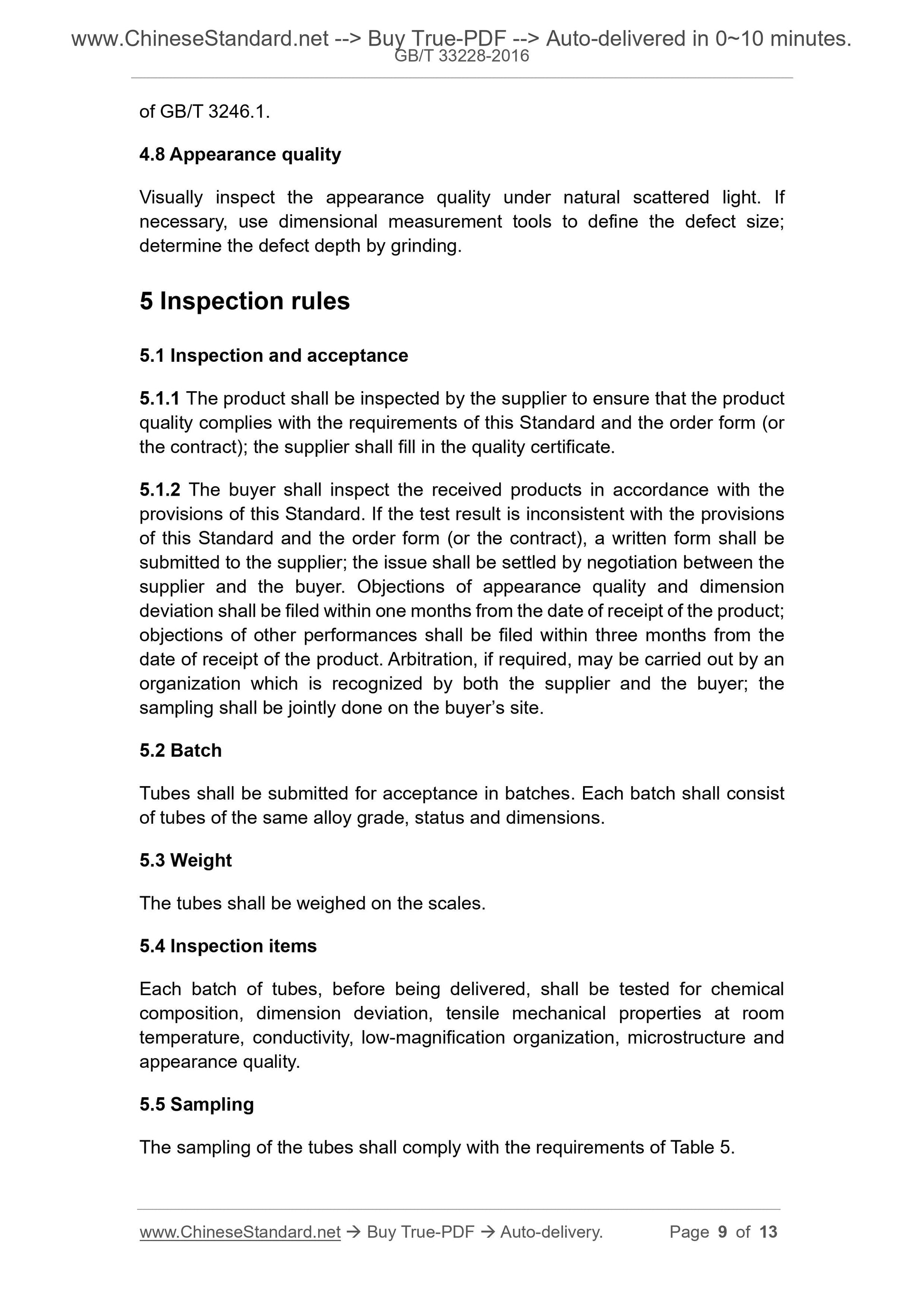

4.8 Appearance quality
Visually inspect the appearance quality under natural scattered light. If
necessary, use dimensional measurement tools to define the defect size;
determine the defect depth by grinding.
5 Inspection rules
5.1 Inspection and acceptance
5.1.1 The product shall be inspected by the supplier to ensure that the product
quality complies with the requirements of this Standard and the order form (or
the contract); the supplier shall fill in the quality certificate.
5.1.2 The buyer shall inspect the received products in accordance with the
provisions of this Standard. If the test result is inconsistent with the provisions
of this Standard and the order form (or the contract), a written form shall be
submitted to the supplier; the issue shall be settled by negotiation between the
supplier and the buyer. Objections of appearance quality and dimension
deviation shall be filed within one months from the date of receipt of the product;
objections of other performances shall be filed within three months from the
date of receipt of the product. Arbitration, if required, may be carried out by an
organization which is recognized by both the supplier and the buyer; the
sampling shall be jointly done on the buyer’s site.
5.2 Batch
Tubes shall be submitted for acceptance in batches. Each batch shall consist
of tubes of the same alloy grade, status and dimensions.
5.3 Weight
The tubes shall be weighed on the scales.
5.4 Inspection items
Each batch of tubes, before being delivered, shall be tested for chemical
composition, dimension deviation, tensile mechanical properties at room
temperature, conductivity, low-magnification organization, microstructure and
appearance quality.
5.5 Sampling
The sampling of the tubes shall comply with the requirements of Table 5.

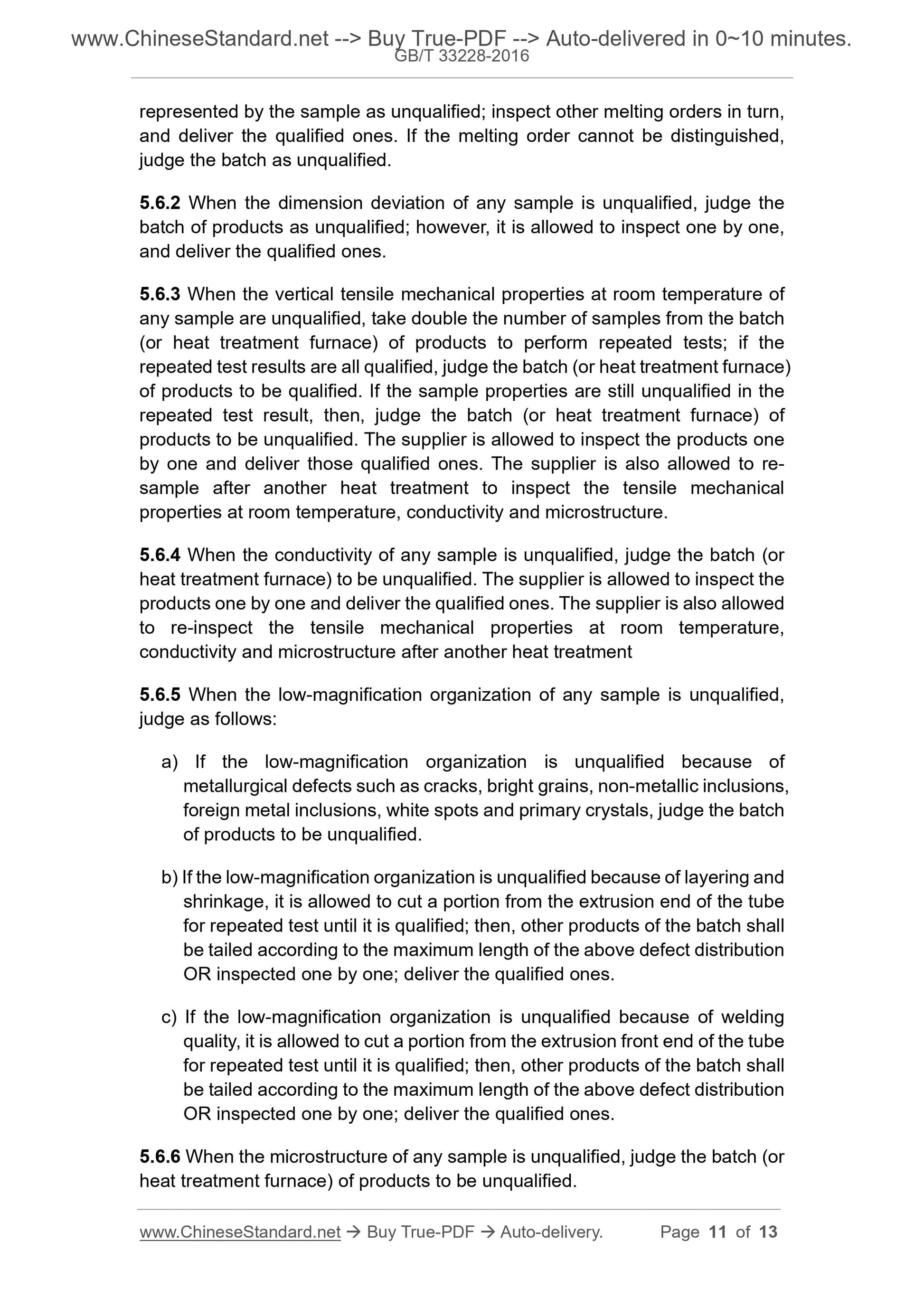

represented by the sample as unqualified; inspect other melting orders in turn,
and deliver the qualified ones. If the melting order cannot be distinguished,
judge the batch as unqualified.
5.6.2 When the dimension deviation of any sample is unqualified, judge the
batch of products as unqualified; however, it is allowed to inspect one by one,
and deliver the qualified ones.
5.6.3 When the vertical tensile mechanical properties at room temperature of
any sample are unqualified, take double the number of samples from the batch
(or heat treatment furnace) of products to perform repeated tests; if the
repeated test results are all qualified, judge the batch (or heat treatment furnace)
of products to be qualified. If the sample properties are still unqualified in the
repeated test result, then, judge the batch (or heat treatment furnace) of
products to be unqualified. The supplier is allowed to inspect the products one
by one and deliver those qualified ones. The supplier is also allowed to re-
sample after another heat treatment to inspect the tensile mechanical
properties at room temperature, conductivity and microstructure.
5.6.4 When the conductivity of any sample is unqualified, judge the batch (or
heat treatment furnace) to be unqualified. The supplier is allowed to inspect the
products one by one and deliver the qualified ones. The supplier is also allowed
to re-inspect the tensile mechanical properties at room temperature,
conductivity and microstructure after another heat treatment
5.6.5 When the low-magnification organization of any sample is unqualified,
judge as follows:
a) If the low-magnification organization is unqualified because of
metallurgical defects such as cracks, bright grains, non-metallic inclusions,
foreign metal inclusions, white spots and primary crystals, judge the batch
of products to be unqualified.
b) If the low-magnification organization is unqualified because of layering and
shrinkage, it is allowed to cut a portion from the extrusion end of the tube
for repeated test until it is qualified; then, other products of the batch shall
be tailed according to the maximum length of the above defect distribution
OR inspected one by one; deliver the qualified ones.
c) If the low-magnification organization is unqualified because of welding
quality, it is allowed to cut a portion from the extrusion front end of the tube
for repeated test until it is qualified; then, other products of the batch shall
be tailed according to the maximum length of the above defect distribution
OR inspected one by one; deliver the qualified ones.
5.6.6 When the microstructure of any sample is unqualified, judge the batch (or
heat treatment furnace) of products to be unqualified.
