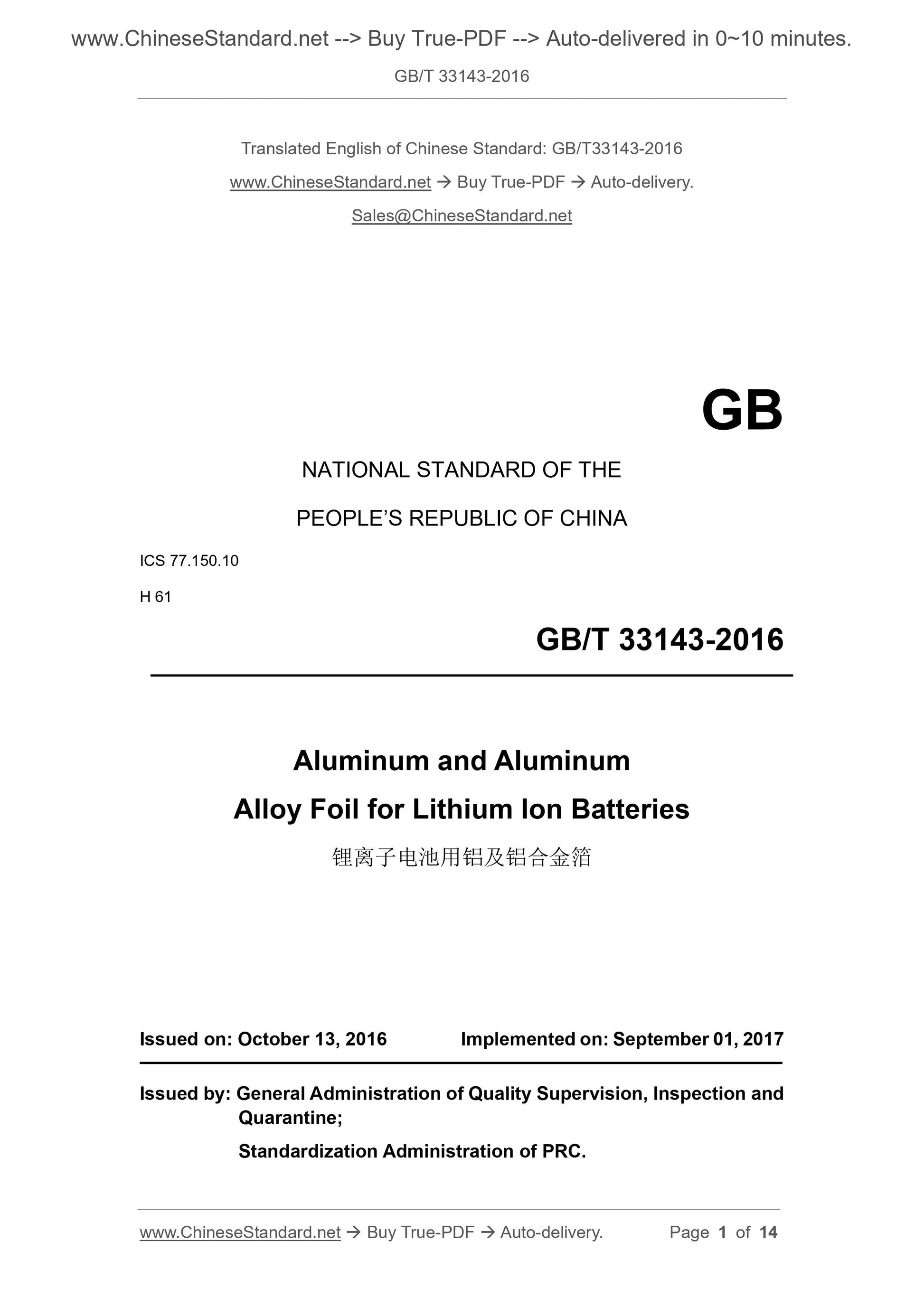

GB/T 33143-2016
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 77.150.10
H 61
Aluminum and Aluminum
Alloy Foil for Lithium Ion Batteries
ISSUED ON: OCTOBER 13, 2016
IMPLEMENTED ON: SEPTEMBER 01, 2017
Issued by: General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration of PRC.

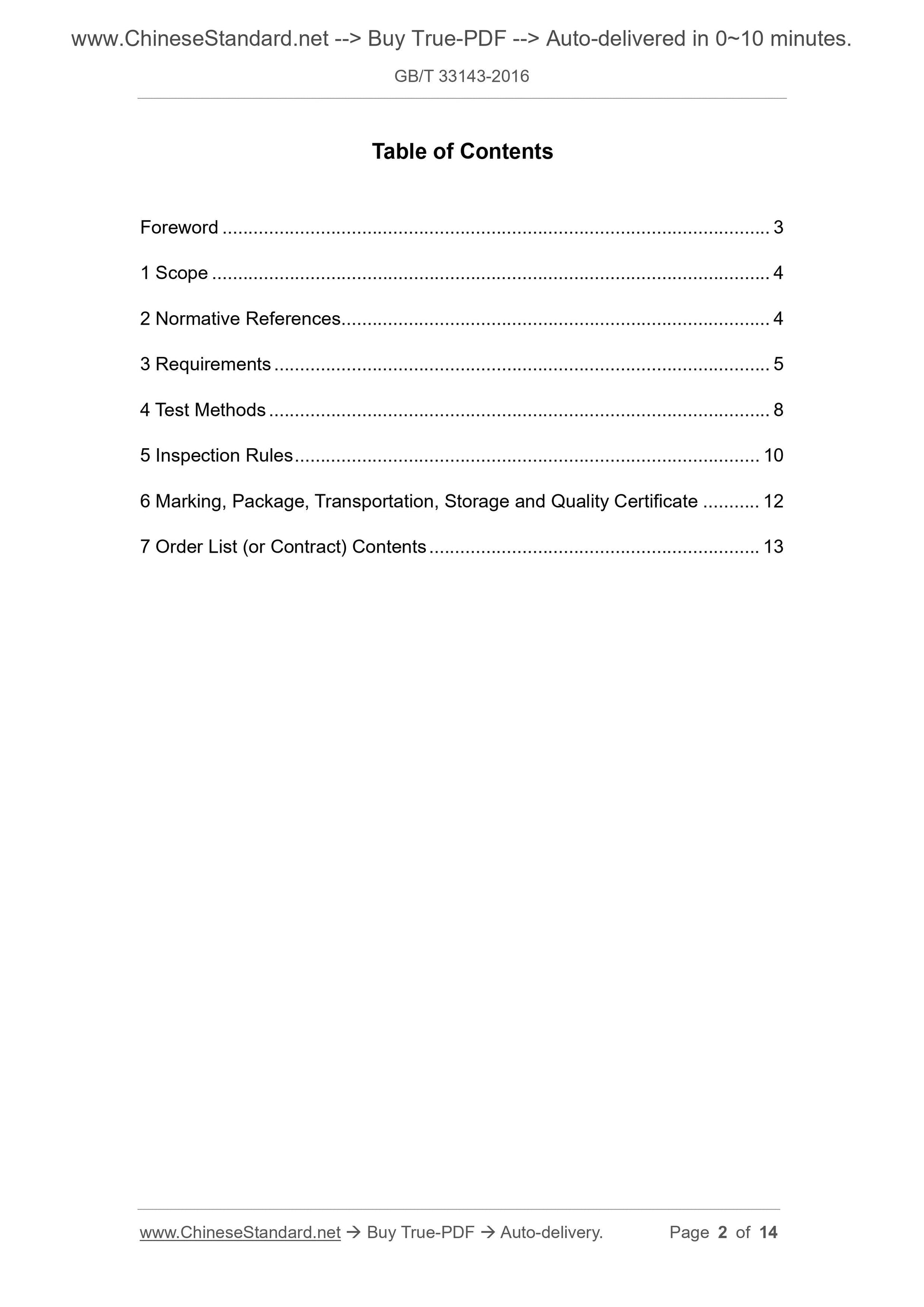

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Requirements ... 5
4 Test Methods ... 8
5 Inspection Rules ... 10
6 Marking, Package, Transportation, Storage and Quality Certificate ... 12
7 Order List (or Contract) Contents ... 13
Aluminum and Aluminum
Alloy Foil for Lithium Ion Batteries

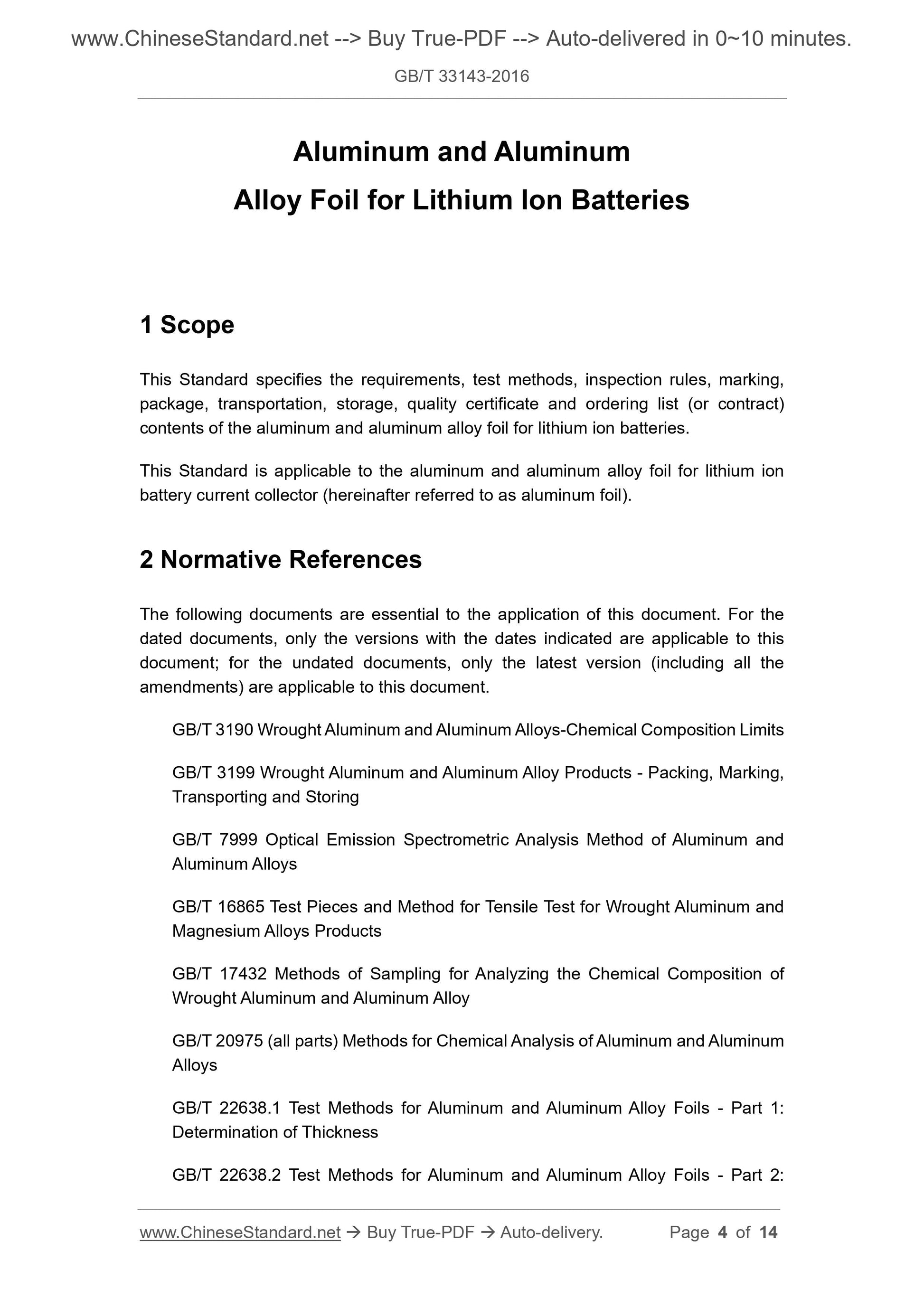

1 Scope
This Standard specifies the requirements, test methods, inspection rules, marking,
package, transportation, storage, quality certificate and ordering list (or contract)
contents of the aluminum and aluminum alloy foil for lithium ion batteries.
This Standard is applicable to the aluminum and aluminum alloy foil for lithium ion
battery current collector (hereinafter referred to as aluminum foil).
2 Normative References
The following documents are essential to the application of this document. For the
dated documents, only the versions with the dates indicated are applicable to this
document; for the undated documents, only the latest version (including all the
amendments) are applicable to this document.
GB/T 3190 Wrought Aluminum and Aluminum Alloys-Chemical Composition Limits
GB/T 3199 Wrought Aluminum and Aluminum Alloy Products - Packing, Marking,
Transporting and Storing
GB/T 7999 Optical Emission Spectrometric Analysis Method of Aluminum and
Aluminum Alloys
GB/T 16865 Test Pieces and Method for Tensile Test for Wrought Aluminum and
Magnesium Alloys Products
GB/T 17432 Methods of Sampling for Analyzing the Chemical Composition of
Wrought Aluminum and Aluminum Alloy
GB/T 20975 (all parts) Methods for Chemical Analysis of Aluminum and Aluminum
Alloys
GB/T 22638.1 Test Methods for Aluminum and Aluminum Alloy Foils - Part 1:
Determination of Thickness
GB/T 22638.2 Test Methods for Aluminum and Aluminum Alloy Foils - Part 2:
conventional analytical elements and the suspected excessive unconventional
analytical elements AS “sum of element content”.

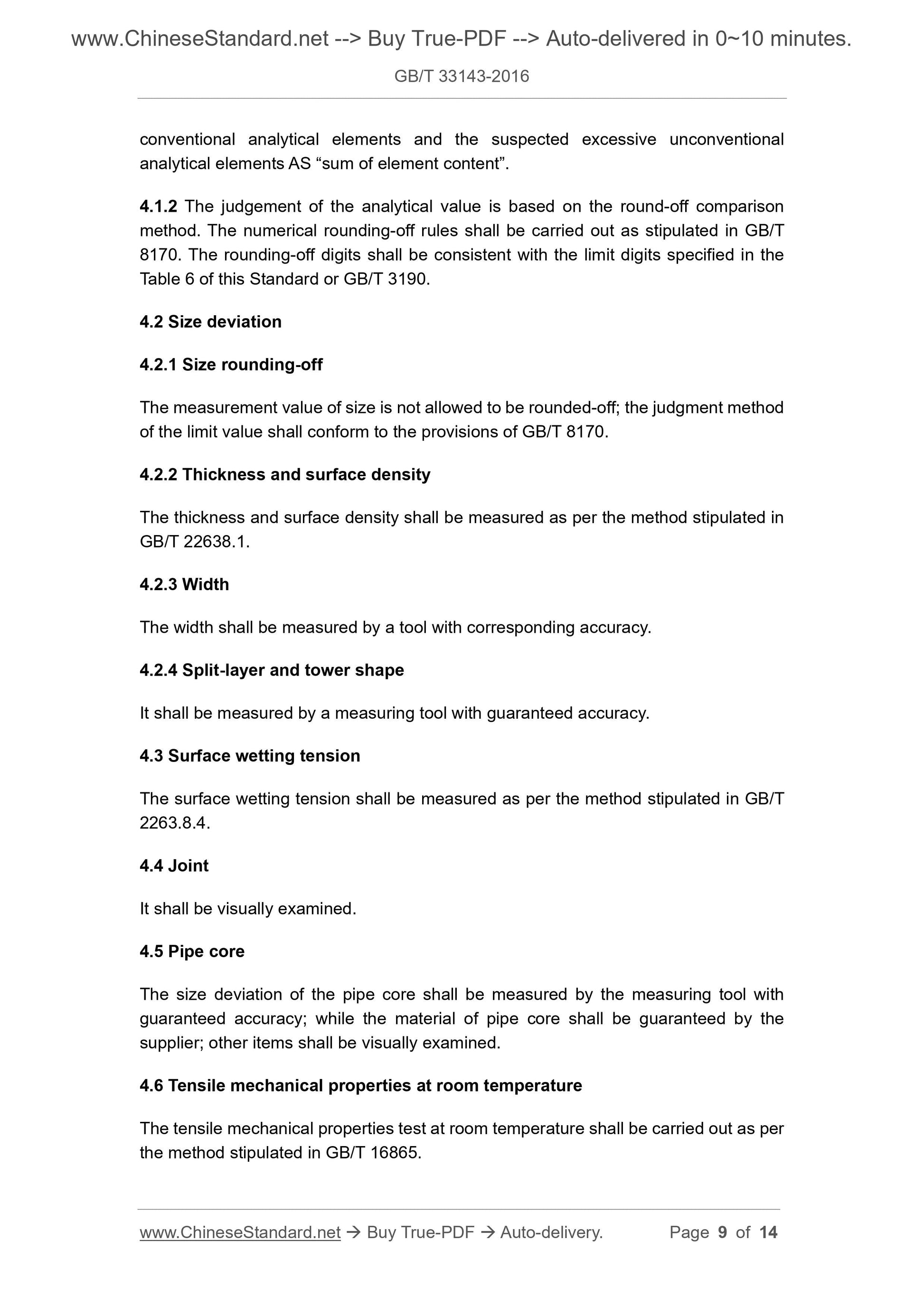

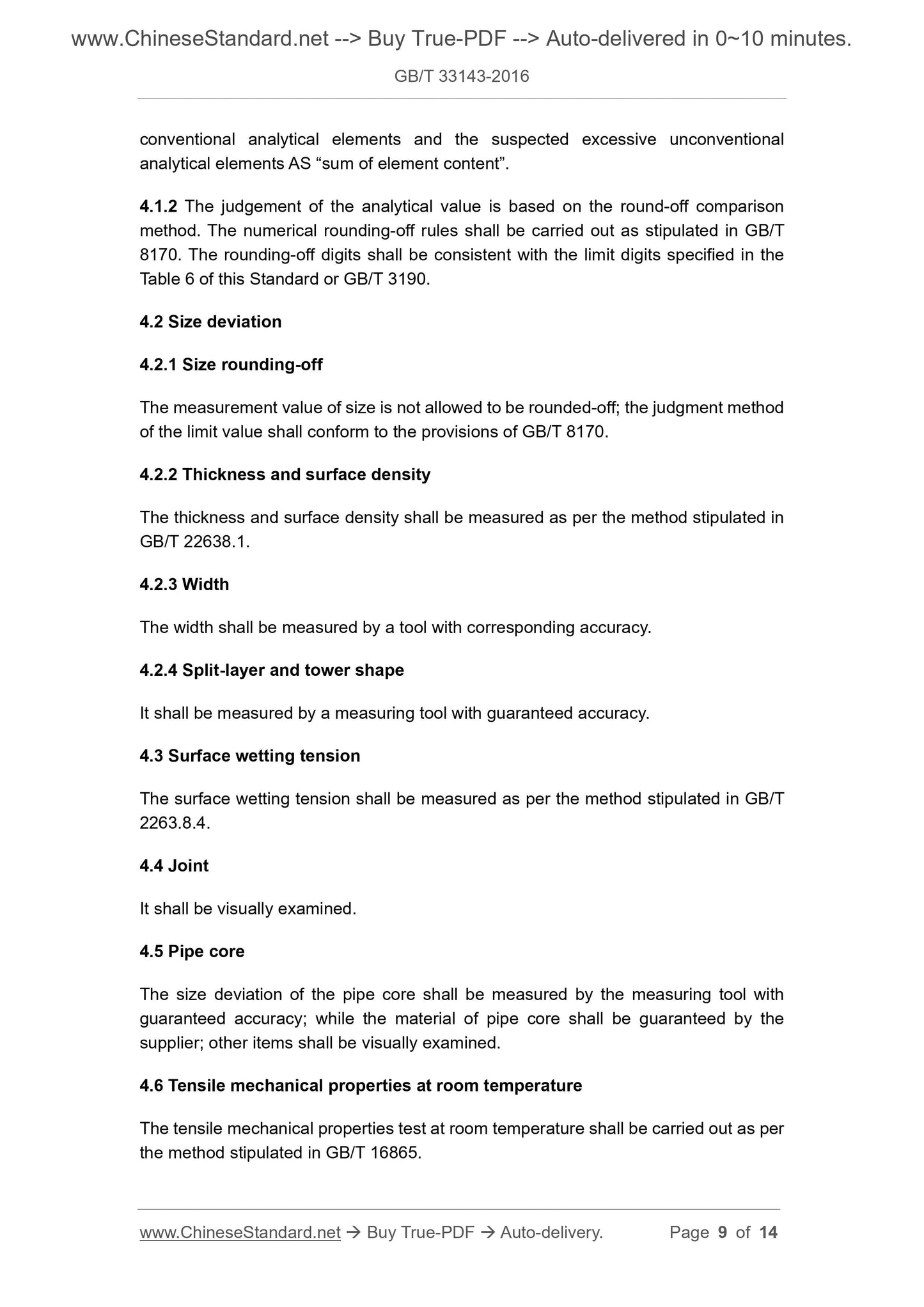

4.1.2 The judgement of the analytical value is based on the round-off comparison
method. The numerical rounding-off rules shall be carried out as stipulated in GB/T
8170. The rounding-off digits shall be consistent with the limit digits specified in the
Table 6 of this Standard or GB/T 3190.
4.2 Size deviation
4.2.1 Size rounding-off
The measurement value of size is not allowed to be rounded-off; the judgment method
of the limit value shall conform to the provisions of GB/T 8170.
4.2.2 Thickness and surface density
The thickness and surface density shall be measured as per the method stipulated in
GB/T 22638.1.
4.2.3 Width
The width shall be measured by a tool with corresponding accuracy.
4.2.4 Split-layer and tower shape
It shall be measured by a measuring tool with guaranteed accuracy.
4.3 Surface wetting tension
The surface wetting tension shall be measured as per the method stipulated in GB/T
2263.8.4.
4.4 Joint
It shall be visually examined.
4.5 Pipe core
The size deviation of the pipe core shall be measured by the measuring tool with
guaranteed accuracy; while the material of pipe core shall be guaranteed by the
supplier; other items shall be visually examined.
4.6 Tensile mechanical properties at room temperature
The tensile mechanical properties test at room temperature shall be carried out as per
the method stipulated in GB/T 16865.

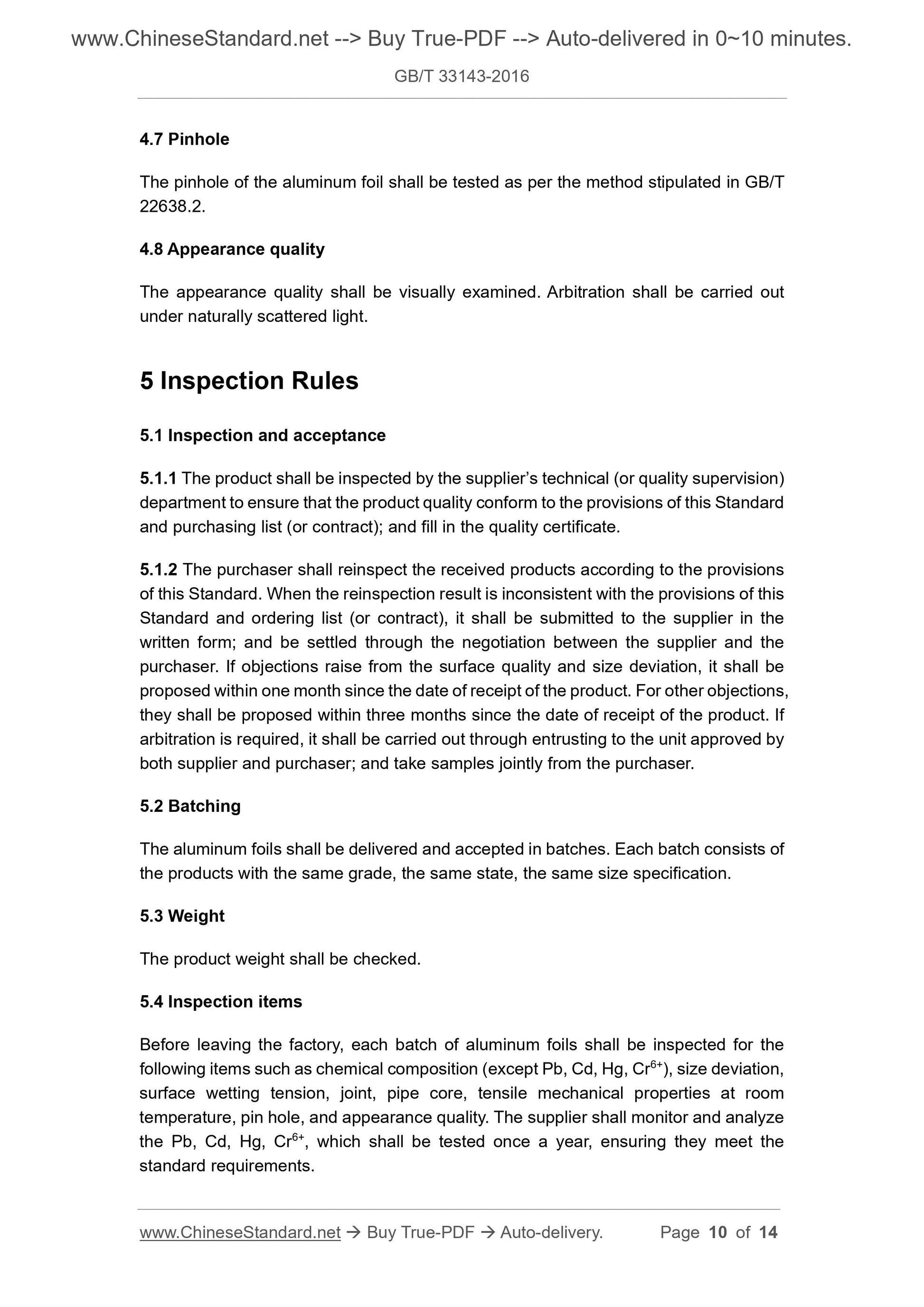

4.7 Pinhole
The pinhole of the aluminum foil shall be tested as per the method stipulated in GB/T
22638.2.
4.8 Appearance quality
The appearance quality shall be visually examined. Arbitration shall be carried out
under naturally scattered light.
5 Inspection Rules
5.1 Inspection and acceptance
5.1.1 The product shall be inspected by the supplier’s technical (or quality supervision)
department to ensure that the product quality conform to the provisions of this Standard
and purchasing list (or contract); and fill in the quality certificate.
5.1.2 The purchaser shall reinspect the received products according to the provisions
of this Standard. When the reinspection result is inconsistent with the provisions of this
Standard and ordering list (or contract), it shall be submitted to the supplier in the
written form; and be settled through the negotiation between the supplier and the
purchaser. If objections raise from the surface quality and size deviation, it shall be
proposed within one month since the date of receipt of the product. For other objections,
they shall be proposed within three months since the date of receipt of the product. If
arbitration is required, it shall be carried out through entrusting to the unit approved by
both supplier and purchaser; and take samples jointly from the purchaser.
5.2 Batching
The aluminum foils shall be delivered and accepted in batches. Each batch consists of
the products with the same grade, the same state, the same size specification.
5.3 Weight
The product weight shall be checked.
5.4 Inspection items
Before leaving the factory, each batch of aluminum foils shall be inspected for the
following items such as chemical composition (except Pb, Cd, Hg, Cr6+), size deviation,
surface wetting tension, joint, pipe core, tensile mechanical properties at room
temperature, pin hole, and appearance quality. The supplier shall monitor and analyze
the Pb, Cd, Hg, Cr6+, which shall be tested once a year, ensuring they meet the
standard requirements.
5.6.5 When the pipe core of any roll of aluminum foil is unqualified, then such roll of
products is judged unqualified.
5.6.6 When the tensile mechanical properties at room temperature of any roll of
aluminum foil is unqualified, take another double-volume aluminum foil from such
batch of products (including the product represented by the unqualified specimen) (or
on the product represented by the unqualified specimen) for repeated test, if all the
repeated test results are qualified, then such batch of aluminum foil is judged qualified.
If there is still unqualified item in the repeated test results, then such batch of aluminum
foil is judged unqualified. The supplier and the purchaser agree to allow the supplier
the check the aluminum foil roll by roll, only the qualified can be delivered.
5.6.7 When the pinhole of any roll of aluminum foil is unqualified, then such batch of
aluminum foil is judged unqualified. However, the supplier is allowed to check the
aluminum foil roll by roll, only the qualified can be delivered.
5.6.8 When the appearance quality of any roll of aluminum foil is unqualified, then such
roll of aluminum foil is judged unqualified.

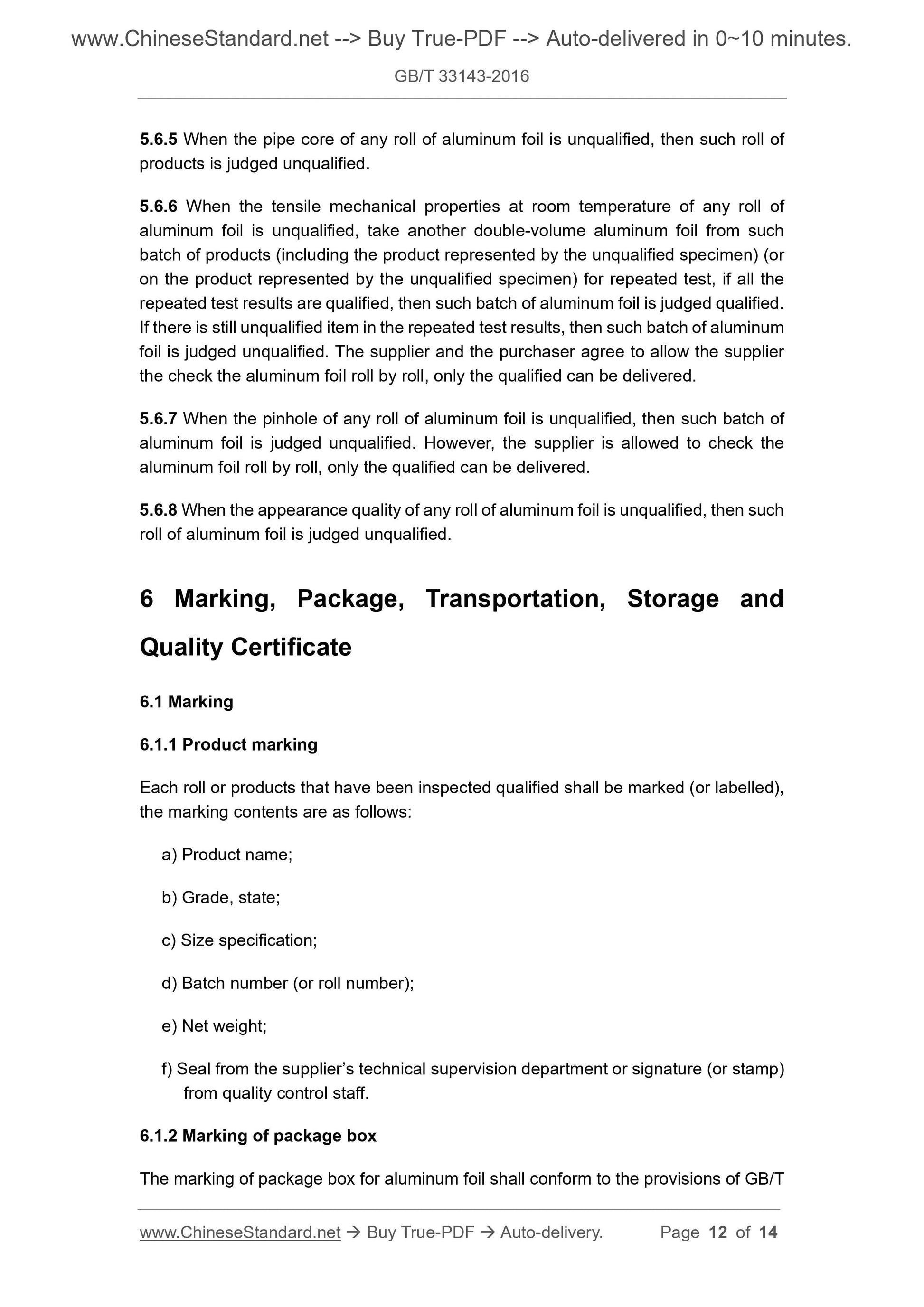

6 Marking, Package, Transportation, Storage and
Quality Certificate
6.1 Marking
6.1.1 Product marking
Each roll or products that have been inspected qualified shall be marked (or labelled),
the marking contents are as follows:
a) Product name;
b) Grade, state;
c) Size specification;
d) Batch number (or roll number);
e) Net weight;
f) Seal from the supplier’s technical supervision department or signature (or stamp)
from quality control staff.
6.1.2 Marking of package box
The marking of package box for aluminum foil shall conform to the provisions of GB/T
3199.

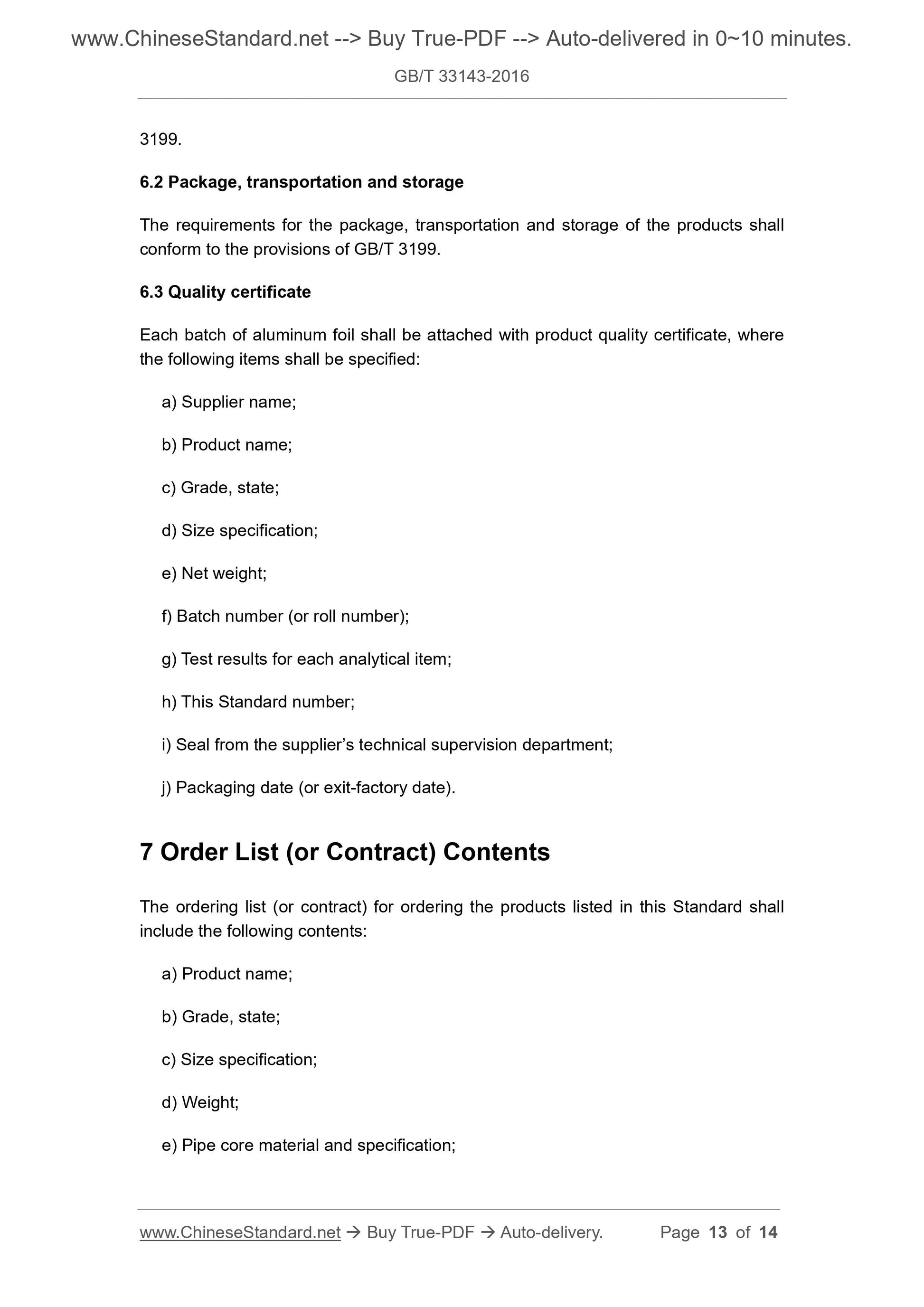

6.2 Package, transportation and storage
The requirements for the package, transportation and storage of the products shall
conform to the provisions of GB/T 3199.
6.3 Quality certificate
Each batch of aluminum foil shall be attached with product quality certificate, where
the following items shall be specified:
a) Supplier name;
b) Product name;
c) Grade, state;
d) Size specification;
e) Net weight;
f) Batch number (or roll number);
g) Test results for each analytical item;
h) This Standard number;
i) Seal from the supplier’s technical supervision department;
j) Packaging date (or exit-factory date).
7 Order List (or Contract) Contents
The ordering list (or contract) for ordering the products listed in this Standard shall
include the following contents:
a) Product name;
b) Grade, state;
c) Size specification;
d) Weight;
e) Pipe core material and specification;
GB/T 33143-2016
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 77.150.10
H 61
Aluminum and Aluminum
Alloy Foil for Lithium Ion Batteries
ISSUED ON: OCTOBER 13, 2016
IMPLEMENTED ON: SEPTEMBER 01, 2017
Issued by: General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration of PRC.
Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Requirements ... 5
4 Test Methods ... 8
5 Inspection Rules ... 10
6 Marking, Package, Transportation, Storage and Quality Certificate ... 12
7 Order List (or Contract) Contents ... 13
Aluminum and Aluminum
Alloy Foil for Lithium Ion Batteries
1 Scope
This Standard specifies the requirements, test methods, inspection rules, marking,
package, transportation, storage, quality certificate and ordering list (or contract)
contents of the aluminum and aluminum alloy foil for lithium ion batteries.
This Standard is applicable to the aluminum and aluminum alloy foil for lithium ion
battery current collector (hereinafter referred to as aluminum foil).
2 Normative References
The following documents are essential to the application of this document. For the
dated documents, only the versions with the dates indicated are applicable to this
document; for the undated documents, only the latest version (including all the
amendments) are applicable to this document.
GB/T 3190 Wrought Aluminum and Aluminum Alloys-Chemical Composition Limits
GB/T 3199 Wrought Aluminum and Aluminum Alloy Products - Packing, Marking,
Transporting and Storing
GB/T 7999 Optical Emission Spectrometric Analysis Method of Aluminum and
Aluminum Alloys
GB/T 16865 Test Pieces and Method for Tensile Test for Wrought Aluminum and
Magnesium Alloys Products
GB/T 17432 Methods of Sampling for Analyzing the Chemical Composition of
Wrought Aluminum and Aluminum Alloy
GB/T 20975 (all parts) Methods for Chemical Analysis of Aluminum and Aluminum
Alloys
GB/T 22638.1 Test Methods for Aluminum and Aluminum Alloy Foils - Part 1:
Determination of Thickness
GB/T 22638.2 Test Methods for Aluminum and Aluminum Alloy Foils - Part 2:
conventional analytical elements and the suspected excessive unconventional
analytical elements AS “sum of element content”.
4.1.2 The judgement of the analytical value is based on the round-off comparison
method. The numerical rounding-off rules shall be carried out as stipulated in GB/T
8170. The rounding-off digits shall be consistent with the limit digits specified in the
Table 6 of this Standard or GB/T 3190.
4.2 Size deviation
4.2.1 Size rounding-off
The measurement value of size is not allowed to be rounded-off; the judgment method
of the limit value shall conform to the provisions of GB/T 8170.
4.2.2 Thickness and surface density
The thickness and surface density shall be measured as per the method stipulated in
GB/T 22638.1.
4.2.3 Width
The width shall be measured by a tool with corresponding accuracy.
4.2.4 Split-layer and tower shape
It shall be measured by a measuring tool with guaranteed accuracy.
4.3 Surface wetting tension
The surface wetting tension shall be measured as per the method stipulated in GB/T
2263.8.4.
4.4 Joint
It shall be visually examined.
4.5 Pipe core
The size deviation of the pipe core shall be measured by the measuring tool with
guaranteed accuracy; while the material of pipe core shall be guaranteed by the
supplier; other items shall be visually examined.
4.6 Tensile mechanical properties at room temperature
The tensile mechanical properties test at room temperature shall be carried out as per
the method stipulated in GB/T 16865.
4.7 Pinhole
The pinhole of the aluminum foil shall be tested as per the method stipulated in GB/T
22638.2.
4.8 Appearance quality
The appearance quality shall be visually examined. Arbitration shall be carried out
under naturally scattered light.
5 Inspection Rules
5.1 Inspection and acceptance
5.1.1 The product shall be inspected by the supplier’s technical (or quality supervision)
department to ensure that the product quality conform to the provisions of this Standard
and purchasing list (or contract); and fill in the quality certificate.
5.1.2 The purchaser shall reinspect the received products according to the provisions
of this Standard. When the reinspection result is inconsistent with the provisions of this
Standard and ordering list (or contract), it shall be submitted to the supplier in the
written form; and be settled through the negotiation between the supplier and the
purchaser. If objections raise from the surface quality and size deviation, it shall be
proposed within one month since the date of receipt of the product. For other objections,
they shall be proposed within three months since the date of receipt of the product. If
arbitration is required, it shall be carried out through entrusting to the unit approved by
both supplier and purchaser; and take samples jointly from the purchaser.
5.2 Batching
The aluminum foils shall be delivered and accepted in batches. Each batch consists of
the products with the same grade, the same state, the same size specification.
5.3 Weight
The product weight shall be checked.
5.4 Inspection items
Before leaving the factory, each batch of aluminum foils shall be inspected for the
following items such as chemical composition (except Pb, Cd, Hg, Cr6+), size deviation,
surface wetting tension, joint, pipe core, tensile mechanical properties at room
te...
