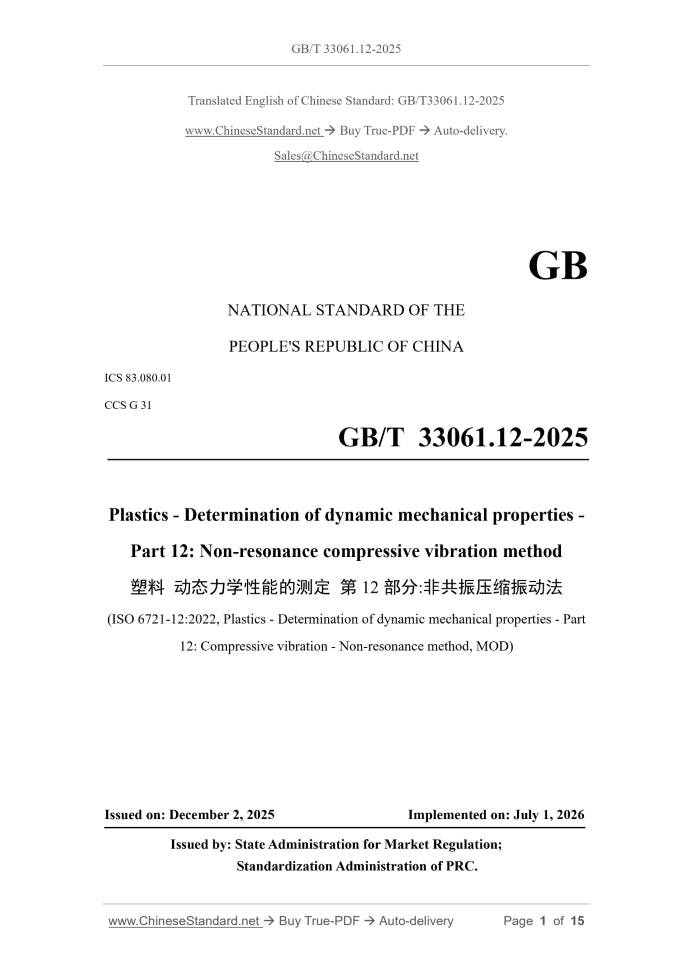

GB/T 33061.12-2025: Plastics - Determination of dynamic mechanical properties - Part 12: Non-resonance compressive vibration method

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 33061.12-2025 (Self-service in 1-minute)
Newer / historical versions: GB/T 33061.12-2025

Preview True-PDF

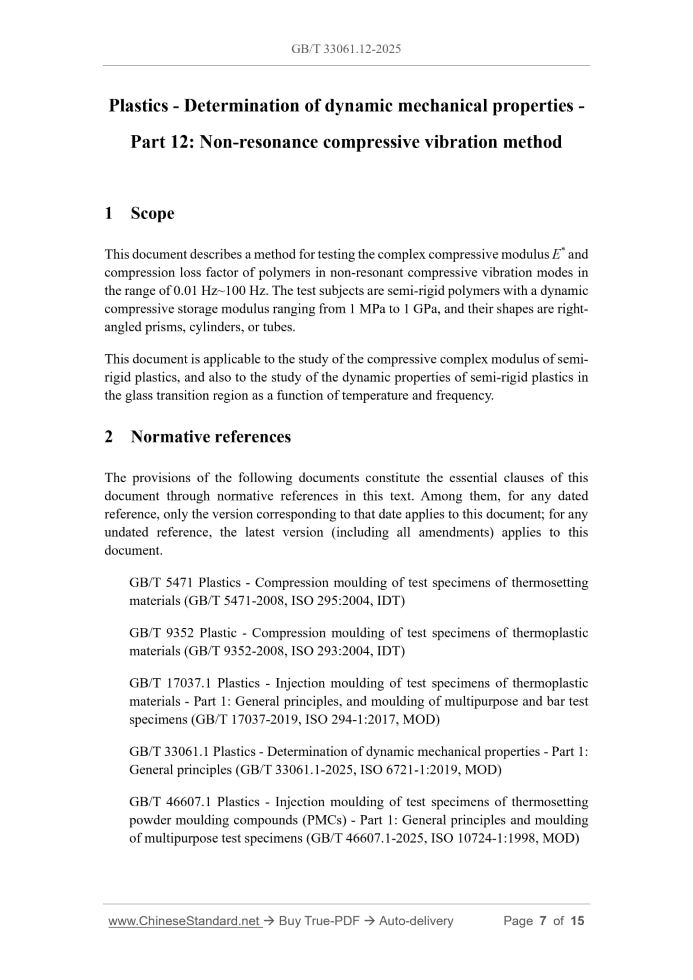

Scope

This document describes a method for testing the complex compressive modulus E* and
compression loss factor of polymers in non-resonant compressive vibration modes in
the range of 0.01 Hz~100 Hz. The test subjects are semi-rigid polymers with a dynamic
compressive storage modulus ranging from 1 MPa to 1 GPa, and their shapes are right-
angled prisms, cylinders, or tubes.
This document is applicable to the study of the compressive complex modulus of semi-
rigid plastics, and also to the study of the dynamic properties of semi-rigid plastics in
the glass transition region as a function of temperature and frequency.

Basic Data

Standard ID	GB/T 33061.12-2025 (GB/T33061.12-2025)
Description (Translated English)	Plastics - Determination of dynamic mechanical properties - Part 12: Non-resonance compressive vibration method
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	G31
Classification of International Standard	83.080.01
Word Count Estimation	10,121
Date of Issue	2025-12-02
Date of Implementation	2026-07-01
Issuing agency(ies)	State Administration for Market Regulation, Standardization Administration of China
