GB/T 32861-2016: Road vehicles -- Location of electrical and pneumatic connections between towing vehicles and trailers

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 32861-2016 (Self-service in 1-minute)
Newer / historical versions: GB/T 32861-2016

Preview True-PDF

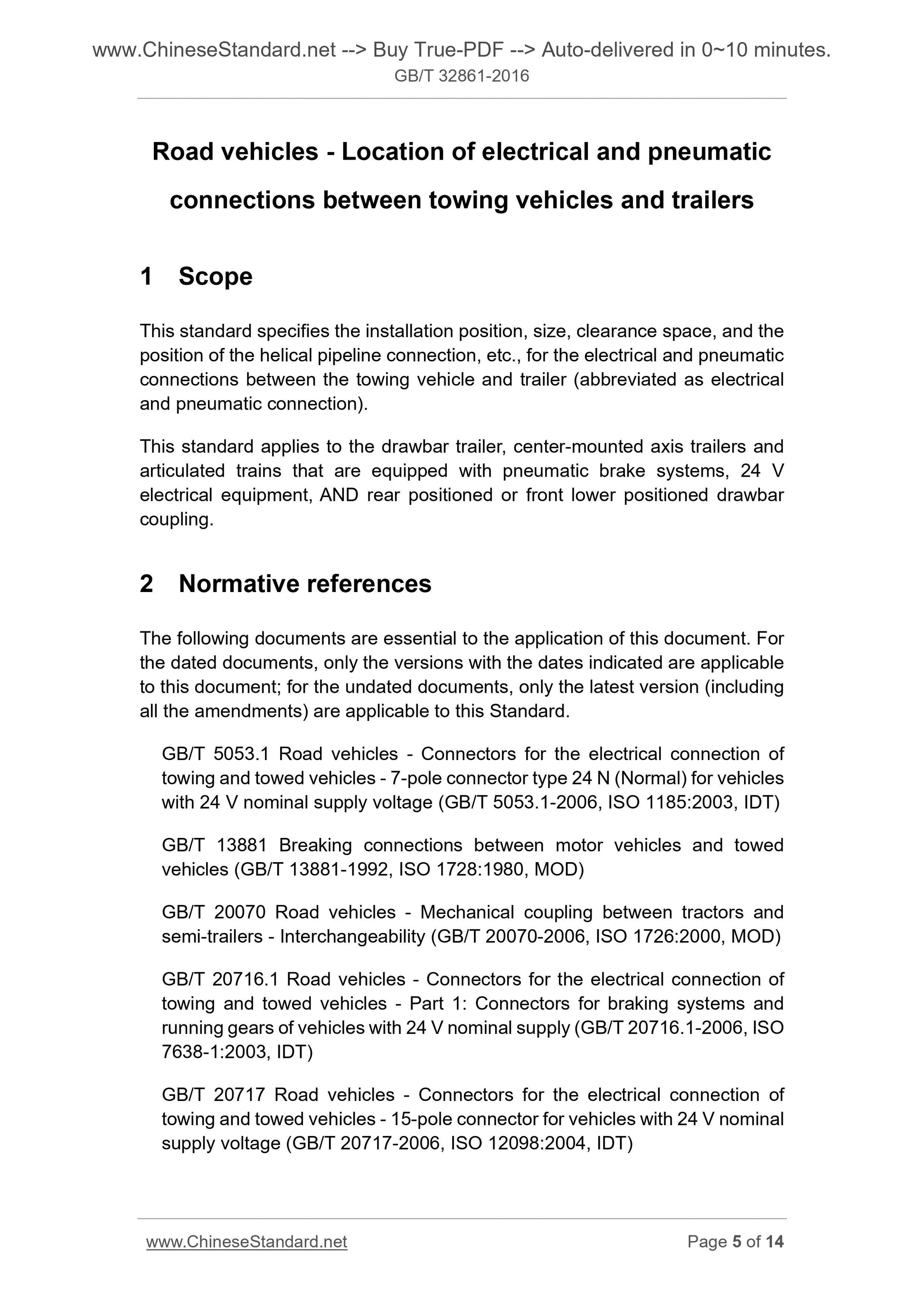

Scope

This standard specifies the installation position, size, clearance space, and the
position of the helical pipeline connection, etc., for the electrical and pneumatic
connections between the towing vehicle and trailer (abbreviated as electrical
and pneumatic connection).
This standard applies to the drawbar trailer, center-mounted axis trailers and
articulated trains that are equipped with pneumatic brake systems, 24 V
electrical equipment, AND rear positioned or front lower positioned drawbar
coupling.

Basic Data

Standard ID	GB/T 32861-2016 (GB/T32861-2016)
Description (Translated English)	Road vehicles -- Location of electrical and pneumatic connections between towing vehicles and trailers
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	T76
Classification of International Standard	43.080.10
Word Count Estimation	17,121
Date of Issue	2016-07-26
Date of Implementation	2016-07-26
Quoted Standard	GB/T 5053.1; GB/T 13881; GB/T 20070; GB/T 20716.1; GB/T 20717; GB/T 25088
Adopted Standard	ISO 4009-2000, MOD
Regulation (derived from)	National Standard Announcement 2016 No.12
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the installation position, size, clearance space, and the position of the spiral pipe connection between the tractor and the trailer, between the electric and pneumatic brake connectors (hereinafter referred to as electrical and pneumatic connectors). This standard applies to tractor-trailer trains with trailing-rod connectors rear-mounted or front-mounted, with 24-volt electrical equipment and trailing-axle trains and articulated trains.
