GB/T 32860-2016: Road vehicles -- Interchangeability of drawbar couplings

This Standard specifies the requirements for the installation and interchangeability of drawbar coupling on tractor frame (beam, tow beam or mounting bracket). This Standard is applicable to drawbar coupling for connecting towing trailer, and center trailer.

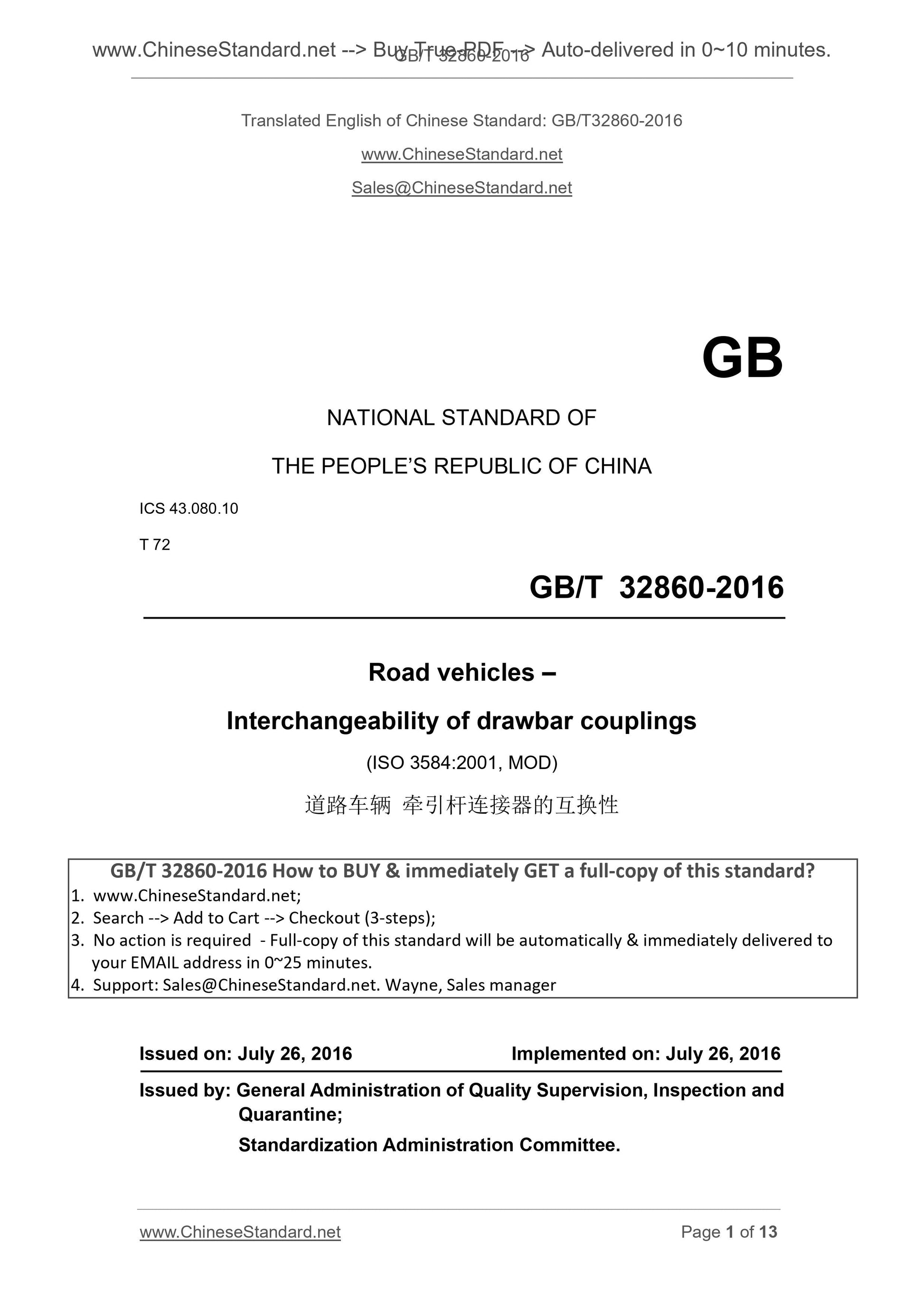

GB/T 32860-2016
GB
NATIONAL STANDARD OF
THE PEOPLE REPUBLIC OF CHINA
ICS 43.080.10
T 72
Road vehicles ?€?
Interchangeability of drawbar couplings
(ISO 3584.2001, MOD)
ISSUED ON. JULY 26, 2016
IMPLEMENTED ON. JULY 26, 2016
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration Committee.

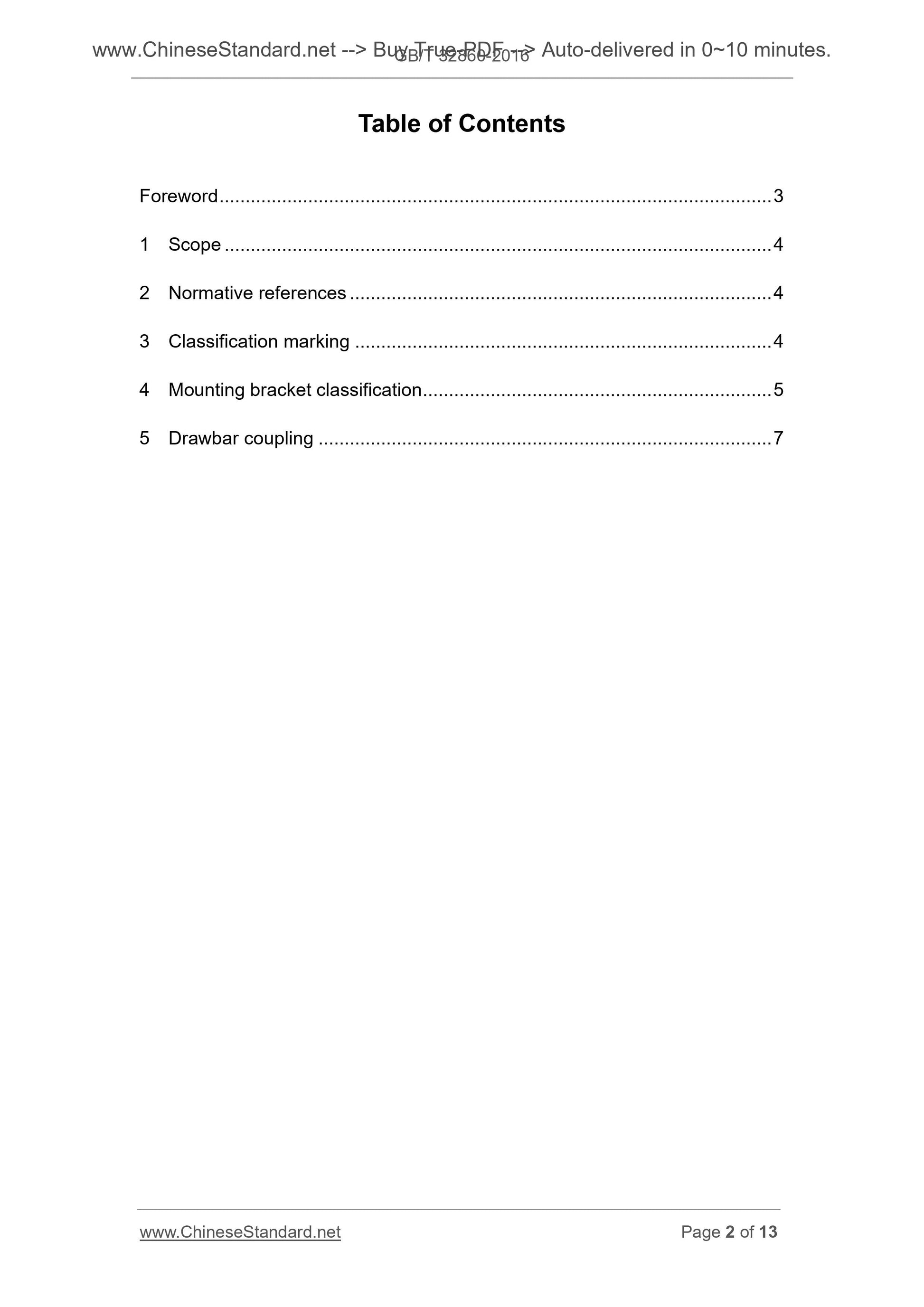

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Classification marking ... 4
4 Mounting bracket classification ... 5
5 Drawbar coupling ... 7

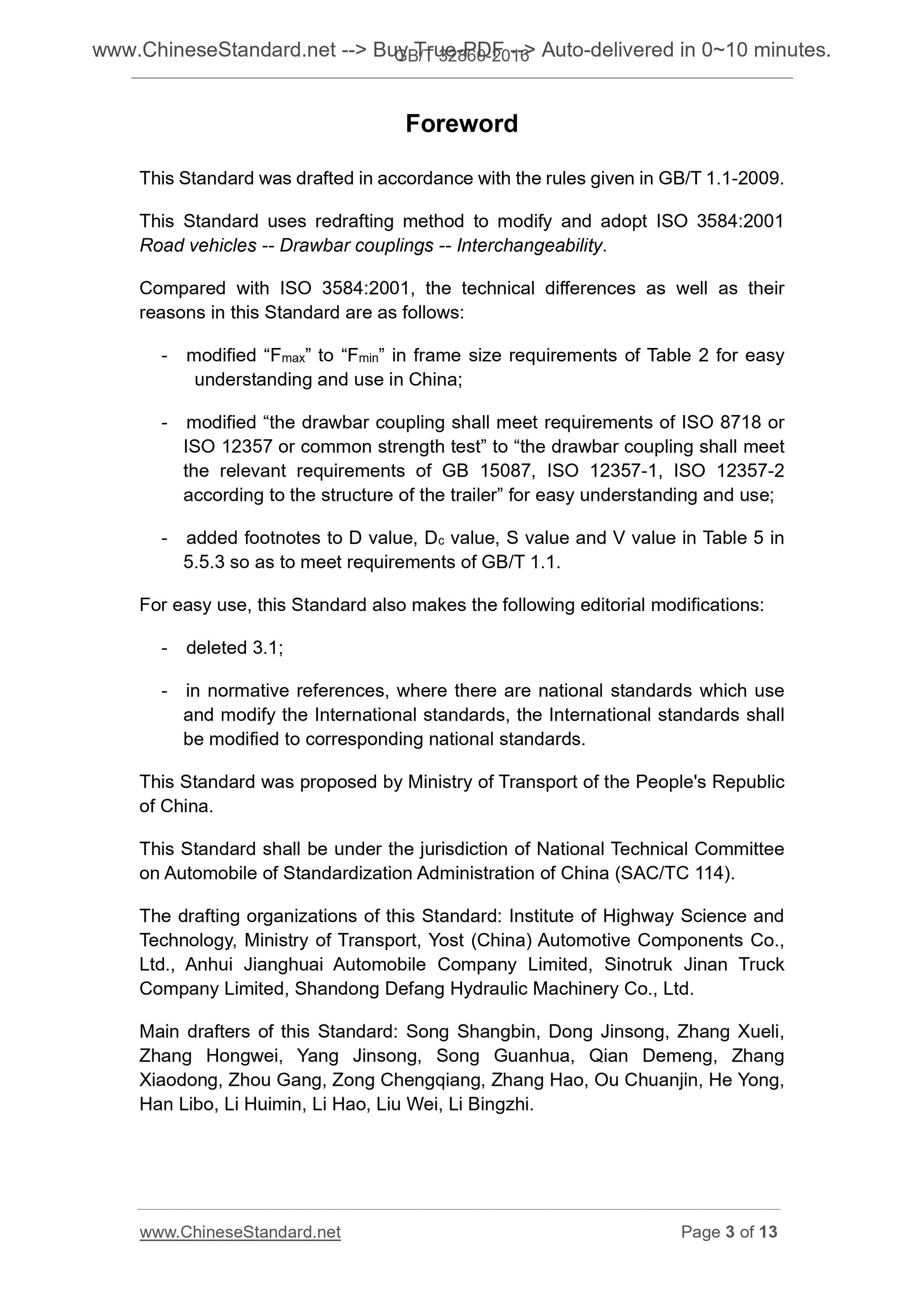

Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009. This Standard uses redrafting method to modify and adopt ISO 3584.2001
Road vehicles -- Drawbar couplings -- Interchangeability.
Compared with ISO 3584.2001, the technical differences as well as their reasons in this Standard are as follows.
- modified ?€?Fmax?€? to ?€?Fmin?€? in frame size requirements of Table 2 for easy understanding and use in China;
- modified ?€?the drawbar coupling shall meet requirements of ISO 8718 or ISO 12357 or common strength test?€? to ?€?the drawbar coupling shall meet
the relevant requirements of GB 15087, ISO 12357-1, ISO 12357-2
according to the structure of the trailer?€? for easy understanding and use; - added footnotes to D value, Dc value, S value and V value in Table 5 in 5.5.3 so as to meet requirements of GB/T 1.1.
For easy use, this Standard also makes the following editorial modifications. - deleted 3.1;
- in normative references, where there are national standards which use and modify the International standards, the International standards shall be modified to corresponding national standards.
This Standard was proposed by Ministry of Transport of the People's Republic of China.
This Standard shall be under the jurisdiction of National Technical Committee on Automobile of Standardization Administration of China (SAC/TC 114).
The drafting organizations of this Standard. Institute of Highway Science and Technology, Ministry of Transport, Yost (China) Automotive Components Co., Ltd., Anhui Jianghuai Automobile Company Limited, Sinotruk Jinan Truck
Company Limited, Shandong Defang Hydraulic Machinery Co., Ltd.
Main drafters of this Standard. Song Shangbin, Dong Jinsong, Zhang Xueli, Zhang Hongwei, Yang Jinsong, Song Guanhua, Qian Demeng, Zhang
Xiaodong, Zhou Gang, Zong Chengqiang, Zhang Hao, Ou Chuanjin, He Yong,
Han Libo, Li Huimin, Li Hao, Liu Wei, Li Bingzhi.
Road vehicles ?€?
Interchangeability of drawbar coupling

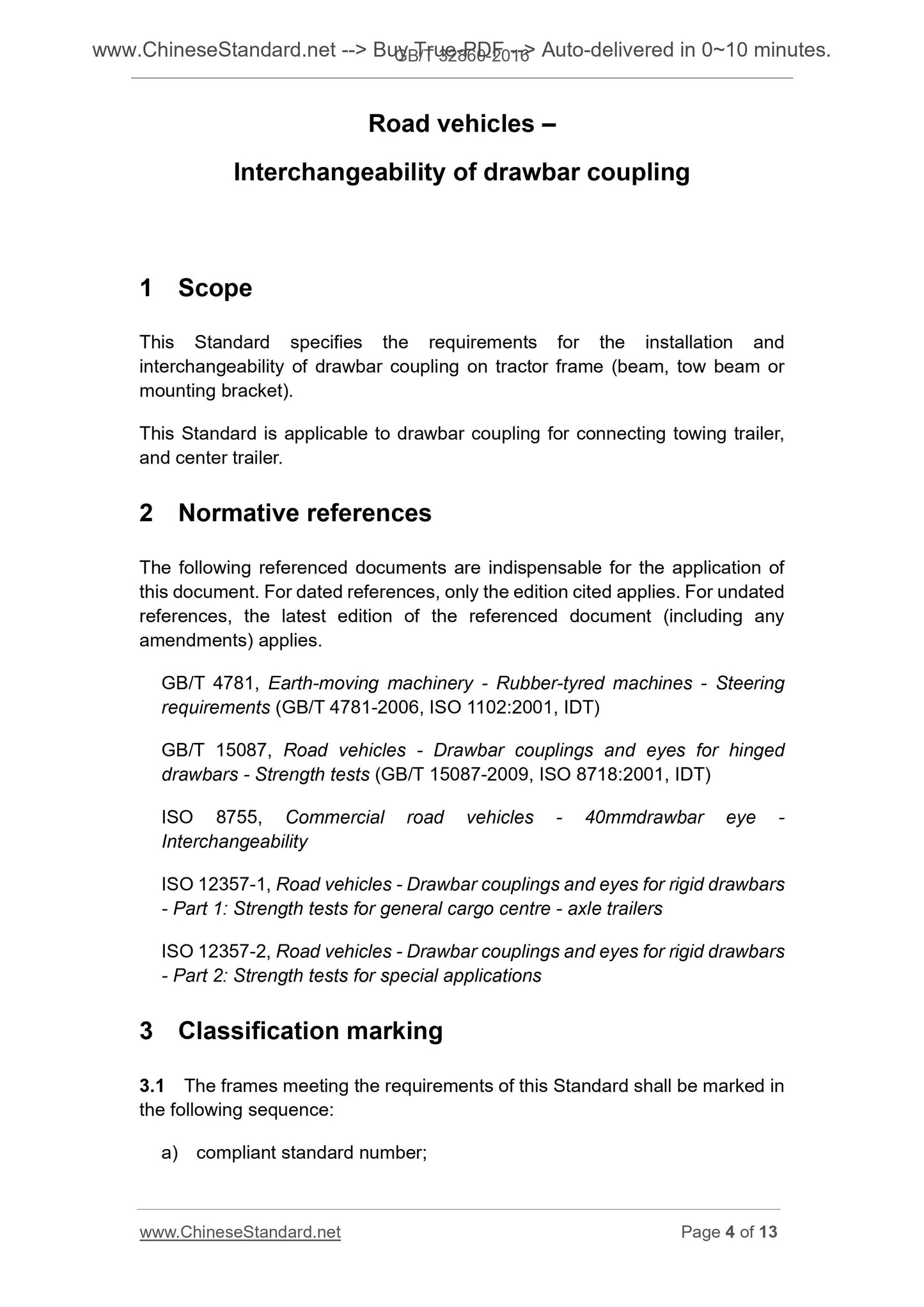

1 Scope
This Standard specifies the requirements for the installation and
interchangeability of drawbar coupling on tractor frame (beam, tow beam or mounting bracket).
This Standard is applicable to drawbar coupling for connecting towing trailer, and center trailer.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
GB/T 4781, Earth-moving machinery - Rubber-tyred machines - Steering
requirements (GB/T 4781-2006, ISO 1102.2001, IDT)
GB/T 15087, Road vehicles - Drawbar couplings and eyes for hinged
drawbars - Strength tests (GB/T 15087-2009, ISO 8718.2001, IDT)
ISO 8755, Commercial road vehicles - 40mmdrawbar eye -
Interchangeability
ISO 12357-1, Road vehicles - Drawbar couplings and eyes for rigid drawbars - Part 1. Strength tests for general cargo centre - axle trailers
ISO 12357-2, Road vehicles - Drawbar couplings and eyes for rigid drawbars - Part 2. Strength tests for special applications
3 Classification marking
3.1 The frames meeting the requirements of this Standard shall be marked in the following sequence.
a) compliant standard number;
