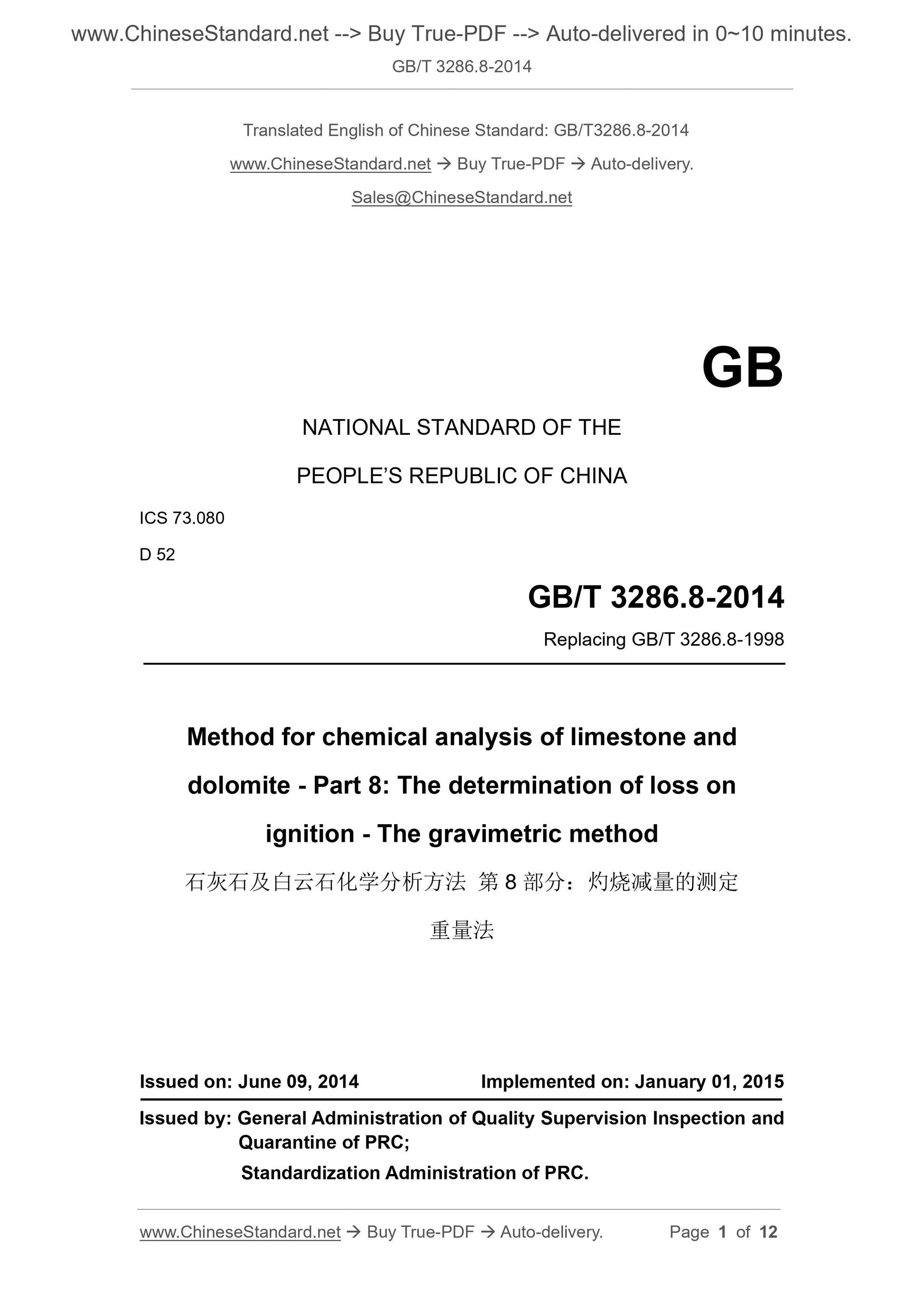

GB/T 3286.8-2014
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 73.080
D 52
Replacing GB/T 3286.8-1998
Method for chemical analysis of limestone and
dolomite - Part 8: The determination of loss on
ignition - The gravimetric method
ISSUED ON: JUNE 09, 2014
IMPLEMENTED ON: JANUARY 01, 2015
Issued by: General Administration of Quality Supervision Inspection and
Quarantine of PRC;
Standardization Administration of PRC.

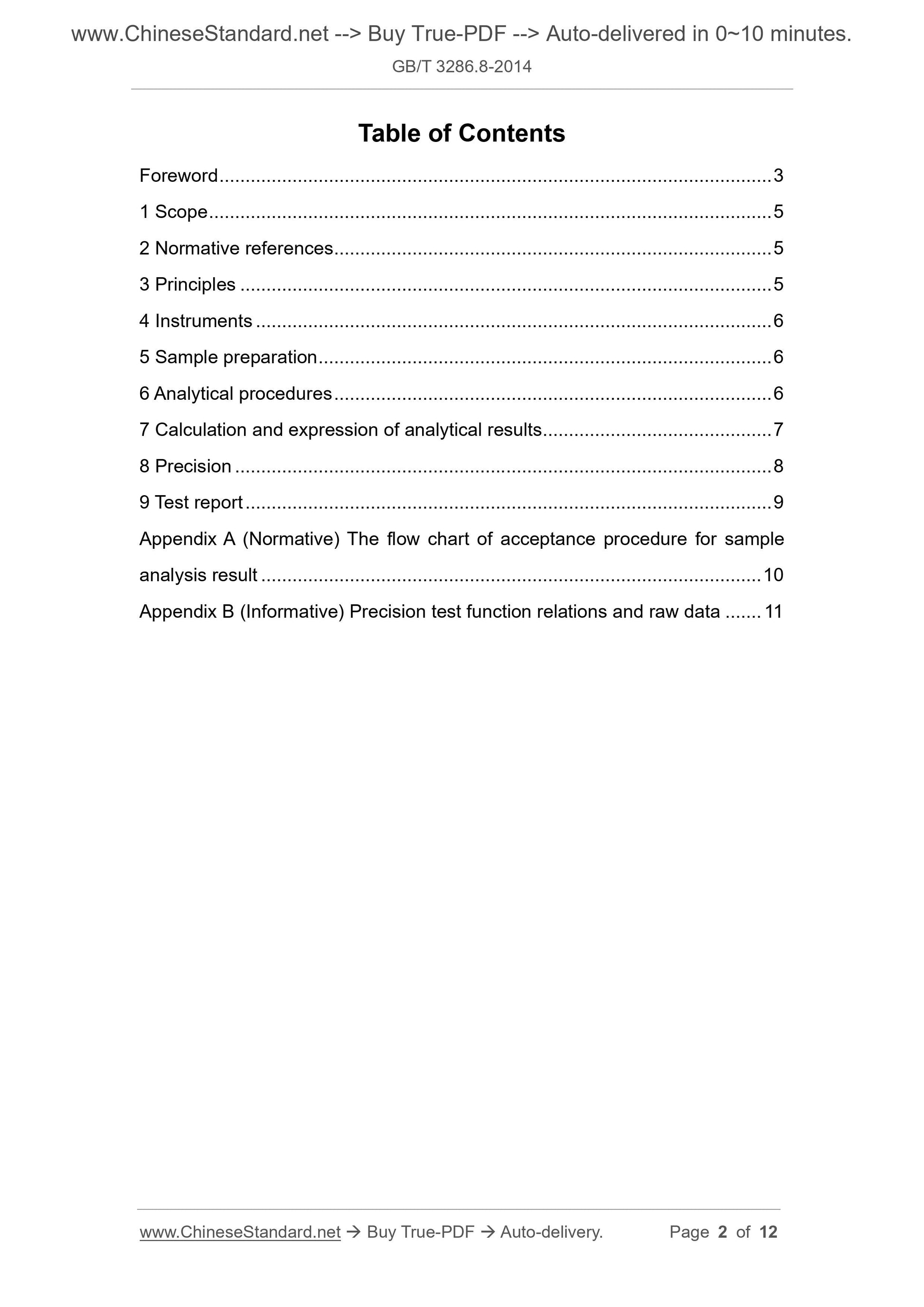

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Principles ... 5
4 Instruments ... 6
5 Sample preparation ... 6
6 Analytical procedures ... 6
7 Calculation and expression of analytical results ... 7
8 Precision ... 8
9 Test report ... 9
Appendix A (Normative) The flow chart of acceptance procedure for sample
analysis result ... 10
Appendix B (Informative) Precision test function relations and raw data ... 11

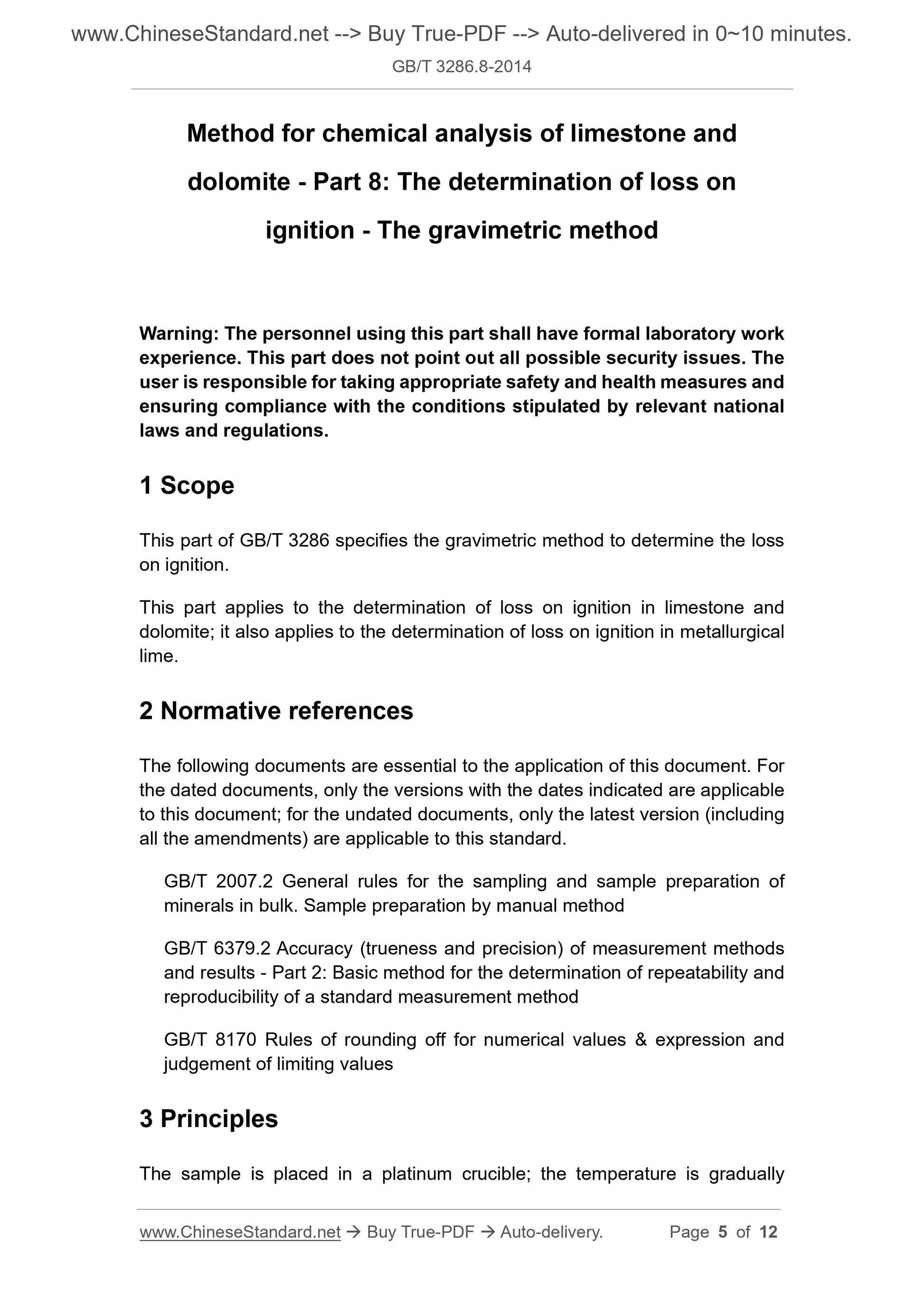

Method for chemical analysis of limestone and
dolomite - Part 8: The determination of loss on
ignition - The gravimetric method
Warning: The personnel using this part shall have formal laboratory work
experience. This part does not point out all possible security issues. The
user is responsible for taking appropriate safety and health measures and
ensuring compliance with the conditions stipulated by relevant national
laws and regulations.
1 Scope
This part of GB/T 3286 specifies the gravimetric method to determine the loss
on ignition.
This part applies to the determination of loss on ignition in limestone and
dolomite; it also applies to the determination of loss on ignition in metallurgical
lime.
2 Normative references
The following documents are essential to the application of this document. For
the dated documents, only the versions with the dates indicated are applicable
to this document; for the undated documents, only the latest version (including
all the amendments) are applicable to this standard.
GB/T 2007.2 General rules for the sampling and sample preparation of
minerals in bulk. Sample preparation by manual method
GB/T 6379.2 Accuracy (trueness and precision) of measurement methods
and results - Part 2: Basic method for the determination of repeatability and
reproducibility of a standard measurement method
GB/T 8170 Rules of rounding off for numerical values and expression and
judgement of limiting values
3 Principles
The sample is placed in a platinum crucible; the temperature is gradually
increased to 1050 °C ± 50 °C in a high temperature furnace to burn it to a
constant mass. The reduced mass is the loss on ignition.

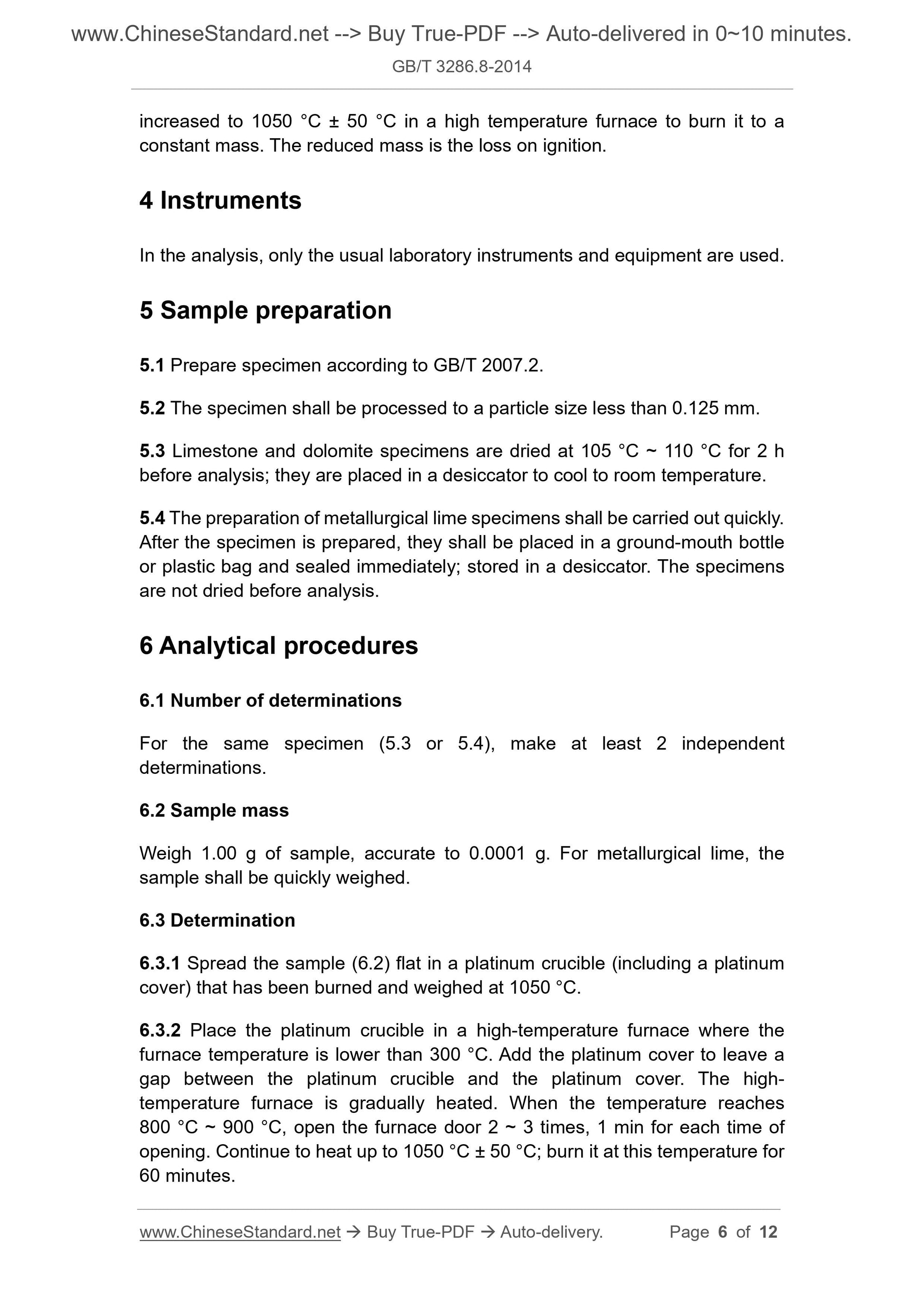

4 Instruments
In the analysis, only the usual laboratory instruments and equipment are used.
5 Sample preparation
5.1 Prepare specimen according to GB/T 2007.2.
5.2 The specimen shall be processed to a particle size less than 0.125 mm.
5.3 Limestone and dolomite specimens are dried at 105 °C ~ 110 °C for 2 h
before analysis; they are placed in a desiccator to cool to room temperature.
5.4 The preparation of metallurgical lime specimens shall be carried out quickly.
After the specimen is prepared, they shall be placed in a ground-mouth bottle
or plastic bag and sealed immediately; stored in a desiccator. The specimens
are not dried before analysis.
6 Analytical procedures
6.1 Number of determinations
For the same specimen (5.3 or 5.4), make at least 2 independent
determinations.
6.2 Sample mass
Weigh 1.00 g of sample, accurate to 0.0001 g. For metallurgical lime, the
sample shall be quickly weighed.
6.3 Determination
6.3.1 Spread the sample (6.2) flat in a platinum crucible (including a platinum
cover) that has been burned and weighed at 1050 °C.
6.3.2 Place the platinum crucible in a high-temperature furnace where the
furnace temperature is lower than 300 °C. Add the platinum cover to leave a
gap between the platinum crucible and the platinum cover. The high-
temperature furnace is gradually heated. When the temperature reaches
800 °C ~ 900 °C, open the furnace door 2 ~ 3 times, 1 min for each time of
opening. Continue to heat up to 1050 °C ± 50 °C; burn it at this temperature for
60 minutes.
