GB/T 32468-2015: Copper clad aluminum plate, sheets and strips

This Standard specifies the terms and definitions, requirements, test methods, inspection rules, symbols, packaging, transportation, storage, quality certificate, and content of the order form (or contract) of the copper clad aluminum plate, sheets and strips.

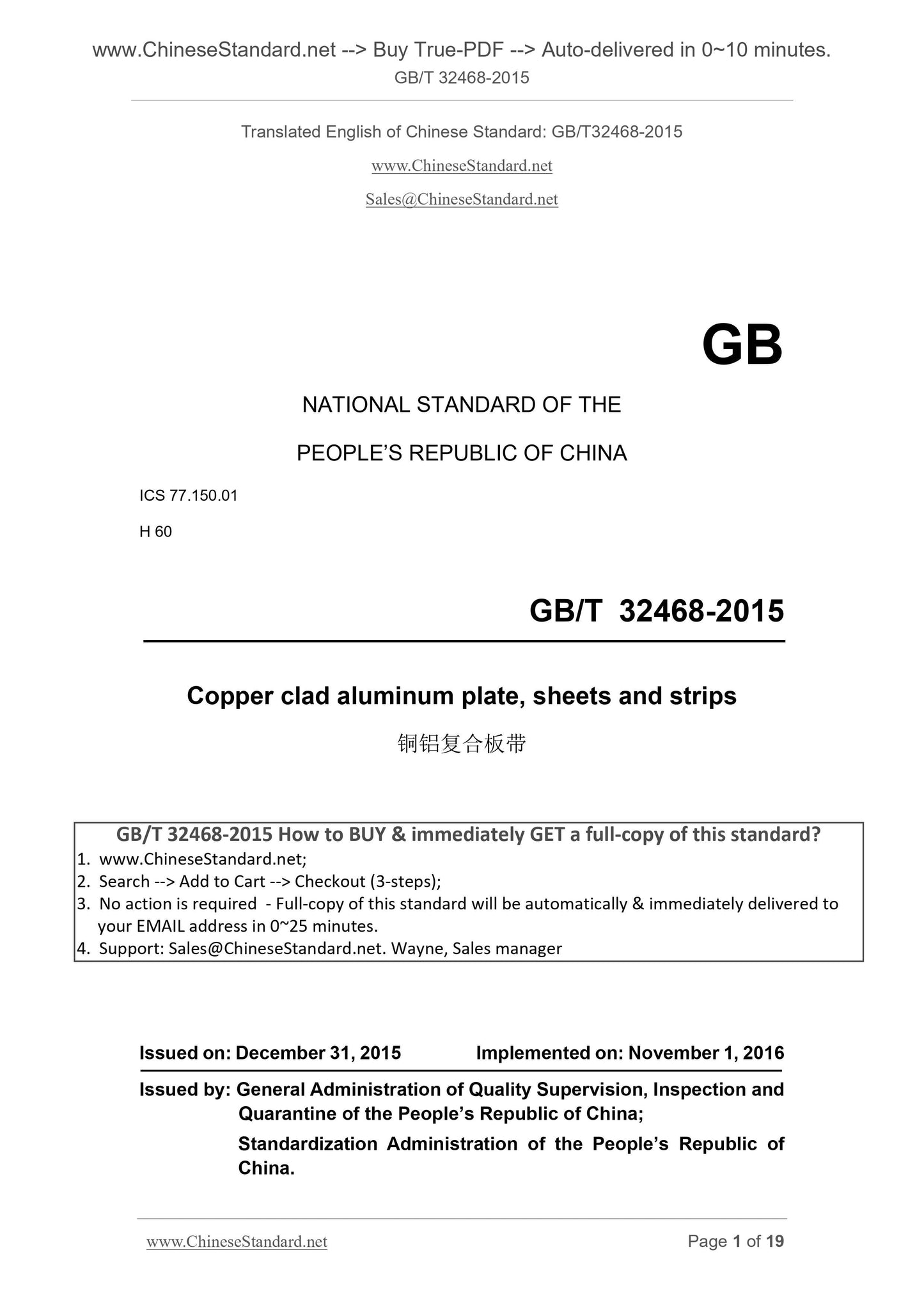

GB/T 32468-2015
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.150.01
H 60
Copper clad aluminum plate, sheets and strips
??????????????????
ISSUED ON. DECEMBER 31, 2015
IMPLEMENTED ON. NOVEMBER 1, 2016
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the PEOPLE Republic of China;
Standardization Administration of the PEOPLE Republic of
China.

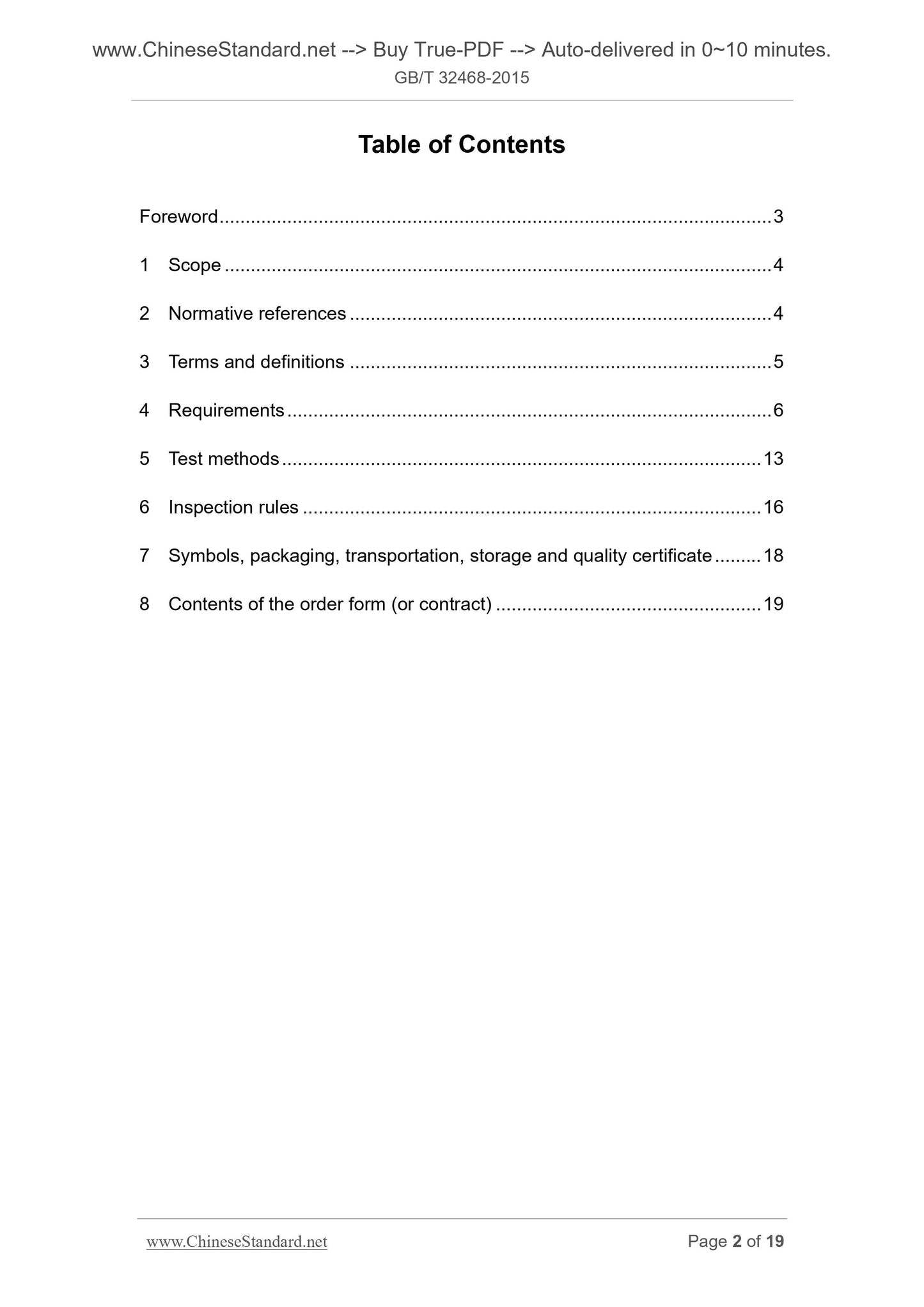

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 5
4 Requirements ... 6
5 Test methods ... 13
6 Inspection rules ... 16
7 Symbols, packaging, transportation, storage and quality certificate ... 18 8 Contents of the order form (or contract) ... 19

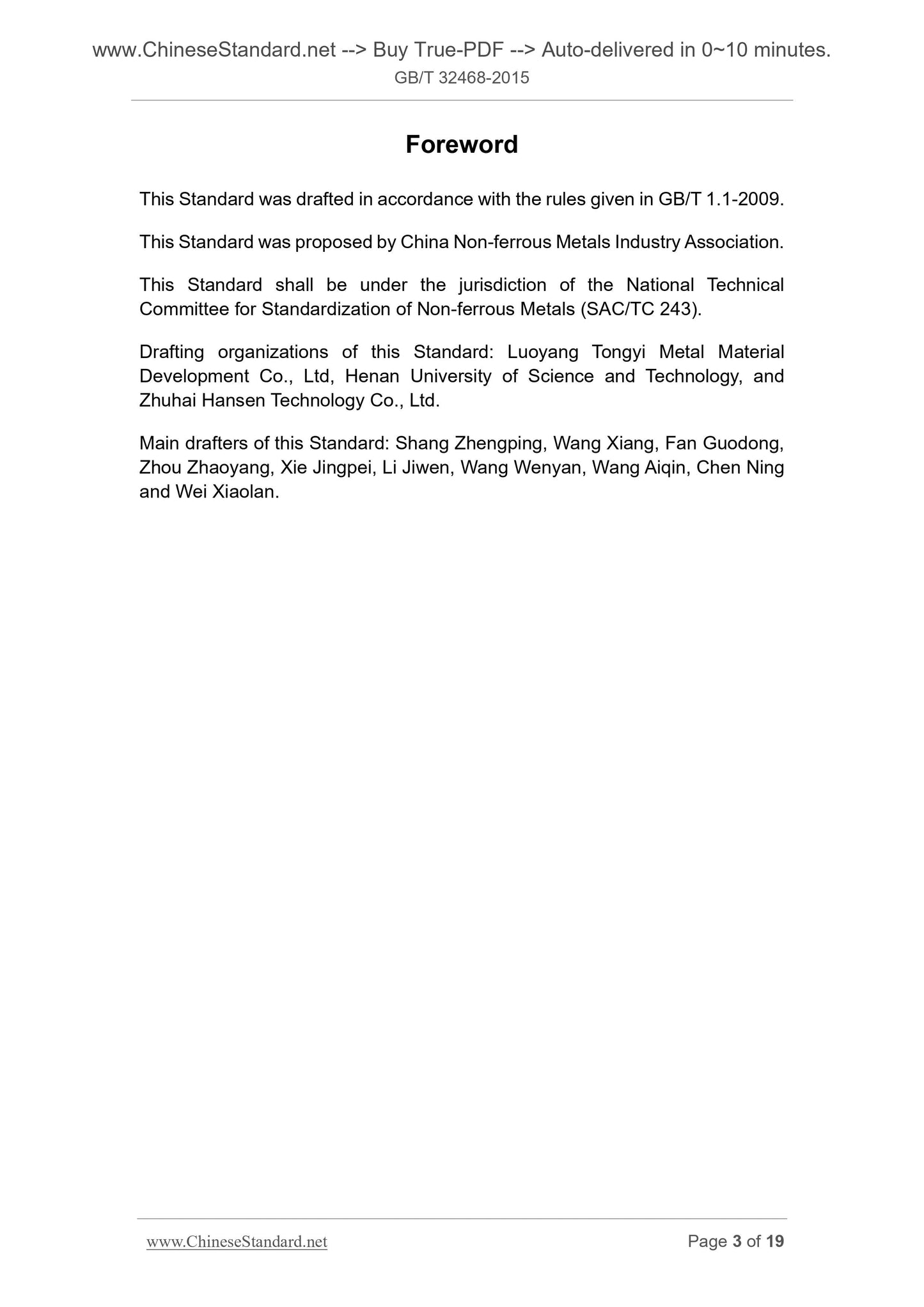

Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009. This Standard was proposed by China Non-ferrous Metals Industry Association. This Standard shall be under the jurisdiction of the National Technical Committee for Standardization of Non-ferrous Metals (SAC/TC 243).
Drafting organizations of this Standard. Luoyang Tongyi Metal Material
Development Co., Ltd, Henan University of Science and Technology, and
Zhuhai Hansen Technology Co., Ltd.
Main drafters of this Standard. Shang Zhengping, Wang Xiang, Fan Guodong, Zhou Zhaoyang, Xie Jingpei, Li Jiwen, Wang Wenyan, Wang Aiqin, Chen Ning and Wei Xiaolan.
Copper clad aluminum plate, sheets and strips

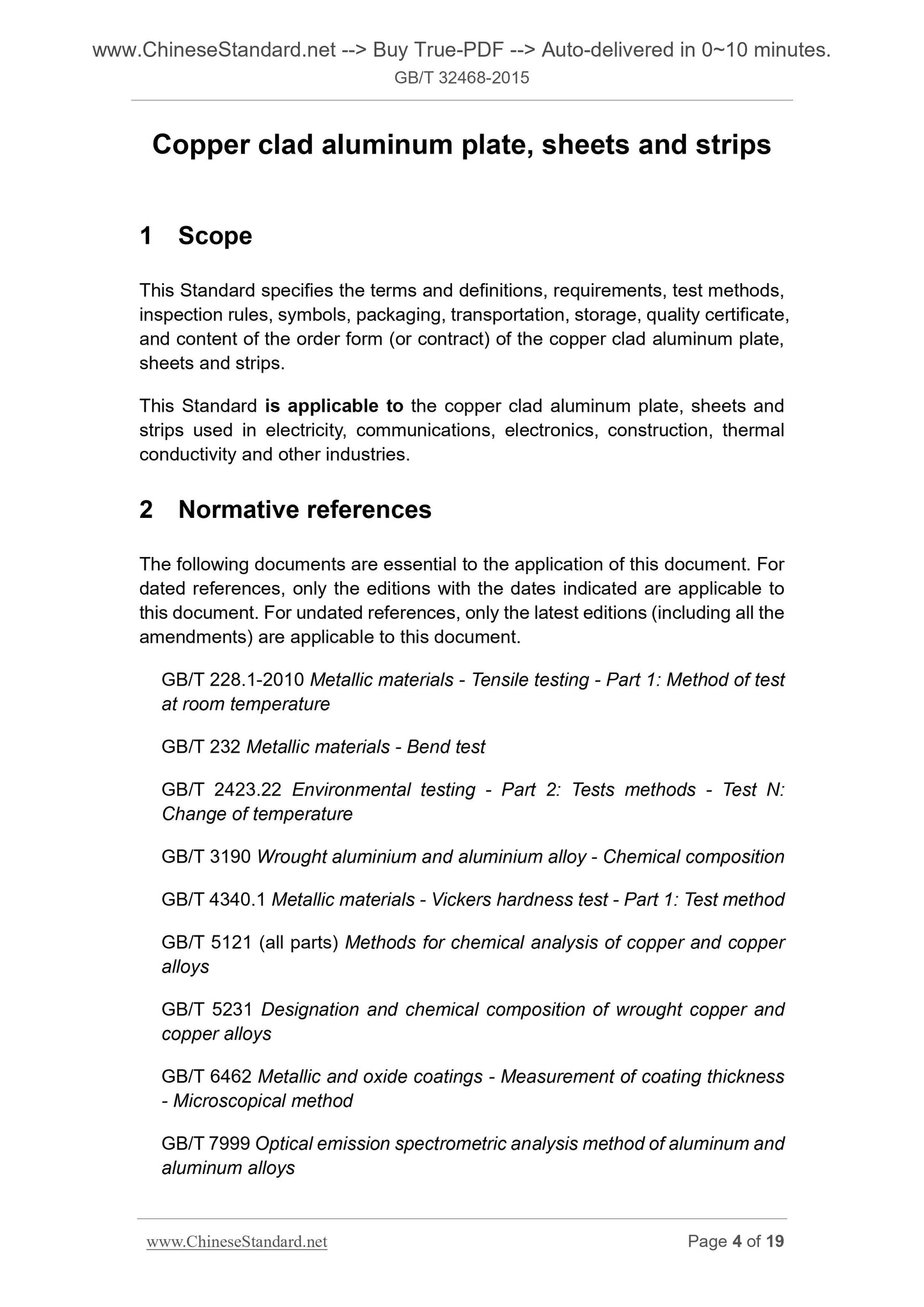

1 Scope
This Standard specifies the terms and definitions, requirements, test methods, inspection rules, symbols, packaging, transportation, storage, quality certificate, and content of the order form (or contract) of the copper clad aluminum plate, sheets and strips.
This Standard is applicable to the copper clad aluminum plate, sheets and strips used in electricity, communications, electronics, construction, thermal conductivity and other industries.
2 Normative references
The following documents are essential to the application of this document. For dated references, only the editions with the dates indicated are applicable to this document. For undated references, only the latest editions (including all the amendments) are applicable to this document.
GB/T 228.1-2010 Metallic materials - Tensile testing - Part 1. Method of test at room temperature
GB/T 232 Metallic materials - Bend test
GB/T 2423.22 Environmental testing - Part 2. Tests methods - Test N.
Change of temperature
GB/T 3190 Wrought aluminium and aluminium alloy - Chemical composition
GB/T 4340.1 Metallic materials - Vickers hardness test - Part 1. Test method GB/T 5121 (all parts) Methods for chemical analysis of copper and copper alloys
GB/T 5231 Designation and chemical composition of wrought copper and
copper alloys
GB/T 6462 Metallic and oxide coatings - Measurement of coating thickness - Microscopical method
GB/T 7999 Optical emission spectrometric analysis method of aluminum and aluminum alloys
GB/T 8165-2008 Stainless steel clad plates, sheets and strips
GB/T 8888 Wrought heavy non-ferrous metal products - Packing, marking,
transportation, storing and certificate of quality
GB/T 20975 (all parts) Methods for chemical analysis of aluminium and
aluminium alloys
GB/T 26303.3 Measuring methods for dimensions and shapes of wrought
copper and copper alloys - Part 3. Sheets and strips
GJB 446 Test method for 90 degree peel strength of adhesives (metal to
metal)
YS/T 482 Methods for analysis of copper and copper alloys - The atomic
emission spectrometry

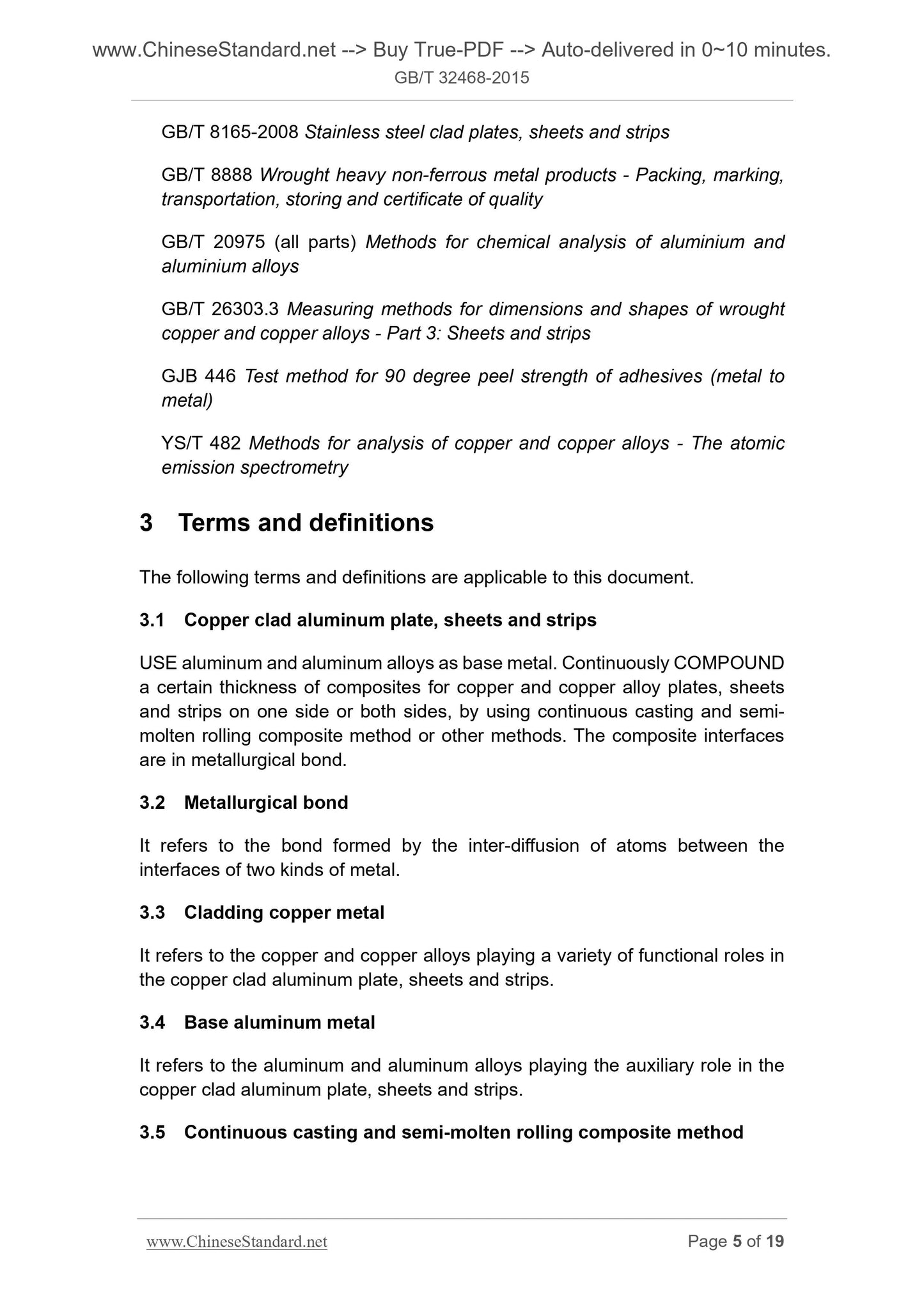

3 Terms and definitions
The following terms and definitions are applicable to this document.
3.1 Copper clad aluminum plate, sheets and strips
USE aluminum and aluminum alloys as base metal. Continuously COMPOUND
a certain thickness of composites for copper and copper alloy plates, sheets and strips on one side or both sides, by using continuous casting and semi- molten rolling composite method or other methods. The composite interfaces are in metallurgical bond.
3.2 Metallurgical bond
It refers to the bond formed by the inter-diffusion of atoms between the interfaces of two kinds of metal.
3.3 Cladding copper metal
It refers to the copper and copper alloys playing a variety of functional roles in the copper clad aluminum plate, sheets and strips.
3.4 Base aluminum metal
It refers to the aluminum and aluminum alloys playing the auxiliary role in the copper clad aluminum plate, sheets and strips.
3.5 Continuous casting and semi-molten rolling composite method

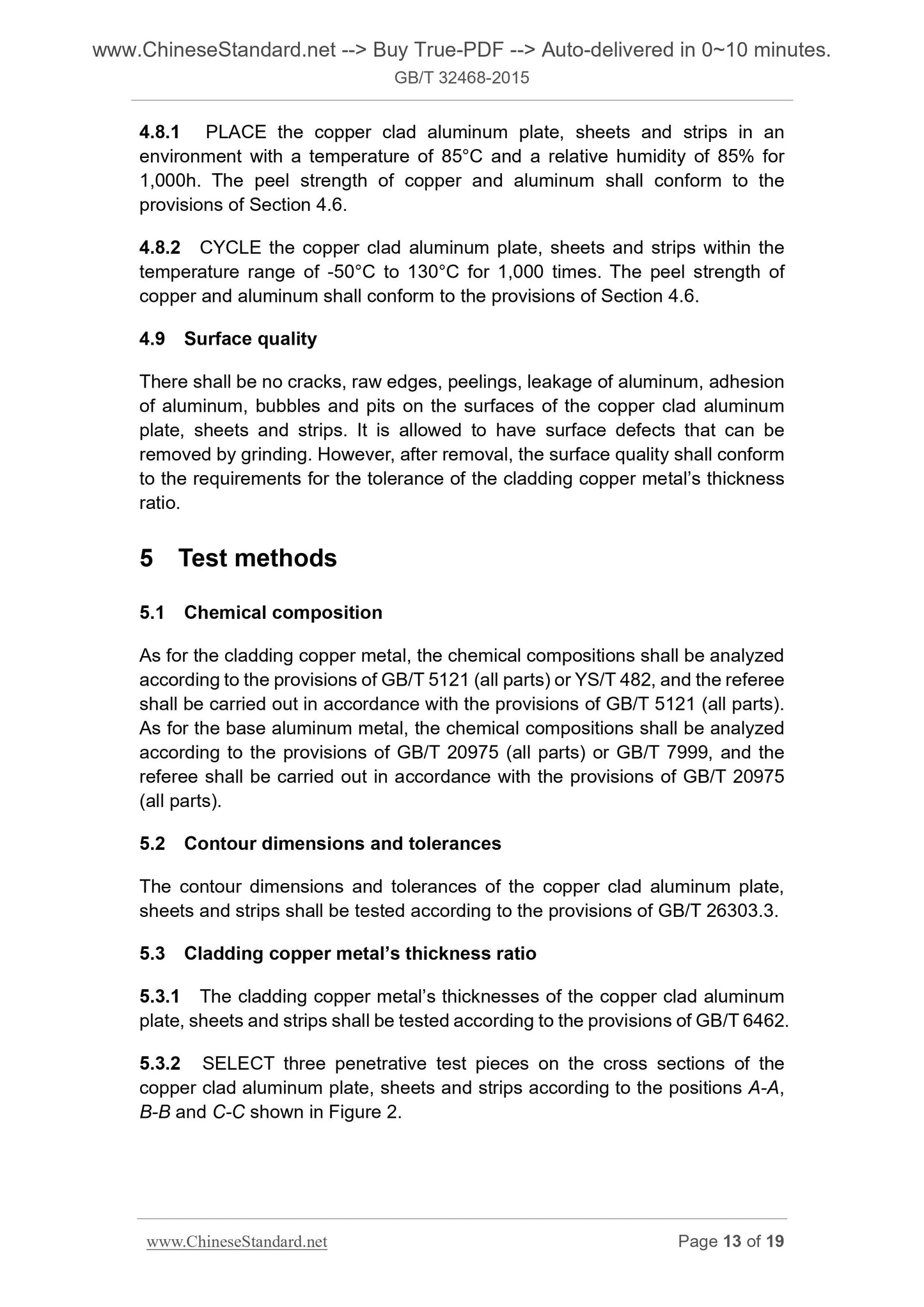

4.8.1 PLACE the copper clad aluminum plate, sheets and strips in an
environment with a temperature of 85??C and a relative humidity of 85% for 1,000h. The peel strength of copper and aluminum shall conform to the
provisions of Section 4.6.
4.8.2 CYCLE the copper clad aluminum plate, sheets and strips within the temperature range of -50??C to 130??C for 1,000 times. The peel strength of copper and aluminum shall conform to the provisions of Section 4.6.
4.9 Surface quality
There shall be no cracks, raw edges, peelings, leakage of aluminum, adhesion of aluminum, bubbles and pits on the surfaces of the copper clad aluminum plate, sheets and strips. It is allowed to have surface defects that can be removed by grinding. However, after removal, the surface quality shall conform to the requirements for the tolerance of the cladding copper metal?€?s thickness ratio.
5 Test methods
5.1 Chemical composition
As for the cladding copper metal, the chemical compositions shall be analyzed according to the provisions of GB/T 5121 (all parts) or YS/T 482, and the referee shall be carried out in accordance with the provisions of GB/T 5121 (all parts). As for the base aluminum metal, the chemical compositions shall be analyzed according to the provisions of GB/T 20975 (all parts) or GB/T 7999, and the referee shall be carried out in accordance with the provisions of GB/T 20975 (all parts).
5.2 Contour dimensions and tolerances
The contour dimensions and tolerances of the copper clad aluminum plate, sheets and strips shall be tested according to the provisions of GB/T 26303.3. 5.3 Cladding copper metal?€?s thickness ratio
5.3.1 The cladding copper metal?€?s thicknesses of the copper clad aluminum plate, sheets and strips shall be tested according to the provisions of GB/T 6462. 5.3.2 SELECT three penetrative test pieces on the cross sections of the copper clad aluminum plate, sheets and strips according to the positions A-A, B-B and C-C shown in Figure 2.

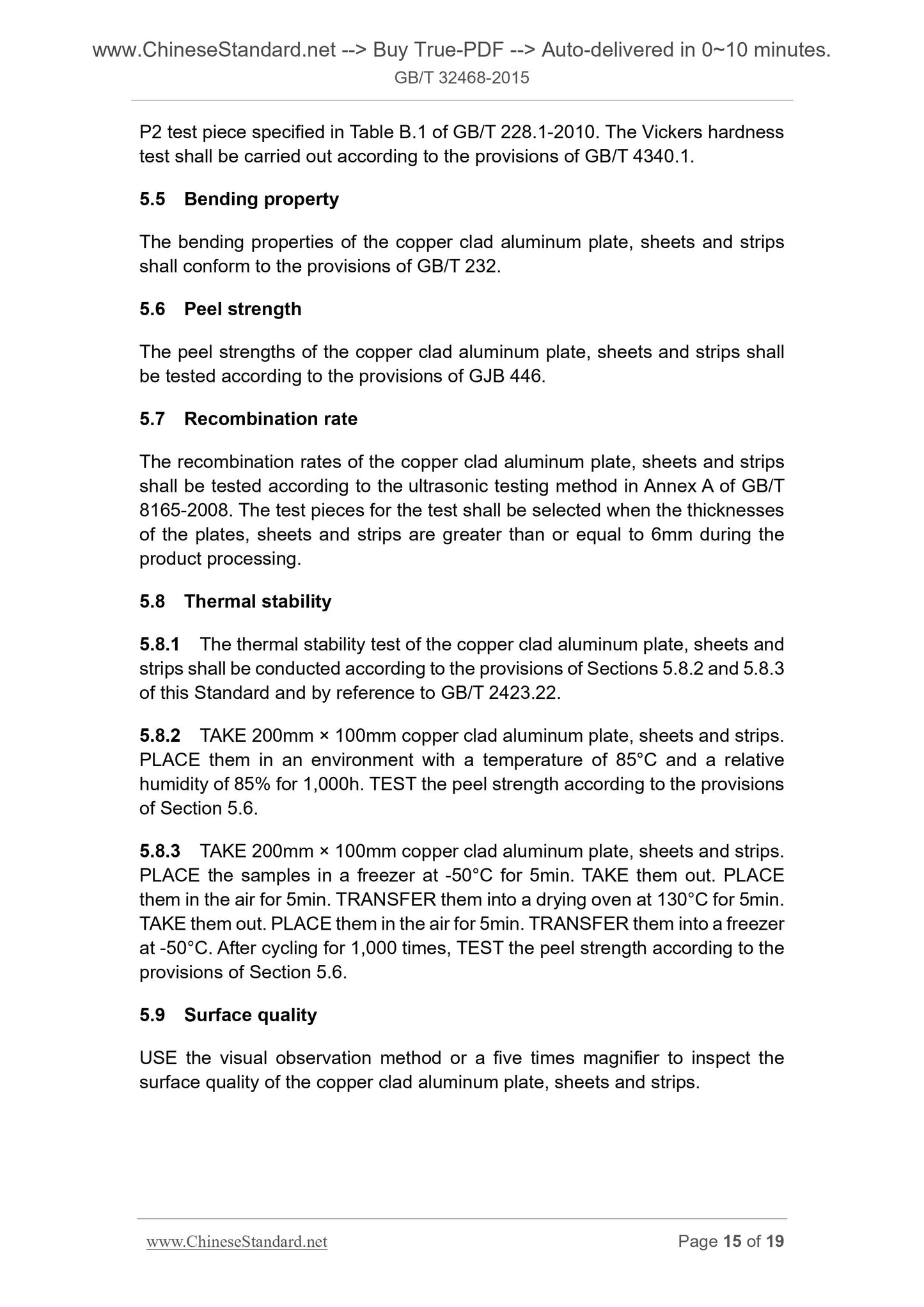

P2 test piece specified in Table B.1 of GB/T 228.1-2010. The Vickers hardness test shall be carried out according to the provisions of GB/T 4340.1.
5.5 Bending property
The bending properties of the copper clad aluminum plate, sheets and strips shall conform to the provisions of GB/T 232.
5.6 Peel strength
The peel strengths of the copper clad aluminum plate, sheets and strips shall be tested according to the provisions of GJB 446.
5.7 Recombination rate
The recombination rates of the copper clad aluminum plate, sheets and strips shall be tested according to the ultrasonic testing method in Annex A of GB/T 8165-2008. The test pieces for the test shall be selected when the thicknesses of the plates, sheets and strips are greater than or equal to 6mm during the product processing.
5.8 Thermal stability
5.8.1 The thermal stability test of the copper clad aluminum plate, sheets and strips shall be conducted according to the provisions of Sections 5.8.2 and 5.8.3 of this Standard and by reference to GB/T 2423.22.
5.8.2 TAKE 200mm ?? 100mm copper clad aluminum plate, sheets and strips. PLACE them in an environment with a temperature of 85??C and a relative
humidity of 85% for 1,000h. TEST the peel strength according to the provisions of Section 5.6.
5.8.3 TAKE 200mm ?? 100mm copper clad aluminum plate, sheets and strips. PLACE the samples in a freezer at -50??C for 5min. TAKE them out. PLACE
them in the air for 5min. TRANSFER them into a drying oven at 130??C for 5min. TAKE them out. PLACE them in the air for 5min. TRANSFER them into a freezer at -50??C. After cycling for 1,000 times, TEST the peel strength according to the provisions of Section 5.6.
5.9 Surface quality
USE the visual observation method or a five times magnifier to inspect the surface quality of the copper clad aluminum plate, sheets and strips.
Tensile property
TAKE 2 rolls (pieces) at random from each batch;
TAKE 1 test piece along the rolling direction from
each roll (piece)k
4.4 5.4

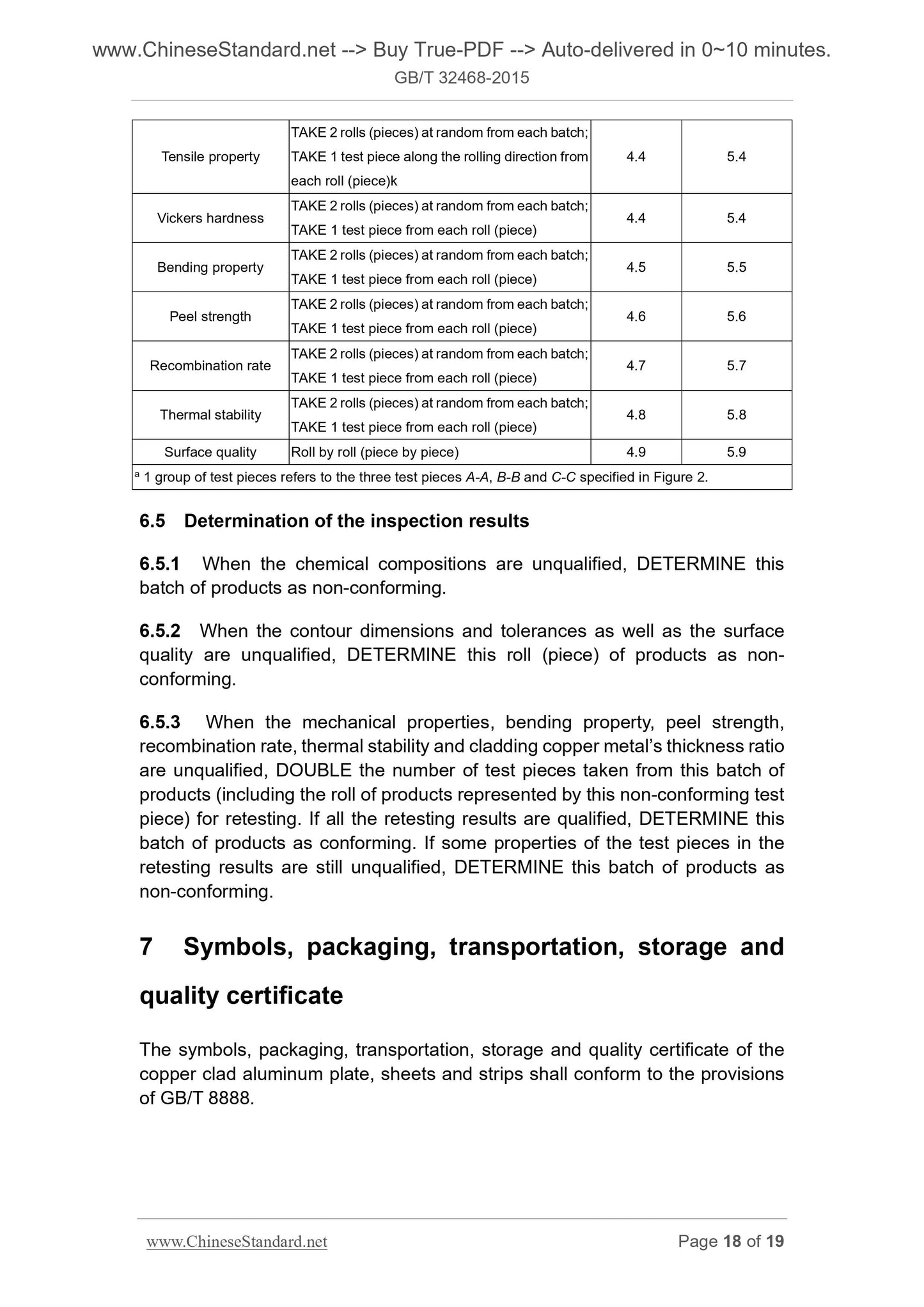

Vickers hardness TAKE 2 rolls (pieces) at random from each batch; TAKE 1 test piece from each roll (piece) 4.4 5.4 Bending property TAKE 2 rolls (pieces) at random from each batch; TAKE 1 test piece from each roll (piece) 4.5 5.5 Peel strength TAKE 2 rolls (pieces) at random from each batch; TAKE 1 test piece from each roll (piece) 4.6 5.6 Recombination rate TAKE 2 rolls (pieces) at random from each batch; TAKE 1 test piece from each roll (piece) 4.7 5.7 Thermal stability TAKE 2 rolls (pieces) at random from each batch; TAKE 1 test piece from each roll (piece) 4.8 5.8 Surface quality Roll by roll (piece by piece) 4.9 5.9
