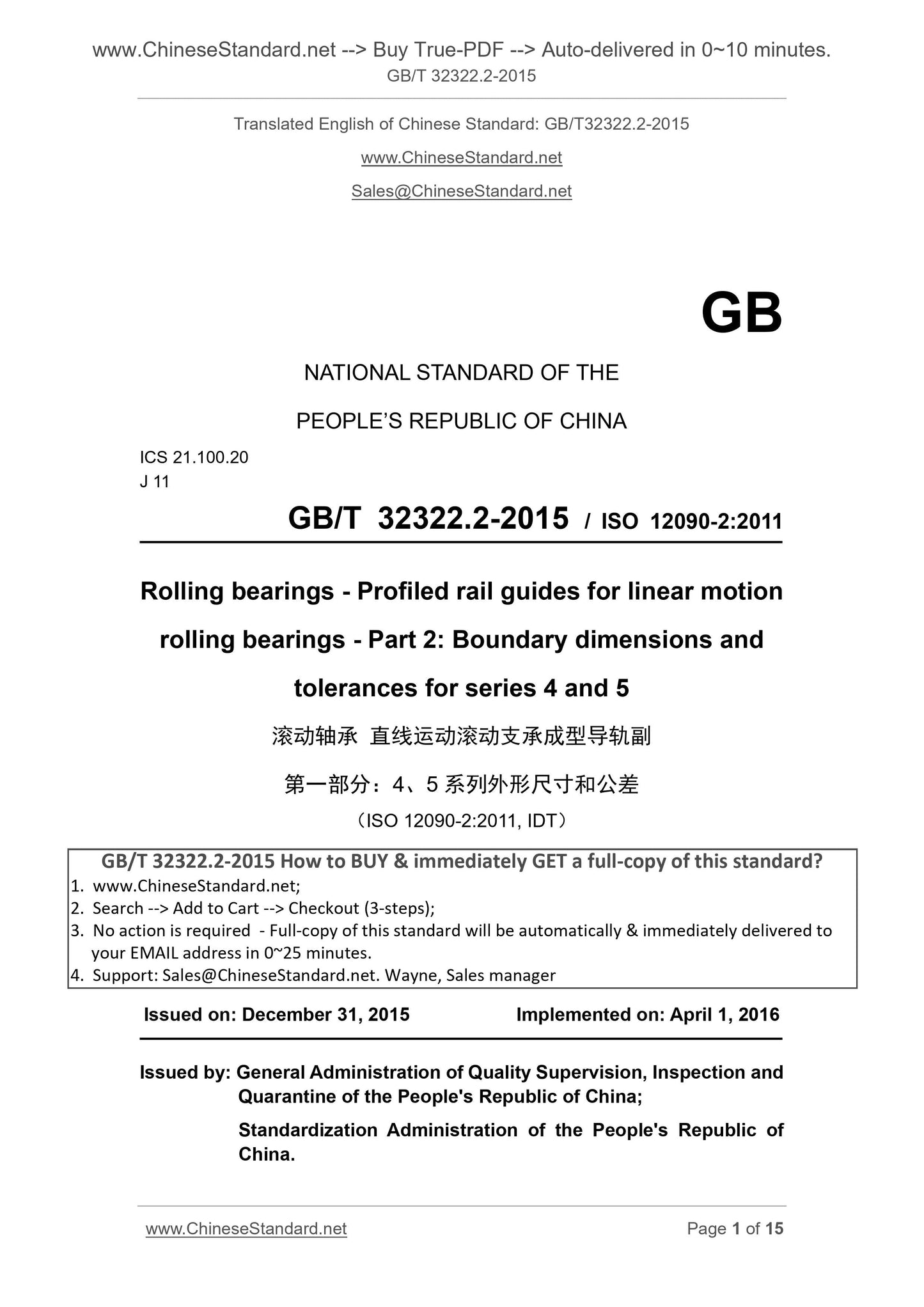

GB/T 32322.2-2015: Rolling bearings -- Profiled rail guides for linear motion rolling bearings -- Part 2: Boundary dimensions and tolerances for series 4 and 5

GB/T 32322.2-2015
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 21.100.20
J 11
GB/T 32322.2-2015 / ISO 12090-2.2011
Rolling bearings - Profiled rail guides for linear motion
rolling bearings - Part 2. Boundary dimensions and
tolerances for series 4 and 5
滚动轴承 直线运动滚动支承成型导轨副
(ISO 12090-2.2011, IDT)
ISSUED ON. DECEMBER 31, 2015
IMPLEMENTED ON. APRIL 1, 2016
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

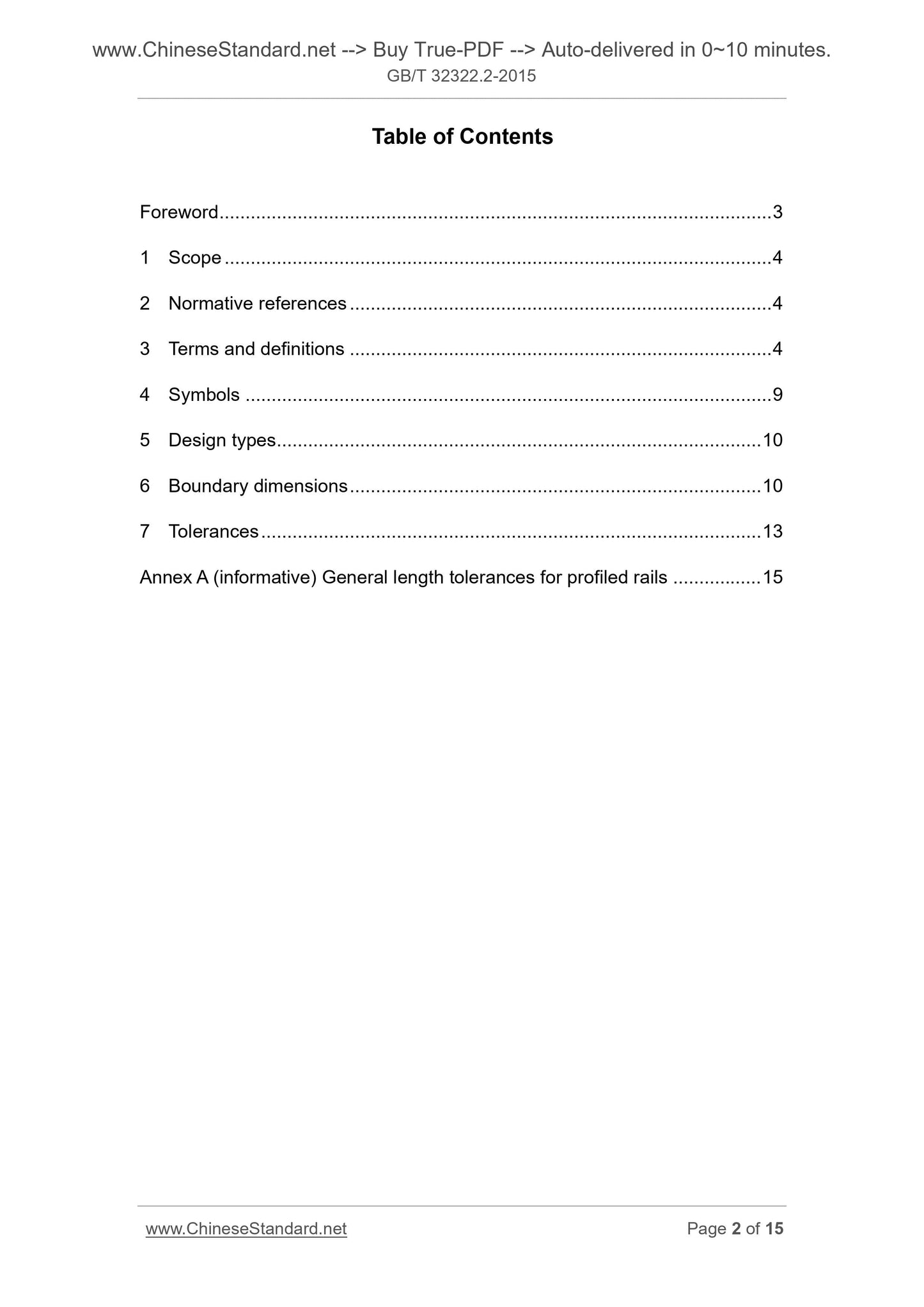

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Symbols ... 9
5 Design types ... 10
6 Boundary dimensions ... 10
7 Tolerances ... 13
Annex A (informative) General length tolerances for profiled rails ... 15 Foreword

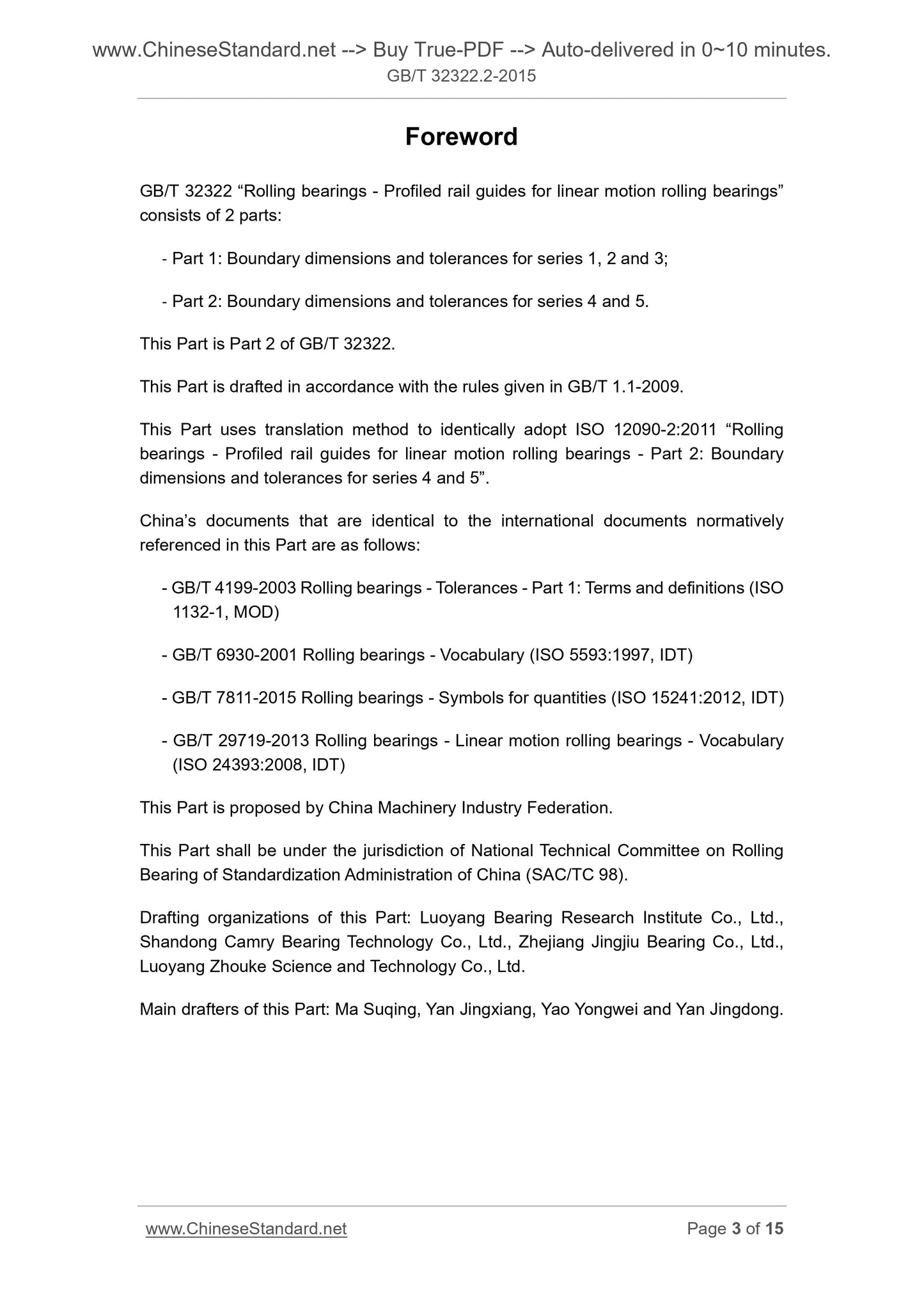

GB/T 32322 “Rolling bearings - Profiled rail guides for linear motion rolling bearings” consists of 2 parts.
‐ Part 1. Boundary dimensions and tolerances for series 1, 2 and 3;
‐ Part 2. Boundary dimensions and tolerances for series 4 and 5.
This Part is Part 2 of GB/T 32322.
This Part is drafted in accordance with the rules given in GB/T 1.1-2009. This Part uses translation method to identically adopt ISO 12090-2.2011 “Rolling bearings - Profiled rail guides for linear motion rolling bearings - Part 2. Boundary dimensions and tolerances for series 4 and 5”.
China’s documents that are identical to the international documents normatively referenced in this Part are as follows.
- GB/T 4199-2003 Rolling bearings - Tolerances - Part 1. Terms and definitions (ISO 1132-1, MOD)
- GB/T 6930-2001 Rolling bearings - Vocabulary (ISO 5593.1997, IDT)
- GB/T 7811-2015 Rolling bearings - Symbols for quantities (ISO 15241.2012, IDT) - GB/T 29719-2013 Rolling bearings - Linear motion rolling bearings - Vocabulary (ISO 24393.2008, IDT)
This Part is proposed by China Machinery Industry Federation.
This Part shall be under the jurisdiction of National Technical Committee on Rolling Bearing of Standardization Administration of China (SAC/TC 98).
Drafting organizations of this Part. Luoyang Bearing Research Institute Co., Ltd., Shandong Camry Bearing Technology Co., Ltd., Zhejiang Jingjiu Bearing Co., Ltd., Luoyang Zhouke Science and Technology Co., Ltd.
Main drafters of this Part. Ma Suqing, Yan Jingxiang, Yao Yongwei and Yan Jingdong. Rolling bearings - Profiled rail guides for linear motion
rolling bearings - Part 2. Boundary dimensions and
tolerances for series 4 and 5

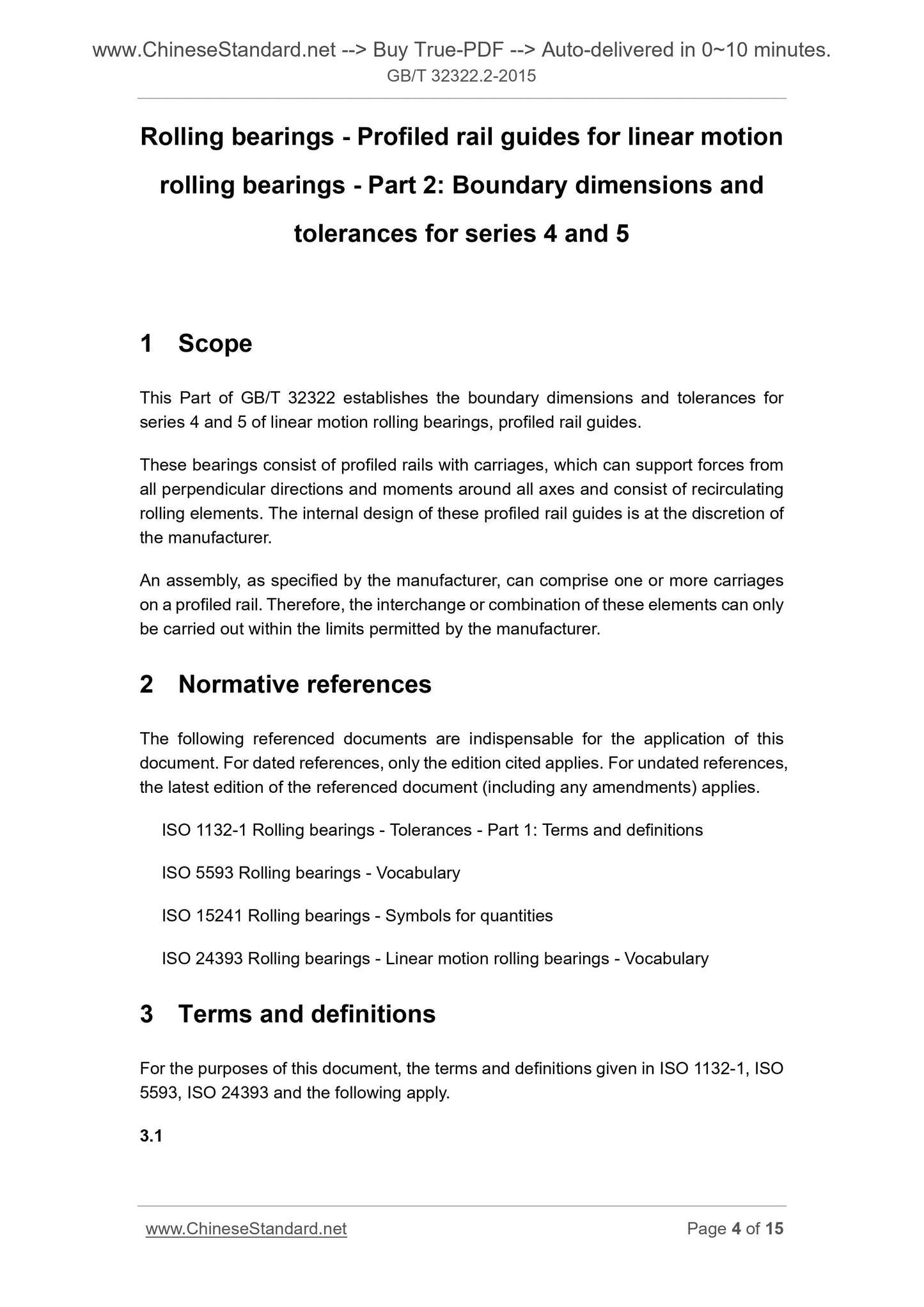

1 Scope
This Part of GB/T 32322 establishes the boundary dimensions and tolerances for series 4 and 5 of linear motion rolling bearings, profiled rail guides. These bearings consist of profiled rails with carriages, which can support forces from all perpendicular directions and moments around all axes and consist of recirculating rolling elements. The internal design of these profiled rail guides is at the discretion of the manufacturer.
An assembly, as specified by the manufacturer, can comprise one or more carriages on a profiled rail. Therefore, the interchange or combination of these elements can only be carried out within the limits permitted by the manufacturer.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. ISO 1132-1 Rolling bearings - Tolerances - Part 1. Terms and definitions ISO 5593 Rolling bearings - Vocabulary
ISO 15241 Rolling bearings - Symbols for quantities
ISO 24393 Rolling bearings - Linear motion rolling bearings - Vocabulary 3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 1132-1, ISO 5593, ISO 24393 and the following apply.
