GB/T 31975-2015: Technical requirements of compressed air for respiratory protection

This Standard specifies the quality indicators and test methods of compressed air for respiratory protection. This Standard is applicable to self-contained open-circuit compressed air breathing apparatus and compressed air line breathing apparatus for occupational protection and escape. This Standard is not applicable to compressed air for medical use, breathing equipment for diving and compressed air for aviation breathing equipment.

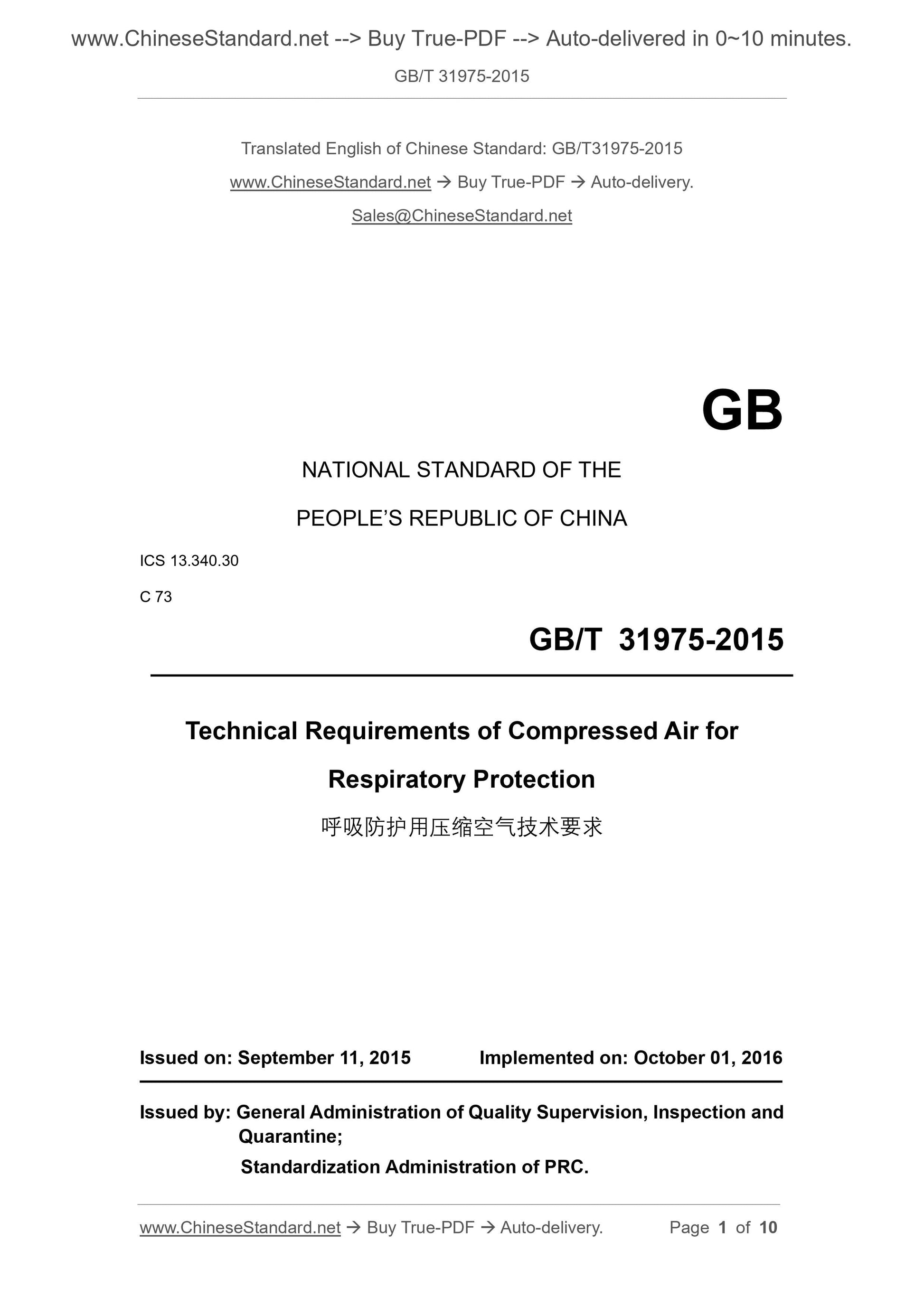

GB/T 31975-2015
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 13.340.30
C 73
Technical Requirements of Compressed Air for
Respiratory Protection
ISSUED ON: SEPTEMBER 11, 2015
IMPLEMENTED ON: OCTOBER 01, 2016
Issued by: General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of PRC.

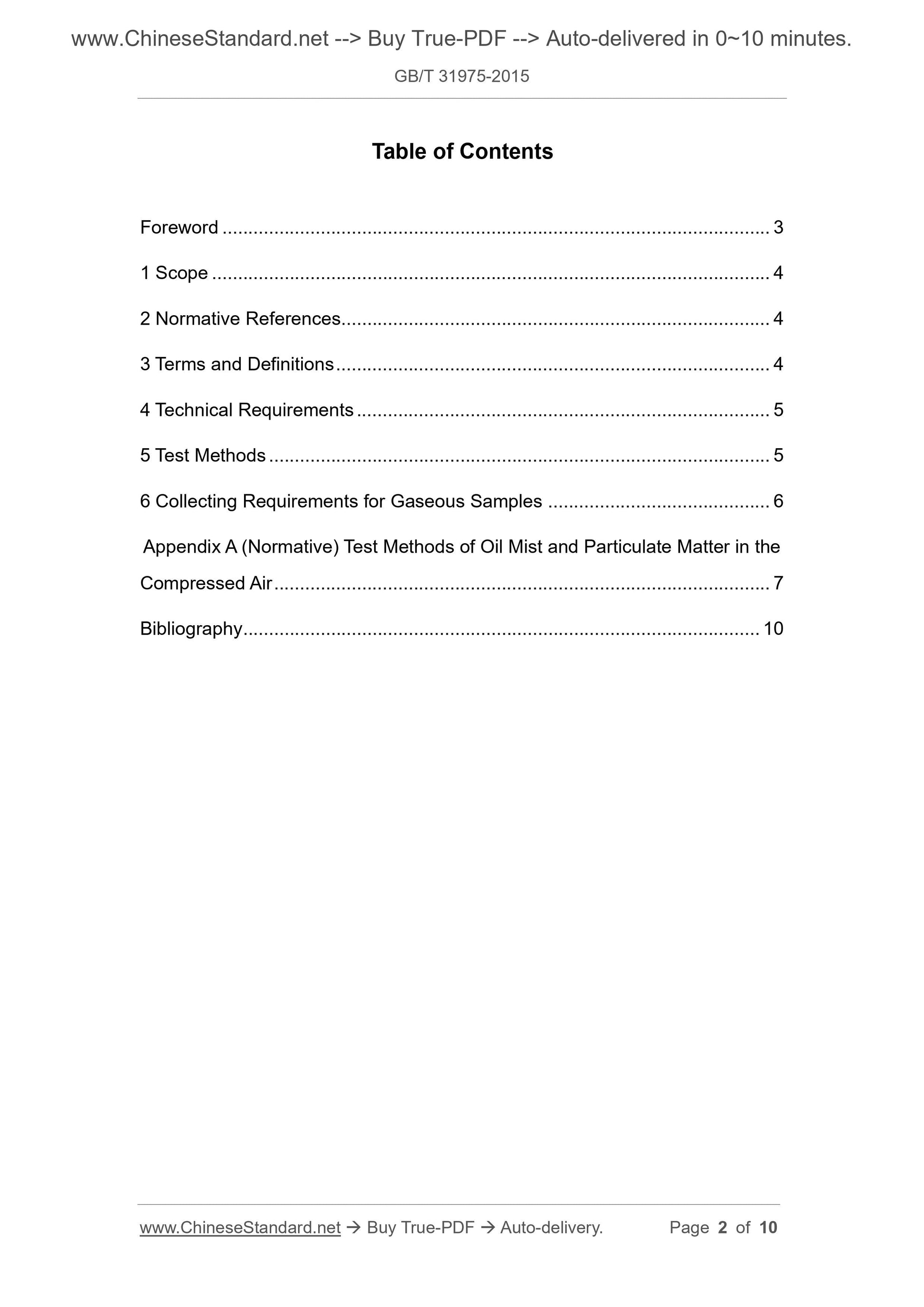

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 4
4 Technical Requirements ... 5
5 Test Methods ... 5
6 Collecting Requirements for Gaseous Samples ... 6
Appendix A (Normative) Test Methods of Oil Mist and Particulate Matter in the Compressed Air ... 7
Bibliography ... 10
Foreword
This Standard was drafted as per the rules specified in GB/T 1.1-2009.
This Standard was proposed by State Administration of Work Safety.
This Standard shall be under the jurisdiction of National Technical Committee for Standardization of Personal Protection (SAC/TC 112).
Drafting organizations of this Standard: China Academy of Safety Science and Technology; Research Institute of Chemical Defense, General Armaments Department; Quartermaster Equipment Research Institute of the General Logistic Department; MSA (China) Safety Equipment Co., Ltd.; and Draeger Safety Equipment (China) Co., Ltd. Chief drafting staffs of this Standard: Zhang Mingming, Ding Songtao, Fu Yahui, Dong Huijun, Yao Haifeng, Chang Hong, Yang Xiaobing, Zhang Huijun, and Zhu Hua. Technical Requirements of Compressed Air for
Respiratory Protection

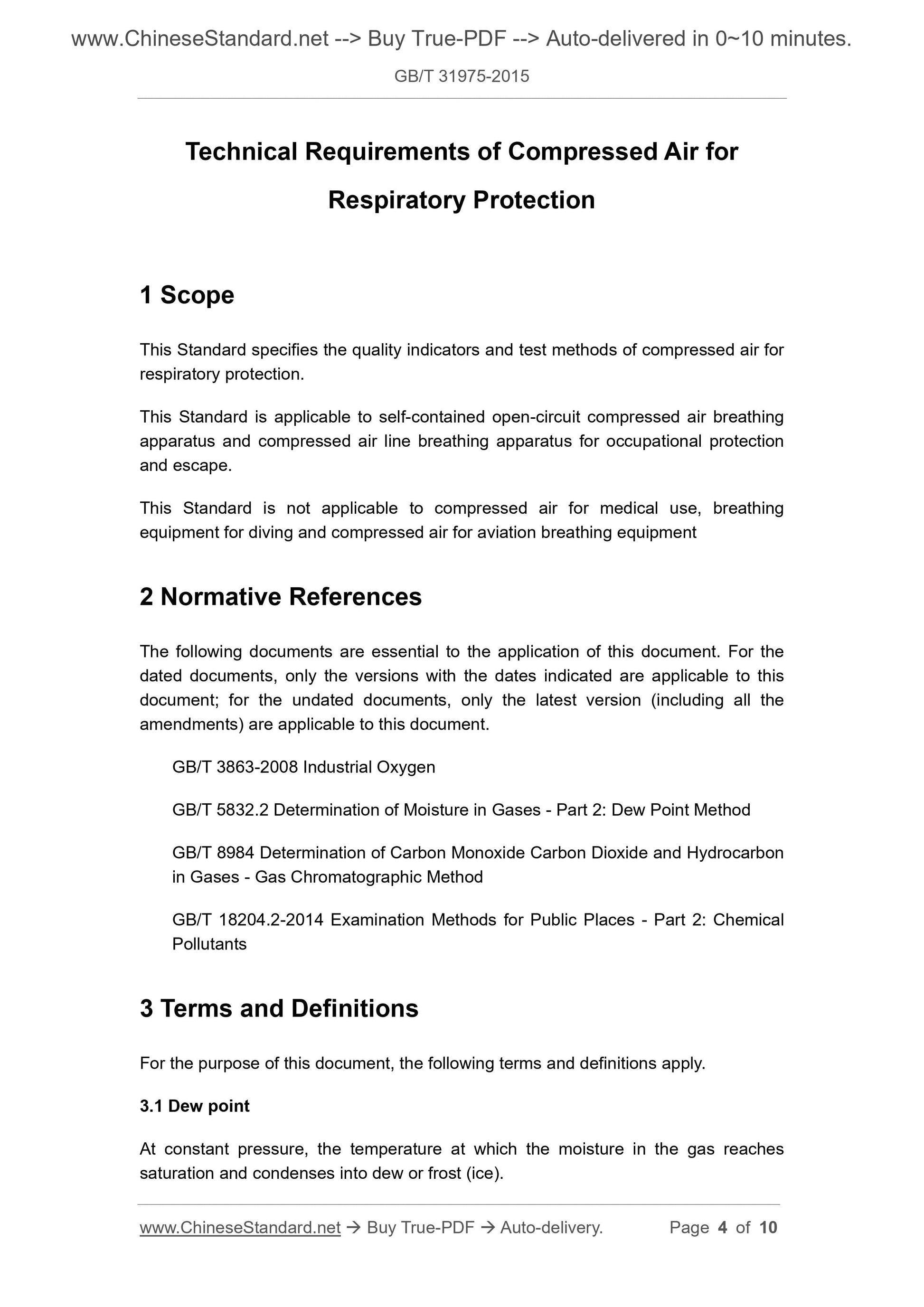

1 Scope
This Standard specifies the quality indicators and test methods of compressed air for respiratory protection.
This Standard is applicable to self-contained open-circuit compressed air breathing apparatus and compressed air line breathing apparatus for occupational protection and escape.
This Standard is not applicable to compressed air for medical use, breathing equipment for diving and compressed air for aviation breathing equipment 2 Normative References
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this document.
GB/T 3863-2008 Industrial Oxygen
GB/T 5832.2 Determination of Moisture in Gases - Part 2: Dew Point Method GB/T 8984 Determination of Carbon Monoxide Carbon Dioxide and Hydrocarbon in Gases - Gas Chromatographic Method
GB/T 18204.2-2014 Examination Methods for Public Places - Part 2: Chemical Pollutants
3 Terms and Definitions
For the purpose of this document, the following terms and definitions apply. 3.1 Dew point
At constant pressure, the temperature at which the moisture in the gas reaches saturation and condenses into dew or frost (ice).
3.2 Dew point method
A method of measuring the dew point of the gas to reflect the moisture content of compressed air.
3.3 Atmospheric dew point
Dew point of compressed air measured at atmospheric pressure.
4 Technical Requirements
The quality of compressed air for respiratory protection shall meet the requirements of various indicators in Table 1.
Table 1 -- Quality Indicators of Compressed Air for Respiratory Protection Table 1 ?€? Continued
5 Test Methods
5.1 Determination of oxygen
5.1.1 The determination of the oxygen content in compressed air should adopt the copper ammonia solution absorption method, and implement according to the provisions of 4.2 in GB/T 3863-2008;
5.1.2 The oxygen content in the compressed air may also be measured by
paramagnetic analyzers, electrochemical analyzers and other instrumental analysis methods. The accuracy of the instrument is at least ??0.2% oxygen (absolute value). 5.2 Determination of carbon monoxide
Quality indicators Indicator requirements a
Oxygen
Carbon monoxide
Carbon dioxide
19.5% (volume fraction) ~ 23.5% (volume fraction)
Quality indicators Indicator requirements a
Dew point
Oil mist and particulate matter
Peculiar smell No obvious peculiar smell

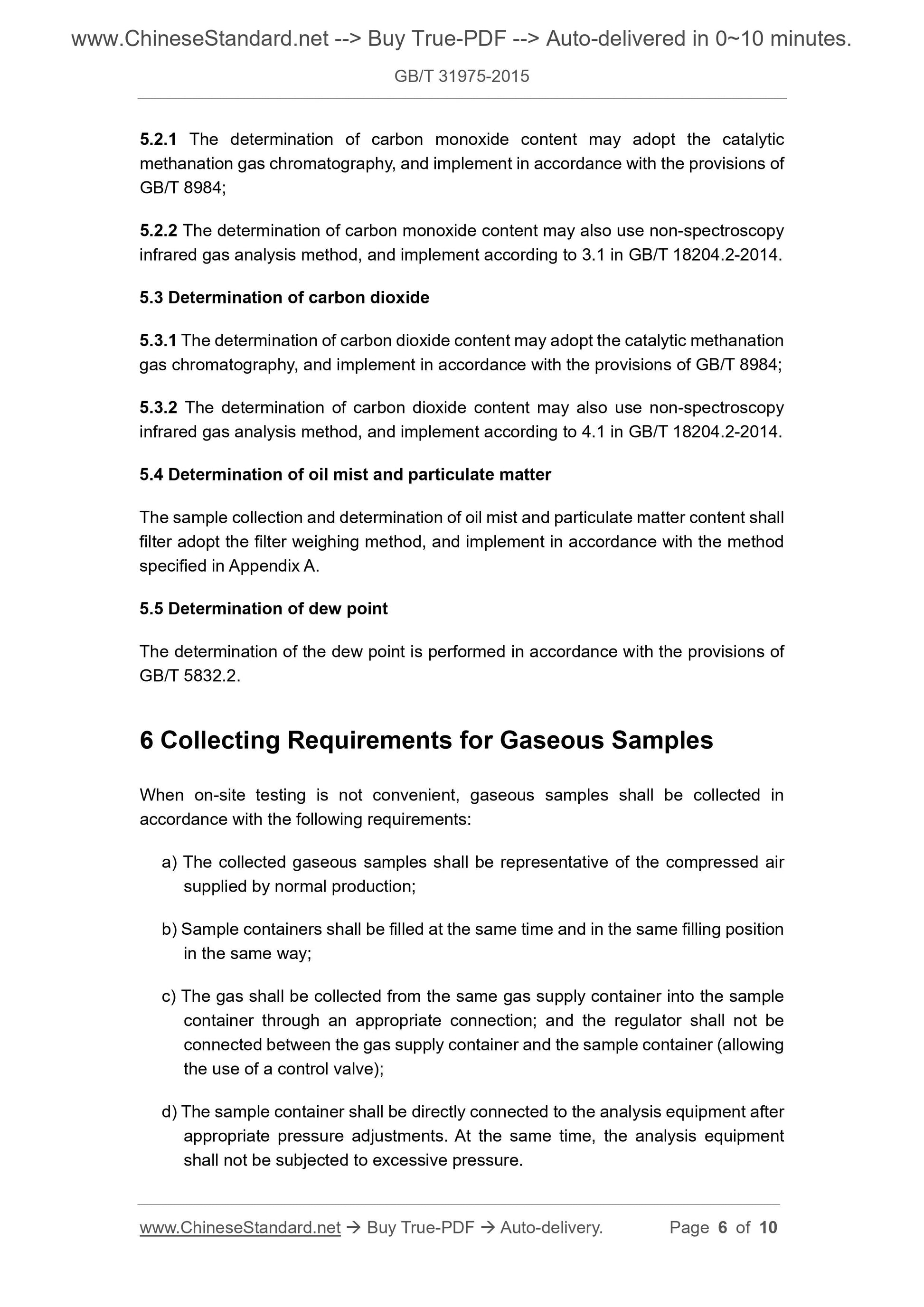

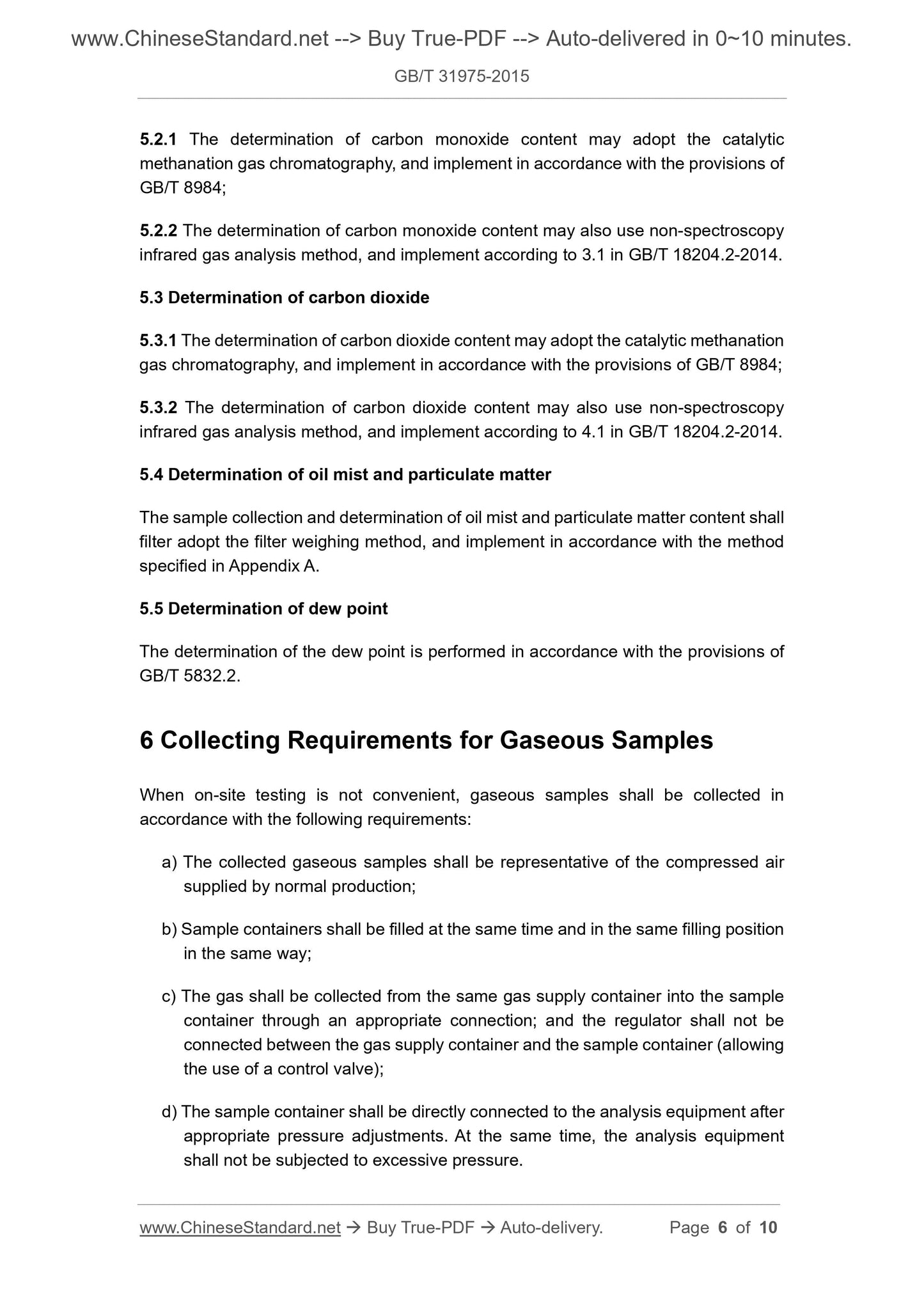

a The requirements for each indicator is the value under the standard state (20??C, 101.3 kPa). 5.2.1 The determination of carbon monoxide content may adopt the catalytic methanation gas chromatography, and implement in accordance with the provisions of GB/T 8984;
5.2.2 The determination of carbon monoxide content may also use non-spectroscopy infrared gas analysis method, and implement according to 3.1 in GB/T 18204.2-2014. 5.3 Determination of carbon dioxide
5.3.1 The determination of carbon dioxide content may adopt the catalytic methanation gas chromatography, and implement in accordance with the provisions of GB/T 8984; 5.3.2 The determination of carbon dioxide content may also use non-spectroscopy infrared gas analysis method, and implement according to 4.1 in GB/T 18204.2-2014. 5.4 Determination of oil mist and particulate matter
The sample collection and determination of oil mist and particulate matter content shall filter adopt the filter weighing method, and implement in accordance with the method specified in Appendix A.
5.5 Determination of dew point
The determination of the dew point is performed in accordance with the provisions of GB/T 5832.2.
6 Collecting Requirements for Gaseous Samples
When on-site testing is not convenient, gaseous samples shall be collected in accordance with the following requirements:
a) The collected gaseous samples shall be representative of the compressed air supplied by normal production;
b) Sample containers shall be filled at the same time and in the same filling position in the same way;
c) The gas shall be collected from the same gas supply container into the sample container through an appropriate connection; and the regulator shall not be connected between the gas supply container and the sample container (allowing the use of a control valve);
d) The sample container shall be directly connected to the analysis equipment after appropriate pressure adjustments. At the same time, the analysis equipment shall not be subjected to excessive pressure.
Appendix A
(Normative)
Test Methods of Oil Mist and Particulate Matter in the Compressed
Air
A.1 Principle
The oil mist and particulate matter in the gas sample shall be collected with a filter membrane of known quality. The content of the oil mist and particulate matter in the compressed air shall be calculated from the weight gain of the filter membrane and the volume of the collected gas after sampling.
A.2 Instruments and materials
The instruments and materials required for the method include:
a) Filter membrane: perchloroethylene microporous filter membrane or other dust measurement filter membrane, diameter 37mm or 40mm, and pore diameter no greater than 1??m;
b) Sampling clip or sampling box: the size is consistent with the filter membrane, which is used to hold the microporous filter membrane;
c) gas needle valve and rubber-plastic tube for connection;
d) flow meter with accuracy of 2%;
e) Analytical balance: accurate to 0.1 mg.
A.3 Preparation before sampling
The following preparations shall be made before sampling:
a) Wash and dry the sampling clamp and sampling box;
b) Dewater the filter membrane in a desiccator for at least 4h; weigh the mass, m1, (accurate to 0.1mg); and put it into the numbered filter box. The weighed filter membrane shall not be contaminated or adsorb oil or dust;
c) Connect the needle valve, sampling clamp and rotor flowmeter with plastic pipes in order.
A.4 Sample collection

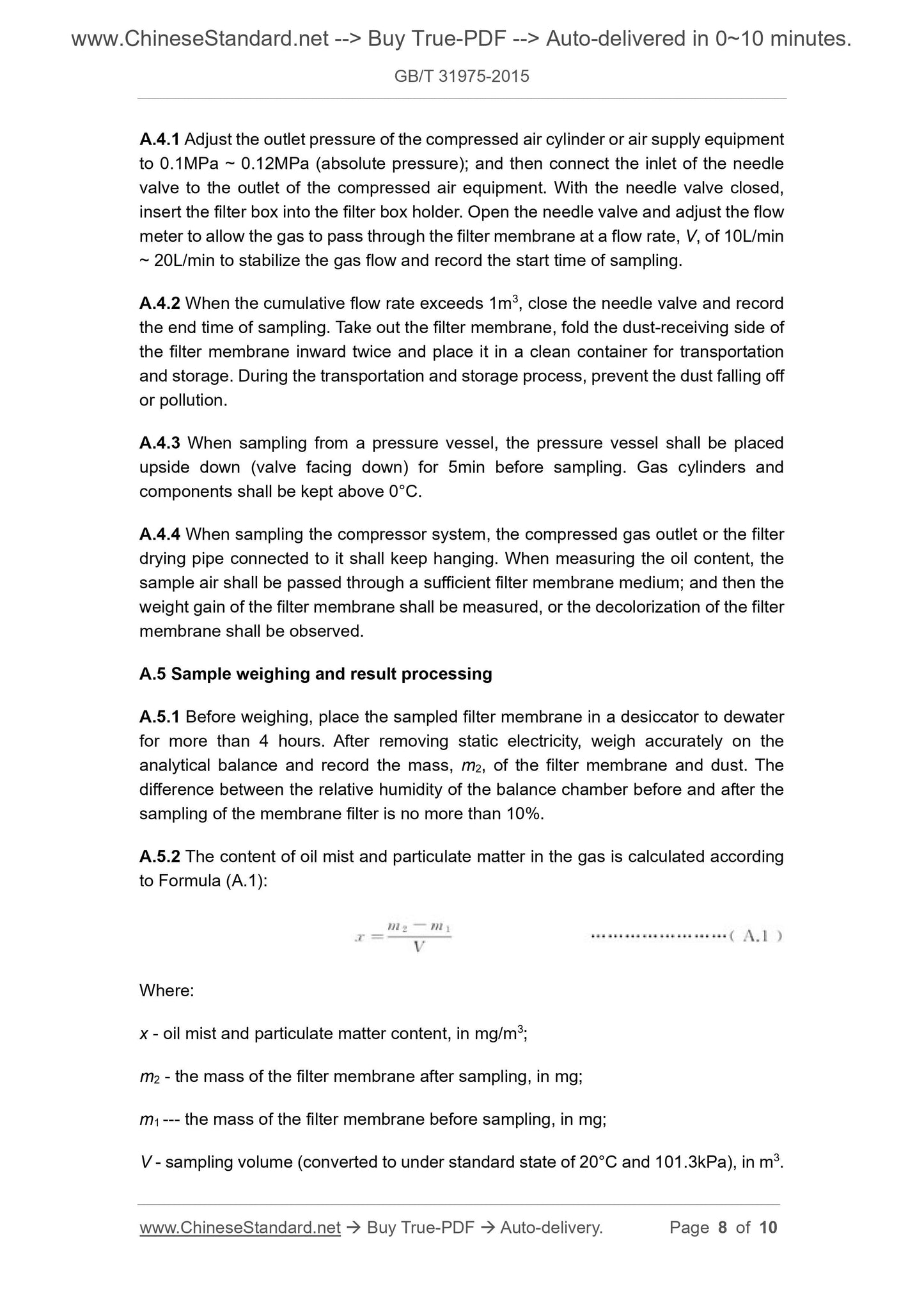

A.4.1 Adjust the outlet pressure of the compressed air cylinder or air supply equipment to 0.1MPa ~ 0.12MPa (absolute pressure); and then connect the inlet of the needle valve to the outlet of the compressed air equipment. With the needle valve closed, insert the filter box into the filter box holder. Open the needle valve and adjust the flow meter to allow the gas to pass through the filter membrane at a flow rate, V, of 10L/min ~ 20L/min to stabilize the gas flow and record the start time of sampling. A.4.2 When the cumulative flow rate exceeds 1m3, close the needle valve and record the end time of sampling. Take out the filter membrane, fold the dust-receiving side of the filter membrane inward twice and place it in a clean container for transportation and storage. During the transportation and storage process, prevent the dust falling off or pollution.
A.4.3 When sampling from a pressure vessel, the pressure vessel shall be placed upside down (valve facing down) for 5min before sampling. Gas cylinders and components shall be kept above 0??C.
A.4.4 When sampling the compressor system, the compressed gas outlet or the filter drying pipe connected to it shall keep hanging. When measuring the oil content, the sample air shall be passed through a sufficient filter membrane medium; and then the weight gain of the filter membrane shall be measured, or the decolorization of the filter membrane shall be observed.
A.5 Sample weighing and result processing
A.5.1 Before weighing, place the sampled filter membrane in a desiccator to dewater for more than 4 hours. After removing static electricity, weigh accurately on the analytical balance and record the mass, m2, of the filter membrane and dust. The difference between the relative humidity of the balance chamber before and after the sampling of the membrane filter is no more than 10%.
A.5.2 The content of oil mist and particulate matter in the gas is calculated according to Formula (A.1):
Where:
x - oil mist and particulate matter content, in mg/m3;
m2 - the mass of the filter membrane after sampling, in mg;
m1 --- the mass of the filter membrane before sampling, in mg;
V - sampling volume (converted to under standard state of 20??C and 101.3kPa), in m3. A.5.3 The number of parallel samples collected at the same sampling point shall be no less than 2. The same batch of samples shall contain at least one blank sample. The test results of each sample shall be deducted from the blank value. The final result is the average value of each parallel sample.
Bibliography
__________ END __________
