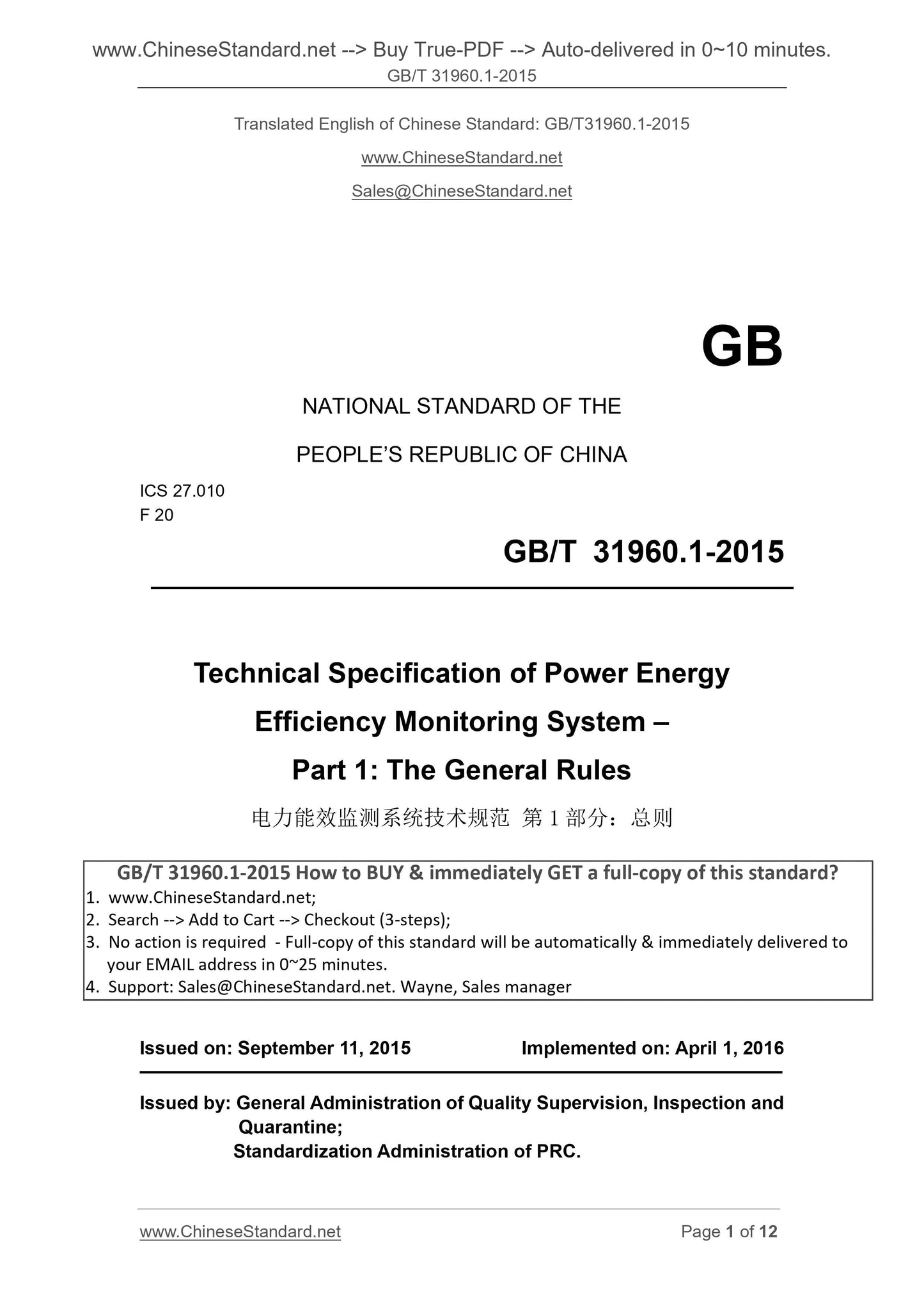

GB/T 31960.1-2015
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 27.010
F 20
Technical Specification of Power Energy
Efficiency Monitoring System –
Part 1. The General Rules
ISSUED ON. SEPTEMBER 11, 2015
IMPLEMENTED ON. APRIL 1, 2016
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration of PRC.

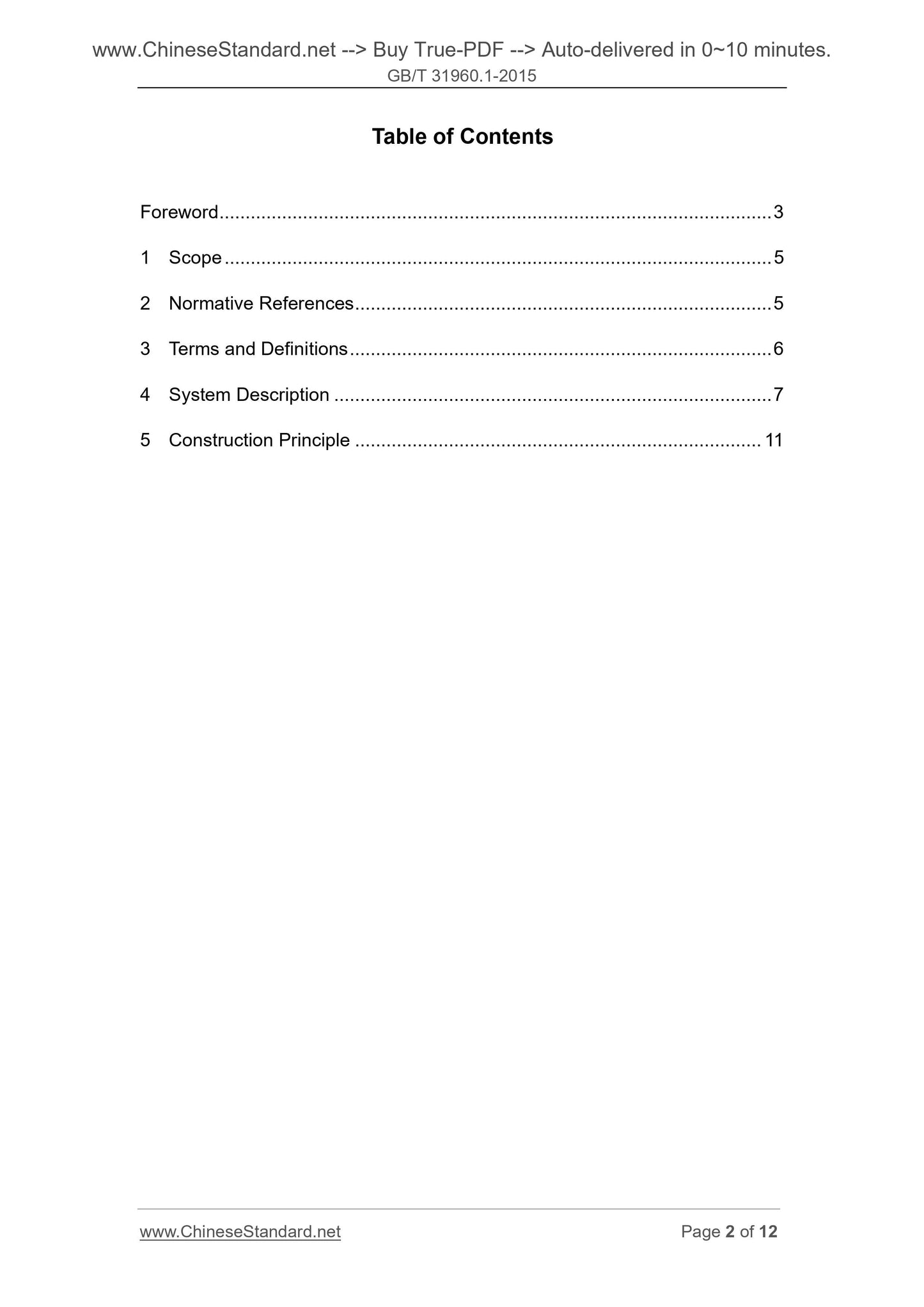

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative References ... 5
3 Terms and Definitions ... 6
4 System Description ... 7
5 Construction Principle ... 11

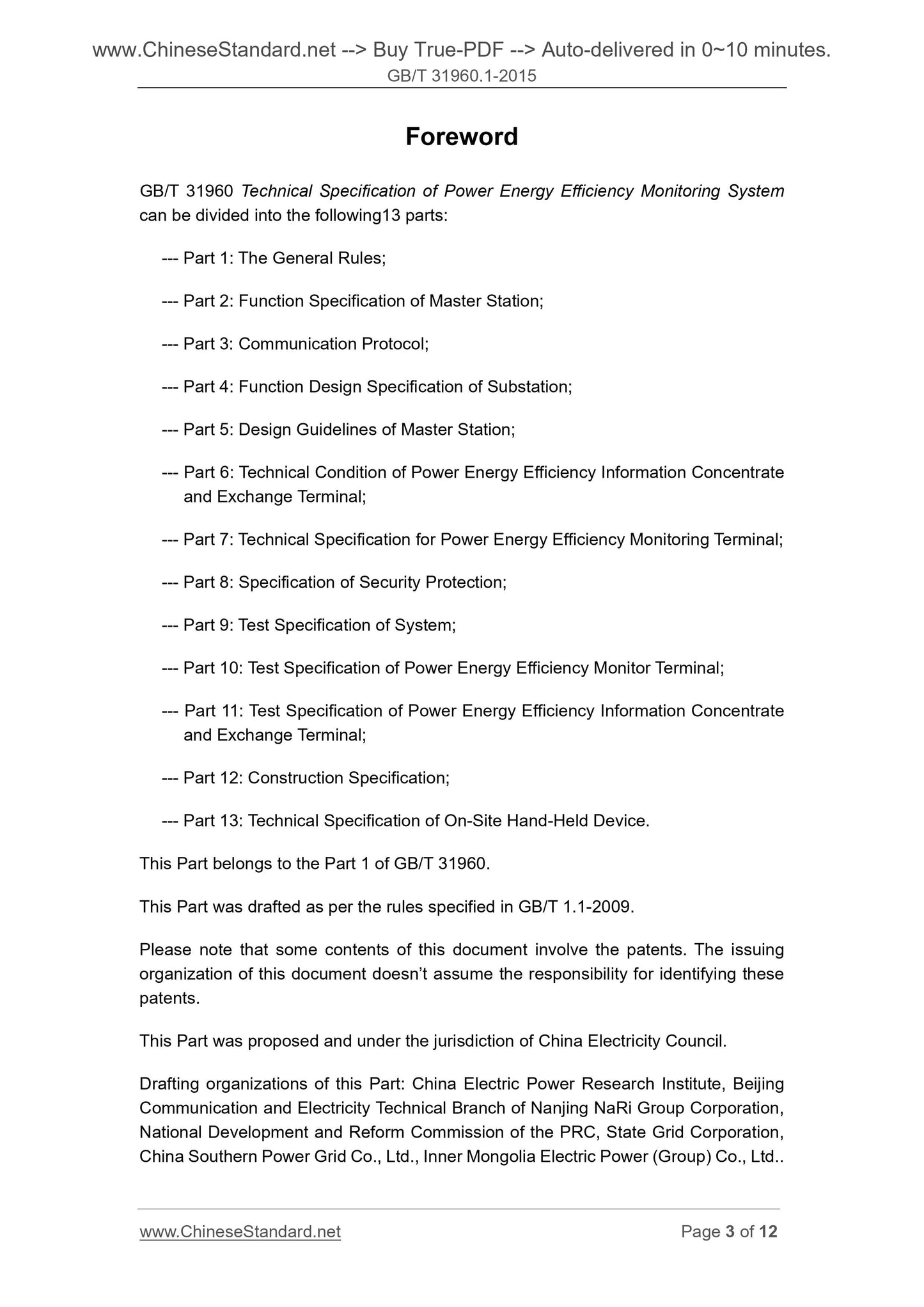

Foreword
GB/T 31960 Technical Specification of Power Energy Efficiency Monitoring System
can be divided into the following13 parts.
--- Part 1. The General Rules;
--- Part 2. Function Specification of Master Station;
--- Part 3. Communication Protocol;
--- Part 4. Function Design Specification of Substation;
--- Part 5. Design Guidelines of Master Station;
--- Part 6. Technical Condition of Power Energy Efficiency Information Concentrate
and Exchange Terminal;
--- Part 7. Technical Specification for Power Energy Efficiency Monitoring Terminal;
--- Part 8. Specification of Security Protection;
--- Part 9. Test Specification of System;
--- Part 10. Test Specification of Power Energy Efficiency Monitor Terminal;
--- Part 11. Test Specification of Power Energy Efficiency Information Concentrate
and Exchange Terminal;
--- Part 12. Construction Specification;
--- Part 13. Technical Specification of On-Site Hand-Held Device.
This Part belongs to the Part 1 of GB/T 31960.
This Part was drafted as per the rules specified in GB/T 1.1-2009.
Please note that some contents of this document involve the patents. The issuing
organization of this document doesn’t assume the responsibility for identifying these
patents.
This Part was proposed and under the jurisdiction of China Electricity Council.
Drafting organizations of this Part. China Electric Power Research Institute, Beijing
Communication and Electricity Technical Branch of Nanjing NaRi Group Corporation,
National Development and Reform Commission of the PRC, State Grid Corporation,
China Southern Power Grid Co., Ltd., Inner Mongolia Electric Power (Group) Co., Ltd..
Technical Specification of Power Energy
Efficiency Monitoring System –
Part 1. The General Rules

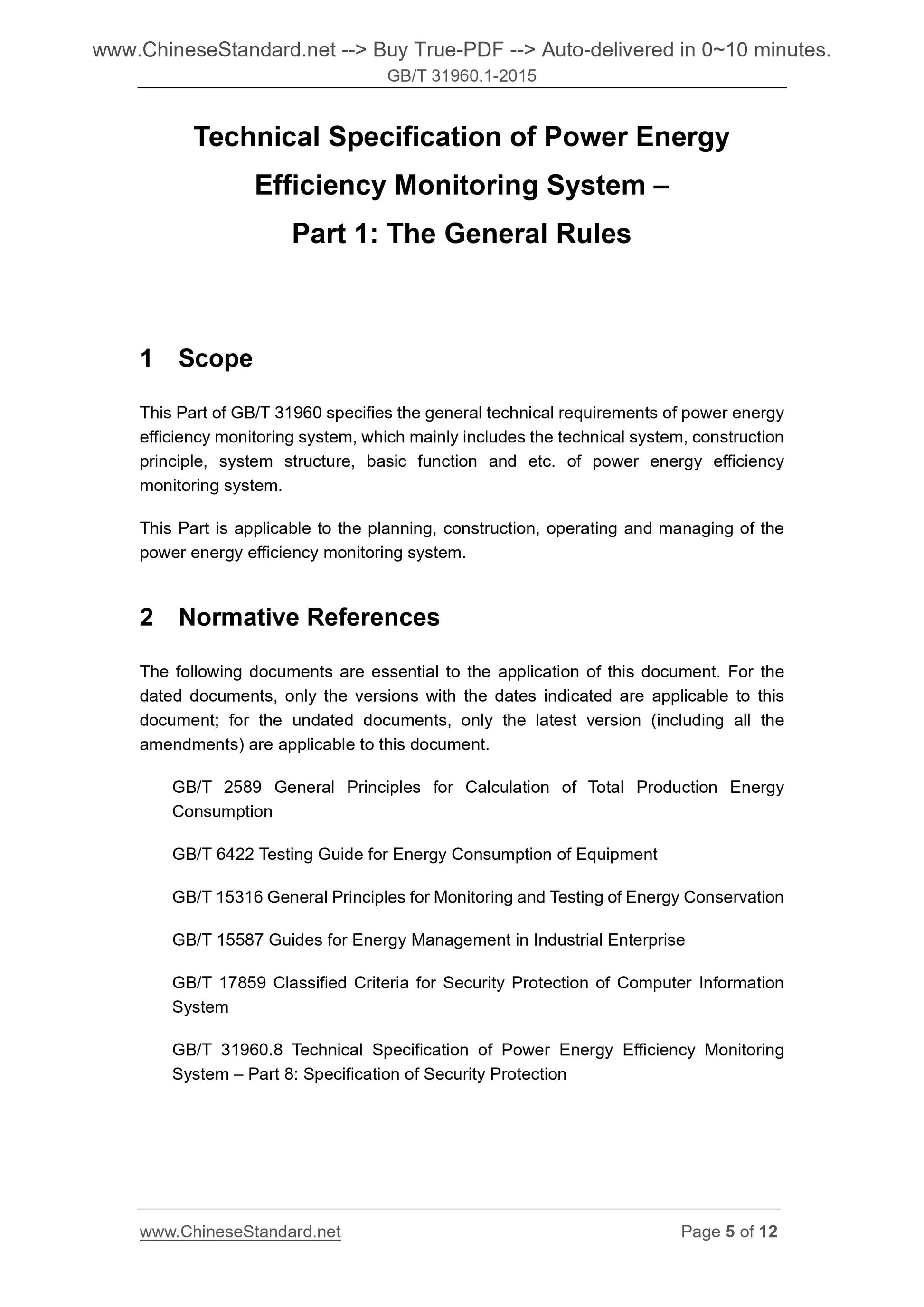

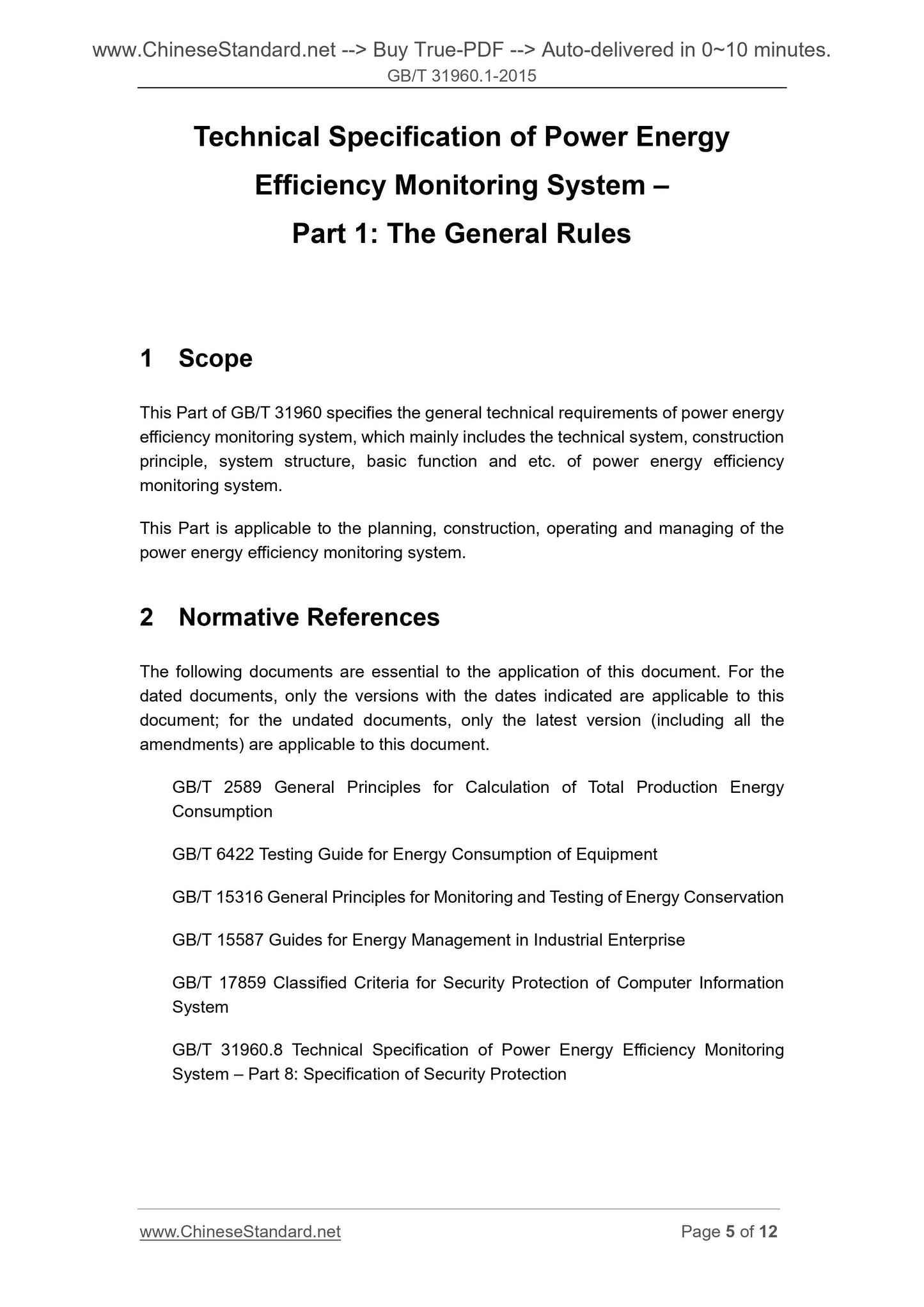

1 Scope
This Part of GB/T 31960 specifies the general technical requirements of power energy
efficiency monitoring system, which mainly includes the technical system, construction
principle, system structure, basic function and etc. of power energy efficiency
monitoring system.
This Part is applicable to the planning, construction, operating and managing of the
power energy efficiency monitoring system.
2 Normative References
The following documents are essential to the application of this document. For the
dated documents, only the versions with the dates indicated are applicable to this
document; for the undated documents, only the latest version (including all the
amendments) are applicable to this document.
GB/T 2589 General Principles for Calculation of Total Production Energy
Consumption
GB/T 6422 Testing Guide for Energy Consumption of Equipment
GB/T 15316 General Principles for Monitoring and Testing of Energy Conservation
GB/T 15587 Guides for Energy Management in Industrial Enterprise
GB/T 17859 Classified Criteria for Security Protection of Computer Information
System
GB/T 31960.8 Technical Specification of Power Energy Efficiency Monitoring
System – Part 8. Specification of Security Protection

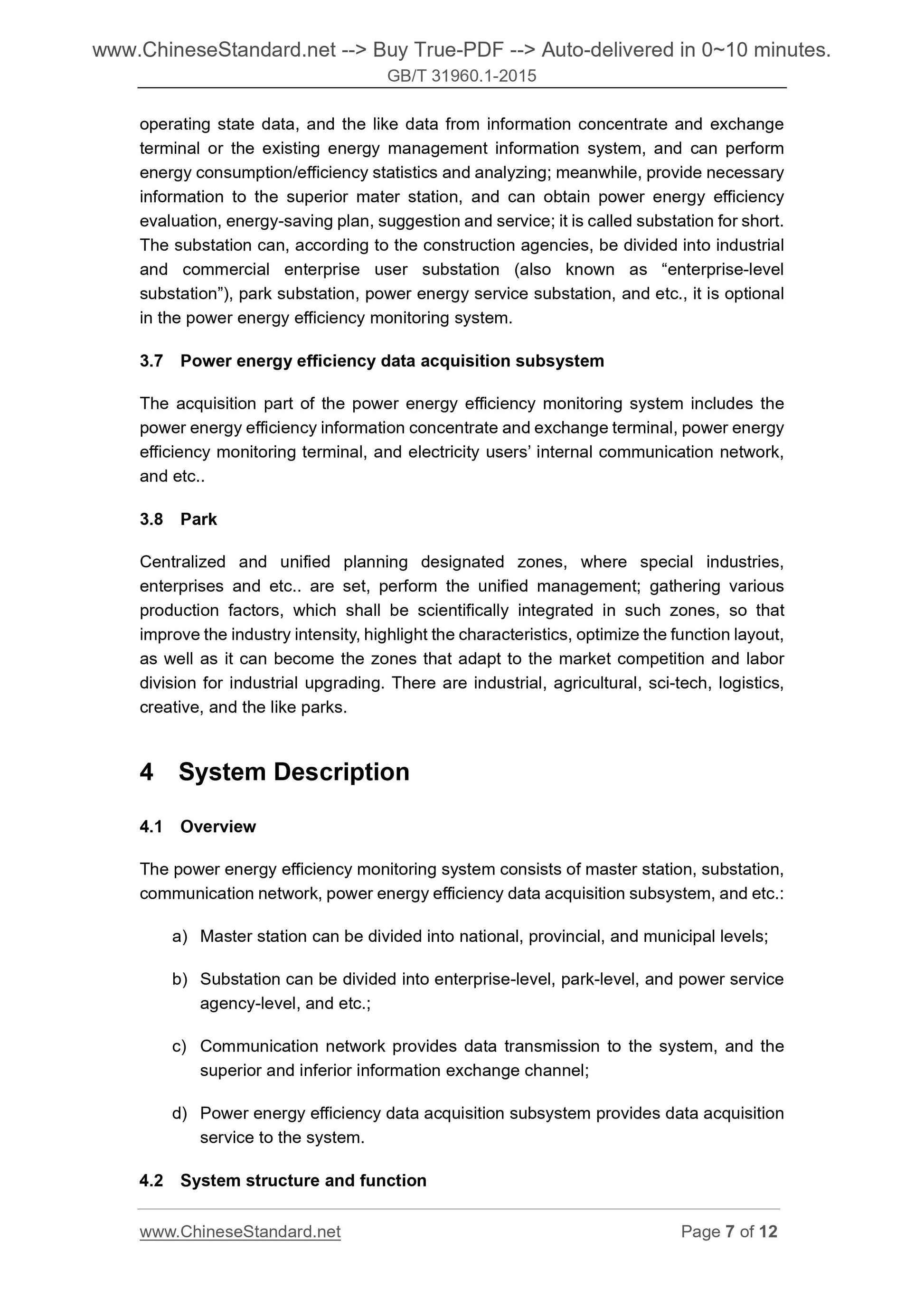

operating state data, and the like data from information concentrate and exchange
terminal or the existing energy management information system, and can perform
energy consumption/efficiency statistics and analyzing; meanwhile, provide necessary
information to the superior mater station, and can obtain power energy efficiency
evaluation, energy-saving plan, suggestion and service; it is called substation for short.
The substation can, according to the construction agencies, be divided into industrial
and commercial enterprise user substation (also known as “enterprise-level
substation”), park substation, power energy service substation, and etc., it is optional
in the power energy efficiency monitoring system.
3.7 Power energy efficiency data acquisition subsystem
The acquisition part of the power energy efficiency monitoring system includes the
power energy efficiency information concentrate and exchange terminal, power energy
efficiency monitoring terminal, and electricity users’ internal communication network,
and etc..
3.8 Park
Centralized and unified planning designated zones, where special industries,
enterprises and etc.. are set, perform the unified management; gathering various
production factors, which shall be scientifically integrated in such zones, so that
improve the industry intensity, highlight the characteristics, optimize the function layout,
as well as it can become the zones that adapt to the market competition and labor
division for industrial upgrading. There are industrial, agricultural, sci-tech, logistics,
creative, and the like parks.
4 System Description
4.1 Overview
The power energy efficiency monitoring system consists of master station, substation,
communication network, power energy efficiency data acquisition subsystem, and etc..
a) Master station can be divided into national, provincial, and municipal levels;
b) Substation can be divided into enterprise-level, park-level, and power service
agency-level, and etc.;
c) Communication network provides data transmission to the system, and the
superior and inferior information exchange channel;
d) Power energy efficiency data acquisition subsystem provides data acquisition
service to the system.
4.2 System structure and function

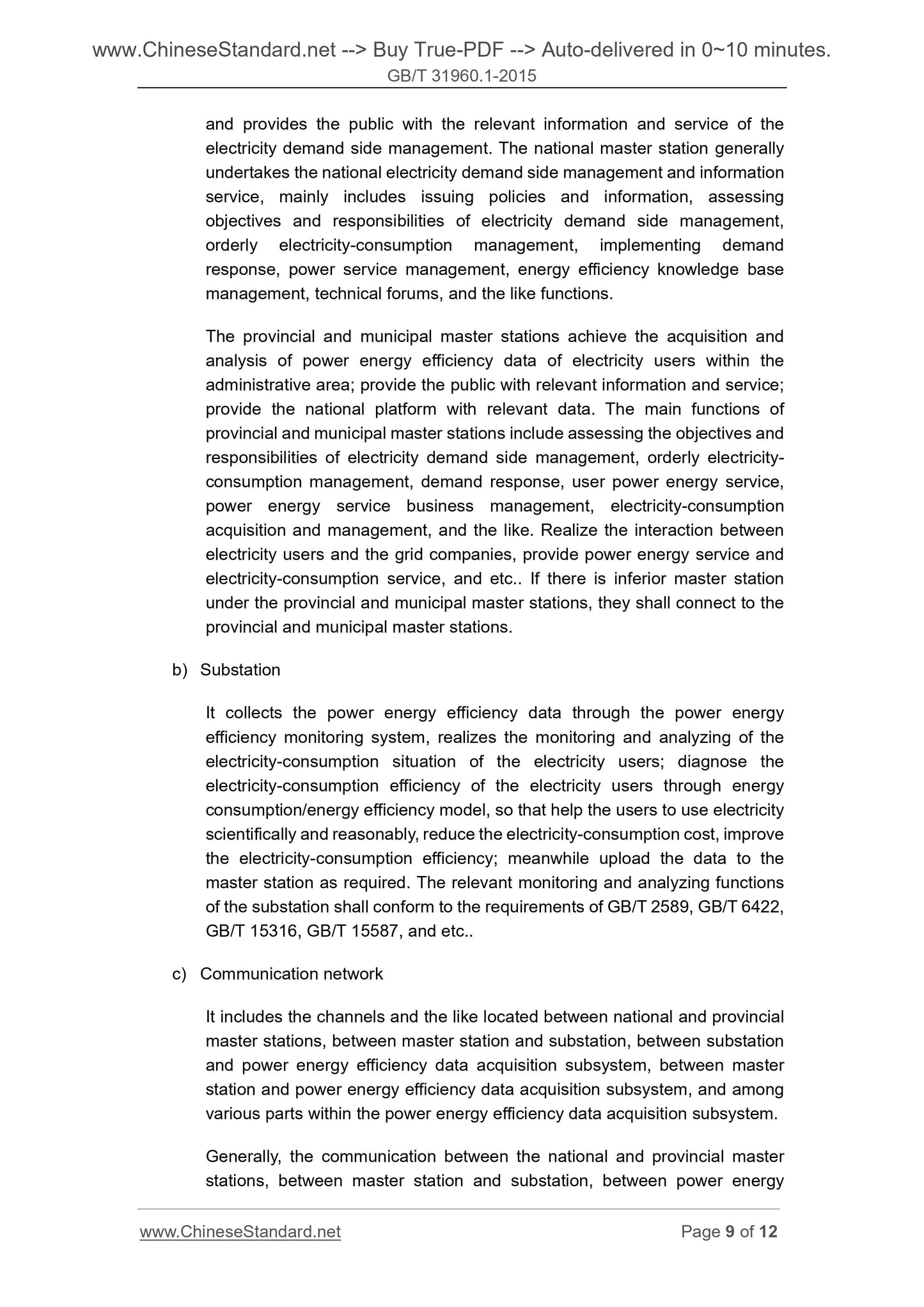

and provides the public with the relevant information and service of the
electricity demand side management. The national master station generally
undertakes the national electricity demand side management and information
service, mainly includes issuing policies and information, assessing
objectives and responsibilities of electricity demand side management,
orderly electricity-consumption management, implementing demand
response, power service management, energy efficiency knowledge base
management, technical forums, and the like functions.
The provincial and municipal master stations achieve the acquisition and
analysis of power energy efficiency data of electricity users within the
administrative area; provide the public with relevant information and service;
provide the national platform with relevant data. The main functions of
provincial and municipal master stations include assessing the objectives and
responsibilities of electricity demand side management, orderly electricity-
consumption management, demand response, user power energy service,
power energy service business management, electricity-consumption
acquisition and management, and the like. Realize the interaction between
electricity users and the grid companies, provide power energy service and
electricity-consumption service, and etc.. If there is inferior master station
under the provincial and municipal master stations, they shall connect to the
provincial and municipal master stations.
b) Substation
It collects the power energy efficiency data through the power energy
efficiency monitoring system, realizes the monitoring and analyzing of the
electricity-consumption situation of the electricity users; diagnose the
electricity-consumption efficiency of the electricity users through energy
consumption/energy efficiency model, so that help the users to use electricity
scientifically and reasonably, reduce the electricity-consumption cost, improve
the electricity-consumption efficiency; meanwhile upload the data to the
master station as required. The relevant monitoring and analyzing functions
of the substation shall conform to the requirements of GB/T 2589, GB/T 6422,
GB/T 15316, GB/T 15587, and etc..
c) Communication network
It includes the channels and the like located between national and provincial
master stations, between master station and substation, between substation
and power energy efficiency data acquisition subsystem, between master
station and power energy efficiency data acquisition subsystem, and among
various parts within the power energy efficiency data acquisition subsystem.
Generally, the communication between the national and provincial master
stations, between master station and substation, between power energy

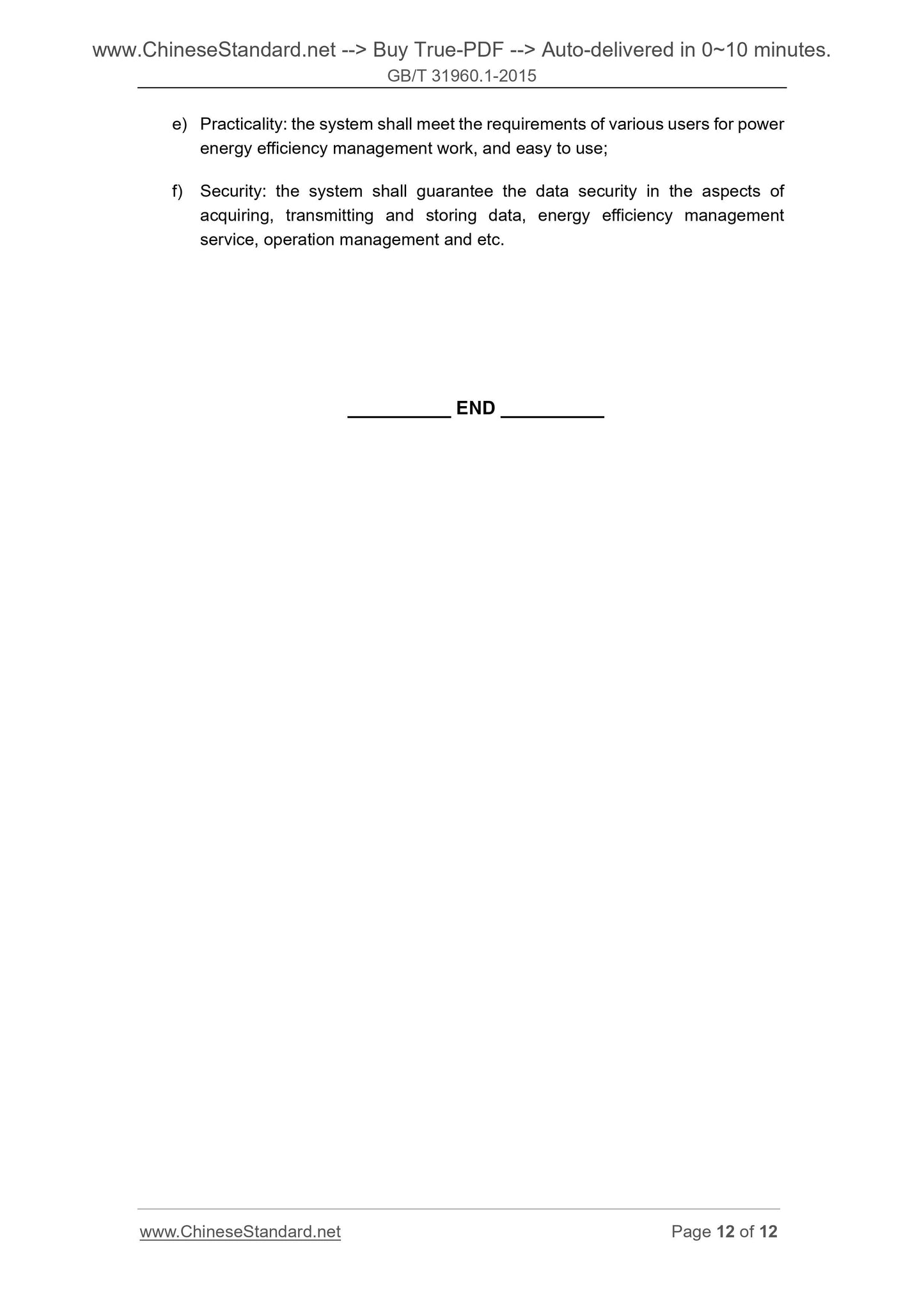

e) Practicality. the system shall meet the requirements of various users for power
energy efficiency management work, and easy to use;
f) Security. the system shall guarantee the data security in the aspects of
acquiring, transmitting and storing data, energy efficiency management
service, operation management and etc.

GB/T 31960.1-2015
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 27.010
F 20
Technical Specification of Power Energy
Efficiency Monitoring System –
Part 1. The General Rules
ISSUED ON. SEPTEMBER 11, 2015
IMPLEMENTED ON. APRIL 1, 2016
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration of PRC.
Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative References ... 5
3 Terms and Definitions ... 6
4 System Description ... 7
5 Construction Principle ... 11
Foreword
GB/T 31960 Technical Specification of Power Energy Efficiency Monitoring System
can be divided into the following13 parts.
--- Part 1. The General Rules;
--- Part 2. Function Specification of Master Station;
--- Part 3. Communication Protocol;
--- Part 4. Function Design Specification of Substation;
--- Part 5. Design Guidelines of Master Station;
--- Part 6. Technical Condition of Power Energy Efficiency Information Concentrate
and Exchange Terminal;
--- Part 7. Technical Specification for Power Energy Efficiency Monitoring Terminal;
--- Part 8. Specification of Security Protection;
--- Part 9. Test Specification of System;
--- Part 10. Test Specification of Power Energy Efficiency Monitor Terminal;
--- Part 11. Test Specification of Power Energy Efficiency Information Concentrate
and Exchange Terminal;
--- Part 12. Construction Specification;
--- Part 13. Technical Specification of On-Site Hand-Held Device.
This Part belongs to the Part 1 of GB/T 31960.
This Part was drafted as per the rules specified in GB/T 1.1-2009.
Please note that some contents of this document involve the patents. The issuing
organization of this document doesn’t assume the responsibility for identifying these
patents.
This Part was proposed and under the jurisdiction of China Electricity Council.
Drafting organizations of this Part. China Electric Power Research Institute, Beijing
Communication and Electricity Technical Branch of Nanjing NaRi Group Corporation,
National Development and Reform Commission of the PRC, State Grid Corporation,
China Southern Power Grid Co., Ltd., Inner Mongolia Electric Power (Group) Co., Ltd..
Technical Specification of Power Energy
Efficiency Monitoring System –
Part 1. The General Rules
1 Scope
This Part of GB/T 31960 specifies the general technical requirements of power energy
efficiency monitoring system, which mainly includes the technical system, construction
principle, system structure, basic function and etc. of power energy efficiency
monitoring system.
This Part is applicable to the planning, construction, operating and managing of the
power energy efficiency monitoring system.
2 Normative References
The following documents are essential to the application of this document. For the
dated documents, only the versions with the dates indicated are applicable to this
document; for the undated documents, only the latest version (including all the
amendments) are applicable to this document.
GB/T 2589 General Principles for Calculation of Total Production Energy
Consumption
GB/T 6422 Testing Guide for Energy Consumption of Equipment
GB/T 15316 General Principles for Monitoring and Testing of Energy Conservation
GB/T 15587 Guides for Energy Management in Industrial Enterprise
GB/T 17859 Classified Criteria for Security Protection of Computer Information
System
GB/T 31960.8 Technical Specification of Power Energy Efficiency Monitoring
System – Part 8. Specification of Security Protection
operating state data, and the like data from information concentrate and exchange
terminal or the existing energy management information system, and can perform
energy consumption/efficiency statistics and analyzing; meanwhile, provide necessary
information to the superior mater station, and can obtain power energy efficiency
evaluation, energy-saving plan, suggestion and service; it is called substation for short.
The substation can, according to the construction agencies, be divided into industrial
and commercial enterprise user substation (also known as “enterprise-level
substation”), park substation, power energy service substation, and etc., it is optional
in the power energy efficiency monitoring system.
3.7 Power energy efficiency data acquisition subsystem
The acquisition part of the power energy efficiency monitoring system includes the
power energy efficiency information concentrate and exchange terminal, power energy
efficiency monitoring terminal, and electricity users’ internal communication network,
and etc..
3.8 Park
Centralized and unified planning designated zones, where special industries,
enterprises and etc.. are set, perform the unified management; gathering various
production factors, which shall be scientifically integrated in such zones, so that
improve the industry intensity, highlight the characteristics, optimize the function layout,
as well as it can become the zones that adapt to the market competition and labor
division f...
