GB/T 31932-2015: Method for electromagnetic automatic ultrasonic testing for thicker steel plates
Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.Get Quotation: Click GB/T 31932-2015 (Self-service in 1-minute)
Newer / historical versions: GB/T 31932-2015

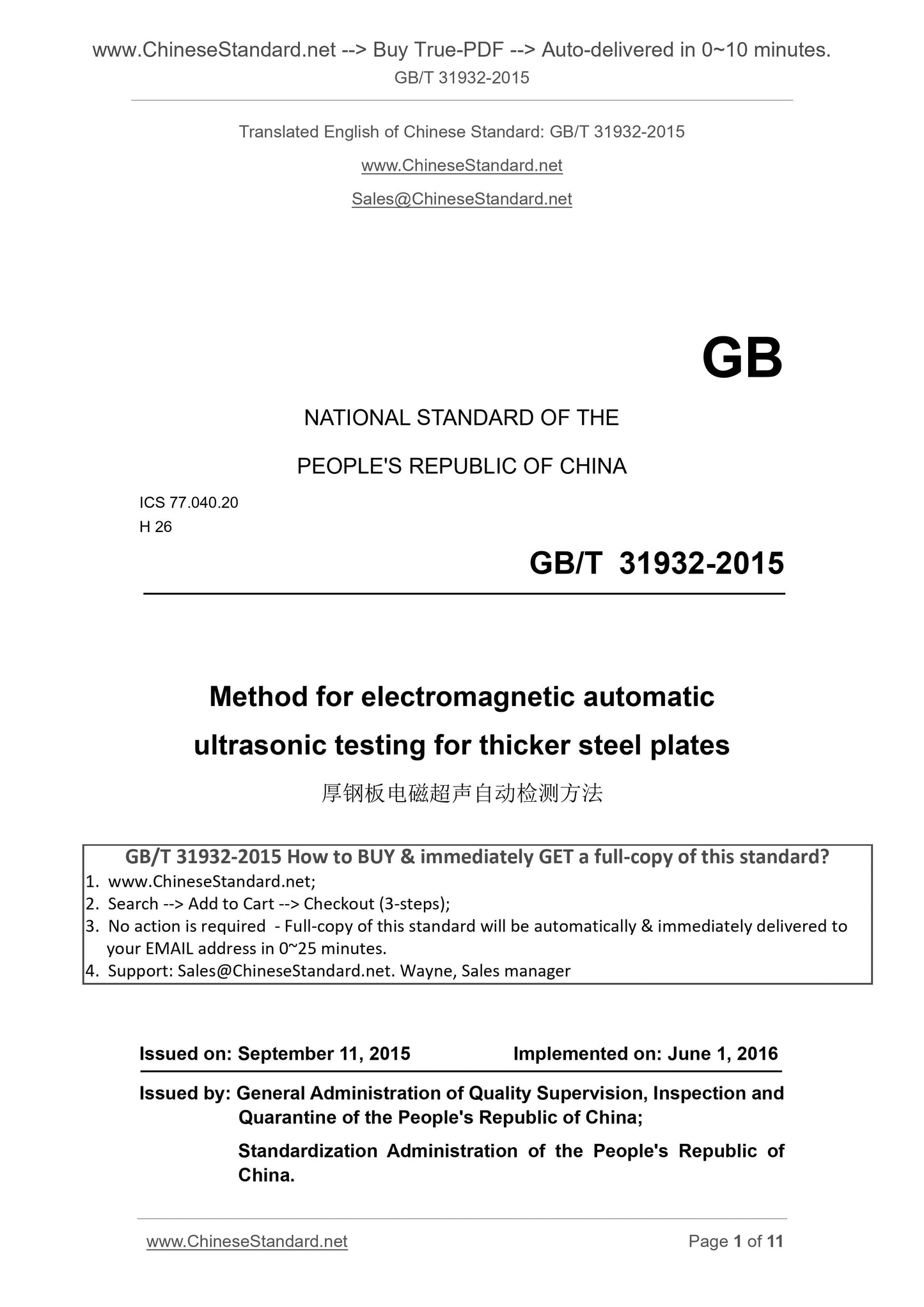

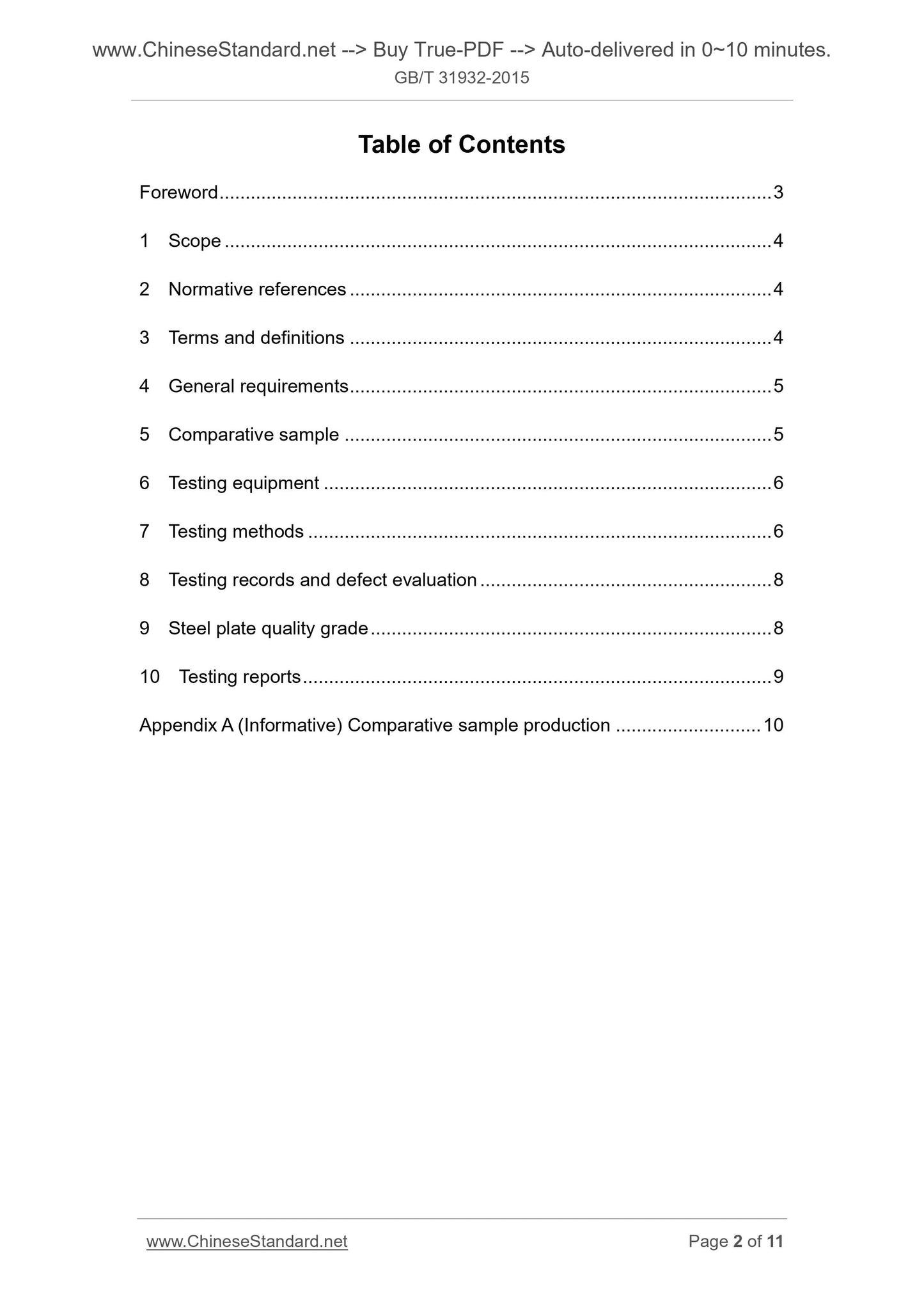

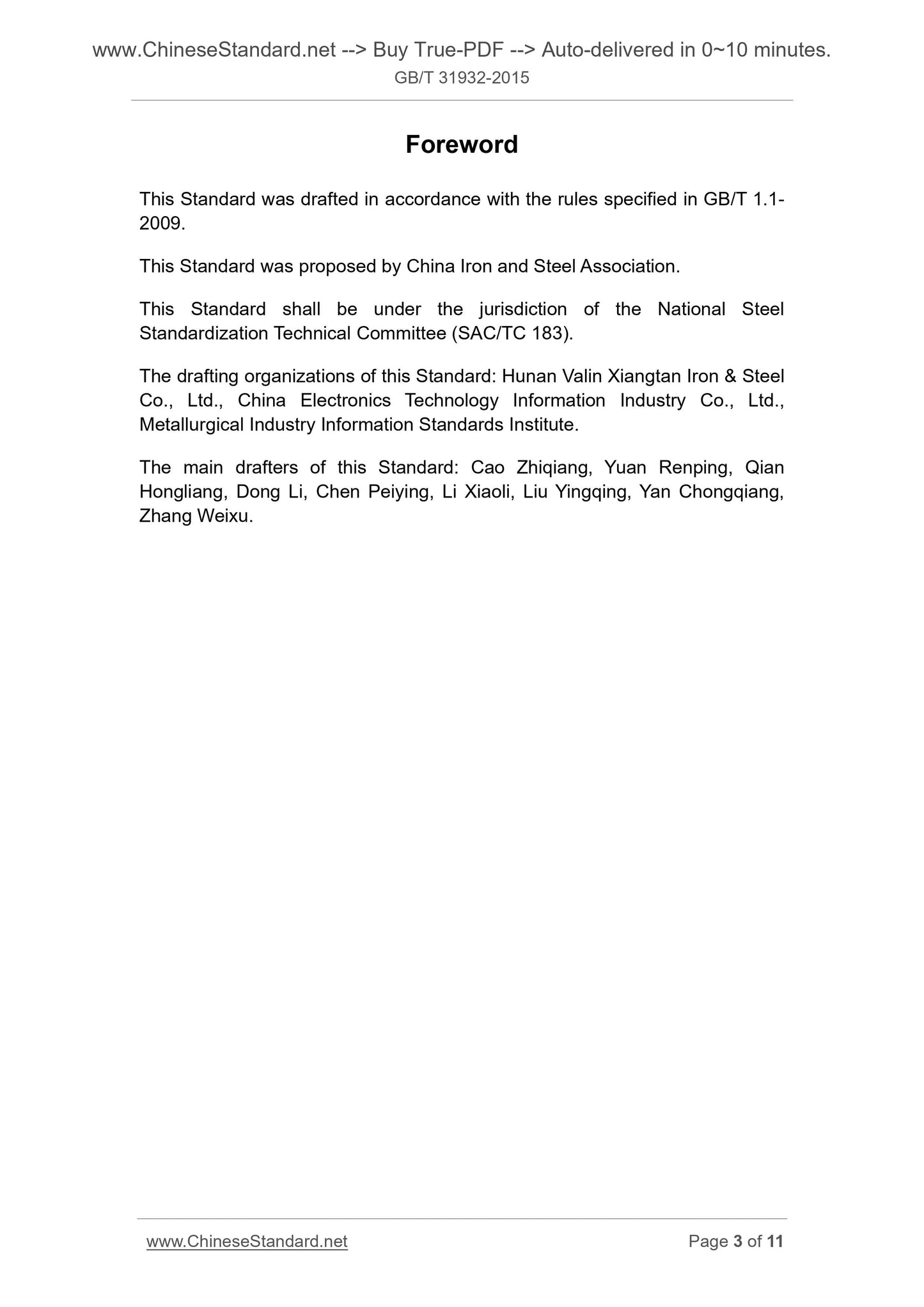

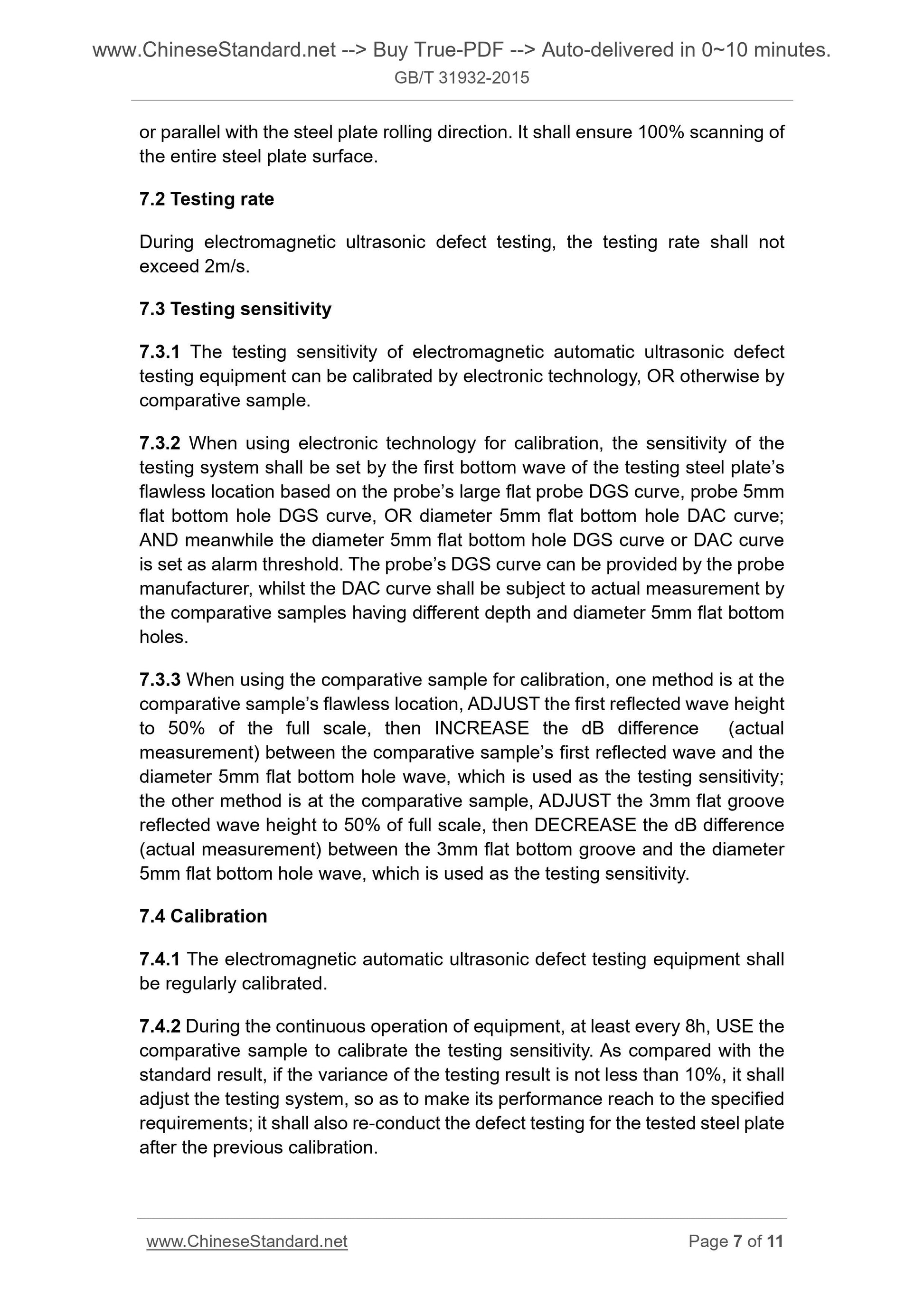

Preview True-PDF

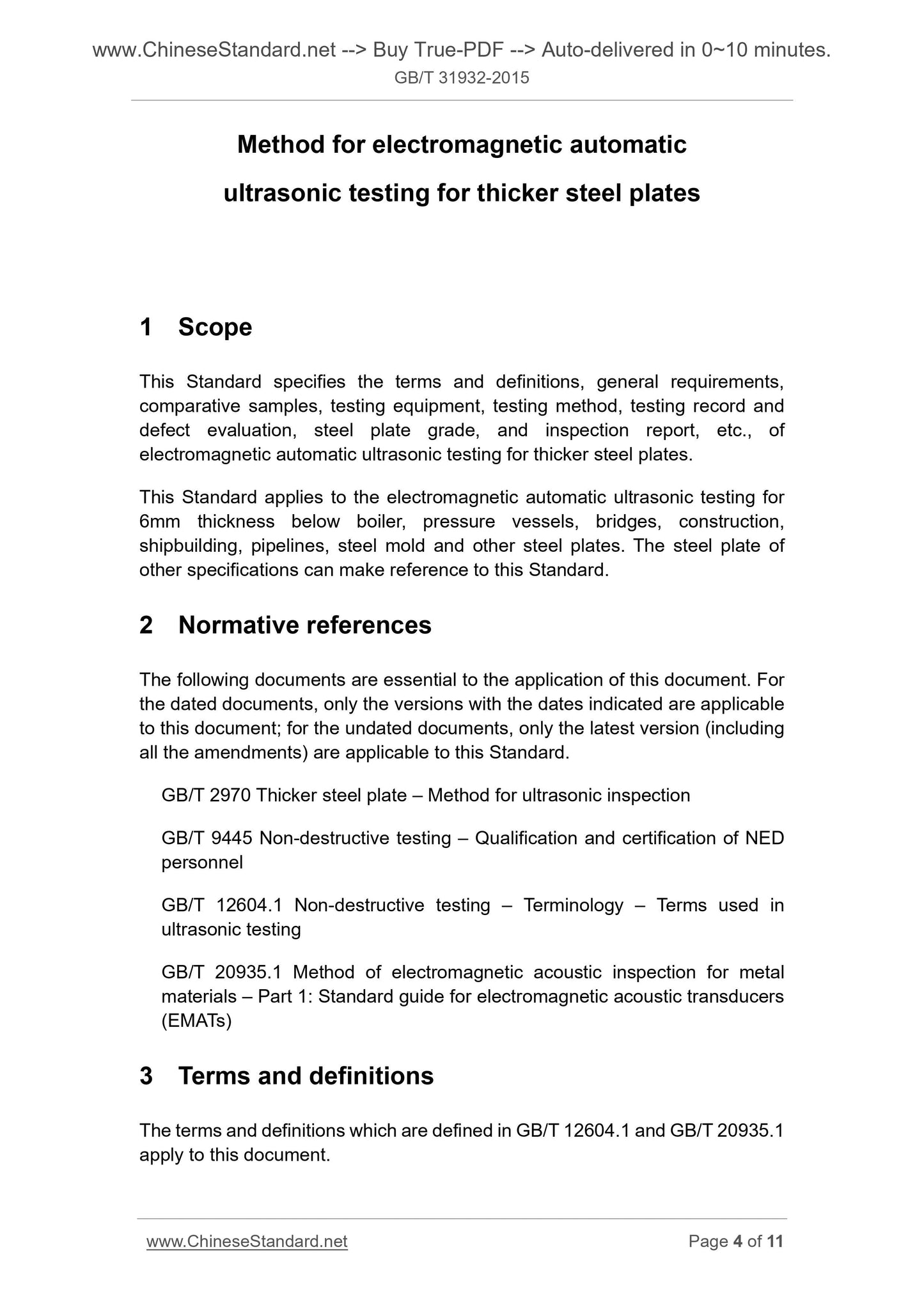

Scope
This Standard specifies the terms and definitions, general requirements,comparative samples, testing equipment, testing method, testing record and
defect evaluation, steel plate grade, and inspection report, etc., of
electromagnetic automatic ultrasonic testing for thicker steel plates.
This Standard applies to the electromagnetic automatic ultrasonic testing for
6mm thickness below boiler, pressure vessels, bridges, construction,
shipbuilding, pipelines, steel mold and other steel plates. The steel plate of
other specifications can make reference to this Standard.
Basic Data
Standard ID | GB/T 31932-2015 (GB/T31932-2015) |
Description (Translated English) | Method for electromagnetic automatic ultrasonic testing for thicker steel plates |
Sector / Industry | National Standard (Recommended) |
Classification of Chinese Standard | H26 |
Classification of International Standard | 77.040.20 |
Word Count Estimation | 8,847 |
Date of Issue | 2015-09-11 |
Date of Implementation | 2016-06-01 |
Quoted Standard | GB/T 2970; GB/T 9445; GB/T 12604.1; GB/T 20935.1 |
Regulation (derived from) | National Standard Announcement 2015 No.25 |
Issuing agency(ies) | General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China |
Summary | This standard specifies the terms and definitions thick steel electromagnetic automatic ultrasonic testing, general requirements, the quality of the comparative sample, testing equipment, test methods, inspection records and defect assessment, steel grade, the content of inspection reports. This standard applies to a thickness of not less than 6 mm boiler electromagnetic ultrasonic pressure vessels, bridges, construction, shipbuilding, pipelines, steel mold and other uses automatic detection. Other specifications of the plate can be performed with reference to this standard. |
