GB/T 31549-2015: Performance testing method for electric bicycle tyres

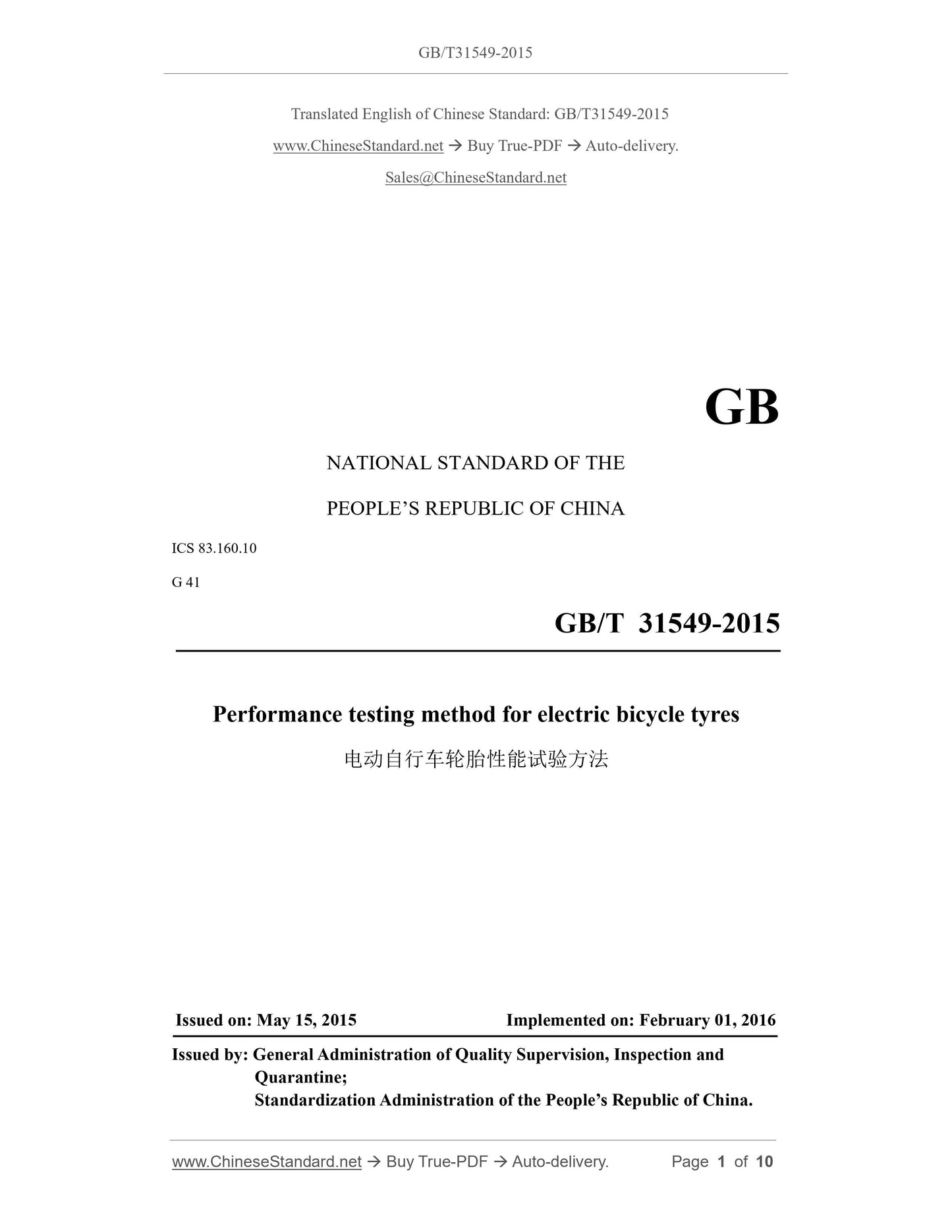

GB/T 31549-2015
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 83.160.10
G 41
GB/T 31549-2015
Performance testing method for electric bicycle tyres
ISSUED ON: MAY 15, 2015
IMPLEMENTED ON: FEBRUARY 01, 2016
Issued by: General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration of the People’s Republic of China.

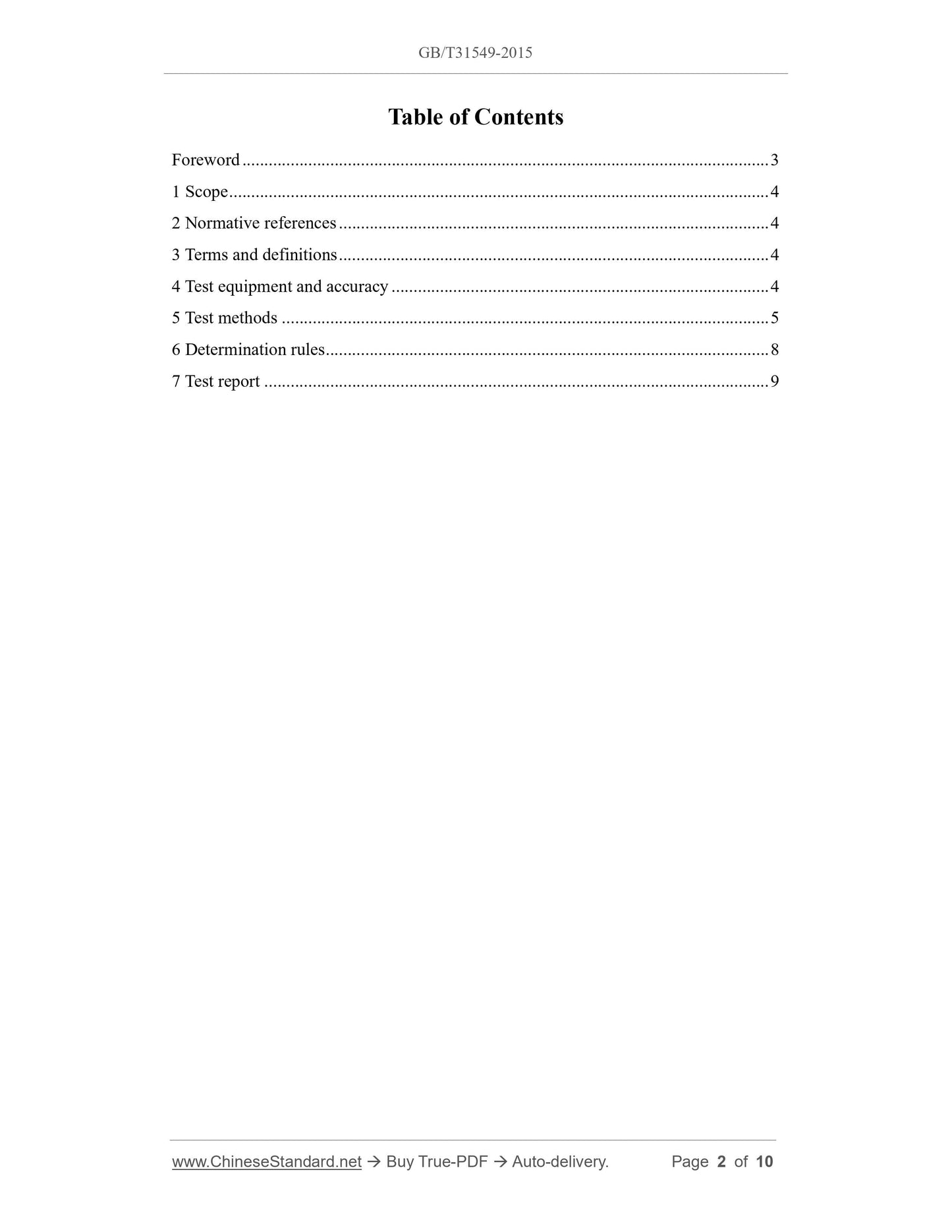

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Test equipment and accuracy ... 4
5 Test methods ... 5
6 Determination rules ... 8
7 Test report ... 9

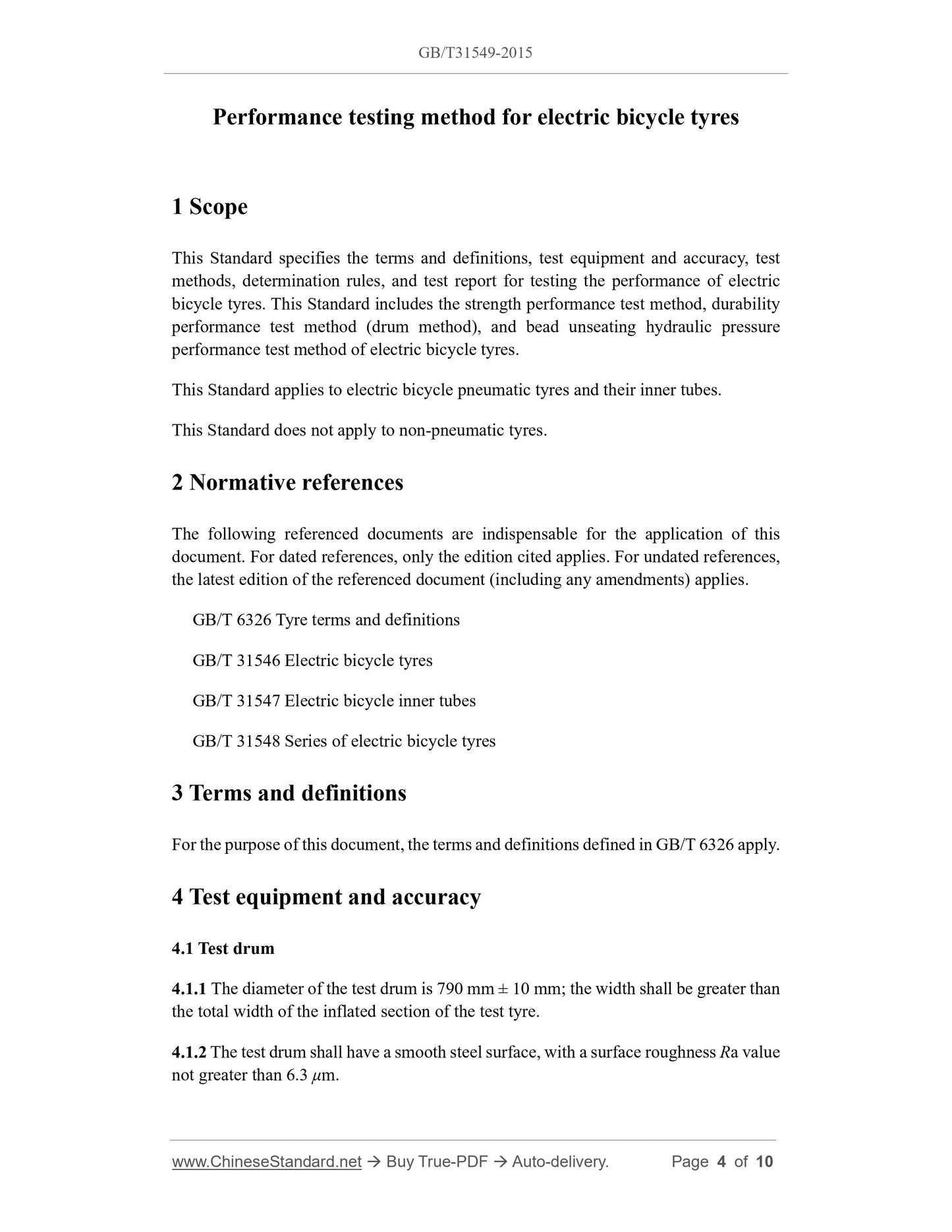

Performance testing method for electric bicycle tyres
1 Scope
This Standard specifies the terms and definitions, test equipment and accuracy, test
methods, determination rules, and test report for testing the performance of electric
bicycle tyres. This Standard includes the strength performance test method, durability
performance test method (drum method), and bead unseating hydraulic pressure
performance test method of electric bicycle tyres.
This Standard applies to electric bicycle pneumatic tyres and their inner tubes.
This Standard does not apply to non-pneumatic tyres.
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
GB/T 6326 Tyre terms and definitions
GB/T 31546 Electric bicycle tyres
GB/T 31547 Electric bicycle inner tubes
GB/T 31548 Series of electric bicycle tyres
3 Terms and definitions
For the purpose of this document, the terms and definitions defined in GB/T 6326 apply.
4 Test equipment and accuracy
4.1 Test drum
4.1.1 The diameter of the test drum is 790 mm ± 10 mm; the width shall be greater than
the total width of the inflated section of the test tyre.
4.1.2 The test drum shall have a smooth steel surface, with a surface roughness Ra value
not greater than 6.3 μm.

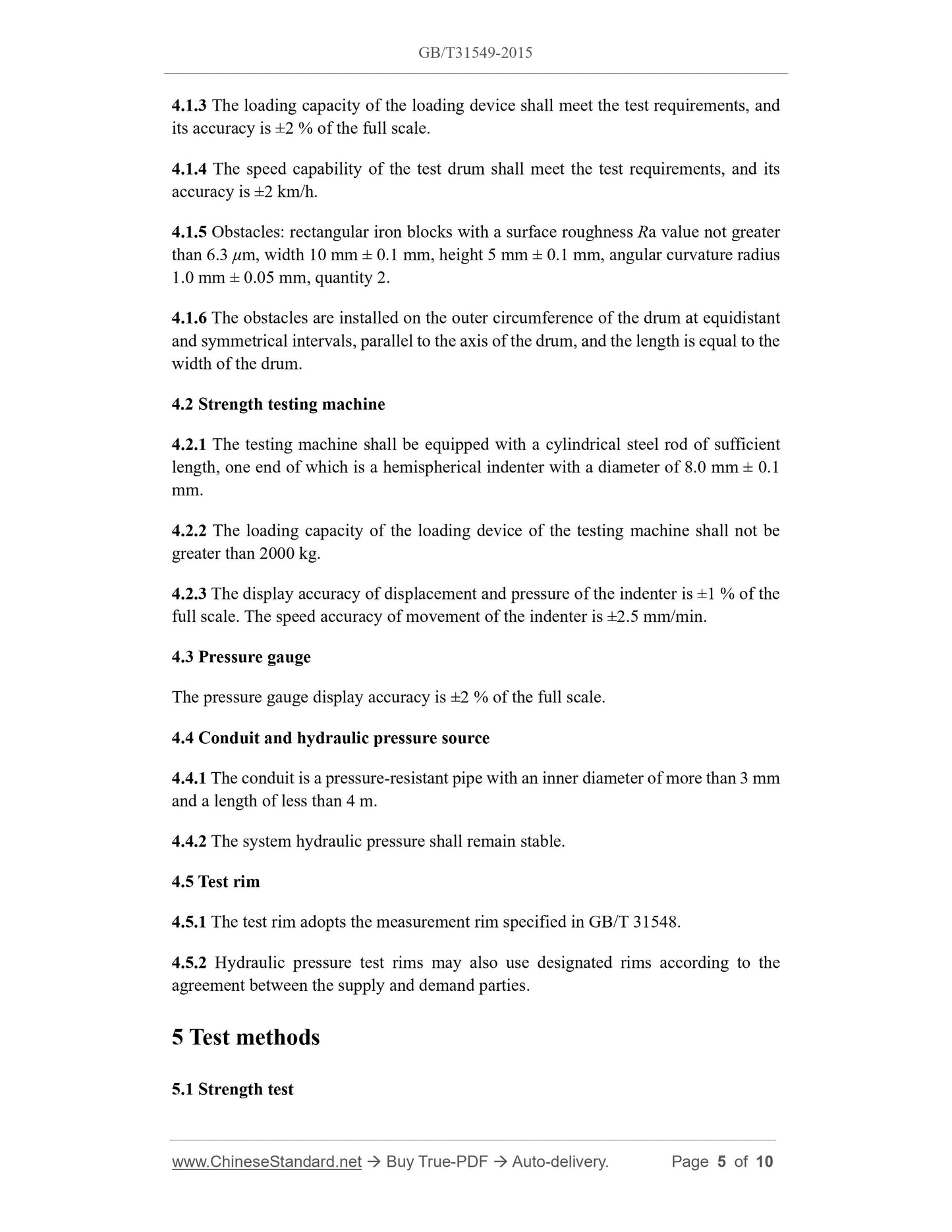

4.1.3 The loading capacity of the loading device shall meet the test requirements, and
its accuracy is ±2 % of the full scale.
4.1.4 The speed capability of the test drum shall meet the test requirements, and its
accuracy is ±2 km/h.
4.1.5 Obstacles: rectangular iron blocks with a surface roughness Ra value not greater
than 6.3 μm, width 10 mm ± 0.1 mm, height 5 mm ± 0.1 mm, angular curvature radius
1.0 mm ± 0.05 mm, quantity 2.
4.1.6 The obstacles are installed on the outer circumference of the drum at equidistant
and symmetrical intervals, parallel to the axis of the drum, and the length is equal to the
width of the drum.
4.2 Strength testing machine
4.2.1 The testing machine shall be equipped with a cylindrical steel rod of sufficient
length, one end of which is a hemispherical indenter with a diameter of 8.0 mm ± 0.1
mm.
4.2.2 The loading capacity of the loading device of the testing machine shall not be
greater than 2000 kg.
4.2.3 The display accuracy of displacement and pressure of the indenter is ±1 % of the
full scale. The speed accuracy of movement of the indenter is ±2.5 mm/min.
4.3 Pressure gauge
The pressure gauge display accuracy is ±2 % of the full scale.
4.4 Conduit and hydraulic pressure source
4.4.1 The conduit is a pressure-resistant pipe with an inner diameter of more than 3 mm
and a length of less than 4 m.
4.4.2 The system hydraulic pressure shall remain stable.
4.5 Test rim
4.5.1 The test rim adopts the measurement rim specified in GB/T 31548.
4.5.2 Hydraulic pressure test rims may also use designated rims according to the
agreement between the supply and demand parties.
5 Test methods
5.1 Strength test

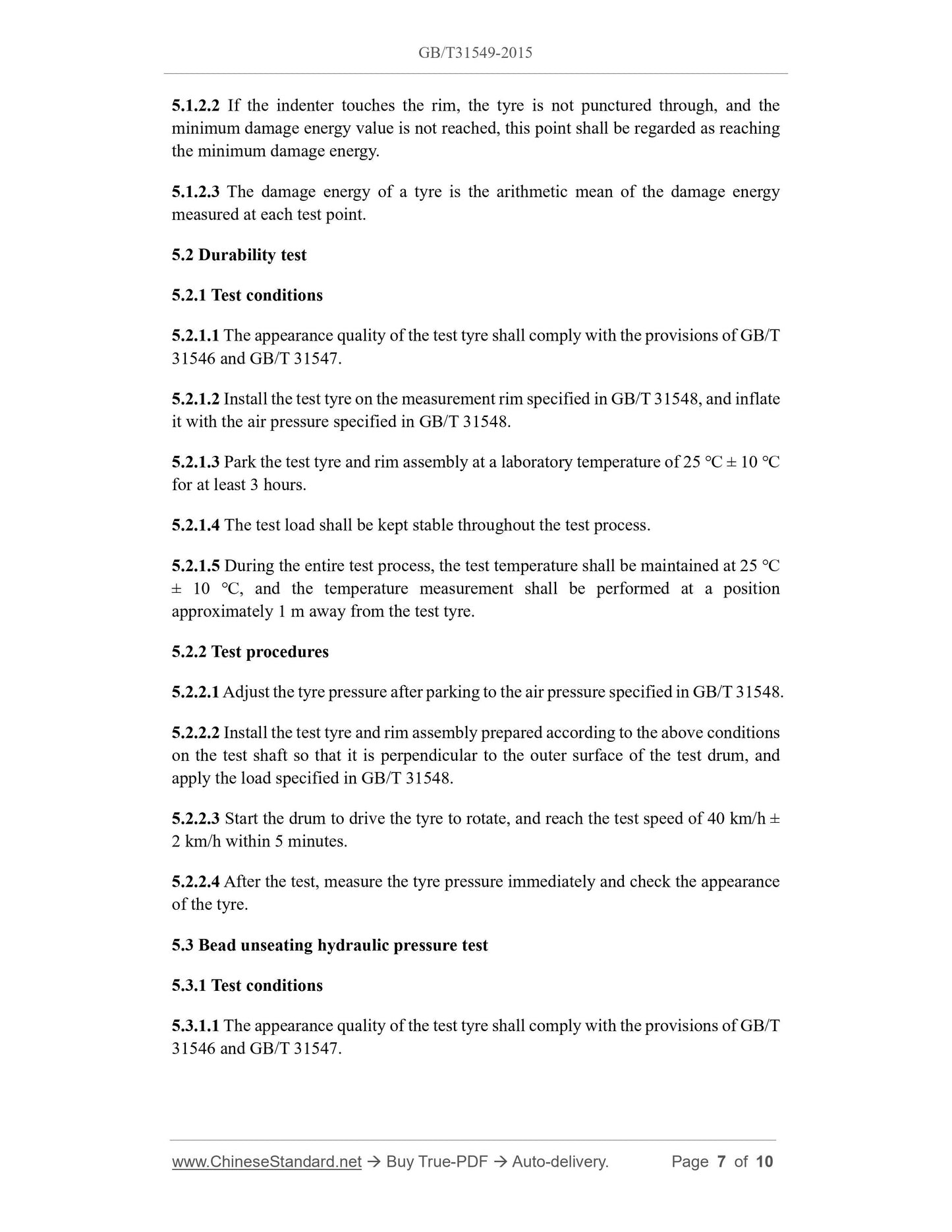

5.1.2.2 If the indenter touches the rim, the tyre is not punctured through, and the
minimum damage energy value is not reached, this point shall be regarded as reaching
the minimum damage energy.
5.1.2.3 The damage energy of a tyre is the arithmetic mean of the damage energy
measured at each test point.
5.2 Durability test
5.2.1 Test conditions
5.2.1.1 The appearance quality of the test tyre shall comply with the provisions of GB/T
31546 and GB/T 31547.
5.2.1.2 Install the test tyre on the measurement rim specified in GB/T 31548, and inflate
it with the air pressure specified in GB/T 31548.
5.2.1.3 Park the test tyre and rim assembly at a laboratory temperature of 25 ℃ ± 10 ℃
for at least 3 hours.
5.2.1.4 The test load shall be kept stable throughout the test process.
5.2.1.5 During the entire test process, the test temperature shall be maintained at 25 ℃
± 10 ℃, and the temperature measurement shall be performed at a position
approximately 1 m away from the test tyre.
5.2.2 Test procedures
5.2.2.1 Adjust the tyre pressure after parking to the air pressure specified in GB/T 31548.
5.2.2.2 Install the test tyre and rim assembly prepared according to the above conditions
on the test shaft so that it is perpendicular to the outer surface of the test drum, and
apply the load specified in GB/T 31548.
5.2.2.3 Start the drum to drive the tyre to rotate, and reach the test speed of 40 km/h ±
2 km/h within 5 minutes.
5.2.2.4 After the test, measure the tyre pressure immediately and check the appearance
of the tyre.
5.3 Bead unseating hydraulic pressure test
5.3.1 Test conditions
5.3.1.1 The appearance quality of the test tyre shall comply with the provisions of GB/T
31546 and GB/T 31547.
5.3.1.2 Install the test tyre on the test rim specified in 4.5, inflate it with the air pressure
specified in GB/T 31548, and park it for at least 3 hours at a laboratory temperature of
25 °C ± 10 °C.
5.3.2 Test procedures

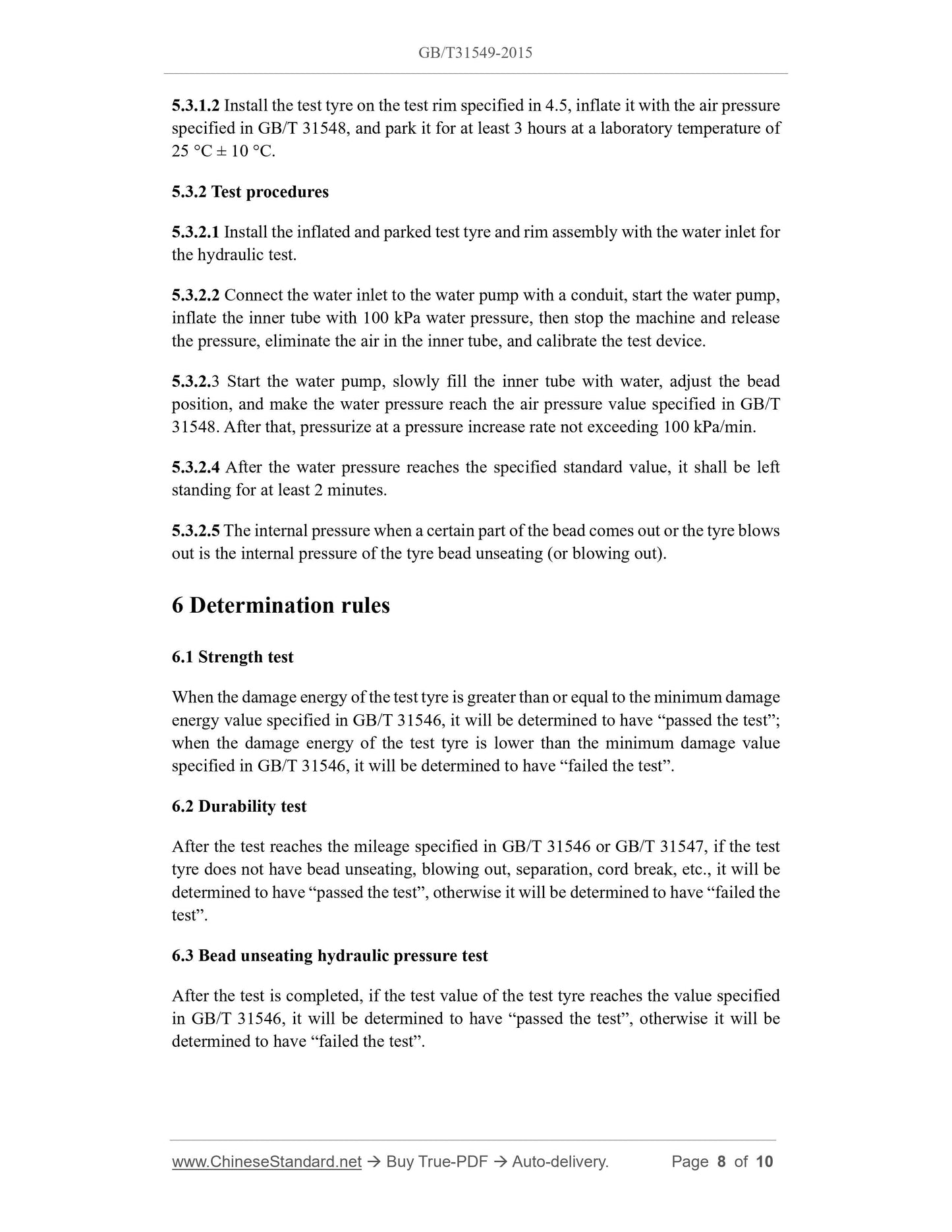

5.3.2.1 Install the inflated and parked test tyre and rim assembly with the water inlet for
the hydraulic test.
5.3.2.2 Connect the water inlet to the water pump with a conduit, start the water pump,
inflate the inner tube with 100 kPa water pressure, then stop the machine and release
the pressure, eliminate the air in the inner tube, and calibrate the test device.
5.3.2.3 Start the water pump, slowly fill the inner tube with water, adjust the bead
position, and make the water pressure reach the air pressure value specified in GB/T
31548. After that, pressurize at a pressure increase rate not exceeding 100 kPa/min.
5.3.2.4 After the water pressure reaches the specified standard value, it shall be left
standing for at least 2 minutes.
5.3.2.5 The internal pressure when a certain part of the bead comes out or the tyre blows
out is the internal pressure of the tyre bead unseating (or blowing out).
6 Determination rules
6.1 Strength test
When the damage energy of the test tyre is greater than or equal to the minimum damage
energy value specified in GB/T 31546, it will be determined to have “passed the test”;
when the damage energy of the test tyre is lower than the minimum damage value
specified in GB/T 31546, it will be determined to have “failed the test”.
6.2 Durability test
After the test reaches the mileage specified in GB/T 31546 or GB/T 31547, if the test
tyre does not have bead unseating, blowing out, separation, cord break, etc., it will be
determined to have “passed the test”, otherwise it will be determined to have “failed the
test”.
6.3 Bead unseating hydraulic pressure test
After the test is completed, if the test value of the test tyre reaches the value specified
in GB/T 31546, it will be de...
