GB/T 31525-2015: Graphical signs -- Electric vehicle charging and battery swapping infrastructure signs

This Standard specifies the requirements for electric-vehicles charging and batteryswapping infrastructure symbols and signs, as well as their setting requirements.

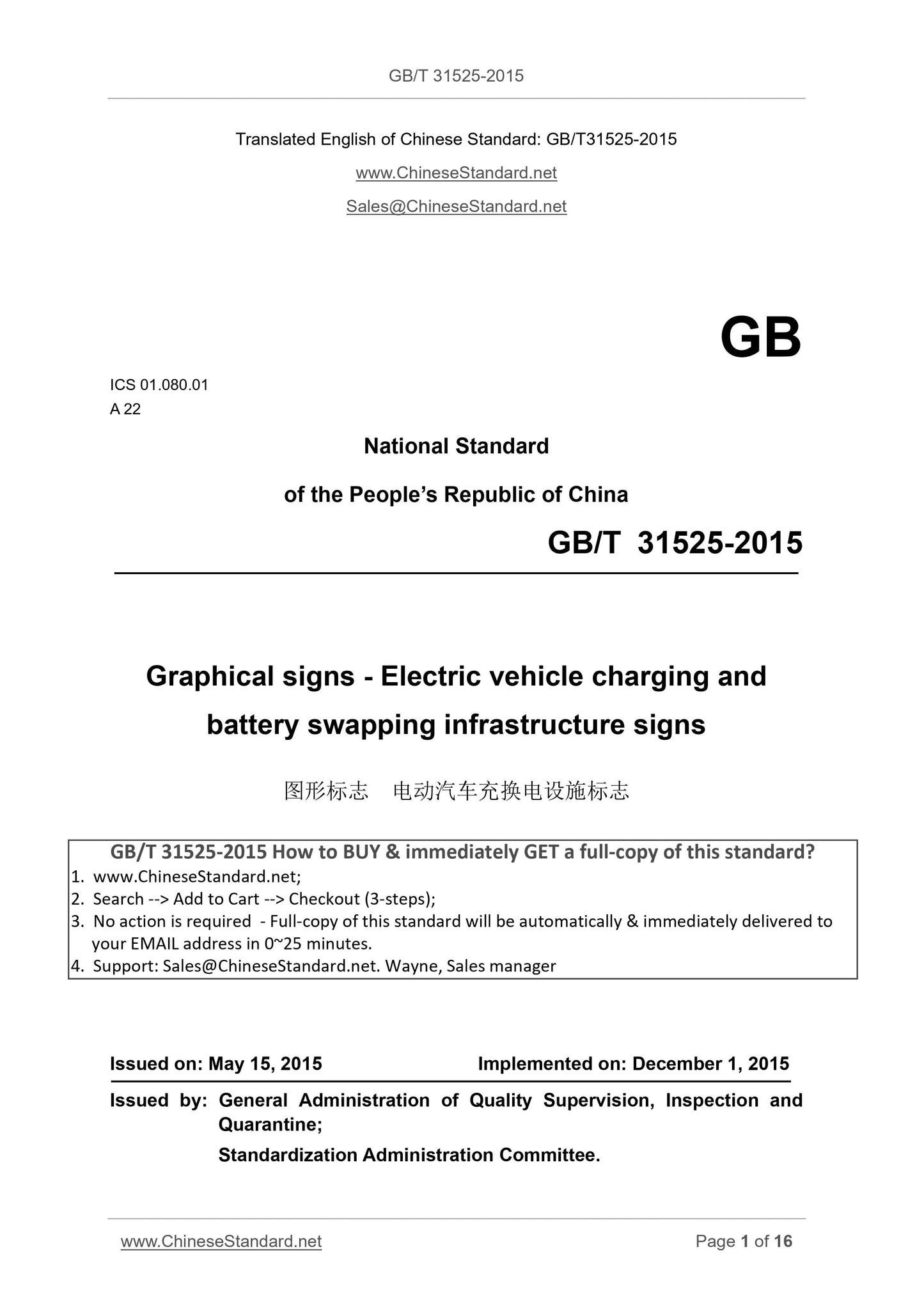

GB/T 31525-2015
GB
ICS 01.080.01
A 22
National Standard
of the PEOPLE Republic of China
Graphical signs - Electric vehicle charging and
battery swapping infrastructure signs
ISSUED ON. MAY 15, 2015
IMPLEMENTED ON. DECEMBER 1, 2015
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration Committee.

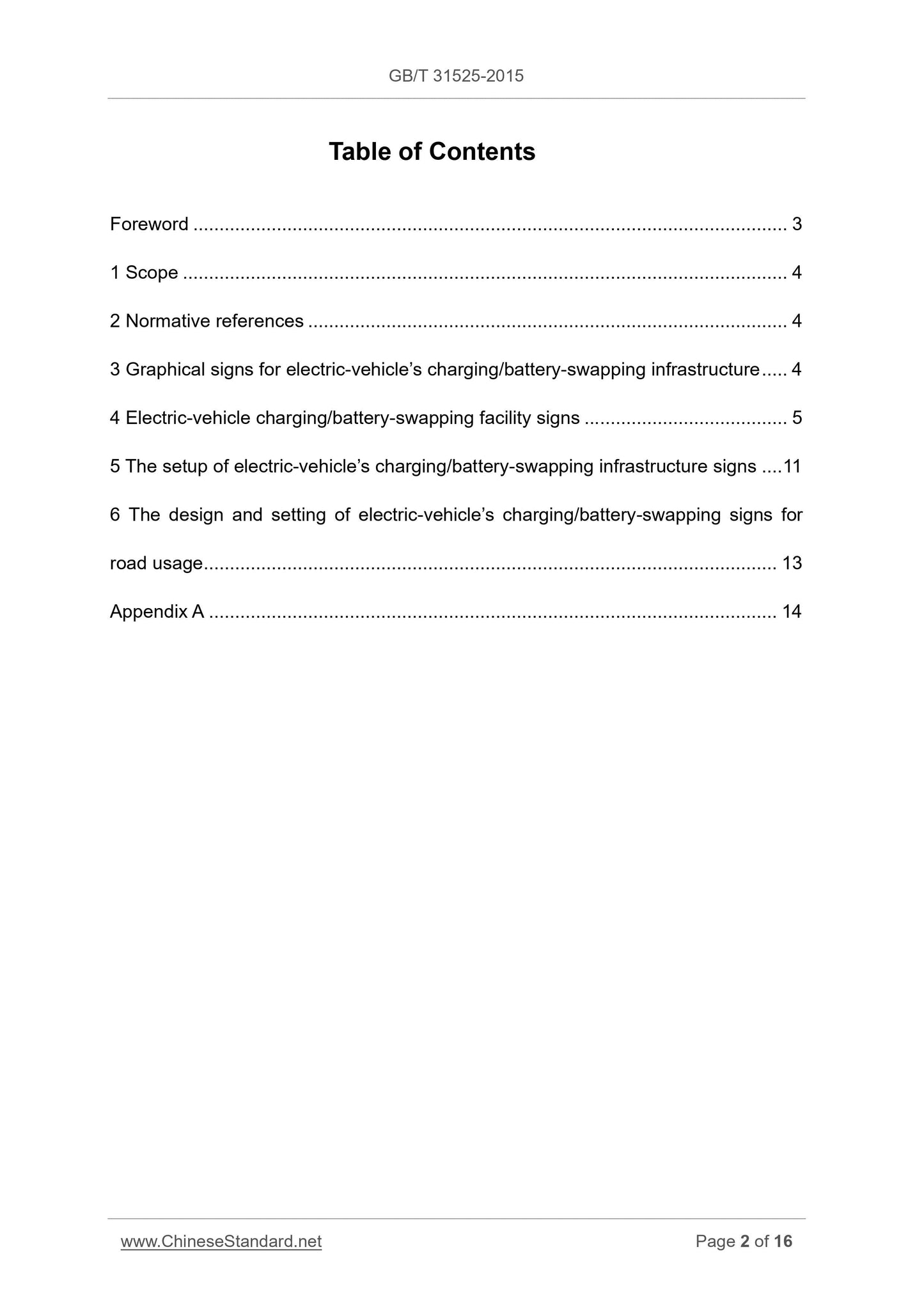

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Graphical signs for electric-vehicle?€?s charging/battery-swapping infrastructure ... 4 4 Electric-vehicle charging/battery-swapping facility signs ... 5

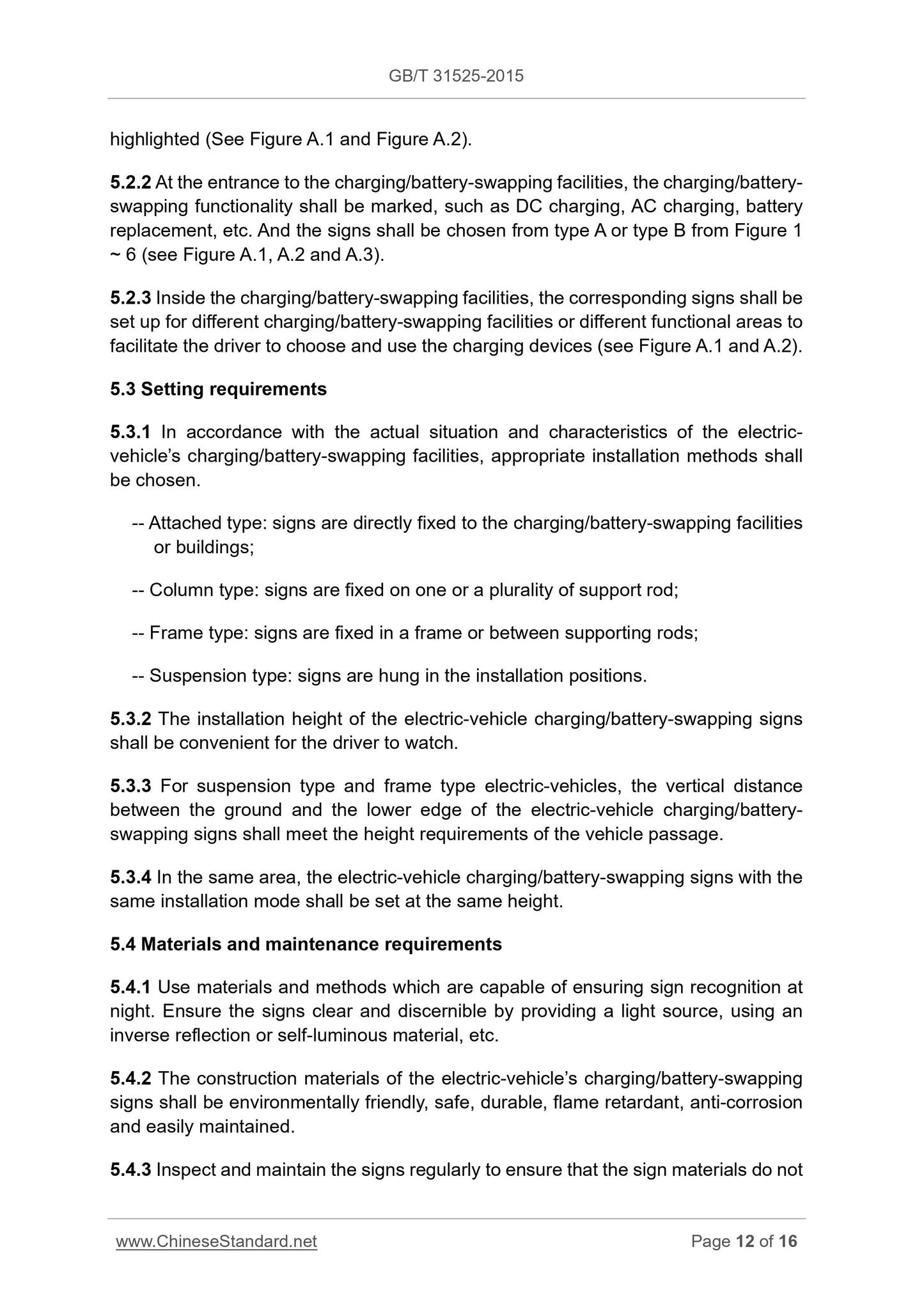

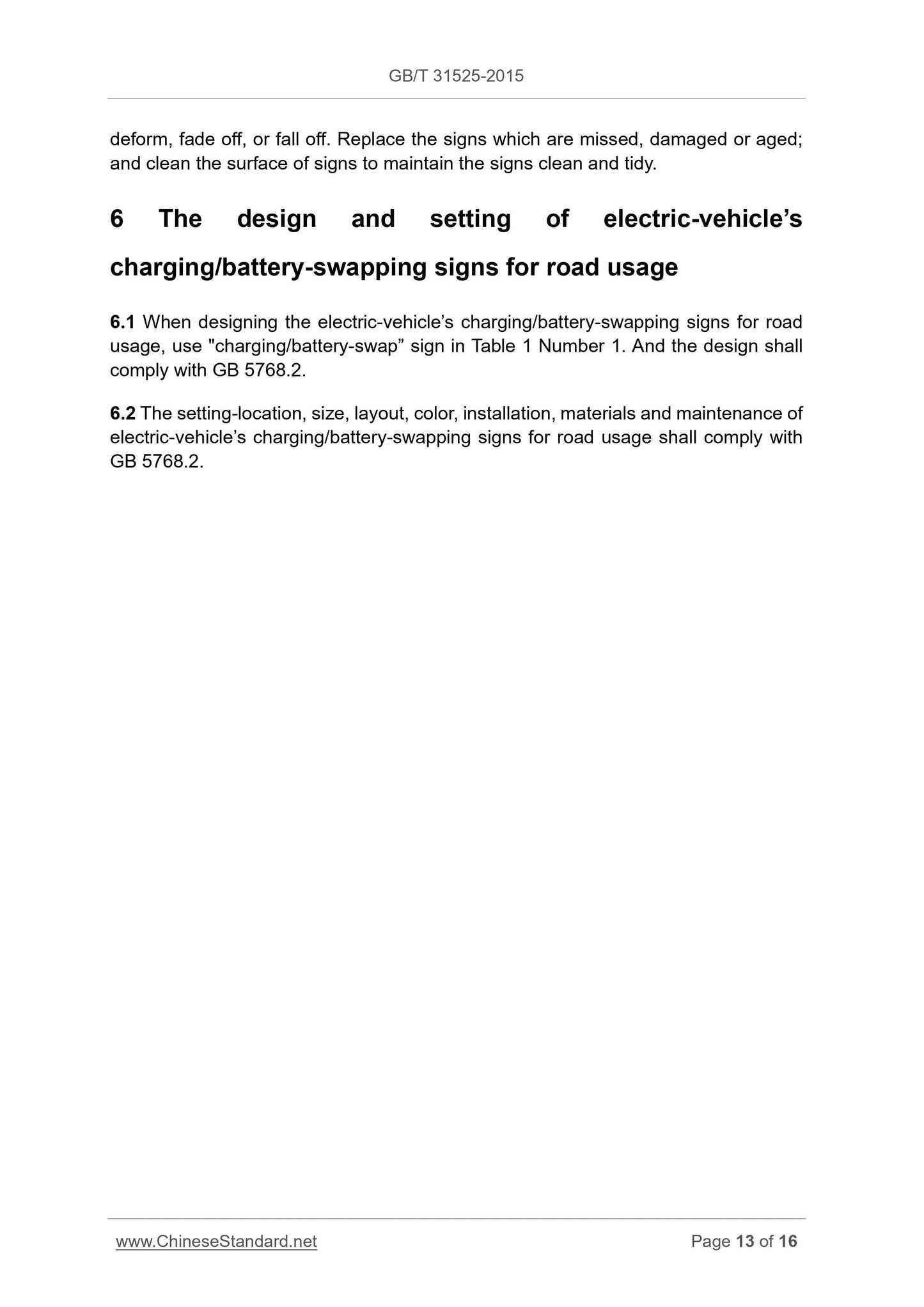

5 The setup of electric-vehicle?€?s charging/battery-swapping infrastructure signs ... 11 6 The design and setting of electric-vehicle?€?s charging/battery-swapping signs for road usage ... 13
Appendix A ... 14

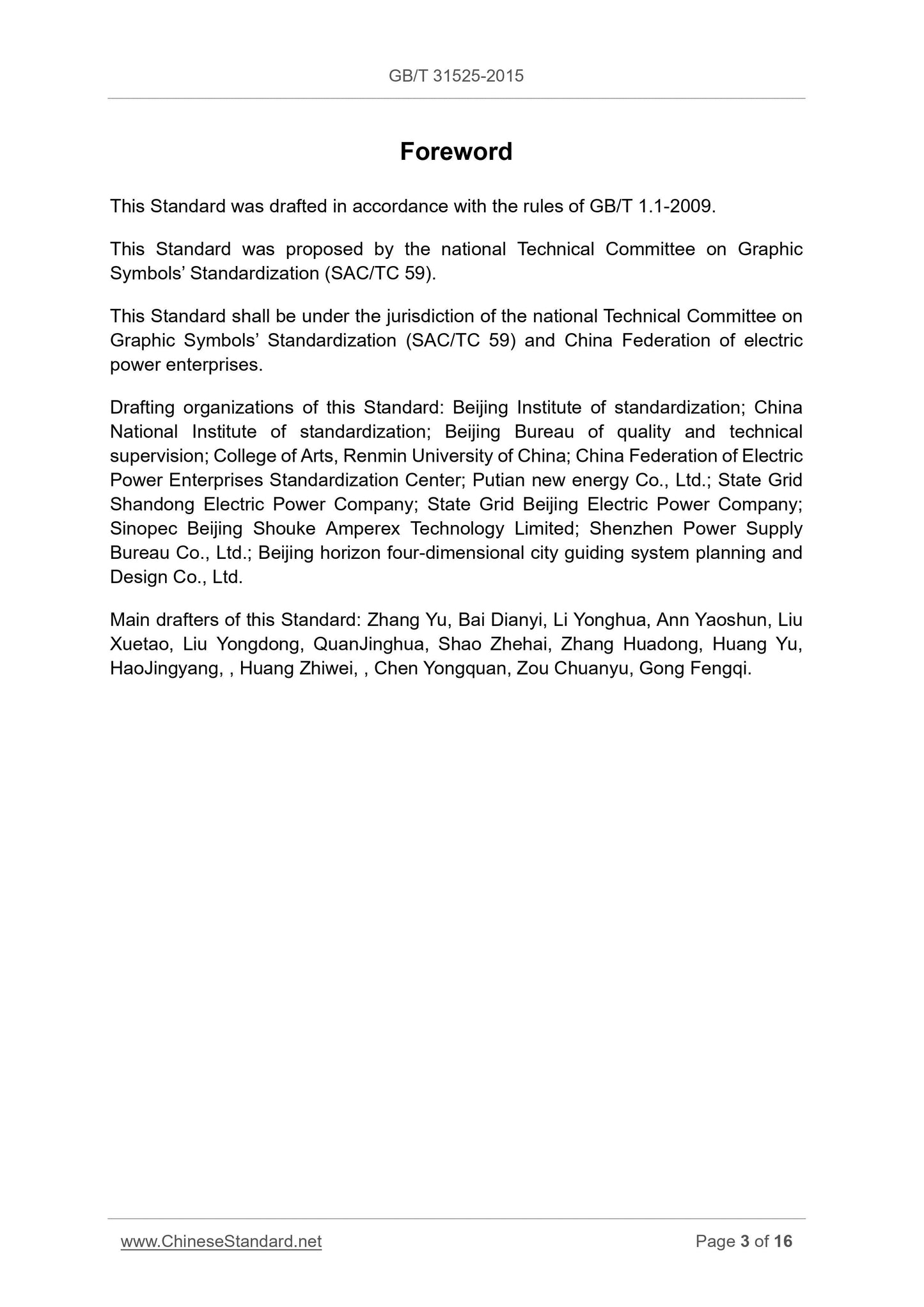

Foreword
This Standard was drafted in accordance with the rules of GB/T 1.1-2009. This Standard was proposed by the national Technical Committee on Graphic Symbols?€? Standardization (SAC/TC 59).
This Standard shall be under the jurisdiction of the national Technical Committee on Graphic Symbols?€? Standardization (SAC/TC 59) and China Federation of electric power enterprises.
Drafting organizations of this Standard. Beijing Institute of standardization; China National Institute of standardization; Beijing Bureau of quality and technical supervision; College of Arts, Renmin University of China; China Federation of Electric Power Enterprises Standardization Center; Putian new energy Co., Ltd.; State Grid Shandong Electric Power Company; State Grid Beijing Electric Power Company; Sinopec Beijing Shouke Amperex Technology Limited; Shenzhen Power Supply Bureau Co., Ltd.; Beijing horizon four-dimensional city guiding system planning and Design Co., Ltd.
Main drafters of this Standard. Zhang Yu, Bai Dianyi, Li Yonghua, Ann Yaoshun, Liu Xuetao, Liu Yongdong, QuanJinghua, Shao Zhehai, Zhang Huadong, Huang Yu, HaoJingyang, , Huang Zhiwei, , Chen Yongquan, Zou Chuanyu, Gong Fengqi. Graphical signs - Electric vehicle charging and battery
swapping infrastructure signs
1 Scope
This Standard specifies the requirements for electric-vehicles?€? charging and battery- swapping infrastructure symbols and signs, as well as their setting requirements. This Standard is applicable to electric-vehicle?€?s charging/battery-swapping station, battery replacement station, parking lots with electric-vehicles?€? charging/battery- swapping infrastructure, transport depot, nearby roads and other public places. Specifically, it is applicable to the design of location signs, guidance signs, the information edition, the schematic diagram and other orientation elements in public information orientation system.
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this Standard.
GB/T 2893.1 Graphical symbols - Safety colors and safety signs - Part 1. Design principles for safety signs and safety markings
GB 5768.2 Road traffic signs and markings - Part 2. Road traffic signs
GB/T 15566.1 Guidance system for public information - Setting principles and requirements - Part 1. General principles
3 Graphical signs for electric-vehicle?€?s charging/battery-
swapping infrastructure
See Table 1 for electric-vehicle?€?s charging/battery-swapping infrastructure signs. Table 1 Electric-vehicle?€?s Charging/Battery-swapping Infrastructure Signs S/N Graphical Symbol Meaning Explanation
Charging/Battery-
swap Infrastructure
It refers to places to provide charging services for
electric-vehicles, such as. charging/battery-swapping
stations, charging stations, or battery-replacement
stations. It can also denote functionality for
charging/battery-swapping on the road.
It is used in charging/battery-swapping stations,
charging stations, or battery-replacement stations, etc.
2 DC Charging
It refers to places or facilities to provide DC charging
services for electric-vehicles, such as. DC charging
stations, DC charging areas, DC charging piles, etc. It
can also denote functionality for DC charging.
Generally it is not for road usage.
3 AC Charging
It refers to places or facilities to provide AC charging
services for electric-vehicles, such as. AC charging
stations, AC charging areas, AC charging piles, etc. It
can also denote functionality for AC charging.
Generally it is not for road usage.
4 Battery-swapping
It refers to places to provide battery-swapping services
for electric-vehicles, such as. battery-swapping
stations, or battery-swapping areas. It can also denote
functionality for battery-swapping.
Generally it is not for road usage.
4 Electric-vehicle charging/battery-swapping facility signs
4.1 Sign color and format
4.1.1 General requirements
4.1.1.1 The color and format of the signs for electric-vehicles?€? charging/battery- swapping facilities shall be in accordance with the color and size of the facilities, and environmental characteristics of the site.
4.1.1.2 The format of the sign shall be selected from Figure 1 ~ 6. The color shall be those from Figure 1 ~6. Among which the color code for blue shall be CMYK. C100 M52 Y0 K0, PANTONE. 2935PC; and that for black shall be C0 M0 Y0 K100,
PANTONE. Pro.BlackPC. The color of the graphic symbols and text shall be in enough contrast with the background color of base-material. The base-material?€?s background color of the sign shall not be the safety color - red or yellow as specified in GB/T 2893.1.
Note1. The CMYK color mode is a printing mode. The four letters refer to Cyan, Magenta, Yellow, Black, representing four colors of printing ink.
Note 2. PANTONE color matching system, is a universal international standard language of color. Note 3. The base-material?€?s background color usually refers to the natural color of the sign plates, such as copper plates, stainless steel plates, acrylic plates. When the sign is sprayed on the charging pile or other objects, the base-material?€?s background color refers to the natural color of charging pile or other objects
4.1.1.3 The graphic sign for ?€?Charging/Battery-swapping Infrastructure?€? in Table 1 Number 1 can be an independent mark without the text. But the color shall be consistent with the provisions of 4.1.1.2.
4.1.2 DC charging signs
4.1.2.1 The horizontal-plate DC charging signs
See Figure 1 for the color and layout of horizontal-plate DC charging signs. a) Type A - white background, white graph, blue text
b) Type B - blue background, blue graph, white text
c) Type C ?€? base-material?€?s background, black graph, black text (or base-material?€?s background, white graph, white text)
Figure 1 Color and Layout of Horizontal-plate DC Charging Signs
4.1.2.2 Vertical-plate DC charging signs
See Figure 2 for the color and layout of vertical-plate DC charging signs. Figure 2 Color and Layout of Vertical-plate DC Charging Signs
4.1.3 AC charging signs
4.1.3.1 The horizontal-plate of DC charging signs
See Figure 3 for the color and layout of horizontal-plate DC charging signs. a) Type A - white
background, white graph,
blue text
b) Type B - blue
background, blue graph,
white text
c) Type C - base-material?€?s
background, black graph, black text
(or base-material?€?s background,
white graph, white text)
a) Type A - white background, white graph, blue text
b) Type B - blue background, blue graph, white text
C) Type C - base-material?€?s background, black graph, black text (or base-material?€?s background, white graph, white text)
Figure 3 Color and Layout of Horizontal-plate AC Charging Signs
4.1.3.2 The layout of Vertical-plate AC charging signs
Figure 4 Vertical-plate AC Charging Signs
a) Type A - white
background, white graph,
blue text
b) Type B - blue
background, blue
graph, white text
c) Type C - base-material?€?s background,
black graph, black text (or base-material?€?s
background, white graph, white text)
4.1.4 Battery-swapping signs
4.1.4.1 The horizontal-plate battery-swapping signs
See Figure 5 for horizontal-plate battery-swapping signs
Type A - white background, white graph, blue text
Type B - blue background, blue graph, white text
Type C - base-material?€?s background, black graph, black text (or base-material?€?s background, white graph, white text)
Figure 5 Horizontal-plate AC Charging Signs
4.1.4.2 The vertical-plate battery-swapping signs
See Figure 5 for vertical-plate battery-swapping signs.
Figure 6 Vertical-plate Battery-swapping Signs
4.2 Size of Sign
4.2.1 General requirements
4.2.1.1 The minimum size of the electric-vehicle?€?s Charging/Battery-swapping Infrastructure sign shall be determined according to the observation distance (D) of the sign.
4.2.1.2 After the observation distance is determined, the corresponding size of sign (h, w) shall be selected from Table 2.
4.2.1.3 In application, signs in Figure 1 ~ 6 shall be amplified in proportion. 4.2.2 Size series
4.2.1.1 See Table 2 for size series of electric-vehicle?€?s Charging/Battery-swapping Infra...
