GB/T 3103.3-2020: Tolerances for fasteners -- Plain washers

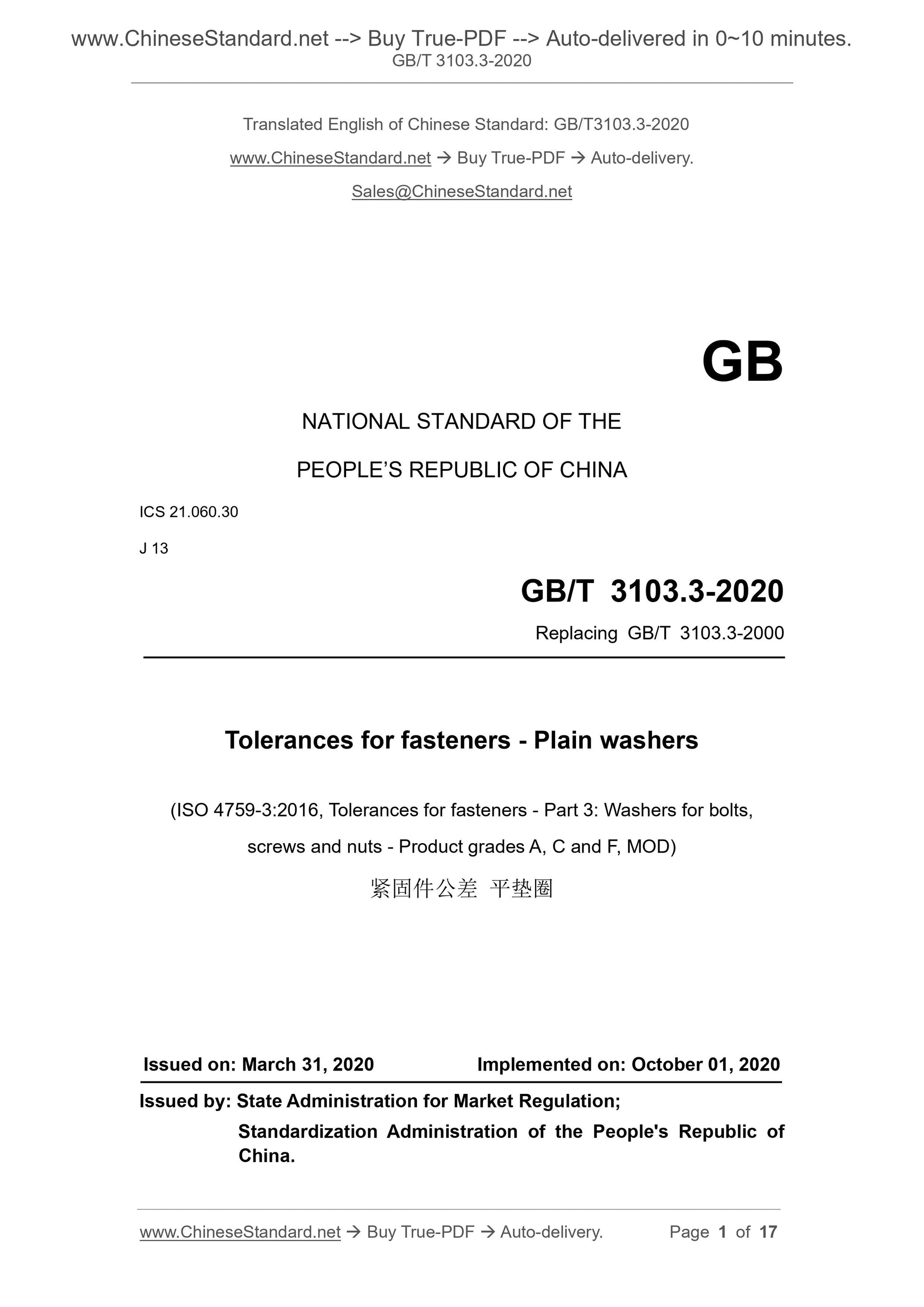

GB/T 3103.3-2020
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 21.060.30
J 13
Replacing GB/T 3103.3-2000
Tolerances for fasteners - Plain washers
(ISO 4759-3:2016, Tolerances for fasteners - Part 3: Washers for bolts,
screws and nuts - Product grades A, C and F, MOD)
ISSUED ON: MARCH 31, 2020
IMPLEMENTED ON: OCTOBER 01, 2020
Issued by: State Administration for Market Regulation;
Standardization Administration of the People's Republic of
China.

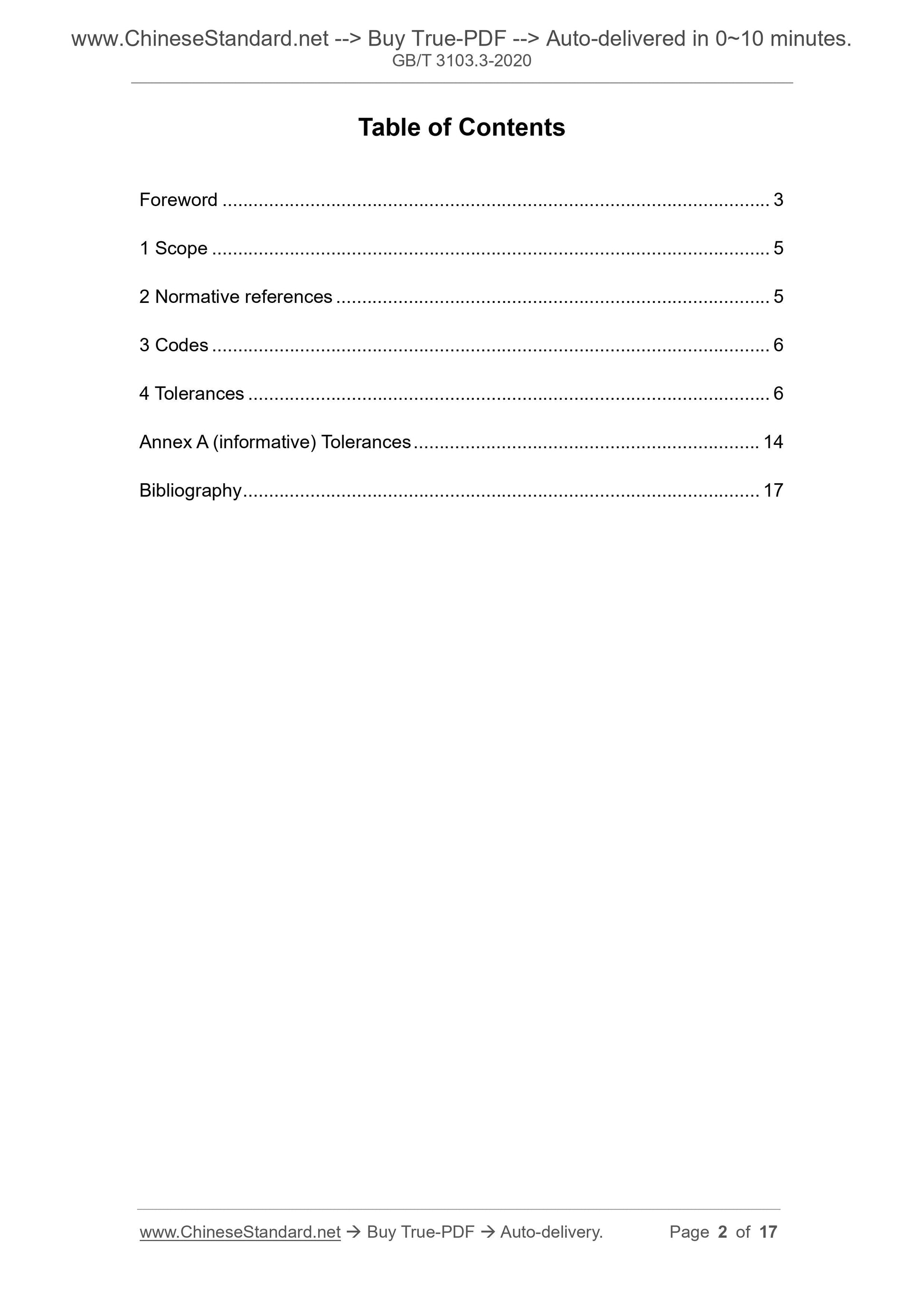

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Codes ... 6
4 Tolerances ... 6
Annex A (informative) Tolerances ... 14
Bibliography ... 17

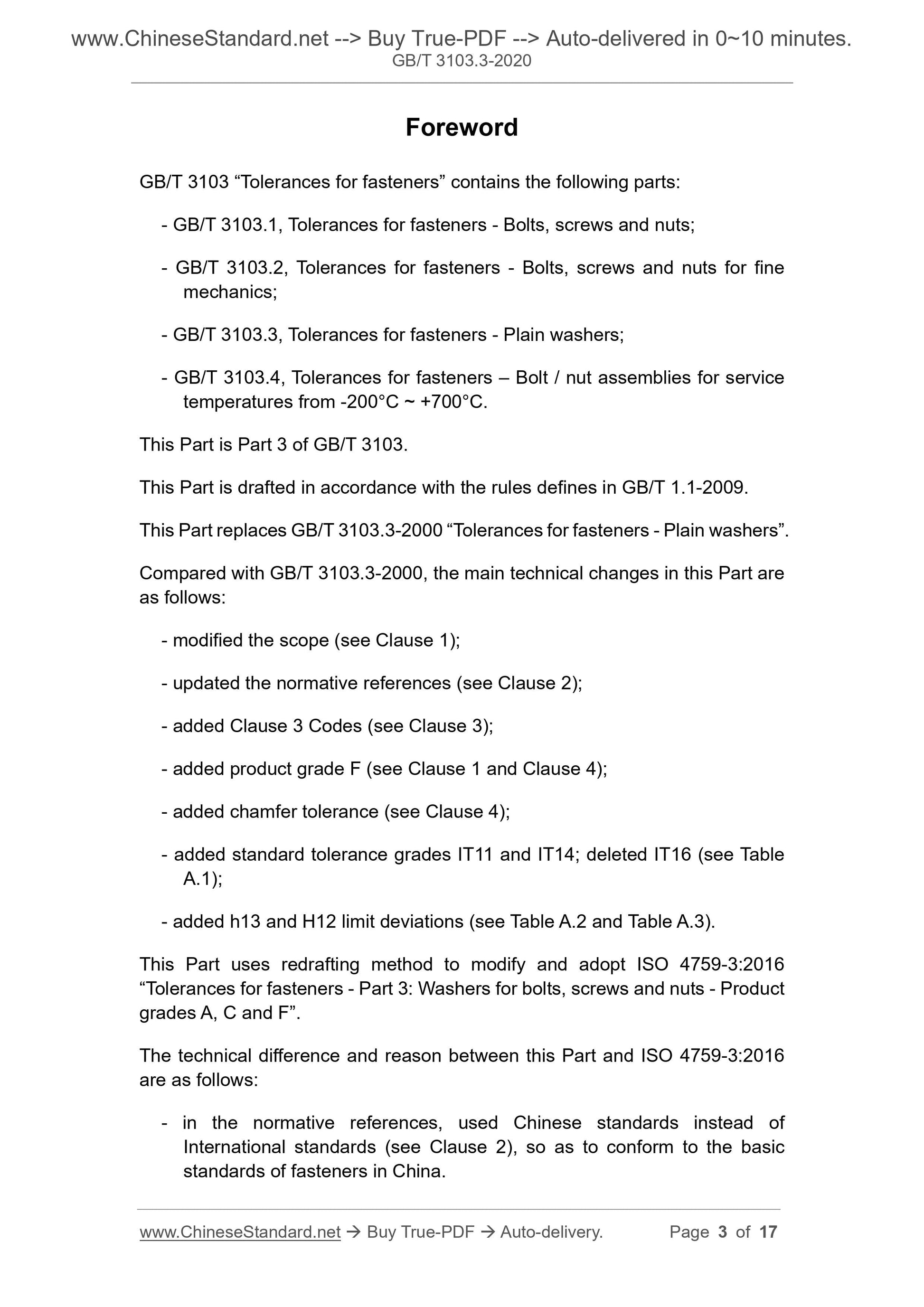

Foreword
GB/T 3103 “Tolerances for fasteners” contains the following parts:
- GB/T 3103.1, Tolerances for fasteners - Bolts, screws and nuts;
- GB/T 3103.2, Tolerances for fasteners - Bolts, screws and nuts for fine
mechanics;
- GB/T 3103.3, Tolerances for fasteners - Plain washers;
- GB/T 3103.4, Tolerances for fasteners – Bolt / nut assemblies for service
temperatures from -200°C ~ +700°C.
This Part is Part 3 of GB/T 3103.
This Part is drafted in accordance with the rules defines in GB/T 1.1-2009.
This Part replaces GB/T 3103.3-2000 “Tolerances for fasteners - Plain washers”.
Compared with GB/T 3103.3-2000, the main technical changes in this Part are
as follows:
- modified the scope (see Clause 1);
- updated the normative references (see Clause 2);
- added Clause 3 Codes (see Clause 3);
- added product grade F (see Clause 1 and Clause 4);
- added chamfer tolerance (see Clause 4);
- added standard tolerance grades IT11 and IT14; deleted IT16 (see Table
A.1);
- added h13 and H12 limit deviations (see Table A.2 and Table A.3).
This Part uses redrafting method to modify and adopt ISO 4759-3:2016
“Tolerances for fasteners - Part 3: Washers for bolts, screws and nuts - Product
grades A, C and F”.
The technical difference and reason between this Part and ISO 4759-3:2016
are as follows:
- in the normative references, used Chinese standards instead of
International standards (see Clause 2), so as to conform to the basic
standards of fasteners in China.

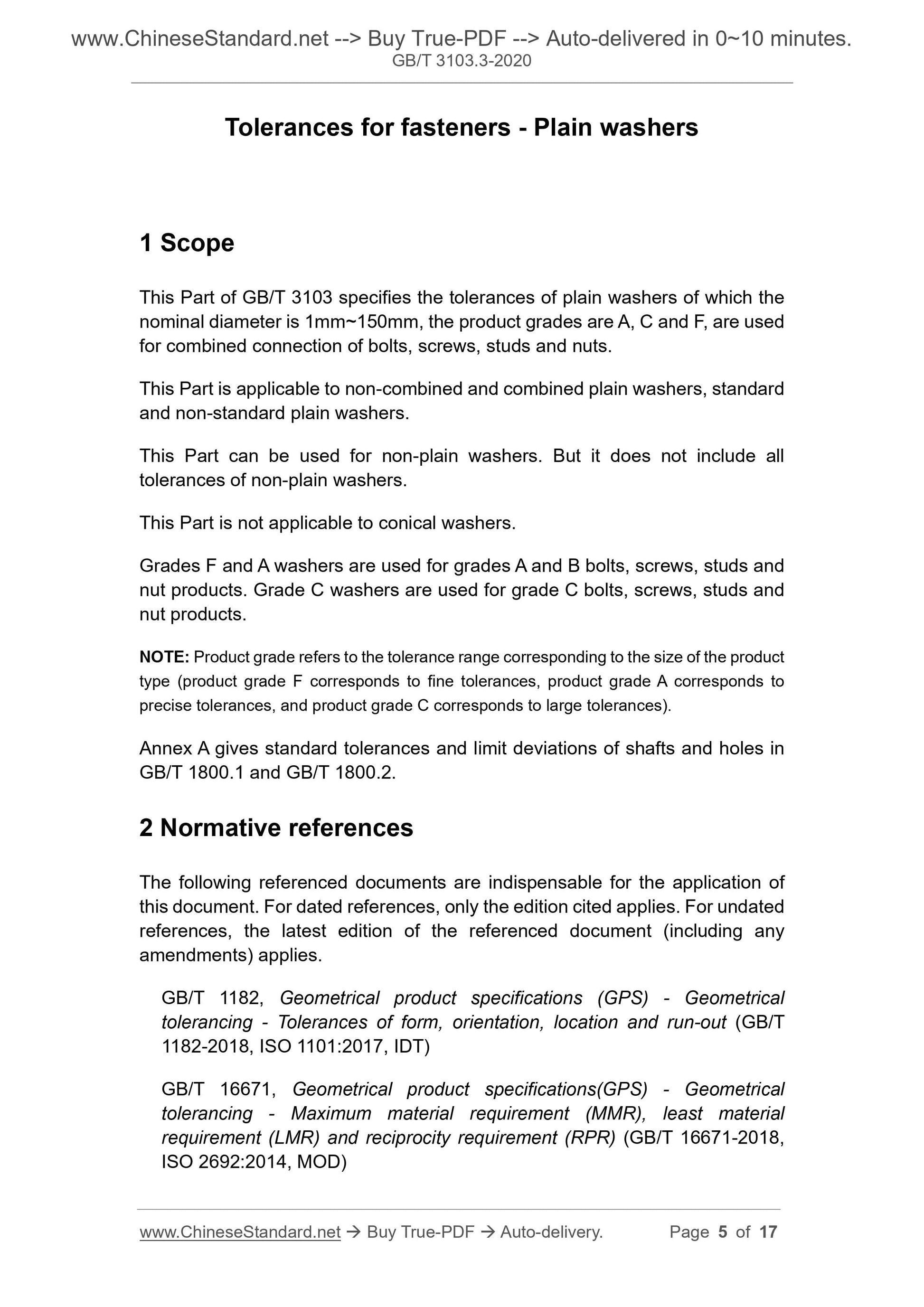

Tolerances for fasteners - Plain washers
1 Scope
This Part of GB/T 3103 specifies the tolerances of plain washers of which the
nominal diameter is 1mm~150mm, the product grades are A, C and F, are used
for combined connection of bolts, screws, studs and nuts.
This Part is applicable to non-combined and combined plain washers, standard
and non-standard plain washers.
This Part can be used for non-plain washers. But it does not include all
tolerances of non-plain washers.
This Part is not applicable to conical washers.
Grades F and A washers are used for grades A and B bolts, screws, studs and
nut products. Grade C washers are used for grade C bolts, screws, studs and
nut products.
NOTE: Product grade refers to the tolerance range corresponding to the size of the product
type (product grade F corresponds to fine tolerances, product grade A corresponds to
precise tolerances, and product grade C corresponds to large tolerances).
Annex A gives standard tolerances and limit deviations of shafts and holes in
GB/T 1800.1 and GB/T 1800.2.
2 Normative references
The following referenced documents are indispensable for the application of
this document. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any
amendments) applies.
GB/T 1182, Geometrical product specifications (GPS) - Geometrical
tolerancing - Tolerances of form, orientation, location and run-out (GB/T
1182-2018, ISO 1101:2017, IDT)
GB/T 16671, Geometrical product specifications(GPS) - Geometrical
tolerancing - Maximum material requirement (MMR), least material
requirement (LMR) and reciprocity requirement (RPR) (GB/T 16671-2018,
ISO 2692:2014, MOD)

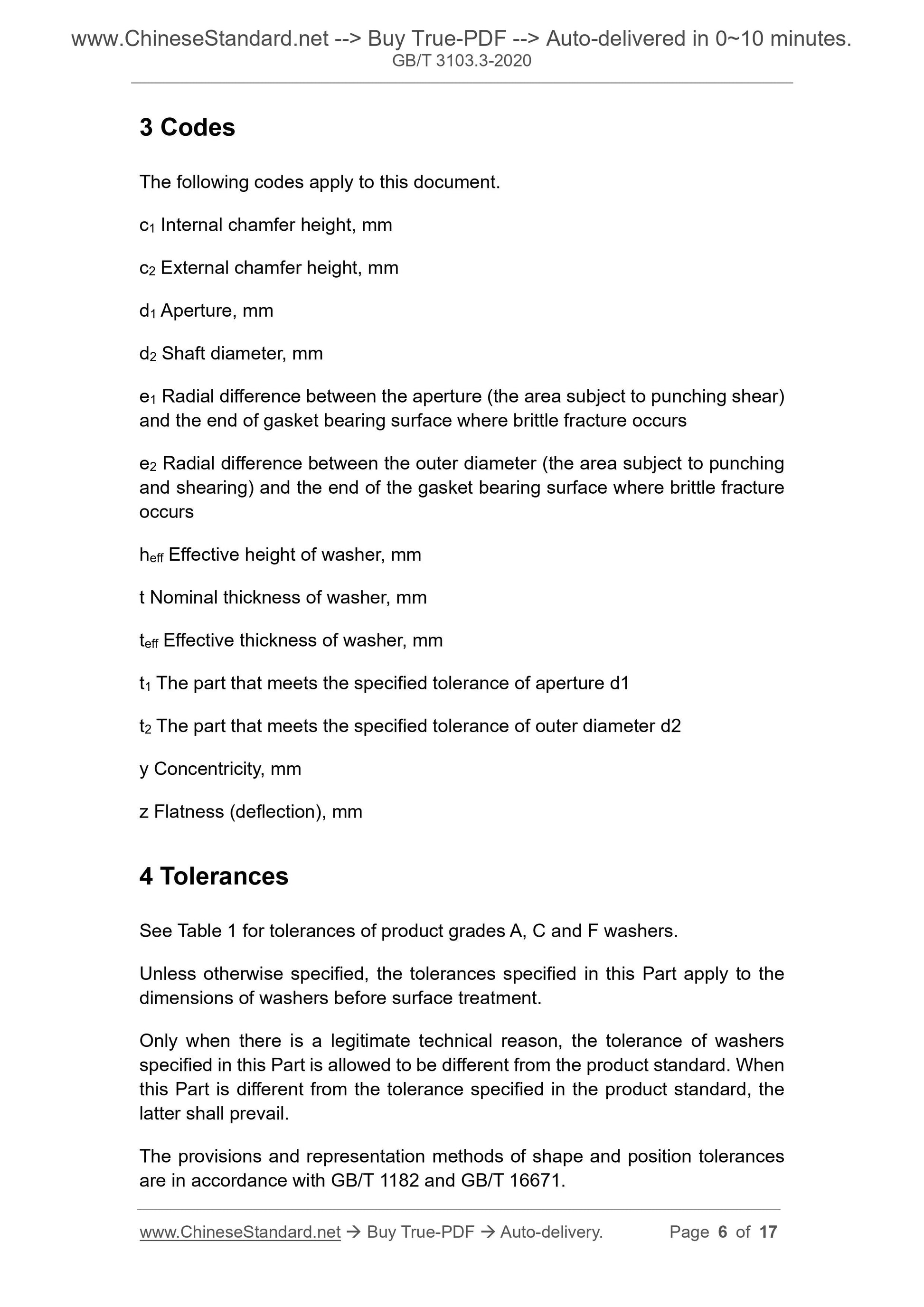

3 Codes
The following codes apply to this document.
c1 Internal chamfer height, mm
c2 External chamfer height, mm
d1 Aperture, mm
d2 Shaft diameter, mm
e1 Radial difference between the aperture (the area subject to punching shear)
and the end of gasket bearing surface where brittle fracture occurs
e2 Radial difference between the outer diameter (the area subject to punching
and shearing) and the end of the gasket bearing surface where brittle fracture
occurs
heff Effective height of washer, mm
t Nominal thickness of washer, mm
teff Effective thickness of washer, mm
t1 The part that meets the specified tolerance of aperture d1
t2 The part that meets the specified tolerance of outer diameter d2
y Concentricity, mm
z Flatness (deflection), mm
4 Tolerances
See Table 1 for tolerances of product grades A, C and F washers.
Unless otherwise specified, the tolerances specified in this Part apply to the
dimensions of washers before surface treatment.
Only when there is a legitimate technical reason, the tolerance of washers
specified in this Part is allowed to be different from the product standard. When
this Part is different from the tolerance specified in the product standard, the
latter shall prevail.
The provisions and representation methods of shape and position tolerances
are in accordance with GB/T 1182 and GB/T 16671.
