GB/T 3089-2008: Thinnest-wall seamless tubes of stainless steel

This standard specifies the size, shape, weight, technical requirements, test methods, inspection rules, packaging, marking and quality certificates of thinnest-wall seamless tubes of stainless steel. This standard applies to spinning or cold-rolling stainless steel thinnest-wall seamless tubes.

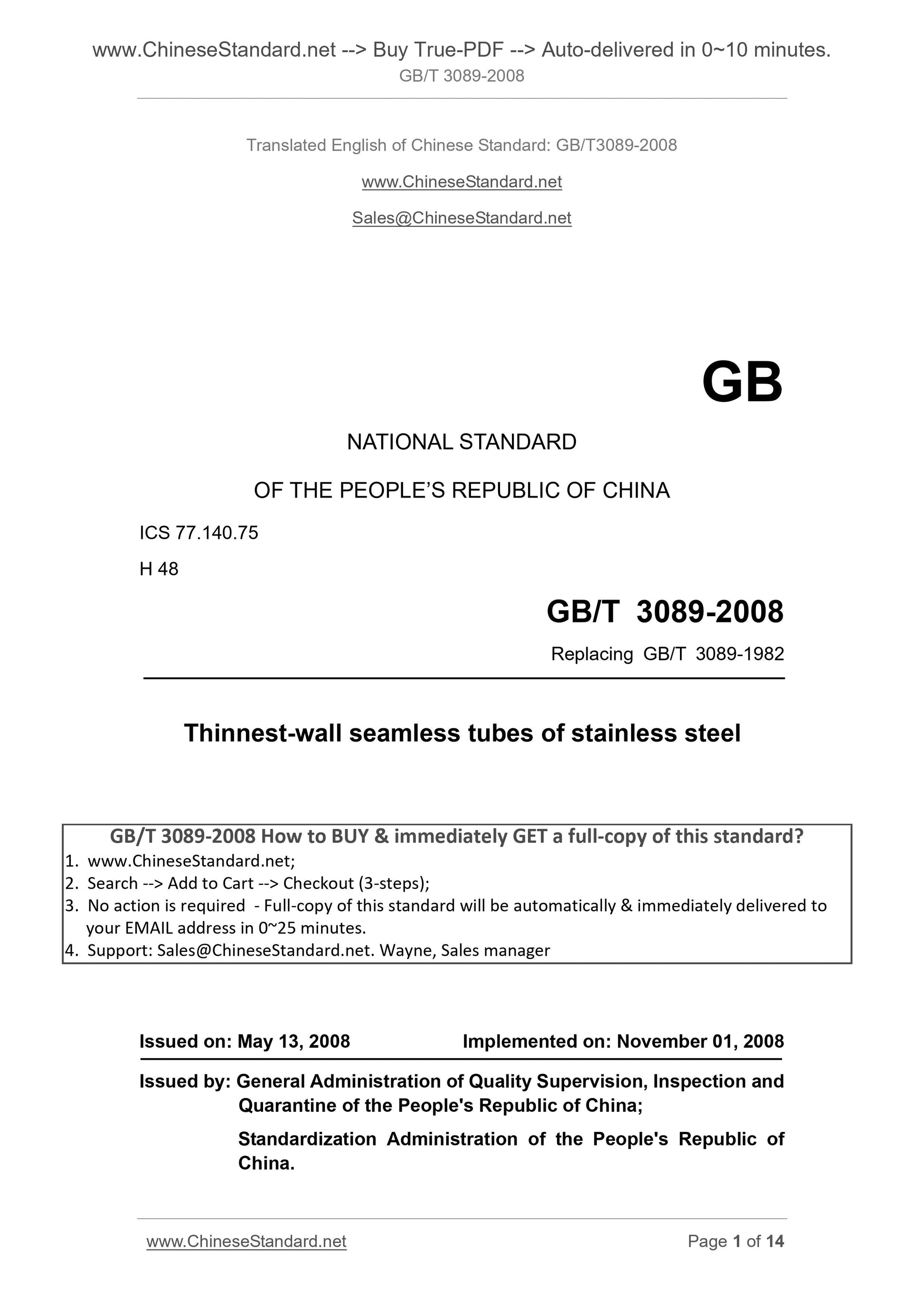

GB/T 3089-2008
GB
NATIONAL STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 77.140.75
H 48
Replacing GB/T 3089-1982
Thinnest-wall seamless tubes of stainless steel
ISSUED ON. MAY 13, 2008
IMPLEMENTED ON. NOVEMBER 01, 2008
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

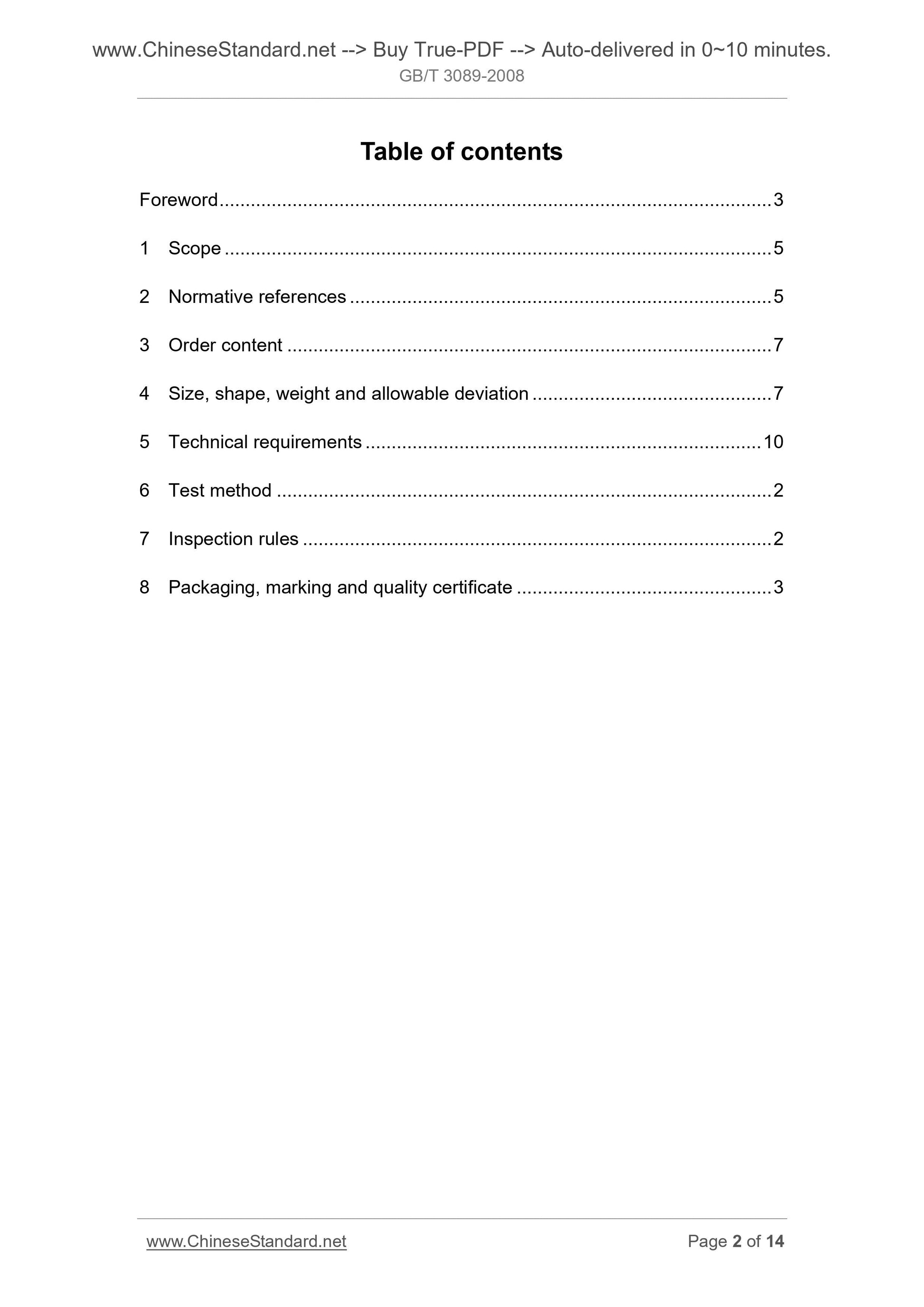

Table of contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Order content ... 7
4 Size, shape, weight and allowable deviation ... 7
5 Technical requirements ... 10
6 Test method ... 2
7 Inspection rules ... 2
8 Packaging, marking and quality certificate ... 3

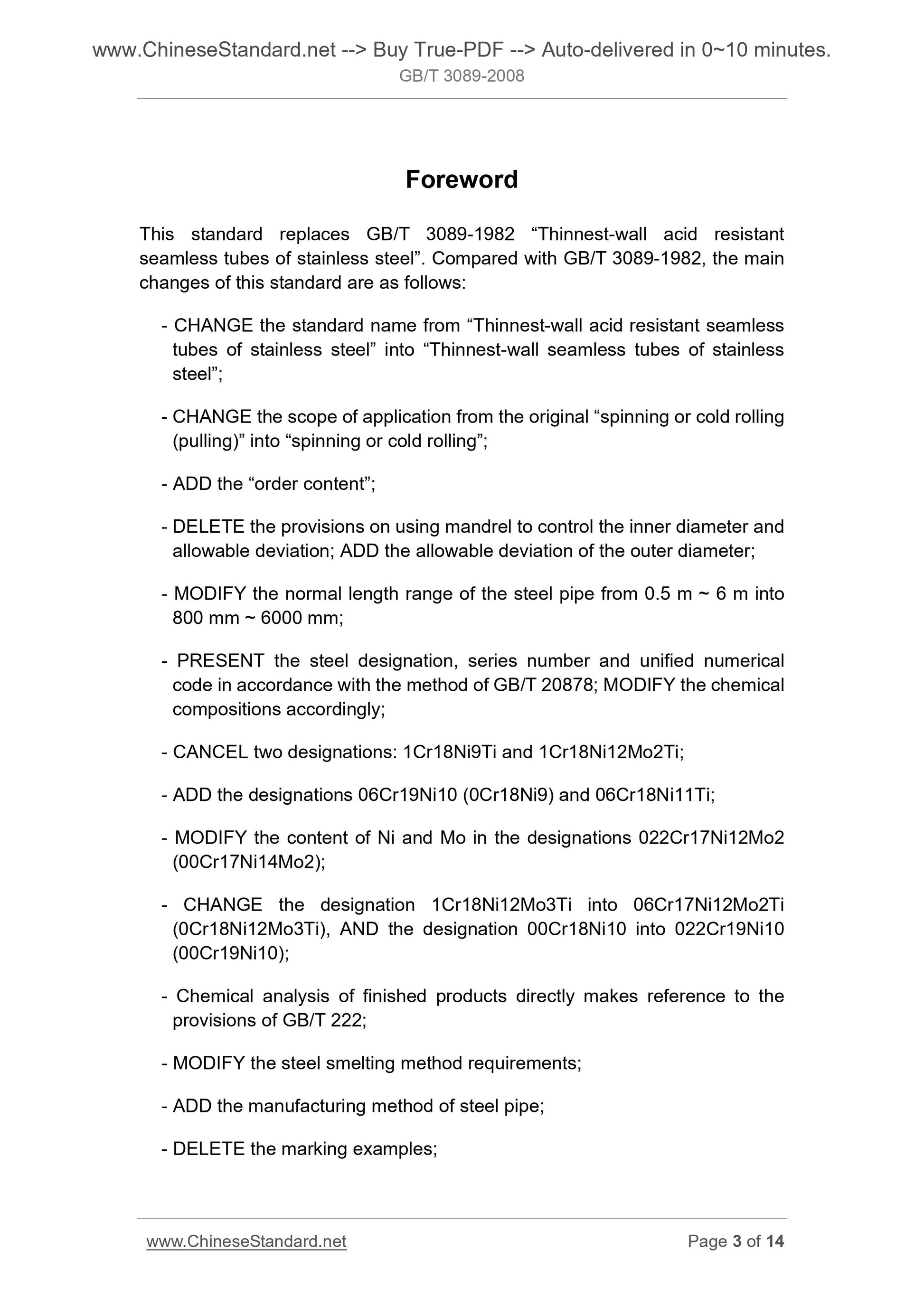

Foreword
This standard replaces GB/T 3089-1982 ?€?Thinnest-wall acid resistant
seamless tubes of stainless steel?€?. Compared with GB/T 3089-1982, the main changes of this standard are as follows.
- CHANGE the standard name from ?€?Thinnest-wall acid resistant seamless
tubes of stainless steel?€? into ?€?Thinnest-wall seamless tubes of stainless steel?€?;
- CHANGE the scope of application from the original ?€?spinning or cold rolling (pulling)?€? into ?€?spinning or cold rolling?€?;
- ADD the ?€?order content?€?;
- DELETE the provisions on using mandrel to control the inner diameter and allowable deviation; ADD the allowable deviation of the outer diameter; - MODIFY the normal length range of the steel pipe from 0.5 m ~ 6 m into 800 mm ~ 6000 mm;
- PRESENT the steel designation, series number and unified numerical
code in accordance with the method of GB/T 20878; MODIFY the chemical
compositions accordingly;
- CANCEL two designations. 1Cr18Ni9Ti and 1Cr18Ni12Mo2Ti;
- ADD the designations 06Cr19Ni10 (0Cr18Ni9) and 06Cr18Ni11Ti;
- MODIFY the content of Ni and Mo in the designations 022Cr17Ni12Mo2
(00Cr17Ni14Mo2);
- CHANGE the designation 1Cr18Ni12Mo3Ti into 06Cr17Ni12Mo2Ti
(0Cr18Ni12Mo3Ti), AND the designation 00Cr18Ni10 into 022Cr19Ni10
(00Cr19Ni10);
- Chemical analysis of finished products directly makes reference to the provisions of GB/T 222;
- MODIFY the steel smelting method requirements;
- ADD the manufacturing method of steel pipe;
- DELETE the marking examples;

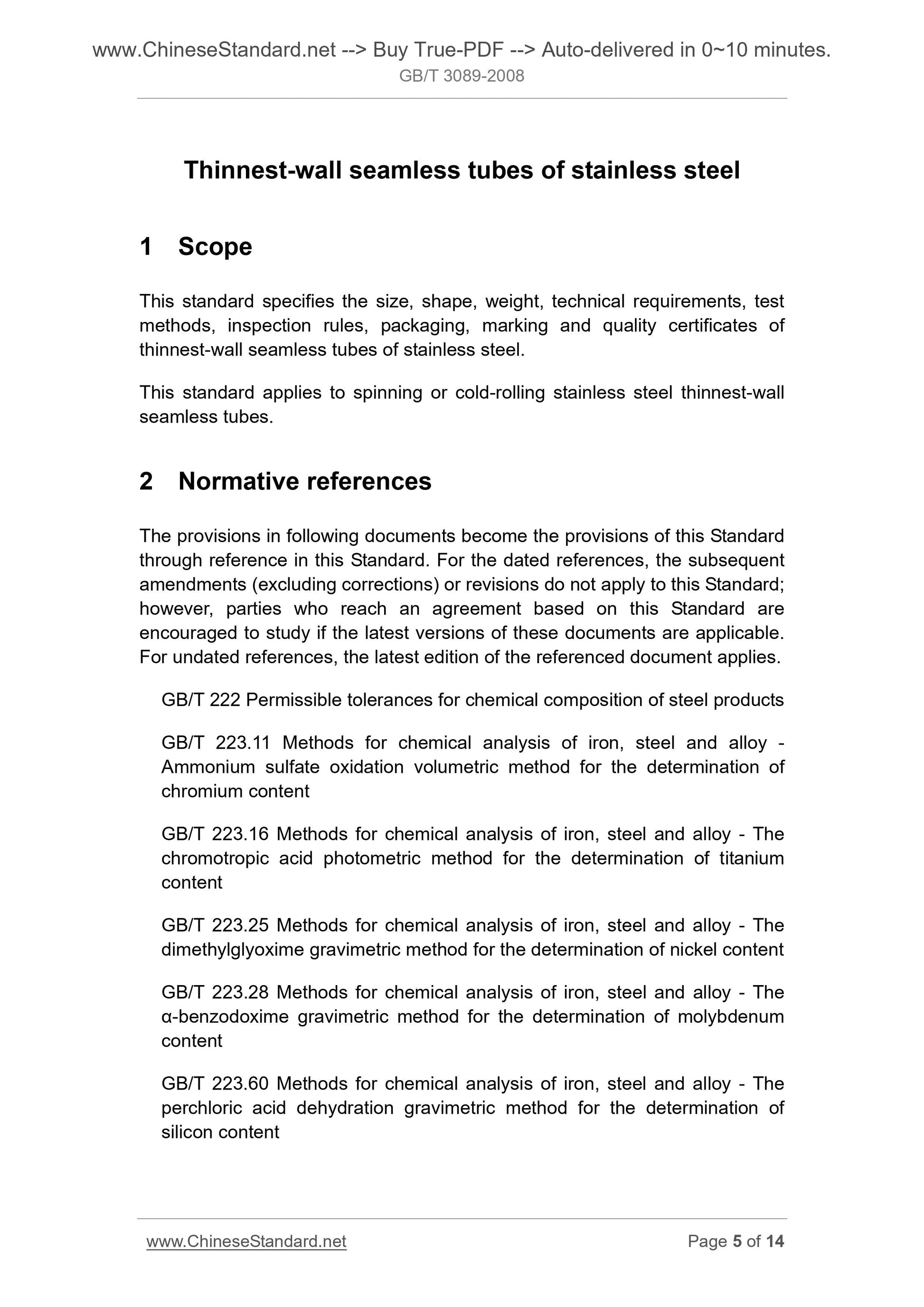

Thinnest-wall seamless tubes of stainless steel
1 Scope
This standard specifies the size, shape, weight, technical requirements, test methods, inspection rules, packaging, marking and quality certificates of thinnest-wall seamless tubes of stainless steel.
This standard applies to spinning or cold-rolling stainless steel thinnest-wall seamless tubes.
2 Normative references
The provisions in following documents become the provisions of this Standard through reference in this Standard. For the dated references, the subsequent amendments (excluding corrections) or revisions do not apply to this Standard; however, parties who reach an agreement based on this Standard are
encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB/T 222 Permissible tolerances for chemical composition of steel products GB/T 223.11 Methods for chemical analysis of iron, steel and alloy -
Ammonium sulfate oxidation volumetric method for the determination of
chromium content
GB/T 223.16 Methods for chemical analysis of iron, steel and alloy - The chromotropic acid photometric method for the determination of titanium
content
GB/T 223.25 Methods for chemical analysis of iron, steel and alloy - The dimethylglyoxime gravimetric method for the determination of nickel content GB/T 223.28 Methods for chemical analysis of iron, steel and alloy - The ??-benzodoxime gravimetric method for the determination of molybdenum
content
GB/T 223.60 Methods for chemical analysis of iron, steel and alloy - The perchloric acid dehydration gravimetric method for the determination of silicon content

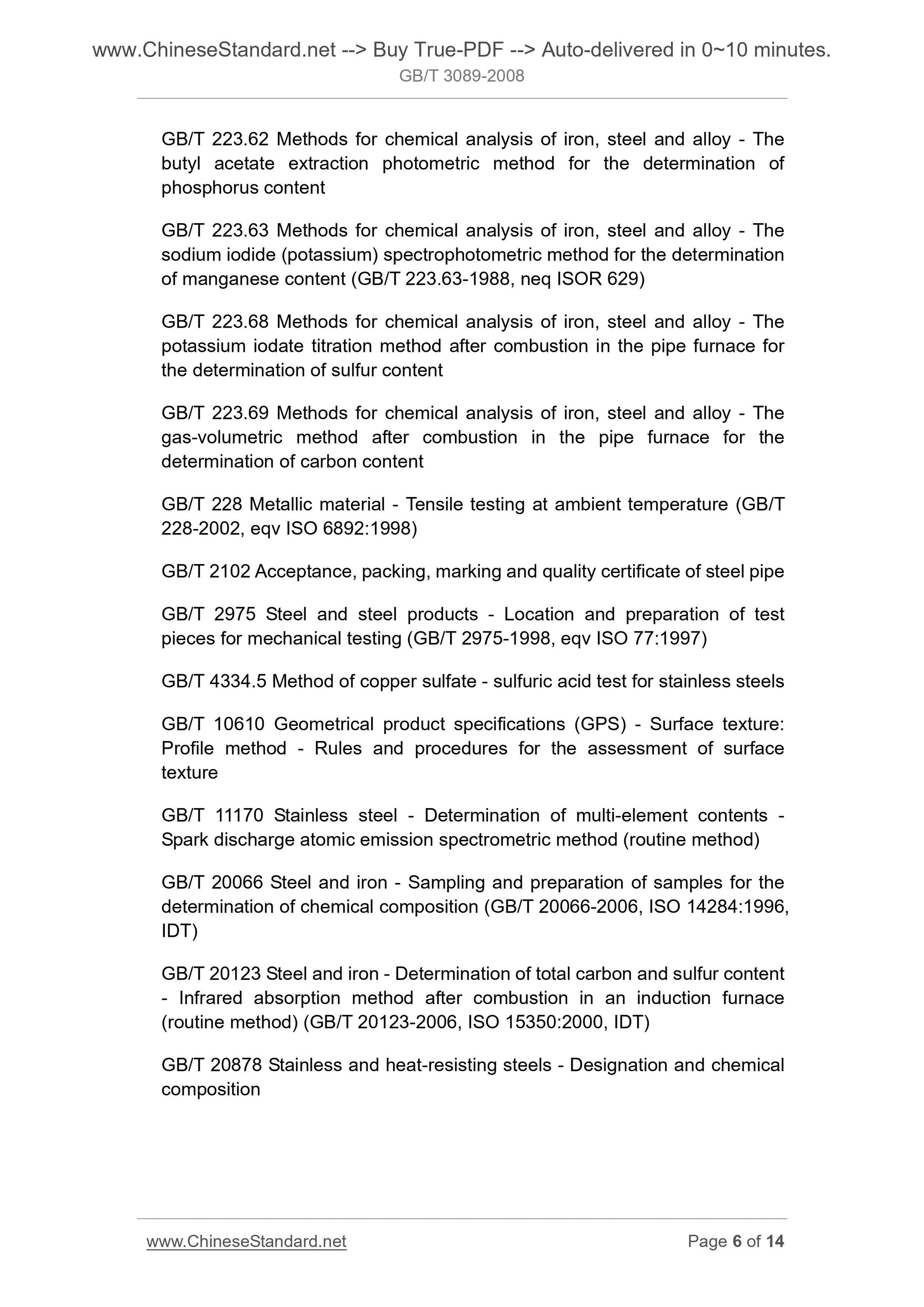

GB/T 223.62 Methods for chemical analysis of iron, steel and alloy - The butyl acetate extraction photometric method for the determination of
phosphorus content
GB/T 223.63 Methods for chemical analysis of iron, steel and alloy - The sodium iodide (potassium) spectrophotometric method for the determination of manganese content (GB/T 223.63-1988, neq ISOR 629)
GB/T 223.68 Methods for chemical analysis of iron, steel and alloy - The potassium iodate titration method after combustion in the pipe furnace for the determination of sulfur content
GB/T 223.69 Methods for chemical analysis of iron, steel and alloy - The gas-volumetric method after combustion in the pipe furnace for the
determination of carbon content
GB/T 228 Metallic material - Tensile testing at ambient temperature (GB/T 228-2002, eqv ISO 6892.1998)
GB/T 2102 Acceptance, packing, marking and quality certificate of steel pipe GB/T 2975 Steel and steel products - Location and preparation of test
pieces for mechanical testing (GB/T 2975-1998, eqv ISO 77.1997)
GB/T 4334.5 Method of copper sulfate - sulfuric acid test for stainless steels GB/T 10610 Geometrical product specifications (GPS) - Surface texture.
Profile method - Rules and procedures for the assessment of surface
texture
GB/T 11170 Stainless steel - Determination of multi-element contents -
Spark discharge atomic emission spectrometric method (routine method)
GB/T 20066 Steel and iron - Sampling and preparation of samples for the determination of chemical composition (GB/T 20066-2006, ISO 14284.1996, IDT)
GB/T 20123 Steel and iron - Determination of total carbon and sulfur content - Infrared absorption method after combustion in an induction furnace
(routine method) (GB/T 20123-2006, ISO 15350.2000, IDT)
GB/T 20878 Stainless and heat-resisting steels - Designation and chemical composition

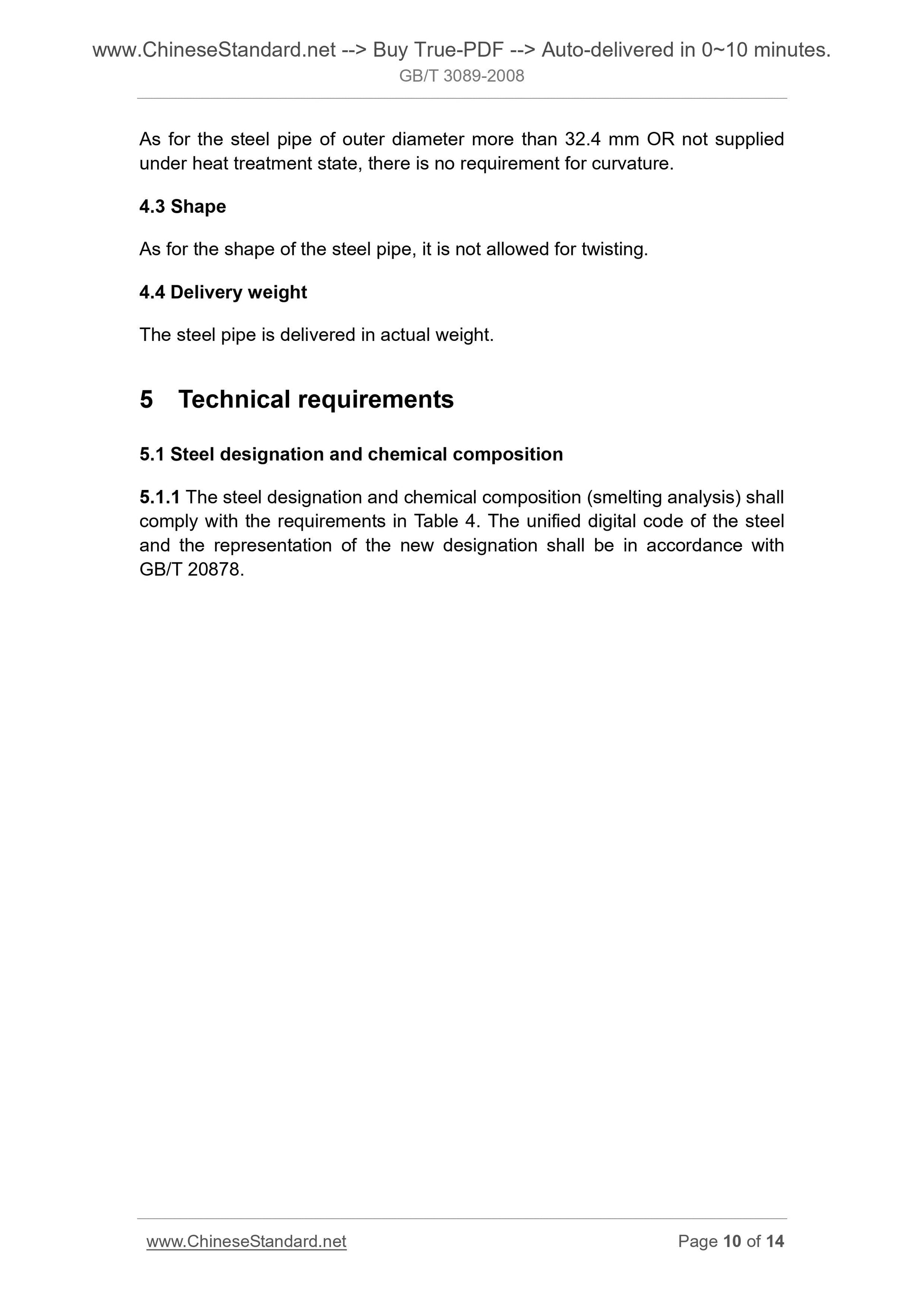

As for the steel pipe of outer diameter more than 32.4 mm OR not supplied under heat treatment state, there is no requirement for curvature.
4.3 Shape
As for the shape of the steel pipe, it is not allowed for twisting.
4.4 Delivery weight
The steel pipe is delivered in actual weight.
5 Technical requirements
5.1 Steel designation and chemical composition
5.1.1 The steel designation and chemical composition (smelting analysis) shall comply with the requirements in Table 4. The unified digital code of the steel and the representation of the new designation shall be in accordance with GB/T 20878.

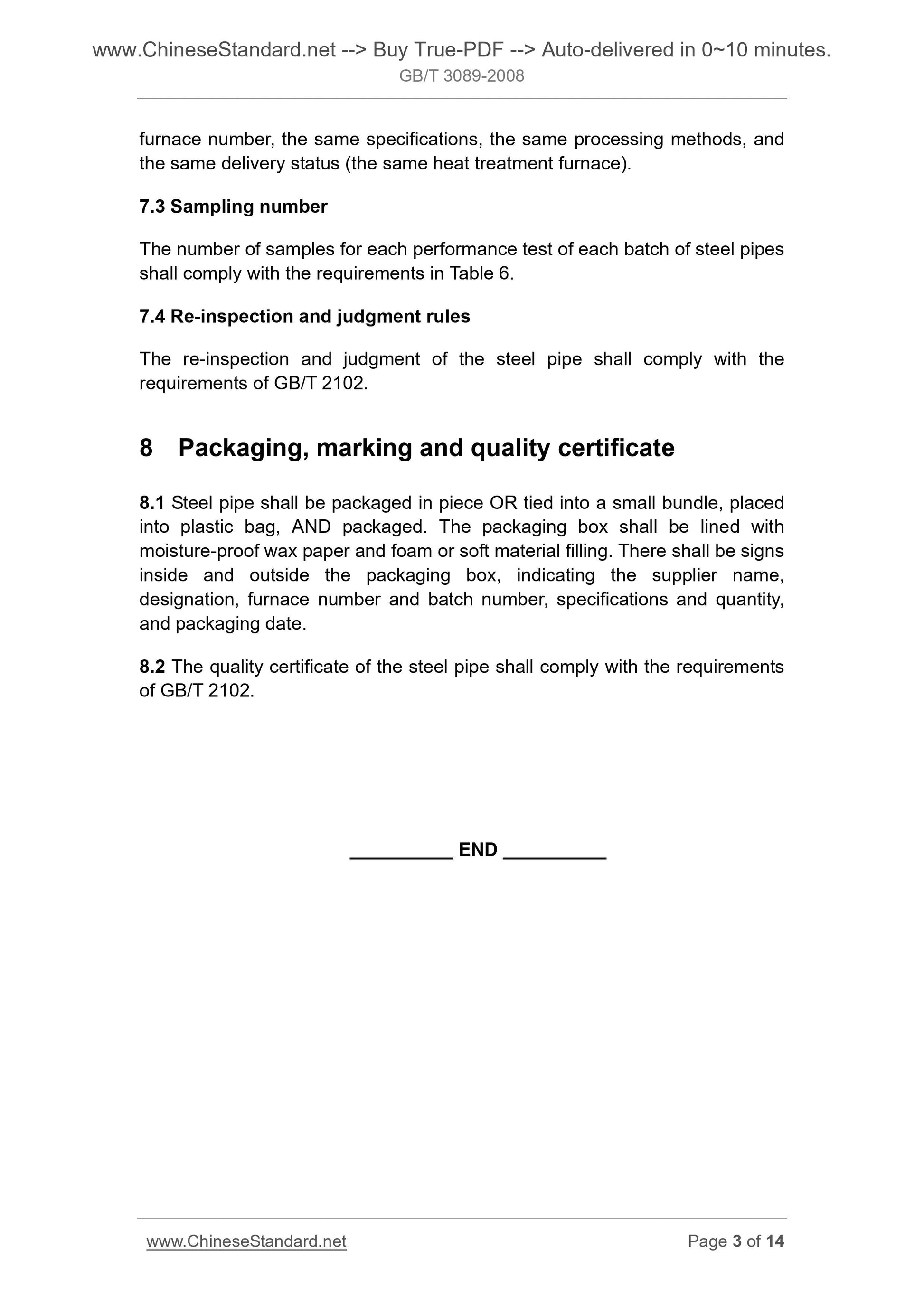

furnace number, the same specifications, the same processing methods, and the same delivery status (the same heat treatment furnace).
7.3 Sampling number
The number of samples for each performance test of each batch of steel pipes shall comply with the requirements in Table 6.
7.4 Re-inspection and judgment rules
The re-inspection and judgment of the steel pipe shall comply with the
requirements of GB/T 2102.
8 Packaging, marking and quality certificate
8.1 Steel pipe shall be packaged in piece OR tied into a small bundle, placed into plastic bag, AND packaged. The packaging box shall be lined with
moisture-proof wax paper and foam or soft material filling. There shall be signs inside and outside the packaging box, indicating the supplier name,
designation, furnace number and batch number, specifications and quantity, and packaging date.
8.2 The quality certificate of the steel pipe shall comply with the requirements of GB/T 2102.
