GB/T 3077-1999: Alloy structure steels

This Standard specifies the hot rolled and forging alloy structure steels dimension, shape, weight, tolerance, technical requirements, test method, inspection rules, packaging, marking, and quality certificates etc. This Standard applies to alloy structural steel bars of which the diameter or thickness is not greater than 250mm. After negotiation by supplier and purchaser, it can provide steel bars of which the diameter or thickness is greater than 250 mm.

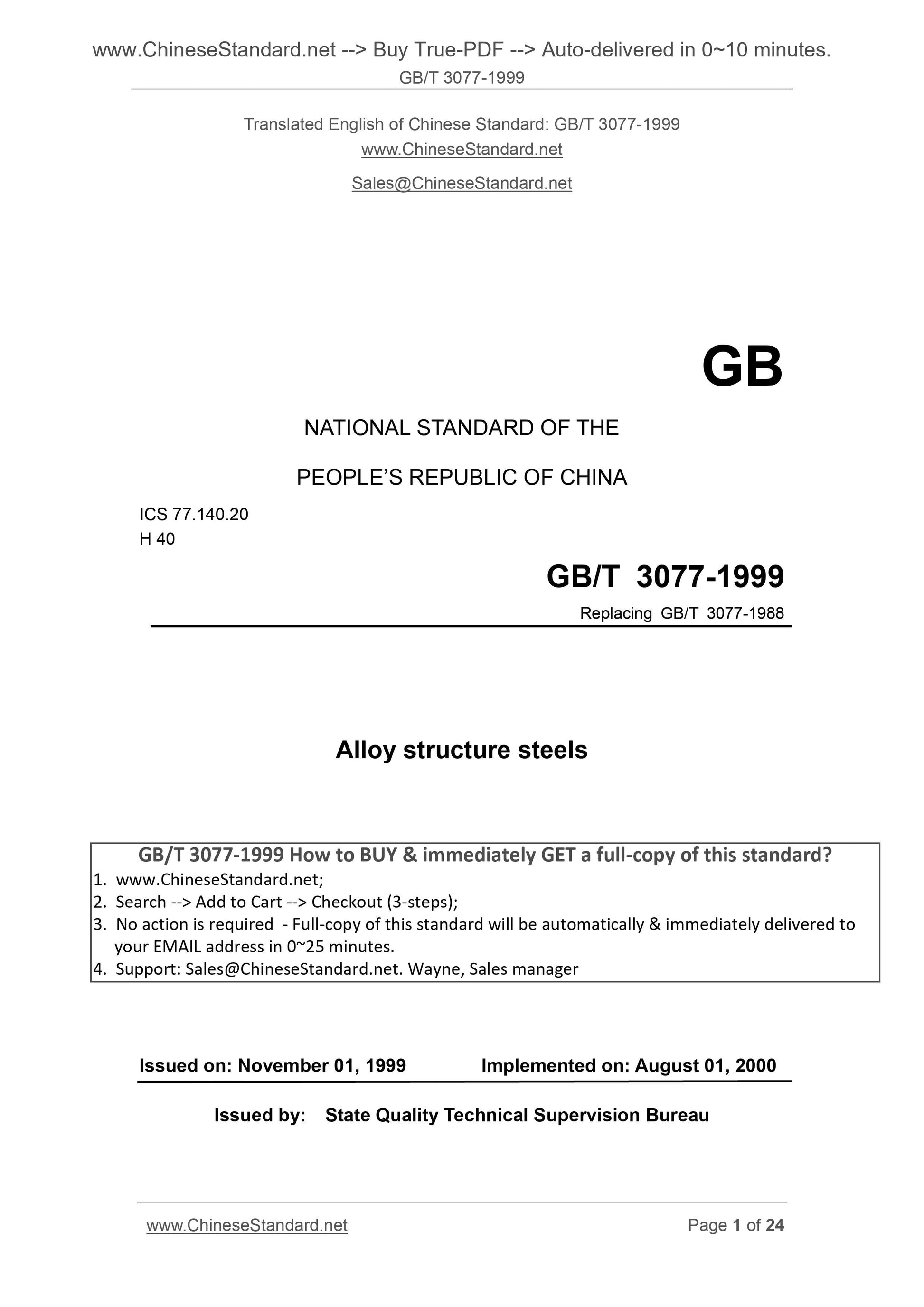

GB/T 3077-1999
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.140.20
H 40
Replacing GB/T 3077-1988
Alloy structure steels
ISSUED ON. NOVEMBER 01, 1999
IMPLEMENTED ON. AUGUST 01, 2000
Issued by. State Quality Technical Supervision Bureau

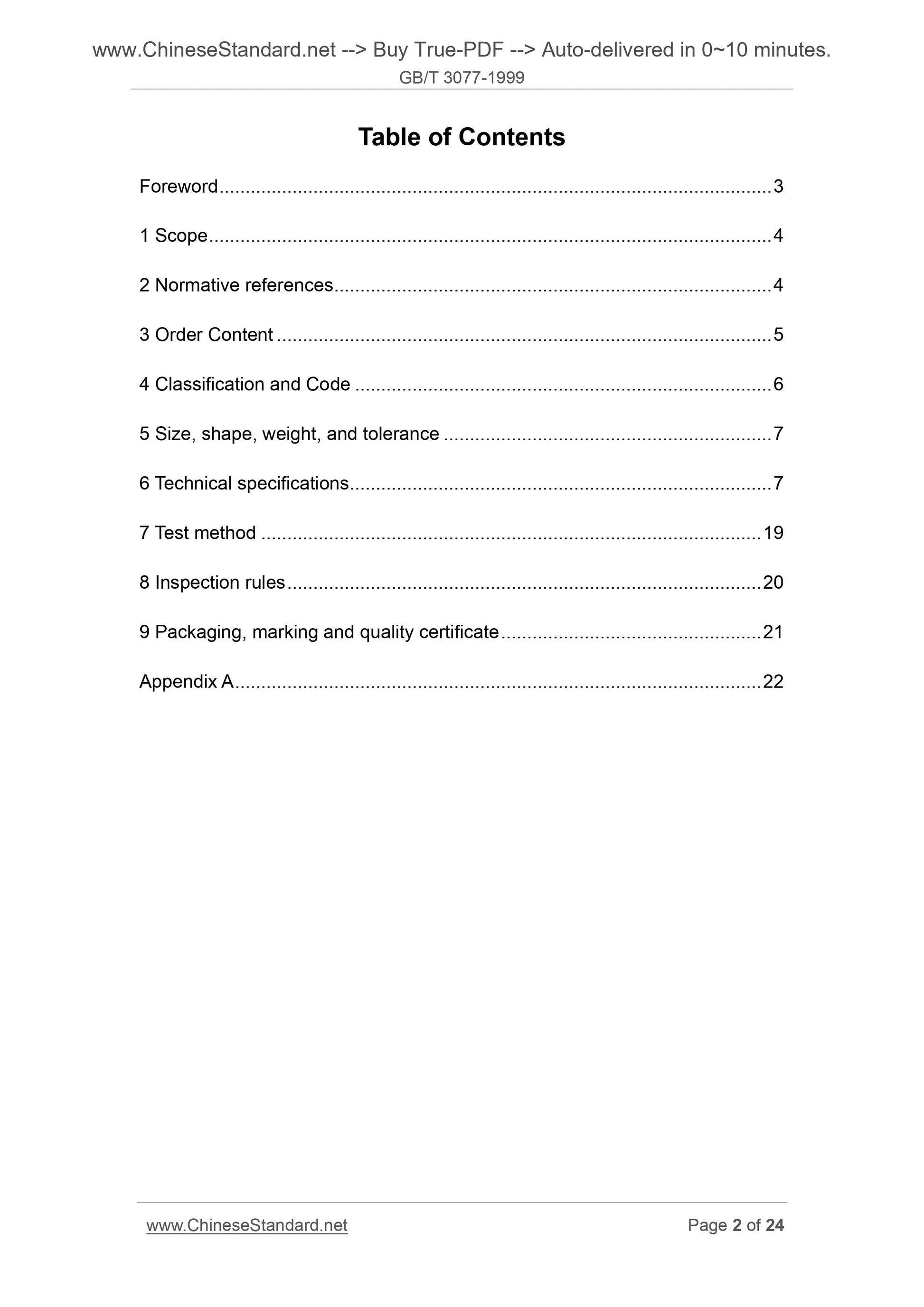

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Order Content ... 5
4 Classification and Code ... 6
5 Size, shape, weight, and tolerance ... 7
6 Technical specifications ... 7
7 Test method ... 19
8 Inspection rules ... 20
9 Packaging, marking and quality certificate ... 21
Appendix A ... 22

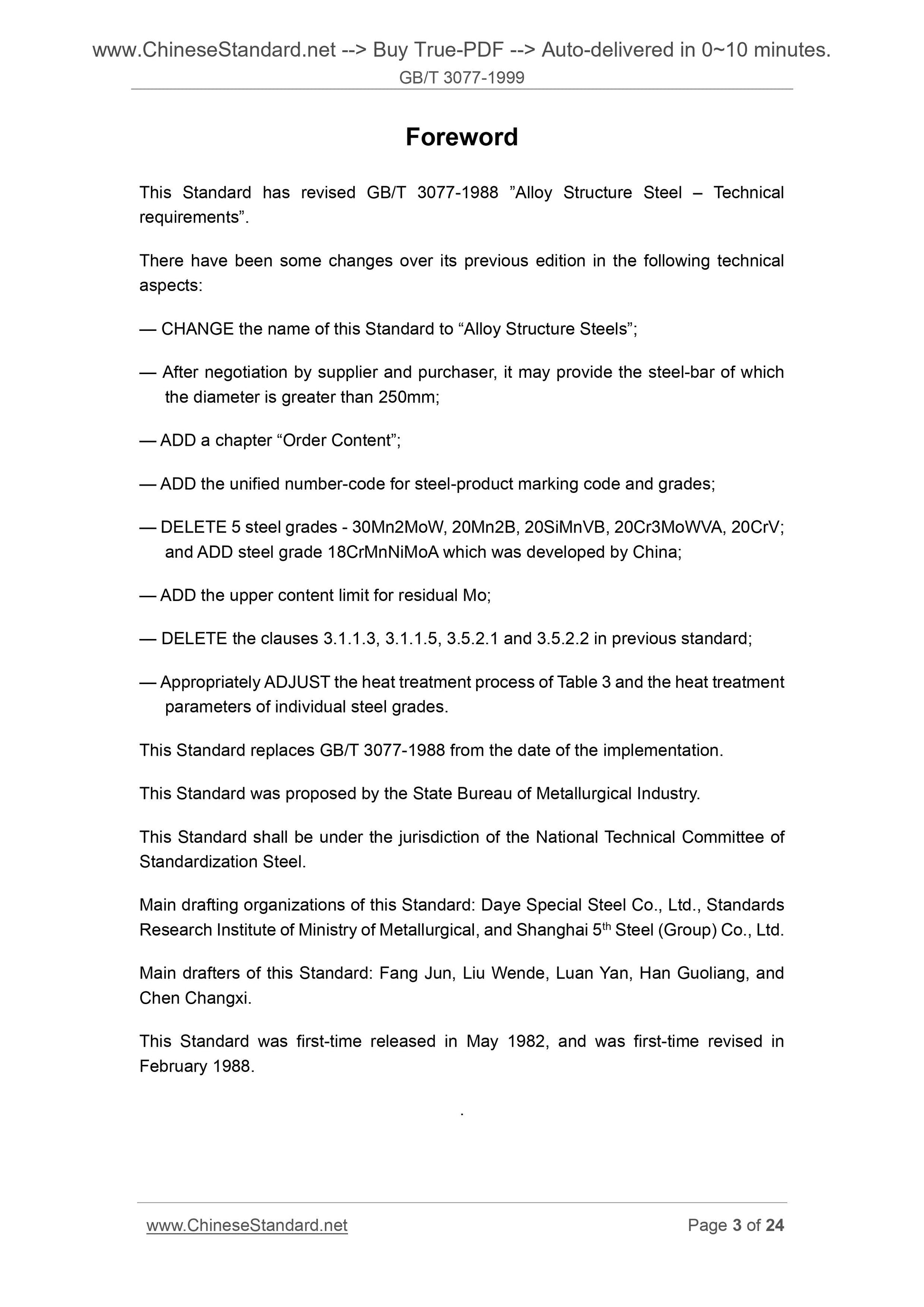

Foreword
This Standard has revised GB/T 3077-1988 ?€?Alloy Structure Steel ?€? Technical requirements?€?.
There have been some changes over its previous edition in the following technical aspects.
?€? CHANGE the name of this Standard to ?€?Alloy Structure Steels?€?;
?€? After negotiation by supplier and purchaser, it may provide the steel-bar of which the diameter is greater than 250mm;
?€? ADD a chapter ?€?Order Content?€?;
?€? ADD the unified number-code for steel-product marking code and grades; ?€? DELETE 5 steel grades - 30Mn2MoW, 20Mn2B, 20SiMnVB, 20Cr3MoWVA, 20CrV; and ADD steel grade 18CrMnNiMoA which was developed by China;
?€? ADD the upper content limit for residual Mo;
?€? DELETE the clauses 3.1.1.3, 3.1.1.5, 3.5.2.1 and 3.5.2.2 in previous standard; ?€? Appropriately ADJUST the heat treatment process of Table 3 and the heat treatment parameters of individual steel grades.
This Standard replaces GB/T 3077-1988 from the date of the implementation. This Standard was proposed by the State Bureau of Metallurgical Industry. This Standard shall be under the jurisdiction of the National Technical Committee of Standardization Steel.
Main drafting organizations of this Standard. Daye Special Steel Co., Ltd., Standards Research Institute of Ministry of Metallurgical, and Shanghai 5th Steel (Group) Co., Ltd. Main drafters of this Standard. Fang Jun, Liu Wende, Luan Yan, Han Guoliang, and Chen Changxi.
This Standard was first-time released in May 1982, and was first-time revised in February 1988.

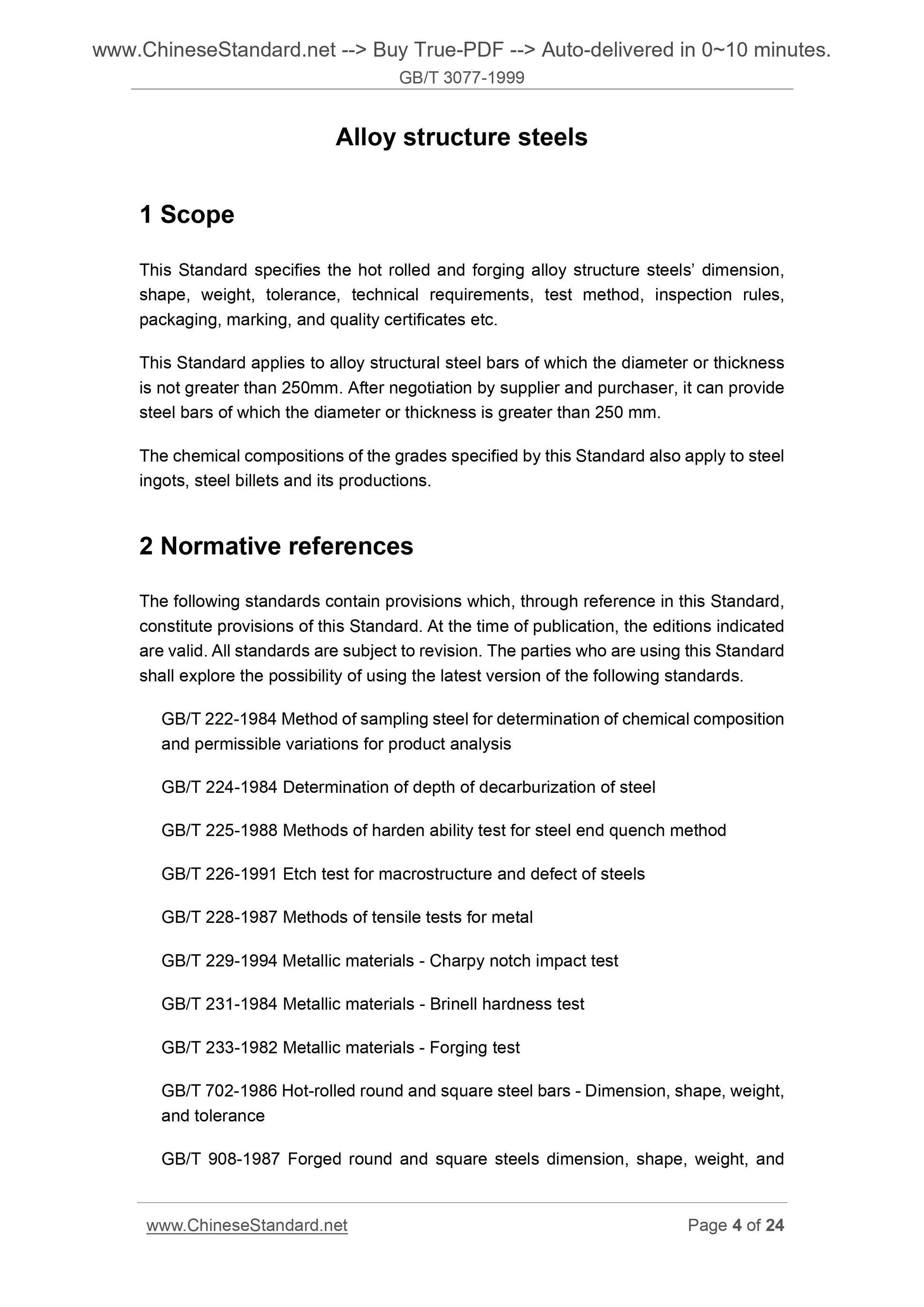

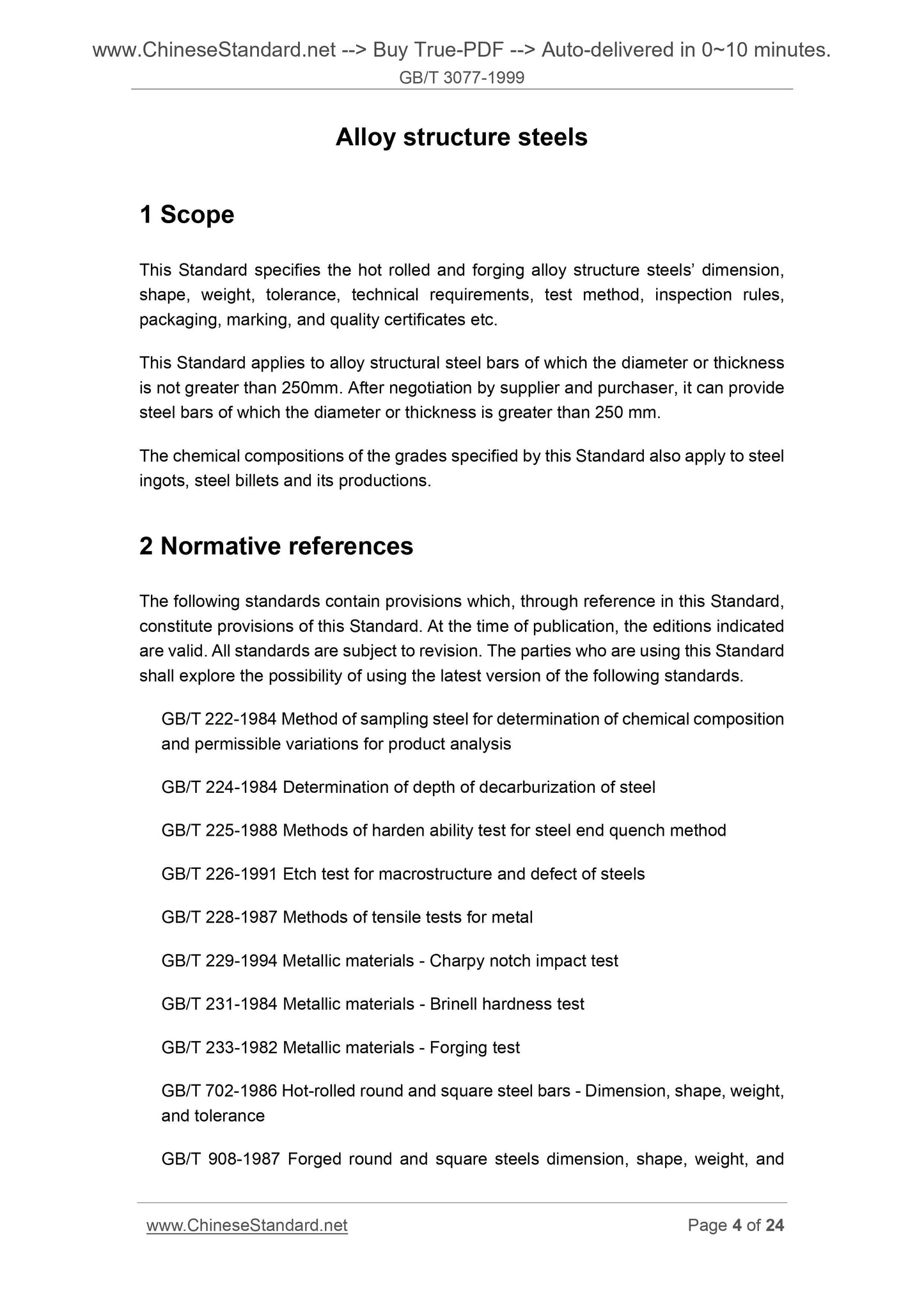

Alloy structure steels
1 Scope
This Standard specifies the hot rolled and forging alloy structure steels?€? dimension, shape, weight, tolerance, technical requirements, test method, inspection rules, packaging, marking, and quality certificates etc.
This Standard applies to alloy structural steel bars of which the diameter or thickness is not greater than 250mm. After negotiation by supplier and purchaser, it can provide steel bars of which the diameter or thickness is greater than 250 mm.
The chemical compositions of the grades specified by this Standard also apply to steel ingots, steel billets and its productions.
2 Normative references
The following standards contain provisions which, through reference in this Standard, constitute provisions of this Standard. At the time of publication, the editions indicated are valid. All standards are subject to revision. The parties who are using this Standard shall explore the possibility of using the latest version of the following standards. GB/T 222-1984 Method of sampling steel for determination of chemical composition and permissible variations for product analysis
GB/T 224-1984 Determination of depth of decarburization of steel
GB/T 225-1988 Methods of harden ability test for steel end quench method GB/T 226-1991 Etch test for macrostructure and defect of steels
GB/T 228-1987 Methods of tensile tests for metal
GB/T 229-1994 Metallic materials - Charpy notch impact test
GB/T 231-1984 Metallic materials - Brinell hardness test
GB/T 233-1982 Metallic materials - Forging test
GB/T 702-1986 Hot-rolled round and square steel bars - Dimension, shape, weight, and tolerance
GB/T 908-1987 Forged round and square steels dimension, shape, weight, and tolerance

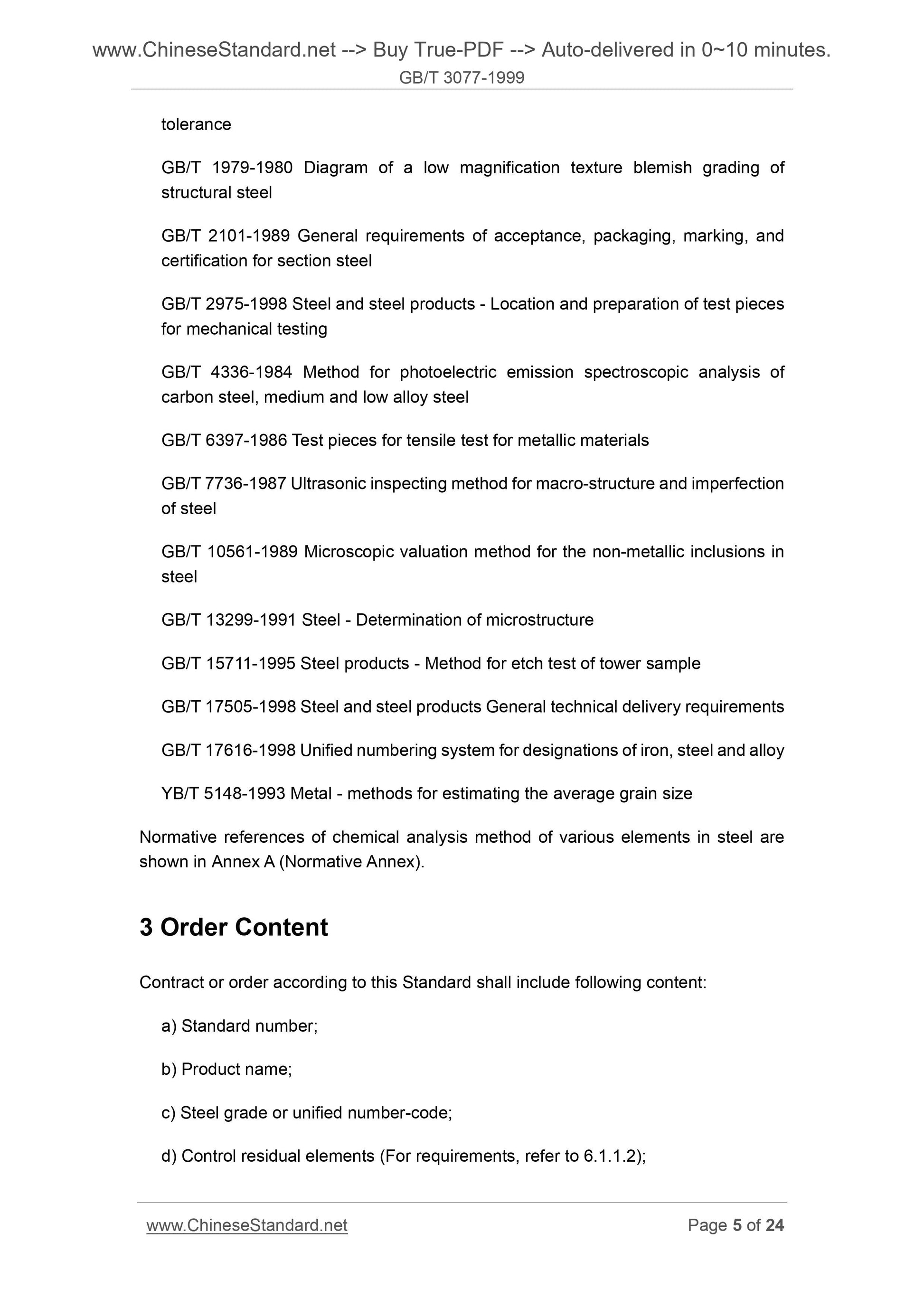

GB/T 1979-1980 Diagram of a low magnification texture blemish grading of structural steel
GB/T 2101-1989 General requirements of acceptance, packaging, marking, and certification for section steel
GB/T 2975-1998 Steel and steel products - Location and preparation of test pieces for mechanical testing
GB/T 4336-1984 Method for photoelectric emission spectroscopic analysis of carbon steel, medium and low alloy steel
GB/T 6397-1986 Test pieces for tensile test for metallic materials
GB/T 7736-1987 Ultrasonic inspecting method for macro-structure and imperfection of steel
GB/T 10561-1989 Microscopic valuation method for the non-metallic inclusions in steel
GB/T 13299-1991 Steel - Determination of microstructure
GB/T 15711-1995 Steel products - Method for etch test of tower sample
GB/T 17505-1998 Steel and steel products General technical delivery requirements GB/T 17616-1998 Unified numbering system for designations of iron, steel and alloy YB/T 5148-1993 Metal - methods for estimating the average grain size

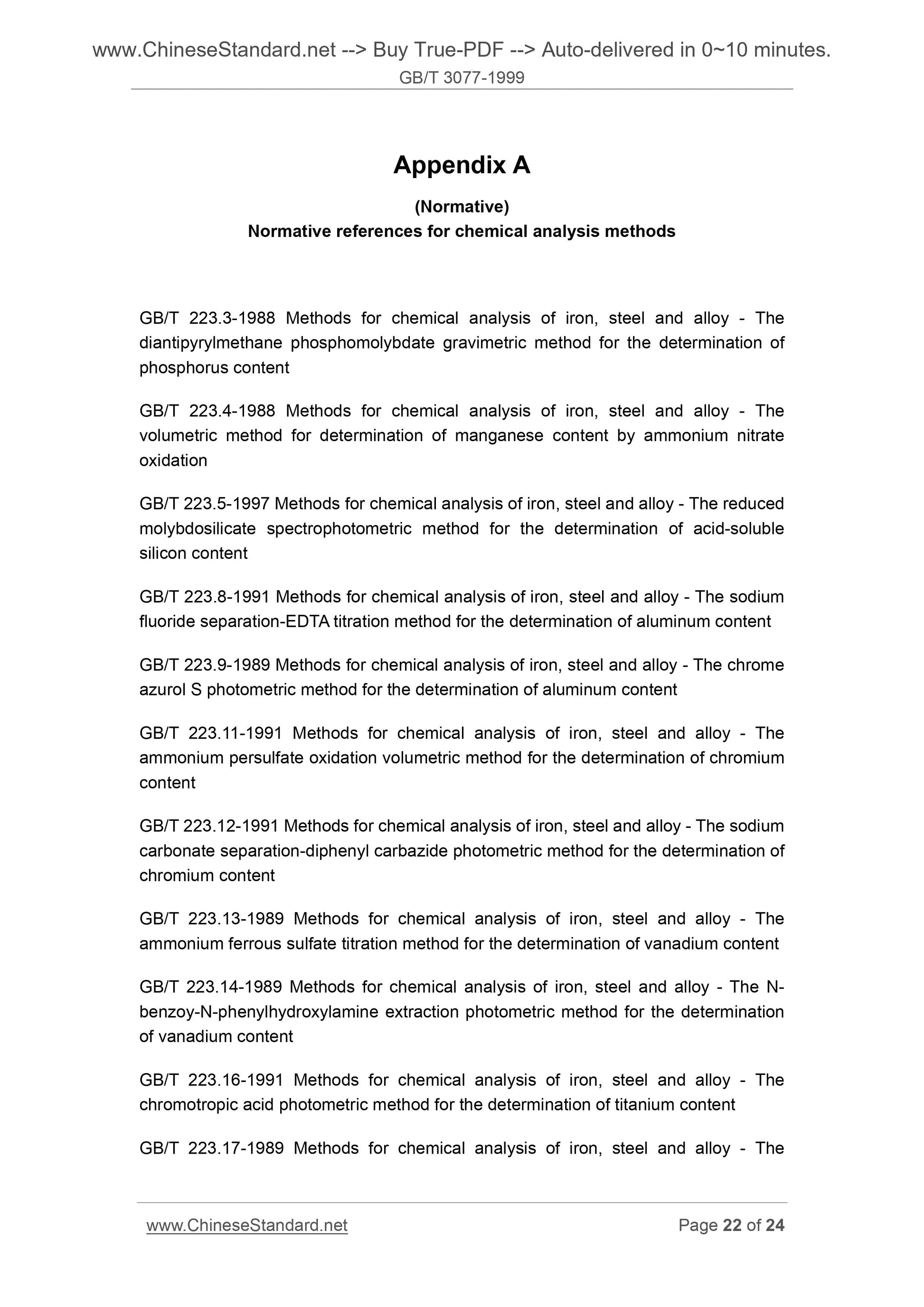

Normative references of chemical analysis method of various elements in steel are shown in Annex A (Normative Annex).
3 Order Content
Contract or order according to this Standard shall include following content. a) Standard number;
b) Product name;
c) Steel grade or unified number-code;
d) Control residual elements (For requirements, refer to 6.1.1.2);

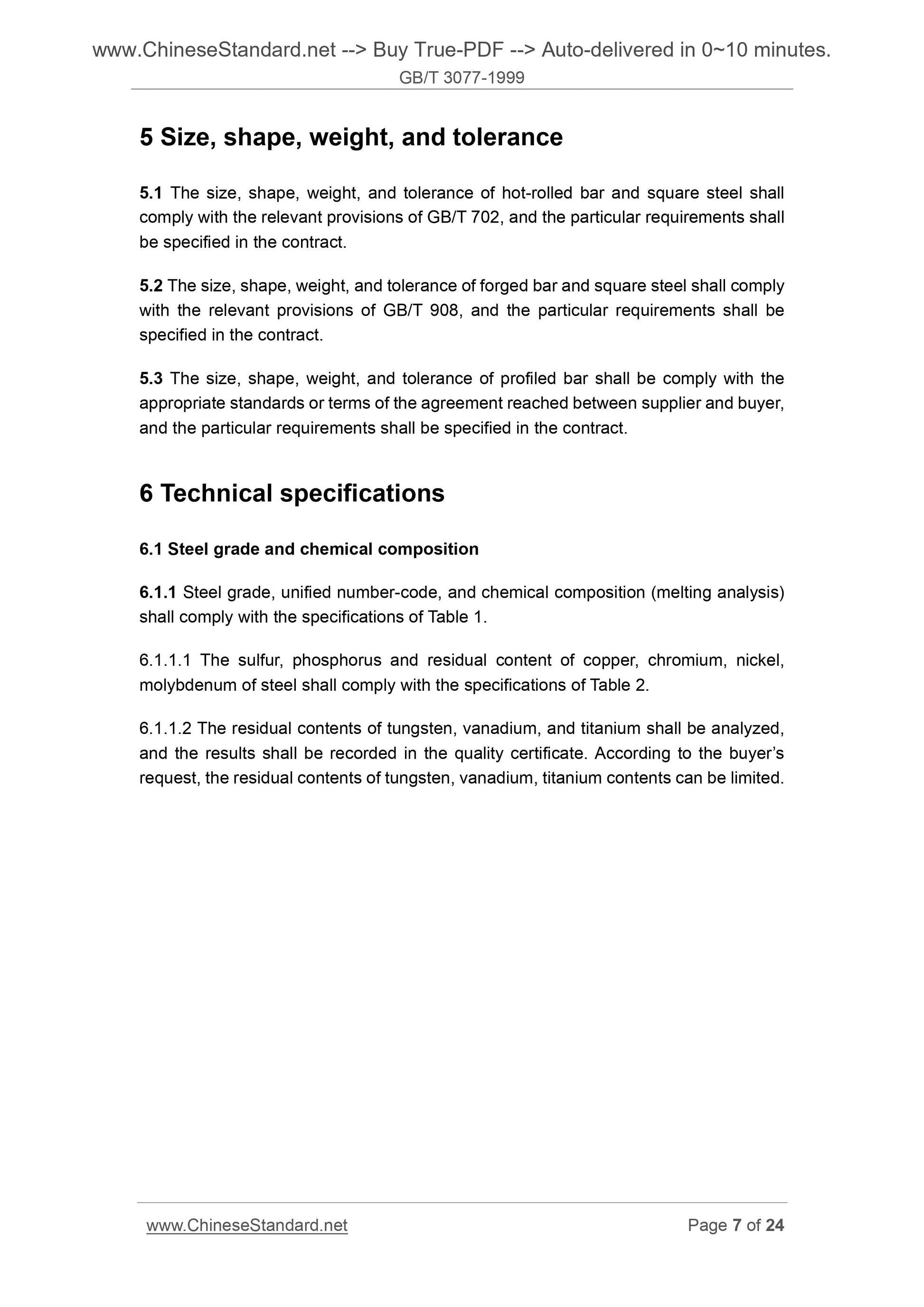

5 Size, shape, weight, and tolerance
5.1 The size, shape, weight, and tolerance of hot-rolled bar and square steel shall comply with the relevant provisions of GB/T 702, and the particular requirements shall be specified in the contract.
5.2 The size, shape, weight, and tolerance of forged bar and square steel shall comply with the relevant provisions of GB/T 908, and the particular requirements shall be specified in the contract.
5.3 The size, shape, weight, and tolerance of profiled bar shall be comply with the appropriate standards or terms of the agreement reached between supplier and buyer, and the particular requirements shall be specified in the contract.
6 Technical specifications
6.1 Steel grade and chemical composition
6.1.1 Steel grade, unified number-code, and chemical composition (melting analysis) shall comply with the specifications of Table 1.
6.1.1.1 The sulfur, phosphorus and residual content of copper, chromium, nickel, molybdenum of steel shall comply with the specifications of Table 2.
6.1.1.2 The residual contents of tungsten, vanadium, and titanium shall be analyzed, and the results shall be recorded in the quality certificate. According to the buyer?€?s request, the residual contents of tungsten, vanadium, titanium contents can be limited. and 10% respectively; for size from 150 to 250mm, the after-fracture elongation rat, section shrinkage rate, and impact absorption energy are permissible to be reduced by 3% (absolute value), 15 (absolute value), and 15% respectively.
6.4.3 For steels of which the size is more than 80mm, it is permissible that the sampling blank is forge-changed (or roll-changed) to be in section size of 70~80mm, then conduct the sampling. The inspection result shall comply with Table 3.
6.4.4 According to the buyer needs, if the steels are deliver as quenching or tempering condition, the test specimen for mechanical properties shall be free of heat treatment. The mechanical properties shall be specified on the agreement reached between supplier and buyer.

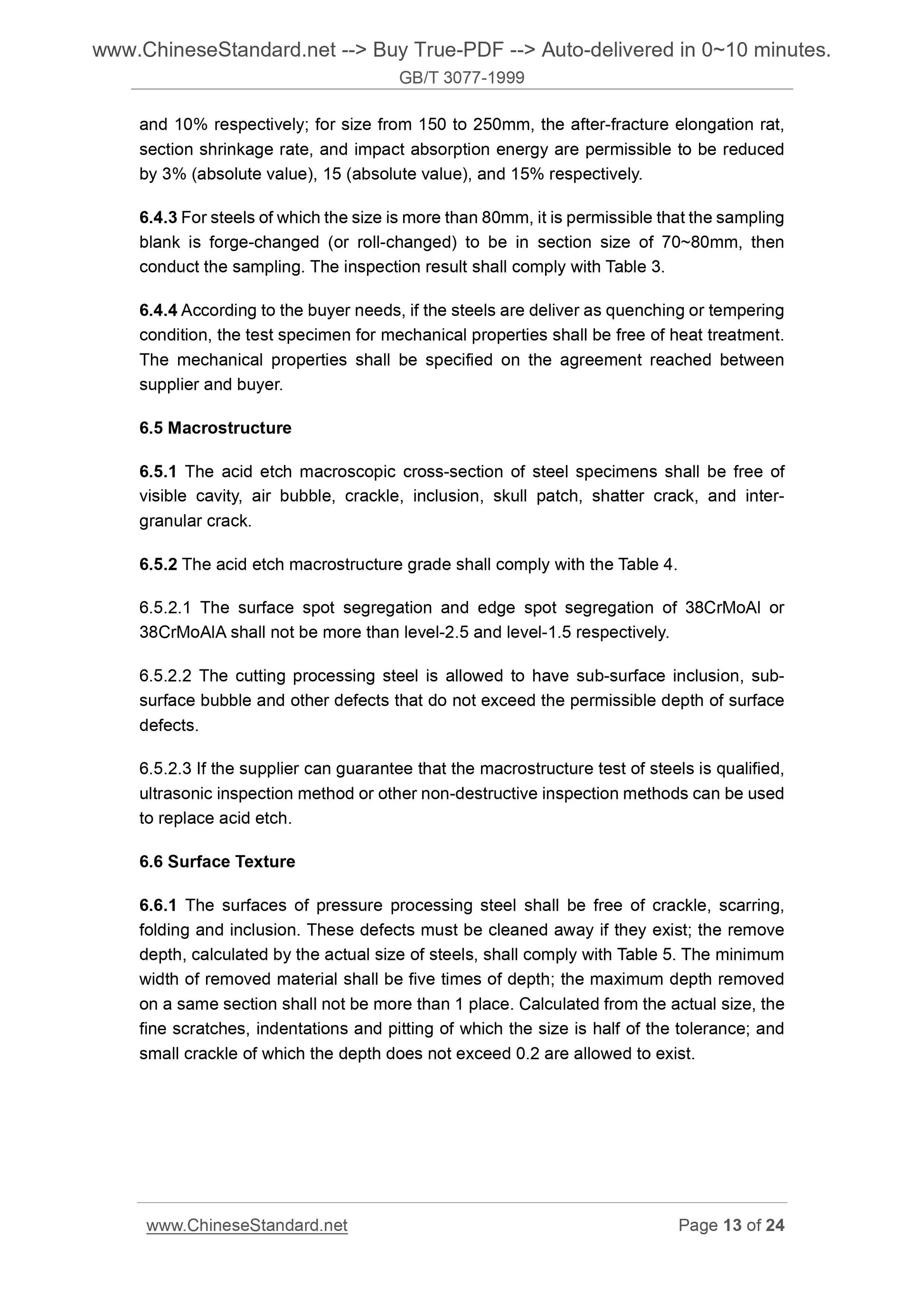

6.5 Macrostructure
6.5.1 The acid etch macroscopic cross-section of steel specimens shall be free of visible cavity, air bubble, crackle, inclusion, skull patch, shatter crack, and inter- granular crack.
6.5.2 The acid etch macrostructure grade shall comply with the Table 4. 6.5.2.1 The surface spot segregation and edge spot segregation of 38CrMoAl or 38CrMoAlA shall not be more than level-2.5 and level-1.5 respectively.
6.5.2.2 The cutting processing steel is allowed to have sub-surface inclusion, sub- surface bubble and other defects that do not exceed the permissible depth of surface defects.
6.5.2.3 If the supplier can guarantee that the macrostructure test of steels is qualified, ultrasonic inspection method or other non-destructive inspection methods can be used to replace acid etch.
6.6 Surface Texture

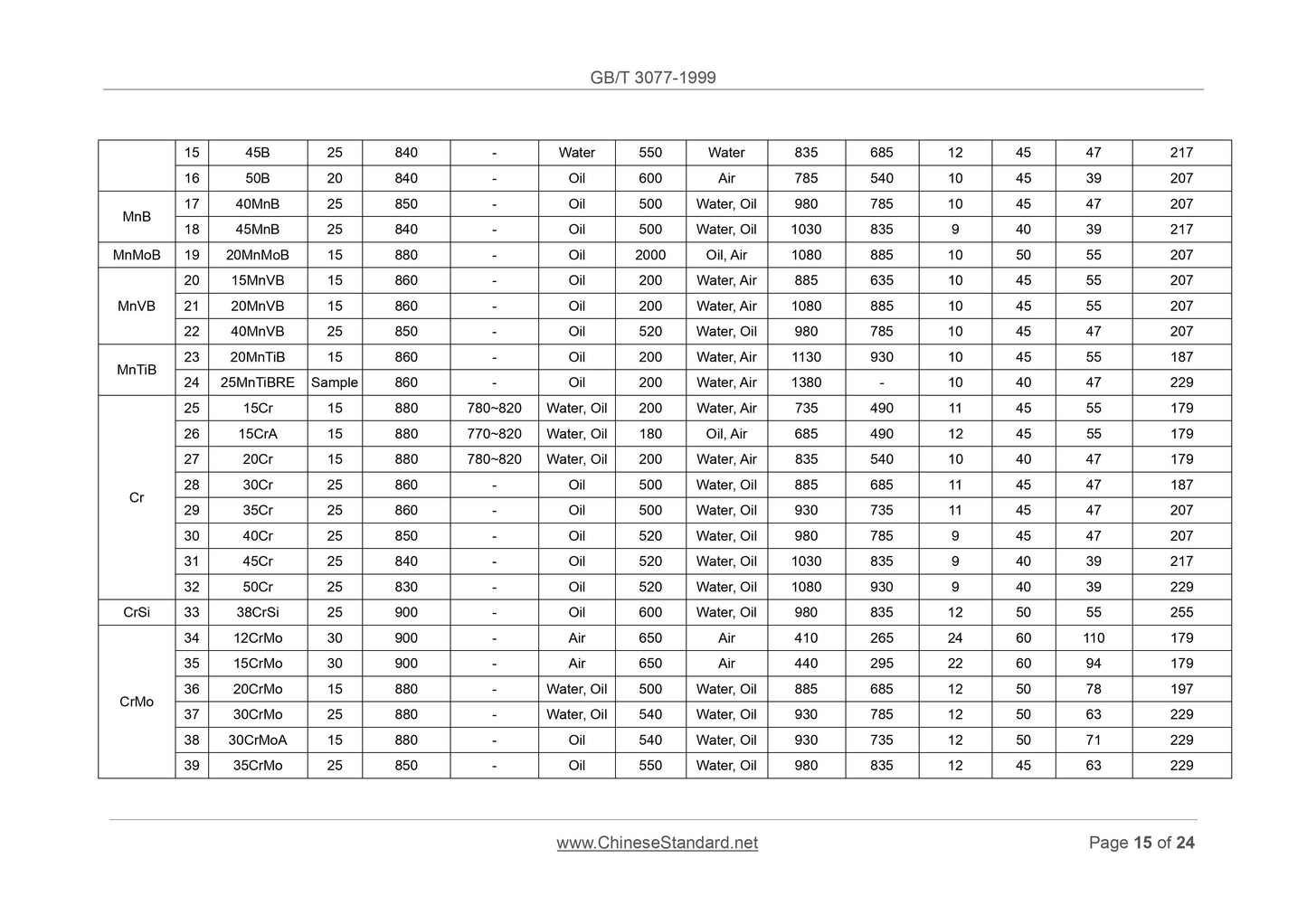

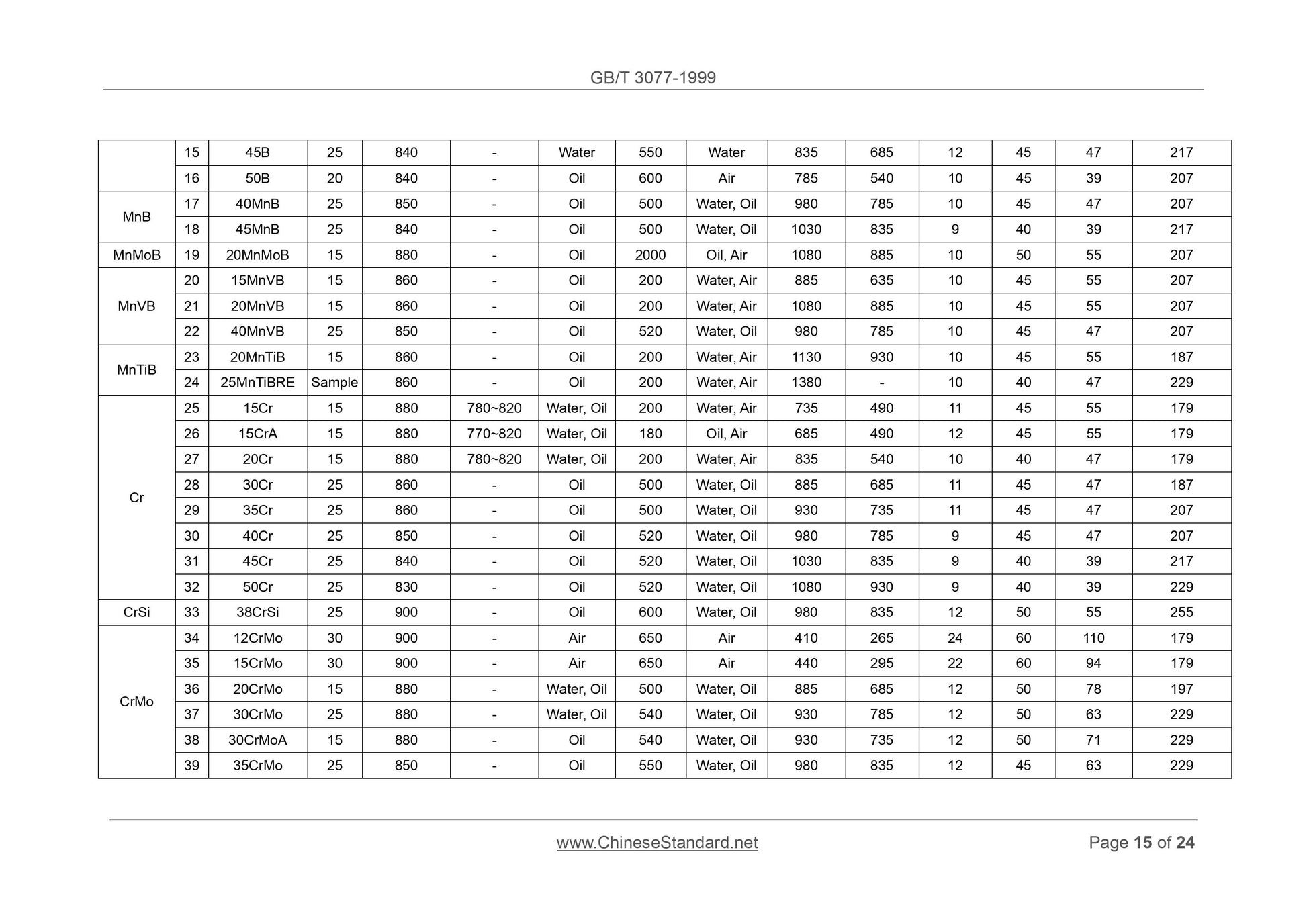

6.6.1 The surfaces of pressure processing steel shall be free of crackle, scarring, folding and inclusion. These defects must be cleaned away if they exist; the remove depth, calculated by the actual size of steels, shall comply with Table 5. The minimum width of removed material shall be five times of depth; the maximum depth removed on a same section shall not be more than 1 place. Calculated from the actual size, the fine scratches, indentations and pitting of which the size is half of the tolerance; and small crackle of which the depth does not exceed 0.2 are allowed to exist. 15 45B 25 840 - Water 550 Water 835 685 12 45 47 217
16 50B 20 840 - Oil 600 Air 785 540 10 45 39 207
MnB 17 40MnB 25 850 - Oil 500 Water, Oil 980 785 ...
