GB/T 30552-2014: Aluminium alloy wires for conductors of insulated cables

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 30552-2014 (Self-service in 1-minute)
Newer / historical versions: GB/T 30552-2014

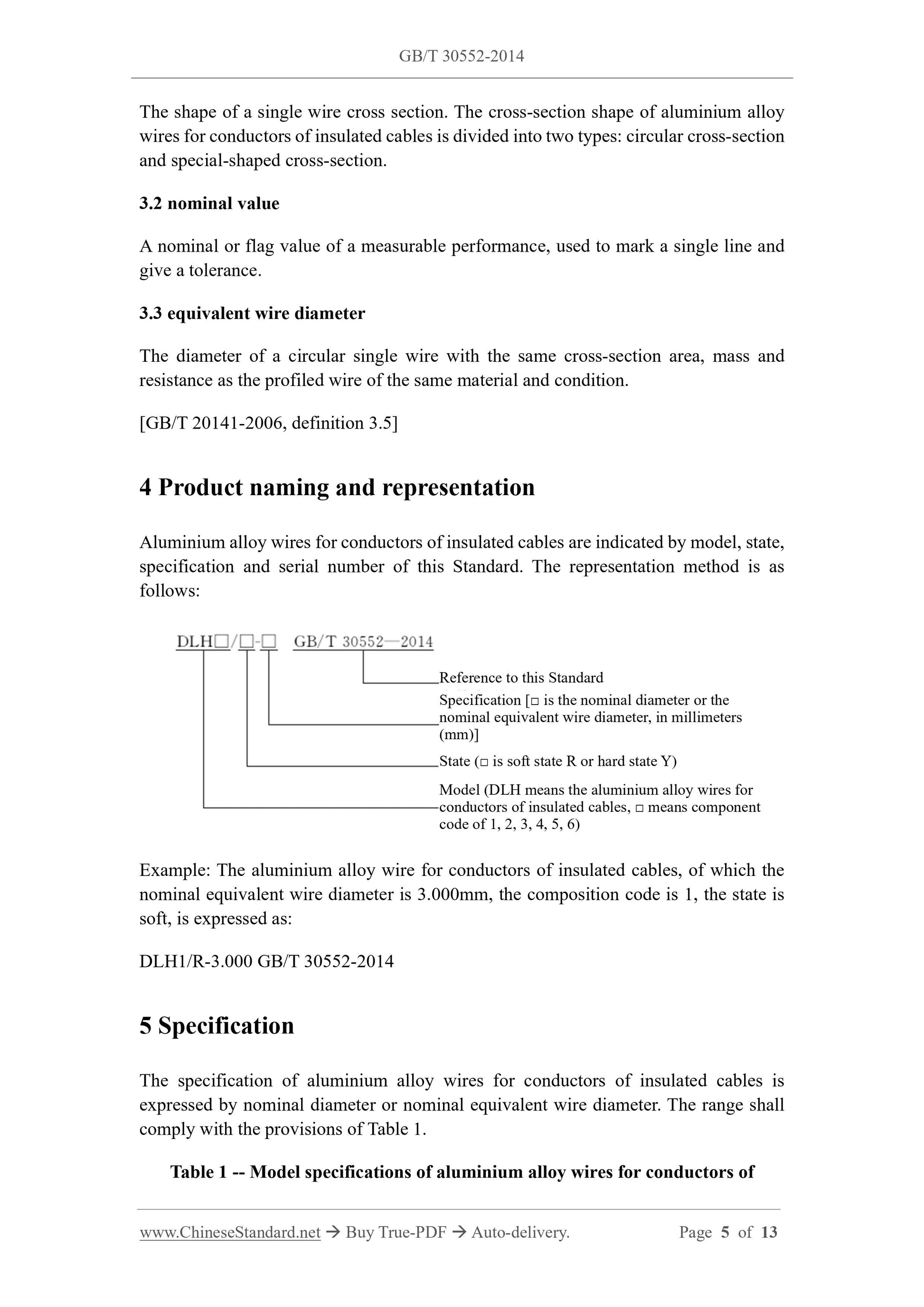

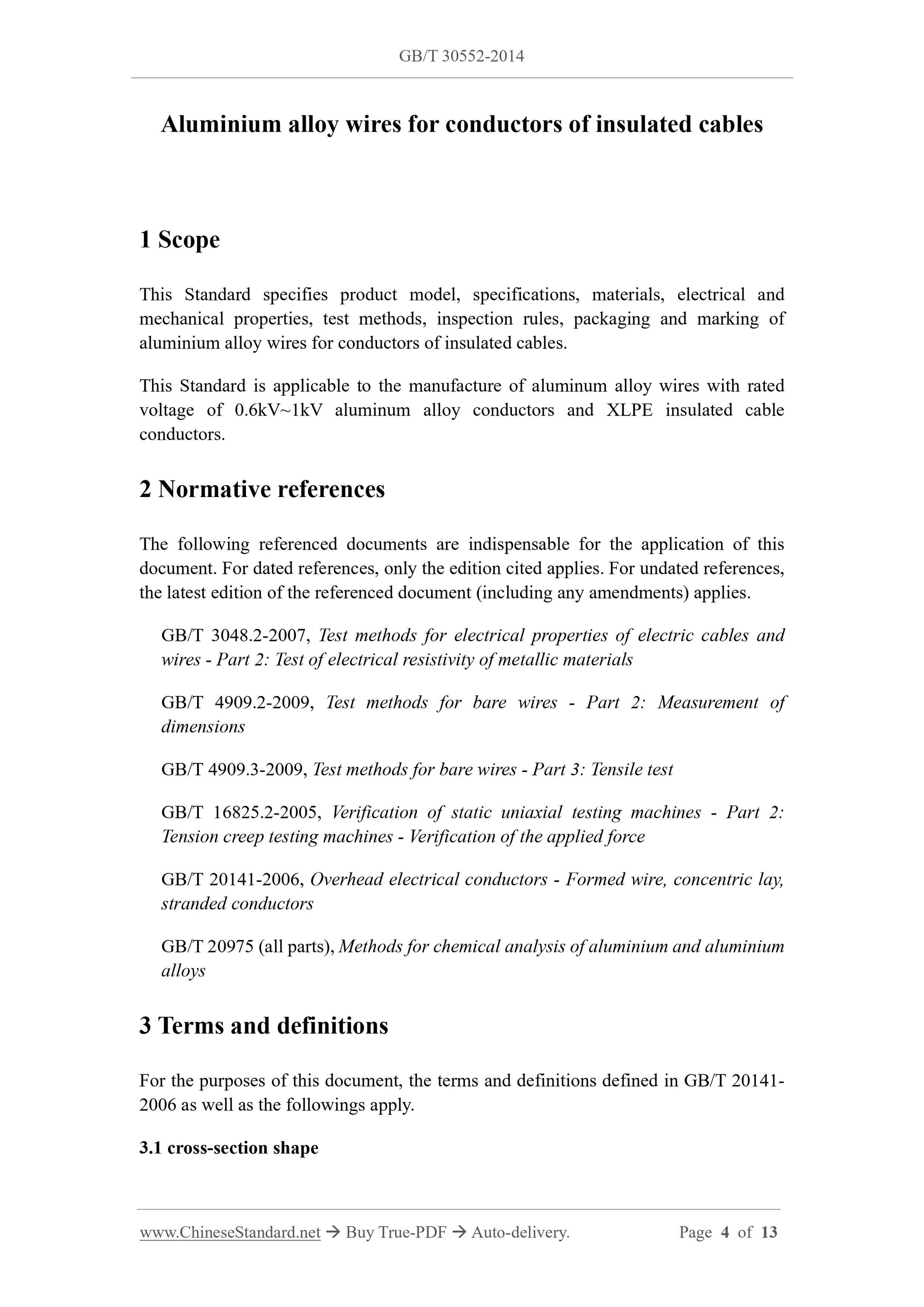

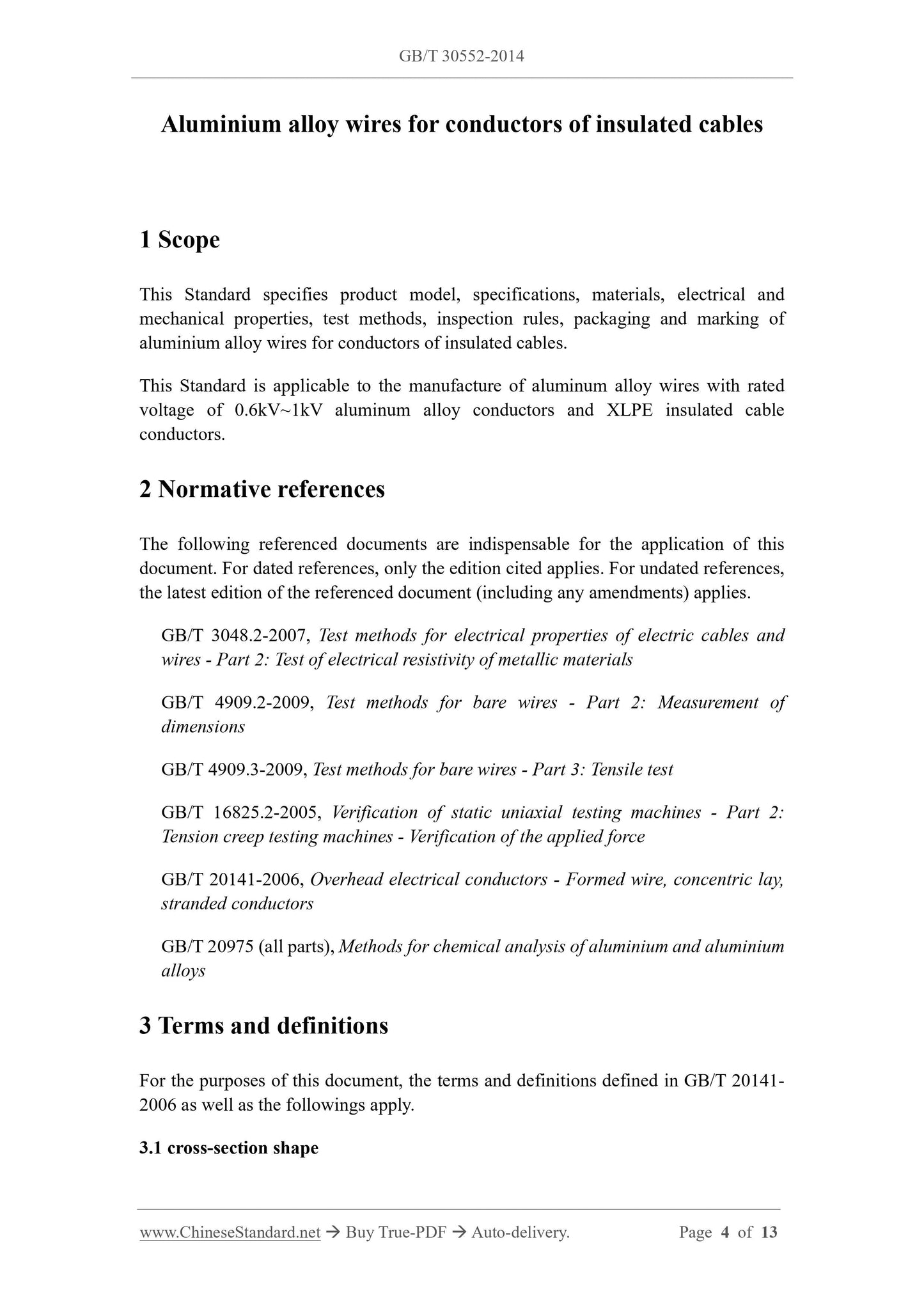

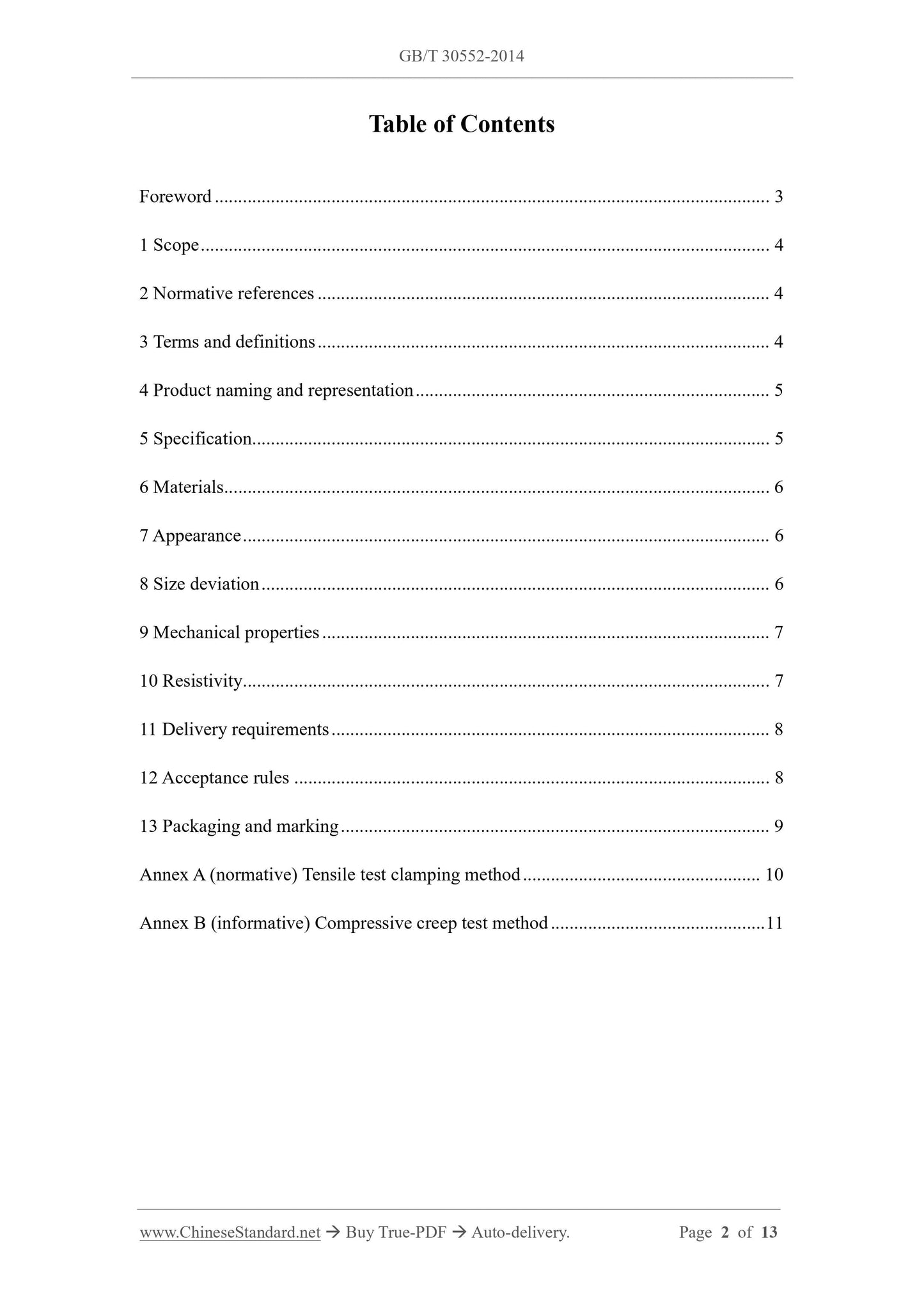

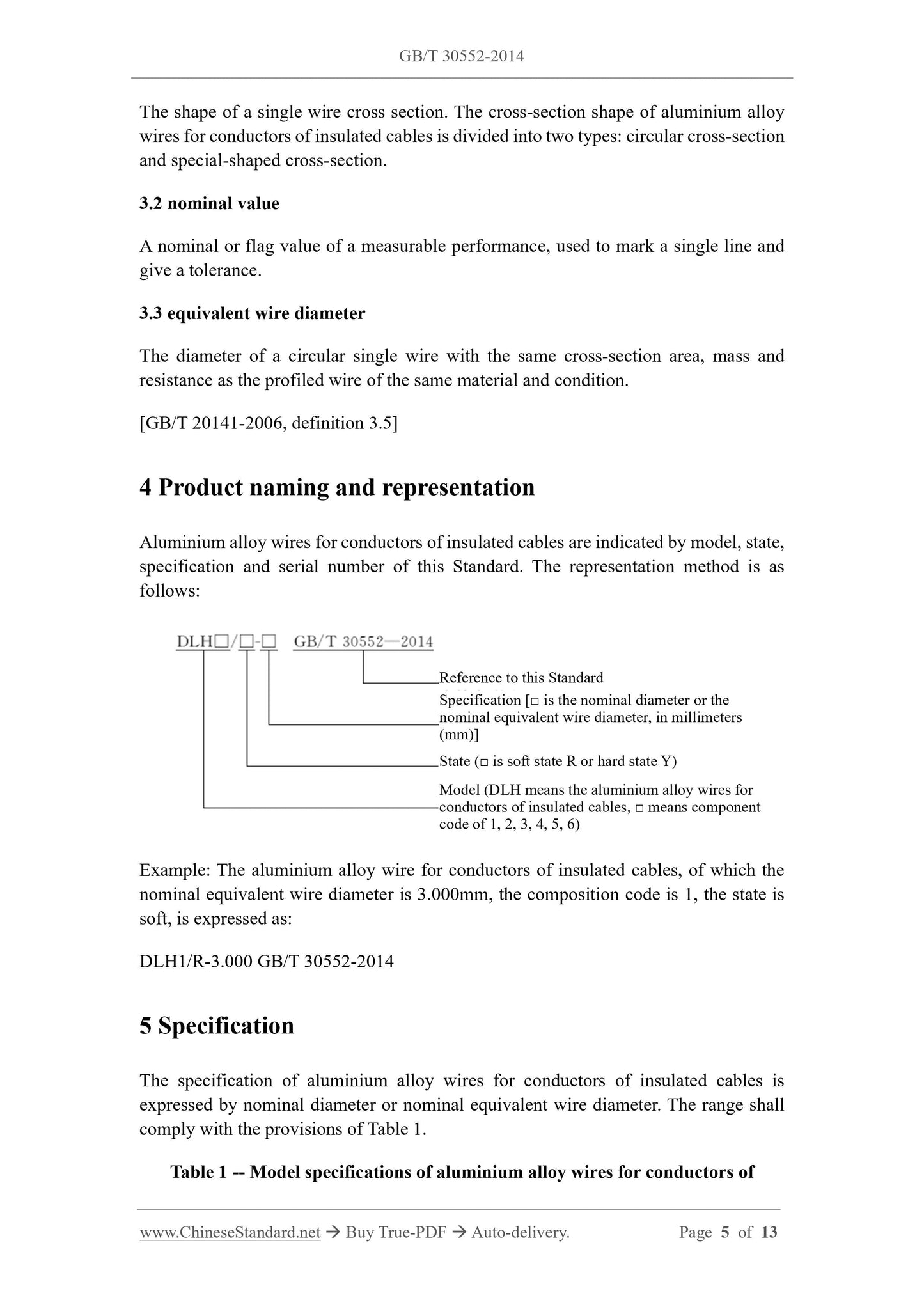

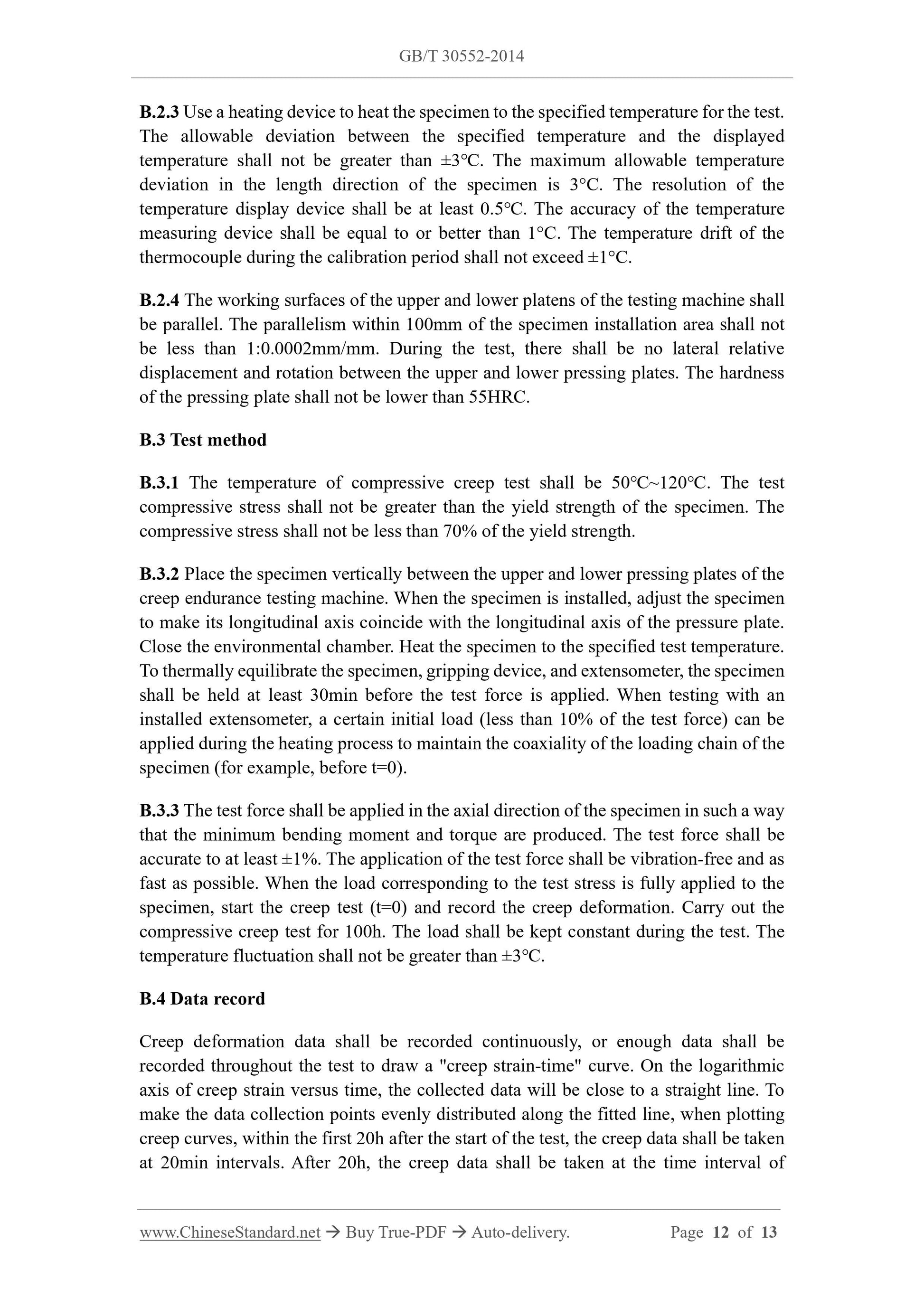

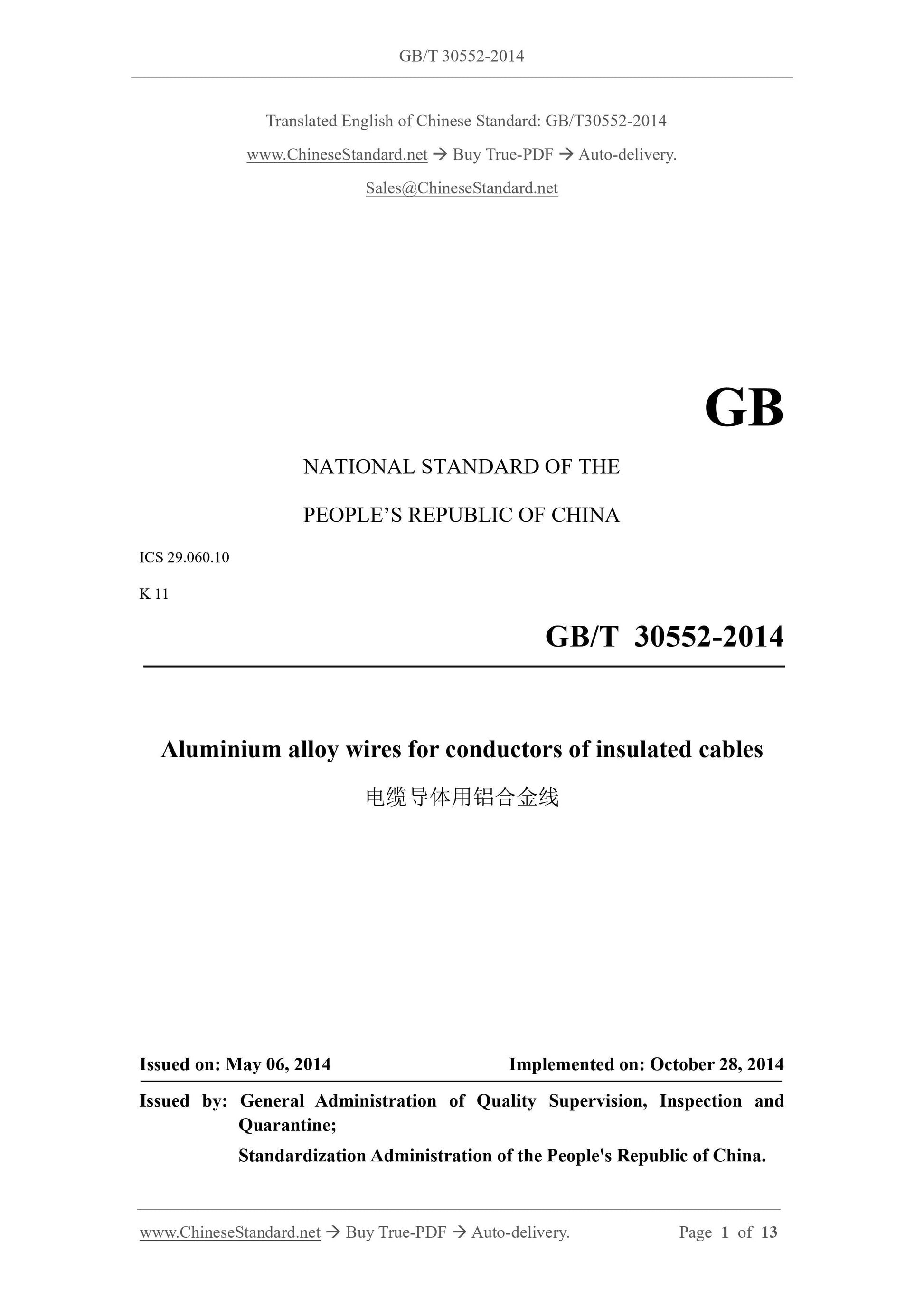

Preview True-PDF

Scope

This Standard specifies product model, specifications, materials, electrical and
mechanical properties, test methods, inspection rules, packaging and marking of
aluminium alloy wires for conductors of insulated cables.
This Standard is applicable to the manufacture of aluminum alloy wires with rated
voltage of 0.6kV~1kV aluminum alloy conductors and XLPE insulated cable
conductors.

Basic Data

Standard ID	GB/T 30552-2014 (GB/T30552-2014)
Description (Translated English)	Aluminium alloy wires for conductors of insulated cables
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	K11
Classification of International Standard	29.060.10
Word Count Estimation	11,190
Date of Issue	5/6/2014
Date of Implementation	10/28/2014
Quoted Standard	GB/T 3048.2-2007; GB/T 4909.2-2009; GB/T 4909.3-2009; GB/T 16825.2-2005; GB/T 20141-2006; GB/T 20975.1; GB/T 20975.2; GB/T 20975.3; GB/T 20975.4; GB/T 20975.5; GB/T 20975.6; GB/T 20975.7; GB/T 20975.8; GB/T 20975.9; GB/T 20975.10; GB/T 20975.11; GB/T 2097
Regulation (derived from)	National Standards Bulletin No. 9 2014
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This Standard specifies the cable conductor aluminum wire product models, specifications, materials, electrical and mechanical properties, test methods, inspection rules, packaging and signs. This Standard applies to the rated voltage of 0. 6kV-1kV Alumin
