GB/T 3048.1-2007: Test methods for electrical properties of electric cables and wires -- Part 1: General

This Part of GB/T 3048 specifies terms and definitions for electrical properties of electric cables and wires, general provisions for tests, purpose to realize the provisions and periodic calibration of test equipment. According to the relevant wire and cable standards, the test methods specified in the subsequent parts of GB/T 3048 are applicable to the electrical properties test for various types of electric cables and wires as well as materials.

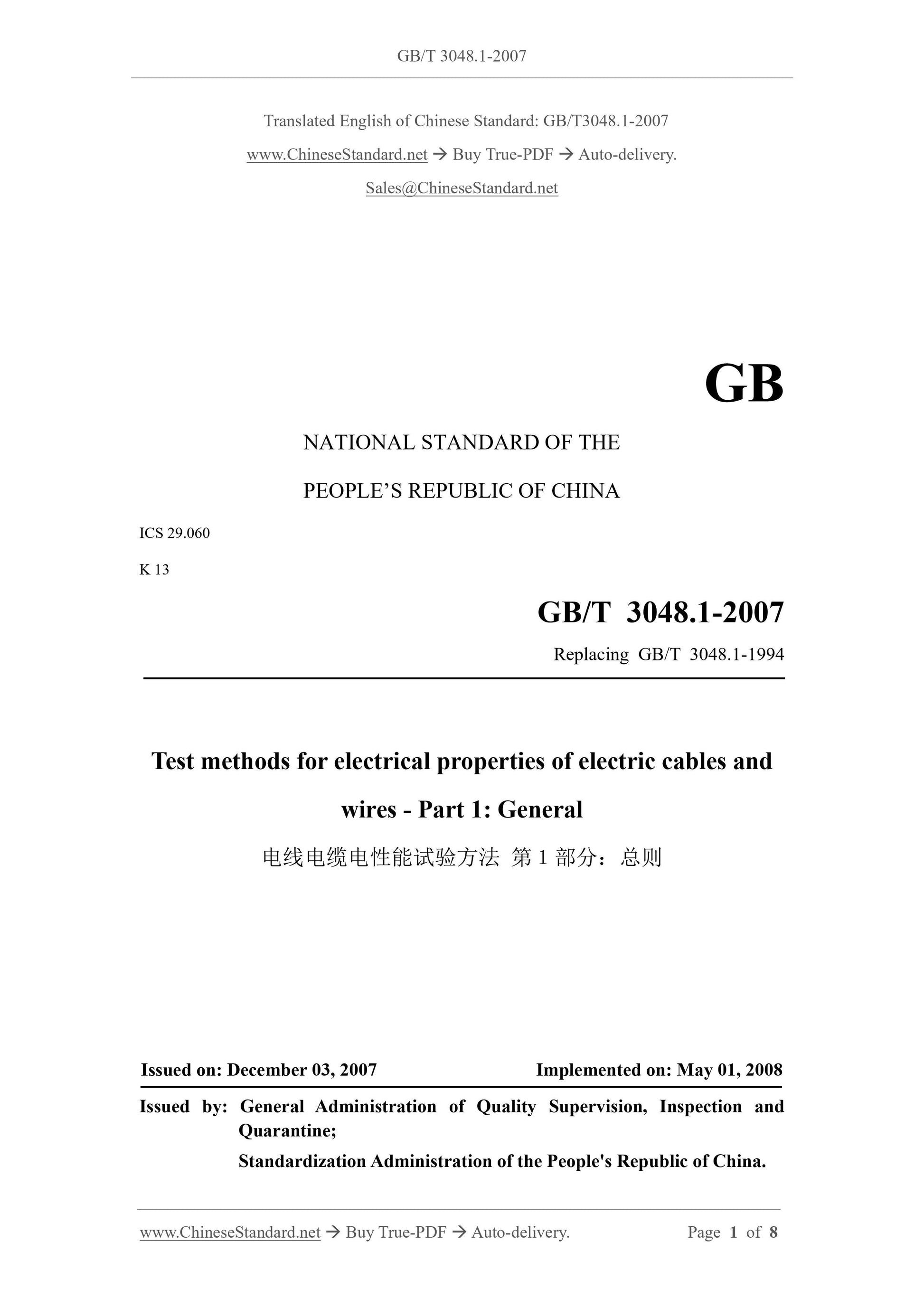

GB/T 3048.1-2007
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 29.060
K 13
Replacing GB/T 3048.1-1994
Test methods for electrical properties of electric cables and
wires - Part 1: General
ISSUED ON: DECEMBER 03, 2007
IMPLEMENTED ON: MAY 01, 2008
Issued by: General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of the People's Republic of China.

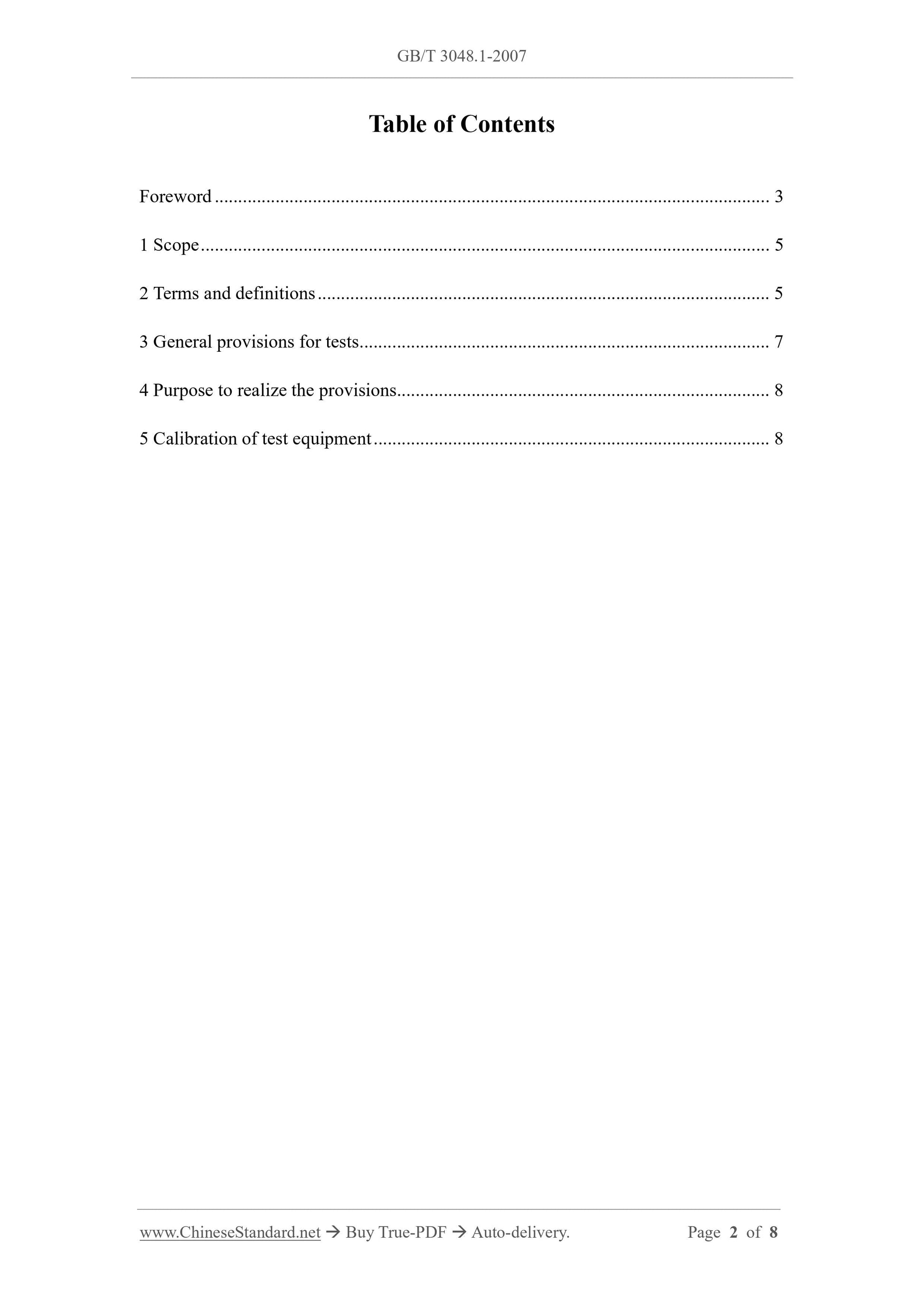

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Terms and definitions ... 5
3 General provisions for tests ... 7
4 Purpose to realize the provisions... 8
5 Calibration of test equipment ... 8

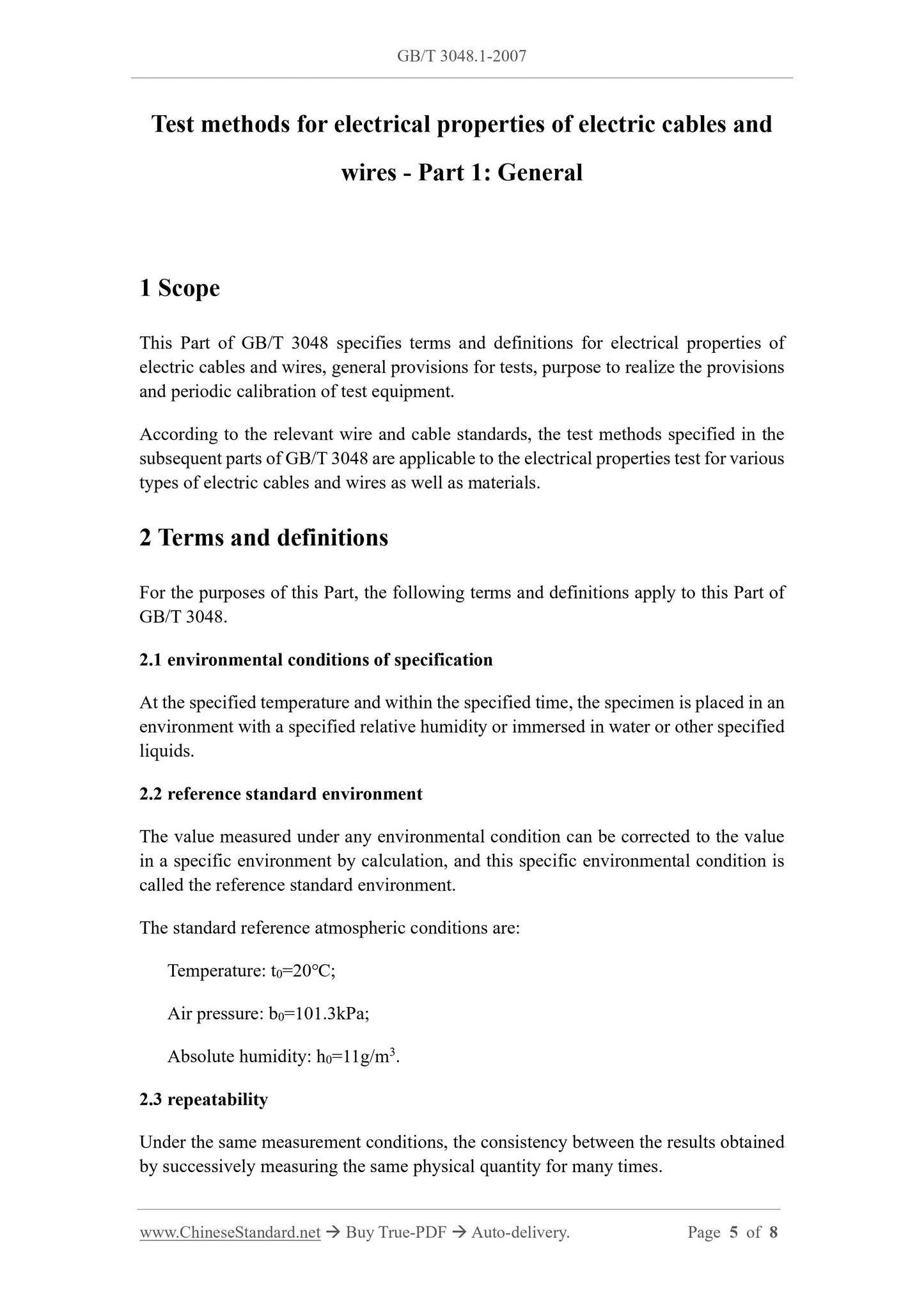

Test methods for electrical properties of electric cables and
wires - Part 1: General
1 Scope
This Part of GB/T 3048 specifies terms and definitions for electrical properties of electric cables and wires, general provisions for tests, purpose to realize the provisions and periodic calibration of test equipment.
According to the relevant wire and cable standards, the test methods specified in the subsequent parts of GB/T 3048 are applicable to the electrical properties test for various types of electric cables and wires as well as materials.
2 Terms and definitions
For the purposes of this Part, the following terms and definitions apply to this Part of GB/T 3048.
2.1 environmental conditions of specification
At the specified temperature and within the specified time, the specimen is placed in an environment with a specified relative humidity or immersed in water or other specified liquids.
2.2 reference standard environment
The value measured under any environmental condition can be corrected to the value in a specific environment by calculation, and this specific environmental condition is called the reference standard environment.
The standard reference atmospheric conditions are:
Temperature: t0=20???;
Air pressure: b0=101.3kPa;
Absolute humidity: h0=11g/m3.
2.3 repeatability
Under the same measurement conditions, the consistency between the results obtained by successively measuring the same physical quantity for many times.

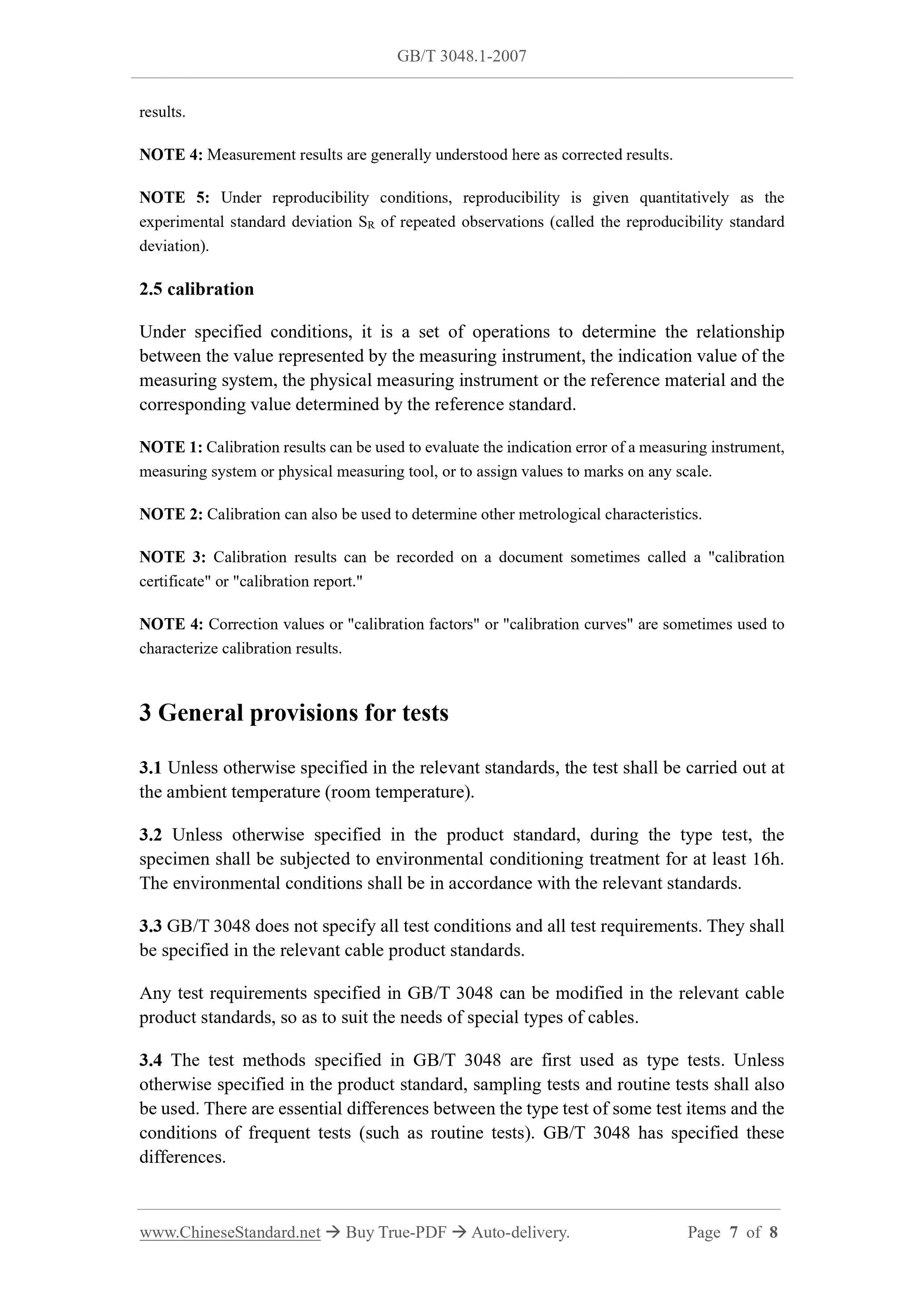

results.
NOTE 4: Measurement results are generally understood here as corrected results. NOTE 5: Under reproducibility conditions, reproducibility is given quantitatively as the experimental standard deviation SR of repeated observations (called the reproducibility standard deviation).
2.5 calibration
Under specified conditions, it is a set of operations to determine the relationship between the value represented by the measuring instrument, the indication value of the measuring system, the physical measuring instrument or the reference material and the corresponding value determined by the reference standard.
NOTE 1: Calibration results can be used to evaluate the indication error of a measuring instrument, measuring system or physical measuring tool, or to assign values to marks on any scale. NOTE 2: Calibration can also be used to determine other metrological characteristics. NOTE 3: Calibration results can be recorded on a document sometimes called a "calibration certificate" or "calibration report."
NOTE 4: Correction values or "calibration factors" or "calibration curves" are sometimes used to characterize calibration results.
3 General provisions for tests
3.1 Unless otherwise specified in the relevant standards, the test shall be carried out at the ambient temperature (room temperature).
3.2 Unless otherwise specified in the product standard, during the type test, the specimen shall be subjected to environmental conditioning treatment for at least 16h. The environmental conditions shall be in accordance with the relevant standards. 3.3 GB/T 3048 does not specify all test conditions and all test requirements. They shall be specified in the relevant cable product standards.
Any test requirements specified in GB/T 3048 can be modified in the relevant cable product standards, so as to suit the needs of special types of cables.
3.4 The test methods specified in GB/T 3048 are first used as type tests. Unless otherwise specified in the product standard, sampling tests and routine tests shall also be used. There are essential differences between the type test of some test items and the conditions of frequent tests (such as routine tests). GB/T 3048 has specified these differences.
