GB/T 30427-2013: Technical requirements and test methods for grid-connected PV inverters
GB/T 30427-2013
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 27.160
F 12

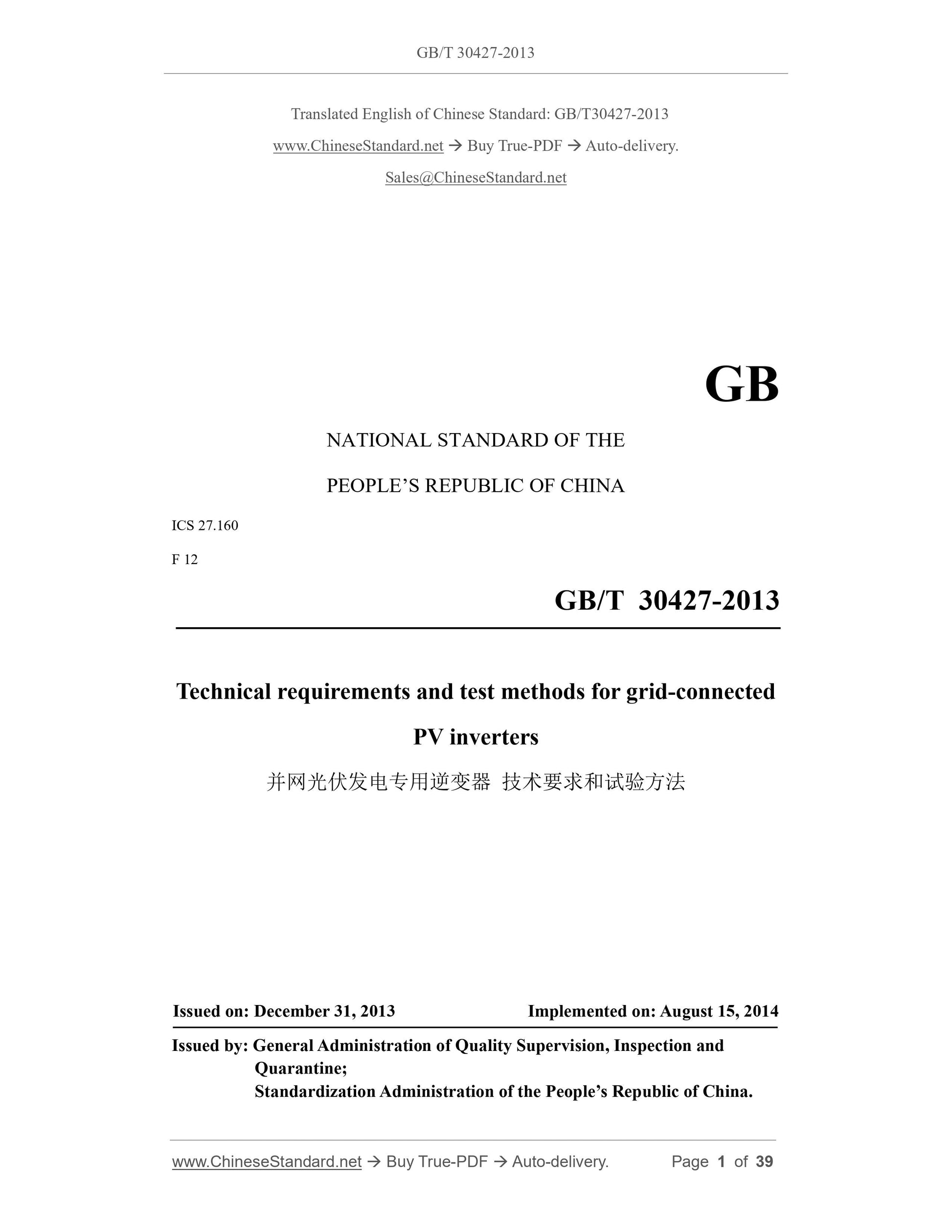

Technical requirements and test methods for grid-connected
PV inverters
ISSUED ON: DECEMBER 31, 2013
IMPLEMENTED ON: AUGUST 15, 2014
Issued by: General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration of the People’s Republic of China.

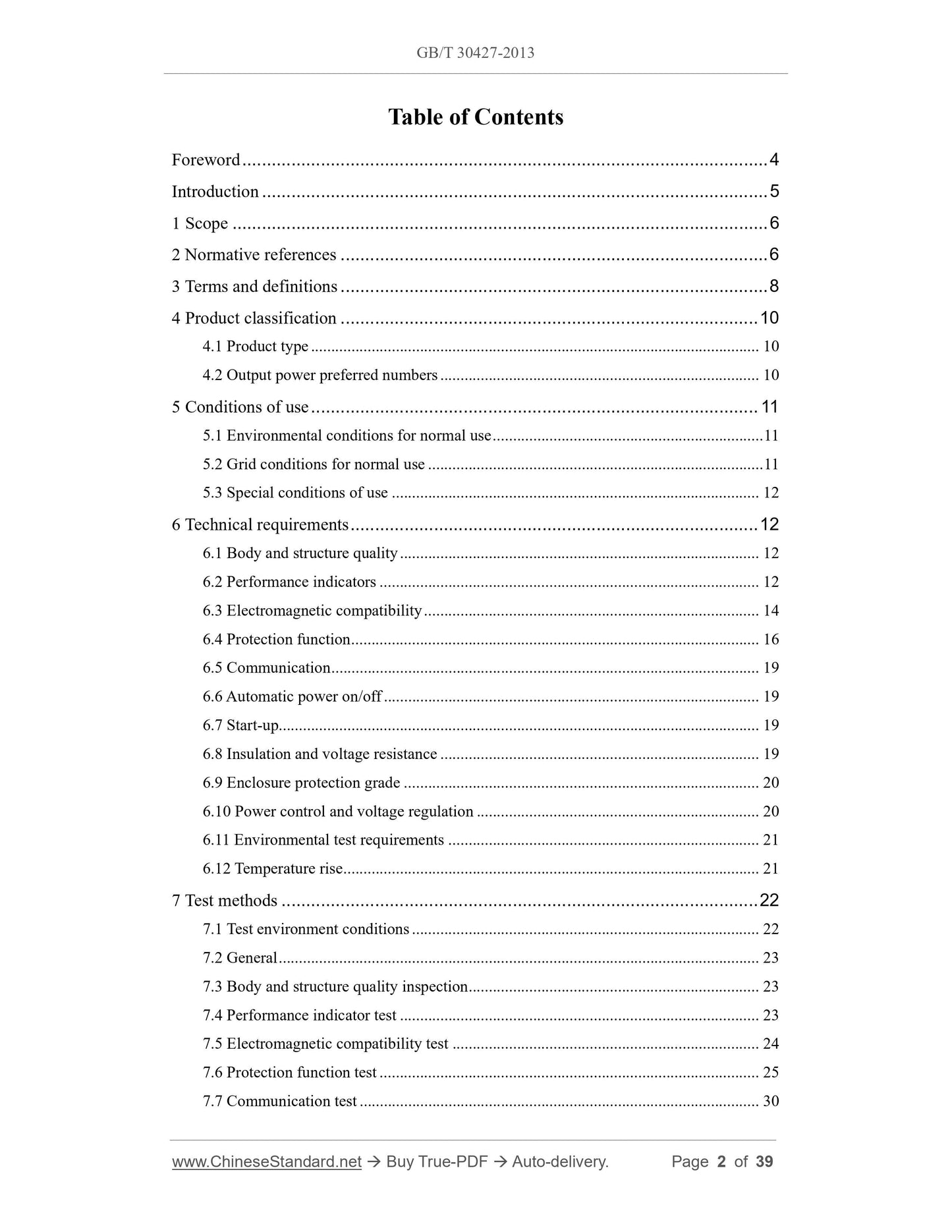

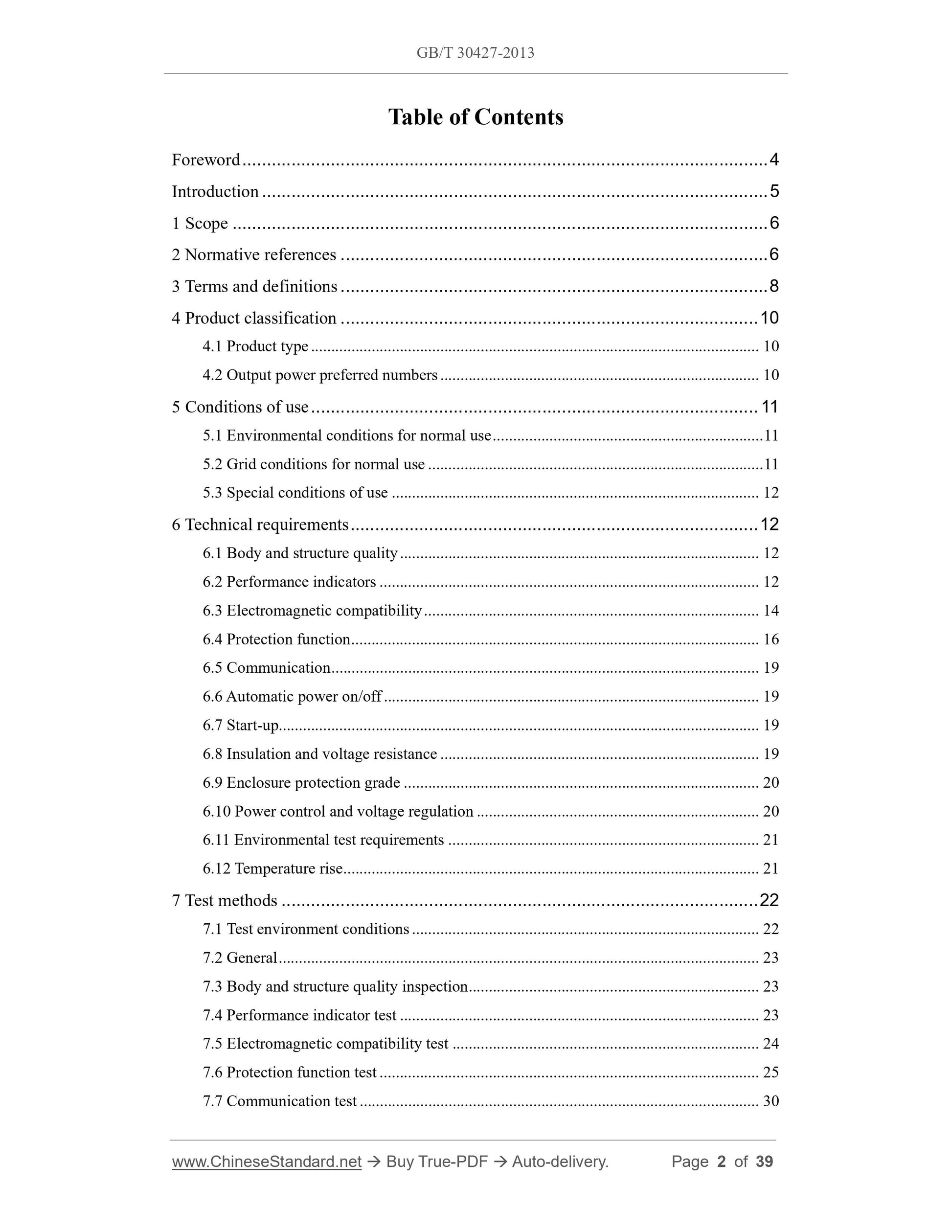

Table of Contents
Foreword ... 4
Introduction ... 5
1 Scope ... 6
2 Normative references ... 6
3 Terms and definitions ... 8
4 Product classification ... 10
4.1 Product type ... 10
4.2 Output power preferred numbers ... 10
5 Conditions of use ... 11
5.1 Environmental conditions for normal use ... 11
5.2 Grid conditions for normal use ... 11
5.3 Special conditions of use ... 12
6 Technical requirements ... 12
6.1 Body and structure quality ... 12
6.2 Performance indicators ... 12
6.3 Electromagnetic compatibility ... 14
6.4 Protection function ... 16
6.5 Communication ... 19
6.6 Automatic power on/off ... 19
6.7 Start-up... 19
6.8 Insulation and voltage resistance ... 19
6.9 Enclosure protection grade ... 20
6.10 Power control and voltage regulation ... 20
6.11 Environmental test requirements ... 21
6.12 Temperature rise ... 21
7 Test methods ... 22
7.1 Test environment conditions ... 22
7.2 General ... 23
7.3 Body and structure quality inspection ... 23
7.4 Performance indicator test ... 23
7.5 Electromagnetic compatibility test ... 24
7.6 Protection function test ... 25
7.7 Communication test ... 30
7.8 Automatic power on/off test ... 30
7.9 Start-up test ... 30
7.10 Insulation and voltage resistance test ... 30
7.11 Enclosure protection grade test ... 31
7.12 Power control and voltage regulation test ... 31
7.13 Environmental test ... 31
7.14 Temperature rise test ... 32
8 Inspection rules ... 32
8.1 Inspection classification ... 32
8.2 Ex-factory inspection ... 34
8.3 Type inspection ... 34
9 Marking, packaging, transportation and storage ... 34
9.1 Marking ... 34
9.2 Packaging ... 35
9.3 Transportation ... 36
9.4 Storage ... 36

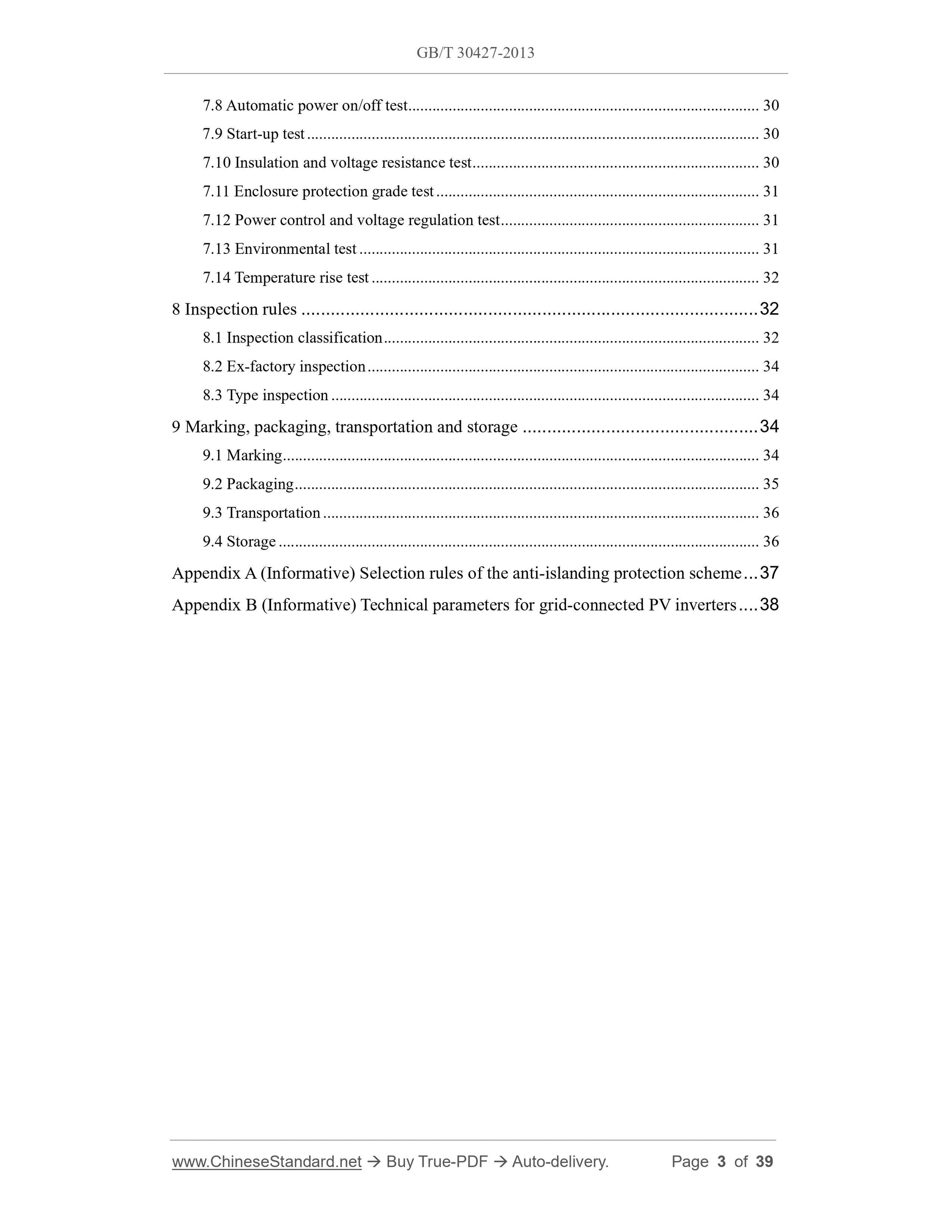

Appendix A (Informative) Selection rules of the anti-islanding protection scheme ... 37
Appendix B (Informative) Technical parameters for grid-connected PV inverters ... 38
Technical requirements and test methods for grid-connected
PV inverters

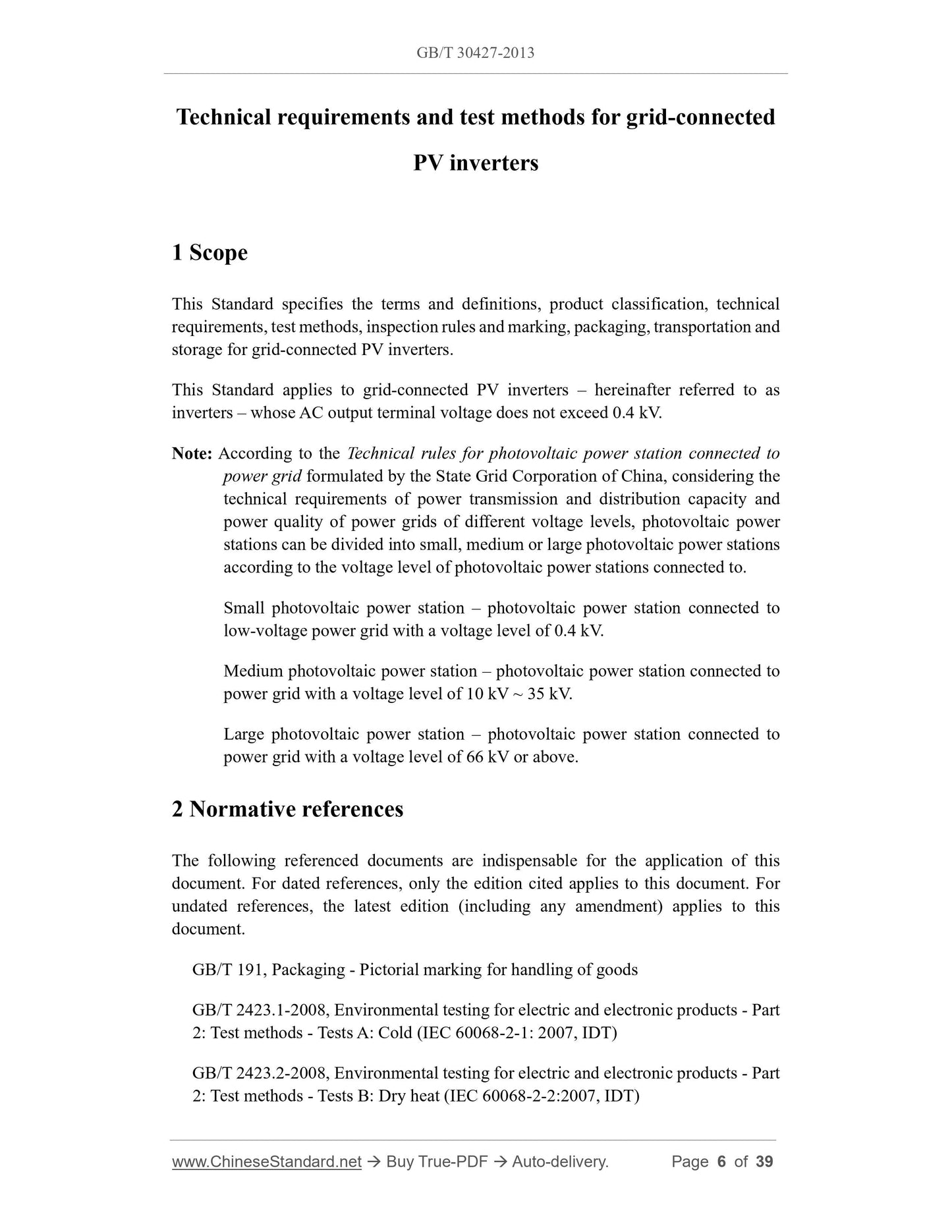

1 Scope
This Standard specifies the terms and definitions, product classification, technical
requirements, test methods, inspection rules and marking, packaging, transportation and
storage for grid-connected PV inverters.
This Standard applies to grid-connected PV inverters – hereinafter referred to as
inverters – whose AC output terminal voltage does not exceed 0.4 kV.
Note: According to the Technical rules for photovoltaic power station connected to
power grid formulated by the State Grid Corporation of China, considering the
technical requirements of power transmission and distribution capacity and
power quality of power grids of different voltage levels, photovoltaic power
stations can be divided into small, medium or large photovoltaic power stations
according to the voltage level of photovoltaic power stations connected to.
Small photovoltaic power station – photovoltaic power station connected to
low-voltage power grid with a voltage level of 0.4 kV.
Medium photovoltaic power station – photovoltaic power station connected to
power grid with a voltage level of 10 kV ~ 35 kV.
Large photovoltaic power station – photovoltaic power station connected to
power grid with a voltage level of 66 kV or above.
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies to this document. For
undated references, the latest edition (including any amendment) applies to this
document.
GB/T 191, Packaging - Pictorial marking for handling of goods
GB/T 2423.1-2008, Environmental testing for electric and electronic products - Part
2: Test methods - Tests A: Cold (IEC 60068-2-1: 2007, IDT)
GB/T 2423.2-2008, Environmental testing for electric and electronic products - Part
2: Test methods - Tests B: Dry heat (IEC 60068-2-2:2007, IDT)
GB/T 2423.3-2006, Environmental testing for electric and electronic products - Part
2: Testing method - Test Cab: Damp heat, steady state (IEC 60068-2-78:2001, IDT)
GB/T 3859.2-2013, Semiconductor converters - General requirements and line
commutated converters - Part 1-2: Application guide (IEC/TR 60146-1-2:2011,
MOD)

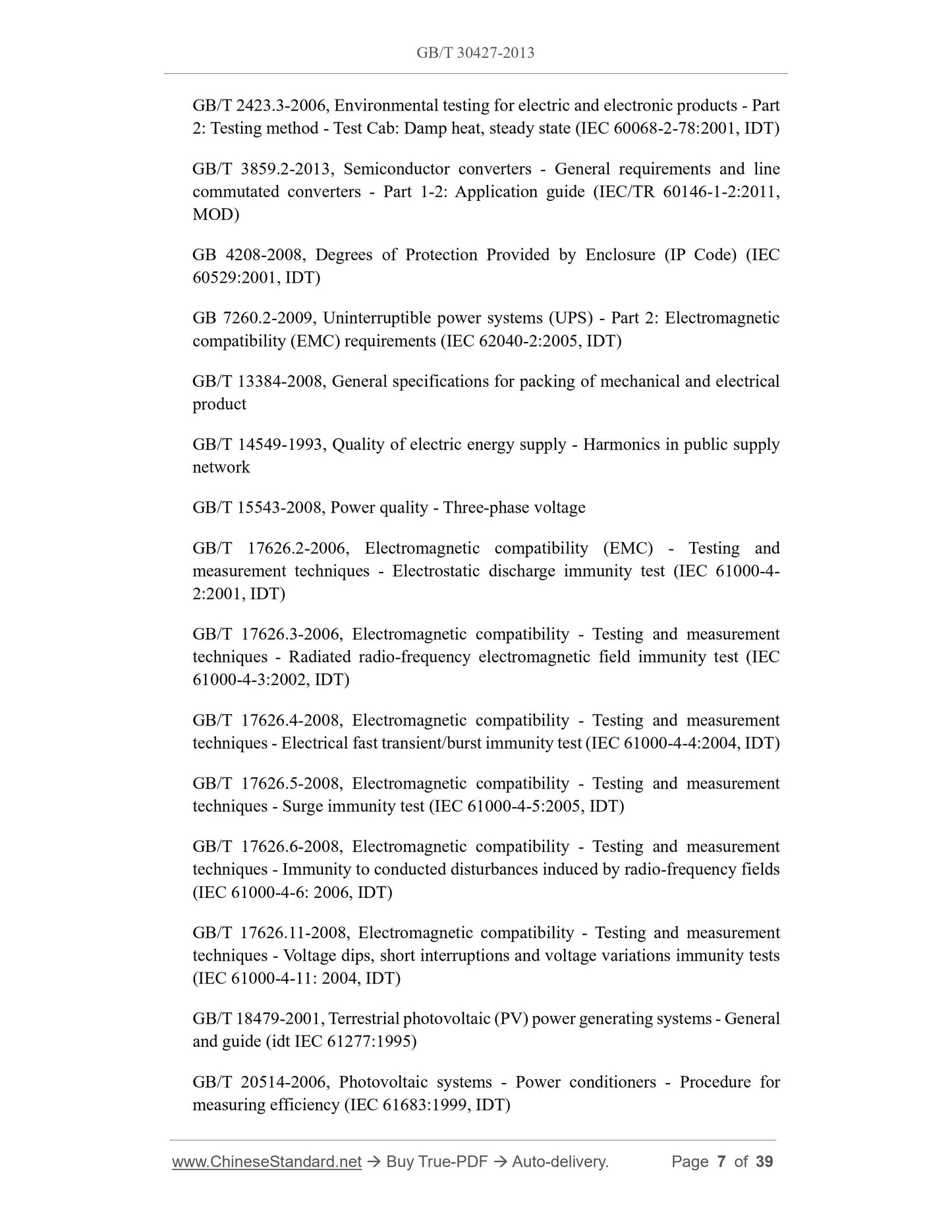

GB 4208-2008, Degrees of Protection Provided by Enclosure (IP Code) (IEC
60529:2001, IDT)
GB 7260.2-2009, Uninterruptible power systems (UPS) - Part 2: Electromagnetic
compatibility (EMC) requirements (IEC 62040-2:2005, IDT)
GB/T 13384-2008, General specifications for packing of mechanical and electrical
product
GB/T 14549-1993, Quality of electric energy supply - Harmonics in public supply
network
GB/T 15543-2008, Power quality - Three-phase voltage
GB/T 17626.2-2006, Electromagnetic compatibility (EMC) - Testing and
measurement techniques - Electrostatic discharge immunity test (IEC 61000-4-
2:2001, IDT)
GB/T 17626.3-2006, Electromagnetic compatibility - Testing and measurement
techniques - Radiated radio-frequency electromagnetic field immunity test (IEC
61000-4-3:2002, IDT)
GB/T 17626.4-2008, Electromagnetic compatibility - Testing and measurement
techniques - Electrical fast transient/burst immunity test (IEC 61000-4-4:2004, IDT)
GB/T 17626.5-2008, Electromagnetic compatibility - Testing and measurement
techniques - Surge immunity test (IEC 61000-4-5:2005, IDT)
GB/T 17626.6-2008, Electromagnetic compatibility - Testing and measurement
techniques - Immunity to conducted disturbances induced by radio-frequency fields
(IEC 61000-4-6: 2006, IDT)
GB/T 17626.11-2008, Electromagnetic compatibility - Testing and measurement
techniques - Voltage dips, short interruptions and voltage variations immunity tests
(IEC 61000-4-11: 2004, IDT)
GB/T 18479-2001, Terrestrial photovoltaic (PV) power generating systems - General
and guide (idt IEC 61277:1995)
GB/T 20514-2006, Photovoltaic systems - Power conditioners - Procedure for
measuring efficiency (IEC 61683:1999, IDT)

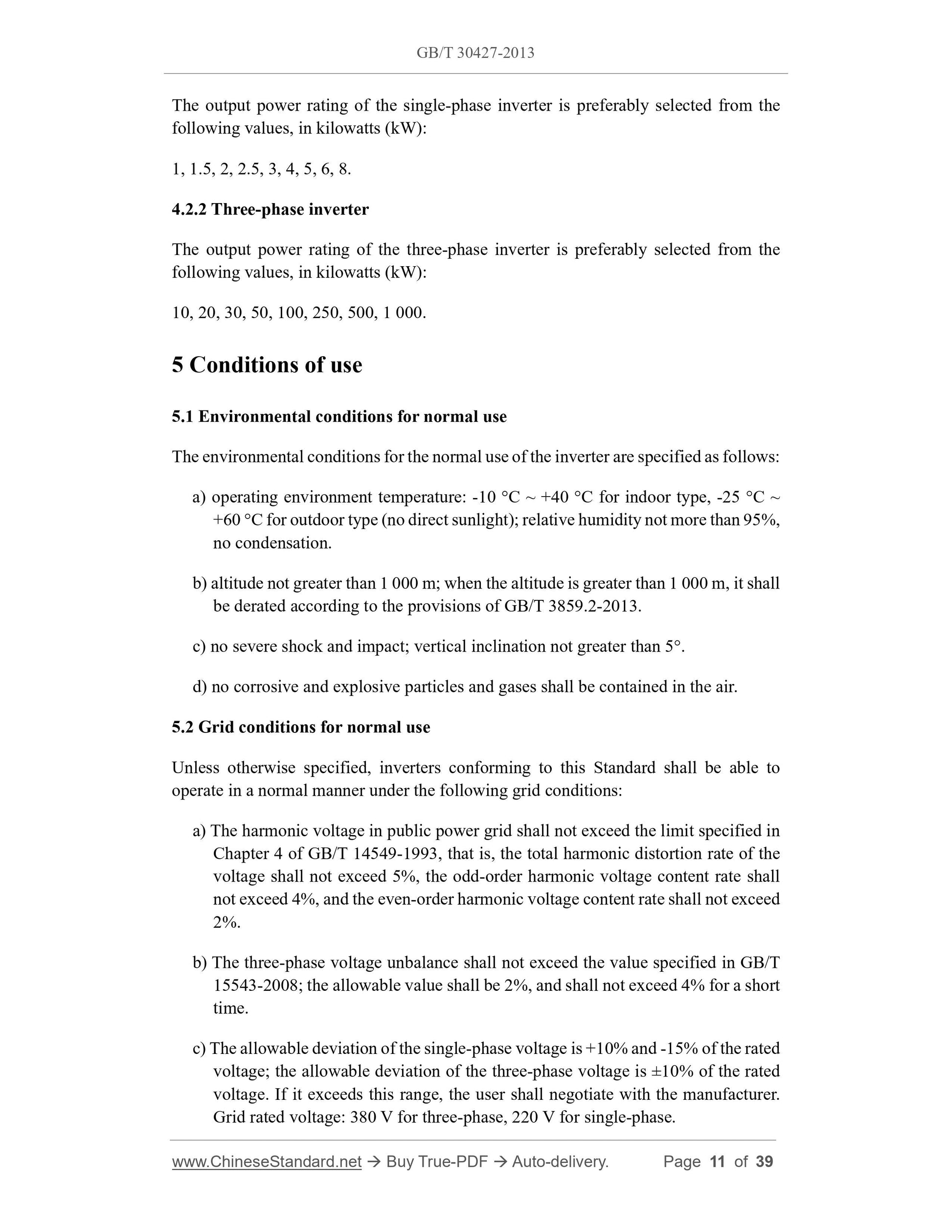

The output power rating of the single-phase inverter is preferably selected from the
following values, in kilowatts (kW):
1, 1.5, 2, 2.5, 3, 4, 5, 6, 8.
4.2.2 Three-phase inverter
The output power rating of the three-phase inverter is preferably selected from the
following values, in kilowatts (kW):
10, 20, 30, 50, 100, 250, 500, 1 000.
5 Conditions of use
5.1 Environmental conditions for normal use
The environmental conditions for the normal use of the inverter are specified as follows:
a) operating environment temperature: -10 °C ~ +40 °C for indoor type, -25 °C ~
+60 °C for outdoor type (no direct sunlight); relative humidity not more than 95%,
no condensation.
b) altitude not greater than 1 000 m; when the altitude is greater than 1 000 m, it shall
be derated according to the provisions of GB/T 3859.2-2013.
c) no severe shock and impact; vertical inclination not greater than 5°.
d) no corrosive and explosive particles and gases shall be contained in the air.
5.2 Grid conditions for normal use
Unless otherwise specified, inverters conforming to this Standard shall be able to
operate in a normal manner...
