GB/T 2977-2008: Size designation, dimensions, inflation pressure and load capacity for truck tyres

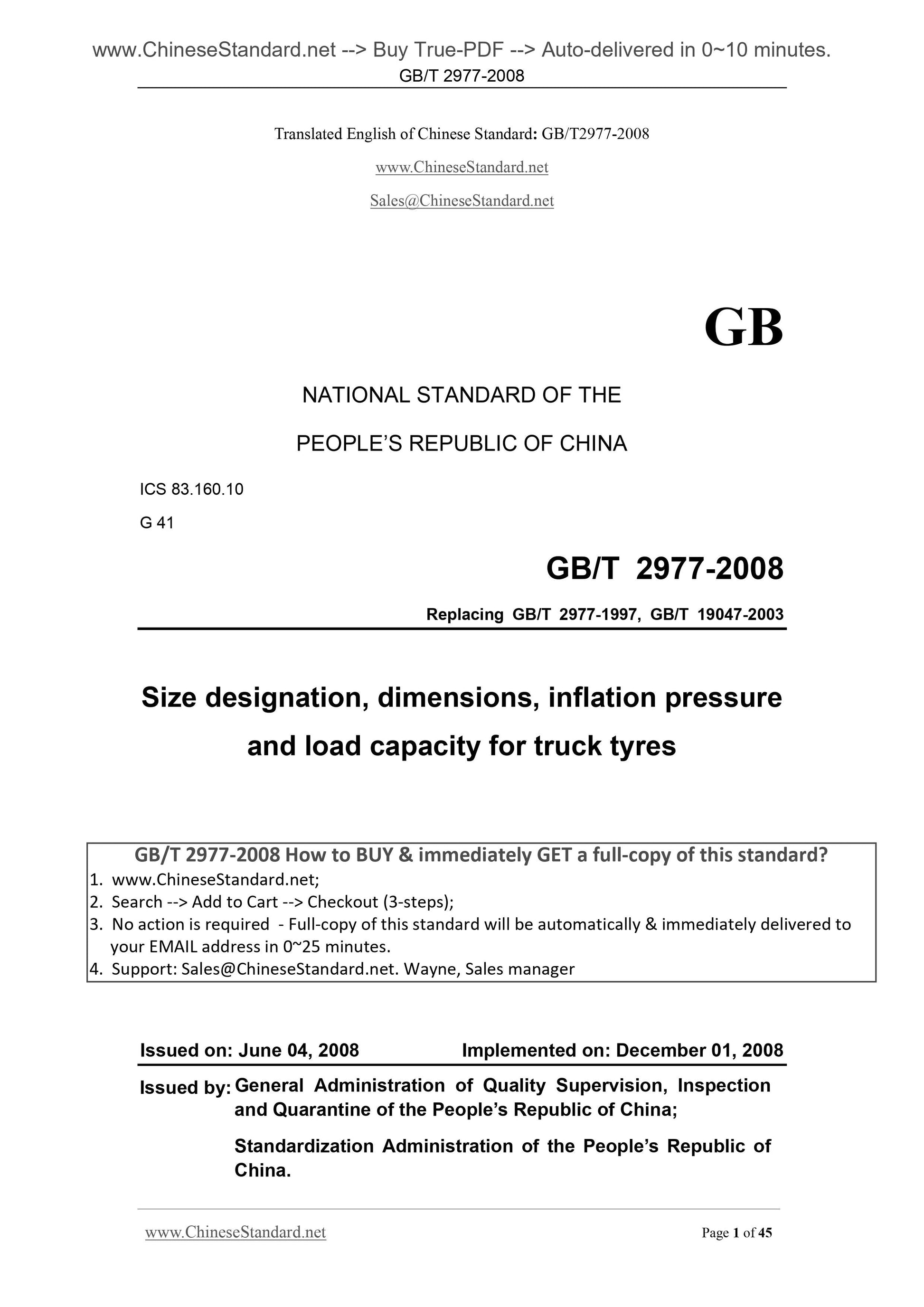

GB/T 2977-2008
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 83.160.10
G 41
Replacing GB/T 2977-1997, GB/T 19047-2003
Size designation, dimensions, inflation pressure
and load capacity for truck tyres
ISSUED ON. JUNE 04, 2008
IMPLEMENTED ON. DECEMBER 01, 2008
Issued by.
General Administration of Quality Supervision, Inspection
and Quarantine of the People’s Republic of China;
Standardization Administration of the People’s Republic of
China.

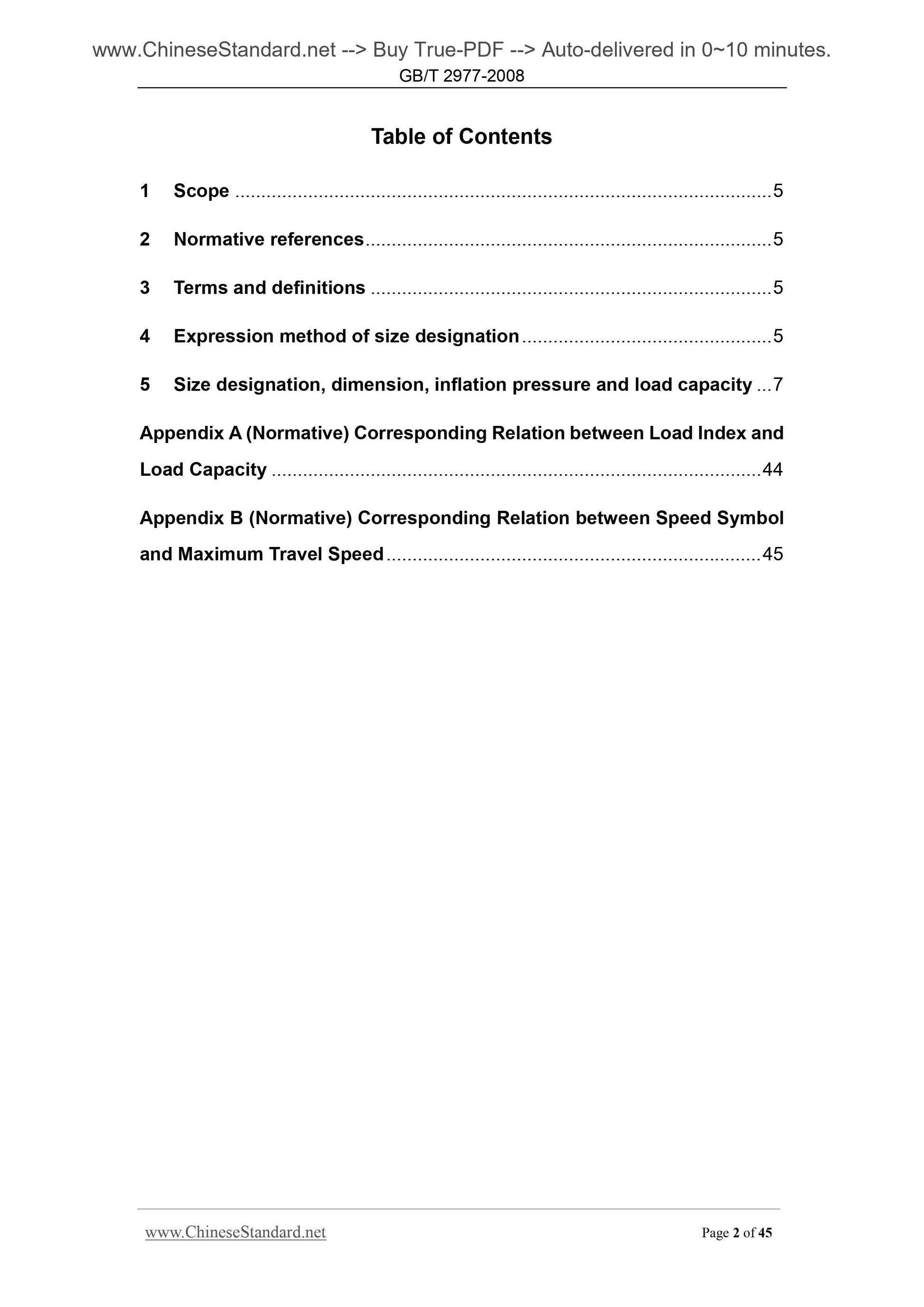

Table of Contents
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 5
4 Expression method of size designation ... 5
5 Size designation, dimension, inflation pressure and load capacity ... 7
Appendix A (Normative) Corresponding Relation between Load Index and
Load Capacity ... 44
Appendix B (Normative) Corresponding Relation between Speed Symbol
and Maximum Travel Speed ... 45

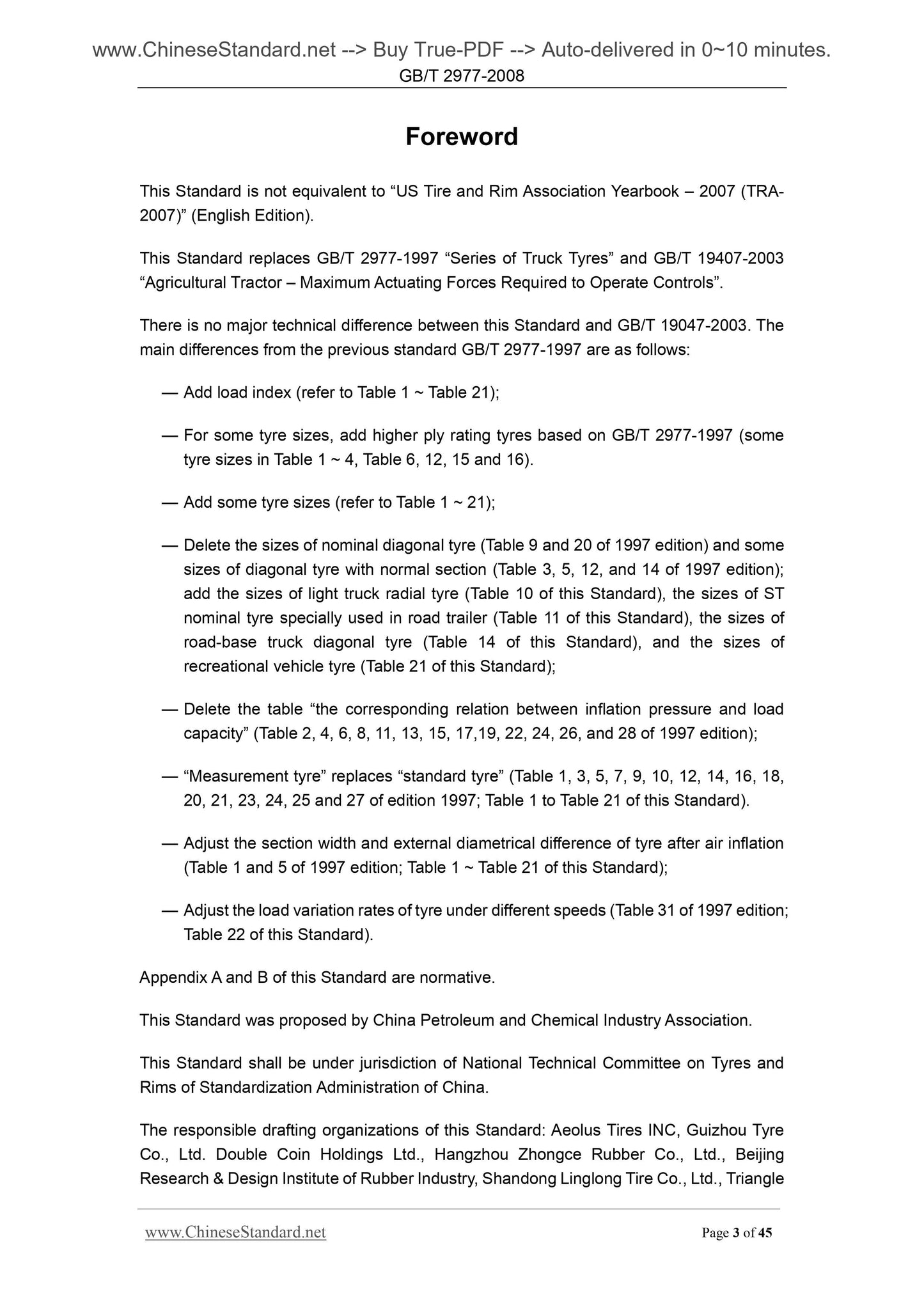

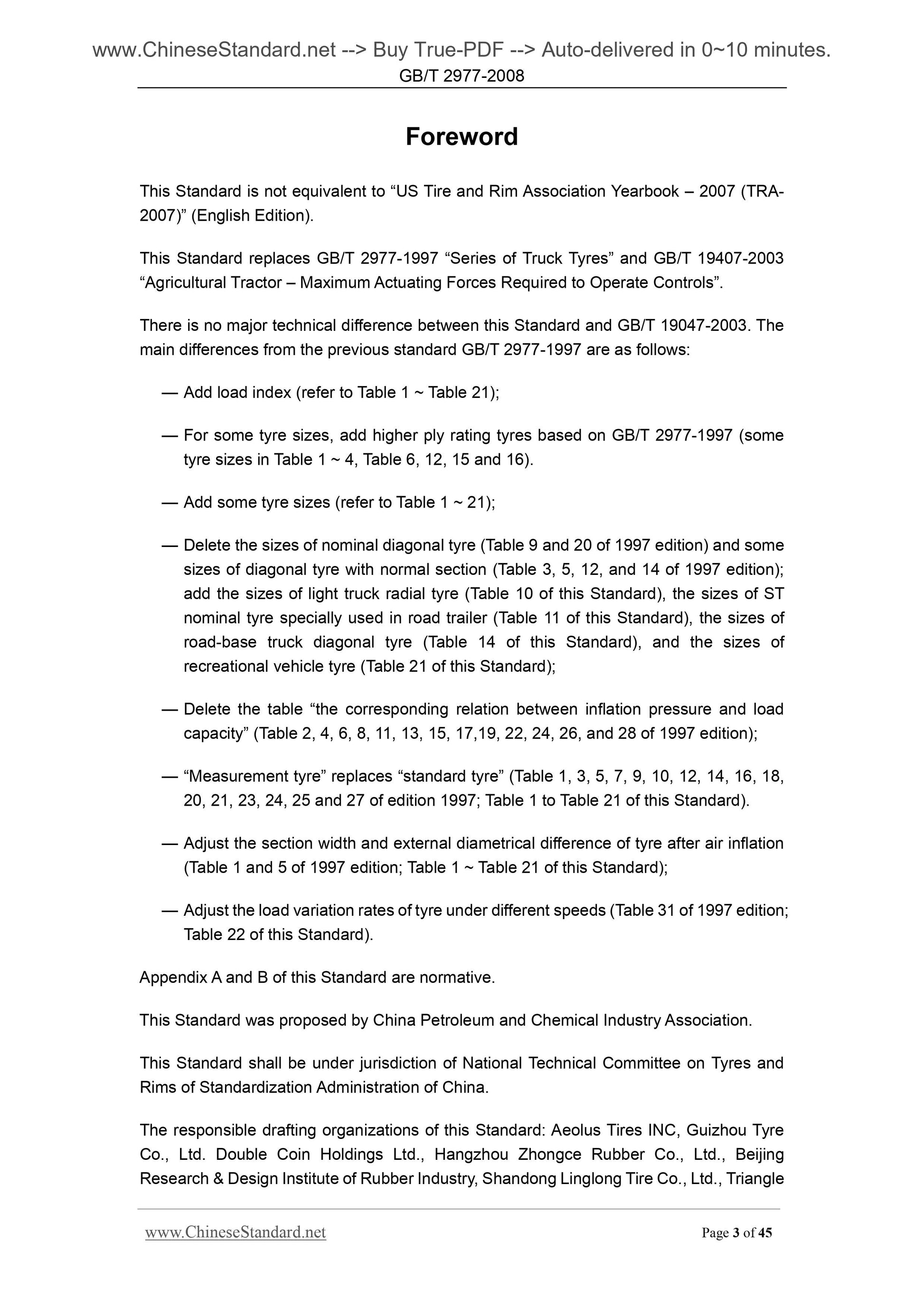

Foreword
This Standard is not equivalent to “US Tire and Rim Association Yearbook – 2007 (TRA-
2007)” (English Edition).
This Standard replaces GB/T 2977-1997 “Series of Truck Tyres” and GB/T 19407-2003
“Agricultural Tractor – Maximum Actuating Forces Required to Operate Controls”.
There is no major technical difference between this Standard and GB/T 19047-2003. The
main differences from the previous standard GB/T 2977-1997 are as follows.
— Add load index (refer to Table 1 ~ Table 21);
— For some tyre sizes, add higher ply rating tyres based on GB/T 2977-1997 (some
tyre sizes in Table 1 ~ 4, Table 6, 12, 15 and 16).
— Add some tyre sizes (refer to Table 1 ~ 21);
— Delete the sizes of nominal diagonal tyre (Table 9 and 20 of 1997 edition) and some
sizes of diagonal tyre with normal section (Table 3, 5, 12, and 14 of 1997 edition);
add the sizes of light truck radial tyre (Table 10 of this Standard), the sizes of ST
nominal tyre specially used in road trailer (Table 11 of this Standard), the sizes of
road-base truck diagonal tyre (Table 14 of this Standard), and the sizes of
recreational vehicle tyre (Table 21 of this Standard);
— Delete the table “the corresponding relation between inflation pressure and load
capacity” (Table 2, 4, 6, 8, 11, 13, 15, 17,19, 22, 24, 26, and 28 of 1997 edition);
— “Measurement tyre” replaces “standard tyre” (Table 1, 3, 5, 7, 9, 10, 12, 14, 16, 18,
20, 21, 23, 24, 25 and 27 of edition 1997; Table 1 to Table 21 of this Standard).
— Adjust the section width and external diametrical difference of tyre after air inflation
(Table 1 and 5 of 1997 edition; Table 1 ~ Table 21 of this Standard);
— Adjust the load variation rates of tyre under different speeds (Table 31 of 1997 edition;
Table 22 of this Standard).
Appendix A and B of this Standard are normative.
This Standard was proposed by China Petroleum and Chemical Industry Association.
This Standard shall be under jurisdiction of National Technical Committee on Tyres and
Rims of Standardization Administration of China.
The responsible drafting organizations of this Standard. Aeolus Tires INC, Guizhou Tyre
Co., Ltd. Double Coin Holdings Ltd., Hangzhou Zhongce Rubber Co., Ltd., Beijing
Research and Design Institute of Rubber Industry, Shandong Linglong Tire Co., Ltd., Triangle
Tyre Co., Ltd., Git Tire INC. (Shandong), Xiamen Cheng Shin Enterprise Co., Ltd., Beijing
Capital Tyre Co., Ltd., MICHELIN Group (Shanghai), and Sailun Co., Ltd.

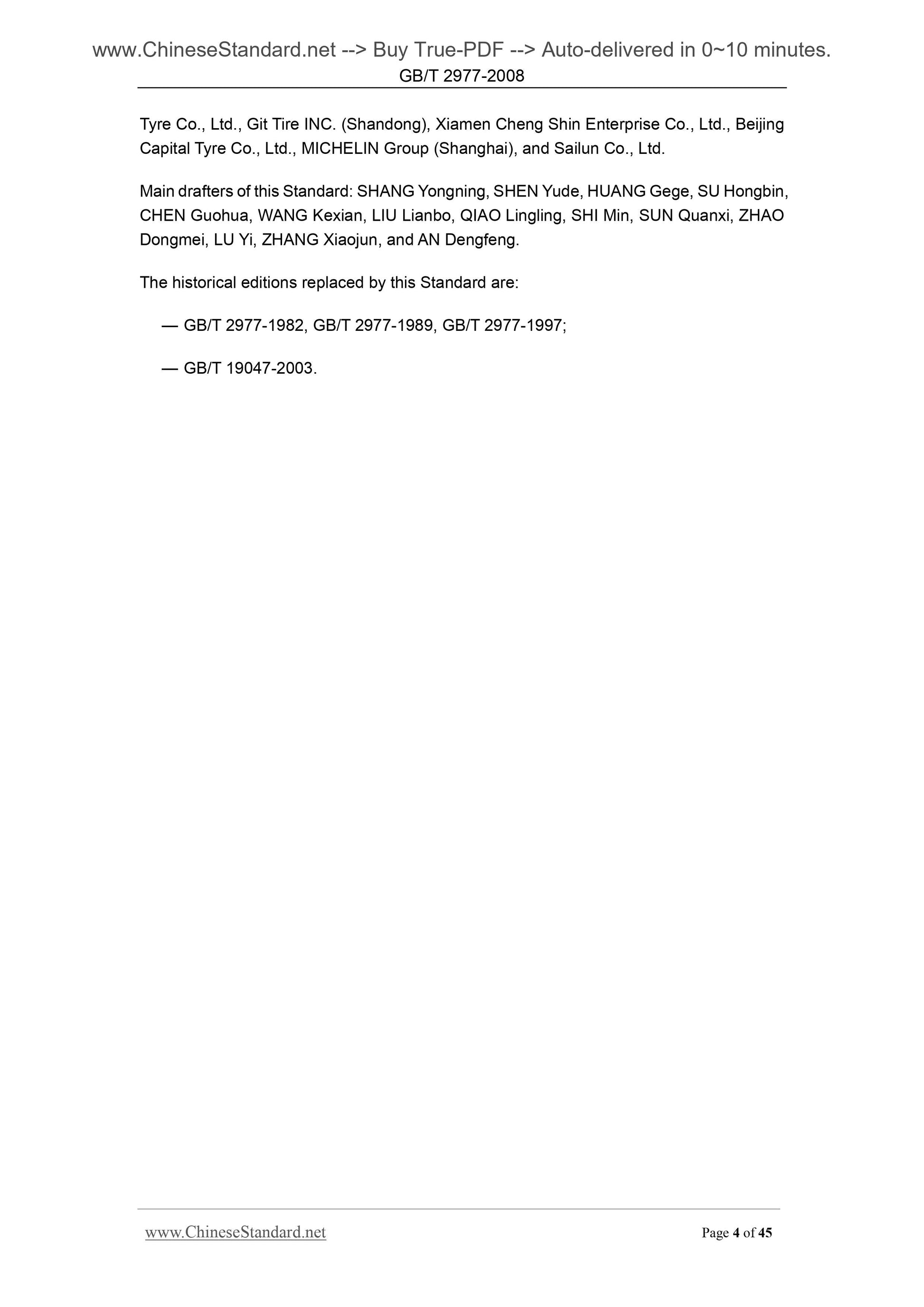

Main drafters of this Standard. SHANG Yongning, SHEN Yude, HUANG Gege, SU Hongbin,
CHEN Guohua, WANG Kexian, LIU Lianbo, QIAO Lingling, SHI Min, SUN Quanxi, ZHAO
Dongmei, LU Yi, ZHANG Xiaojun, and AN Dengfeng.
The historical editions replaced by this Standard are.
— GB/T 2977-1982, GB/T 2977-1989, GB/T 2977-1997;
— GB/T 19047-2003.
Size designation, Dimensions, Inflation Pressure and
Load Capacity for Truck Tyres
1 Scope
This Standard specifies the truck tyre’s terms and definitions; expression method of size
designation; size designation, dimensions, inflation pressure and load capacity.
This Standard is applicable to the inflated tyres of truck, passenger car, and trailer.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition citied applies. For undated references, the latest
edition of the referenced documents (including any amendments) applies.
GB/T 6326 Tyre Terms and Definitions (GB/T 6326-2005, ISO 4223-1.2002,
Definitions of some terms used in tyre industry - Part 1. Pneumatic tyres, NEQ)
3 Terms and definitions
For the purpose of this Standard, the terms and definitions given in GB/T 6326 apply.

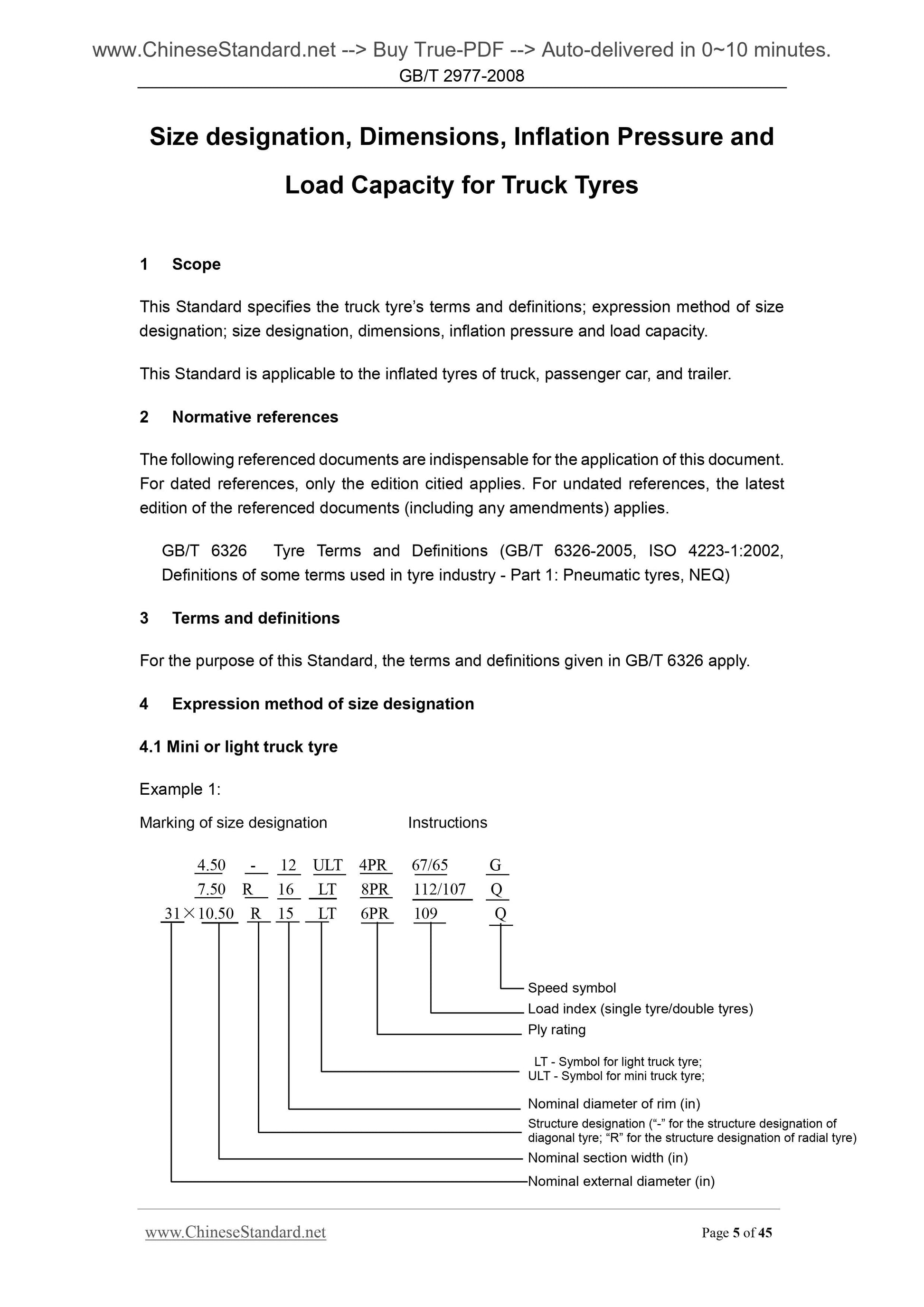

4 Expression method of size designation
4.1 Mini or light truck tyre
Example 1.
Marking of size designation Instructions
4.50 - 12 ULT 4PR 67/65 G
7.50 R 16 LT 8PR 112/107 Q
31×10.50 R 15 LT 6PR 109 Q
Speed symbol
Load index (single tyre/double tyres)
Ply rating
LT - Symbol for light truck tyre;
ULT - Symbol for mini truck tyre;
Nominal diameter of rim (in)
Structure designation (“-” for the structure designation of
diagonal tyre; “R” for the structure designation of radial tyre)
Nominal section width (in)
Nominal external diameter (in)

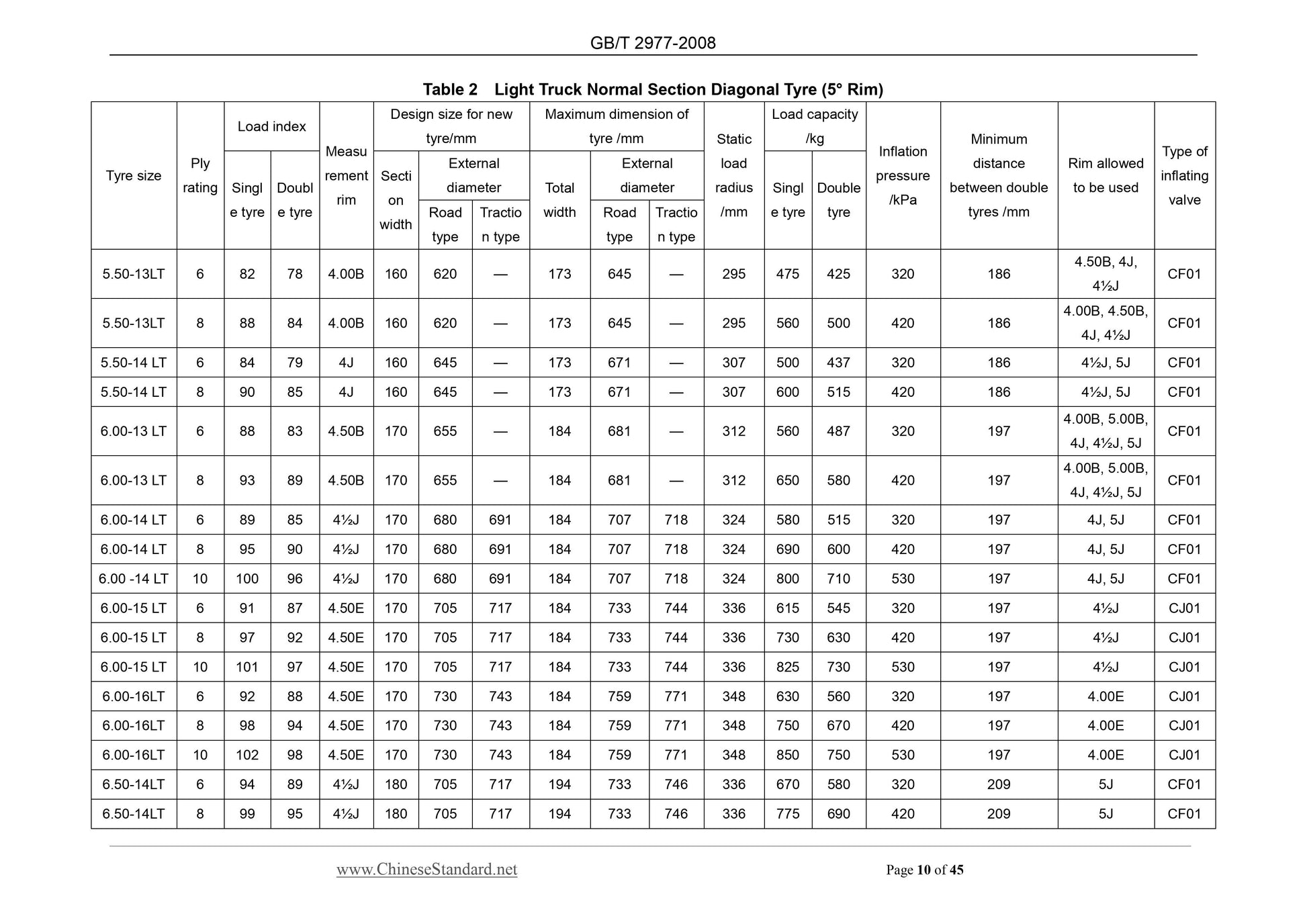

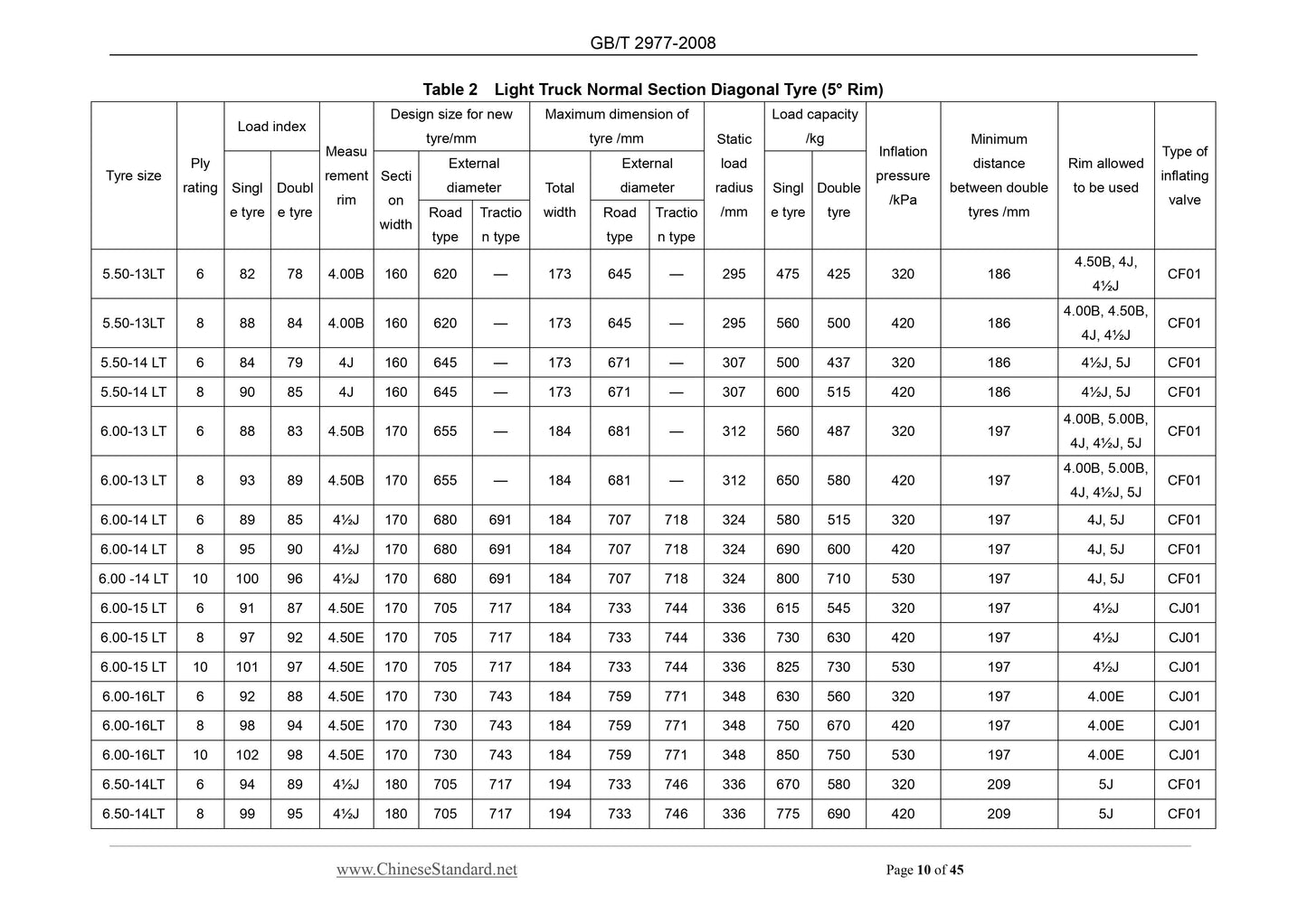

Table 2 Light Truck Normal Section Diagonal Tyre (5° Rim)
Tyre size Ply rating
Load index
Measu
rement
rim
Design size for new
tyre/mm
Maximum dimension of
tyre /mm Static
load
radius
/mm
Load capacity
/kg Inflation
pressure
/kPa
Minimum
distance
between double
tyres /mm
Rim allowed
to be used
Type of
inflating
valve Single tyre
Doubl
e tyre
Secti
on
width
External
diameter Total
width
External
diameter Singl
e tyre
Double
tyre Road
type
Tractio
n type
Road
type
Tractio
n type
5.50-13LT 6 82 78 4.00B 160 620 — 173 645 — 295 475 425 320 186 4.50B, 4J, 4½J CF01
5.50-13LT 8 88 84 4.00B 160 620 — 173 645 — 295 560 500 420 186 4.00B, 4.50B, 4J, 4½J CF01
5.50-14 LT 6 84 79 4J 160 645 — 173 671 — 307 500 437 320 186 4½J, 5J CF01
5.50-14 LT 8 90 85 4J 160 645 — 173 671 — 307 600 515 420 186 4½J, 5J CF01
6.00-13 LT 6 88 83 4.50B 170 655 — 184 681 — 312 560 487 320 197 4.00B, 5.00B, 4J, 4½J, 5J CF01
6.00-13 LT 8 93 89 4.50B 170 655 — 184 681 — 312 650 580 420 197 4.00B, 5.00B, 4J, 4½J, 5J CF01
6.00-14 LT 6 89 85 4½J 170 680 691 184 707 718 324 580 515 320 197 4J, 5J CF01
6.00-14 LT 8 95 90 4½J 170 680 691 184 707 718 324 690 600 420 197 4J, 5J CF01
6.00 -14 LT 10 100 96 4½J 170 680 691 184 707 718 324 800 710 530 197 4J, 5J CF01
6.00-15 LT 6 91 87 4.50E 170 705 717 184 733 744 336 615 545 320 197 4½J CJ01
6.00-15 LT 8 97 92 4.50E 170 705 717 184 733 744 336 730 630 420 197 4½J CJ01
6.00-15 LT 10 101 97 4.50E 170 705 717 184 733 744 336 825 730 530 197 4½J CJ01
6.00-16LT 6 92 88 4.50E 170 730 743 184 759 771 348 630 560 320 197 4.00E CJ01
6.00-16LT 8 98 94 4.50E 170 730 743 184 759 771 348 750 670 420 197 4.00E CJ01
6.00-16LT 10 102 98 4.50E 170 730 743 184 759 771 348 850 750 530 197 4.00E CJ01
6.50-14LT 6 94 89 4½J 180 705 717 194 733 746 336 670 580 320 209 5J CF01
6.50-14LT 8 99 95 4½J 180 705 717 194 733 746 336 775 690 420 209 5J CF01

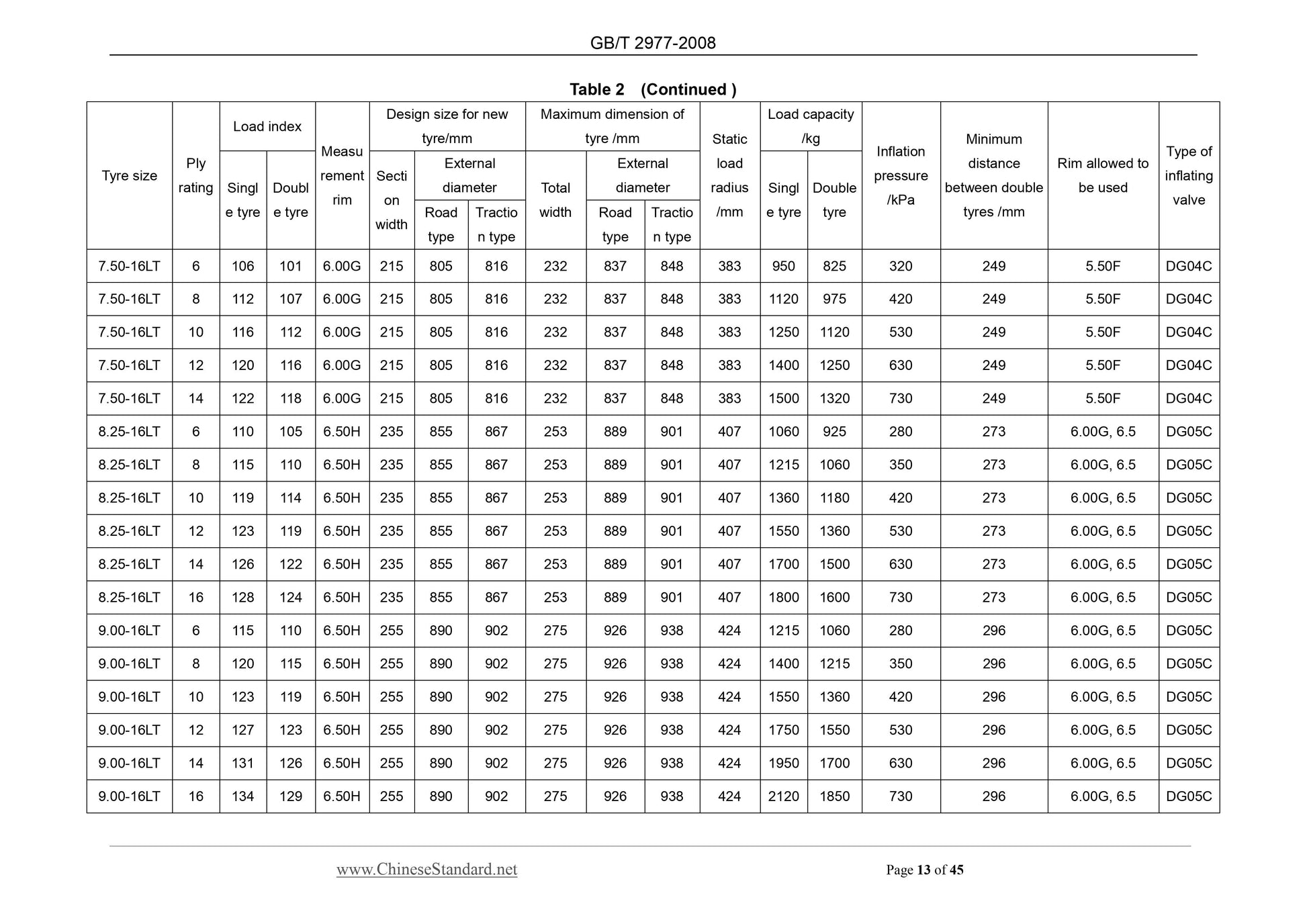

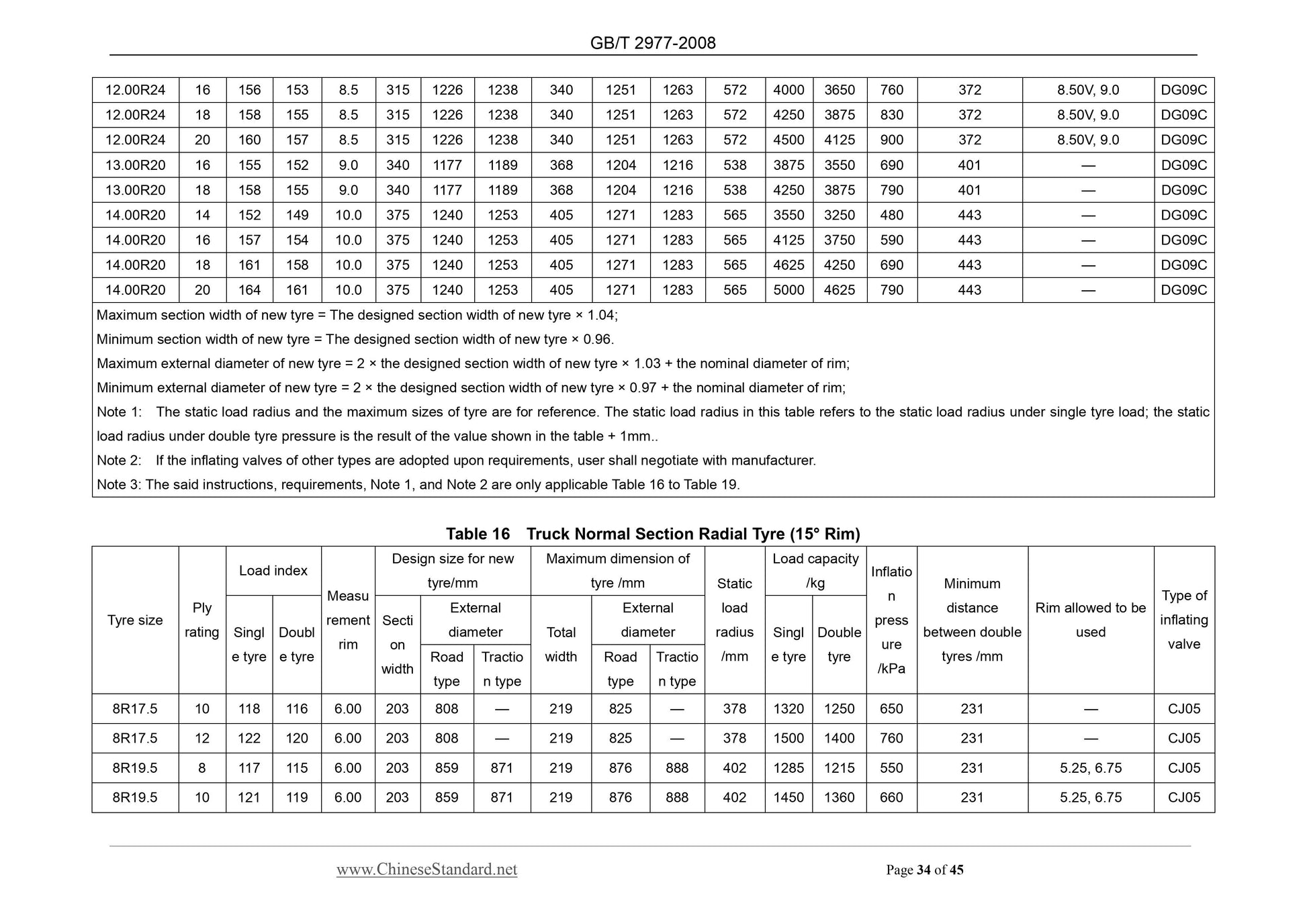

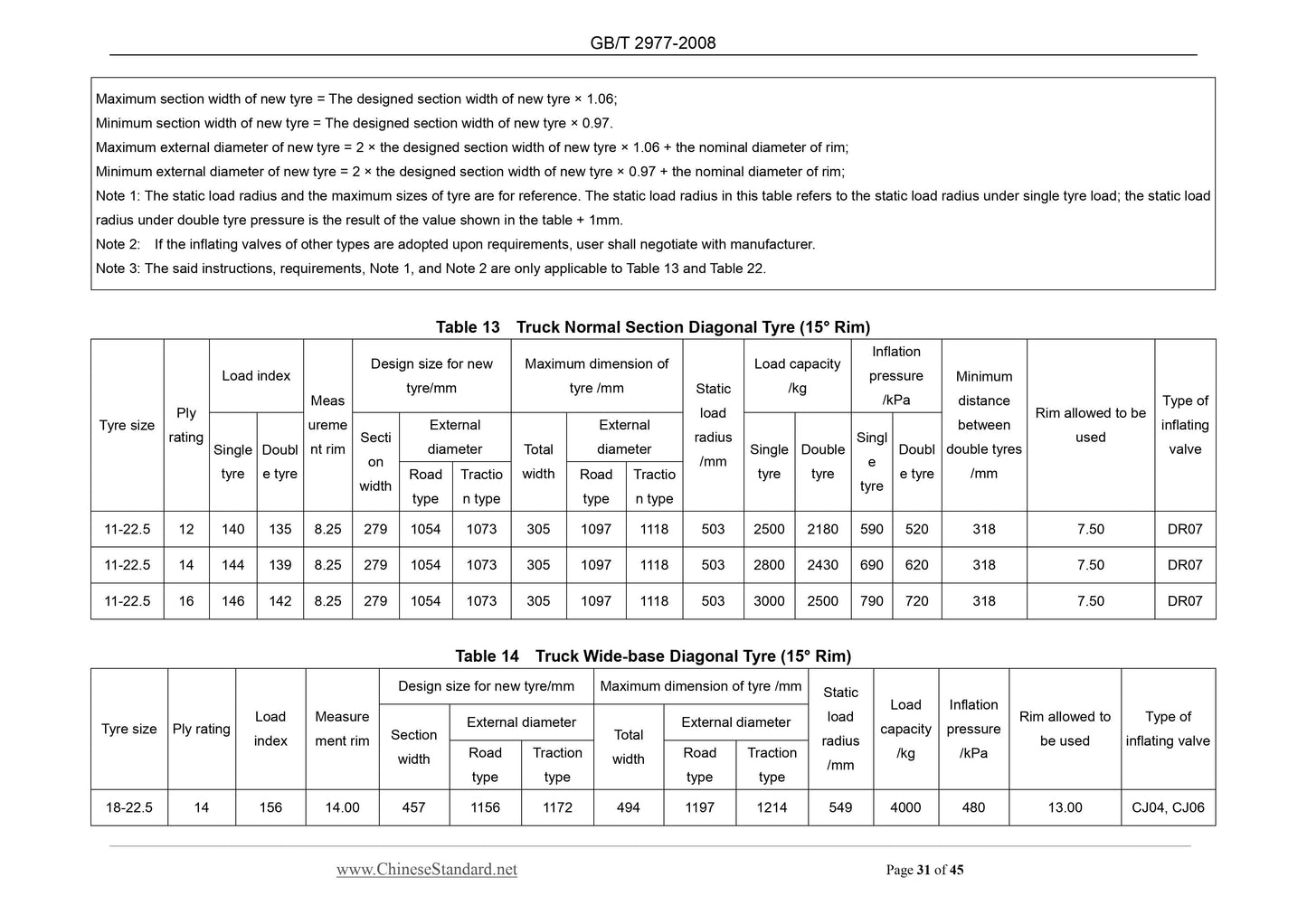

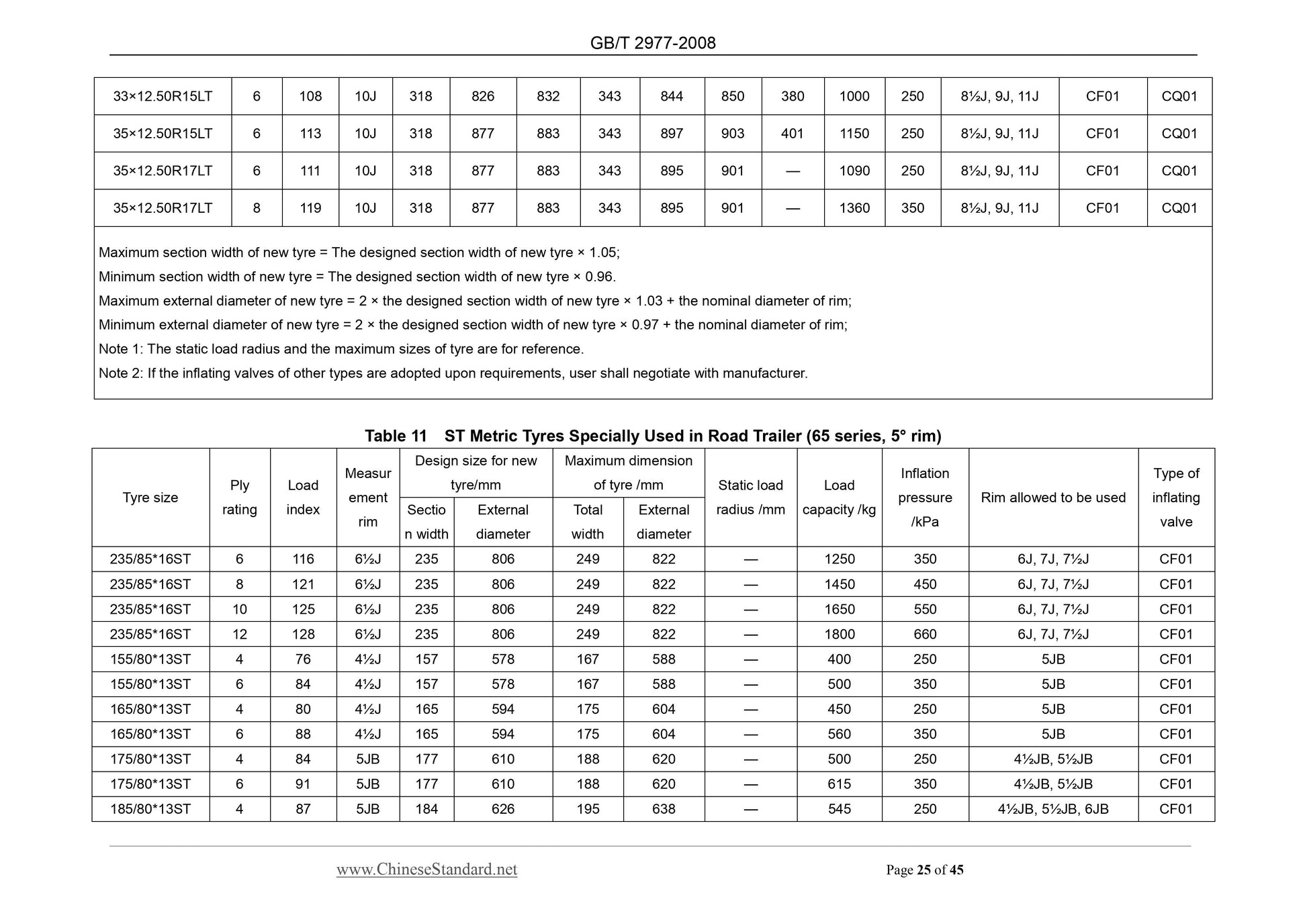

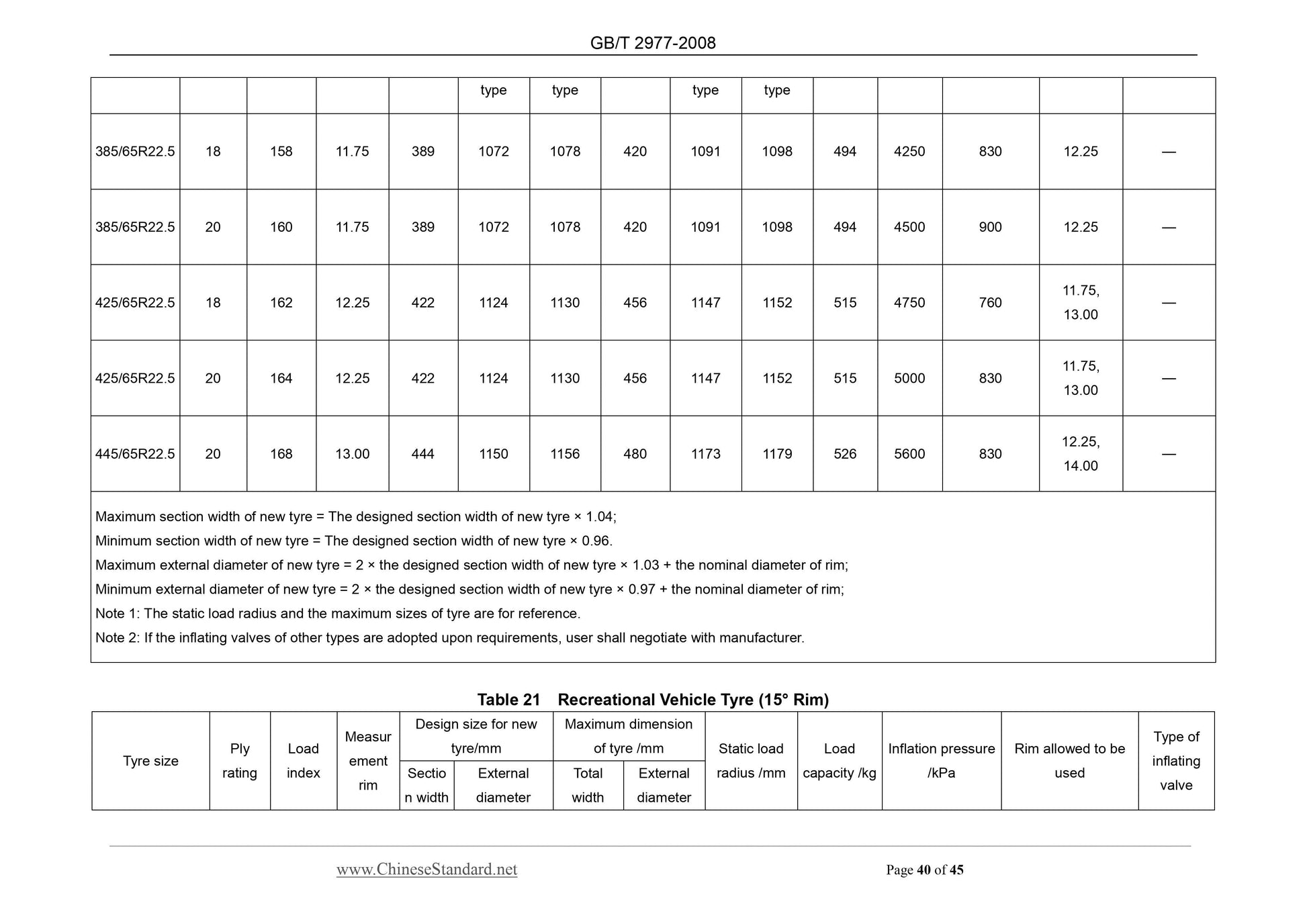

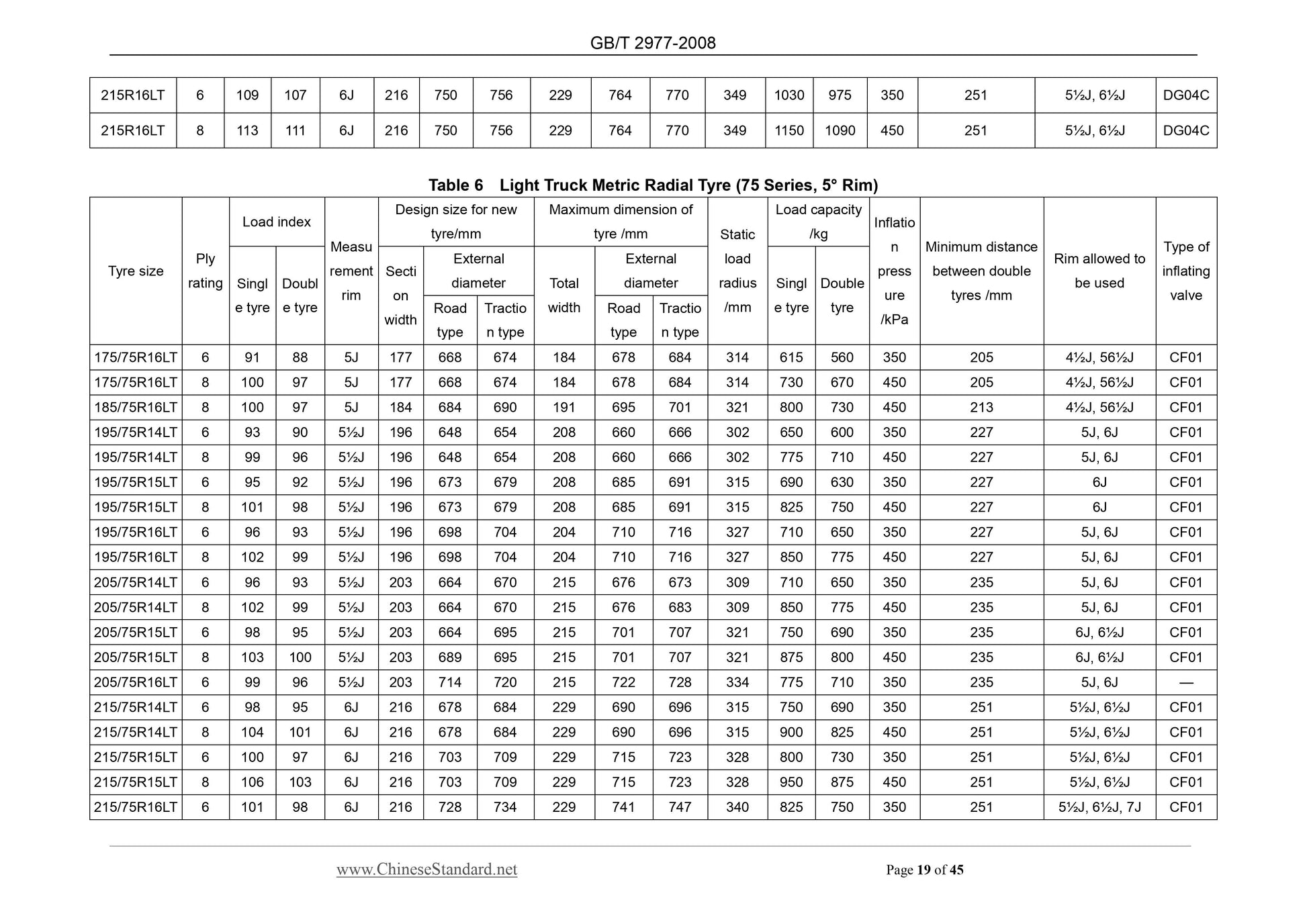

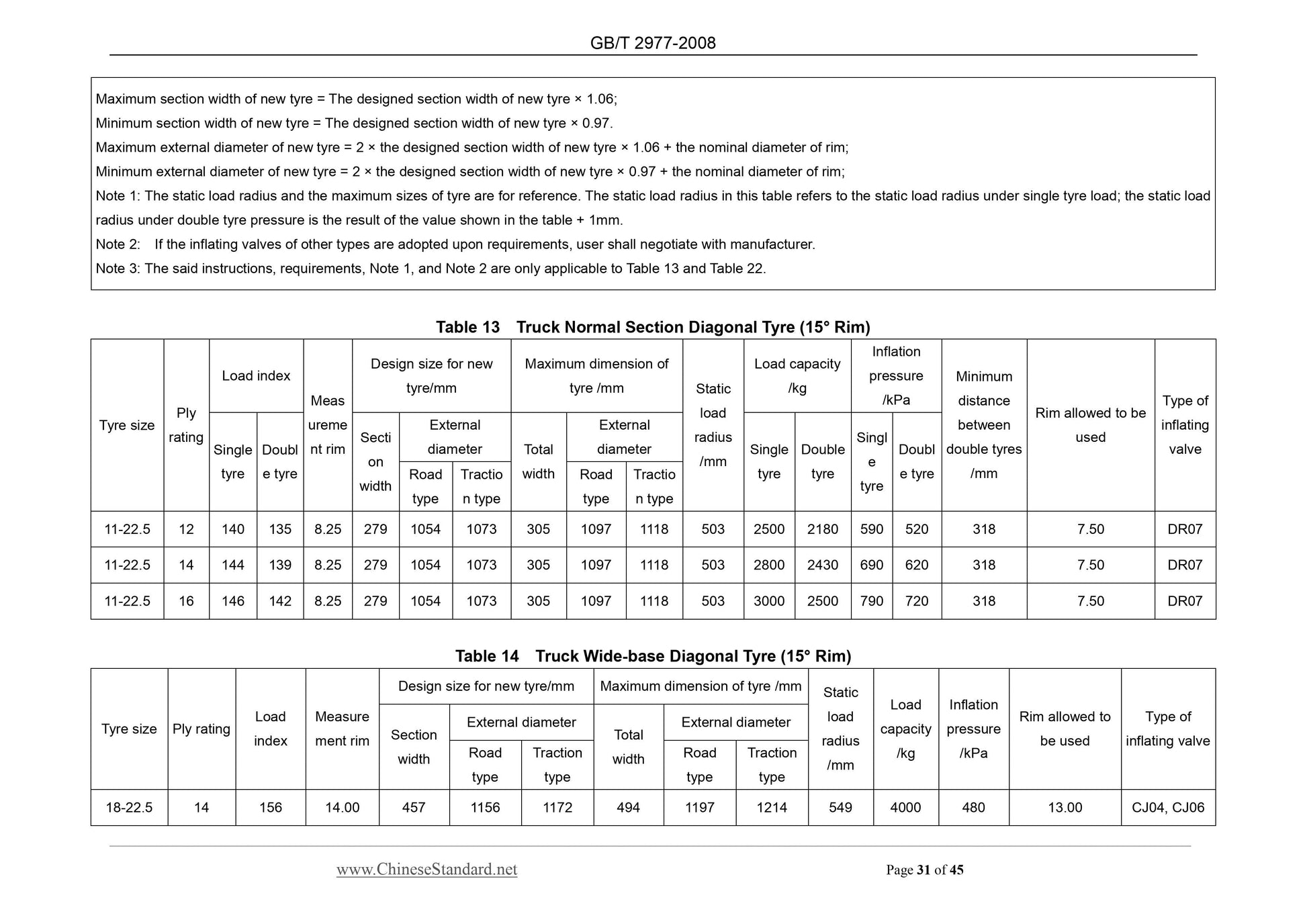

Table 2 (Continued )
Tyre size Ply rating
Load index
Measu
rement
rim
Design size for new
tyre/mm
Maximum dimension of
tyre /mm Static
load
radius
/mm
Load capacity
/kg Inflation

Get QUOTATION in 1-minute: Click GB/T 2977-2008
Historical versions: GB/T 2977-2008
Preview True-PDF (Reload/Scroll if blank)
GB/T 2977-2008: Size designation, dimensions, inflation pressure and load capacity for truck tyres
GB/T 2977-2008
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 83.160.10
G 41
Replacing GB/T 2977-1997, GB/T 19047-2003
Size designation, dimensions, inflation pressure
and load capacity for truck tyres
ISSUED ON. JUNE 04, 2008
IMPLEMENTED ON. DECEMBER 01, 2008
Issued by.
General Administration of Quality Supervision, Inspection
and Quarantine of the People’s Republic of China;
Standardization Administration of the People’s Republic of
China.
Table of Contents
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 5
4 Expression method of size designation ... 5
5 Size designation, dimension, inflation pressure and load capacity ... 7
Appendix A (Normative) Corresponding Relation between Load Index and
Load Capacity ... 44
Appendix B (Normative) Corresponding Relation between Speed Symbol
and Maximum Travel Speed ... 45
Foreword
This Standard is not equivalent to “US Tire and Rim Association Yearbook – 2007 (TRA-
2007)” (English Edition).
This Standard replaces GB/T 2977-1997 “Series of Truck Tyres” and GB/T 19407-2003
“Agricultural Tractor – Maximum Actuating Forces Required to Operate Controls”.
There is no major technical difference between this Standard and GB/T 19047-2003. The
main differences from the previous standard GB/T 2977-1997 are as follows.
— Add load index (refer to Table 1 ~ Table 21);
— For some tyre sizes, add higher ply rating tyres based on GB/T 2977-1997 (some
tyre sizes in Table 1 ~ 4, Table 6, 12, 15 and 16).
— Add some tyre sizes (refer to Table 1 ~ 21);
— Delete the sizes of nominal diagonal tyre (Table 9 and 20 of 1997 edition) and some
sizes of diagonal tyre with normal section (Table 3, 5, 12, and 14 of 1997 edition);
add the sizes of light truck radial tyre (Table 10 of this Standard), the sizes of ST
nominal tyre specially used in road trailer (Table 11 of this Standard), the sizes of
road-base truck diagonal tyre (Table 14 of this Standard), and the sizes of
recreational vehicle tyre (Table 21 of this Standard);
— Delete the table “the corresponding relation between inflation pressure and load
capacity” (Table 2, 4, 6, 8, 11, 13, 15, 17,19, 22, 24, 26, and 28 of 1997 edition);
— “Measurement tyre” replaces “standard tyre” (Table 1, 3, 5, 7, 9, 10, 12, 14, 16, 18,
20, 21, 23, 24, 25 and 27 of edition 1997; Table 1 to Table 21 of this Standard).
— Adjust the section width and external diametrical difference of tyre after air inflation
(Table 1 and 5 of 1997 edition; Table 1 ~ Table 21 of this Standard);
— Adjust the load variation rates of tyre under different speeds (Table 31 of 1997 edition;
Table 22 of this Standard).
Appendix A and B of this Standard are normative.
This Standard was proposed by China Petroleum and Chemical Industry Association.
This Standard shall be under jurisdiction of National Technical Committee on Tyres and
Rims of Standardization Administration of China.
The responsible drafting organizations of this Standard. Aeolus Tires INC, Guizhou Tyre
Co., Ltd. Double Coin Holdings Ltd., Hangzhou Zhongce Rubber Co., Ltd., Beijing
Research and Design Institute of Rubber Industry, Shandong Linglong Tire Co., Ltd., Triangle
Tyre Co., Ltd., Git Tire INC. (Shandong), Xiamen Cheng Shin Enterprise Co., Ltd., Beijing
Capital Tyre Co., Ltd., MICHELIN Group (Shanghai), and Sailun Co., Ltd.
Main drafters of this Standard. SHANG Yongning, SHEN Yude, HUANG Gege, SU Hongbin,
CHEN Guohua, WANG Kexian, LIU Lianbo, QIAO Lingling, SHI Min, SUN Quanxi, ZHAO
Dongmei, LU Yi, ZHANG Xiaojun, and AN Dengfeng.
The historical editions replaced by this Standard are.
— GB/T 2977-1982, GB/T 2977-1989, GB/T 2977-1997;
— GB/T 19047-2003.
Size designation, Dimensions, Inflation Pressure and
Load Capacity for Truck Tyres
1 Scope
This Standard specifies the truck tyre’s terms and definitions; expression method of size
designation; size designation, dimensions, inflation pressure and load capacity.
This Standard is applicable to the inflated tyres of truck, passenger car, and trailer.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition citied applies. For undated references, the latest
edition of the referenced documents (including any amendments) applies.
GB/T 6326 Tyre Terms and Definitions (GB/T 6326-2005, ISO 4223-1.2002,
Definitions of some terms used in tyre industry - Part 1. Pneumatic tyres, NEQ)
3 Terms and definitions
For the purpose of this Standard, the terms and definitions given in GB/T 6326 apply.
4 Expression method of size designation
4.1 Mini or light truck tyre
Example 1.
Marking of size designation Instructions
4.50 - 12 ULT 4PR 67/65 G
7.50 R 16 LT 8PR 112/107 Q
31×10.50 R 15 LT 6PR 109 Q
Speed symbol
Load index (single tyre/double tyres)
Ply rating
LT - Symbol for light truck tyre;
ULT - Symbol for mini truck tyre;
Nominal diameter of rim (in)
Structure designation (“-” for the structure designation of
diagonal tyre; “R” for the structure designation of radial tyre)
Nominal section width (in)
Nominal external diameter (in)
Table 2 Light Truck Normal Section Diagonal Tyre (5° Rim)
Tyre size Ply rating
Load index
Measu
rement
rim
Design size for new
tyre/mm
Maximum dimension of
tyre /mm Static
load
radius
/mm
Load capacity
/kg Inflation
pressure
/kPa
Minimum
distance
between double
tyres /mm
Rim allowed
to be used
Type of
inflating
valve Single tyre
Doubl
e tyre
Secti
on
width
External
diameter Total
width
External
diameter Singl
e tyre
Double
tyre Road
type
Tractio
n type
Road
type
Tractio
n type
5.50-13LT 6 82 78 4.00B 160 620 — 173 645 — 295 475 425 320 186 4.50B, 4J, 4½J CF01
5.50-13LT 8 88 84 4.00B 160 620 — 173 645 — 295 560 500 420 186 4.00B, 4.50B, 4J, 4½J CF01
5.50-14 LT 6 84 79 4J 160 645 — 173 671 — 307 500 437 320 186 4½J, 5J CF01
5.50-14 LT 8 90 85 4J 160 645 — 173 671 — 307 600 515 420 186 4½J, 5J CF01
6.00-13 LT 6 88 83 4.50B 170 655 — 184 681 — 312 560 487 320 197 4.00B, 5.00B, 4J, 4½J, 5J CF01
6.00-13 LT 8 93 89 4.50B 170 655 — 184 681 — 312 650 580 420 197 4.00B, 5.00B, 4J, 4½J, 5J CF01
6.00-14 LT 6 89 85 4½J 170 680 691 184 707 718 324 580 515 320 197 4J, 5J CF01
6.00-14 LT 8 95 90 4½J 170 680 691 184 707 718 324 690 600 420 197 4J, 5J CF01
6.00 -14 LT 10 100 96 4½J 170 680 691 184 707 718 324 800 710 530 197 4J, 5J CF01
6.00-15 LT 6 91 87 4.50E 170 705 717 184 733 744 336 615 545 320 197 4½J CJ01
6.00-15 LT 8 97 92 4.50E 170 705 717 184 733 744 336 730 630 420 197 4½J CJ01
6.00-15 LT 10 101 97 4.50E 170 705 717 184 733 744 336 825 730 530 197 4½J CJ01
6.00-16LT 6 92 88 4.50E 170 730 743 184 759 771 348 630 560 320 197 4.00E CJ01
6.00-16LT 8 98 94 4.50E 170 730 743 184 759 771 348 750 670 420 197 4.00E CJ01
6.00-16LT 10 102 98 4.50E 170 730 743 184 759 771 348 850 750 530 197 4.00E CJ01
6.50-14LT 6 94 89 4½J 180 705 717 194 733 746 336 670 580 320 209 5J CF01
6.50-14LT 8 99 95 4½J 180 705 717 194 733 746 336 775 690 420 209 5J CF01
Table 2 (Continued )
Tyre size Ply rating
Load index
Measu
rement
rim
Design size for new
tyre/mm
Maximum dimension of
tyre /mm Static
load
radius
/mm
Load capacity
/kg Inflation
