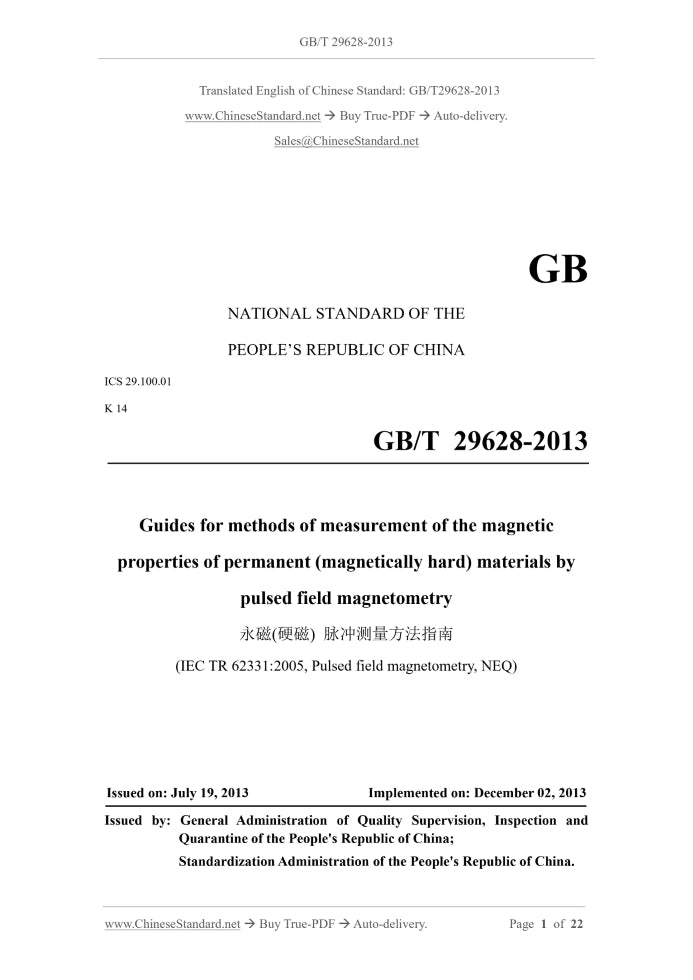

GB/T 29628-2013: Guides for methods of measurement of the magnetic properties of permanent (magnetically hard) materials by pulsed field magnetometry

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 29628-2013 (Self-service in 1-minute)
Newer / historical versions: GB/T 29628-2013

Preview True-PDF

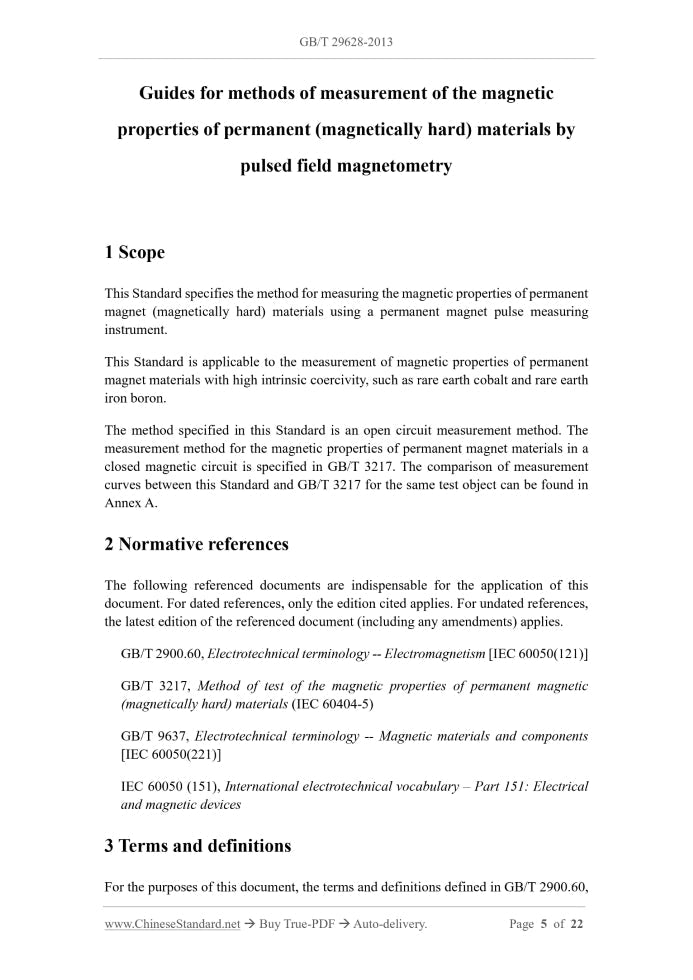

Scope

This Standard specifies the method for measuring the magnetic properties of permanent
magnet (magnetically hard) materials using a permanent magnet pulse measuring
instrument.
This Standard is applicable to the measurement of magnetic properties of permanent
magnet materials with high intrinsic coercivity, such as rare earth cobalt and rare earth
iron boron.
The method specified in this Standard is an open circuit measurement method. The
measurement method for the magnetic properties of permanent magnet materials in a
closed magnetic circuit is specified in GB/T 3217.The comparison of measurement
curves between this Standard and GB/T 3217 for the same test object can be found in
Annex A.

Basic Data

Standard ID	GB/T 29628-2013 (GB/T29628-2013)
Description (Translated English)	Guides for methods of measurement of the magnetic properties of permanent (magnetically hard) materials by pulsed field magnetometry
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	K14
Classification of International Standard	29.100.01
Word Count Estimation	17,110
Quoted Standard	GB/T 2900.60; GB/T 3217; GB/T 9637; IEC 60050-151
Adopted Standard	IEC TR 62331-2005, NEQ
Regulation (derived from)	National Standards Bulletin 2013 No. 10
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the measure permanent magnet (magnetically hard) materials with a permanent magnet magnetic pulse method can gauge. This standard applies to high magnetic rare earth cobalt, rare earth-iron-boron and other intrinsic coercivity perm
