GB/T 28239-2020: Limits and measurement methods for non-road diesel engine specific fuel consumption

This Standard specifies the limits and measurement methods for non-road diesel engine weighted specific fuel consumption. This Standard is applicable to non-road diesel engines whose rated power is not greater than 560 kW (hereinafter referred to as diesel engines); the used fuel is light diesel oil, excluding marine diesel engines that use heavy oil.

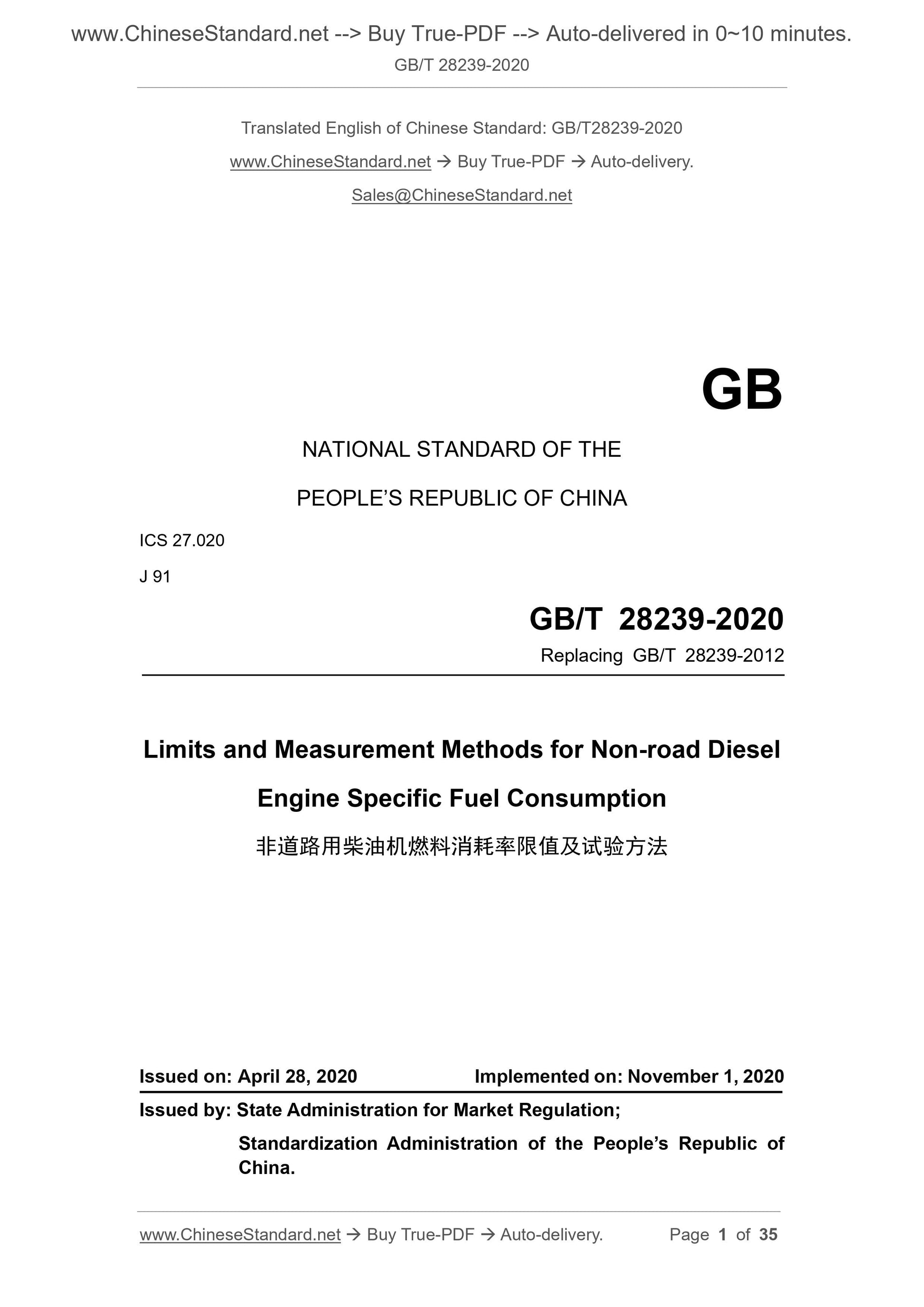

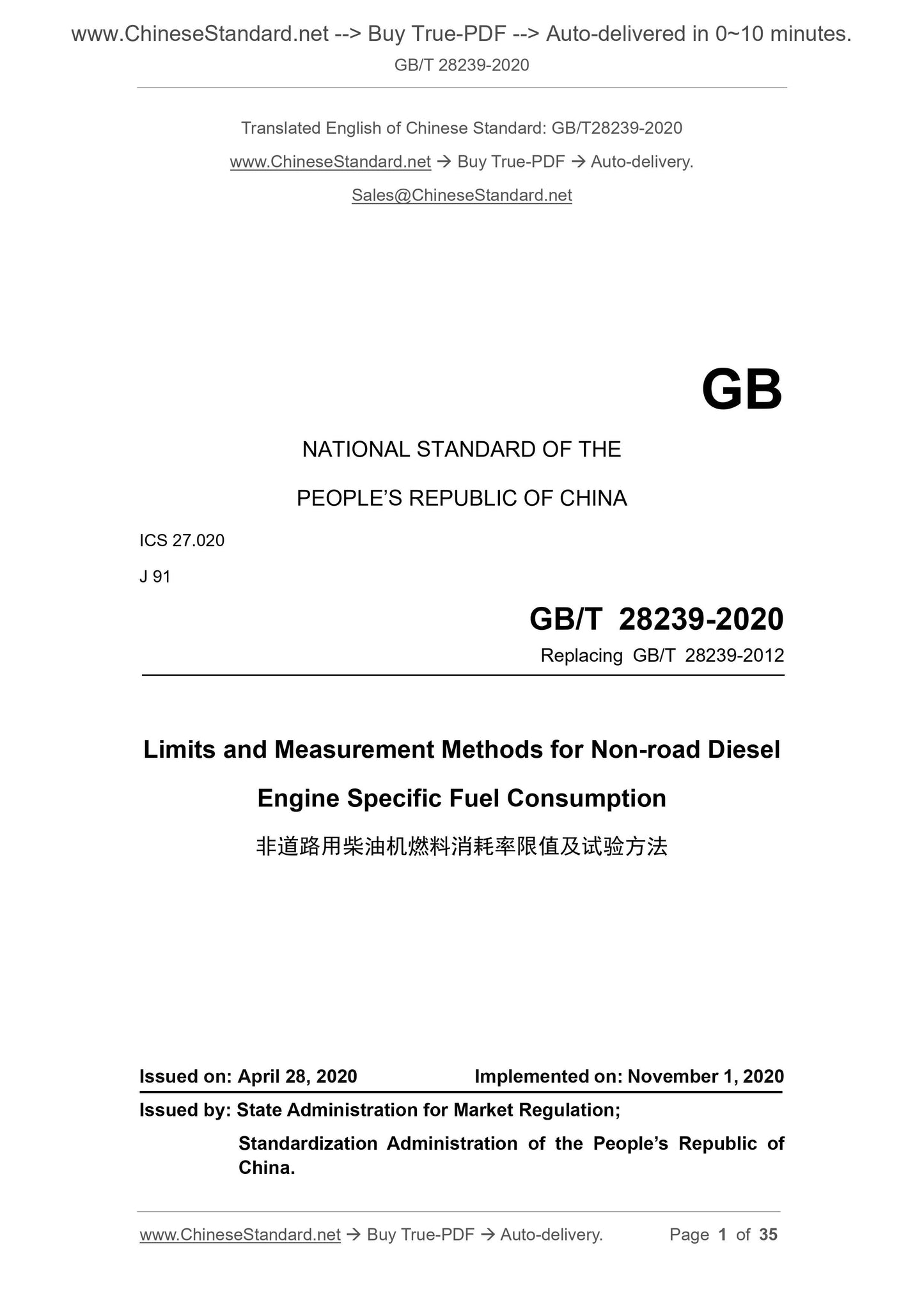

GB/T 28239-2020
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 27.020
J 91
Replacing GB/T 28239-2012
Limits and Measurement Methods for Non-road Diesel
Engine Specific Fuel Consumption
ISSUED ON: APRIL 28, 2020
IMPLEMENTED ON: NOVEMBER 1, 2020
Issued by: State Administration for Market Regulation;
Standardization Administration of the PEOPLE Republic of
China.

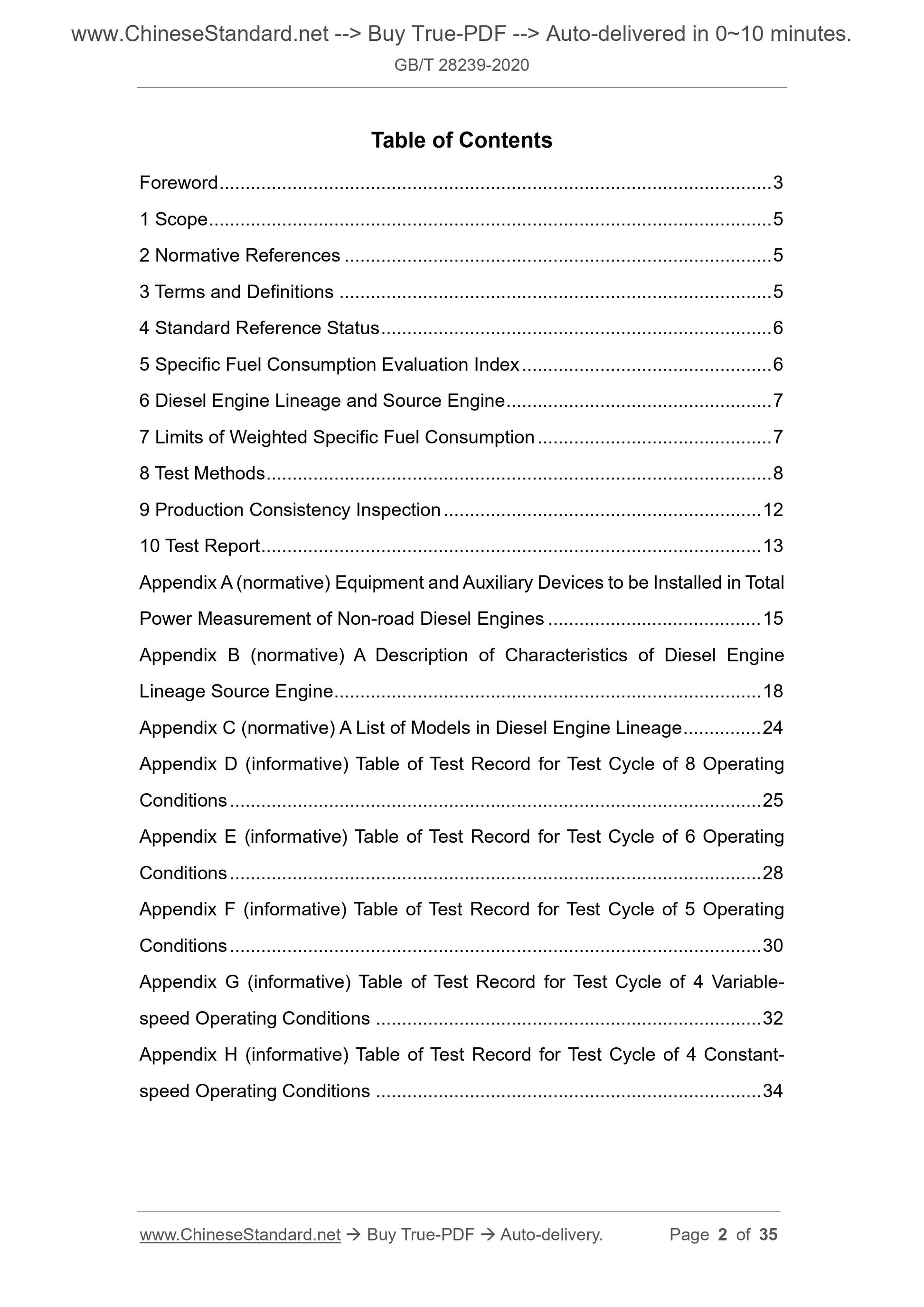

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative References ... 5
3 Terms and Definitions ... 5
4 Standard Reference Status ... 6
5 Specific Fuel Consumption Evaluation Index ... 6
6 Diesel Engine Lineage and Source Engine ... 7
7 Limits of Weighted Specific Fuel Consumption ... 7
8 Test Methods ... 8
9 Production Consistency Inspection ... 12
10 Test Report ... 13
Appendix A (normative) Equipment and Auxiliary Devices to be Installed in Total Power Measurement of Non-road Diesel Engines ... 15
Appendix B (normative) A Description of Characteristics of Diesel Engine Lineage Source Engine ... 18
Appendix C (normative) A List of Models in Diesel Engine Lineage ... 24 Appendix D (informative) Table of Test Record for Test Cycle of 8 Operating Conditions ... 25
Appendix E (informative) Table of Test Record for Test Cycle of 6 Operating Conditions ... 28
Appendix F (informative) Table of Test Record for Test Cycle of 5 Operating Conditions ... 30
Appendix G (informative) Table of Test Record for Test Cycle of 4 Variable- speed Operating Conditions ... 32
Appendix H (informative) Table of Test Record for Test Cycle of 4 Constant- speed Operating Conditions ... 34
Limits and Measurement Methods for Non-road Diesel
Engine Specific Fuel Consumption

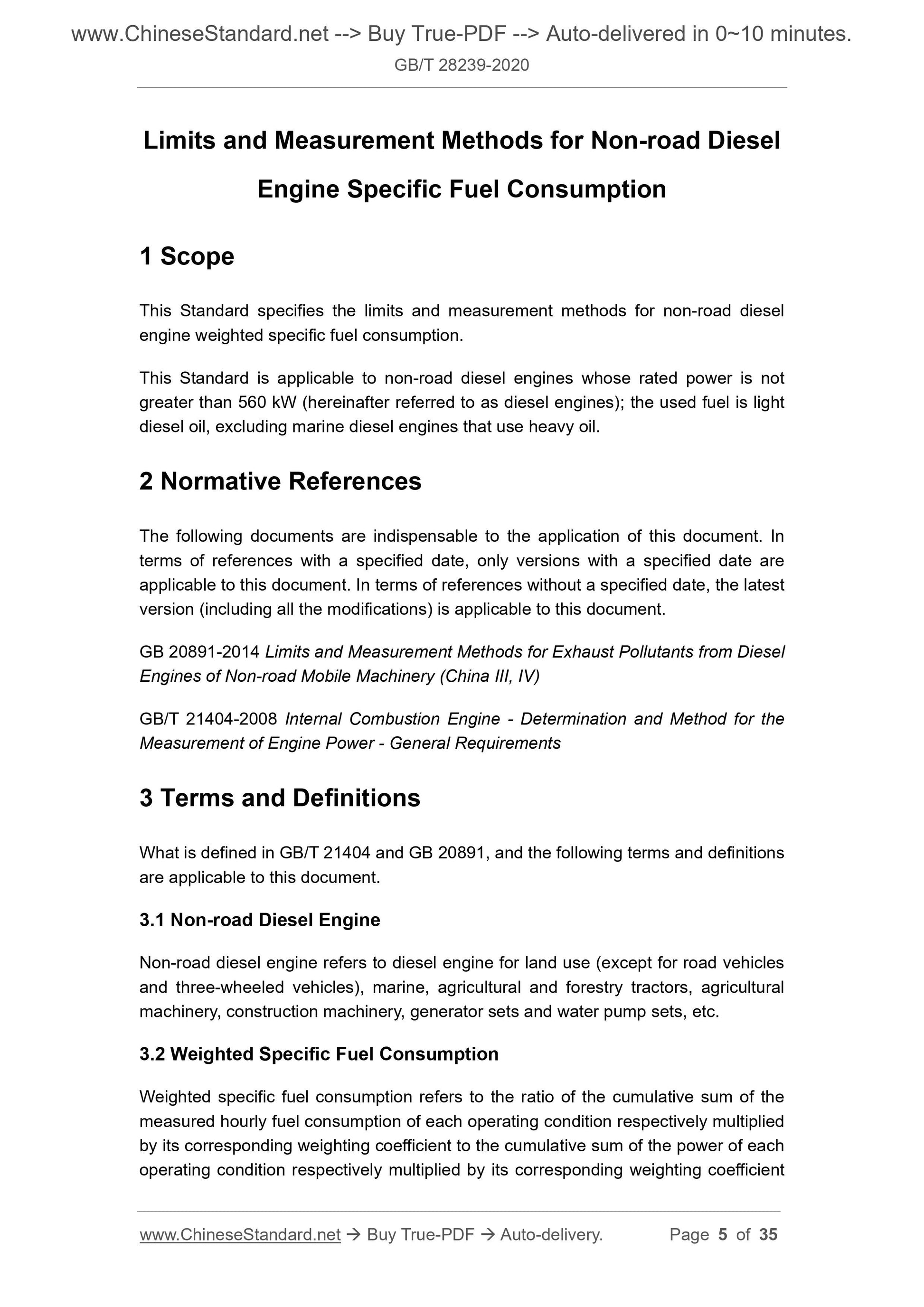

1 Scope
This Standard specifies the limits and measurement methods for non-road diesel engine weighted specific fuel consumption.
This Standard is applicable to non-road diesel engines whose rated power is not greater than 560 kW (hereinafter referred to as diesel engines); the used fuel is light diesel oil, excluding marine diesel engines that use heavy oil.
2 Normative References
The following documents are indispensable to the application of this document. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB 20891-2014 Limits and Measurement Methods for Exhaust Pollutants from Diesel Engines of Non-road Mobile Machinery (China III, IV)
GB/T 21404-2008 Internal Combustion Engine - Determination and Method for the Measurement of Engine Power - General Requirements
3 Terms and Definitions
What is defined in GB/T 21404 and GB 20891, and the following terms and definitions are applicable to this document.
3.1 Non-road Diesel Engine
Non-road diesel engine refers to diesel engine for land use (except for road vehicles and three-wheeled vehicles), marine, agricultural and forestry tractors, agricultural machinery, construction machinery, generator sets and water pump sets, etc. 3.2 Weighted Specific Fuel Consumption
Weighted specific fuel consumption refers to the ratio of the cumulative sum of the measured hourly fuel consumption of each operating condition respectively multiplied by its corresponding weighting coefficient to the cumulative sum of the power of each operating condition respectively multiplied by its corresponding weighting coefficient value 42,700 kJ/kg, expressed in [g(kw???h)];
gewf---specific fuel consumption obtained during the measurement, expressed in [g(kw???h)];
Huf---the low calorific value of fuel used in the measurement, expressed in (kJ/kg); Hub---reference low calorific value of fuel, namely, 42,700 kJ/kg.

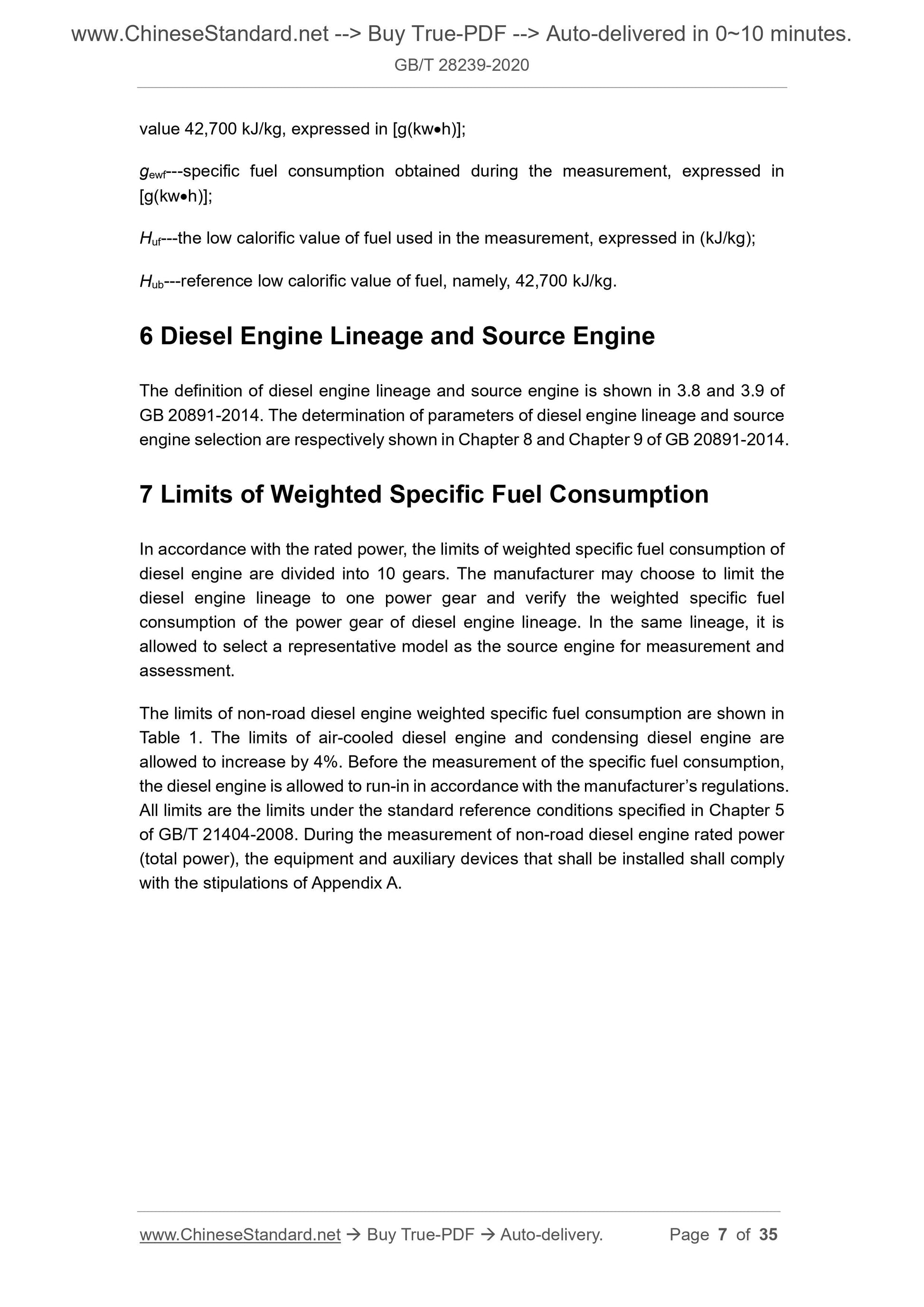

6 Diesel Engine Lineage and Source Engine
The definition of diesel engine lineage and source engine is shown in 3.8 and 3.9 of GB 20891-2014. The determination of parameters of diesel engine lineage and source engine selection are respectively shown in Chapter 8 and Chapter 9 of GB 20891-2014. 7 Limits of Weighted Specific Fuel Consumption
In accordance with the rated power, the limits of weighted specific fuel consumption of diesel engine are divided into 10 gears. The manufacturer may choose to limit the diesel engine lineage to one power gear and verify the weighted specific fuel consumption of the power gear of diesel engine lineage. In the same lineage, it is allowed to select a representative model as the source engine for measurement and assessment.
The limits of non-road diesel engine weighted specific fuel consumption are shown in Table 1. The limits of air-cooled diesel engine and condensing diesel engine are allowed to increase by 4%. Before the measurement of the specific fuel consumption, the diesel engine is allowed to run-in in accordance with the manufacturer?€?s regulations. All limits are the limits under the standard reference conditions specified in Chapter 5 of GB/T 21404-2008. During the measurement of non-road diesel engine rated power (total power), the equipment and auxiliary devices that shall be installed shall comply with the stipulations of Appendix A.

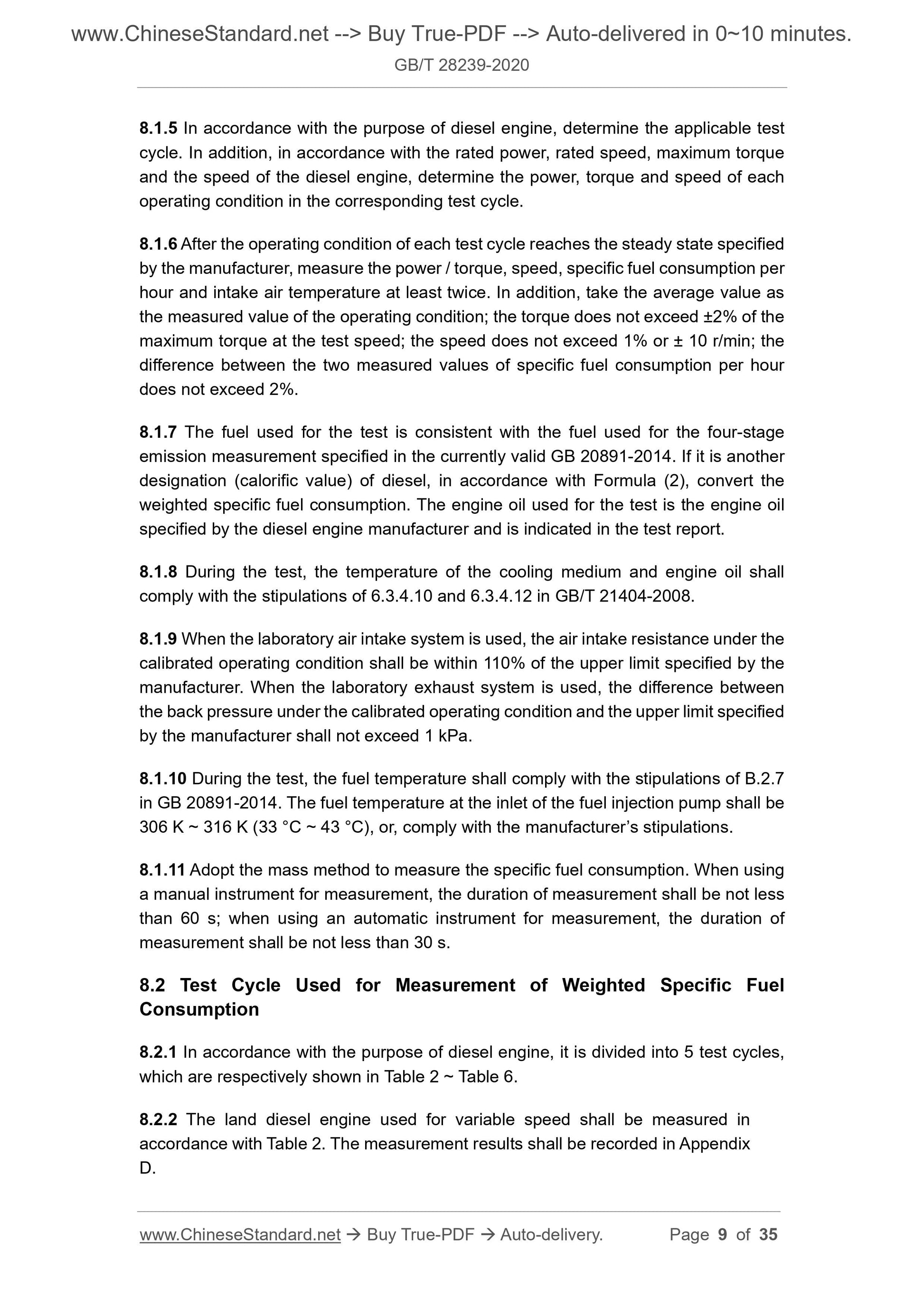

8.1.5 In accordance with the purpose of diesel engine, determine the applicable test cycle. In addition, in accordance with the rated power, rated speed, maximum torque and the speed of the diesel engine, determine the power, torque and speed of each operating condition in the corresponding test cycle.
8.1.6 After the operating condition of each test cycle reaches the steady state specified by the manufacturer, measure the power / torque, speed, specific fuel consumption per hour and intake air temperature at least twice. In addition, take the average value as the measured value of the operating condition; the torque does not exceed ??2% of the maximum torque at the test speed; the speed does not exceed 1% or ?? 10 r/min; the difference between the two measured values of specific fuel consumption per hour does not exceed 2%.
8.1.7 The fuel used for the test is consistent with the fuel used for the four-stage emission measurement specified in the currently valid GB 20891-2014. If it is another designation (calorific value) of diesel, in accordance with Formula (2), convert the weighted specific fuel consumption. The engine oil used for the test is the engine oil specified by the diesel engine manufacturer and is indicated in the test report. 8.1.8 During the test, the temperature of the cooling medium and engine oil shall comply with the stipulations of 6.3.4.10 and 6.3.4.12 in GB/T 21404-2008. 8.1.9 When the laboratory air intake system is used, the air intake resistance under the calibrated operating condition shall be within 110% of the upper limit specified by the manufacturer. When the laboratory exhaust system is used, the difference between the back pressure under the calibrated operating condition and the upper limit specified by the manufacturer shall not exceed 1 kPa.
8.1.10 During the test, the fuel temperature shall comply with the stipulations of B.2.7 in GB 20891-2014. The fuel temperature at the inlet of the fuel injection pump shall be 306 K ~ 316 K (33 ??C ~ 43 ??C), or, comply with the manufacturer?€?s stipulations. 8.1.11 Adopt the mass method to measure the specific fuel consumption. When using a manual instrument for measurement, the duration of measurement shall be not less than 60 s; when using an automatic instrument for measurement, the duration of measurement shall be not less than 30 s.
8.2 Test Cycle Used for Measurement of Weighted Specific Fuel
Consumption
8.2.1 In accordance with the purpose of diesel engine, it is divided into 5 test cycles, which are respectively shown in Table 2 ~ Table 6.
8.2.2 The land diesel engine used for variable speed shall be measured in accordance with Table 2. The measurement results shall be recorded in Appendix D.
Appendix B
(Normative)
A Description of Characteristics of Diesel Engine Lineage Source
Engine

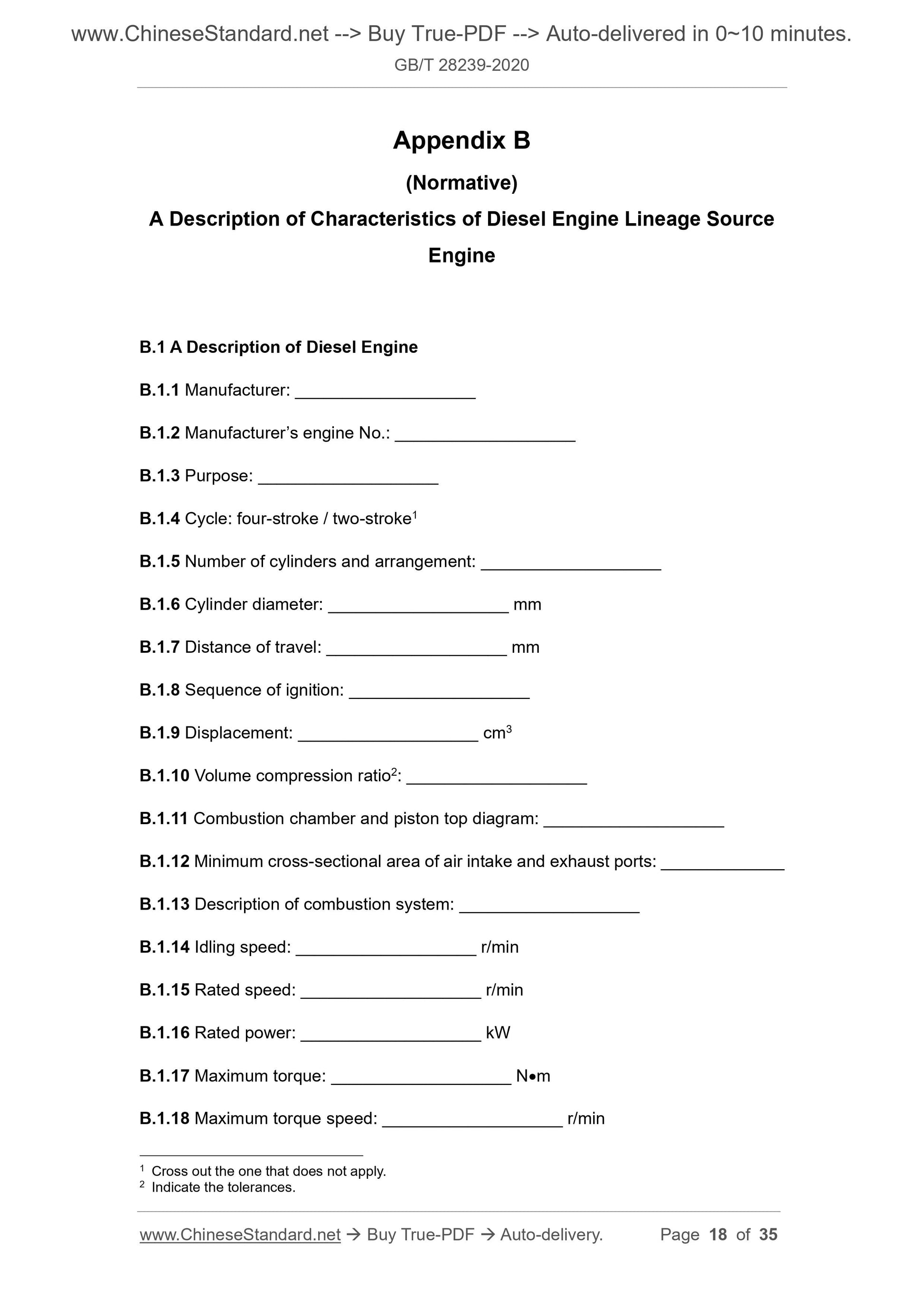

B.1 A Description of Diesel Engine
B.1.1 Manufacturer: ___________________
B.1.2 Manufacturer?€?s engine No.: ___________________
B.1.3 Purpose: ___________________
B.1.4 Cycle: four-stroke / two-stroke1
B.1.5 Number of cylinders and arrangement: ___________________
B.1.6 Cylinder diameter: ___________________ mm
B.1.7 Distance of travel: ___________________ mm
B.1.8 Sequence of ignition: ___________________
B.1.9 Displacement: ___________________ cm3
B.1.10 Volume compression ratio2: ___________________
B.1.11 Combustion chamber and piston top diagram: ___________________
B.1.12 Minimum cross-sectional area of air intake and exhaust ports: _____________ B.1.13 Description of combustion system: ___________________
B.1.14 Idling speed: ___________________ r/min
B.1.15 Rated speed: ___________________ r/min
B.1.16 Rated power: ___________________ kW
B.1.17 Maximum torque: ___________________ N???m
B.1.18 Maximum torque speed: ___________________ r/min
1 Cross out the one that does not apply.
2 Indicate the tolerances.
Appendix D
(Informative)

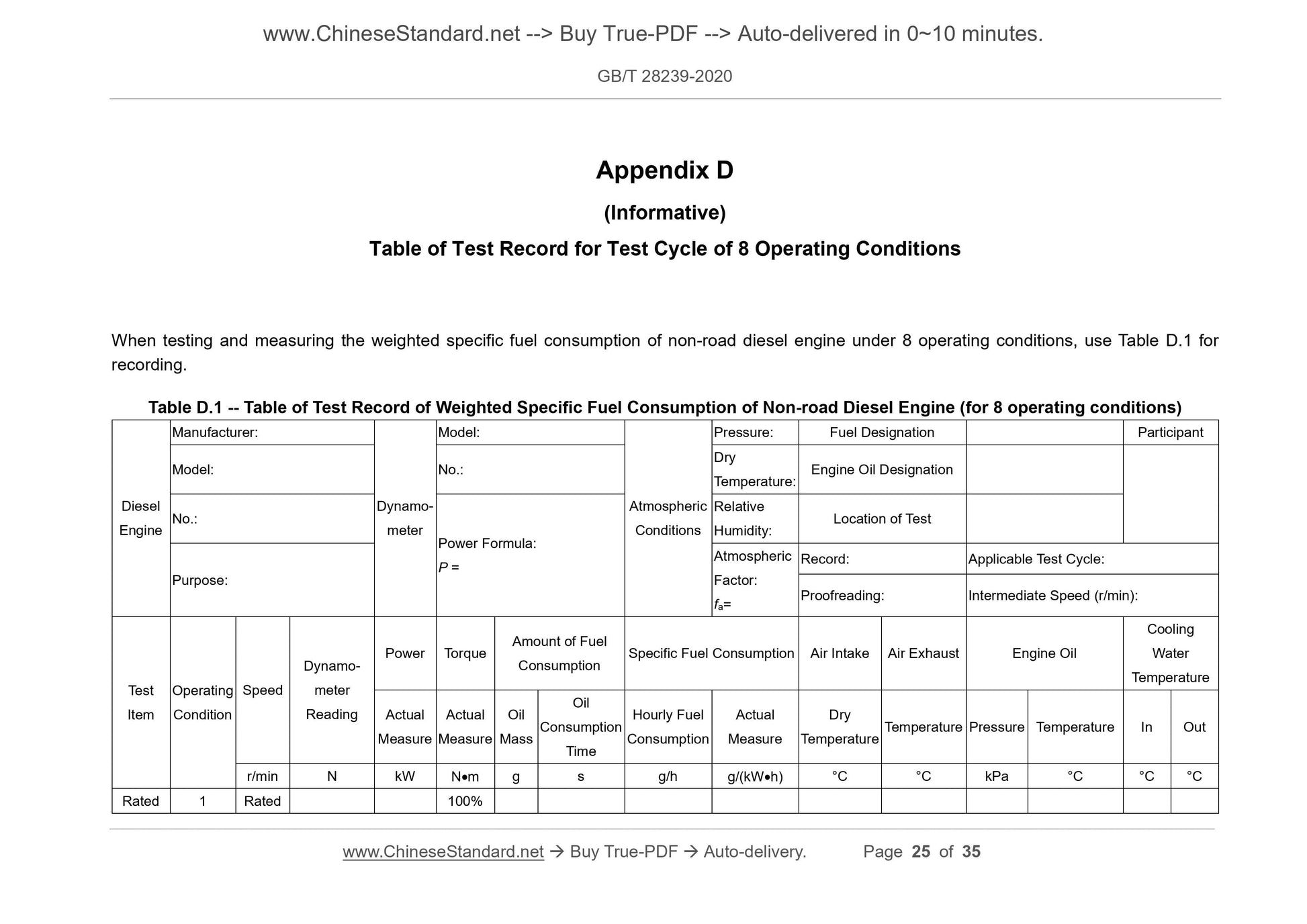

Table of Test Record for Test Cycle of 8 Operating Conditions
When testing and measuring the weighted specific fuel consumption of non-road diesel engine under 8 operating conditions, use Table D.1 for recording.
Table D.1 -- Table of Test Record of Weighted Specific Fuel Consumption of Non-road Diesel Engine (for 8 operating conditions) Diesel
Engine
Manufacturer:
Dynamo-
meter
Model:
Atmospheric
Conditions
Pressure: Fuel Designation Participant
Model: No.: Dry Temperature: Engine Oil Designation
No.:
Power Formula:
P =
Relative
Humidity: Location of Test
Purpose:
Atmospheric
Factor:
fa=
Record: Applicable Test Cycle:
Proofreading: Intermediate Speed (r/min):
Test
Item
Operating
Condition
Speed
Dynamo-
meter
Reading
Power Torque Amount of Fuel Consumption Specific Fuel Consumption Air Intake Air Exhaust Engine Oil Cooling
Water
Temperature
Actual
Measure
Actual
Measure
Oil
Mass
Oil
Consumption
Time
Hourly Fuel
Consumption
Actual
Measure
Dry
Temperature Temperature Pressure Temperature In Out
r/min N kW N???m g s g/h g/(kW???h) ??C ??C kPa ??C ??C ??C

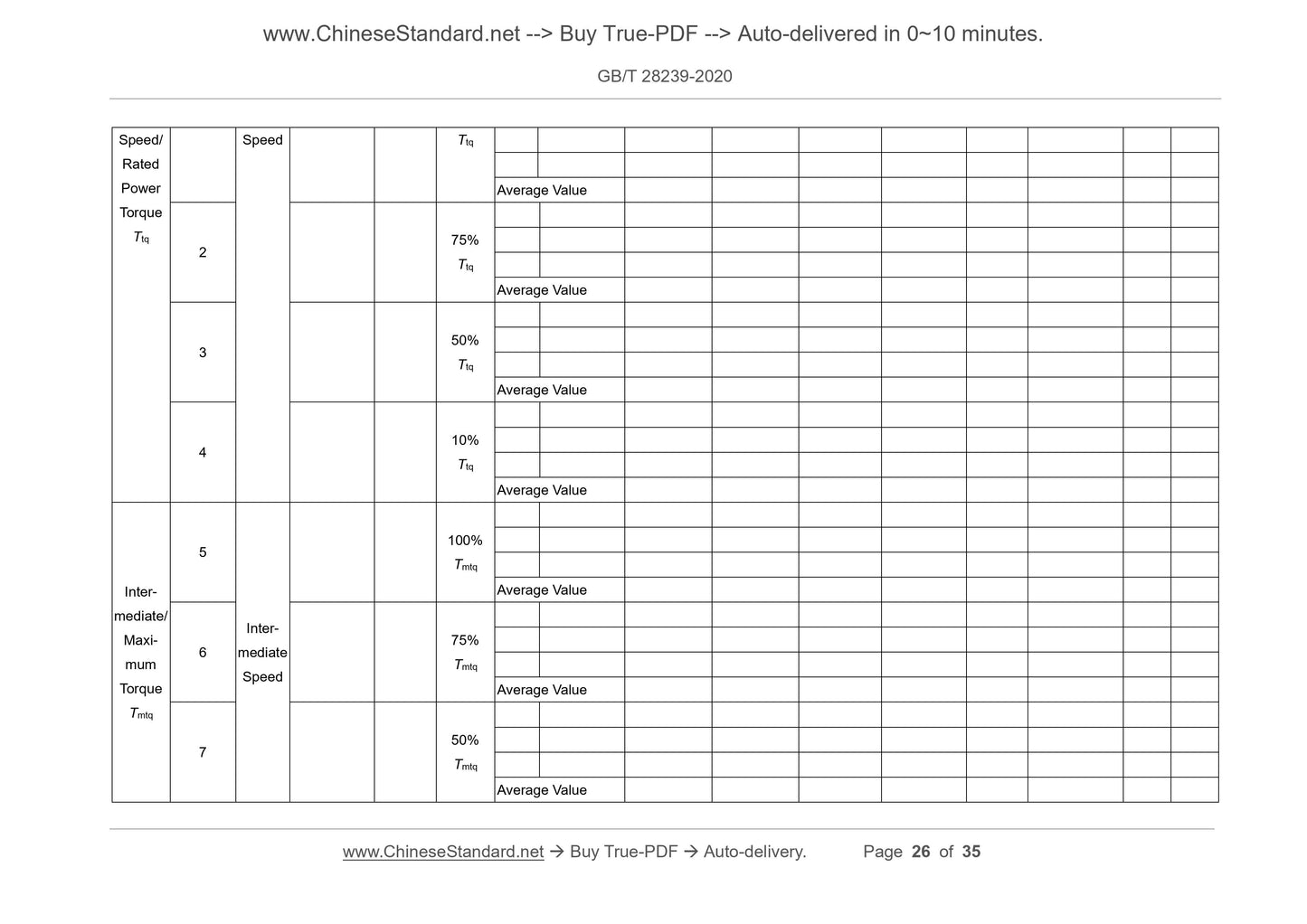

Rated 1 Rated 100%
Speed/
Rated
Power
Torque
Ttq
Speed Ttq
Average Value

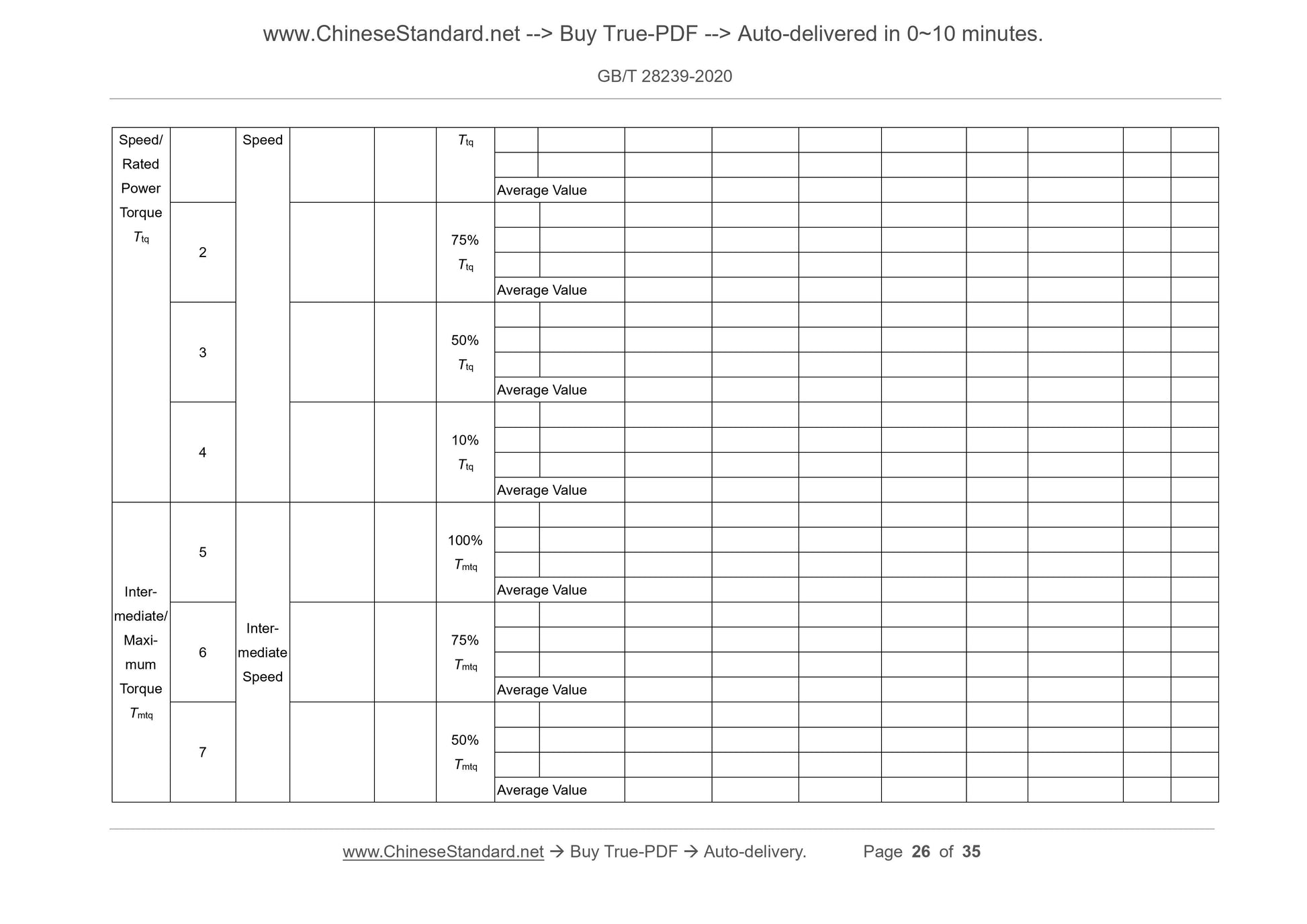

2 75%
Ttq
Average Value
3 50%
Ttq
Average Value
4 10%
Ttq
Average Value
Inter-
mediate/
Maxi-
mum
Torque
Tmtq
Inter-
mediate
Speed
100%
Tmtq
Average Value
6 75%
Tmtq
Average Value
7 50%
Tmtq
Average Value
8 Idling Speed 0
Average Value

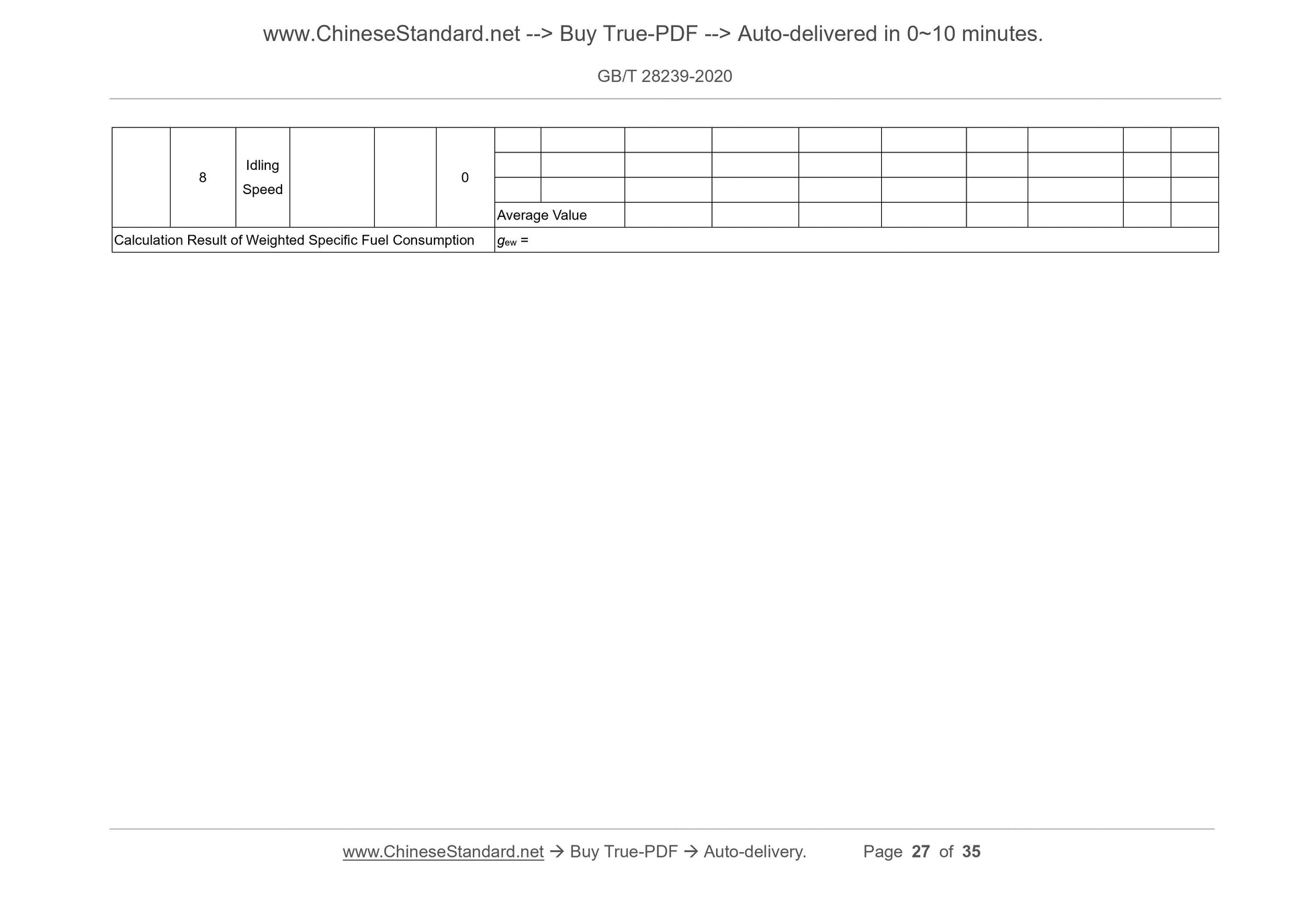

Calculation Result of Weighted Specific Fuel Consumption gew =
Appendix E
(Informative)

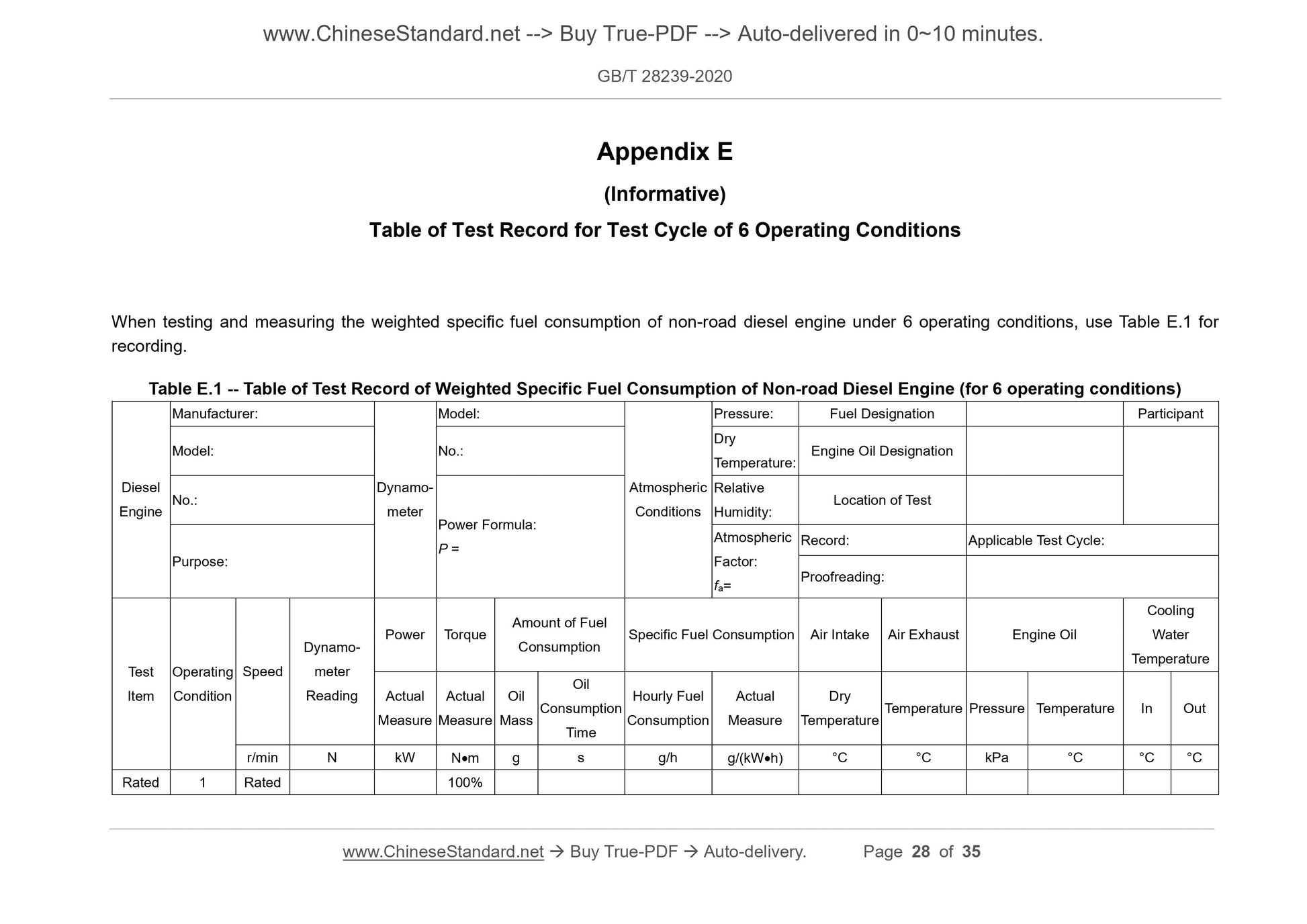

Table of Test Record for Test Cycle of 6 Operating Conditions
When testing and measuring the weighted specific fuel consumption of non-road diesel engine under 6 operating conditions, use Table E.1 for recording.
Table E.1 -- Table of Test Record of Weighted Specific Fuel Consumption of Non-road Diesel Engine (for 6 operating conditions) Diesel
Engine
Manufacturer:
Dynamo-
meter
Model:
Atmospheric
Conditions
Pressure: Fuel Designation Participant
Model: No.: Dry Temperature: Engine Oil Designation
No.:
Power Formula:
P =
Relative
Humidity: Location of Test
Purpose:
Atmospheric
Factor:
fa=
Record: Applicable Test Cycle:
Proofreading:
Test
Item
Operating
Condition
Speed
Dynamo-
meter
Reading
Power Torque Amount of Fuel Consumption Specific Fuel Consumption Air Intake Air Exhaust Engine Oil Cooling
Water
Temperature
Actual
Measure
Actual
Measure
Oil
Mass
Oil
Consumption
Time
Hourly Fuel
Consumption
Actual
Measure
Dry
Temperature Temperature Pressure Temperature In Out
r/min N kW N???m g s g/h g/(kW???h) ??C ??C kPa ??C ??C ??C
Rated 1 Rated 100%

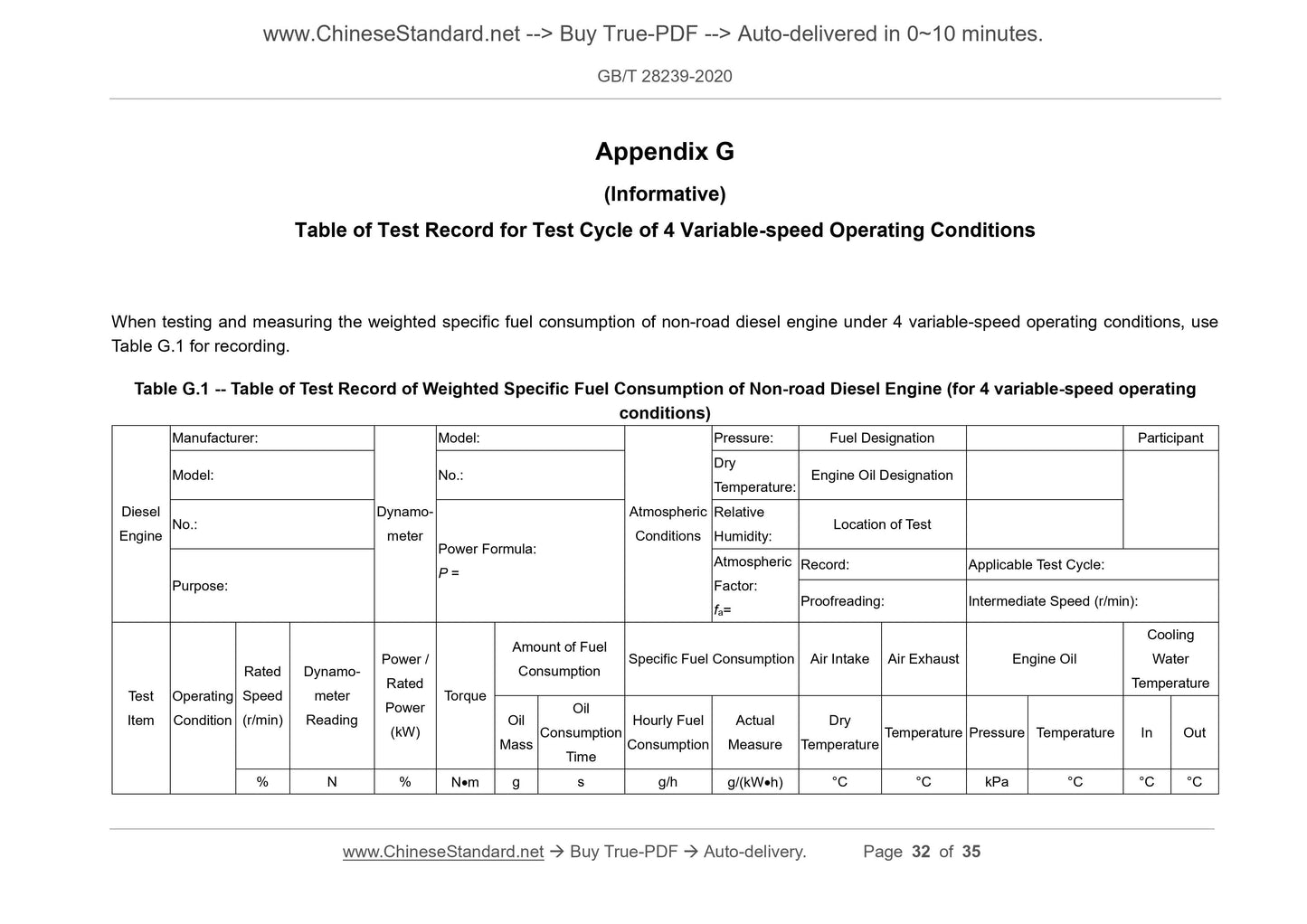

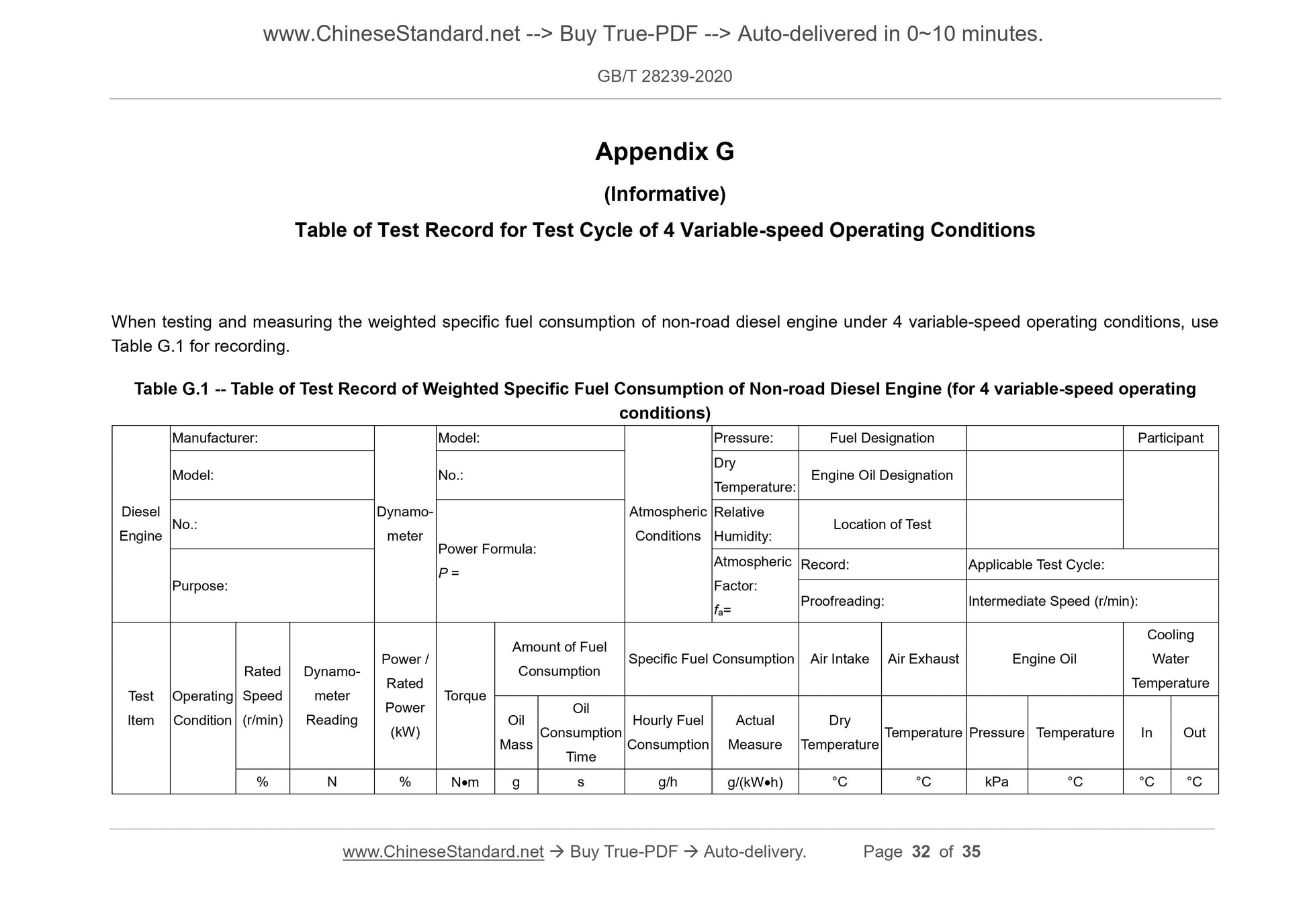

Appendix G
(Informative)
Table of Test Record for Test Cycle of 4 Variable-speed Operating Conditions When testing and measuring the weighted specific fuel consumption of non-road diesel engine under 4 variable-speed operating conditions, use Table G.1 for recording.
Table G.1 -- Table of Test Record of Weighted Specific Fuel Consumption of Non-road Diesel Engine (for 4 variable-speed operating conditions)
Diesel
Engine
Manufacturer:
Dynamo-
meter
Model:
Atmospheric
Conditions
Pressure: Fuel Designation Participant
Model: No.: Dry Temperature: Engine Oil Designation
No.:
Power Formula:
P =
Relative
Humidity: Location of Test
Purpose:
Atmospheric
Factor:
fa=
Record: Applicable Test Cycle:
Proofreading: Intermediate Speed (r/min):
Test
Item
Operating
Condition
Rated
Speed
(r/min)
Dynamo-
meter
Reading
Power /
Rated
Power
(kW)
Torque
Amount of Fuel
Consumption Specific Fuel Consumption Air Intake Air Exhaust Engine Oil Cooling
Water
Temperature
Oil
Mass
Oil
Consumption
Time
Hourly Fuel
Consumption
Actual
Measure
Dry
Temperature Temperature Pressure Temperature In Out
% N % N???m g s g/h g/(kW???h) ??C ??C kPa ??C ??C ??C
