GB/T 2818-2014: Submersible motor for deep well

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 2818-2014 (Self-service in 1-minute)
Newer / historical versions: GB/T 2818-2014

Preview True-PDF

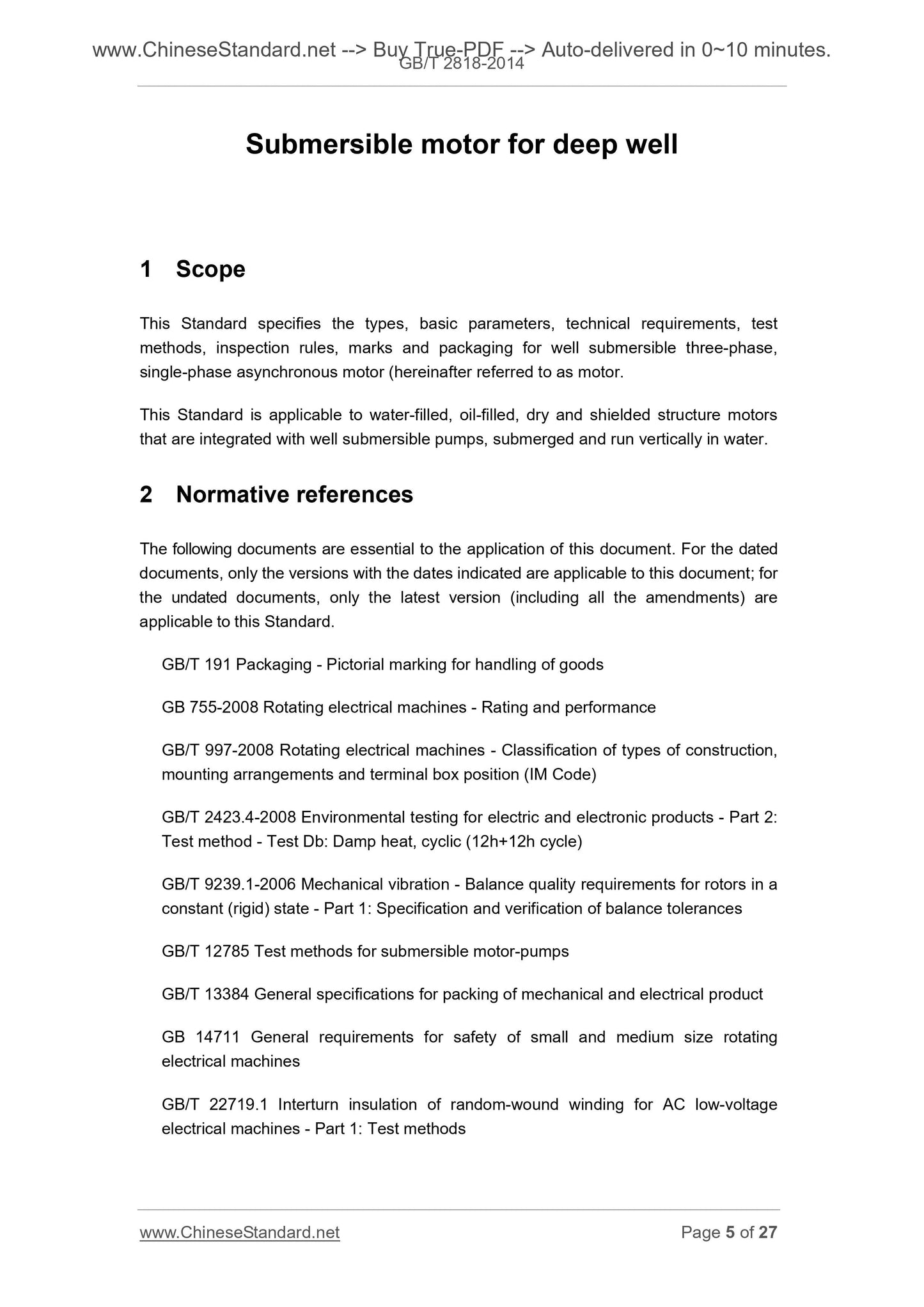

Scope

This Standard specifies the types, basic parameters, technical requirements, test
methods, inspection rules, marks and packaging for well submersible three-phase,
single-phase asynchronous motor (hereinafter referred to as motor.
This Standard is applicable to water-filled, oil-filled, dry and shielded structure motors
that are integrated with well submersible pumps, submerged and run vertically in water.

Basic Data

Standard ID	GB/T 2818-2014 (GB/T2818-2014)
Description (Translated English)	Submersible motor for deep well
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	B91
Classification of International Standard	65.060.35
Word Count Estimation	20,246
Date of Issue	6/9/2014
Date of Implementation	1/1/2015
Older Standard (superseded by this standard)	GB/T 2818-2002
Quoted Standard	GB/T 191; GB 755-2008; GB/T 997-2008; GB/T 2423.4-2008; GB/T 9239.1-2006; GB/T 12785; GB/T 13384; GB 14711; GB/T 22719.1
Regulation (derived from)	National Standards Bulletin No. 11 of 2014
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This Standard specifies the wells with submersible three-phase, single asynchronous motor (hereinafter referred to as motor) type, basic parameters, technical requirements, test methods, inspection rules, signs and packaging. This Standard applies to well
