This Standard specifies the acceptance levels of magnetic particle test indication for deficiencies in ferromagnetic steel welds. This acceptance levels are mainly used for manufacturing inspection and, if deemed appropriate, for in-service inspection.

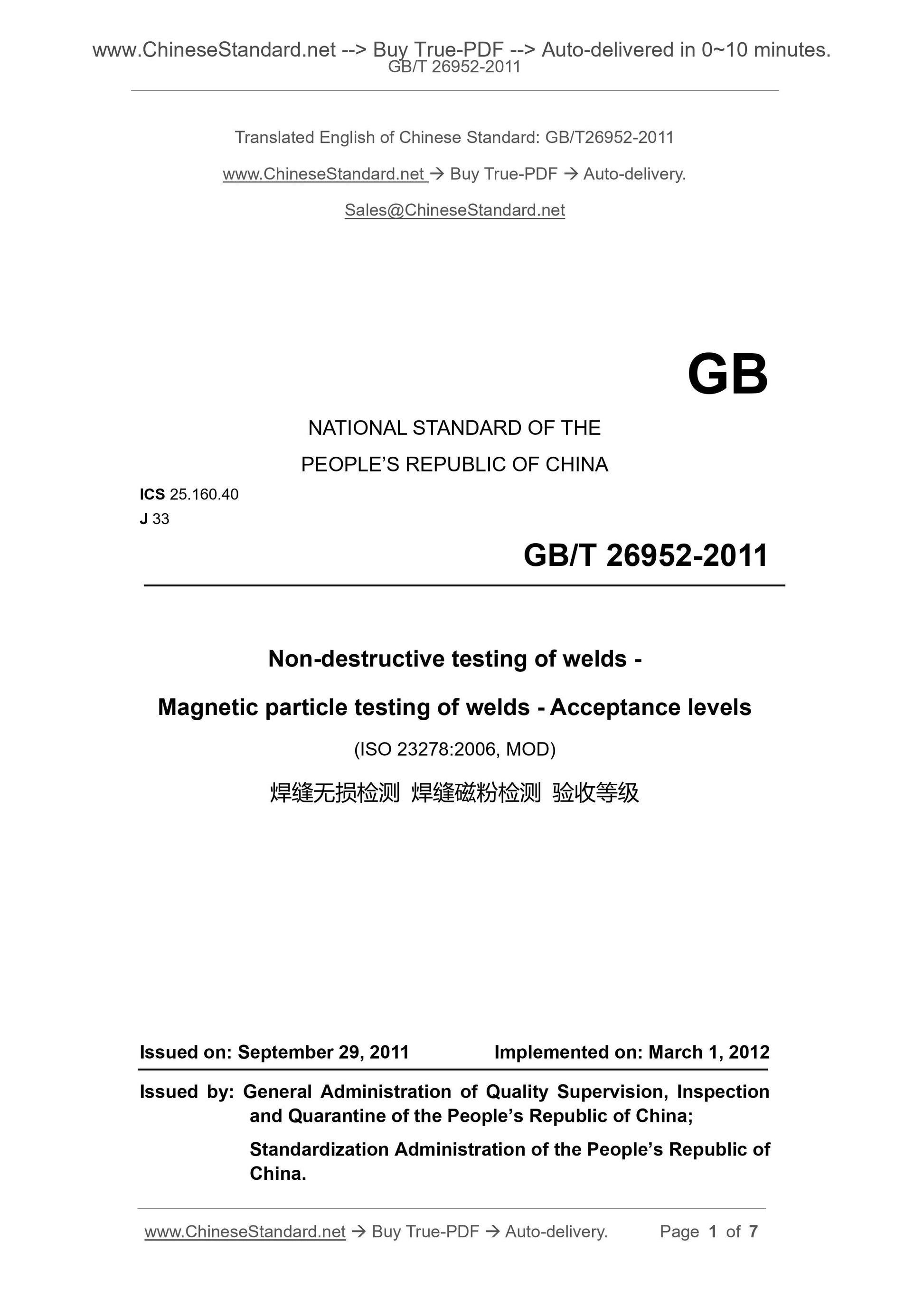

GB/T 26952-2011
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 25.160.40
J 33
Non-destructive testing of welds -
Magnetic particle testing of welds - Acceptance levels
(ISO 23278.2006, MOD)
ISSUED ON. SEPTEMBER 29, 2011
IMPLEMENTED ON. MARCH 1, 2012
Issued by. General Administration of Quality Supervision, Inspection
and Quarantine of the People’s Republic of China;
Standardization Administration of the People’s Republic of
China.

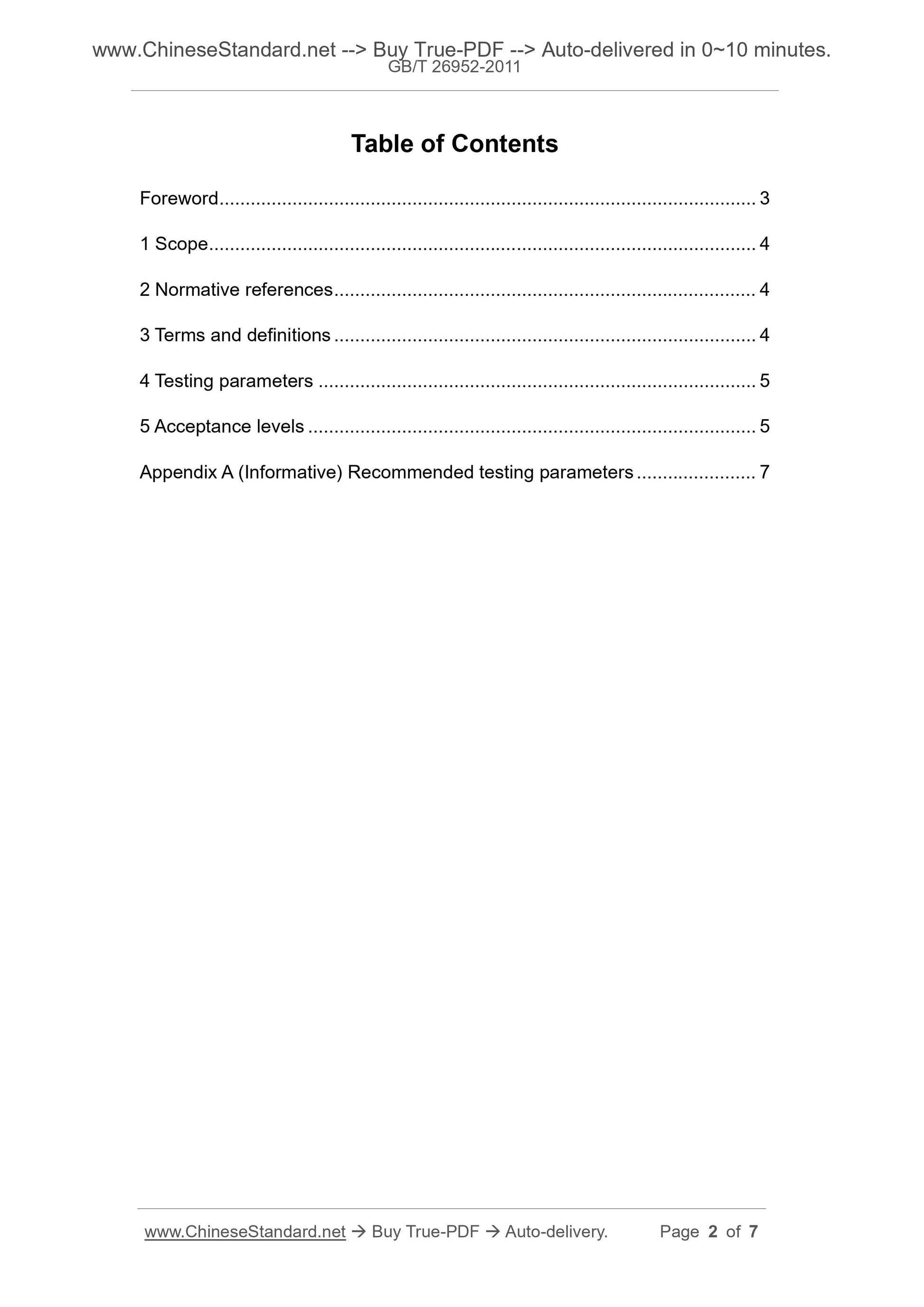

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Testing parameters ... 5
5 Acceptance levels ... 5
Appendix A (Informative) Recommended testing parameters ... 7

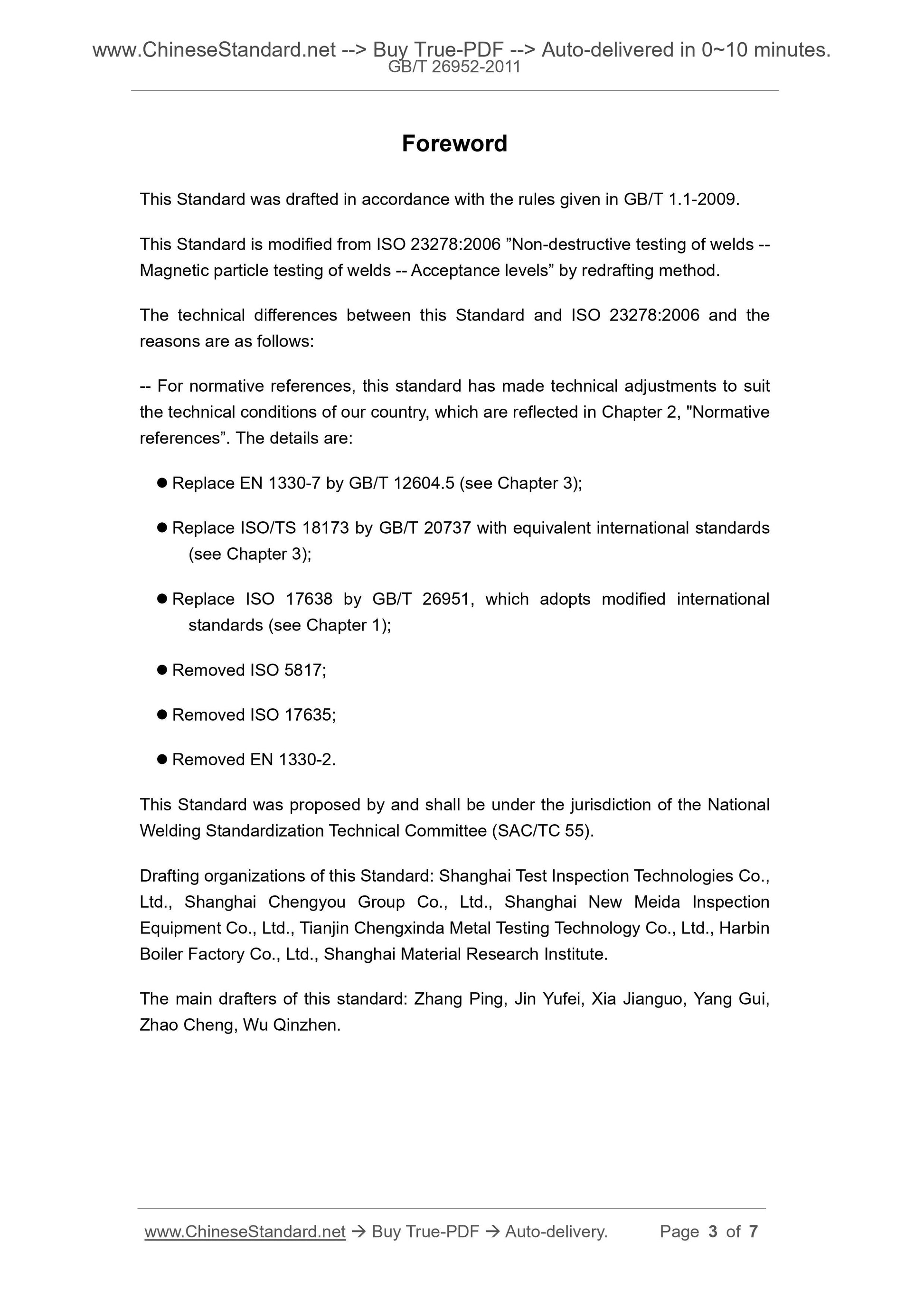

Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009. This Standard is modified from ISO 23278.2006 ”Non-destructive testing of welds -- Magnetic particle testing of welds -- Acceptance levels” by redrafting method. The technical differences between this Standard and ISO 23278.2006 and the reasons are as follows.
-- For normative references, this standard has made technical adjustments to suit the technical conditions of our country, which are reflected in Chapter 2, "Normative references”. The details are.
 Replace EN 1330-7 by GB/T 12604.5 (see Chapter 3);
 Replace ISO/TS 18173 by GB/T 20737 with equivalent international standards (see Chapter 3);
 Replace ISO 17638 by GB/T 26951, which adopts modified international
standards (see Chapter 1);
 Removed ISO 5817;
 Removed ISO 17635;
 Removed EN 1330-2.
This Standard was proposed by and shall be under the jurisdiction of the National Welding Standardization Technical Committee (SAC/TC 55).
Drafting organizations of this Standard. Shanghai Test Inspection Technologies Co., Ltd., Shanghai Chengyou Group Co., Ltd., Shanghai New Meida Inspection
Equipment Co., Ltd., Tianjin Chengxinda Metal Testing Technology Co., Ltd., Harbin Boiler Factory Co., Ltd., Shanghai Material Research Institute.
The main drafters of this standard. Zhang Ping, Jin Yufei, Xia Jianguo, Yang Gui, Zhao Cheng, Wu Qinzhen.

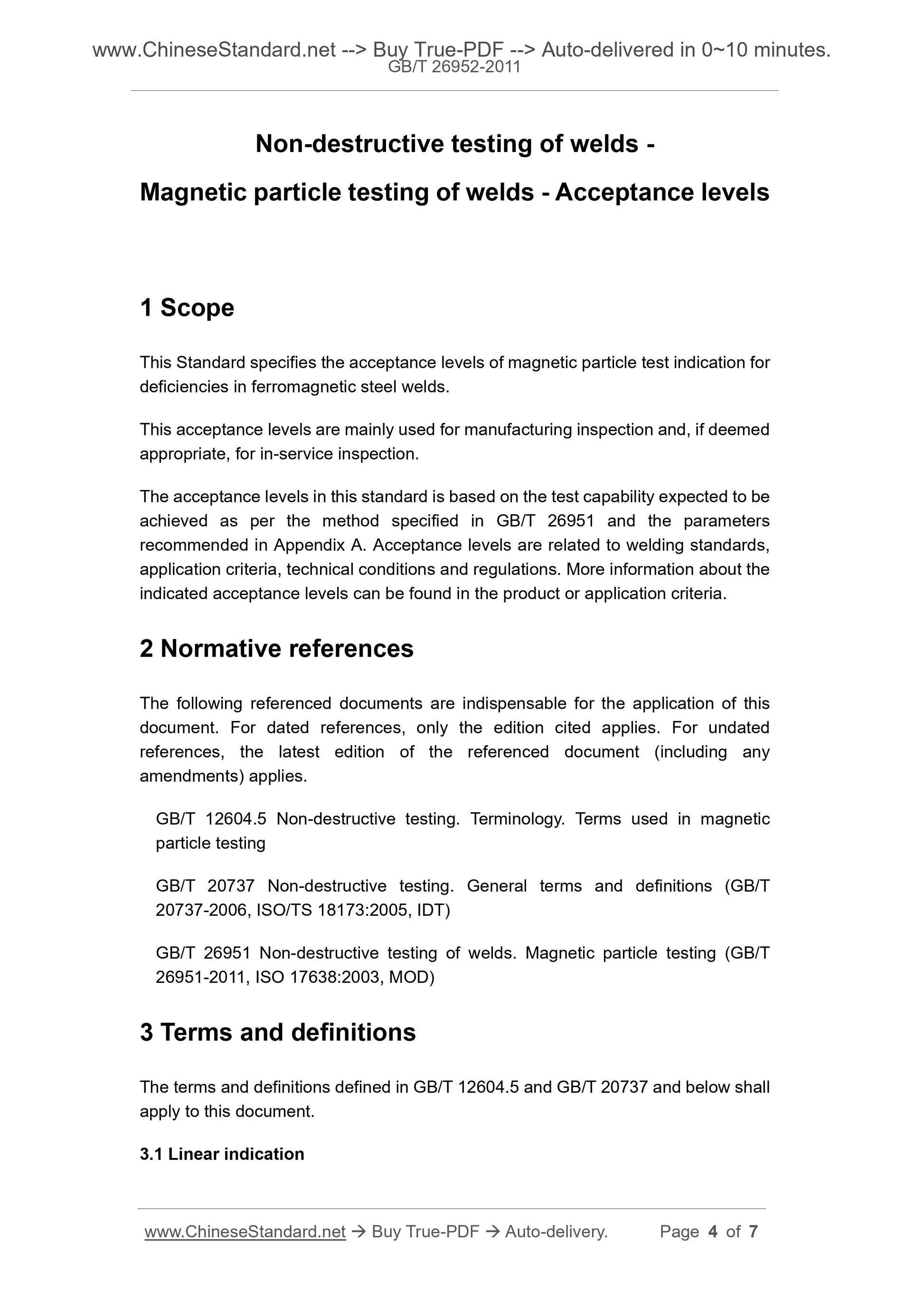

Non-destructive testing of welds -
Magnetic particle testing of welds - Acceptance levels
1 Scope
This Standard specifies the acceptance levels of magnetic particle test indication for deficiencies in ferromagnetic steel welds.
This acceptance levels are mainly used for manufacturing inspection and, if deemed appropriate, for in-service inspection.
The acceptance levels in this standard is based on the test capability expected to be achieved as per the method specified in GB/T 26951 and the parameters
recommended in Appendix A. Acceptance levels are related to welding standards, application criteria, technical conditions and regulations. More information about the indicated acceptance levels can be found in the product or application criteria. 2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
GB/T 12604.5 Non-destructive testing. Terminology. Terms used in magnetic particle testing
GB/T 20737 Non-destructive testing. General terms and definitions (GB/T 20737-2006, ISO/TS 18173.2005, IDT)
GB/T 26951 Non-destructive testing of welds. Magnetic particle testing (GB/T 26951-2011, ISO 17638.2003, MOD)
3 Terms and definitions
The terms and definitions defined in GB/T 12604.5 and GB/T 20737 and below shall apply to this document.
3.1 Linear indication
