GB/T 2673.2-2020: Hexalobular socket high countersunk head screws

This Part of GB/T 2673 specifies the type dimensions, technical conditions and markings of hexalobular socket high countersunk head screws, as well as gauge size that controls the height of the head. This Part is applicable to hexalobular socket high countersunk head screws with the thread specification of M3 ~ M10, the performance grade of 4.8, 8.8 and 10.9, and the product grade of Grade-A.

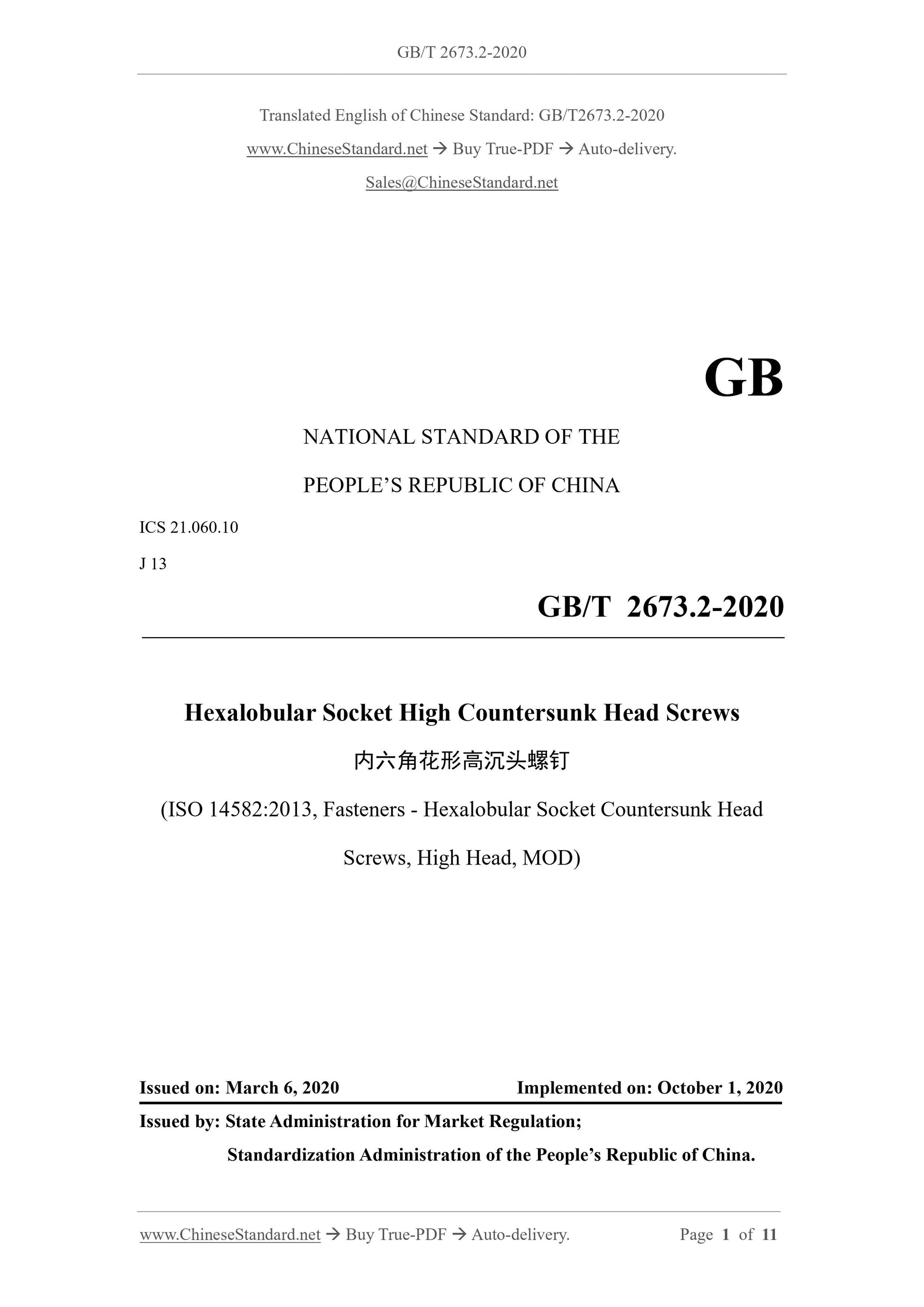

GB/T 2673.2-2020
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 21.060.10
J 13
Hexalobular Socket High Countersunk Head Screws
??????????????????????????????
(ISO 14582:2013, Fasteners - Hexalobular Socket Countersunk Head
Screws, High Head, MOD)
ISSUED ON: MARCH 6, 2020
IMPLEMENTED ON: OCTOBER 1, 2020
Issued by: State Administration for Market Regulation;
Standardization Administration of the PEOPLE Republic of China.

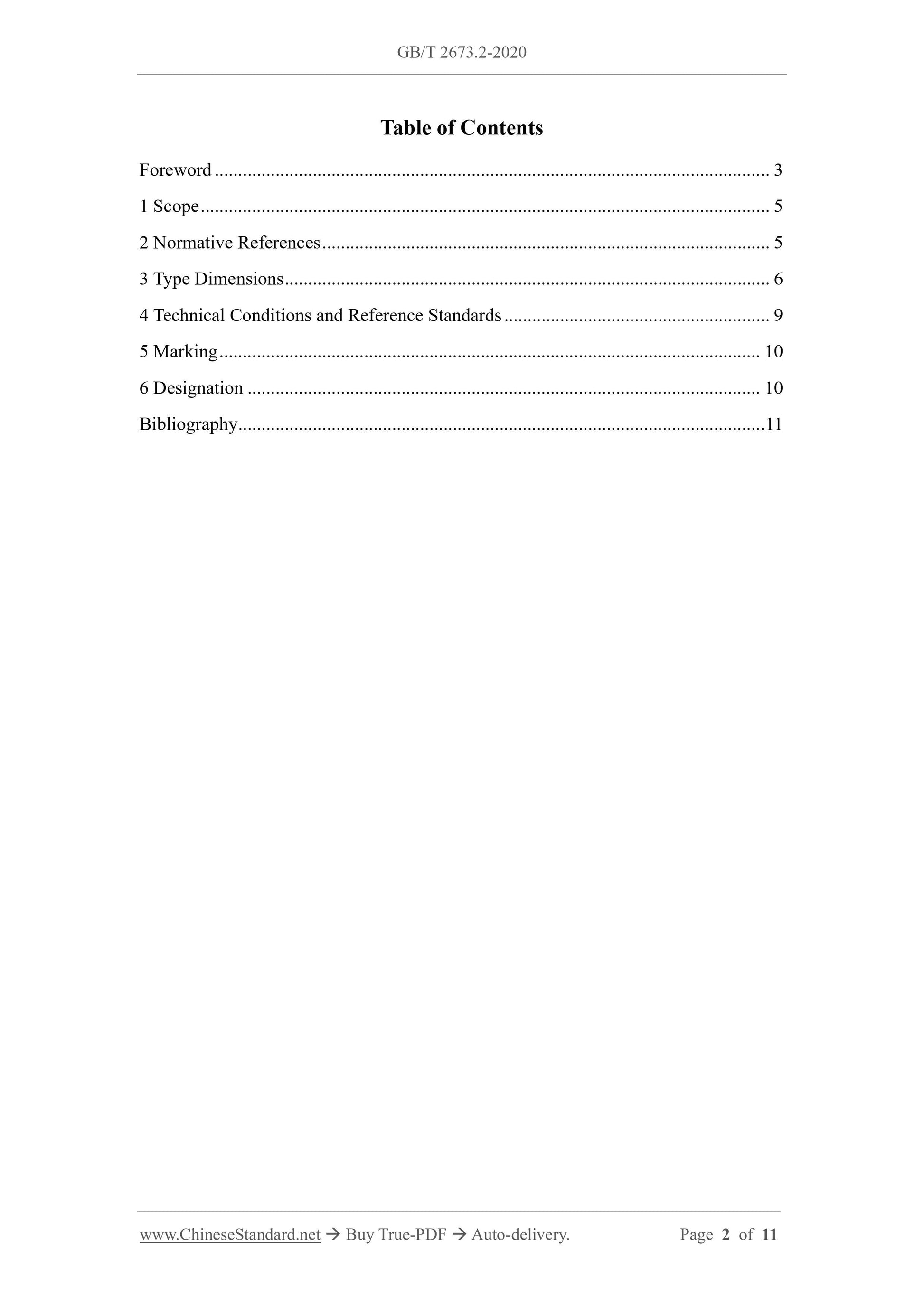

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative References ... 5
3 Type Dimensions ... 6
4 Technical Conditions and Reference Standards ... 9
5 Marking ... 10
6 Designation ... 10
Bibliography ... 11

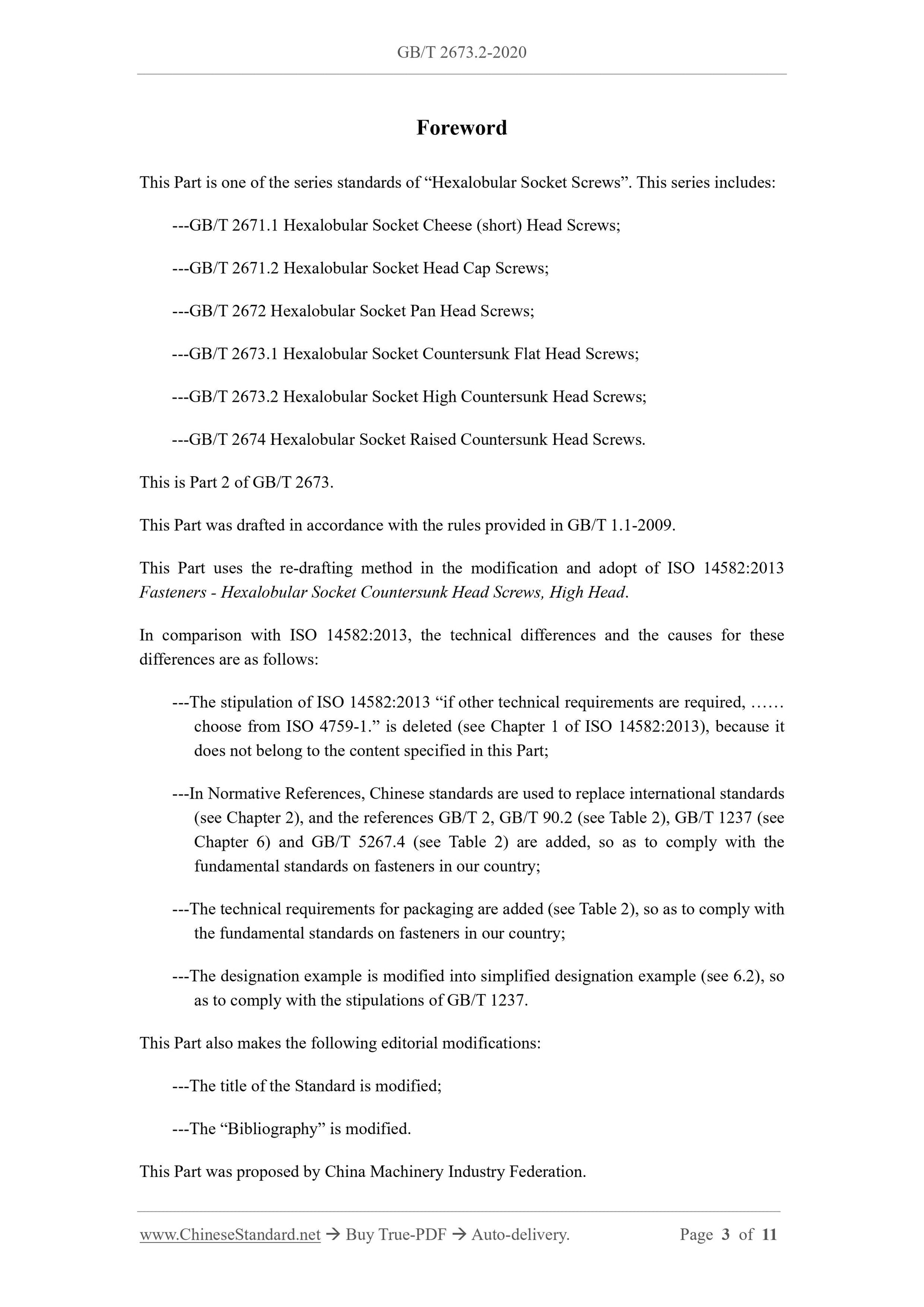

Foreword
This Part is one of the series standards of ?€?Hexalobular Socket Screws?€?. This series includes: ---GB/T 2671.1 Hexalobular Socket Cheese (short) Head Screws;
---GB/T 2671.2 Hexalobular Socket Head Cap Screws;
---GB/T 2672 Hexalobular Socket Pan Head Screws;
---GB/T 2673.1 Hexalobular Socket Countersunk Flat Head Screws;
---GB/T 2673.2 Hexalobular Socket High Countersunk Head Screws;
---GB/T 2674 Hexalobular Socket Raised Countersunk Head Screws.
This is Part 2 of GB/T 2673.
This Part was drafted in accordance with the rules provided in GB/T 1.1-2009. This Part uses the re-drafting method in the modification and adopt of ISO 14582:2013 Fasteners - Hexalobular Socket Countersunk Head Screws, High Head.
In comparison with ISO 14582:2013, the technical differences and the causes for these differences are as follows:
---The stipulation of ISO 14582:2013 ?€?if other technical requirements are required, ?€??€? choose from ISO 4759-1.?€? is deleted (see Chapter 1 of ISO 14582:2013), because it does not belong to the content specified in this Part;
---In Normative References, Chinese standards are used to replace international standards (see Chapter 2), and the references GB/T 2, GB/T 90.2 (see Table 2), GB/T 1237 (see Chapter 6) and GB/T 5267.4 (see Table 2) are added, so as to comply with the fundamental standards on fasteners in our country;
---The technical requirements for packaging are added (see Table 2), so as to comply with the fundamental standards on fasteners in our country;
---The designation example is modified into simplified designation example (see 6.2), so as to comply with the stipulations of GB/T 1237.
This Part also makes the following editorial modifications:
---The title of the Standard is modified;
---The ?€?Bibliography?€? is modified.
This Part was proposed by China Machinery Industry Federation.

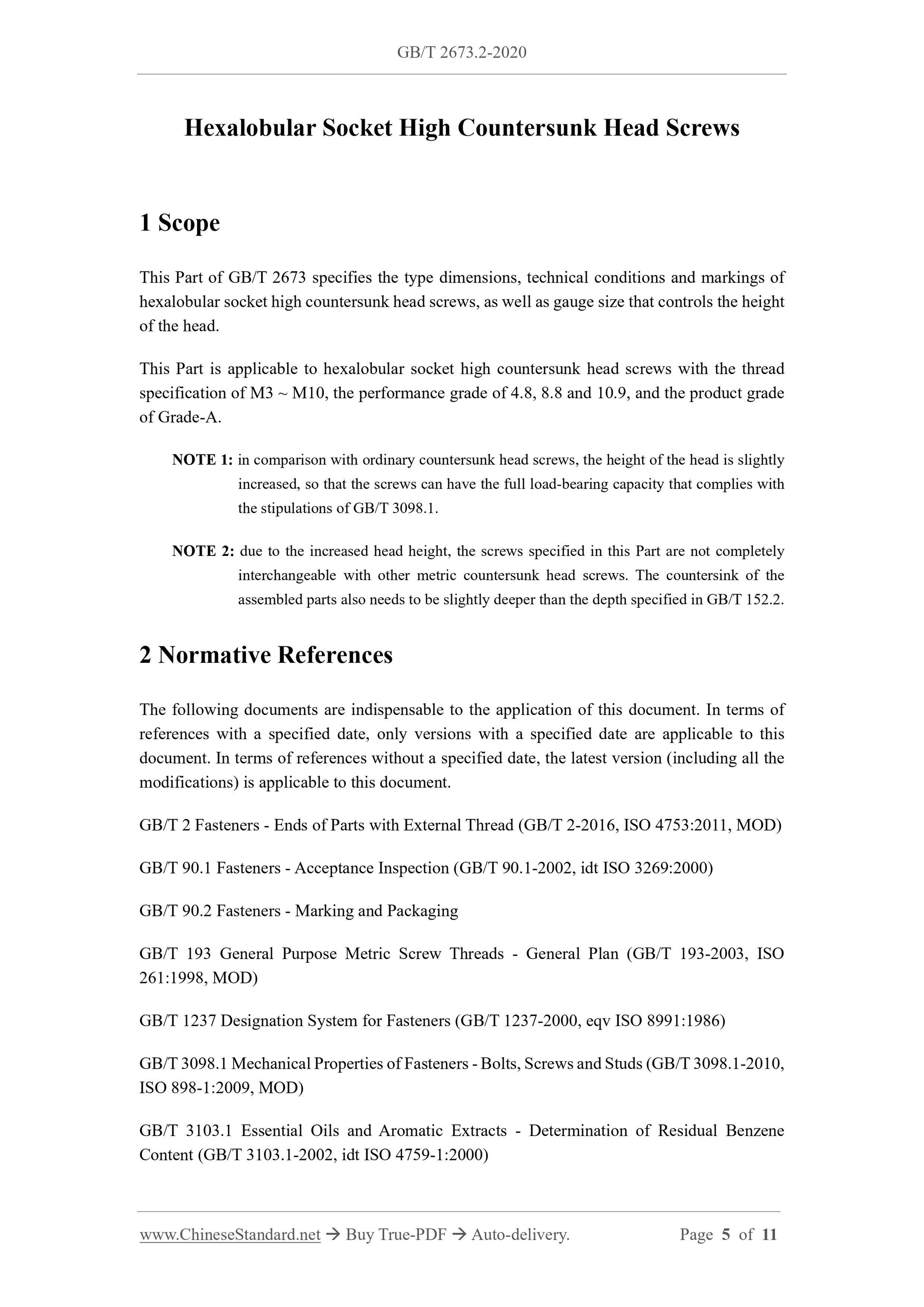

Hexalobular Socket High Countersunk Head Screws
1 Scope
This Part of GB/T 2673 specifies the type dimensions, technical conditions and markings of hexalobular socket high countersunk head screws, as well as gauge size that controls the height of the head.
This Part is applicable to hexalobular socket high countersunk head screws with the thread specification of M3 ~ M10, the performance grade of 4.8, 8.8 and 10.9, and the product grade of Grade-A.
NOTE 1: in comparison with ordinary countersunk head screws, the height of the head is slightly increased, so that the screws can have the full load-bearing capacity that complies with the stipulations of GB/T 3098.1.
NOTE 2: due to the increased head height, the screws specified in this Part are not completely interchangeable with other metric countersunk head screws. The countersink of the assembled parts also needs to be slightly deeper than the depth specified in GB/T 152.2. 2 Normative References
The following documents are indispensable to the application of this document. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document.
GB/T 2 Fasteners - Ends of Parts with External Thread (GB/T 2-2016, ISO 4753:2011, MOD) GB/T 90.1 Fasteners - Acceptance Inspection (GB/T 90.1-2002, idt ISO 3269:2000) GB/T 90.2 Fasteners - Marking and Packaging
GB/T 193 General Purpose Metric Screw Threads - General Plan (GB/T 193-2003, ISO 261:1998, MOD)
GB/T 1237 Designation System for Fasteners (GB/T 1237-2000, eqv ISO 8991:1986) GB/T 3098.1 Mechanical Properties of Fasteners - Bolts, Screws and Studs (GB/T 3098.1-2010, ISO 898-1:2009, MOD)
GB/T 3103.1 Essential Oils and Aromatic Extracts - Determination of Residual Benzene Content (GB/T 3103.1-2002, idt ISO 4759-1:2000)

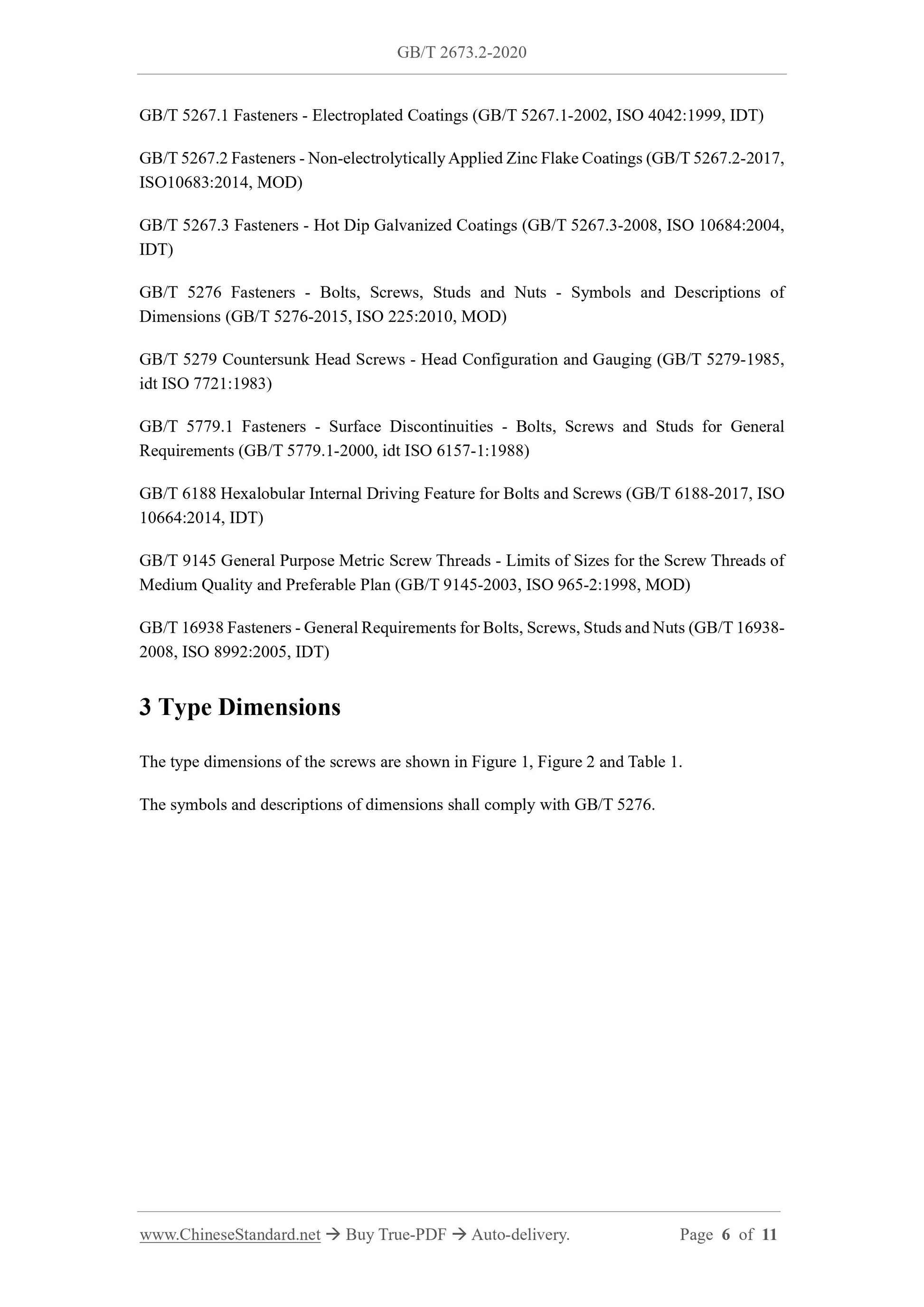

GB/T 5267.1 Fasteners - Electroplated Coatings (GB/T 5267.1-2002, ISO 4042:1999, IDT) GB/T 5267.2 Fasteners - Non-electrolytically Applied Zinc Flake Coatings (GB/T 5267.2-2017, ISO10683:2014, MOD)
GB/T 5267.3 Fasteners - Hot Dip Galvanized Coatings (GB/T 5267.3-2008, ISO 10684:2004, IDT)
GB/T 5276 Fasteners - Bolts, Screws, Studs and Nuts - Symbols and Descriptions of Dimensions (GB/T 5276-2015, ISO 225:2010, MOD)
GB/T 5279 Countersunk Head Screws - Head Configuration and Gauging (GB/T 5279-1985, idt ISO 7721:1983)
GB/T 5779.1 Fasteners - Surface Discontinuities - Bolts, Screws and Studs for General Requirements (GB/T 5779.1-2000, idt ISO 6157-1:1988)
GB/T 6188 Hexalobular Internal Driving Feature for Bolts and Screws (GB/T 6188-2017, ISO 10664:2014, IDT)
GB/T 9145 General Purpose Metric Screw Threads - Limits of Sizes for the Screw Threads of Medium Quality and Preferable Plan (GB/T 9145-2003, ISO 965-2:1998, MOD) GB/T 16938 Fasteners - General Requirements for Bolts, Screws, Studs and Nuts (GB/T 16938- 2008, ISO 8992:2005, IDT)
3 Type Dimensions
The type dimensions of the screws are shown in Figure 1, Figure 2 and Table 1. The symbols and descriptions of dimensions shall comply with GB/T 5276.
