GB/T 26160-2010: Head-face dimensions of Chinese minors
This Standard provides the basic data of head-face dimensions of minors (4 ~ 17 years old) and the two-dimensional distribution table of main dimensions. This Standard applies to the design of head-face product of minors.

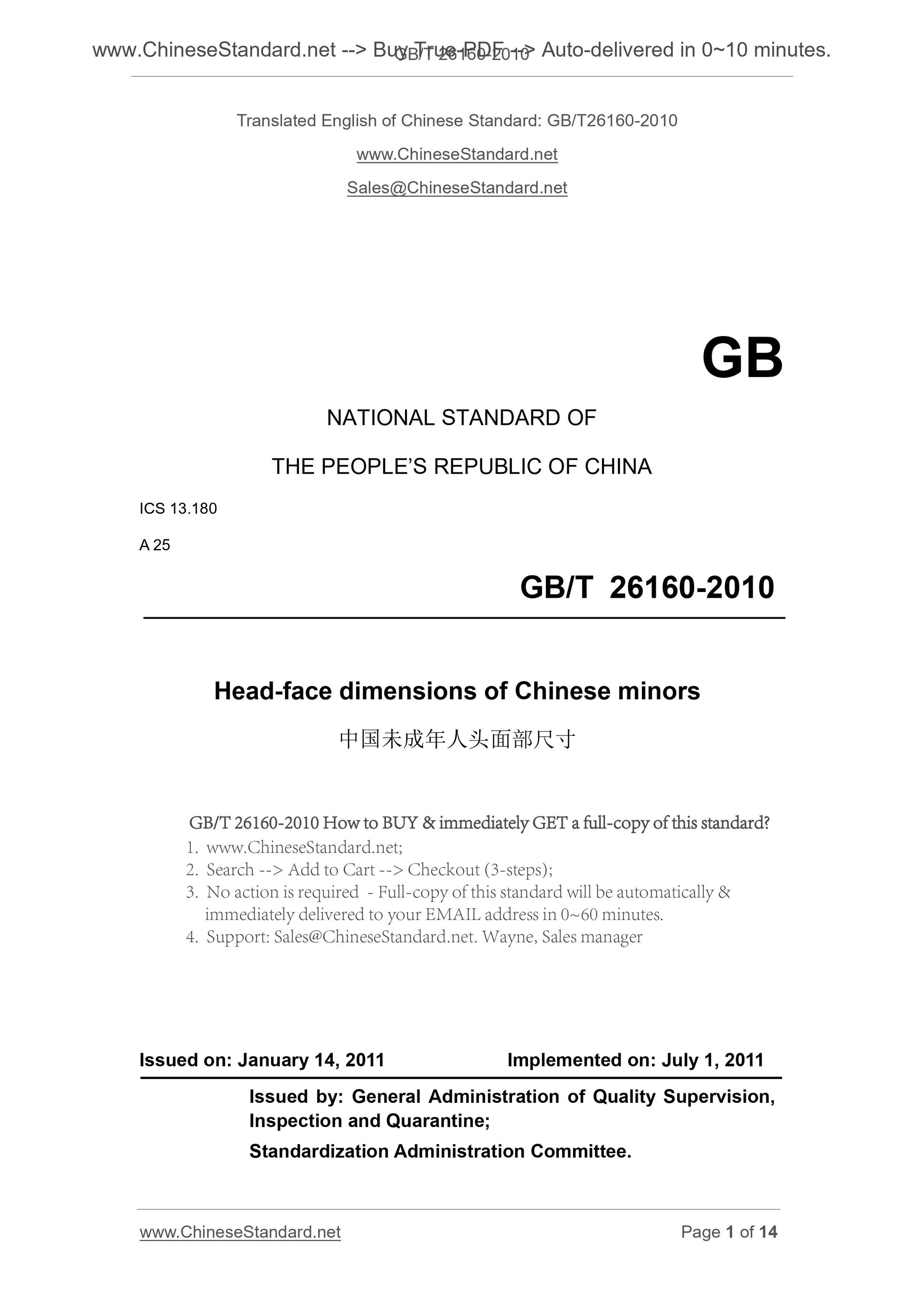

GB/T 26160-2010
GB
NATIONAL STANDARD OF
THE PEOPLE’S REPUBLIC OF CHINA
ICS 13.180
A 25
Head-face dimensions of Chinese minors
ISSUED ON. JANUARY 14, 2011
IMPLEMENTED ON. JULY 1, 2011
Issued by. General Administration of Quality Supervision,
Inspection and Quarantine;
Standardization Administration Committee.
3. No action is required - Full-copy of this standard will be automatically and immediately delivered to your EMAIL address in 0~60 minutes.

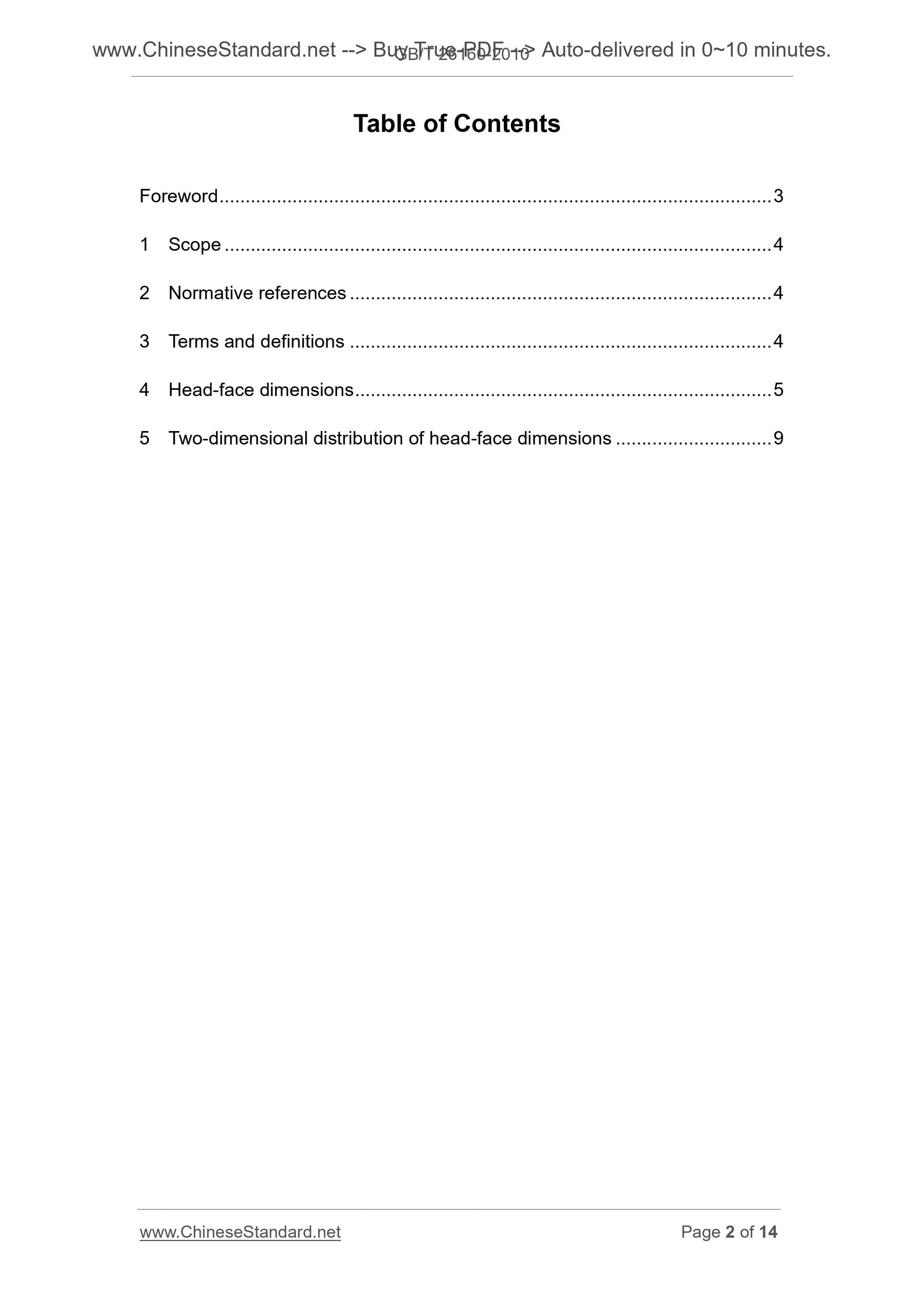

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Head-face dimensions ... 5
5 Two-dimensional distribution of head-face dimensions ... 9

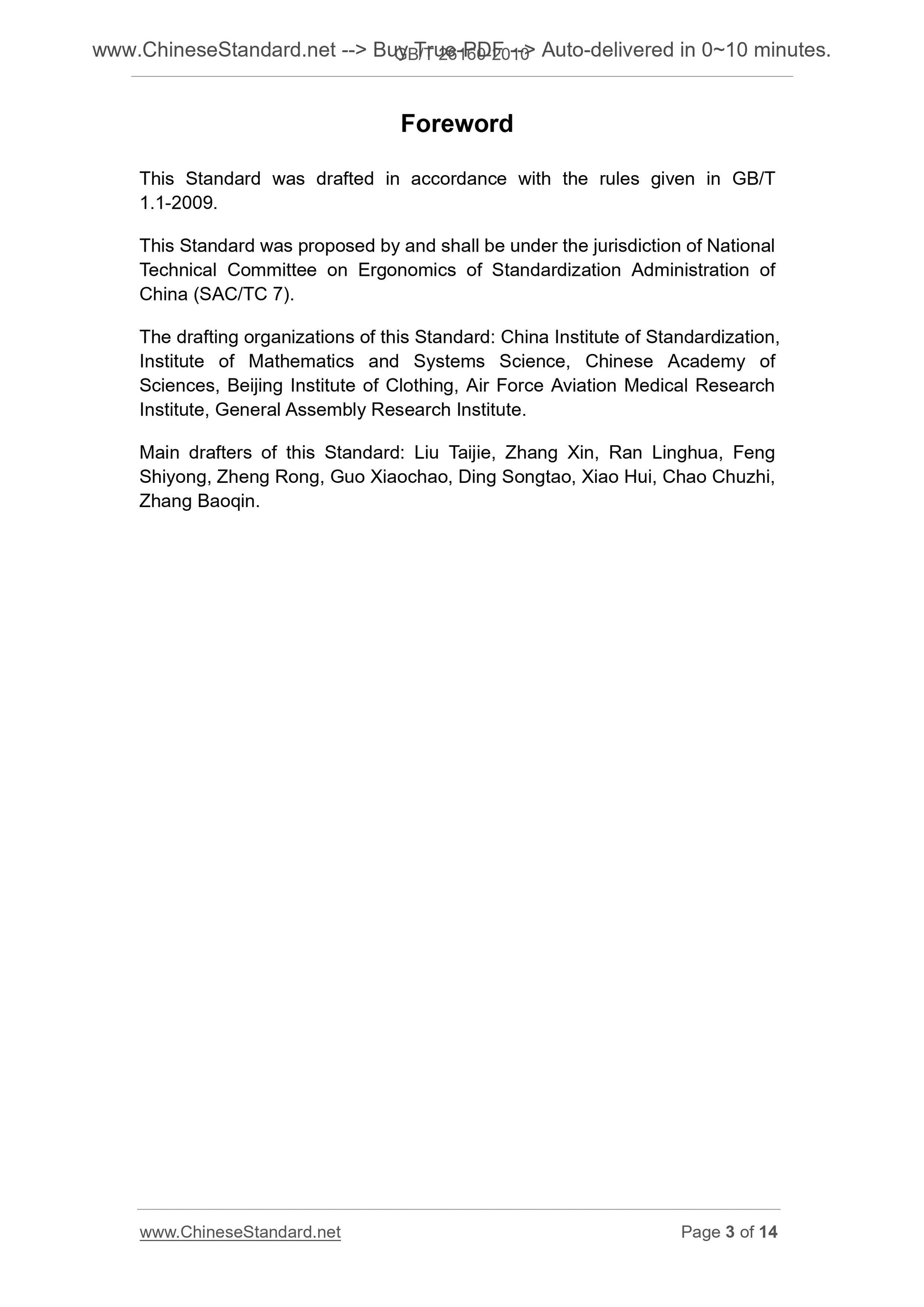

Foreword
This Standard was drafted in accordance with the rules given in GB/T
1.1-2009.
This Standard was proposed by and shall be under the jurisdiction of National Technical Committee on Ergonomics of Standardization Administration of
China (SAC/TC 7).
The drafting organizations of this Standard. China Institute of Standardization, Institute of Mathematics and Systems Science, Chinese Academy of
Sciences, Beijing Institute of Clothing, Air Force Aviation Medical Research Institute, General Assembly Research Institute.
Main drafters of this Standard. Liu Taijie, Zhang Xin, Ran Linghua, Feng Shiyong, Zheng Rong, Guo Xiaochao, Ding Songtao, Xiao Hui, Chao Chuzhi, Zhang Baoqin.

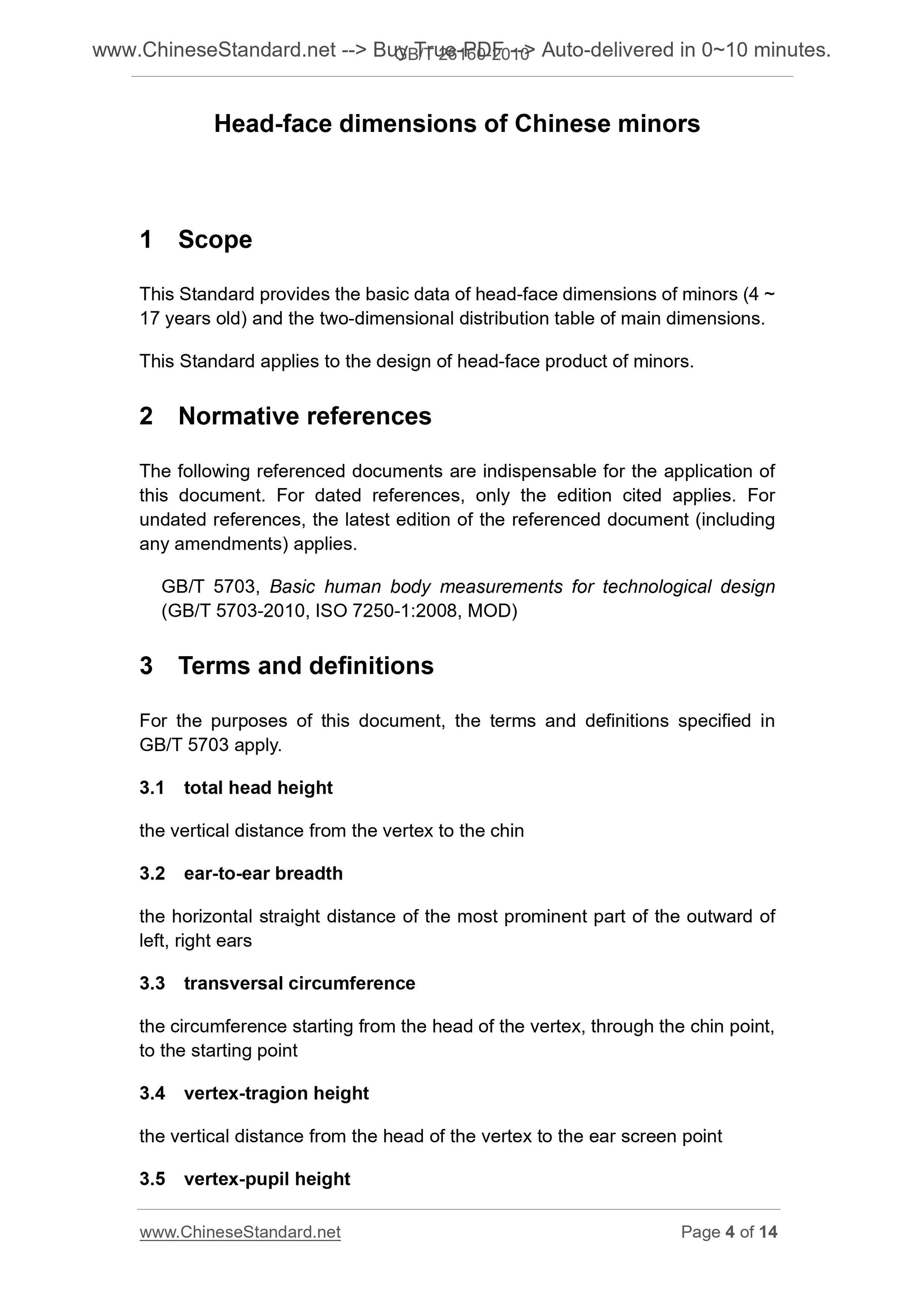

Head-face dimensions of Chinese minors
1 Scope
This Standard provides the basic data of head-face dimensions of minors (4 ~ 17 years old) and the two-dimensional distribution table of main dimensions. This Standard applies to the design of head-face product of minors.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
GB/T 5703, Basic human body measurements for technological design
(GB/T 5703-2010, ISO 7250-1.2008, MOD)
3 Terms and definitions
For the purposes of this document, the terms and definitions specified in GB/T 5703 apply.
3.1 total head height
the vertical distance from the vertex to the chin
3.2 ear-to-ear breadth
the horizontal straight distance of the most prominent part of the outward of left, right ears
3.3 transversal circumference
the circumference starting from the head of the vertex, through the chin point, to the starting point
3.4 vertex-tragion height

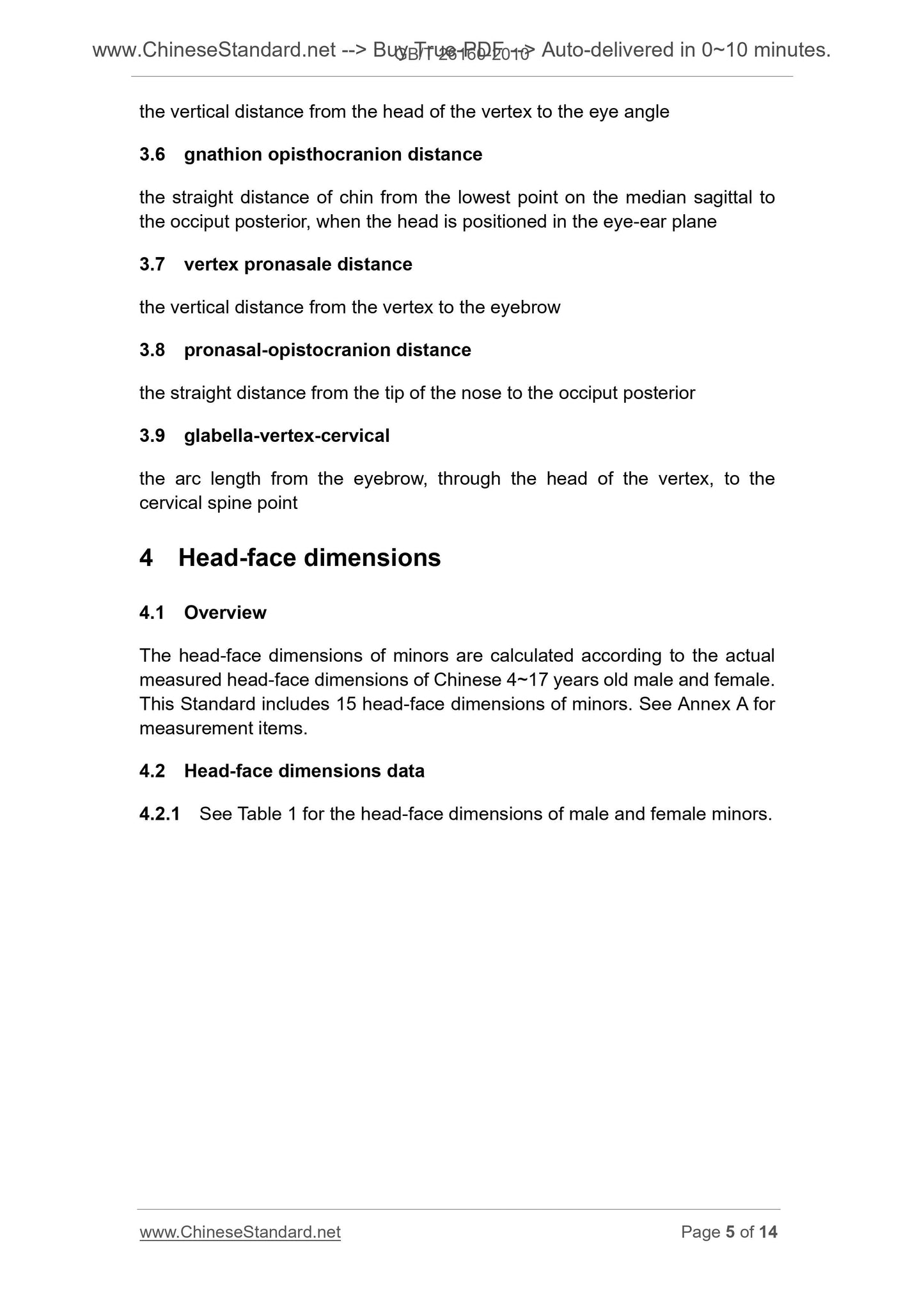

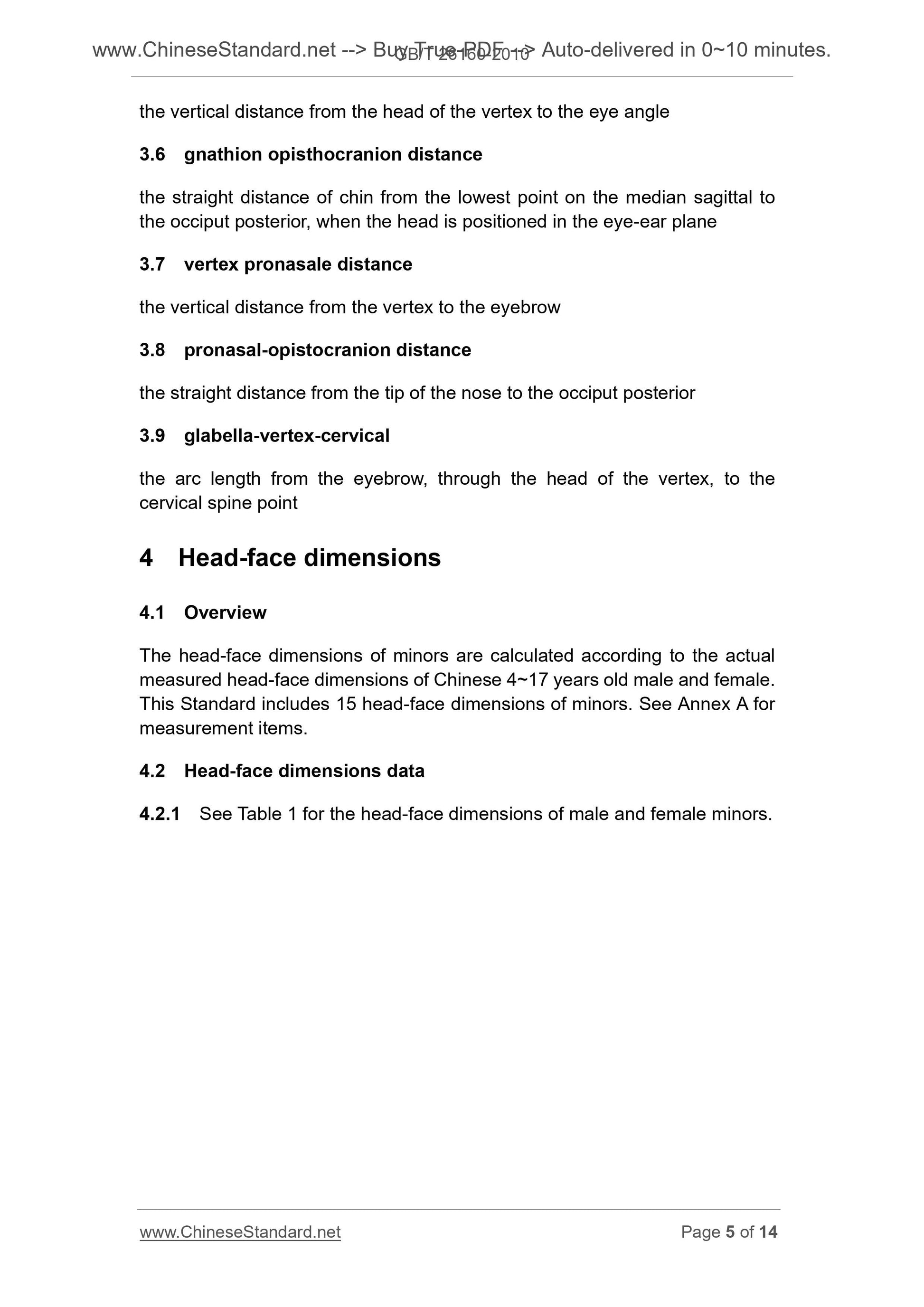

the vertical distance from the head of the vertex to the ear screen point 3.5 vertex-pupil height
the vertical distance from the head of the vertex to the eye angle
3.6 gnathion opisthocranion distance
the straight distance of chin from the lowest point on the median sagittal to the occiput posterior, when the head is positioned in the eye-ear plane 3.7 vertex pronasale distance
the vertical distance from the vertex to the eyebrow
3.8 pronasal-opistocranion distance
the straight distance from the tip of the nose to the occiput posterior 3.9 glabella-vertex-cervical
the arc length from the eyebrow, through the head of the vertex, to the cervical spine point
4 Head-face dimensions
4.1 Overview
The head-face dimensions of minors are calculated according to the actual measured head-face dimensions of Chinese 4~17 years old male and female. This Standard includes 15 head-face dimensions of minors. See Annex A for measurement items.
4.2 Head-face dimensions data
4.2.1 See Table 1 for the head-face dimensions of male and female minors.
