GB/T 26047-2022: Insulators of primary lithium battery for pillar
GB/T 26047-2022
GB

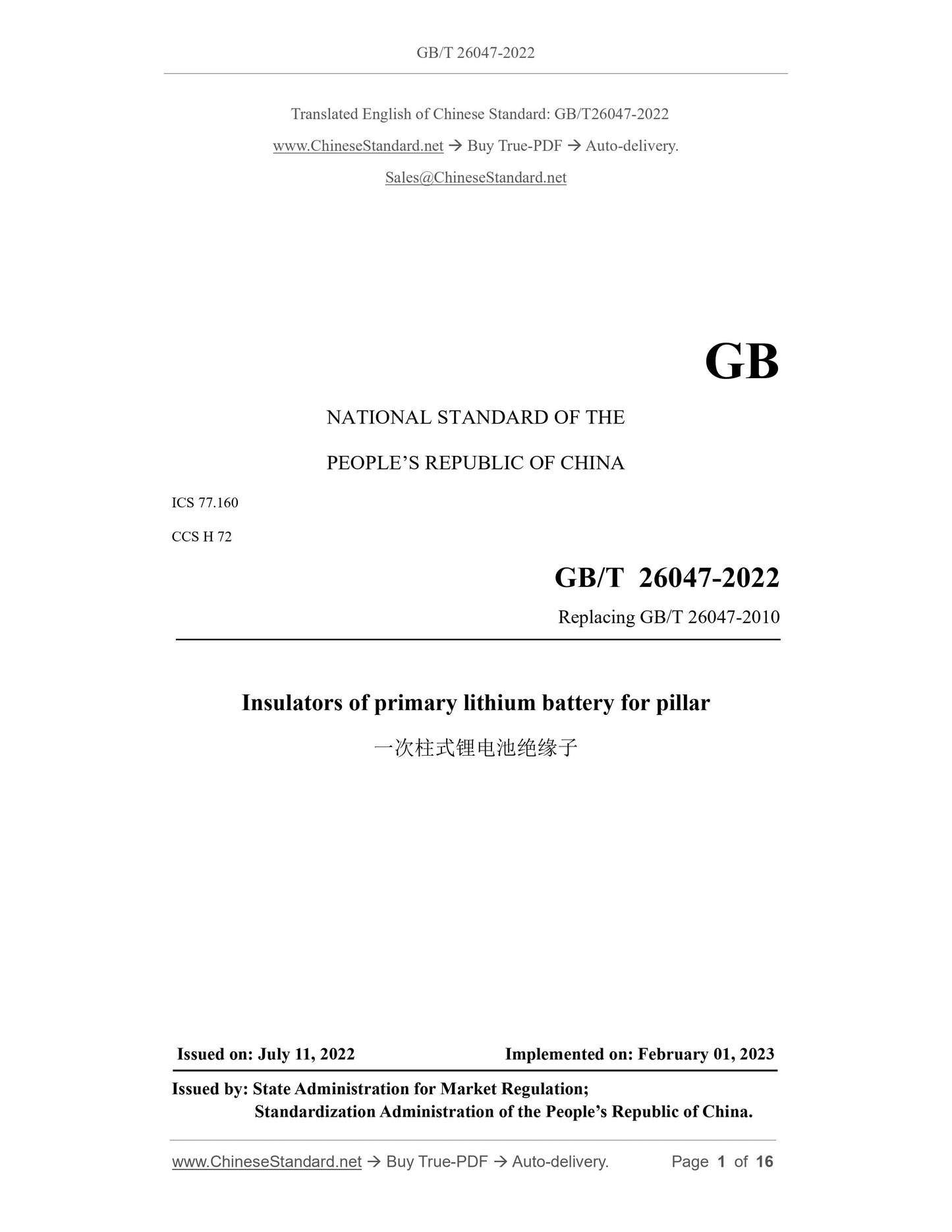

NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 77.160
CCS H 72
Replacing GB/T 26047-2010
Insulators of primary lithium battery for pillar
ISSUED ON: JULY 11, 2022
IMPLEMENTED ON: FEBRUARY 01, 2023
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.

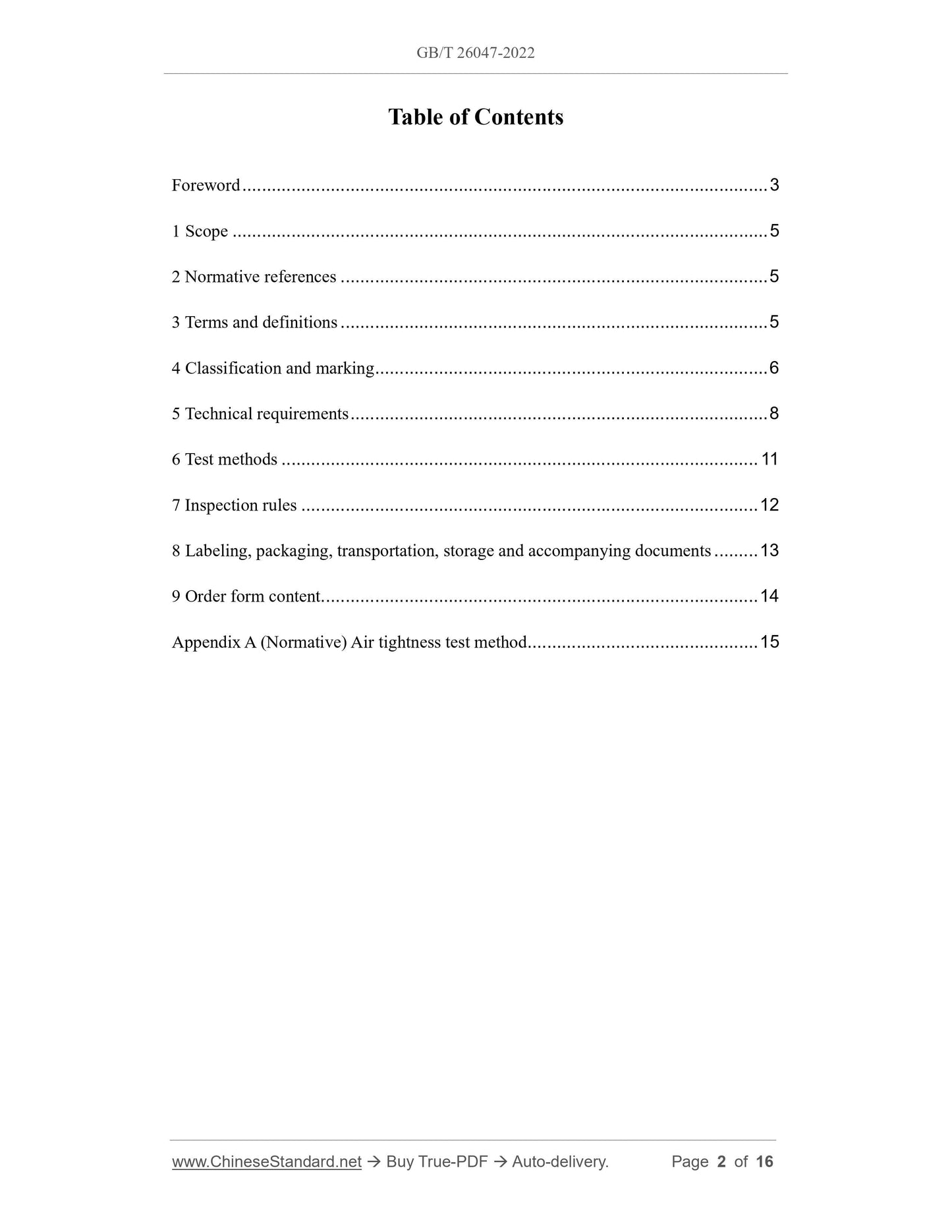

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 5
4 Classification and marking ... 6
5 Technical requirements ... 8
6 Test methods ... 11
7 Inspection rules ... 12
8 Labeling, packaging, transportation, storage and accompanying documents ... 13
9 Order form content... 14
Appendix A (Normative) Air tightness test method ... 15
Insulators of primary lithium battery for pillar

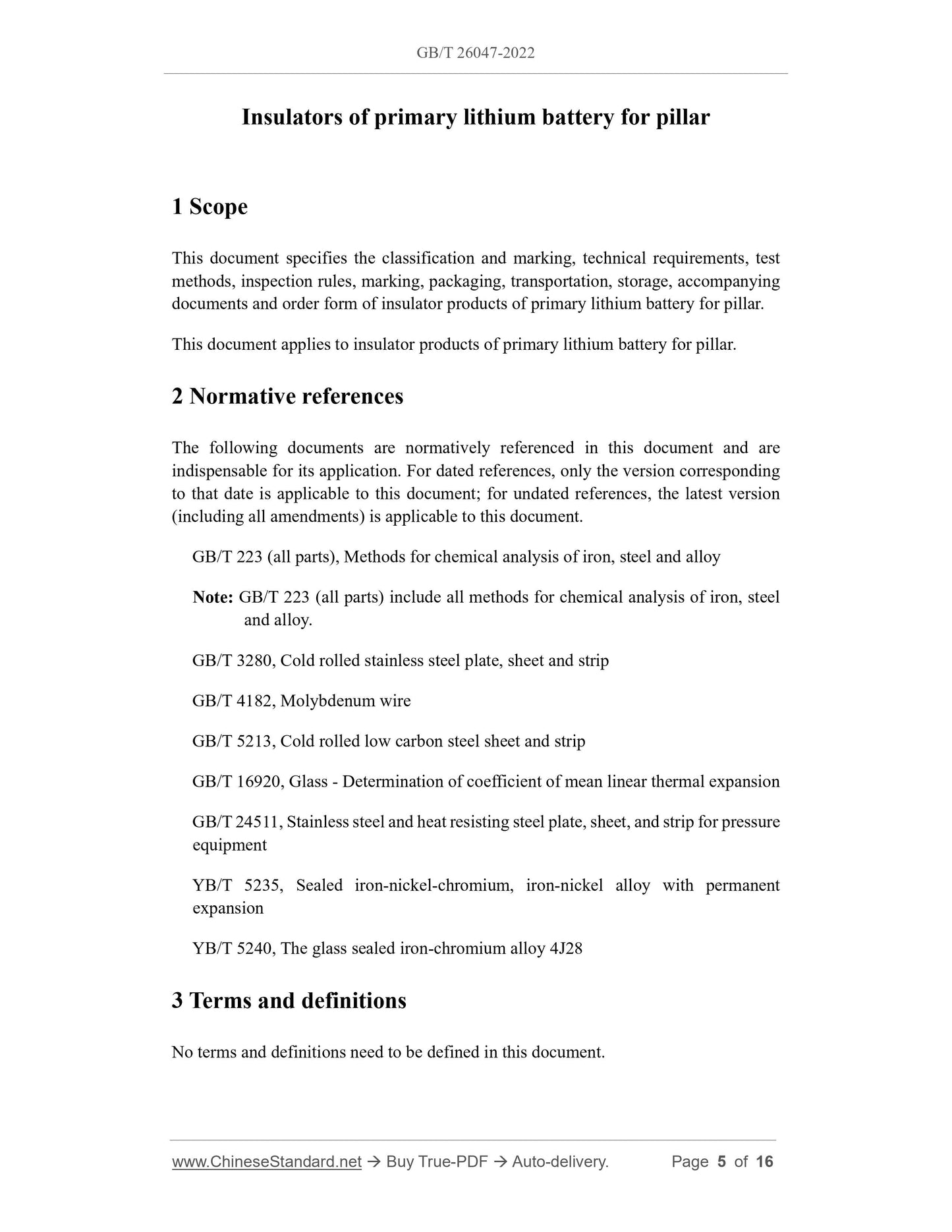

1 Scope
This document specifies the classification and marking, technical requirements, test
methods, inspection rules, marking, packaging, transportation, storage, accompanying
documents and order form of insulator products of primary lithium battery for pillar.
This document applies to insulator products of primary lithium battery for pillar.
2 Normative references
The following documents are normatively referenced in this document and are
indispensable for its application. For dated references, only the version corresponding
to that date is applicable to this document; for undated references, the latest version
(including all amendments) is applicable to this document.
GB/T 223 (all parts), Methods for chemical analysis of iron, steel and alloy
Note: GB/T 223 (all parts) include all methods for chemical analysis of iron, steel
and alloy.
GB/T 3280, Cold rolled stainless steel plate, sheet and strip
GB/T 4182, Molybdenum wire
GB/T 5213, Cold rolled low carbon steel sheet and strip
GB/T 16920, Glass - Determination of coefficient of mean linear thermal expansion
GB/T 24511, Stainless steel and heat resisting steel plate, sheet, and strip for pressure
equipment
YB/T 5235, Sealed iron-nickel-chromium, iron-nickel alloy with permanent
expansion
YB/T 5240, The glass sealed iron-chromium alloy 4J28
3 Terms and definitions
No terms and definitions need to be defined in this document.

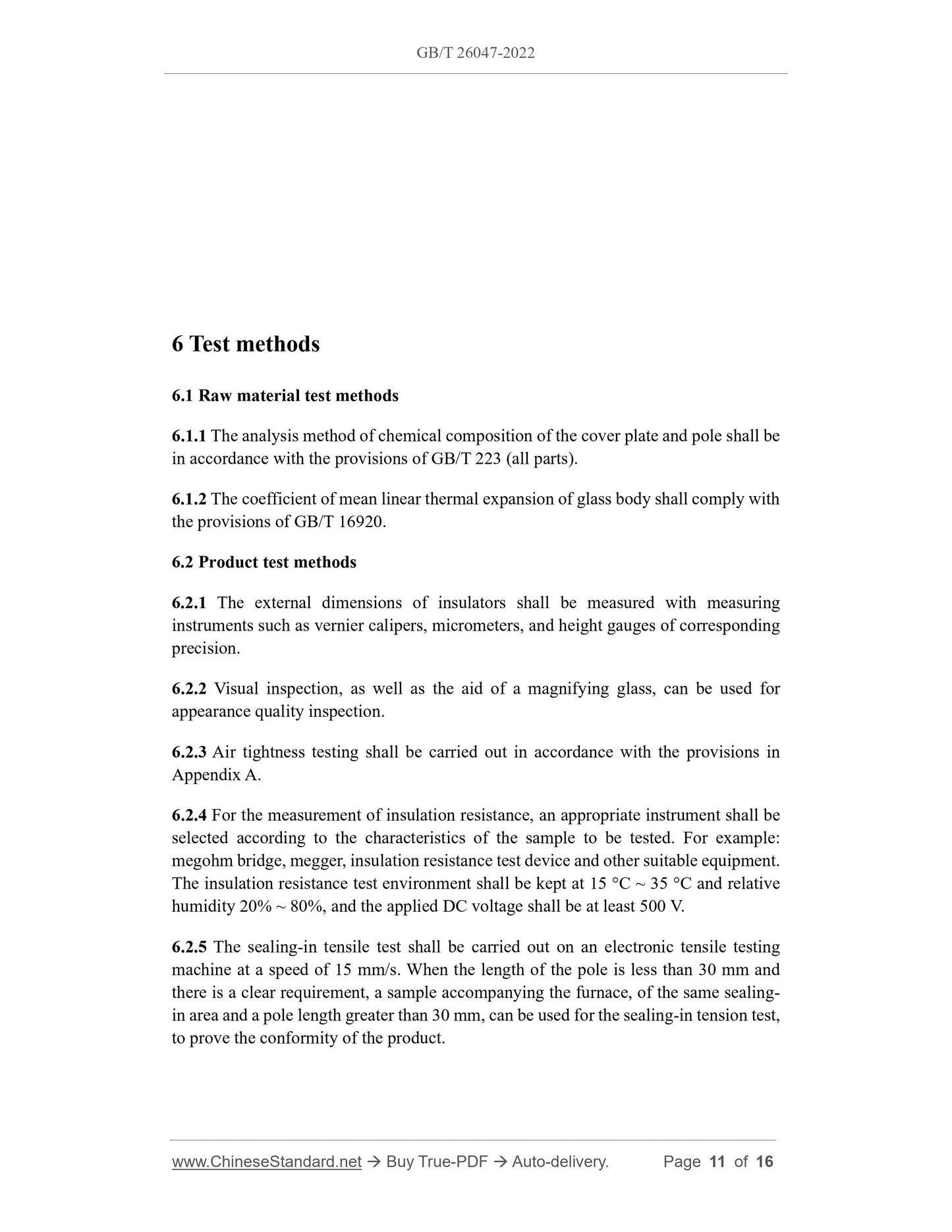

6 Test methods
6.1 Raw material test methods
6.1.1 The analysis method of chemical composition of the cover plate and pole shall be
in accordance with the provisions of GB/T 223 (all parts).
6.1.2 The coefficient of mean linear thermal expansion of glass body shall comply with
the provisions of GB/T 16920.
6.2 Product test methods
6.2.1 The external dimensions of insulators shall be measured with measuring
instruments such as vernier calipers, micrometers, and height gauges of corresponding
precision.
6.2.2 Visual inspection, as well as the aid of a magnifying glass, can be used for
appearance quality inspection.
6.2.3 Air tightness testing shall be carried out in accordance with the provisions in
Appendix A.
6.2.4 For the measurement of insulation resistance, an appropriate instrument shall be
selected according to the characteristics of the sample to be tested. For example:
megohm bridge, megger, insulation resistance test device and other suitable equipment.
The insulation resistance test environment shall be kept at 15 °C ~ 35 °C and relative
humidity 20% ~ 80%, and the applied DC voltage shall be at least 500 V.
6.2.5 The sealing-in tensile test shall be carried out on an electronic tensile testing
machine at a speed of 15 mm/s. When the length of the pole is less than 30 mm and
there is a clear requirement, a sample accompanying the furnace, of the same sealing-
in area and a pole length greater than 30 mm, can be used for the sealing-in tension test,
to prove the conformity of the product.

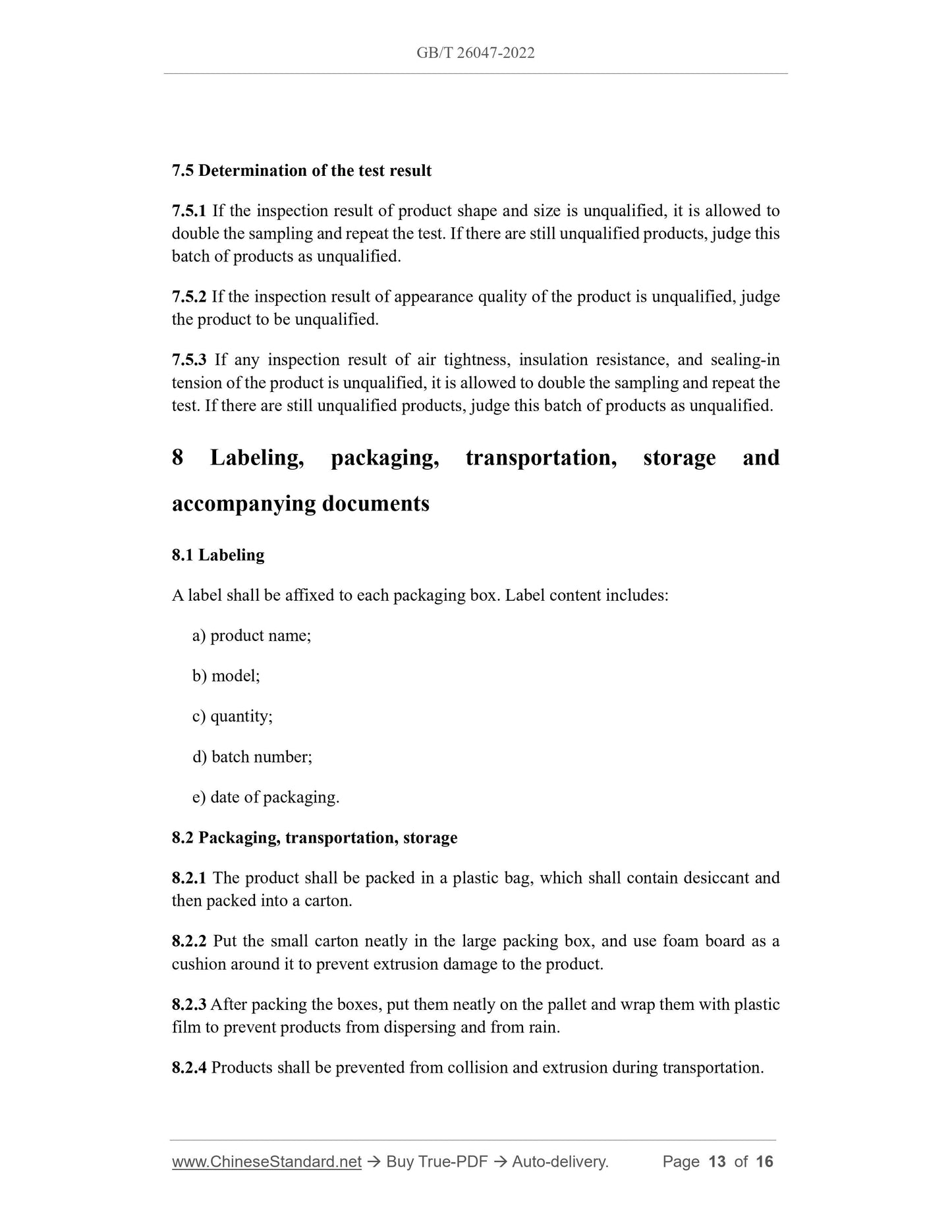

7.5 Determination of the test result
7.5.1 If the inspection result of product shape and size is unqualified, it is allowed to
double the sampling and repeat the test. If there are still unqualified products, judge this
batch of products as unqualified.
7.5.2 If the inspection result of appearance quality of the product is unqualified, judge
the product to be unqualified.
7.5.3 If any inspection result of air tightness, insulation resistance, and sealing-in
tension of the product is unqualified, it is allowed to double the sampling and repeat the
test. If there are still unqualified products, judge this batch of products as unqualified.
8 Labeling, packaging, transportation, storage and
accompanying documents
8.1 Labeling
A label shall be affixed to each packaging box. Label content includes:
a) product name;
b) model;
c) quantity;
d) batch number;
e) date of packaging.
8.2 Packaging, transportation, storage
8.2.1 The product shall be packed in a plastic bag, which shall contain desiccant and
then packed into a carton.
8.2.2 Put the small carton neatly in the large packing box, and use foam board as a
cushion around it to prevent extrusion damage to the product.
8.2.3 After packing the boxes, put them neatly on the pallet and wrap them with plastic
film to prevent products from dispersing and from rain.
8.2.4 Products shall be prevented from collision and extrusion during transportation.

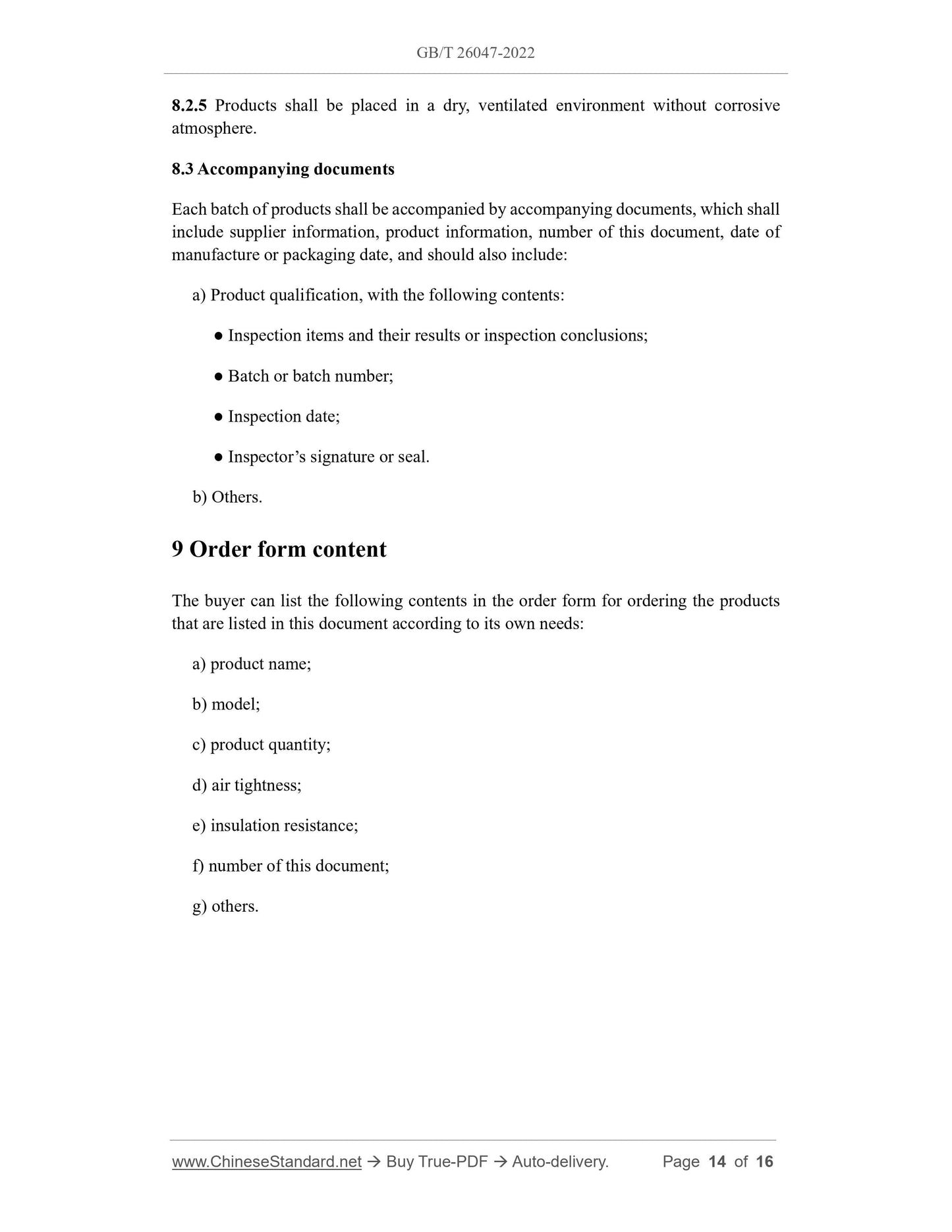

8.2.5 Products shall be placed in a dry, ventilated environment without corrosive
atmosphere.
8.3 Accompanying documents
Each batch of products shall be accompanied by accompanying documents, which shall
include supplier information, product information, number of this document, date of
manufacture or packaging date, and should also include:
a) Product qualification, with the following contents:
● Inspection items and their results or inspection conclusions;
● Batch or batch number;
● Inspection date;
● Inspector’s signature or seal.
b) Others.
9 Order form content
The buyer can list the following contents in the order form for ordering the products
that are listed in this document according to its own needs:
a) product name;
b) model;
c) product quantity;
d) air tightness;
e) insulation resistance;
f) number of this document;
g) others.
