GB/T 26006-2010: Aluminium alloys extruded tubes, bars, rods, and profiles used for ships

This standard specifies the requirements, test methods, inspection rules, markings, packaging, transportation, storage, quality certificate, contract (or order form), for aluminum alloy extruded seamless round tubes for ships (hereinafter referred to as tubes), aluminum alloy extruded bars for ships (hereinafter referred to as bars), aluminum alloy extruded profiles for ships.

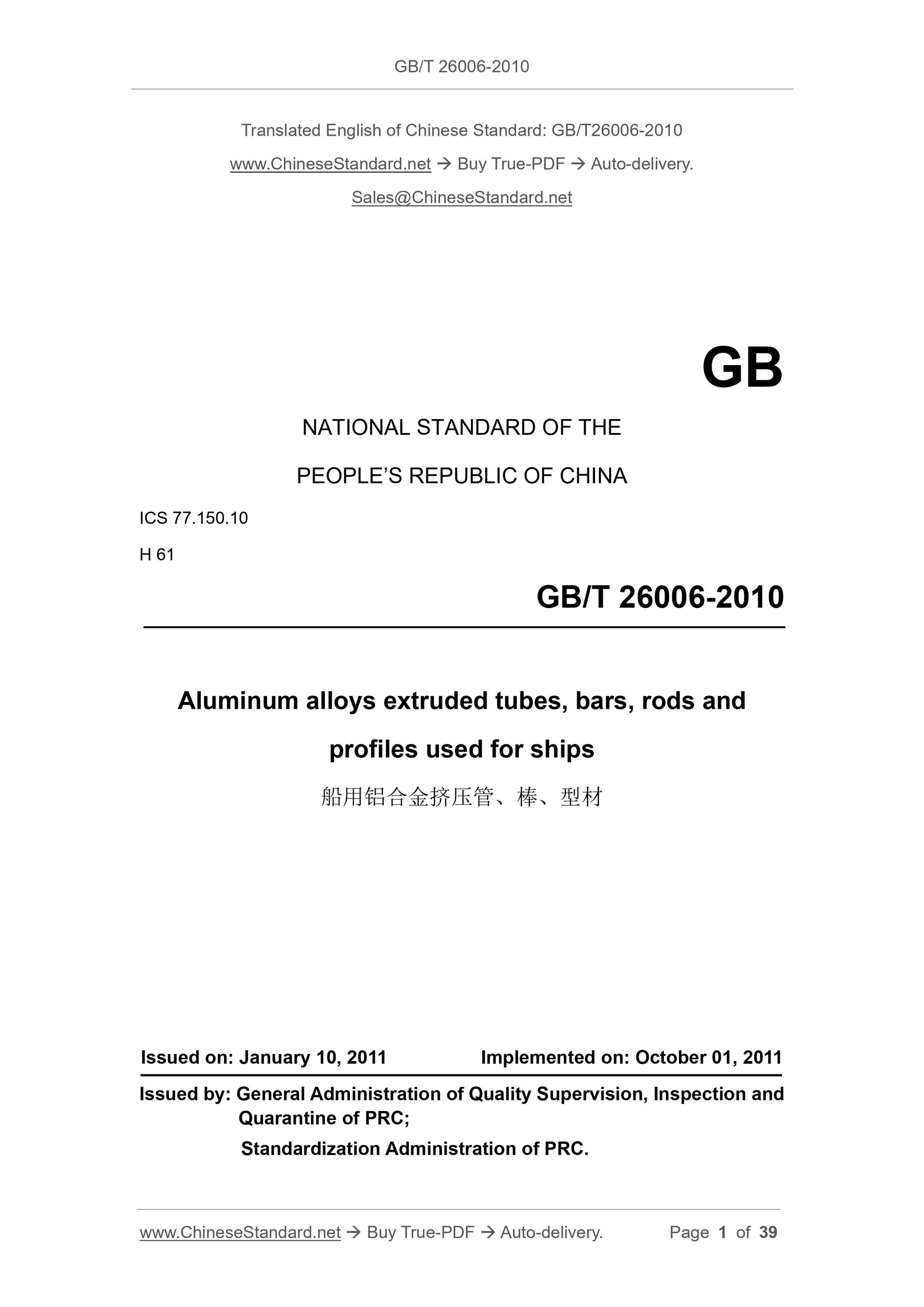

GB/T 26006-2010
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.150.10
H 61
Aluminum alloys extruded tubes, bars, rods and
profiles used for ships
ISSUED ON: JANUARY 10, 2011
IMPLEMENTED ON: OCTOBER 01, 2011
Issued by: General Administration of Quality Supervision, Inspection and Quarantine of PRC;
Standardization Administration of PRC.

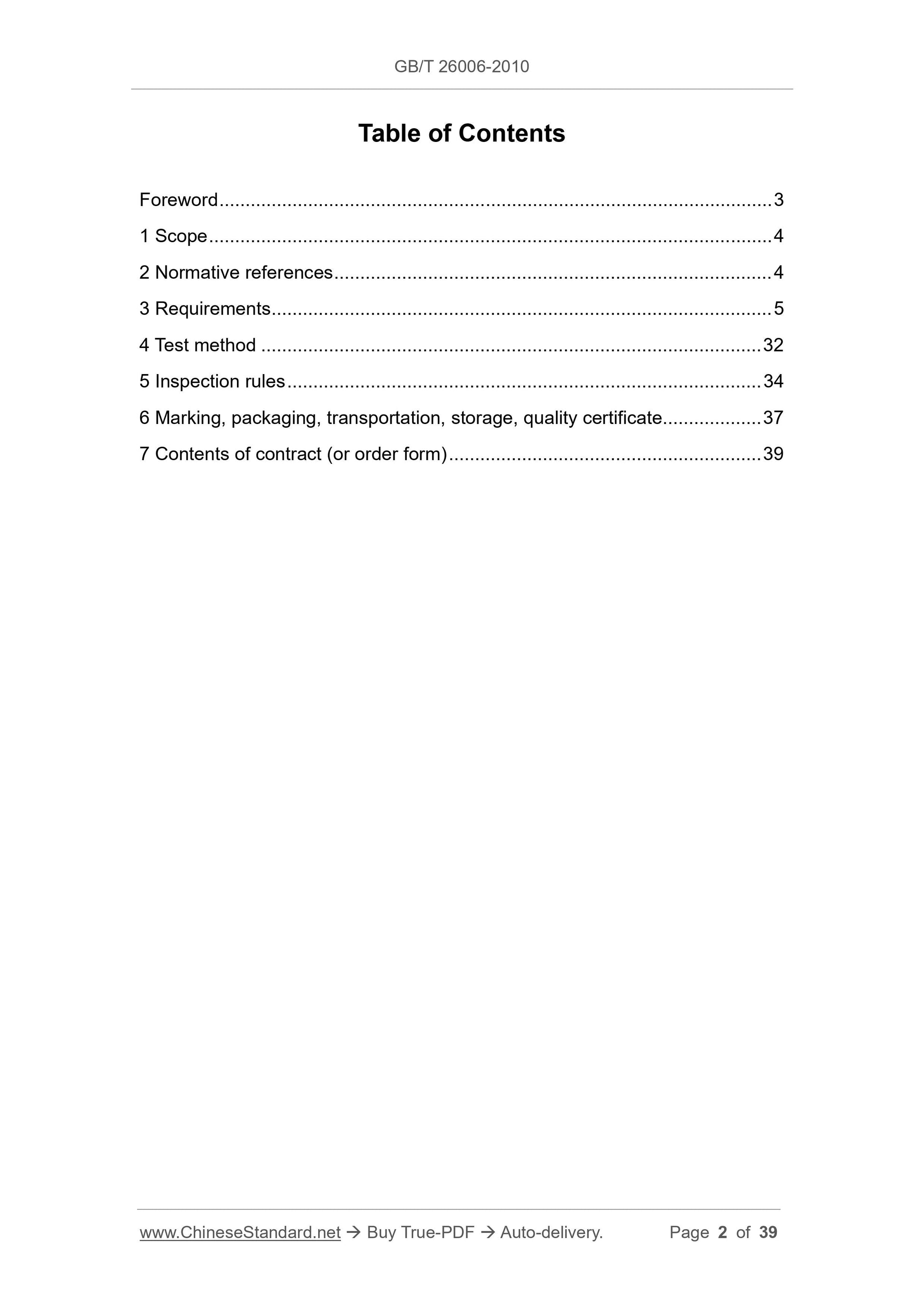

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Requirements ... 5
4 Test method ... 32
5 Inspection rules ... 34
6 Marking, packaging, transportation, storage, quality certificate... 37 7 Contents of contract (or order form) ... 39
Aluminum alloys extruded tubes, bars, rods and
profiles used for ships

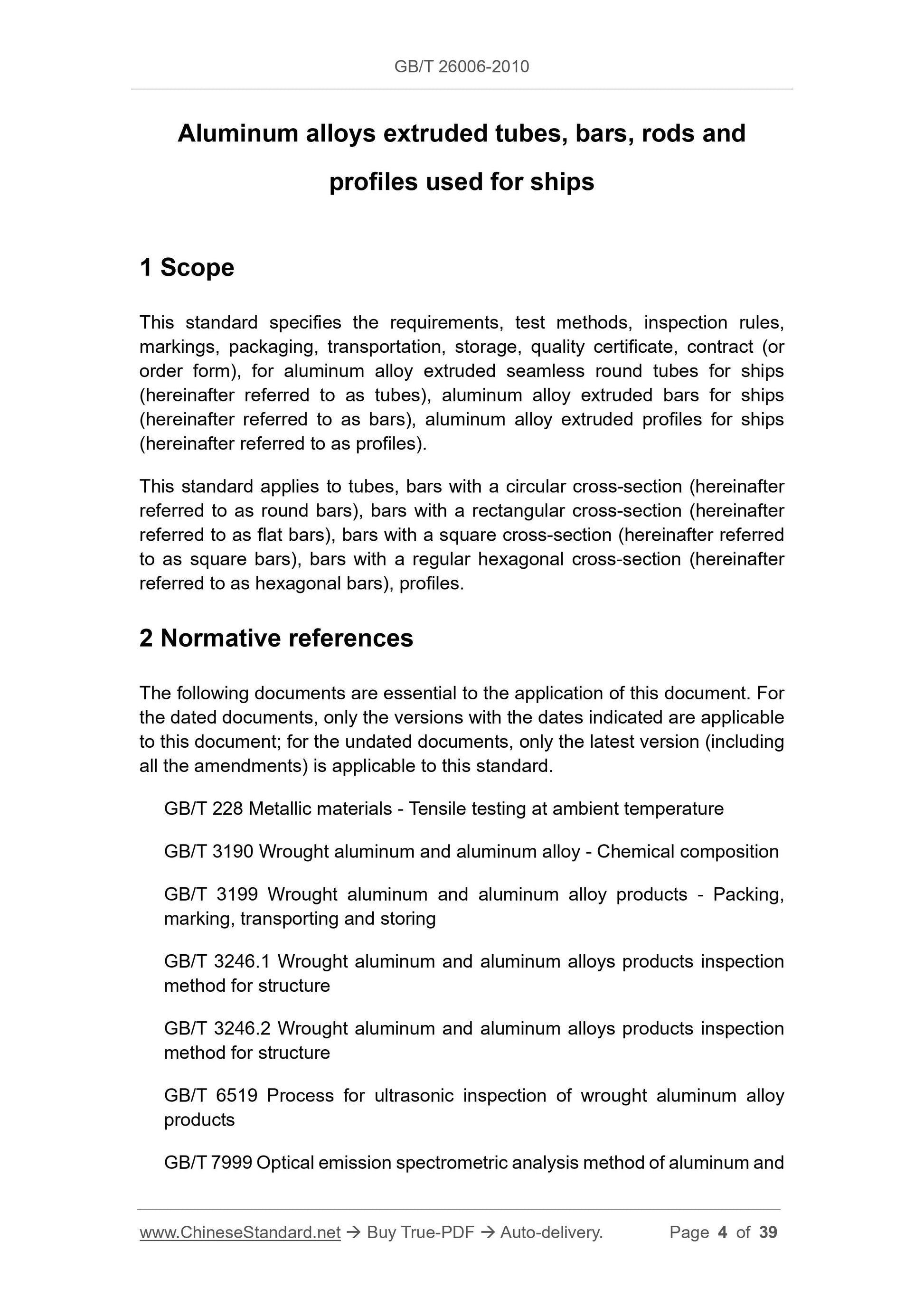

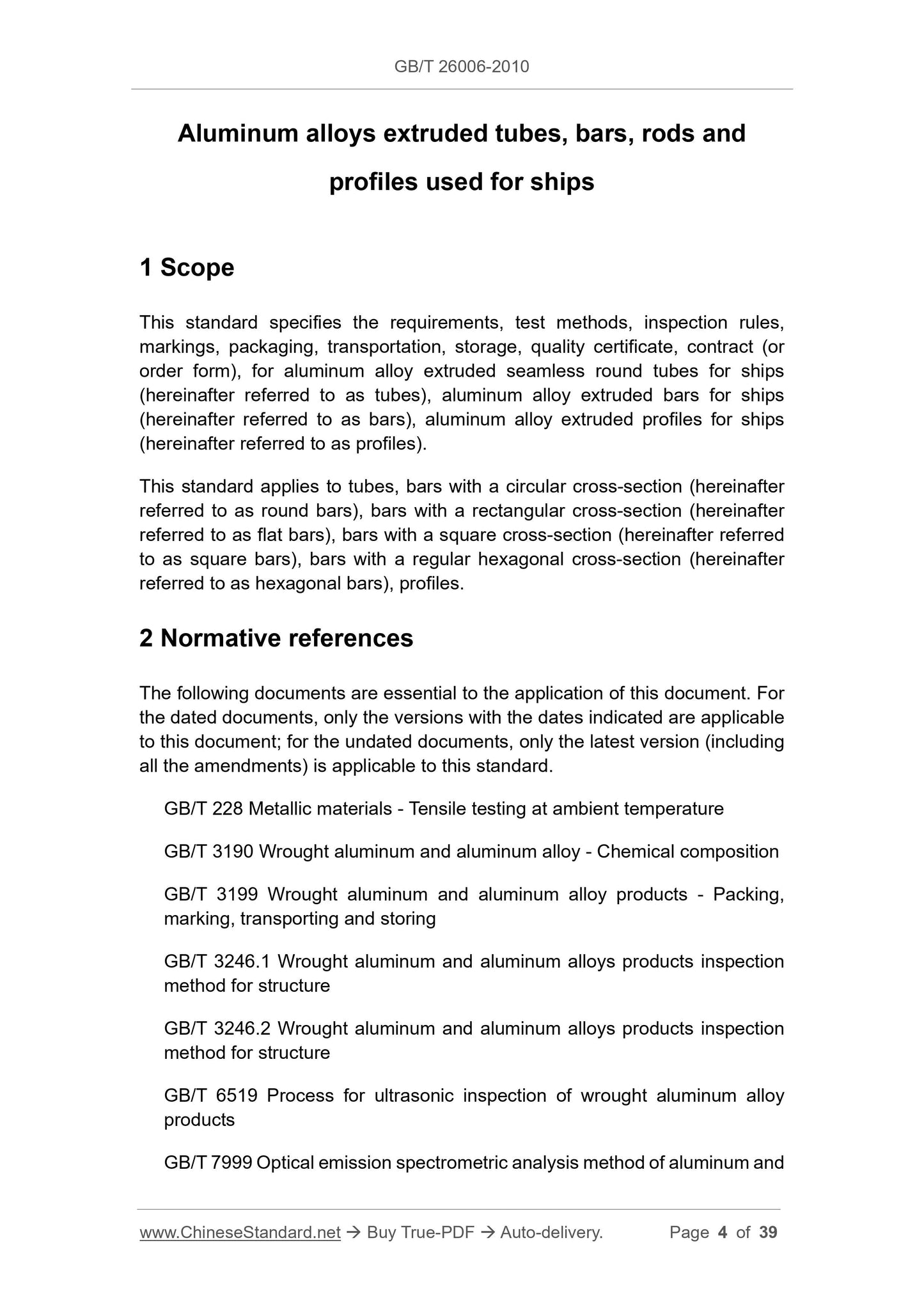

1 Scope
This standard specifies the requirements, test methods, inspection rules, markings, packaging, transportation, storage, quality certificate, contract (or order form), for aluminum alloy extruded seamless round tubes for ships (hereinafter referred to as tubes), aluminum alloy extruded bars for ships (hereinafter referred to as bars), aluminum alloy extruded profiles for ships (hereinafter referred to as profiles).
This standard applies to tubes, bars with a circular cross-section (hereinafter referred to as round bars), bars with a rectangular cross-section (hereinafter referred to as flat bars), bars with a square cross-section (hereinafter referred to as square bars), bars with a regular hexagonal cross-section (hereinafter referred to as hexagonal bars), profiles.
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this standard.
GB/T 228 Metallic materials - Tensile testing at ambient temperature
GB/T 3190 Wrought aluminum and aluminum alloy - Chemical composition
GB/T 3199 Wrought aluminum and aluminum alloy products - Packing,
marking, transporting and storing
GB/T 3246.1 Wrought aluminum and aluminum alloys products inspection
method for structure
GB/T 3246.2 Wrought aluminum and aluminum alloys products inspection
method for structure
GB/T 6519 Process for ultrasonic inspection of wrought aluminum alloy
products

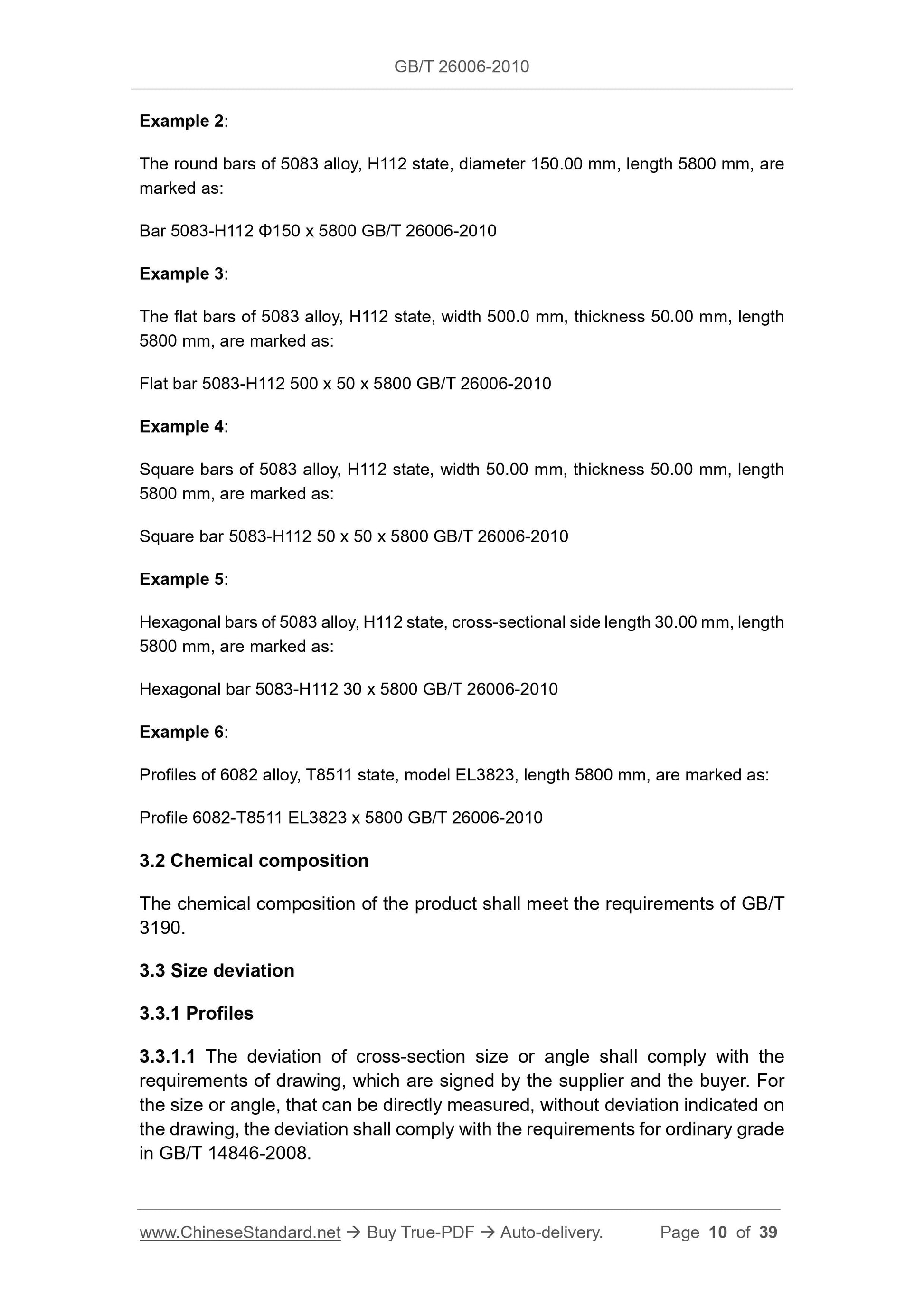

GB/T 7999 Optical emission spectrometric analysis method of aluminum and Example 2:
The round bars of 5083 alloy, H112 state, diameter 150.00 mm, length 5800 mm, are marked as:
Bar 5083-H112 ??150 x 5800 GB/T 26006-2010
Example 3:
The flat bars of 5083 alloy, H112 state, width 500.0 mm, thickness 50.00 mm, length 5800 mm, are marked as:
Flat bar 5083-H112 500 x 50 x 5800 GB/T 26006-2010
Example 4:
Square bars of 5083 alloy, H112 state, width 50.00 mm, thickness 50.00 mm, length 5800 mm, are marked as:
Square bar 5083-H112 50 x 50 x 5800 GB/T 26006-2010
Example 5:
Hexagonal bars of 5083 alloy, H112 state, cross-sectional side length 30.00 mm, length 5800 mm, are marked as:
Hexagonal bar 5083-H112 30 x 5800 GB/T 26006-2010
Example 6:
Profiles of 6082 alloy, T8511 state, model EL3823, length 5800 mm, are marked as: Profile 6082-T8511 EL3823 x 5800 GB/T 26006-2010
3.2 Chemical composition
The chemical composition of the product shall meet the requirements of GB/T 3190.
3.3 Size deviation
3.3.1 Profiles
3.3.1.1 The deviation of cross-section size or angle shall comply with the requirements of drawing, which are signed by the supplier and the buyer. For the size or angle, that can be directly measured, without deviation indicated on the drawing, the deviation shall comply with the requirements for ordinary grade in GB/T 14846-2008.
diameter or wall thickness of the tubes exceed the allowable range.
3.8.1.5 On the surface of the tubes, it is allowed to have oxidation color, non- rough white spot, dark spot.

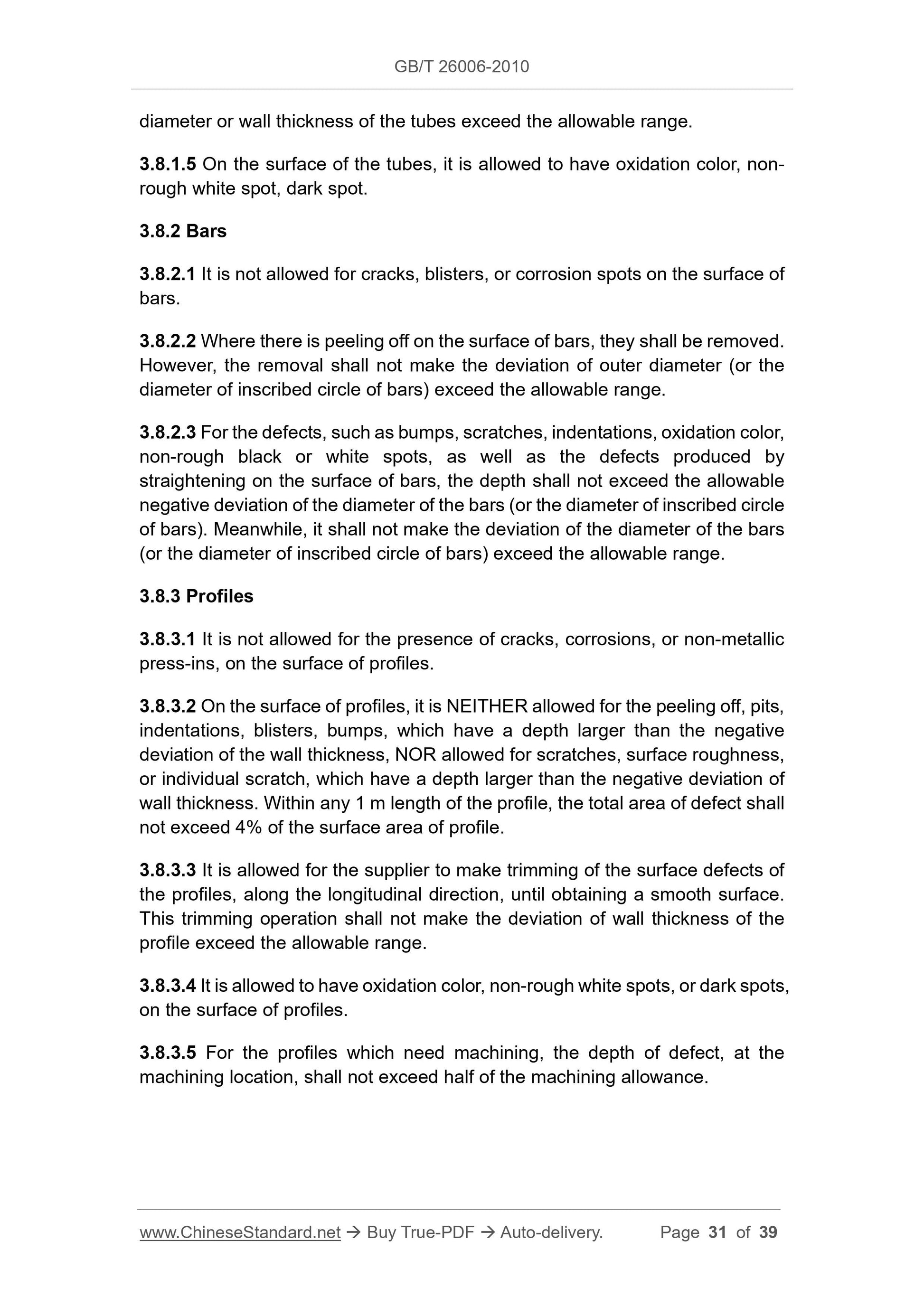

3.8.2 Bars
3.8.2.1 It is not allowed for cracks, blisters, or corrosion spots on the surface of bars.
3.8.2.2 Where there is peeling off on the surface of bars, they shall be removed. However, the removal shall not make the deviation of outer diameter (or the diameter of inscribed circle of bars) exceed the allowable range.
3.8.2.3 For the defects, such as bumps, scratches, indentations, oxidation color, non-rough black or white spots, as well as the defects produced by
straightening on the surface of bars, the depth shall not exceed the allowable negative deviation of the diameter of the bars (or the diameter of inscribed circle of bars). Meanwhile, it shall not make the deviation of the diameter of the bars (or the diameter of inscribed circle of bars) exceed the allowable range. 3.8.3 Profiles
3.8.3.1 It is not allowed for the presence of cracks, corrosions, or non-metallic press-ins, on the surface of profiles.
3.8.3.2 On the surface of profiles, it is NEITHER allowed for the peeling off, pits, indentations, blisters, bumps, which have a depth larger than the negative deviation of the wall thickness, NOR allowed for scratches, surface roughness, or individual scratch, which have a depth larger than the negative deviation of wall thickness. Within any 1 m length of the profile, the total area of defect shall not exceed 4% of the surface area of profile.
3.8.3.3 It is allowed for the supplier to make trimming of the surface defects of the profiles, along the longitudinal direction, until obtaining a smooth surface. This trimming operation shall not make the deviation of wall thickness of the profile exceed the allowable range.
3.8.3.4 It is allowed to have oxidation color, non-rough white spots, or dark spots, on the surface of profiles.
3.8.3.5 For the profiles which need machining, the depth of defect, at the machining location, shall not exceed half of the machining allowance.

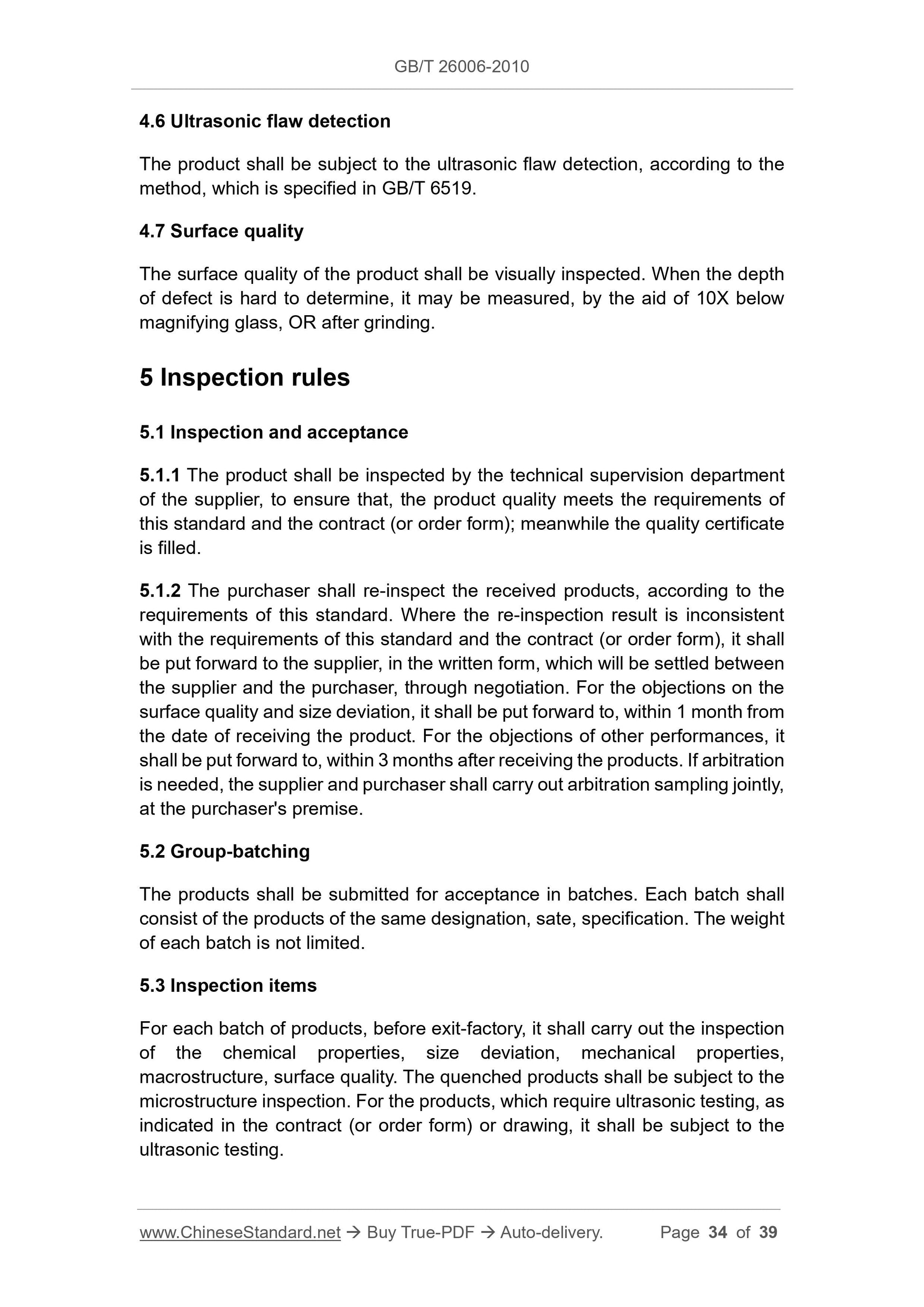

4.6 Ultrasonic flaw detection
The product shall be subject to the ultrasonic flaw detection, according to the method, which is specified in GB/T 6519.
4.7 Surface quality
The surface quality of the product shall be visually inspected. When the depth of defect is hard to determine, it may be measured, by the aid of 10X below magnifying glass, OR after grinding.
5 Inspection rules
5.1 Inspection and acceptance
5.1.1 The product shall be inspected by the technical supervision department of the supplier, to ensure that, the product quality meets the requirements of this standard and the contract (or order form); meanwhile the quality certificate is filled.
5.1.2 The purchaser shall re-inspect the received products, according to the requirements of this standard. Where the re-inspection result is inconsistent with the requirements of this standard and the contract (or order form), it shall be put forward to the supplier, in the written form, which will be settled between the supplier and the purchaser, through negotiation. For the objections on the surface quality and size deviation, it shall be put forward to, within 1 month from the date of receiving the product. For the objections of other performances, it shall be put forward to, within 3 months after receiving the products. If arbitration is needed, the supplier and purchaser shall carry out arbitration sampling jointly, at the purchaser's premise.
5.2 Group-batching
The products shall be submitted for acceptance in batches. Each batch shall consist of the products of the same designation, sate, specification. The weight of each batch is not limited.
5.3 Inspection items
For each batch of products, before exit-factory, it shall carry out the inspection of the chemical properties, size deviation, mechanical properties,
macrostructure, surface quality. The quenched products shall be subject to the microstructure inspection. For the products, which require ultrasonic testing, as indicated in the contract (or order form) or drawing, it shall be subject to the ultrasonic testing.

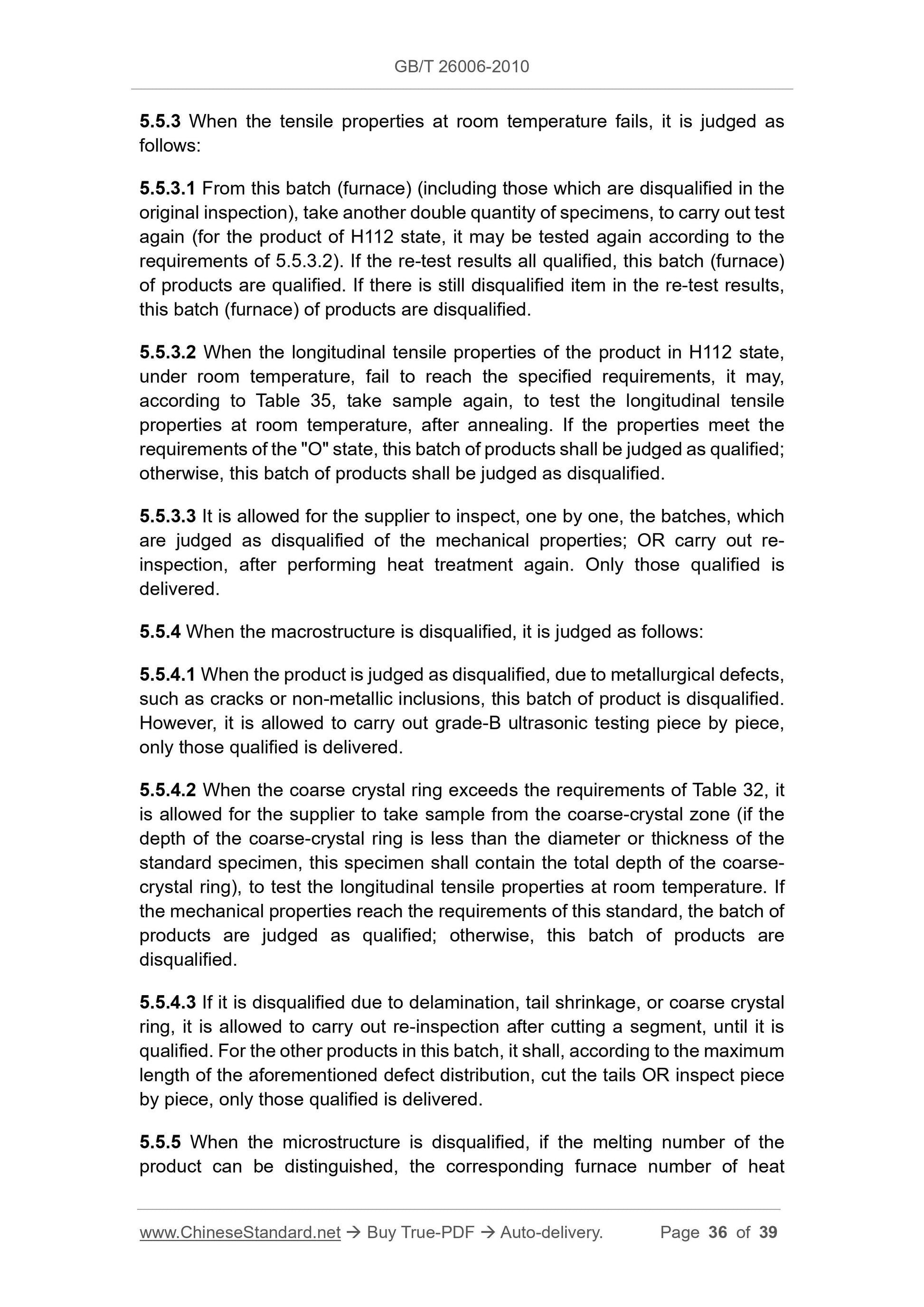

5.5.3 When the tensile properties at room temperature fails, it is judged as follows:
5.5.3.1 From this batch (furnace) (including those which are disqualified in the original inspection), take another double quantity of specimens, to carry out test again (for the product of H112 state, it may be tested again according to the requirements of 5.5.3.2). If the re-test results all qualified, this batch (furnace) of products are qualified. If there is still disqualified item in the re-test results, this batch (furnace) of products are disqualified.
5.5.3.2 When the longitudinal tensile properties of the product in H112 state, under room temperature, fail to reach the specified requirements, it may, according to Table 35, take sample again, to test the longitudinal tensile properties at room temperature, after annealing. If the properties meet the requirements of the "O" state, this batch of products shall be judged as qualified; otherwise, this batch of products shall be judged as disqualified.
5.5.3.3 It is allowed for the supplier to inspect, one by one, the batches, which are judged as disqualified of the mechanical properties; OR carry out re- inspection, after performing heat treatment again. Only those qualified is delivered.
5.5.4 When the macrostructure is disqualified, it is judged as follows: 5.5.4.1 When the product is judged as disqualified, due to metallurgical defects, such as cracks or non-metallic inclusions, this batch of product is disqualified. However, it is allowed to carry out grade-B ultrasonic testing piece by piece, only those qualified is delivered.
5.5.4.2 When the coarse crystal ring exceeds the requirements of Table 32, it is allowed for the supplier to take sample from the coarse-crystal zone (if the depth of the coarse-crystal ring is less than the diameter or thickness of the standard specimen, this specimen shall contain the total depth of the coarse- crystal ring), to test the longitudinal tensile properties at room temperature. If the mechanical properties reach the requirements of this standard, the batch of products are judged as qualified; otherwise, this batch of products are disqualified.
5.5.4.3 If it is disqualified due to delamination, tail shrinkage, or coarse crystal ring, it is allowed to carry out re-inspection after cutting a segment, until it is qualified. For the other products in this batch, it shall, according to the maximum length of the aforementioned defect distribution, cut the tails OR inspect piece by piece, only those qualified is delivered.
5.5.5 When the microstructure is disqualified, if the melting number of the product can be distinguished, the corresponding furnace number of heat
requirement, it may be determined, through negotiation, between the supplier and the purchaser, AND indicated in contract (or order form). Other
requirements shall meet the requirements of GB/T 3199.

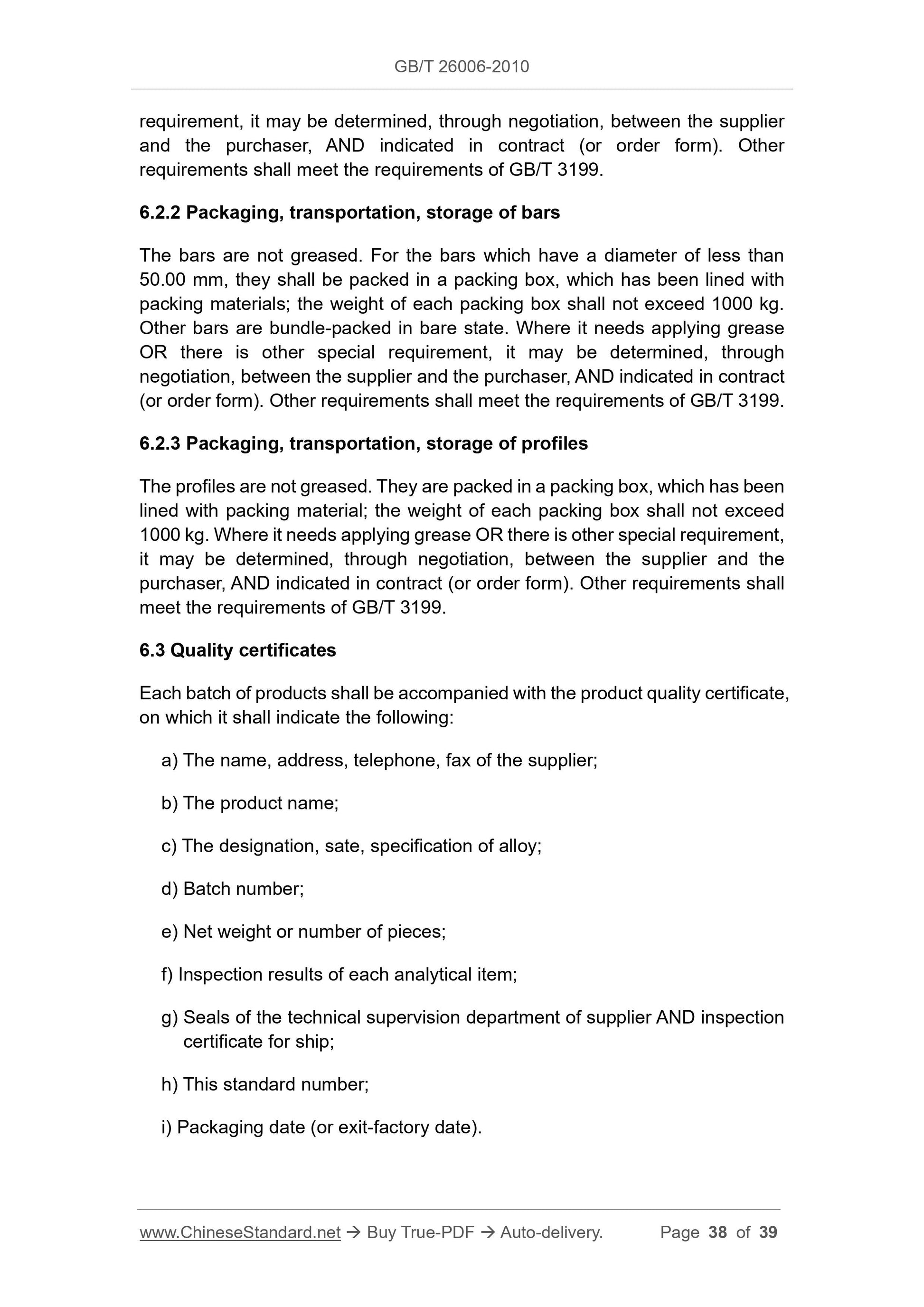

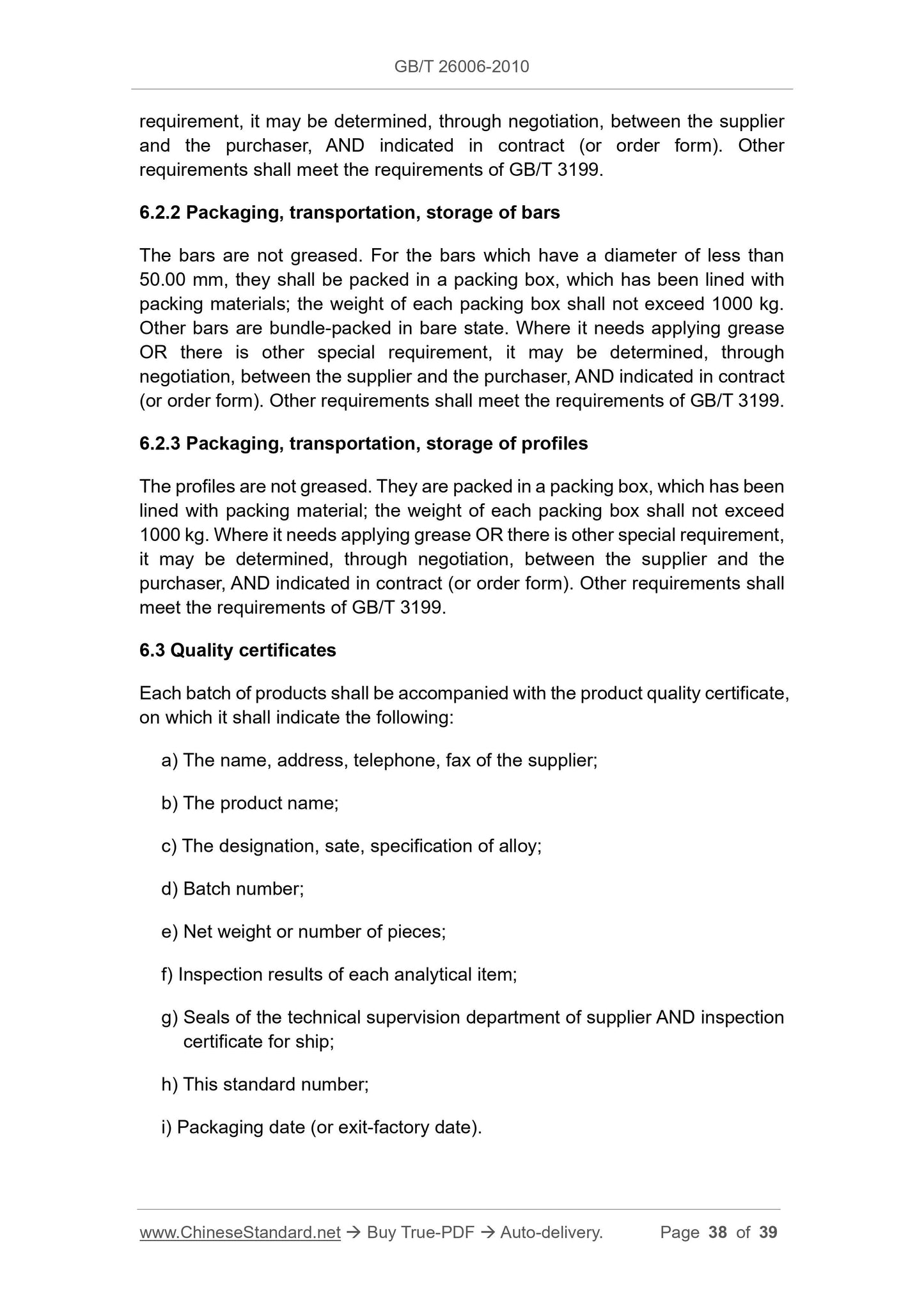

6.2.2 Packaging, transportation, storage of bars
The bars are not greased. For the bars which have a diameter of less than 50.00 mm, they shall be packed in a packing box, which has been lined with packing materials; the weight of each packing box shall not exceed 1000 kg. Other bars are bundle-packed in bare state. Where it needs applying grease OR there is other special requirement, it may be determined, through
negotiation, between the supplier and the purchaser, AND indicated in contract (or order form). Other requirements shall meet the requirements of GB/T 3199. 6.2.3 Packaging, transportation, storage of profiles
The profiles are not greased. They are packed in a packing box, which has been lined with packing material; the weight of each packing box shall not exceed 1000 kg. Where it needs applying grease OR there is other special requirement, it may be determined, through negotiation, between the supplier and the purchaser, AND indicated in contract (or order form). Other requirements shall meet the requirements of GB/T 3199.
6.3 Quality certificates
Each batch of products shall be accompanied with the product quality certificate, on which it shall indicate the following:
a) The name, address, telephone, fax of the supplier;
b) The product name;
c) The designation, sate, specification of alloy;
d) Batch number;
e) Net weight or number of pieces;
f) Inspection results of each analytical item;
g) Seals of the technical supervision department of supplier AND inspection certificate for ship;
h) This standard number;
i) Packaging date (or exit-factory date).
