GB/T 25985-2010 English PDF (GBT25985-2010)

GB/T 25985-2010 English PDF (GBT25985-2010)

Regular price $145.00 USD
Regular price Sale price $145.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here GB/T 25985-2010 to get it for Purchase Approval, Bank TT...

GB/T 25985-2010: Protective of devices against unauthorized use of motor vehicles

This Standard is applicable to M1 and N1 vehicle device to prevent unauthorized use, applicable to vehicle alarm system (VAS) permanently installed on M1 vehicle and N1 vehicle of which the maximum total designed mass is not greater than 2000 kg, applicable to alarm system on M1 vehicle as well as N1 vehicle (only for 12V voltage system car) of which the maximum total designed mass is not greater than 2000 kg, applicable to immobilizer as well as immobilizer of its M1 vehicle and N1 vehicle (only for 12V voltage system car) of which the maximum total designed mass is not greater than 2000 kg. Other types of vehicles and devices equipped on those vehicles as accessories shall refer to this Standard.

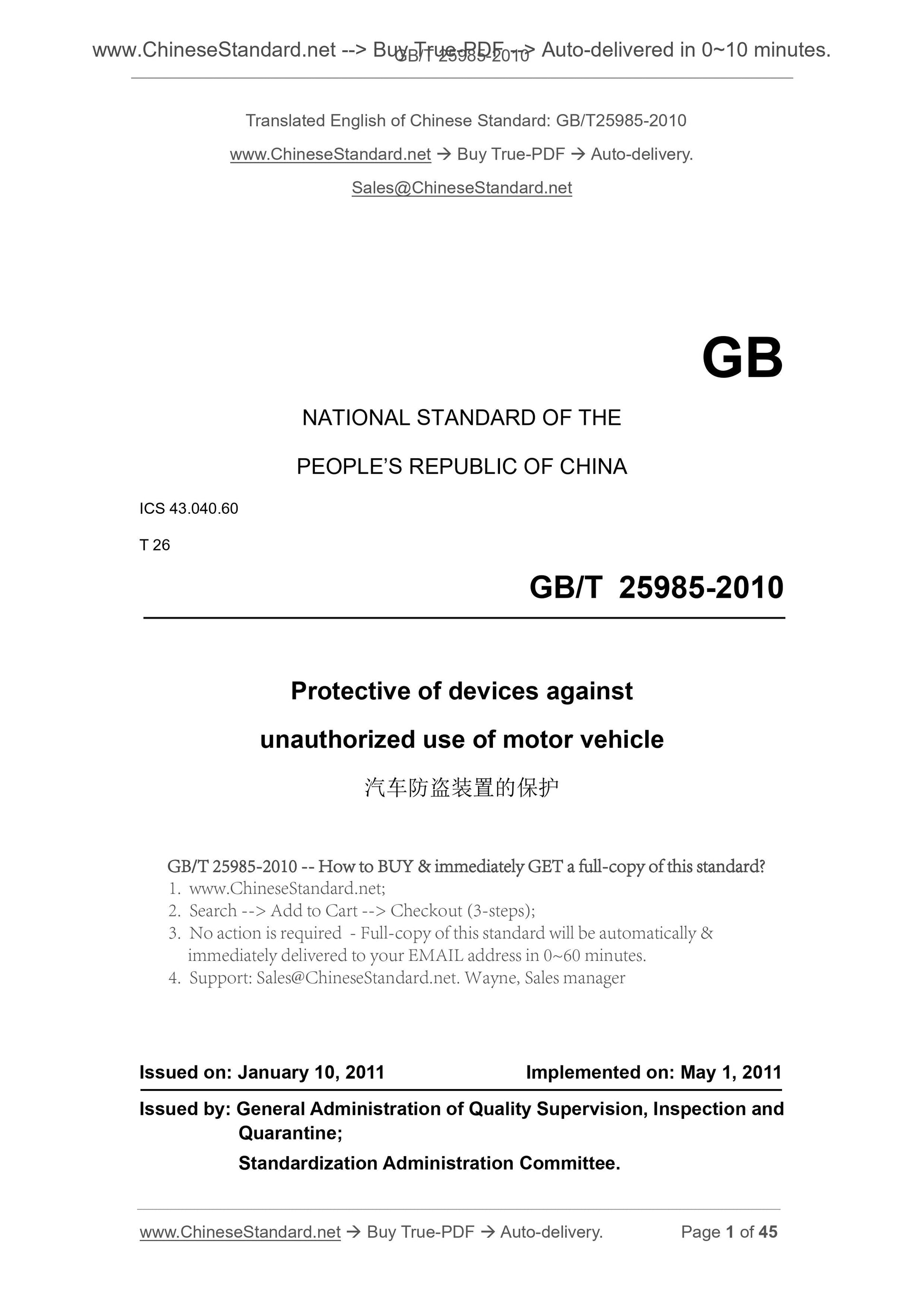

GB/T 25985-2010
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 43.040.60
T 26
Protective of devices against
unauthorized use of motor vehicle
ISSUED ON. JANUARY 10, 2011
IMPLEMENTED ON. MAY 1, 2011
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration Committee.

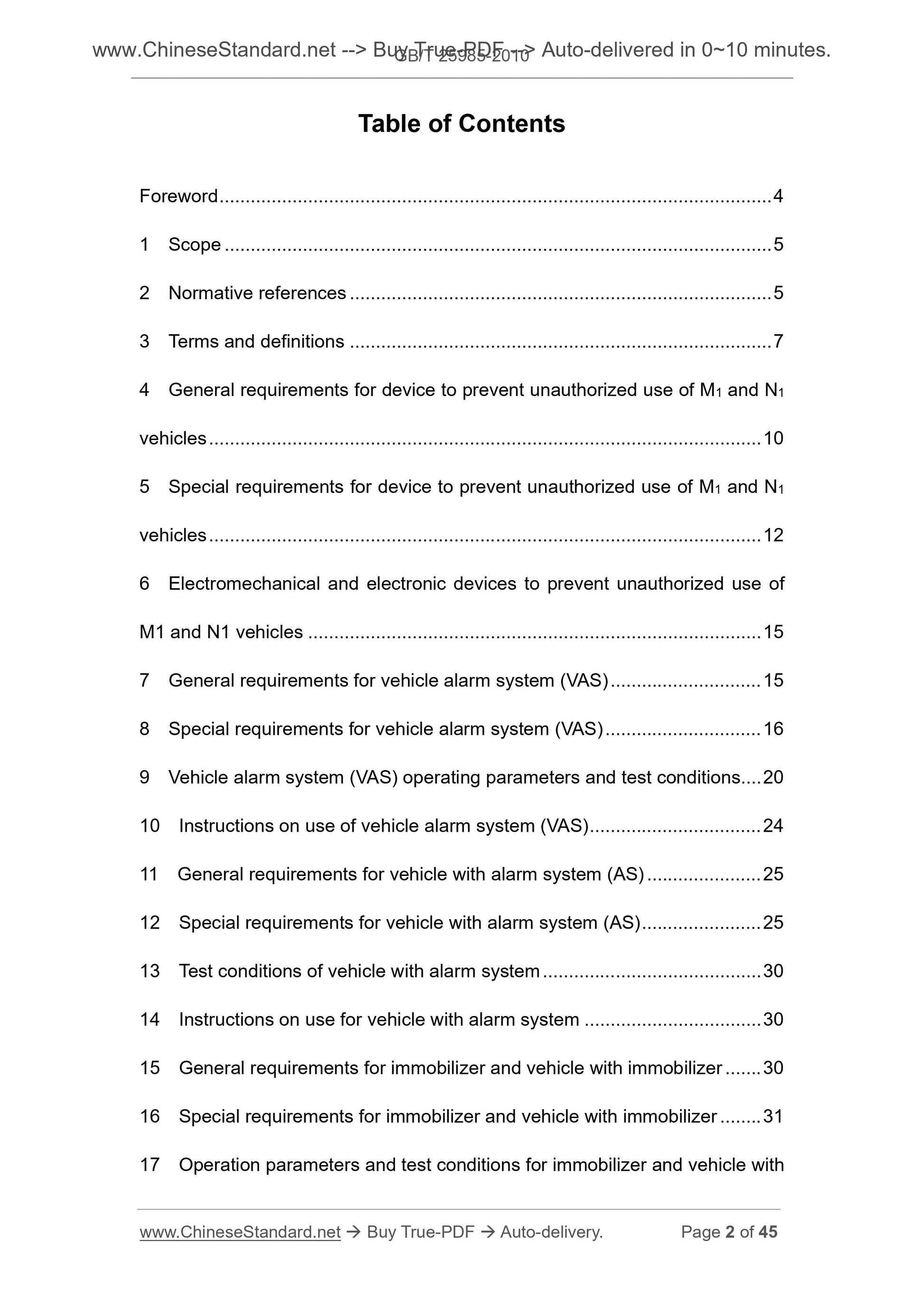

Table of Contents
Foreword ... 4
1 Scope .. 5
2 Normative references ... 5
3 Terms and definitions ... 7
4 General requirements for device to prevent unauthorized use of M1 and N1 vehicles ... 10
5 Special requirements for device to prevent unauthorized use of M1 and N1 vehicles ... 12
6 Electromechanical and electronic devices to prevent unauthorized use of M1 and N1 vehicles ... 15
7 General requirements for vehicle alarm system (VAS) ... 15
8 Special requirements for vehicle alarm system (VAS) ... 16
9 Vehicle alarm system (VAS) operating parameters and test conditions... 20 10 Instructions on use of vehicle alarm system (VAS) ... 24
11 General requirements for vehicle with alarm system (AS) .. 25
12 Special requirements for vehicle with alarm system (AS) ... 25
13 Test conditions of vehicle with alarm system .. 30
14 Instructions on use for vehicle with alarm system .. 30
15 General requirements for immobilizer and vehicle with immobilizer ... 30 16 Special requirements for immobilizer and vehicle with immobilizer .. 31 17 Operation parameters and test conditions for immobilizer and vehicle with immobilizer ... 33

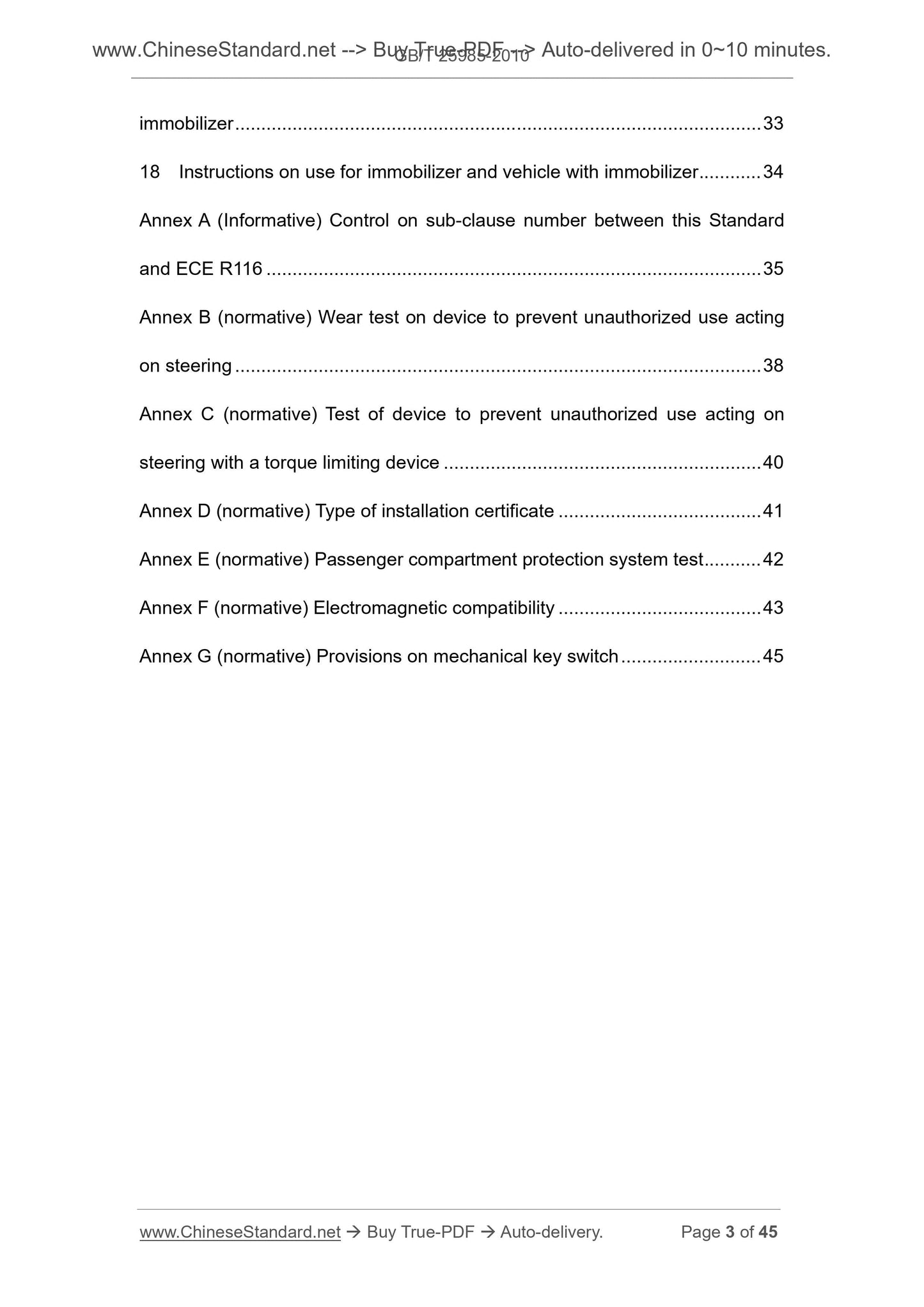

18 Instructions on use for immobilizer and vehicle with immobilizer ... 34 Annex A (Informative) Control on sub-clause number between this Standard and ECE R116 ... 35
Annex B (normative) Wear test on device to prevent unauthorized use acting on steering ... 38
Annex C (normative) Test of device to prevent unauthorized use acting on steering with a torque limiting device ... 40
Annex D (normative) Type of installation certificate ... 41
Annex E (normative) Passenger compartment protection system test .. 42 Annex F (normative) Electromagnetic compatibility ... 43
Annex G (normative) Provisions on mechanical key switch ... 45
Protective of devices against
unauthorized use of motor vehicle

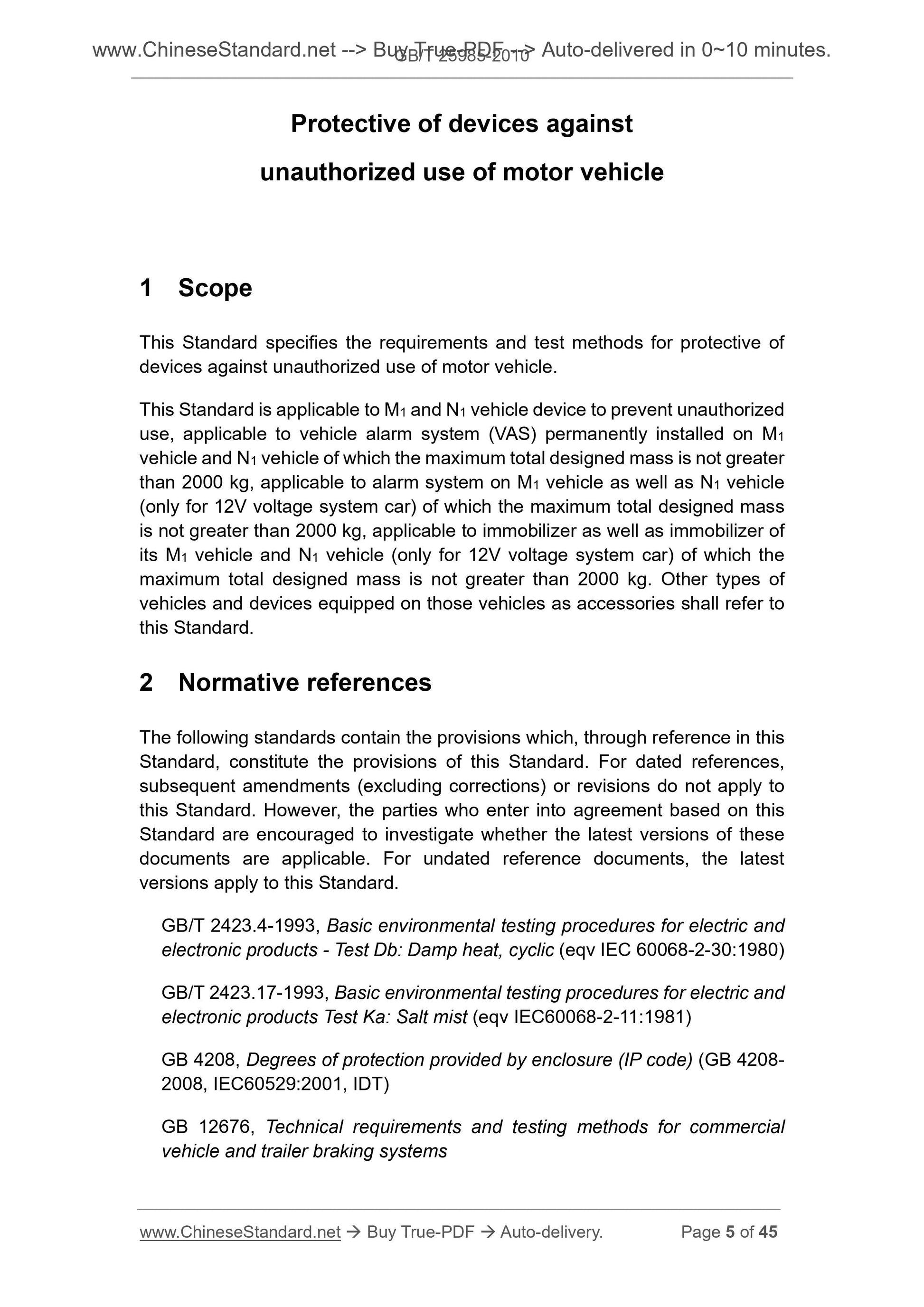

1 Scope
This Standard specifies the requirements and test methods for protective of devices against unauthorized use of motor vehicle.
This Standard is applicable to M1 and N1 vehicle device to prevent unauthorized use, applicable to vehicle alarm system (VAS) permanently installed on M1 vehicle and N1 vehicle of which the maximum total designed mass is not greater than 2000 kg, applicable to alarm system on M1 vehicle as well as N1 vehicle (only for 12V voltage system car) of which the maximum total designed mass is not greater than 2000 kg, applicable to immobilizer as well as immobilizer of its M1 vehicle and N1 vehicle (only for 12V voltage system car) of which the maximum total designed mass is not greater than 2000 kg. Other types of vehicles and devices equipped on those vehicles as accessories shall refer to this Standard.
2 Normative references
The following standards contain the provisions which, through reference in this Standard, constitute the provisions of this Standard. For dated references, subsequent amendments (excluding corrections) or revisions do not apply to this Standard. However, the parties who enter into agreement based on this Standard are encouraged to investigate whether the latest versions of these documents are applicable. For undated reference documents, the latest
versions apply to this Standard.
GB/T 2423.4-1993, Basic environmental testing procedures for electric and electronic products - Test Db. Damp heat, cyclic (eqv IEC 60068-2-30.1980) GB/T 2423.17-1993, Basic environmental testing procedures for electric and electronic products Test Ka. Salt mist (eqv IEC60068-2-11.1981)
GB 4208, Degrees of protection provided by enclosure (IP code) (GB 4208- 2008, IEC60529.2001, IDT)
GB 12676, Technical requirements and testing methods for commercial
vehicle and trailer braking systems

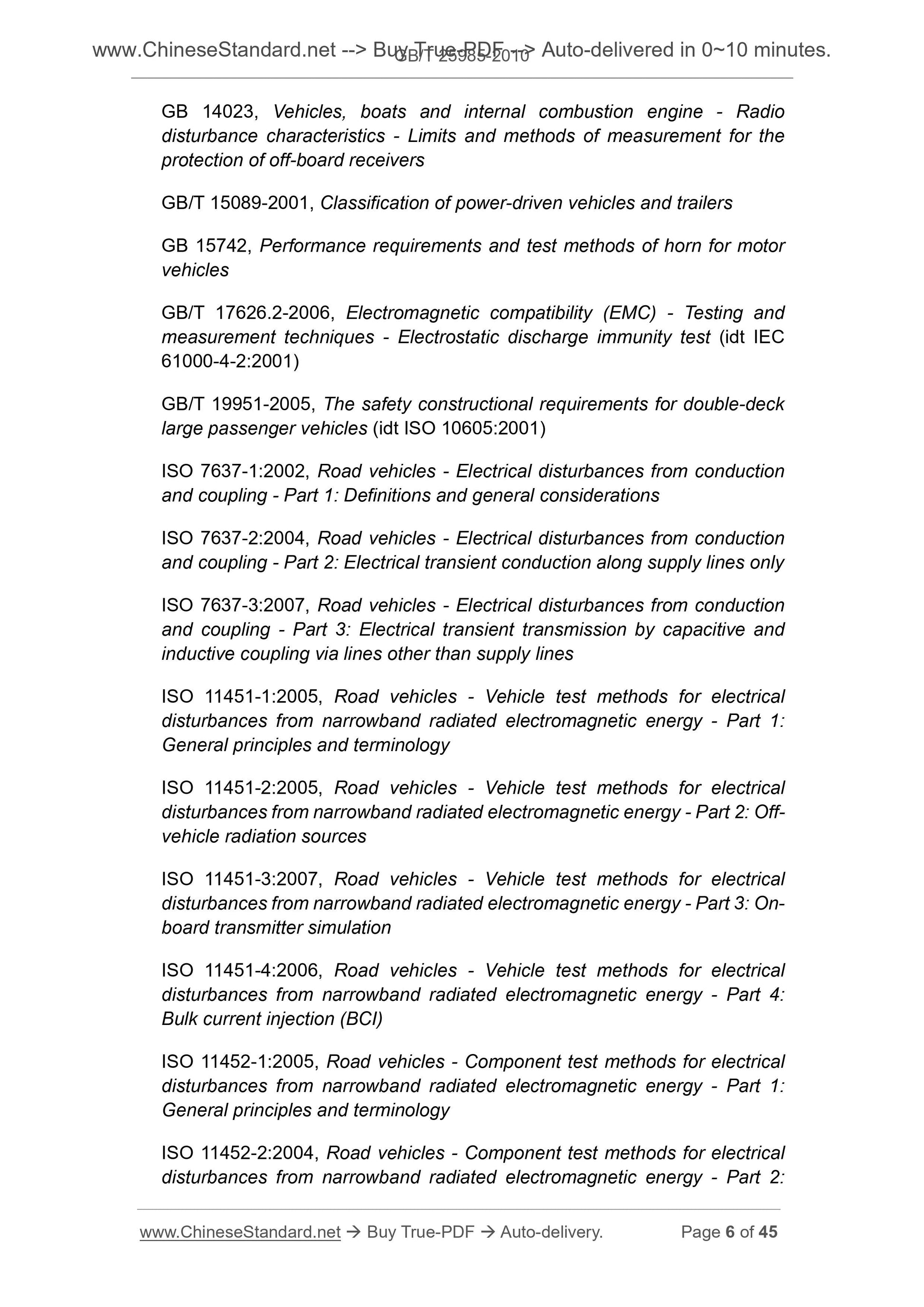

GB 14023, Vehicles, boats and internal combustion engine - Radio
disturbance characteristics - Limits and methods of measurement for the protection of off-board receivers
GB/T 15089-2001, Classification of power-driven vehicles and trailers
GB 15742, Performance requirements and test methods of horn for motor
vehicles
GB/T 17626.2-2006, Electromagnetic compatibility (EMC) - Testing and
measurement techniques - Electrostatic discharge immunity test (idt IEC 61000-4-2.2001)
GB/T 19951-2005, The safety constructional requirements for double-deck large passenger vehicles (idt ISO 10605.2001)
ISO 7637-1.2002, Road vehicles - Electrical disturbances from conduction and coupling - Part 1. Definitions and general considerations
ISO 7637-2.2004, Road vehicles - Electrical disturbances from conduction and coupling - Part 2. Electrical transient conduction along supply lines only ISO 7637-3.2007, Road vehicles - Electrical disturbances from conduction and coupling - Part 3. Electrical transient transmission by capacitive and inductive coupling via lines other than supply lines
ISO 11451-1.2005, Road vehicles - Vehicle test methods for electrical
disturbances from narrowband radiated electromagnetic energy - Part 1.
General principles and terminology
ISO 11451-2.2005, Road vehicles - Vehicle test methods for electrical
disturbances from narrowband radiated electromagnetic energy - Part 2. Off- vehicle radiation sources
ISO 11451-3.2007, Road vehicles - Vehicle test methods for electrical
disturbances from narrowband radiated electromagnetic energy - Part 3. On- board transmitter simulation
ISO 11451-4.2006, Road vehicles - Vehicle test methods for electrical
disturbances from narrowband radiated electromagnetic energy - Part 4.
Bulk current injection (BCI)
ISO 11452-1.2005, Road vehicles - Component test methods for electrical disturbances from narrowband radiated electromagnetic energy - Part 1.
General principles and terminology
ISO 11452-2.2004, Road vehicles - Component test methods for electrical disturbances from narrowband radiated electromagnetic energy - Part 2.

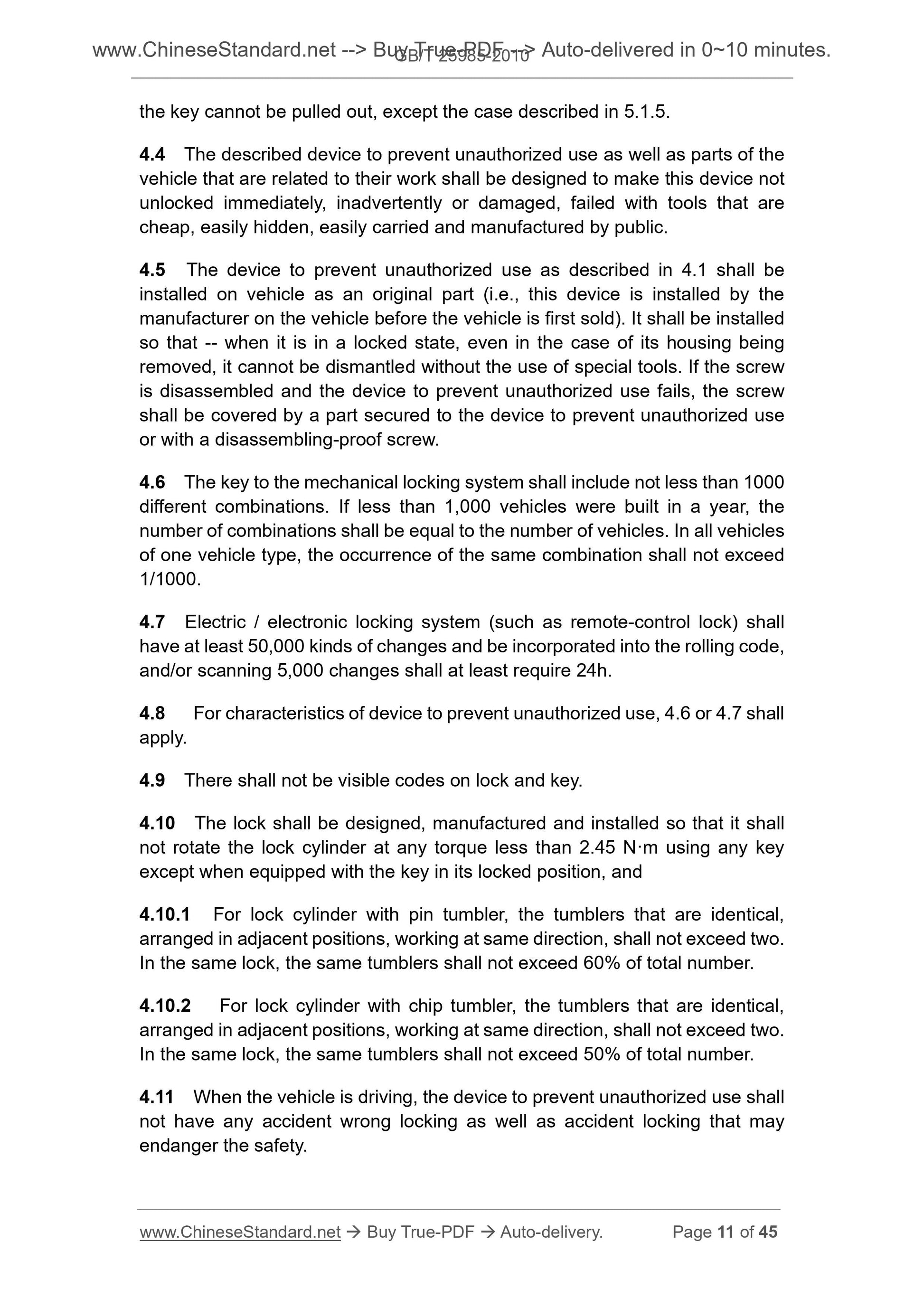

the key cannot be pulled out, except the case described in 5.1.5.
4.4 The described device to prevent unauthorized use as well as parts of the vehicle that are related to their work shall be designed to make this device not unlocked immediately, inadvertently or damaged, failed with tools that are cheap, easily hidden, easily carried and manufactured by public.
4.5 The device to prevent unauthorized use as described in 4.1 shall be installed on vehicle as an original part (i.e., this device is installed by the manufacturer on the vehicle before the vehicle is first sold). It shall be installed so that -- when it is in a locked state, even in the case of its housing being removed, it cannot be dismantled without the use of special tools. If the screw is disassembled and the device to prevent unauthorized use fails, the screw shall be covered by a part secured to the device to prevent unauthorized use or with a disassembling-proof screw.
4.6 The key to the mechanical locking system shall include not less than 1000 different combinations. If less than 1,000 vehicles were built in a year, the number of combinations shall be equal to the number of vehicles. In all vehicles of one vehicle type, the occurrence of the same combination shall not exceed 1/1000.
4.7 Electric / electronic locking system (such as remote-control lock) shall have at least 50,000 kinds of changes and be incorporated into the rolling code, and/or scanning 5,000 changes shall at least require 24h.
4.8 For characteristics of device to prevent unauthorized use, 4.6 or 4.7 shall apply.
4.9 There shall not be visible codes on lock and key.
4.10 The lock shall be designed, manufactured and installed so that it shall not rotate the lock cylinder at any torque less than 2.45 N??m using any key except when equipped with the key in its locked position, and
4.10.1 For lock cylinder with pin tumbler, the tumblers that are identical, arranged in adjacent positions, working at same direction, shall not exceed two. In the same lock, the same tumblers shall not exceed 60% of total number. 4.10.2 For lock cylinder with chip tumbler, the tumblers that are identical, arranged in adjacent positions, working at same direction, shall not exceed two. In the same lock, the same tumblers shall not exceed 50% of total number. 4.11 When the vehicle is driving, the device to prevent unauthorized use shall not have any accident wrong locking as well as accident locking that may endanger the safety.

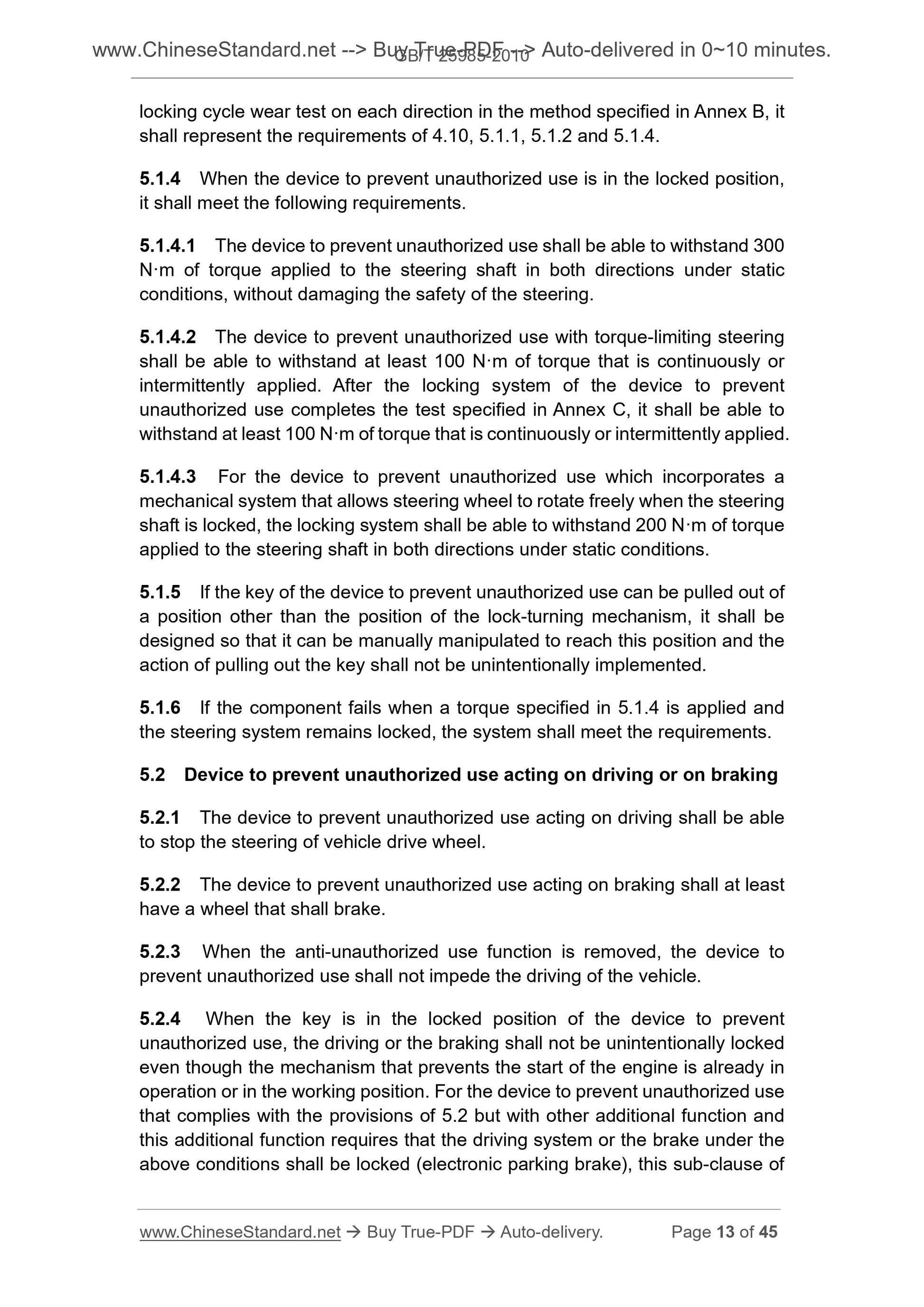

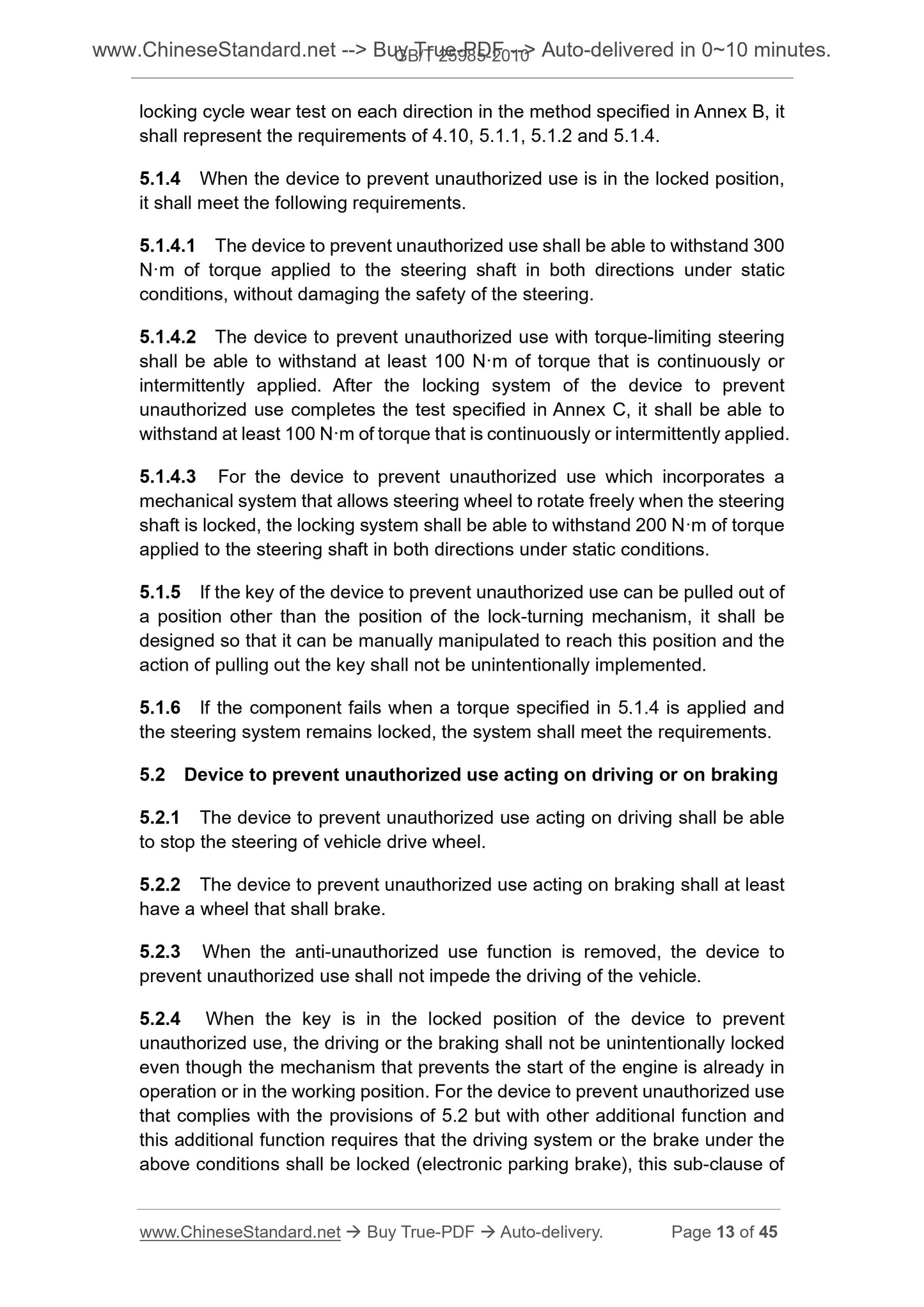

locking cycle wear test on each direction in the method specified in Annex B, it ...
