GB/T 25832-2019 English PDF (GBT25832-2019)

GB/T 25832-2019 English PDF (GBT25832-2019)

Regular price $150.00 USD
Regular price Sale price $150.00 USD
Sale Sold out
Shipping calculated at checkout.
Delivery: 3 seconds (Download full-editable-PDF + Invoice).
Quotation: Click GB/T 25832-2019>>Add to cart>>Quote
Editable-PDF Preview (Reload if blank, scroll for next page)

GB/T 25832-2019: Hot rolled steel plate and strip for porcelain enameling
This Standard specifies the designation representation method and method, ordering contents, dimension, shape, weight, technical requirements, test methods, inspection rules, packaging, marking and quality certificate of hot rolled steel plates and strips for porcelain enameling. This Standard is applicable to hot rolled steel plates and strips with good porcelain enameling properties and thickness of not more than 40 mm, used in industries such as light industry, household appliances, metallurgy, construction, chemical equipment, water treatment industry.

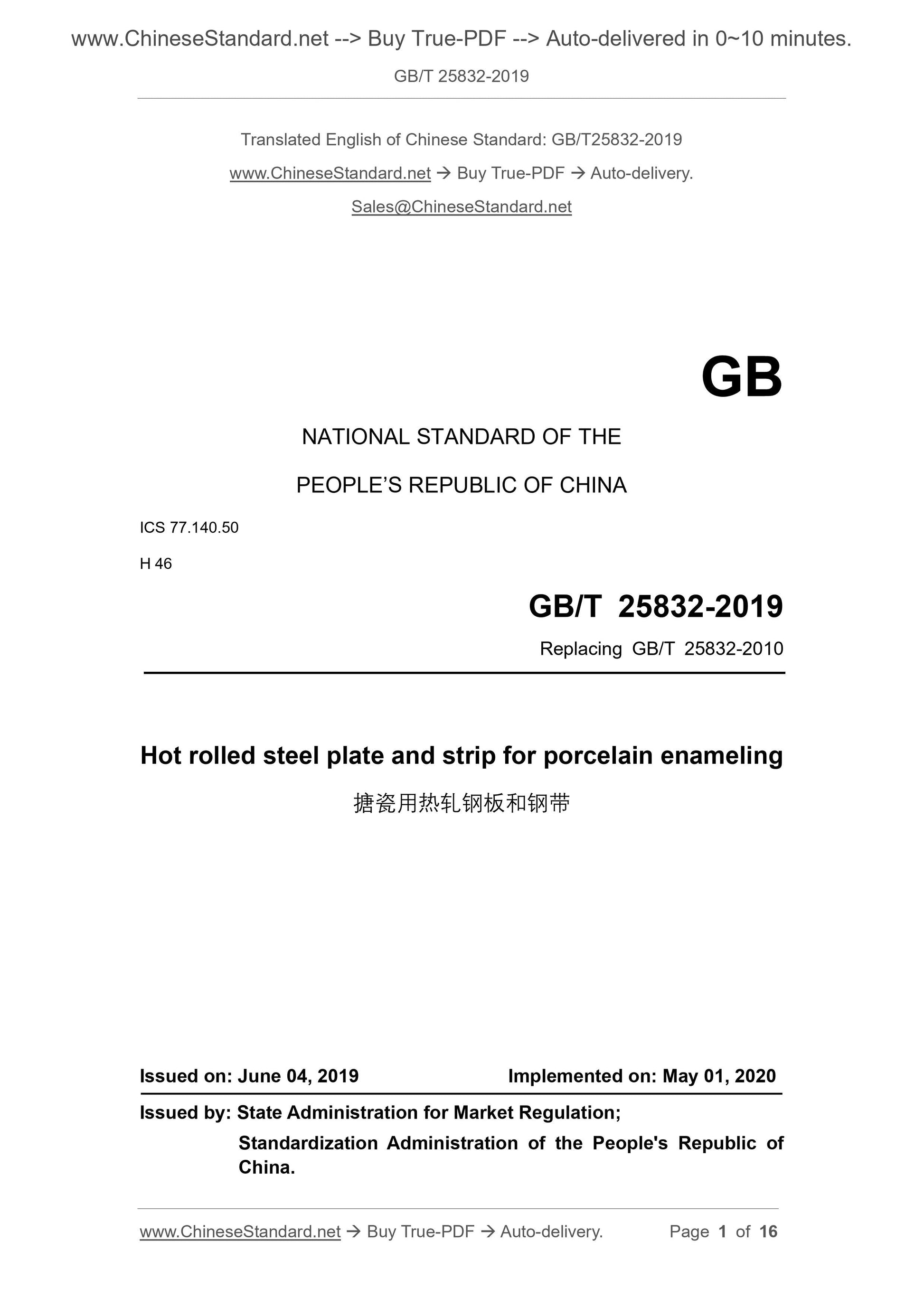

GB/T 25832-2019
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 77.140.50
H 46
Replacing GB/T 25832-2010
Hot rolled steel plate and strip for porcelain enameling
ISSUED ON: JUNE 04, 2019
IMPLEMENTED ON: MAY 01, 2020
Issued by: State Administration for Market Regulation;
Standardization Administration of the People's Republic of
China.

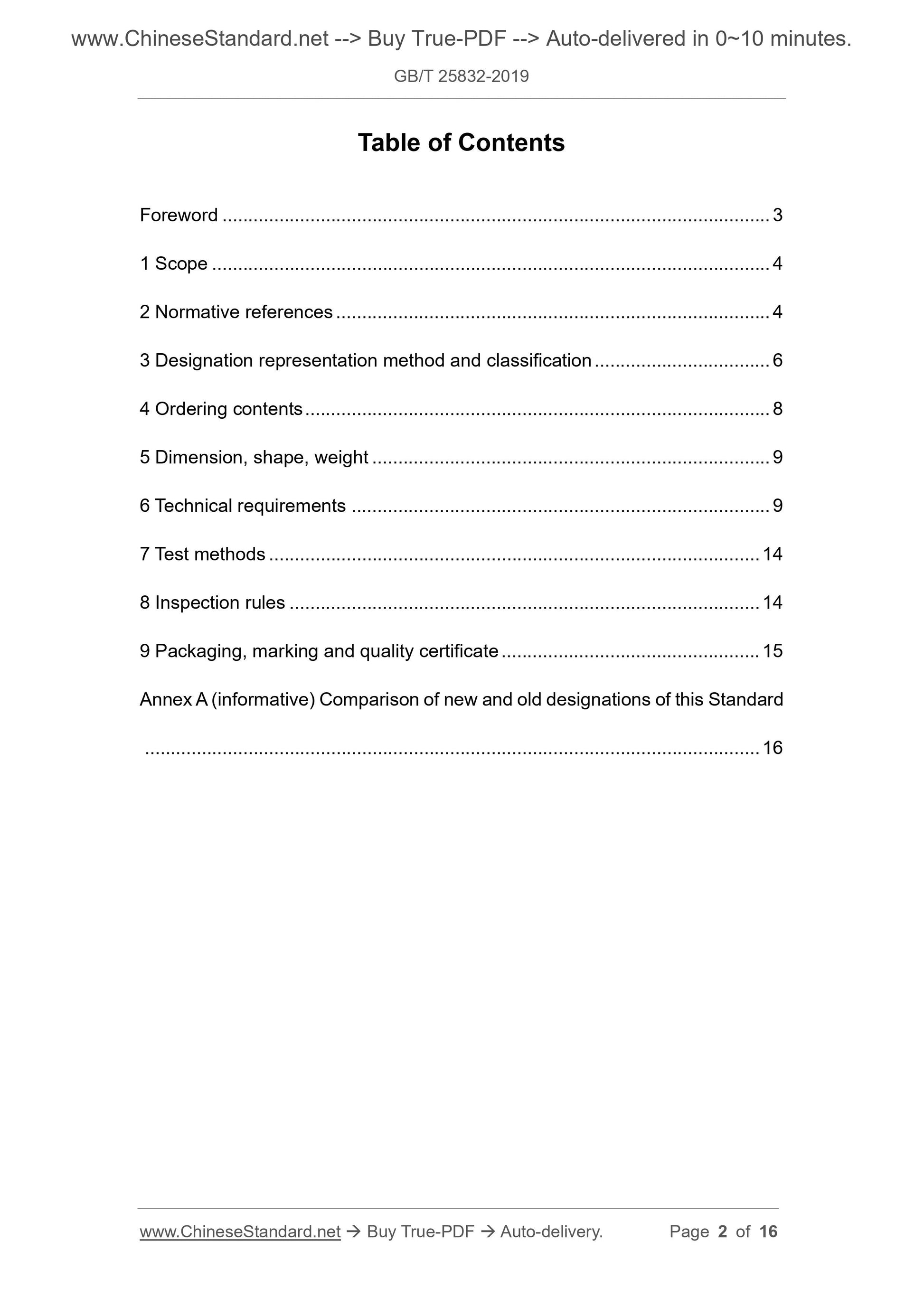

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Designation representation method and classification ... 6
4 Ordering contents ... 8
5 Dimension, shape, weight ... 9
6 Technical requirements ... 9
7 Test methods ... 14
8 Inspection rules ... 14
9 Packaging, marking and quality certificate ... 15
Annex A (informative) Comparison of new and old designations of this Standard ... 16

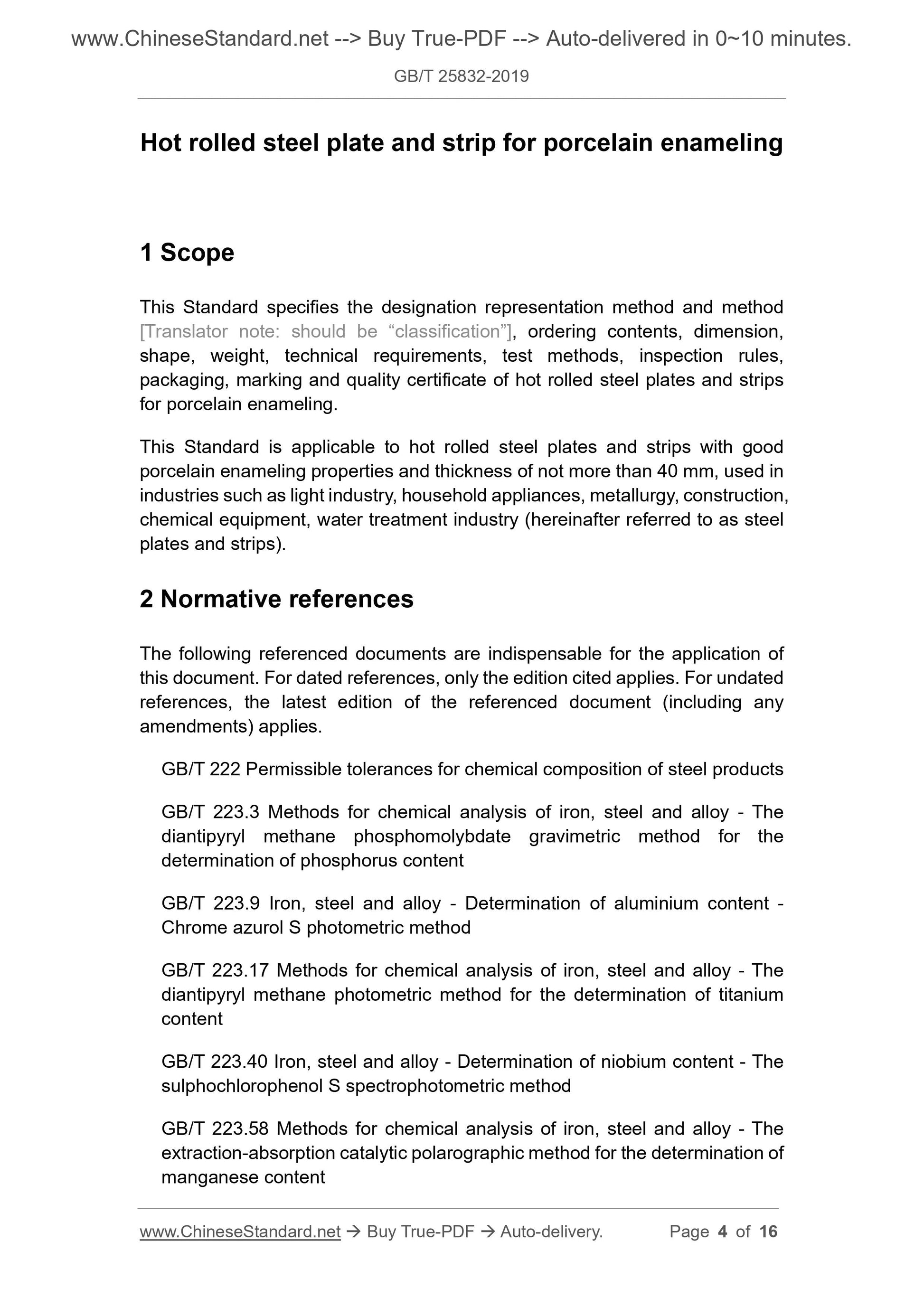

Hot rolled steel plate and strip for porcelain enameling
1 Scope
This Standard specifies the designation representation method and method [Translator note: should be “classification”], ordering contents, dimension, shape, weight, technical requirements, test methods, inspection rules,
packaging, marking and quality certificate of hot rolled steel plates and strips for porcelain enameling.
This Standard is applicable to hot rolled steel plates and strips with good porcelain enameling properties and thickness of not more than 40 mm, used in industries such as light industry, household appliances, metallurgy, construction, chemical equipment, water treatment industry (hereinafter referred to as steel plates and strips).
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
GB/T 222 Permissible tolerances for chemical composition of steel products GB/T 223.3 Methods for chemical analysis of iron, steel and alloy - The diantipyryl methane phosphomolybdate gravimetric method for the
determination of phosphorus content
GB/T 223.9 Iron, steel and alloy - Determination of aluminium content - Chrome azurol S photometric method
GB/T 223.17 Methods for chemical analysis of iron, steel and alloy - The diantipyryl methane photometric method for the determination of titanium content
GB/T 223.40 Iron, steel and alloy - Determination of niobium content - The sulphochlorophenol S spectrophotometric method
GB/T 223.58 Methods for chemical analysis of iron, steel and alloy - The extraction-absorption catalytic polarographic method for the determination of manganese content

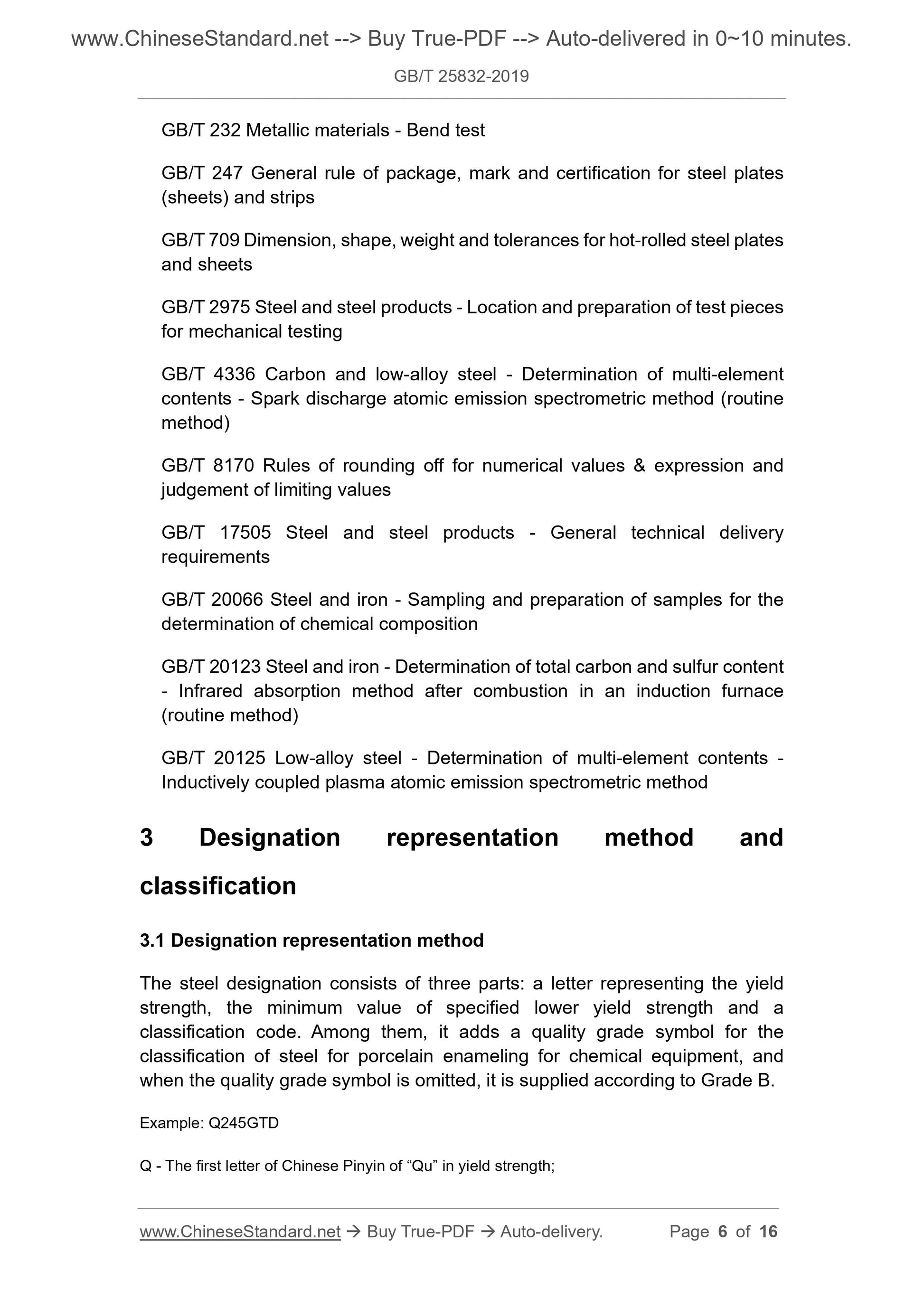

GB/T 232 Metallic materials - Bend test
GB/T 247 General rule of package, mark and certification for steel plates (sheets) and strips
GB/T 709 Dimension, shape, weight and tolerances for hot-rolled steel plates and sheets
GB/T 2975 Steel and steel products - Location and preparation of test pieces for mechanical testing
GB/T 4336 Carbon and low-alloy steel - Determination of multi-element
contents - Spark discharge atomic emission spectrometric method (routine method)
GB/T 8170 Rules of rounding off for numerical values and expression and
judgement of limiting values
GB/T 17505 Steel and steel products - General technical delivery
requirements
GB/T 20066 Steel and iron - Sampling and preparation of samples for the determination of chemical composition
GB/T 20123 Steel and iron - Determination of total carbon and sulfur content - Infrared absorption method after combustion in an induction furnace
(routine method)
GB/T 20125 Low-alloy steel - Determination of multi-element contents -
Inductively coupled plasma atomic emission spectrometric method
3 Designation representation method and
classification
3.1 Designation representation method
The steel designation consists of three parts: a letter representing the yield strength, the minimum value of specified lower yield strength and a
classification code. Among them, it adds a quality grade symbol for the classification of steel for porcelain enameling for chemical equipment, and when the quality grade symbol is omitted, it is supplied according to Grade B. Example: Q245GTD
Q - The first letter of Chinese Pinyin of “Qu” in yield strength;

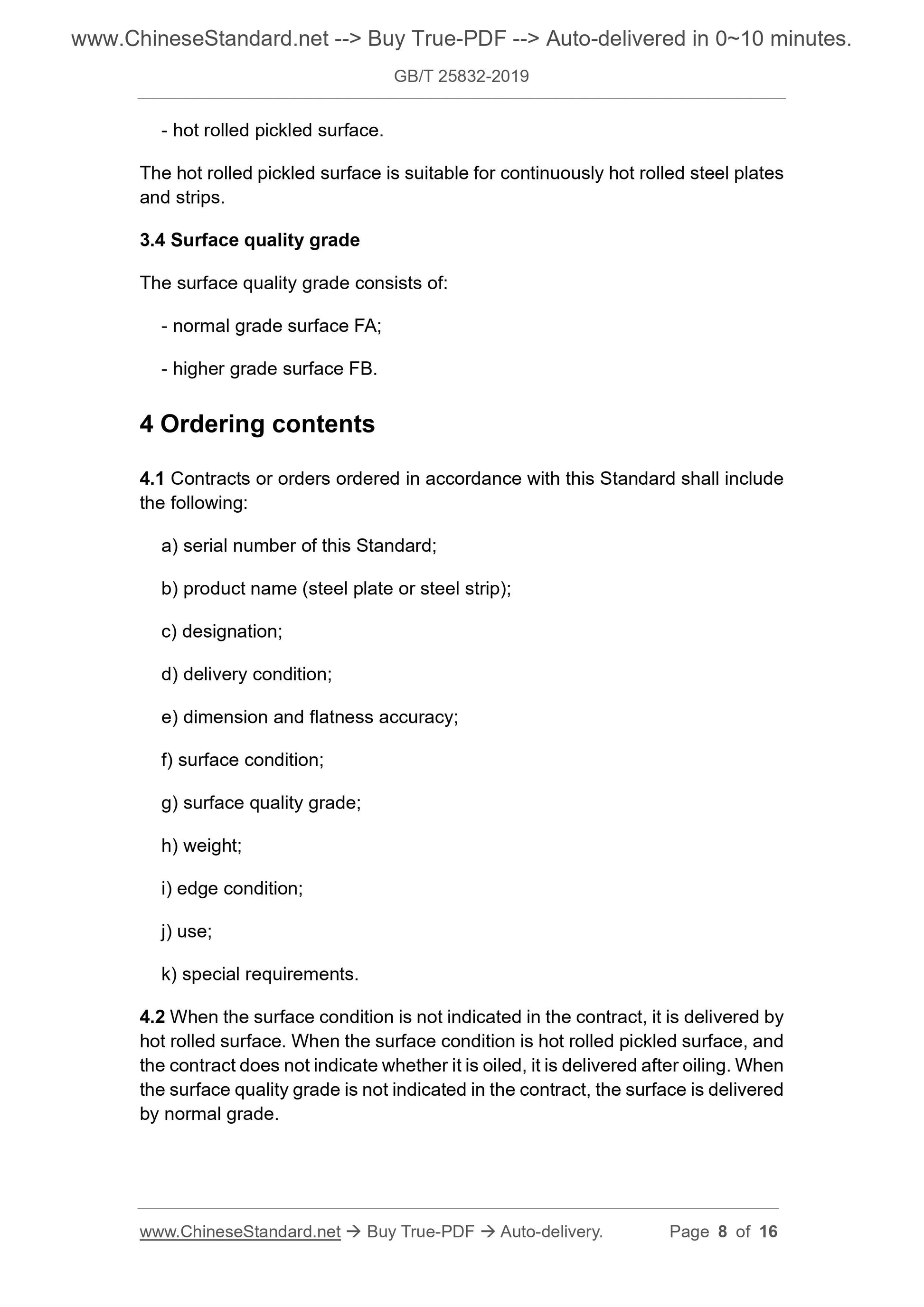

- hot rolled pickled surface.
The hot rolled pickled surface is suitable for continuously hot rolled steel plates and strips.
3.4 Surface quality grade
The surface quality grade consists of:
- normal grade surface FA;
- higher grade surface FB.
4 Ordering contents
4.1 Contracts or orders ordered in accordance with this Standard shall include the following:
a) serial number of this Standard;
b) product name (steel plate or steel strip);
c) designation;
d) delivery condition;
e) dimension and flatness accuracy;
f) surface condition;
g) surface quality grade;
h) weight;
i) edge condition;
j) use;
k) special requirements.
4.2 When the surface condition is not indicated in the contract, it is delivered by hot rolled surface. When the surface condition is hot rolled pickled surface, and the contract does not indicate whether it is oiled, it is delivered after oiling. When the surface quality grade is not indicated in the contract, the surface is delivered by normal grade.

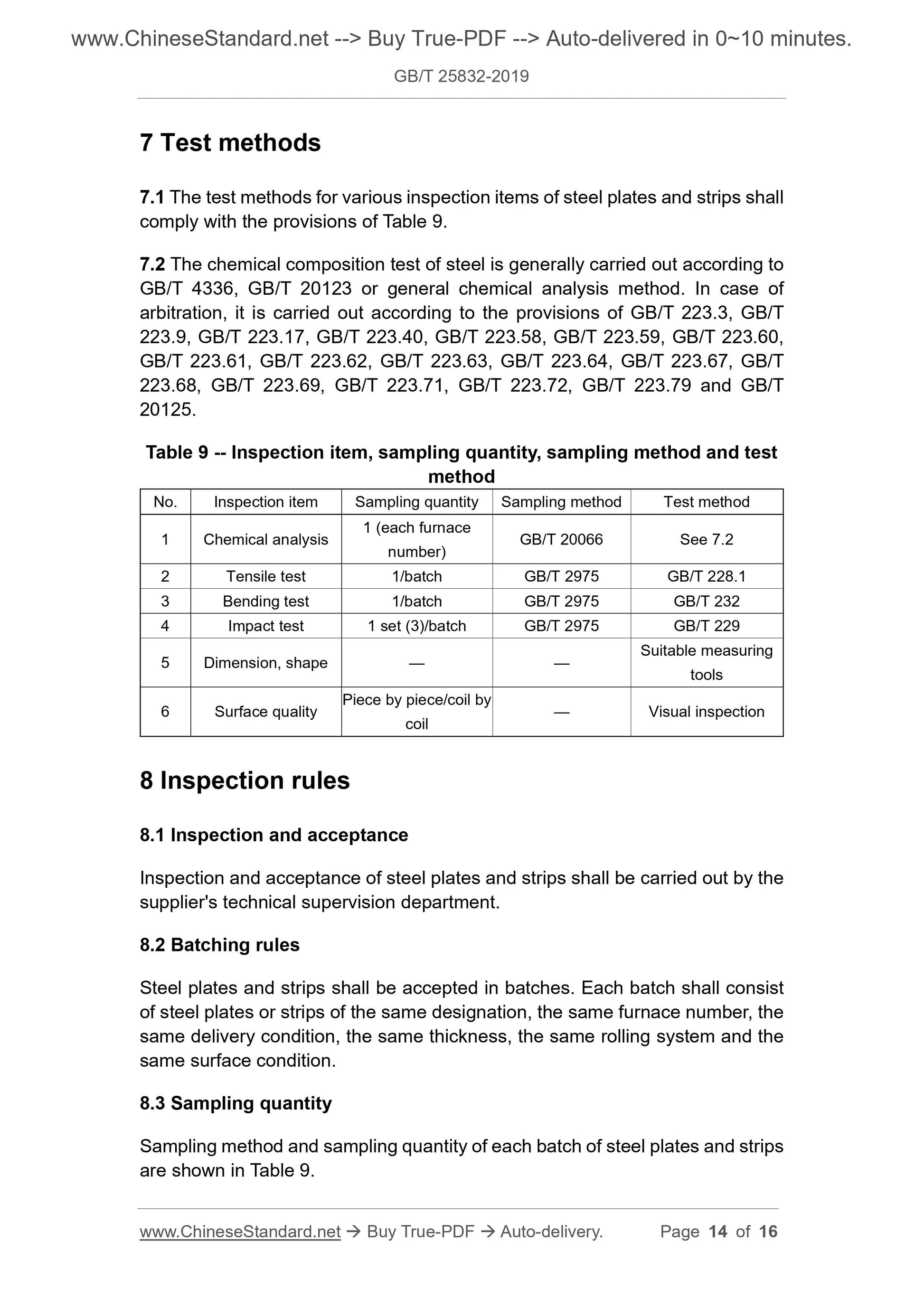

7 Test methods
7.1 The test methods for various inspection items of steel plates and strips shall comply with the provisions of Table 9.
7.2 The chemical composition test of steel is generally carried out according to GB/T 4336, GB/T 20123 or general chemical analysis method. In case of
arbitration, it is carried out according to the provisions of GB/T 223.3, GB/T 223.9, GB/T 223.17, GB/T 223.40, GB/T 223.58, GB/T 223.59, GB/T 223.60, GB/T 223.61, GB/T 223.62, GB/T 223.63, GB/T 223.64, GB/T 223.67, GB/T
223.68, GB/T 223.69, GB/T 223.71, GB/T 223.72, GB/T 223.79 and GB/T
20125.
Table 9 -- Inspection item, sampling quantity, sampling method and test method
No. Inspection item Sampling quantity Sampling method Test method
1 Chemical analysis 1 (each furnace number) GB/T 20066 See 7.2
2 Tensile test 1/batch GB/T 2975 GB/T 228.1
3 Bending test 1/batch GB/T 2975 GB/T 232
4 Impact test 1 set (3)/batch GB/T 2975 GB/T 229
5 Dimension, shape — — Suitable measuring tools
6 Surface quality Piece by piece/coil by coil — Visual inspection
8 Inspection rules
8.1 Inspection and acceptance
Inspection and acceptance of steel plates and strips shall be carried out by the supplier's technical supervision department.
8.2 Batching rules
Steel plates and strips shall be accepted in batches. Each batch shall consist of steel plates or strips of the same designation, the same furnace number, the same delivery condition, the same thickness, the same rolling system and the same surface condition.
8.3 Sampling quantity
Sampling method and sampling quantity of each batch of steel plates and strips are shown in Table 9.
