GB/T 24510-2017: Nickel alloy steel plates for low temperature pressure vessels

This Standard specifies the ordering contents, size, shape, weight and permissible deviation, technical requirements, test methods, inspection rules, package, mark, quality certificate and transportation of nickel alloy steel plates for low temperature pressure vessels. This Standard is applicable to the nickel alloy steel plates with thickness no greater than 150mm for the liquefied gas storage and transportation device.

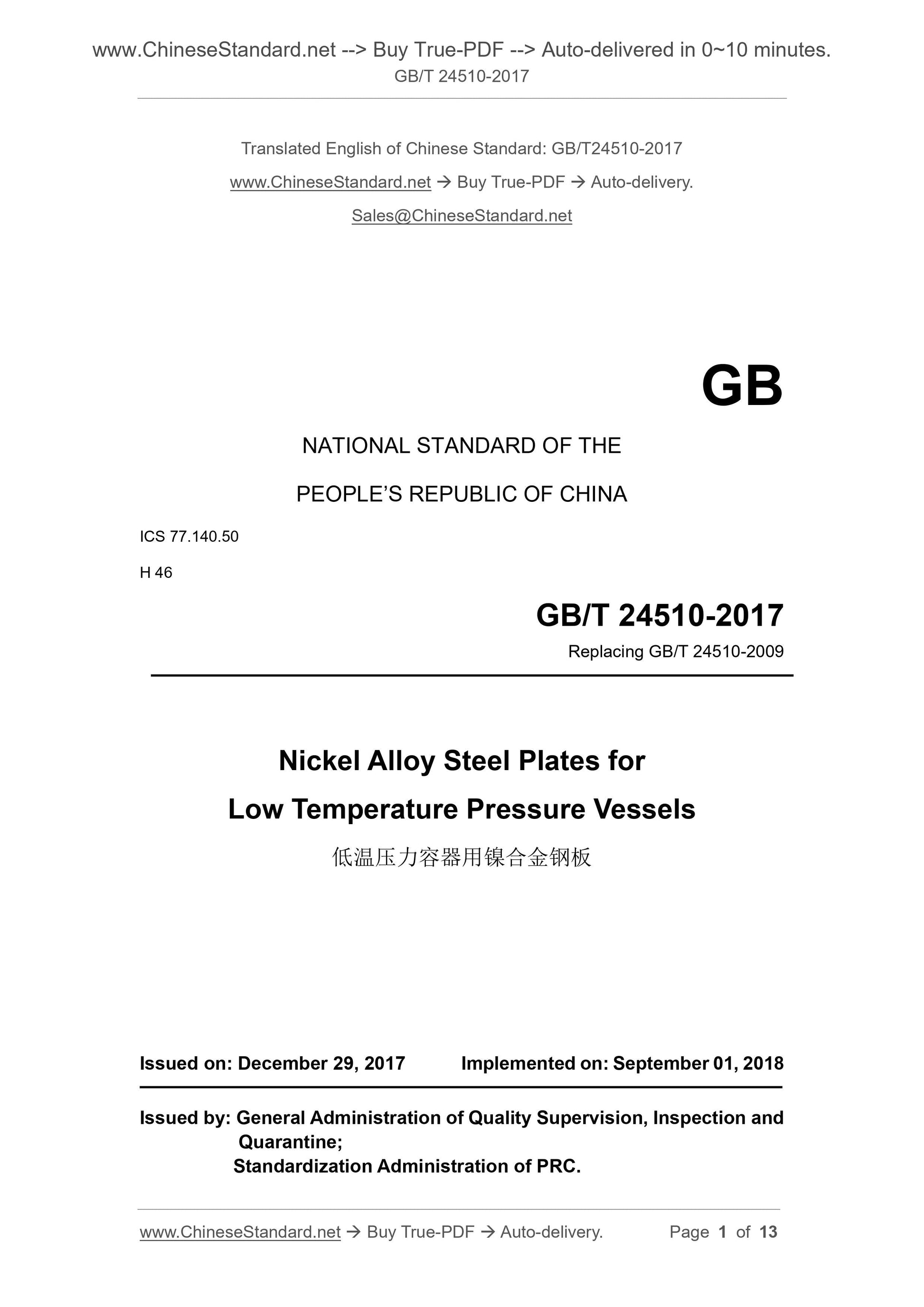

GB/T 24510-2017
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.140.50
H 46
Replacing GB/T 24510-2009
Nickel Alloy Steel Plates for
Low Temperature Pressure Vessels
ISSUED ON. DECEMBER 29, 2017
IMPLEMENTED ON. SEPTEMBER 01, 2018
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of PRC.

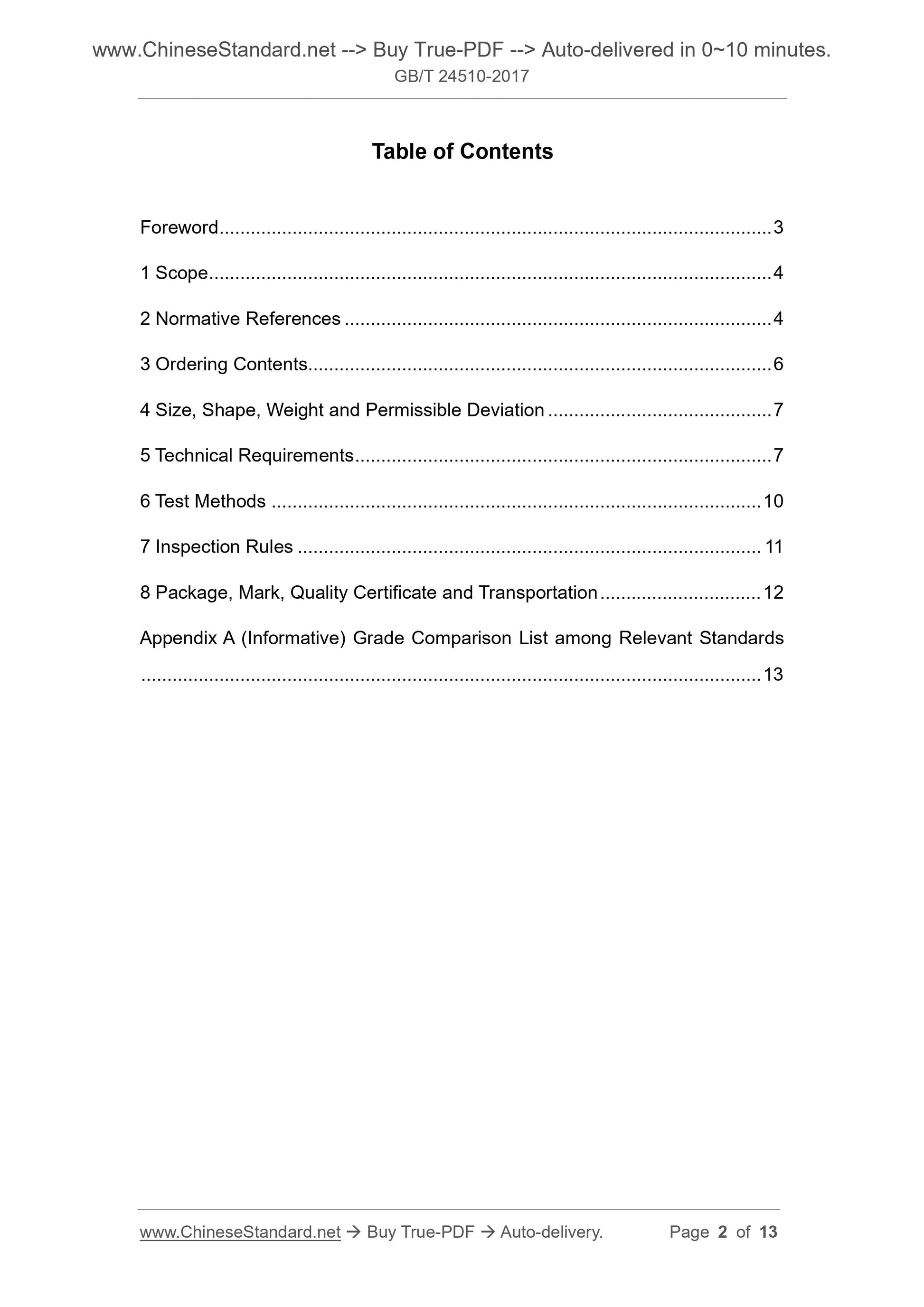

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Ordering Contents... 6
4 Size, Shape, Weight and Permissible Deviation ... 7
5 Technical Requirements ... 7
6 Test Methods ... 10
7 Inspection Rules ... 11
8 Package, Mark, Quality Certificate and Transportation ... 12
Appendix A (Informative) Grade Comparison List among Relevant Standards ... 13
Nickel Alloy Steel Plates for
Low Temperature Pressure Vessels

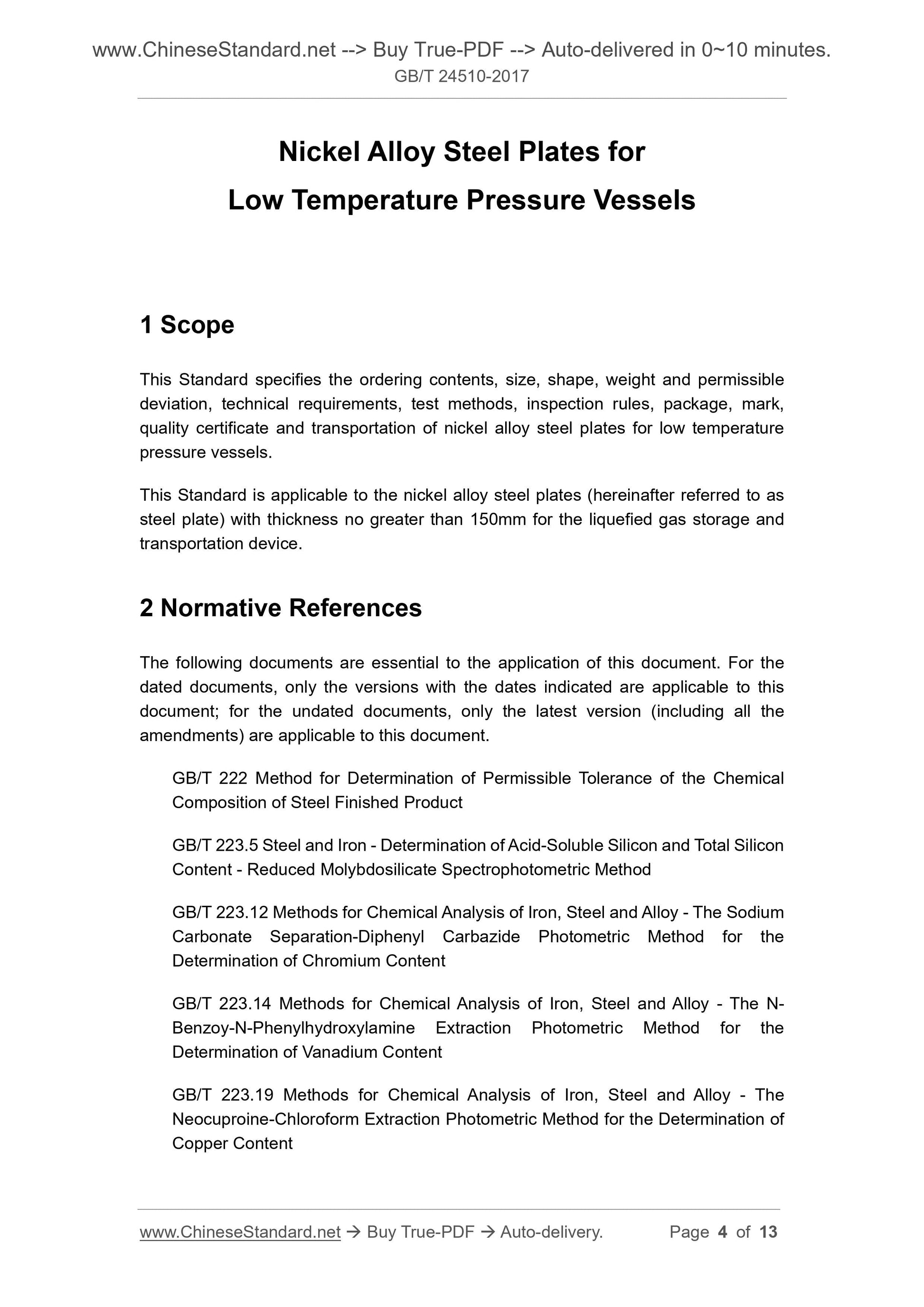

1 Scope
This Standard specifies the ordering contents, size, shape, weight and permissible deviation, technical requirements, test methods, inspection rules, package, mark, quality certificate and transportation of nickel alloy steel plates for low temperature pressure vessels.
This Standard is applicable to the nickel alloy steel plates (hereinafter referred to as steel plate) with thickness no greater than 150mm for the liquefied gas storage and transportation device.
2 Normative References
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this document.
GB/T 222 Method for Determination of Permissible Tolerance of the Chemical Composition of Steel Finished Product
GB/T 223.5 Steel and Iron - Determination of Acid-Soluble Silicon and Total Silicon Content - Reduced Molybdosilicate Spectrophotometric Method
GB/T 223.12 Methods for Chemical Analysis of Iron, Steel and Alloy - The Sodium Carbonate Separation-Diphenyl Carbazide Photometric Method for the
Determination of Chromium Content
GB/T 223.14 Methods for Chemical Analysis of Iron, Steel and Alloy - The N- Benzoy-N-Phenylhydroxylamine Extraction Photometric Method for the
Determination of Vanadium Content
GB/T 223.19 Methods for Chemical Analysis of Iron, Steel and Alloy - The Neocuproine-Chloroform Extraction Photometric Method for the Determination of Copper Content

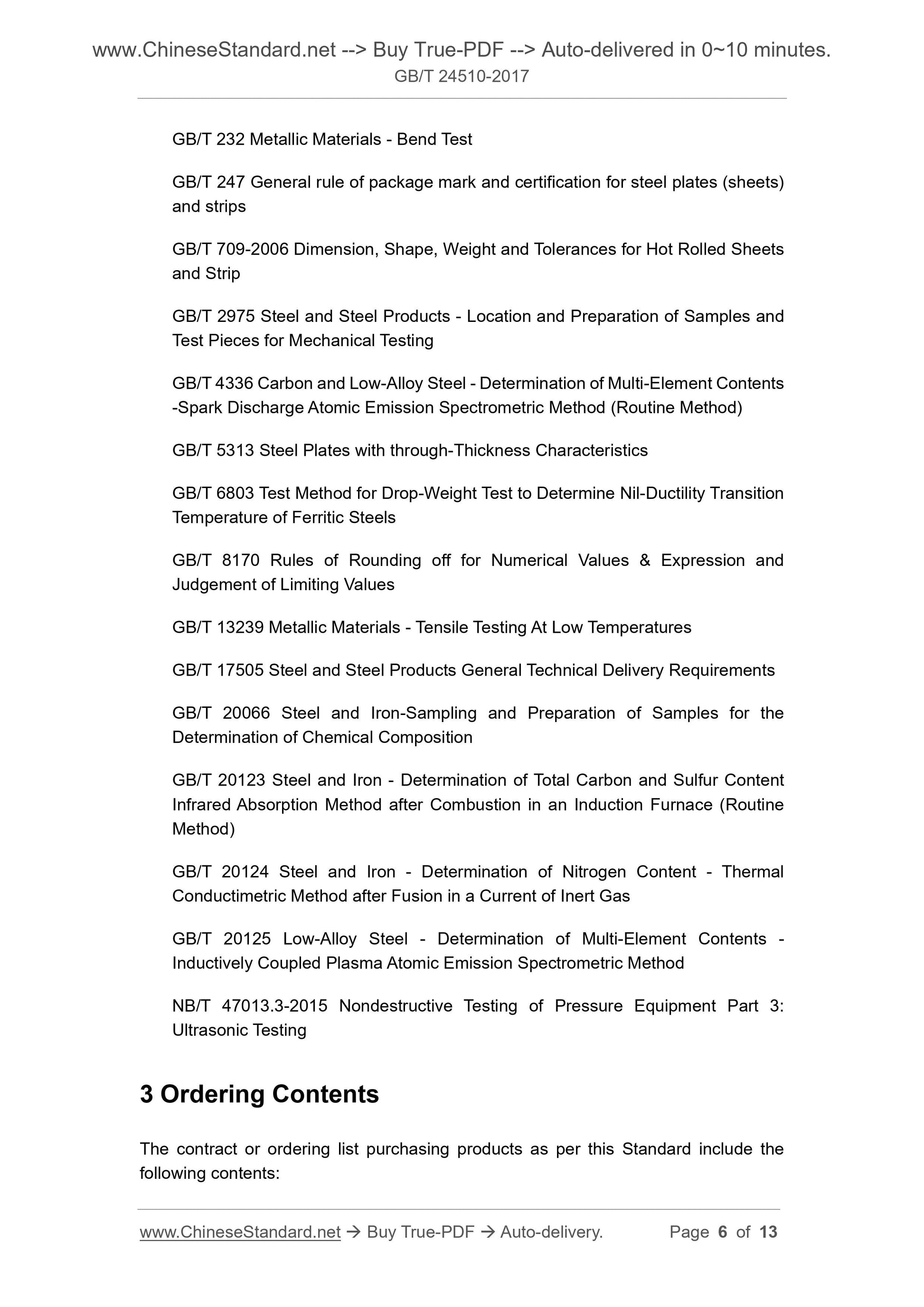

GB/T 232 Metallic Materials - Bend Test
GB/T 247 General rule of package mark and certification for steel plates (sheets) and strips
GB/T 709-2006 Dimension, Shape, Weight and Tolerances for Hot Rolled Sheets and Strip
GB/T 2975 Steel and Steel Products - Location and Preparation of Samples and Test Pieces for Mechanical Testing
GB/T 4336 Carbon and Low-Alloy Steel - Determination of Multi-Element Contents -Spark Discharge Atomic Emission Spectrometric Method (Routine Method)
GB/T 5313 Steel Plates with through-Thickness Characteristics
GB/T 6803 Test Method for Drop-Weight Test to Determine Nil-Ductility Transition Temperature of Ferritic Steels
GB/T 8170 Rules of Rounding off for Numerical Values and Expression and
Judgement of Limiting Values
GB/T 13239 Metallic Materials - Tensile Testing At Low Temperatures
GB/T 17505 Steel and Steel Products General Technical Delivery Requirements GB/T 20066 Steel and Iron-Sampling and Preparation of Samples for the
Determination of Chemical Composition
GB/T 20123 Steel and Iron - Determination of Total Carbon and Sulfur Content Infrared Absorption Method after Combustion in an Induction Furnace (Routine Method)
GB/T 20124 Steel and Iron - Determination of Nitrogen Content - Thermal Conductimetric Method after Fusion in a Current of Inert Gas
GB/T 20125 Low-Alloy Steel - Determination of Multi-Element Contents -
Inductively Coupled Plasma Atomic Emission Spectrometric Method
NB/T 47013.3-2015 Nondestructive Testing of Pressure Equipment Part 3.
Ultrasonic Testing
3 Ordering Contents
The contract or ordering list purchasing products as per this Standard include the following contents.

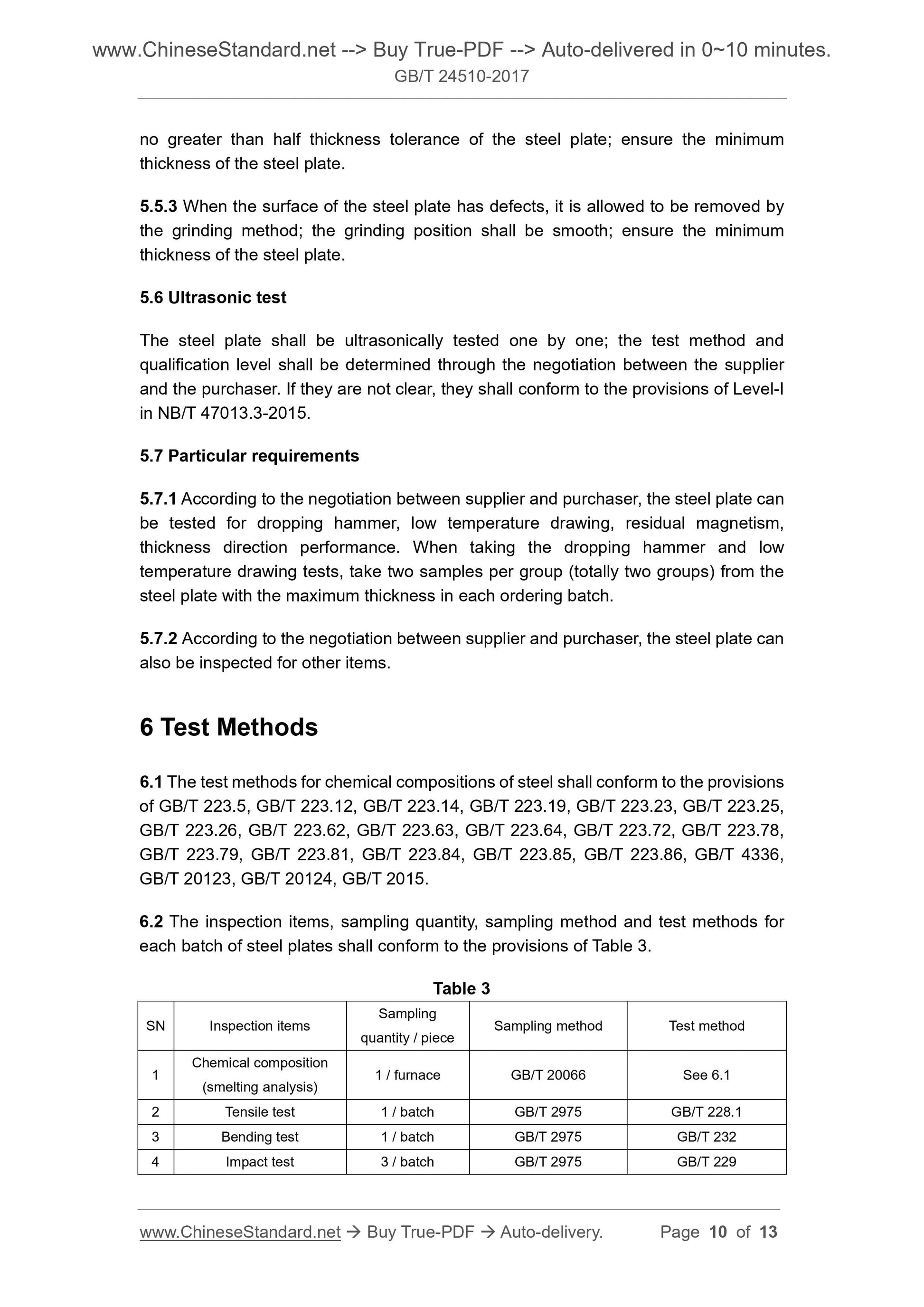

no greater than half thickness tolerance of the steel plate; ensure the minimum thickness of the steel plate.
5.5.3 When the surface of the steel plate has defects, it is allowed to be removed by the grinding method; the grinding position shall be smooth; ensure the minimum thickness of the steel plate.
5.6 Ultrasonic test
The steel plate shall be ultrasonically tested one by one; the test method and qualification level shall be determined through the negotiation between the supplier and the purchaser. If they are not clear, they shall conform to the provisions of Level-I in NB/T 47013.3-2015.
5.7 Particular requirements
5.7.1 According to the negotiation between supplier and purchaser, the steel plate can be tested for dropping hammer, low temperature drawing, residual magnetism, thickness direction performance. When taking the dropping hammer and low temperature drawing tests, take two samples per group (totally two groups) from the steel plate with the maximum thickness in each ordering batch.
5.7.2 According to the negotiation between supplier and purchaser, the steel plate can also be inspected for other items.
6 Test Methods
6.1 The test methods for chemical compositions of steel shall conform to the provisions of GB/T 223.5, GB/T 223.12, GB/T 223.14, GB/T 223.19, GB/T 223.23, GB/T 223.25, GB/T 223.26, GB/T 223.62, GB/T 223.63, GB/T 223.64, GB/T 223.72, GB/T 223.78, GB/T 223.79, GB/T 223.81, GB/T 223.84, GB/T 223.85, GB/T 223.86, GB/T 4336, GB/T 20123, GB/T 20124, GB/T 2015.
6.2 The inspection items, sampling quantity, sampling method and test methods for each batch of steel plates shall conform to the provisions of Table 3.
Table 3
SN Inspection items Sampling quantity/piece Sampling method Test method 1 Chemical composition (smelting analysis) 1/furnace GB/T 20066 See 6.1 2 Tensile test 1/batch GB/T 2975 GB/T 228.1
3 Bending test 1/batch GB/T 2975 GB/T 232
4 Impact test 3/batch GB/T 2975 GB/T 229
