GB/T 24498-2009: Gaskets for doors, windows and curtain walls of buildings

This standard specifies the terms and definitions, classification, code and marking, requirements, test methods, inspection rules and signs, packaging, transportation and storage of gaskets for doors, windows and curtain walls of buildings.

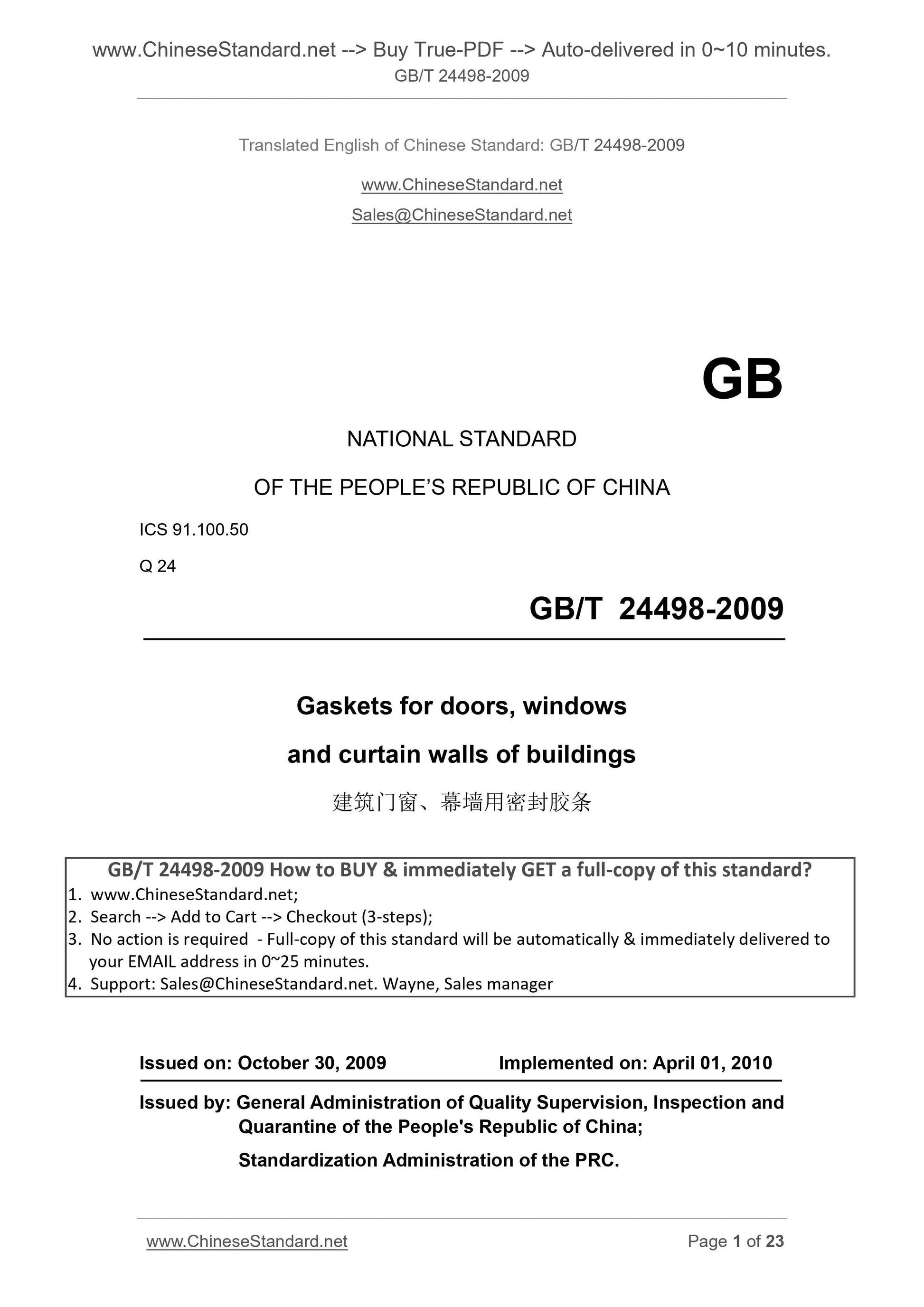

GB/T 24498-2009
GB
NATIONAL STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 91.100.50
Q 24
Gaskets for doors, windows
and curtain walls of buildings
ISSUED ON. OCTOBER 30, 2009
IMPLEMENTED ON. APRIL 01, 2010
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
Standardization Administration of the PRC.

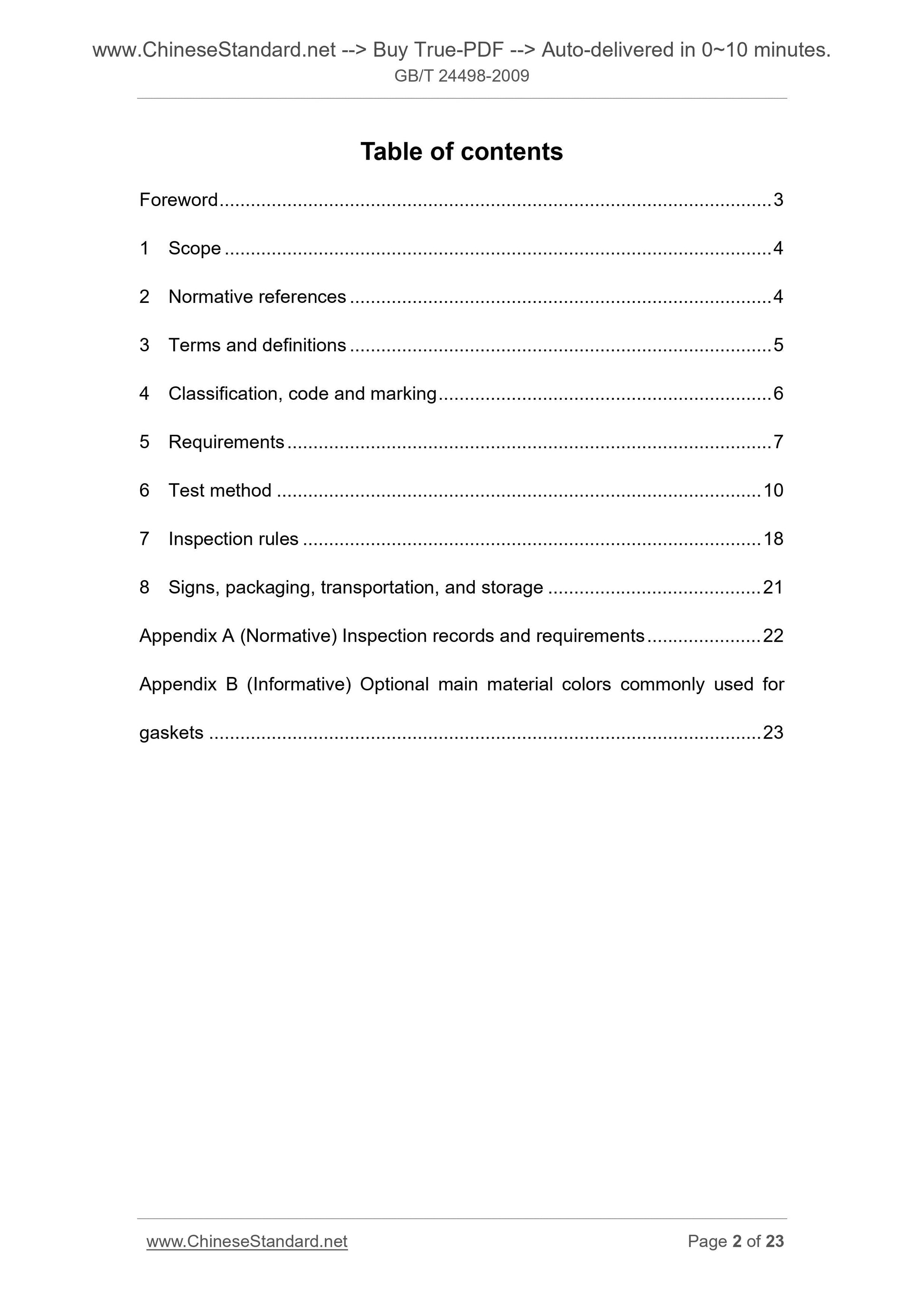

Table of contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 5
4 Classification, code and marking ... 6
5 Requirements ... 7
6 Test method ... 10
7 Inspection rules ... 18
8 Signs, packaging, transportation, and storage ... 21
Appendix A (Normative) Inspection records and requirements ... 22
Appendix B (Informative) Optional main material colors commonly used for gaskets ... 23

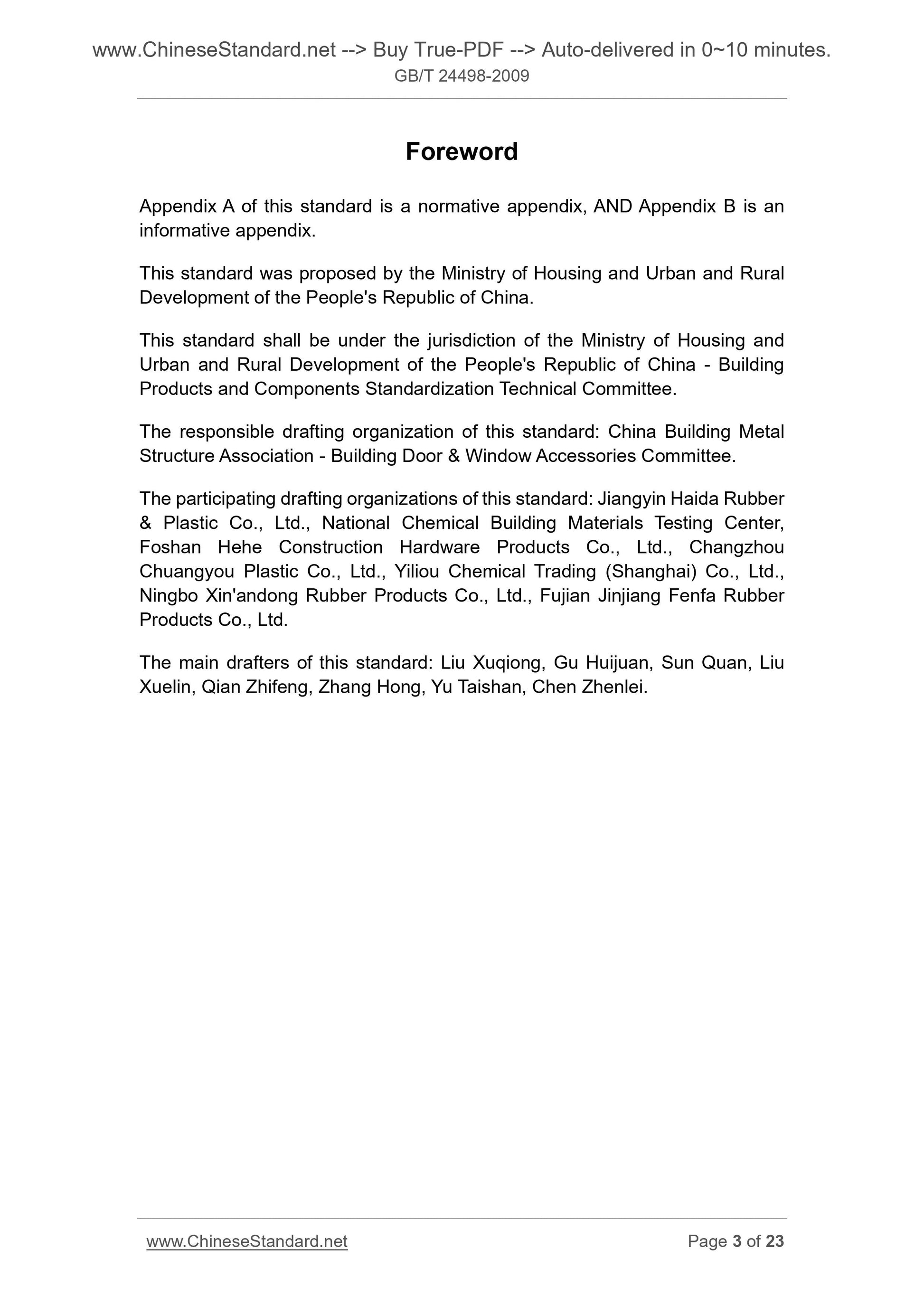

Foreword
Appendix A of this standard is a normative appendix, AND Appendix B is an informative appendix.
This standard was proposed by the Ministry of Housing and Urban and Rural Development of the People's Republic of China.
This standard shall be under the jurisdiction of the Ministry of Housing and Urban and Rural Development of the People's Republic of China - Building Products and Components Standardization Technical Committee.
The responsible drafting organization of this standard. China Building Metal Structure Association - Building Door and Window Accessories Committee.
The participating drafting organizations of this standard. Jiangyin Haida Rubber and Plastic Co., Ltd., National Chemical Building Materials Testing Center, Foshan Hehe Construction Hardware Products Co., Ltd., Changzhou
Chuangyou Plastic Co., Ltd., Yiliou Chemical Trading (Shanghai) Co., Ltd., Ningbo Xin'andong Rubber Products Co., Ltd., Fujian Jinjiang Fenfa Rubber Products Co., Ltd.
The main drafters of this standard. Liu Xuqiong, Gu Huijuan, Sun Quan, Liu Xuelin, Qian Zhifeng, Zhang Hong, Yu Taishan, Chen Zhenlei.

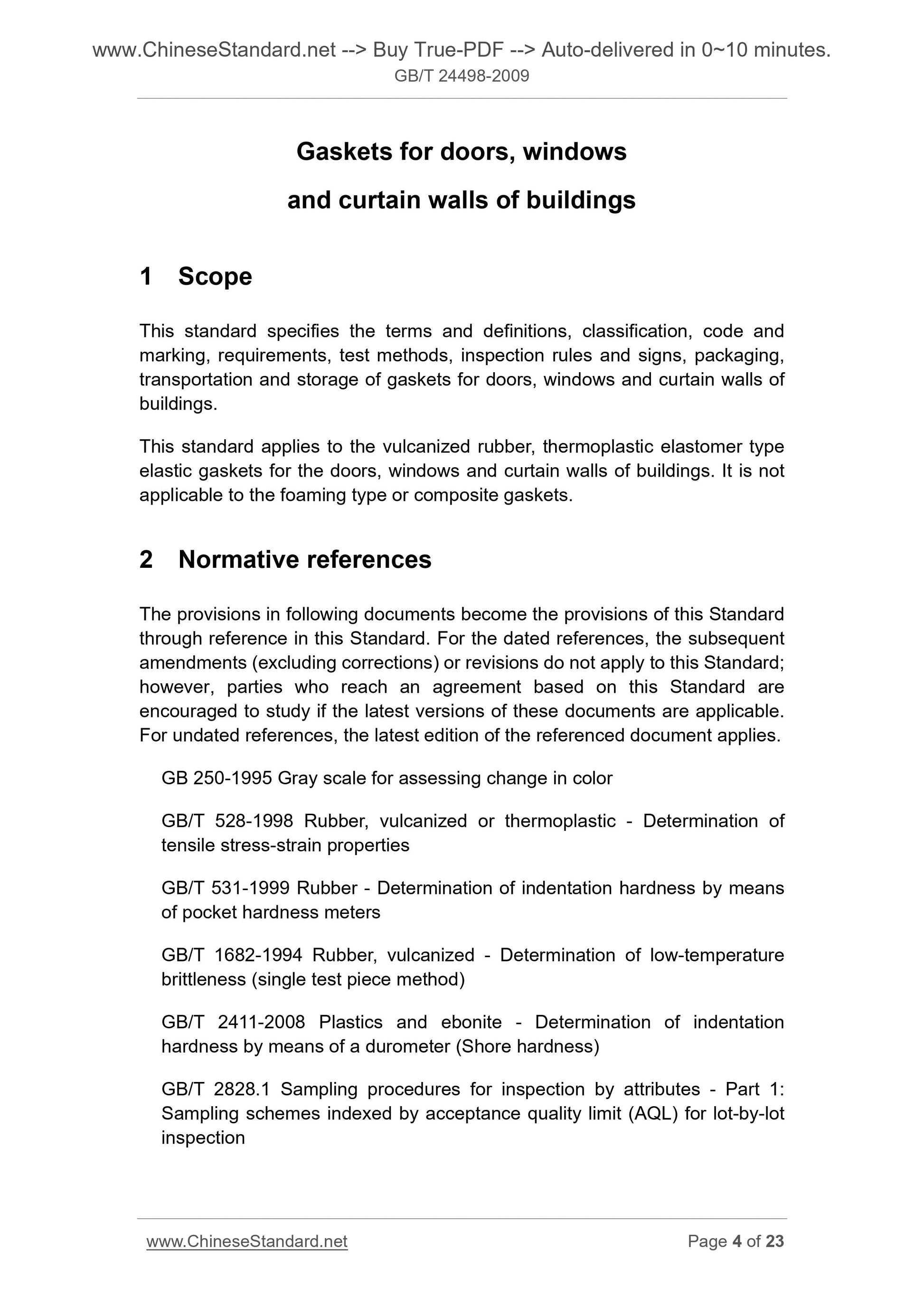

Gaskets for doors, windows
and curtain walls of buildings
1 Scope
This standard specifies the terms and definitions, classification, code and marking, requirements, test methods, inspection rules and signs, packaging, transportation and storage of gaskets for doors, windows and curtain walls of buildings.
This standard applies to the vulcanized rubber, thermoplastic elastomer type elastic gaskets for the doors, windows and curtain walls of buildings. It is not applicable to the foaming type or composite gaskets.
2 Normative references
The provisions in following documents become the provisions of this Standard through reference in this Standard. For the dated references, the subsequent amendments (excluding corrections) or revisions do not apply to this Standard; however, parties who reach an agreement based on this Standard are
encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB 250-1995 Gray scale for assessing change in color
GB/T 528-1998 Rubber, vulcanized or thermoplastic - Determination of
tensile stress-strain properties
GB/T 531-1999 Rubber - Determination of indentation hardness by means
of pocket hardness meters
GB/T 1682-1994 Rubber, vulcanized - Determination of low-temperature
brittleness (single test piece method)
GB/T 2411-2008 Plastics and ebonite - Determination of indentation
hardness by means of a durometer (Shore hardness)
GB/T 2828.1 Sampling procedures for inspection by attributes - Part 1.
Sampling schemes indexed by acceptance quality limit (AQL) for lot-by-lot inspection
GB/T 3512-2001 Rubber, vulcanized or thermoplastic - Accelerated ageing and heat resistance tests
GB/T 3672.1-2002 Rubber - Tolerances of products - Part 1. Dimensional
tolerances
GB/T 3672.2-2002 Rubber - Tolerances of products - Part 2. Geometrical
tolerances
GB/T 5470-2008 Plastics - Determination of the brittleness temperature by impact
GB/T 7759-1996 Rubber, vulcanized or thermoplastic - Determination of
compression set at ambient elevated or low temperatures
GB/T 7141-2008 Plastics - Methods of heat aging
GB/T 7762-2003 Rubber, vulcanized or thermoplastic - Resistance to ozone cracking - Static strain test

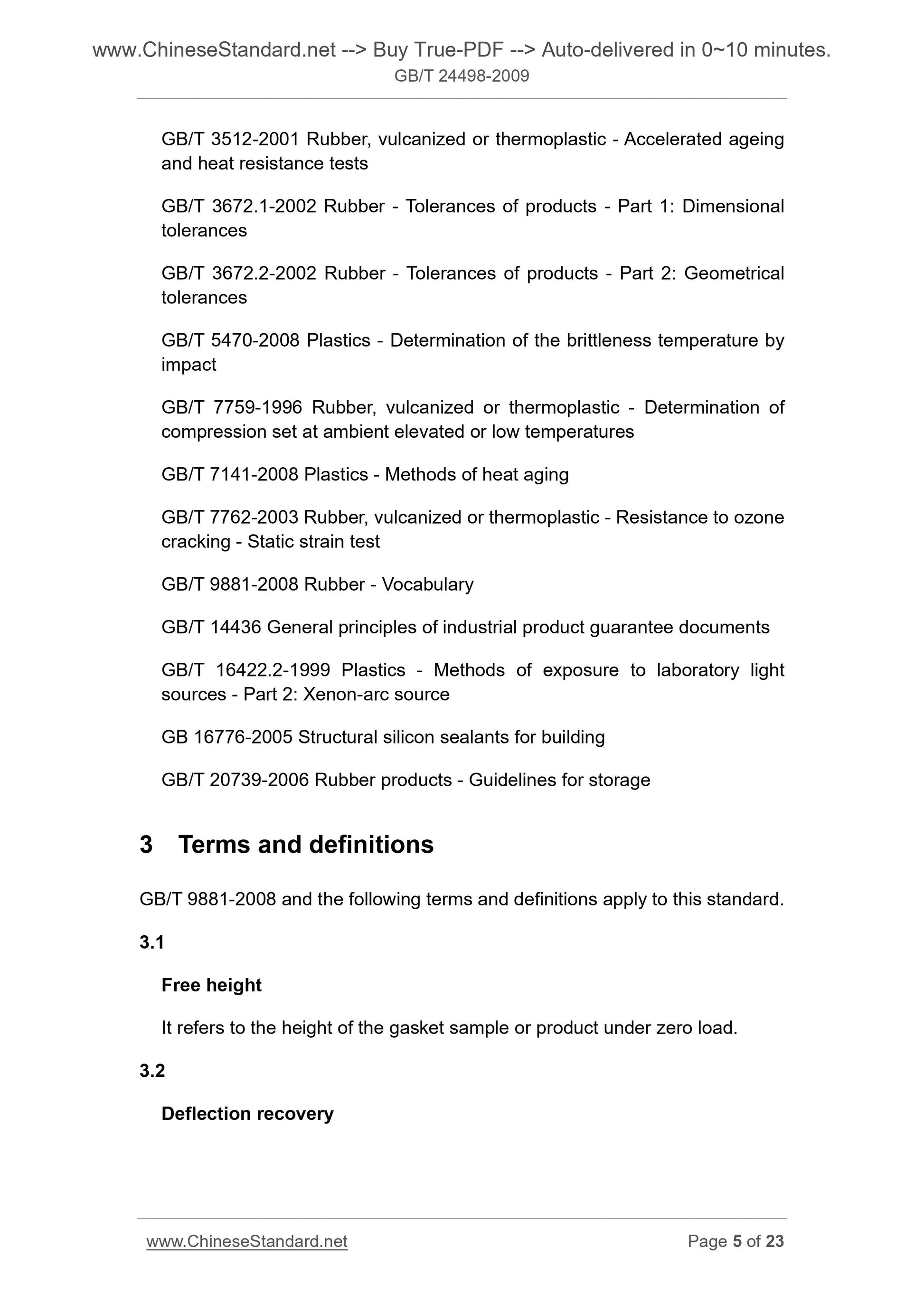

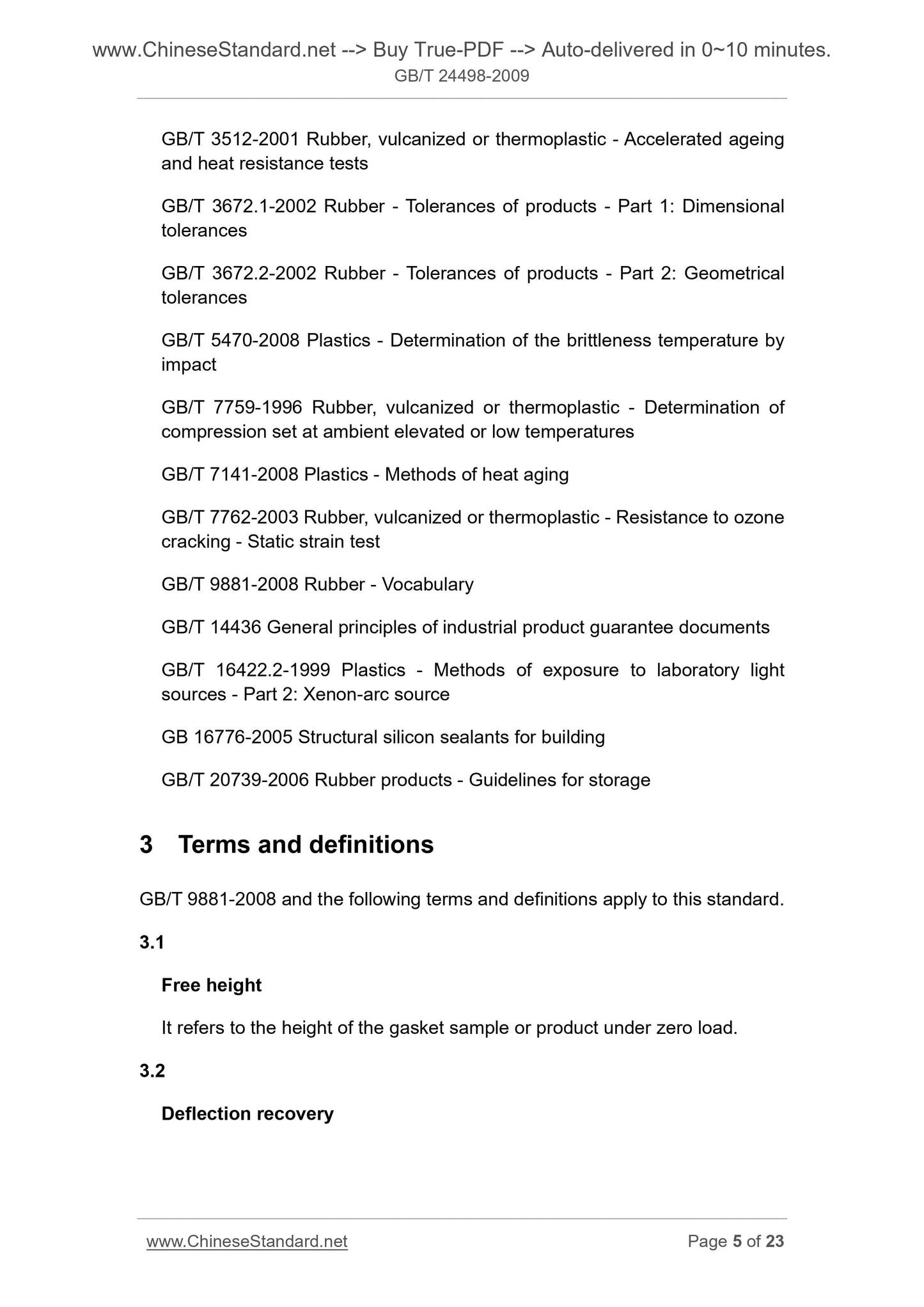

GB/T 9881-2008 Rubber - Vocabulary
GB/T 14436 General principles of industrial product guarantee documents GB/T 16422.2-1999 Plastics - Methods of exposure to laboratory light
sources - Part 2. Xenon-arc source
GB 16776-2005 Structural silicon sealants for building
GB/T 20739-2006 Rubber products - Guidelines for storage
3 Terms and definitions
GB/T 9881-2008 and the following terms and definitions apply to this standard. 3.1
Free height
It refers to the height of the gasket sample or product under zero load. 3.2
Deflection recovery

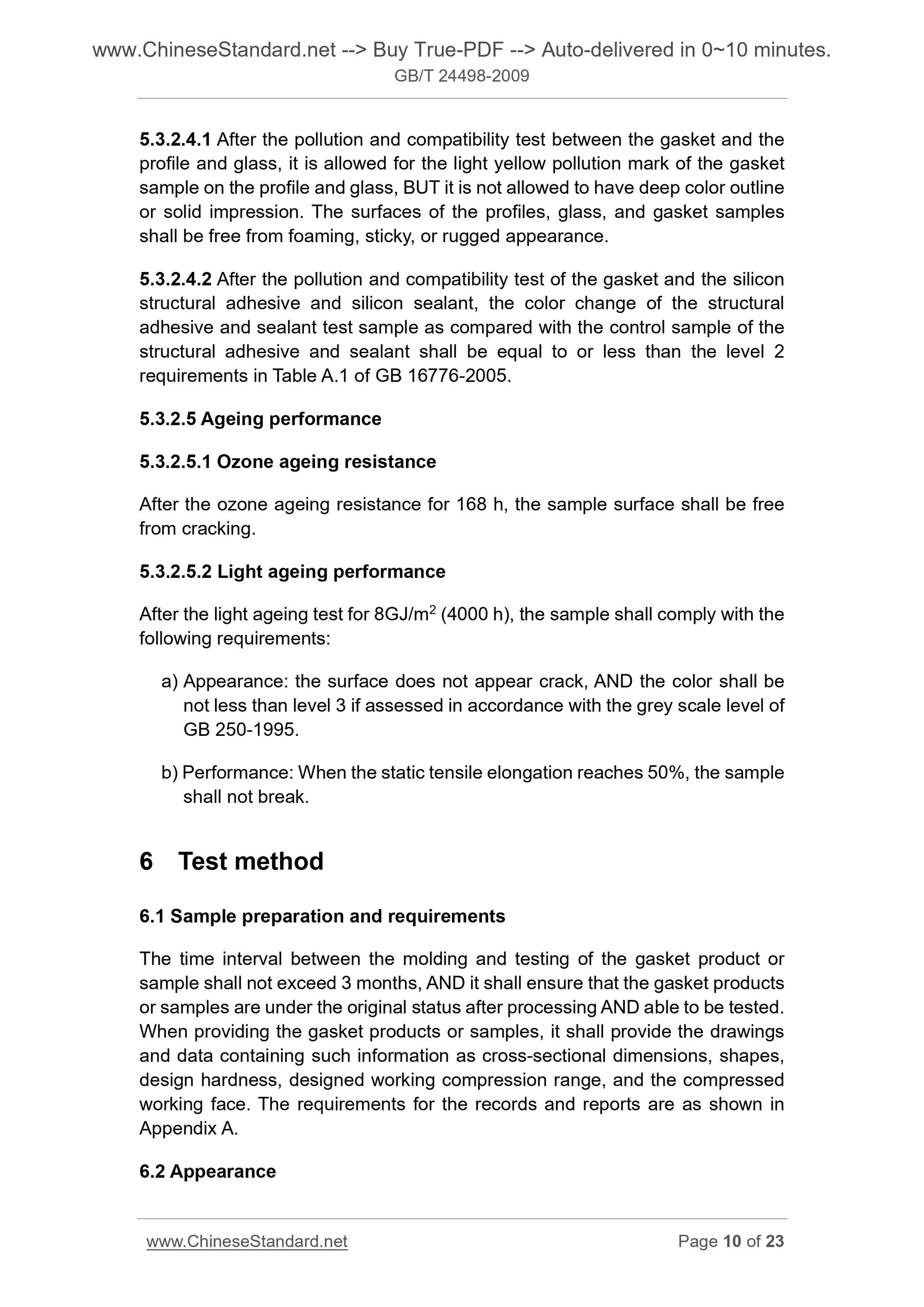

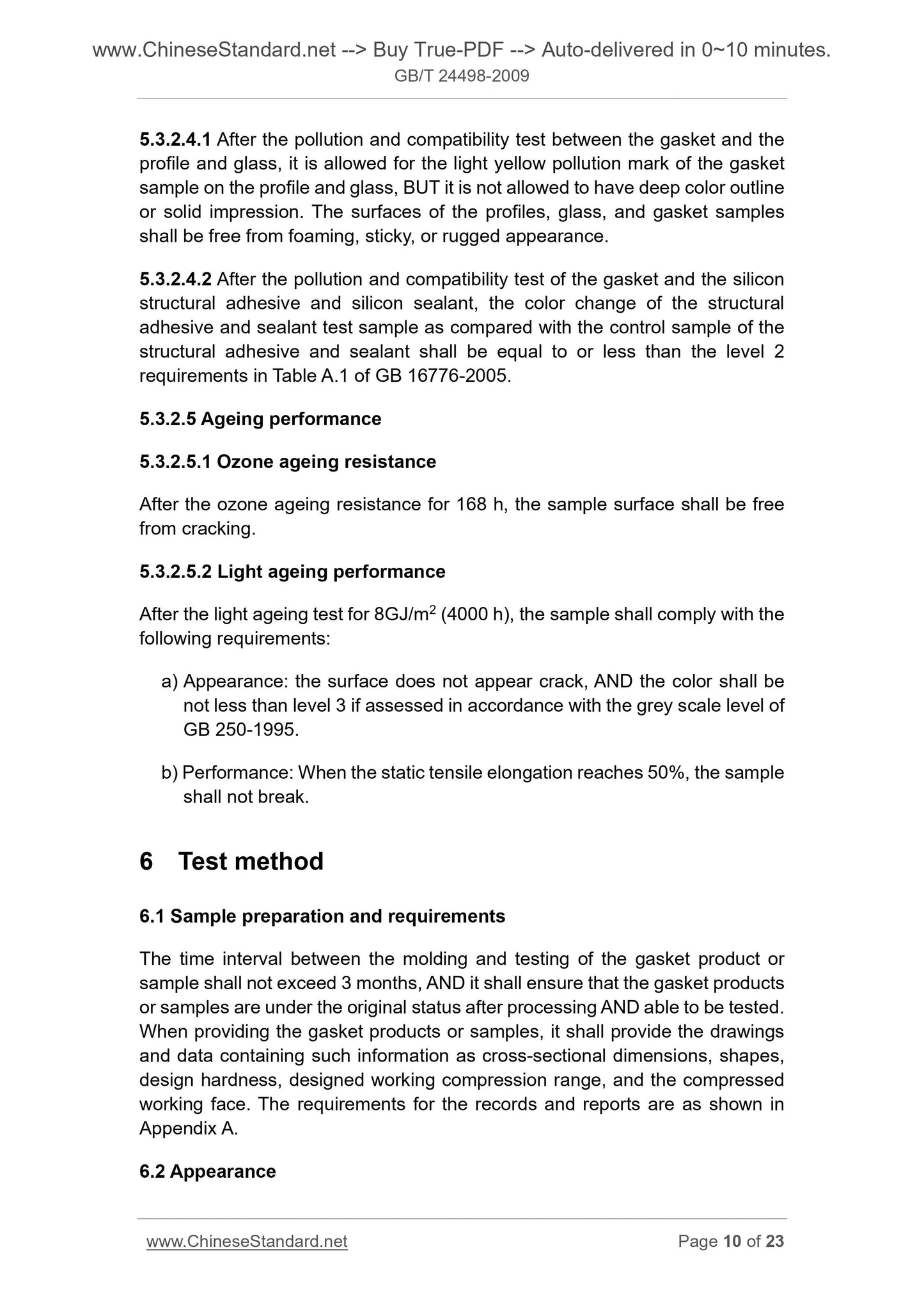

5.3.2.4.1 After the pollution and compatibility test between the gasket and the profile and glass, it is allowed for the light yellow pollution mark of the gasket sample on the profile and glass, BUT it is not allowed to have deep color outline or solid impression. The surfaces of the profiles, glass, and gasket samples shall be free from foaming, sticky, or rugged appearance.
5.3.2.4.2 After the pollution and compatibility test of the gasket and the silicon structural adhesive and silicon sealant, the color change of the structural adhesive and sealant test sample as compared with the control sample of the structural adhesive and sealant shall be equal to or less than the level 2 requirements in Table A.1 of GB 16776-2005.
5.3.2.5 Ageing performance
5.3.2.5.1 Ozone ageing resistance
After the ozone ageing resistance for 168 h, the sample surface shall be free from cracking.
5.3.2.5.2 Light ageing performance
After the light ageing test for 8GJ/m2 (4000 h), the sample shall comply with the following requirements.
a) Appearance. the surface does not appear crack, AND the color shall be not less than level 3 if assessed in accordance with the grey scale level of GB 250-1995.
b) Performance. When the static tensile elongation reaches 50%, the sample shall not break.
6 Test method
6.1 Sample preparation and requirements
The time interval between the molding and testing of the gasket product or sample shall not exceed 3 months, AND it shall ensure that the gasket products or samples are under the original status after processing AND able to be tested. When providing the gasket products or samples, it shall provide the drawings and data containing such information as cross-sectional dimensions, shapes, design hardness, designed working compression range, and the compressed working face. The requirements for the records and reports are as shown in Appendix A.

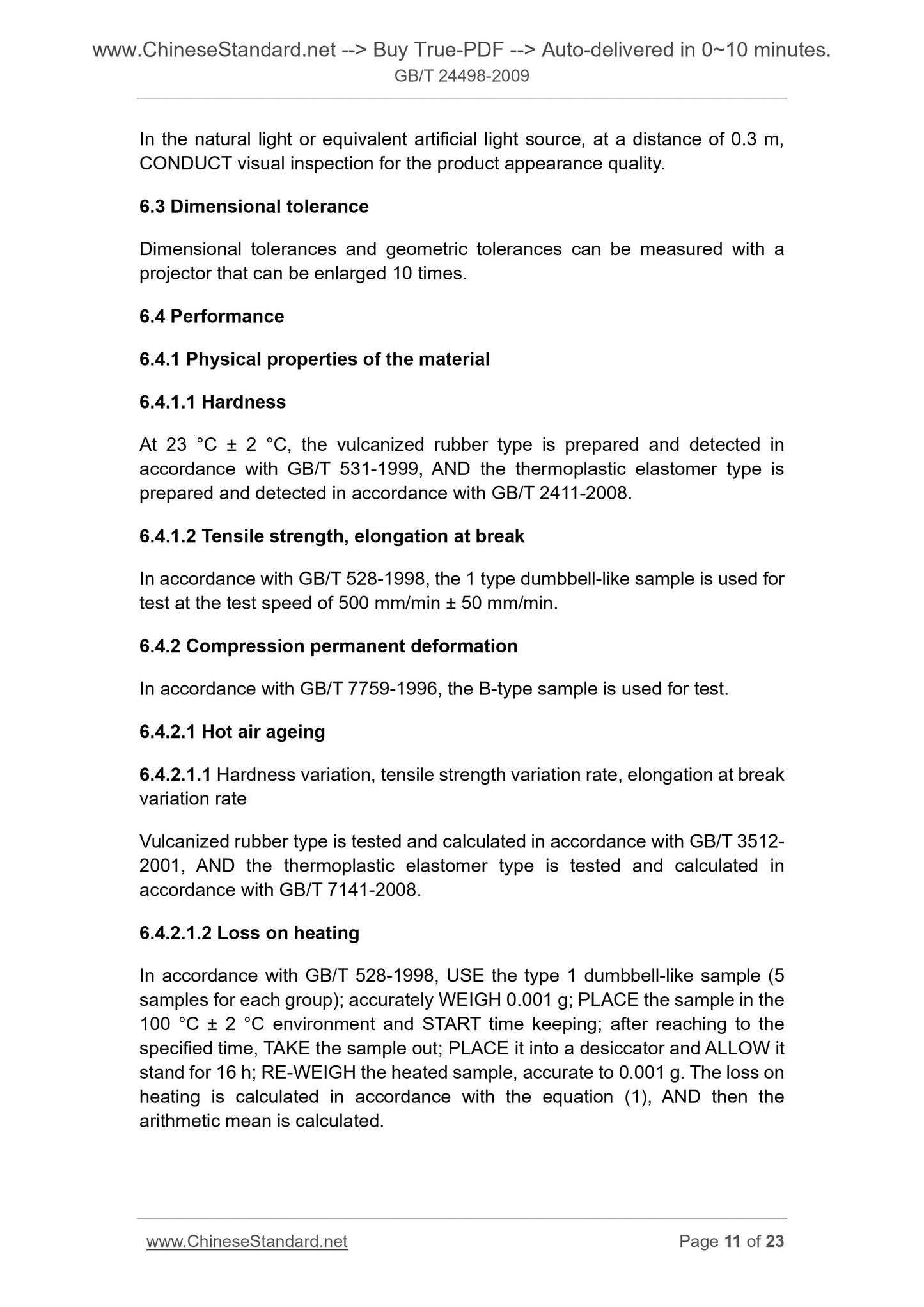

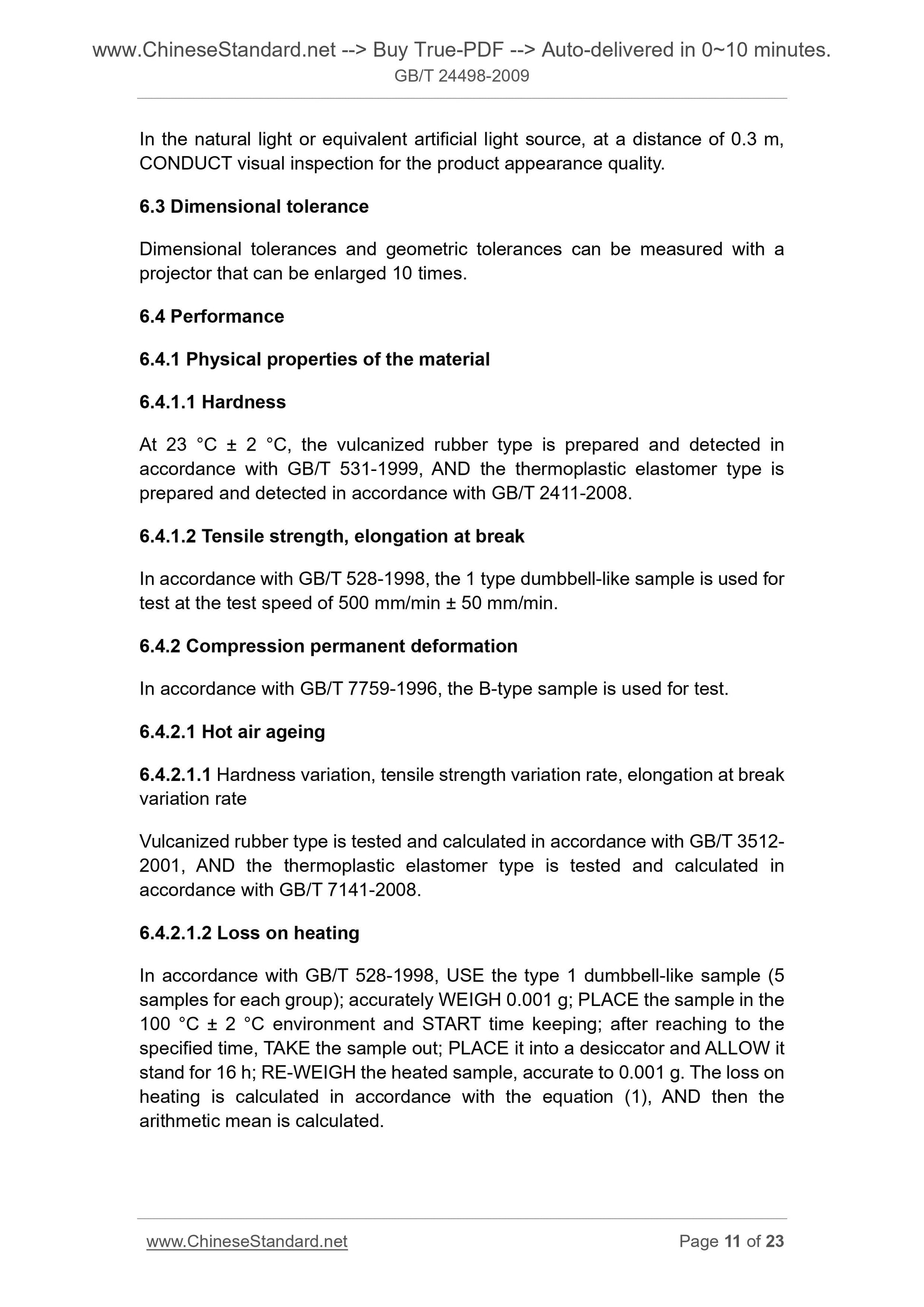

6.2 Appearance
In the natural light or equivalent artificial light source, at a distance of 0.3 m, CONDUCT visual inspection for the product appearance quality.
6.3 Dimensional tolerance
Dimensional tolerances and geometric tolerances can be measured with a
projector that can be enlarged 10 times.
6.4 Performance
6.4.1 Physical properties of the material
6.4.1.1 Hardness
At 23 ??C ?? 2 ??C, the vulcanized rubber type is prepared and detected in accordance with GB/T 531-1999, AND the thermoplastic elastomer type is
prepared and detected in accordance with GB/T 2411-2008.
6.4.1.2 Tensile strength, elongation at break
In accordance with GB/T 528-1998, the 1 type dumbbell-like sample is used for test at the test speed of 500 mm/min ?? 50 mm/min.
6.4.2 Compression permanent deformation
In accordance with GB/T 7759-1996, the B-type sample is used for test.
6.4.2.1 Hot air ageing
6.4.2.1.1 Hardness variation, tensile strength variation rate, elongation at break variation rate
Vulcanized rubber type is tested and calculated in accordance with GB/T 3512- 2001, AND the thermoplastic elastomer type is tested and calculated in
accordance with GB/T 7141-2008.
6.4.2.1.2 Loss on heating
In accordance with GB/T 528-1998, USE the type 1 dumbbell-like sample (5 samples for each group); accurately WEIGH 0.001 g; PLACE the sample in the 100 ??C ?? 2 ??C environment and START time keeping; after reaching to the specified time, TAKE the sample out; PLACE it into a desiccator and ALLOW it stand for 16 h; RE-WEIGH the heated sample, accurate to 0.001 g. The loss on heating is calculated in accordance with the equation (1), AND then the arithmetic mean is calculated.

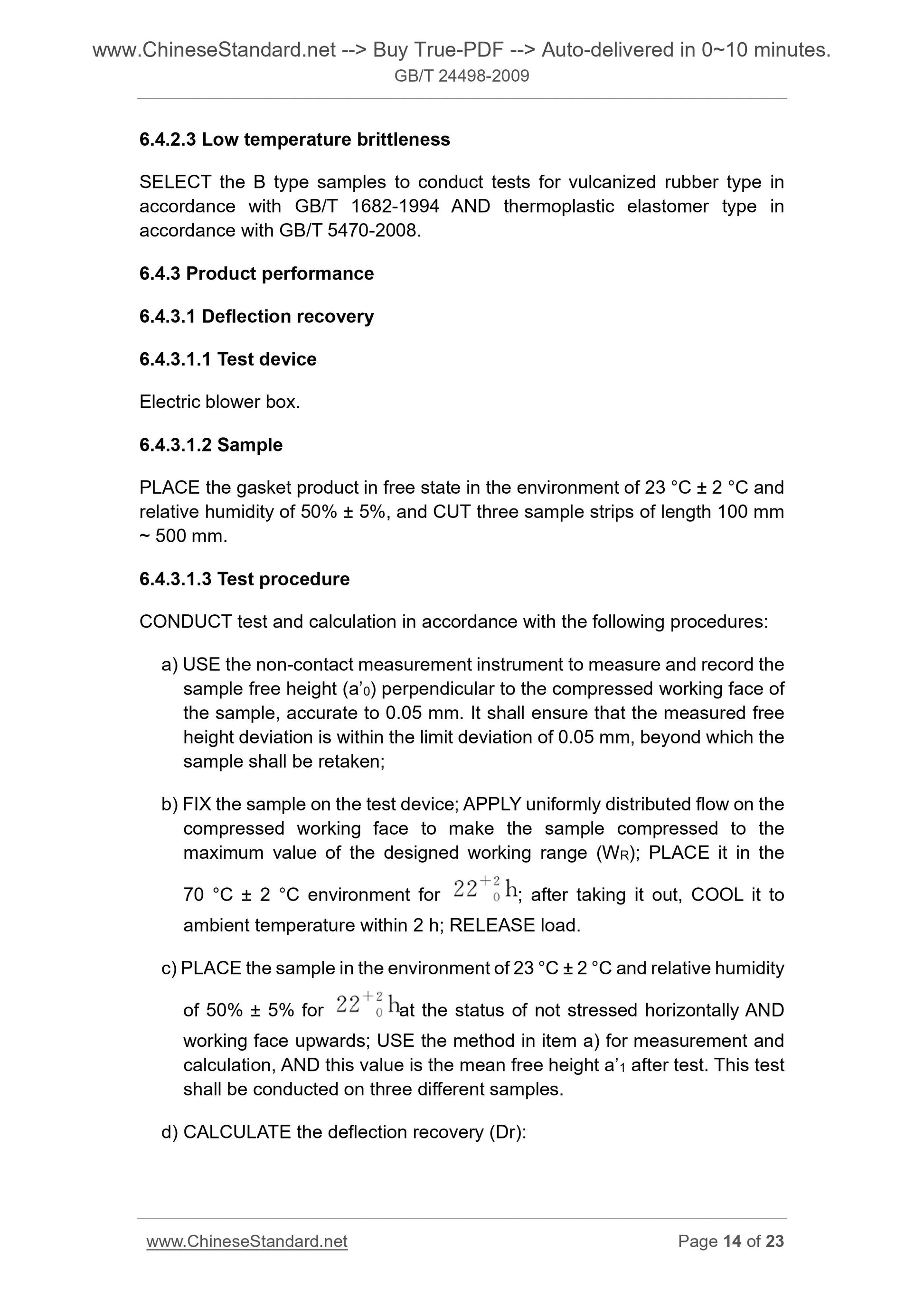

6.4.2.3 Low temperature brittleness
SELECT the B type samples to conduct tests for vulcanized rubber type in accordance with GB/T 1682-1994 AND thermoplastic elastomer type in
accordance with GB/T 5470-2008.
6.4.3 Product performance
6.4.3.1 Deflection recovery
6.4.3.1.1 Test device
Electric blower box.
6.4.3.1.2 Sample
PLACE the gasket product in free state in the environment of 23 ??C ?? 2 ??C and relative humidity of 50% ?? 5%, and CUT three sample strips of length 100 mm ~ 500 mm.
6.4.3.1.3 Test procedure

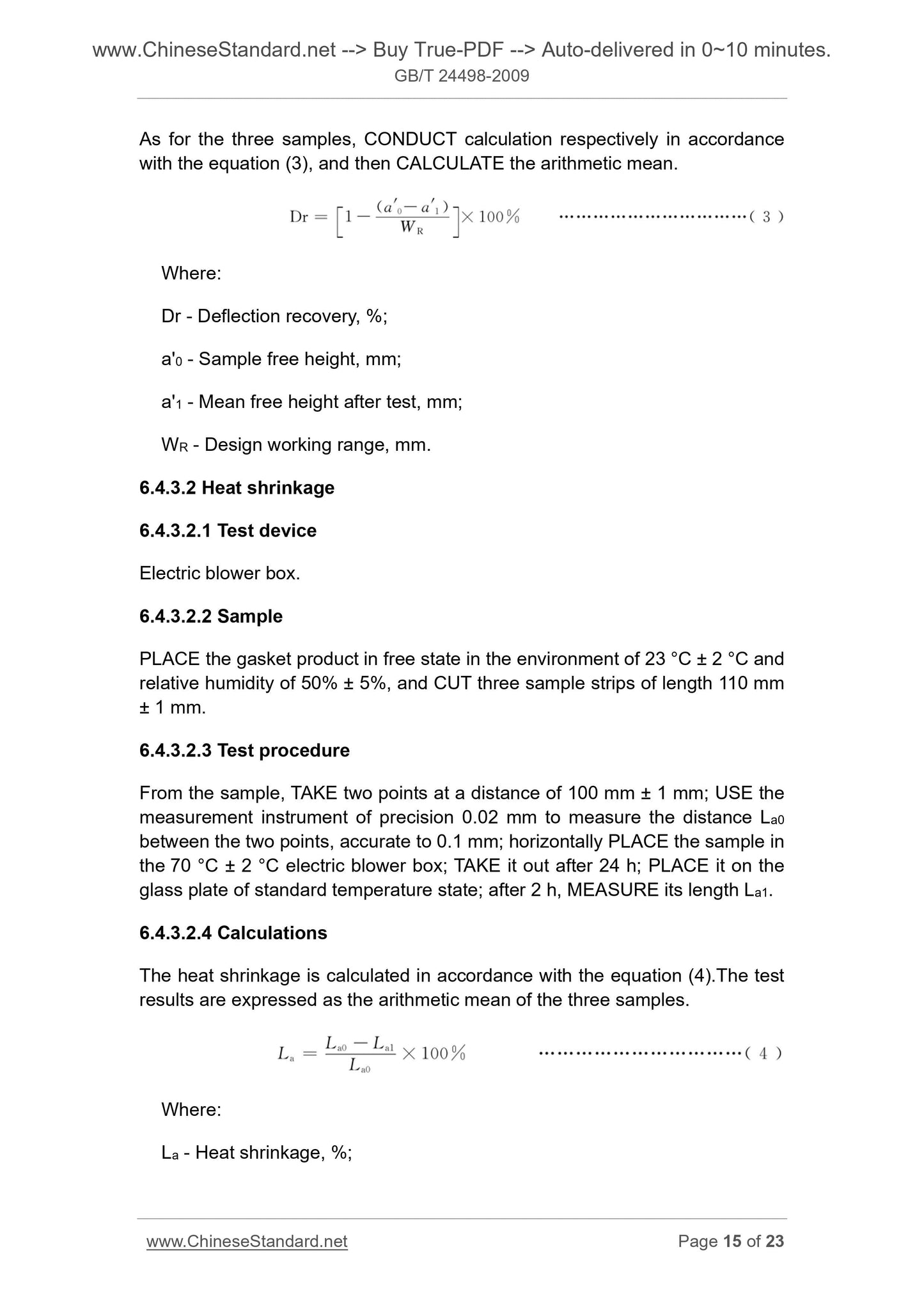

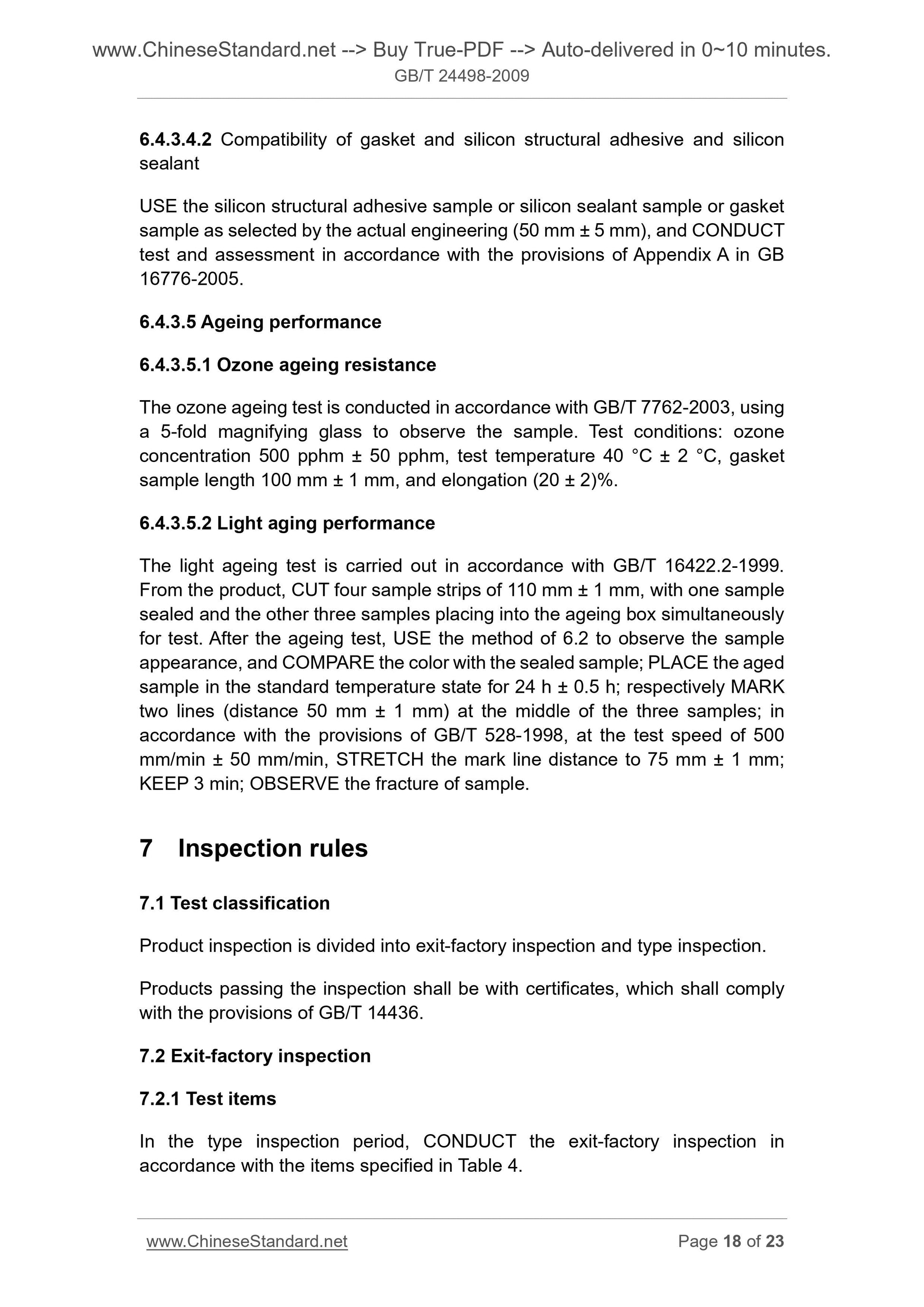

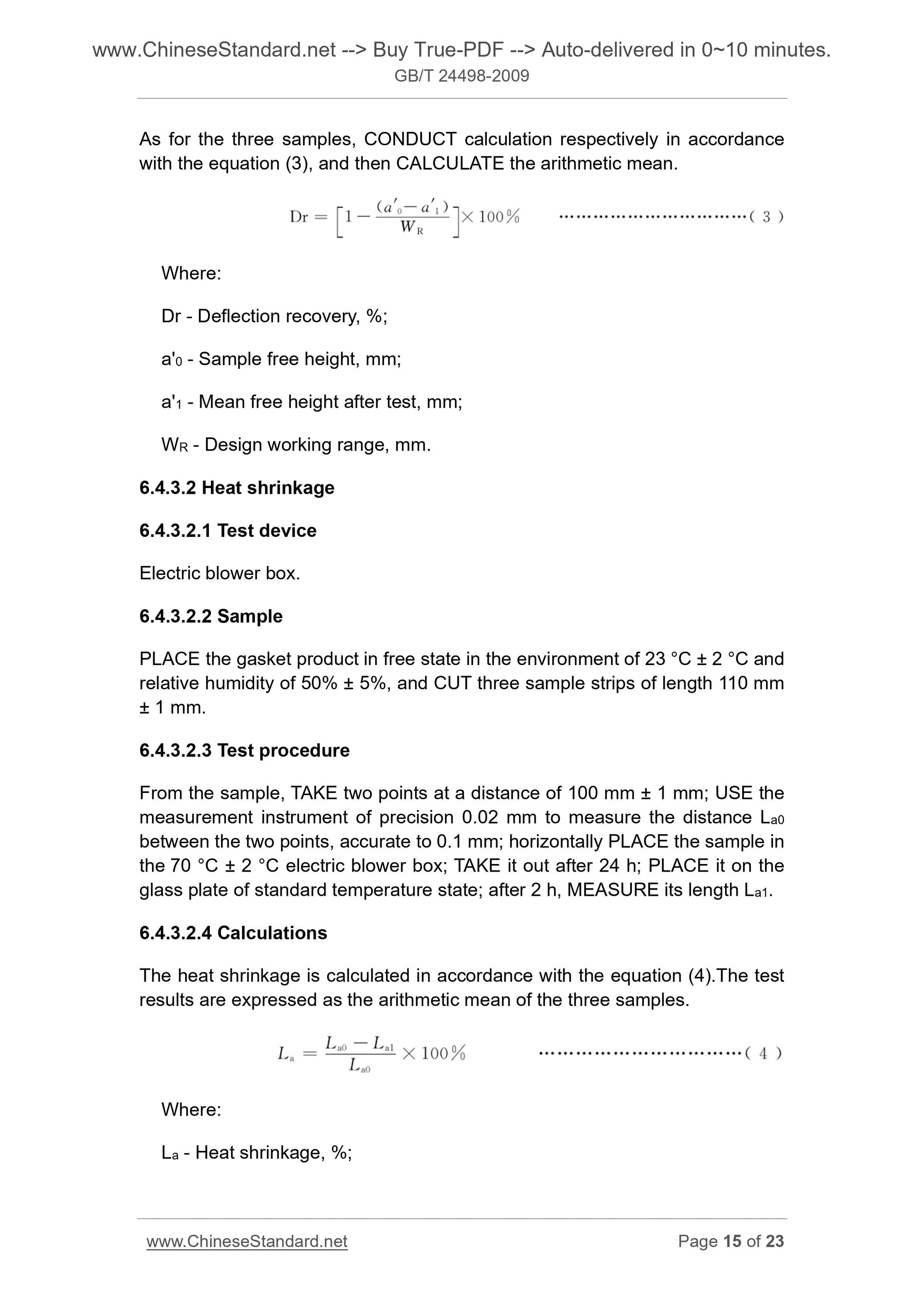

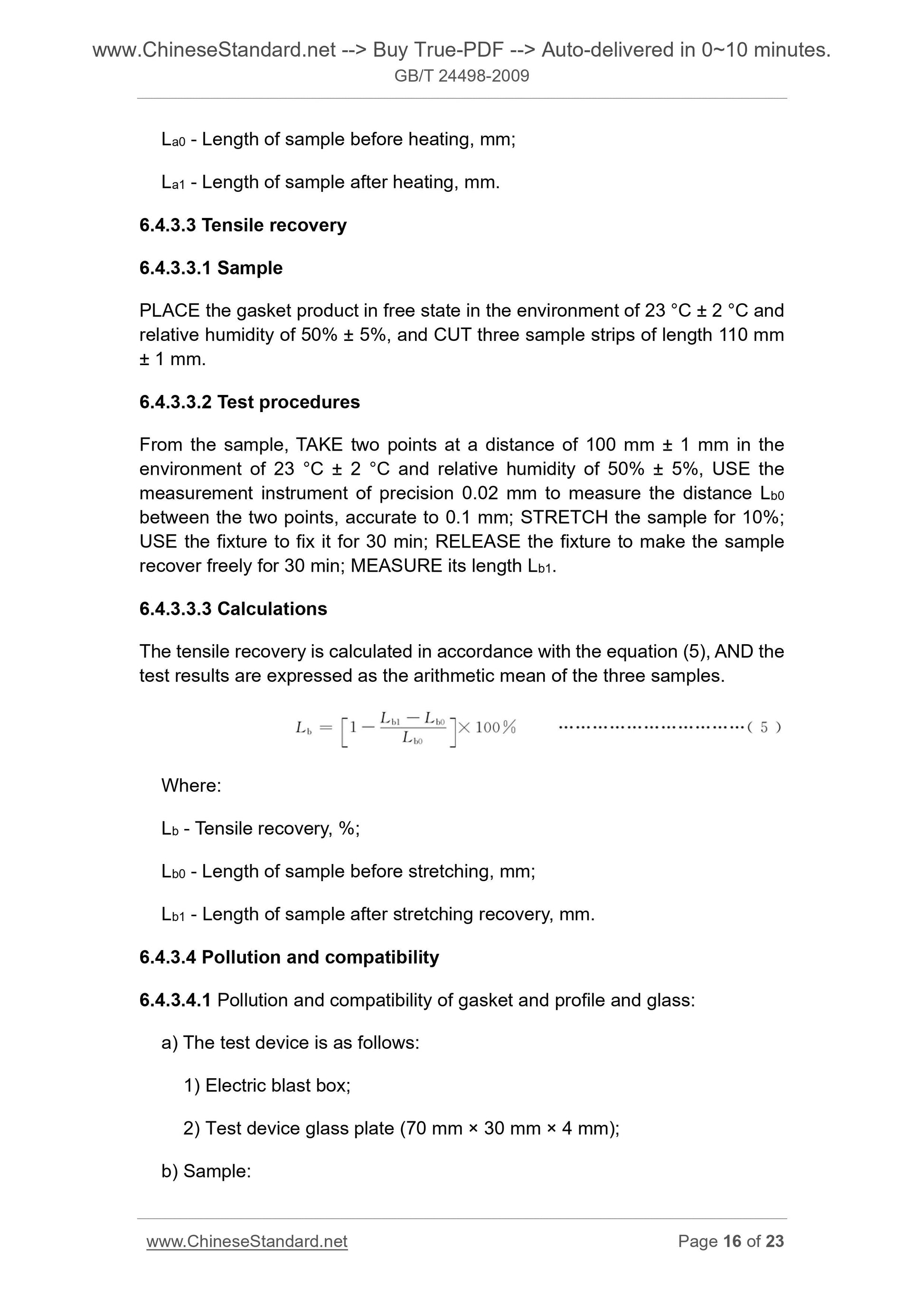

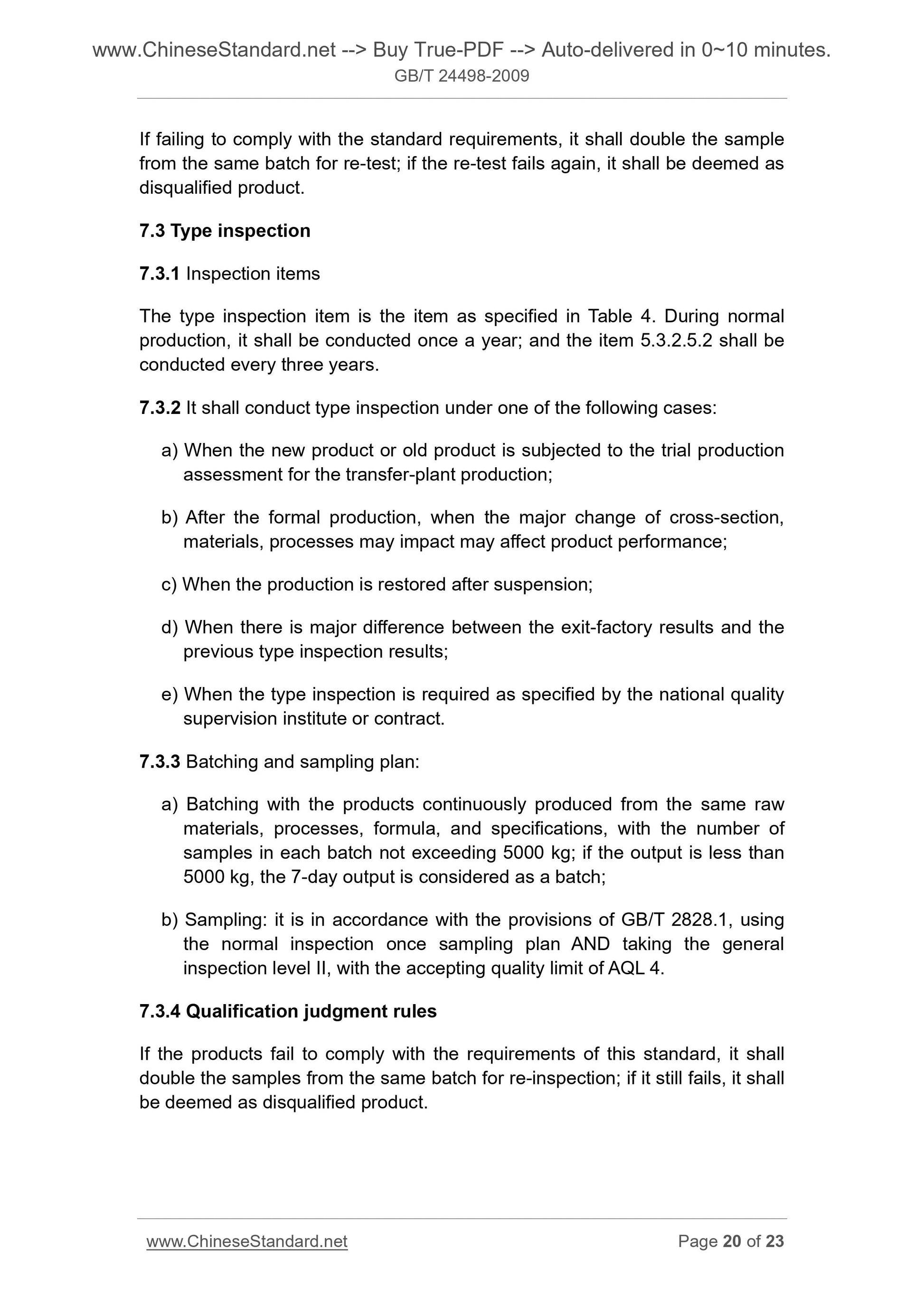

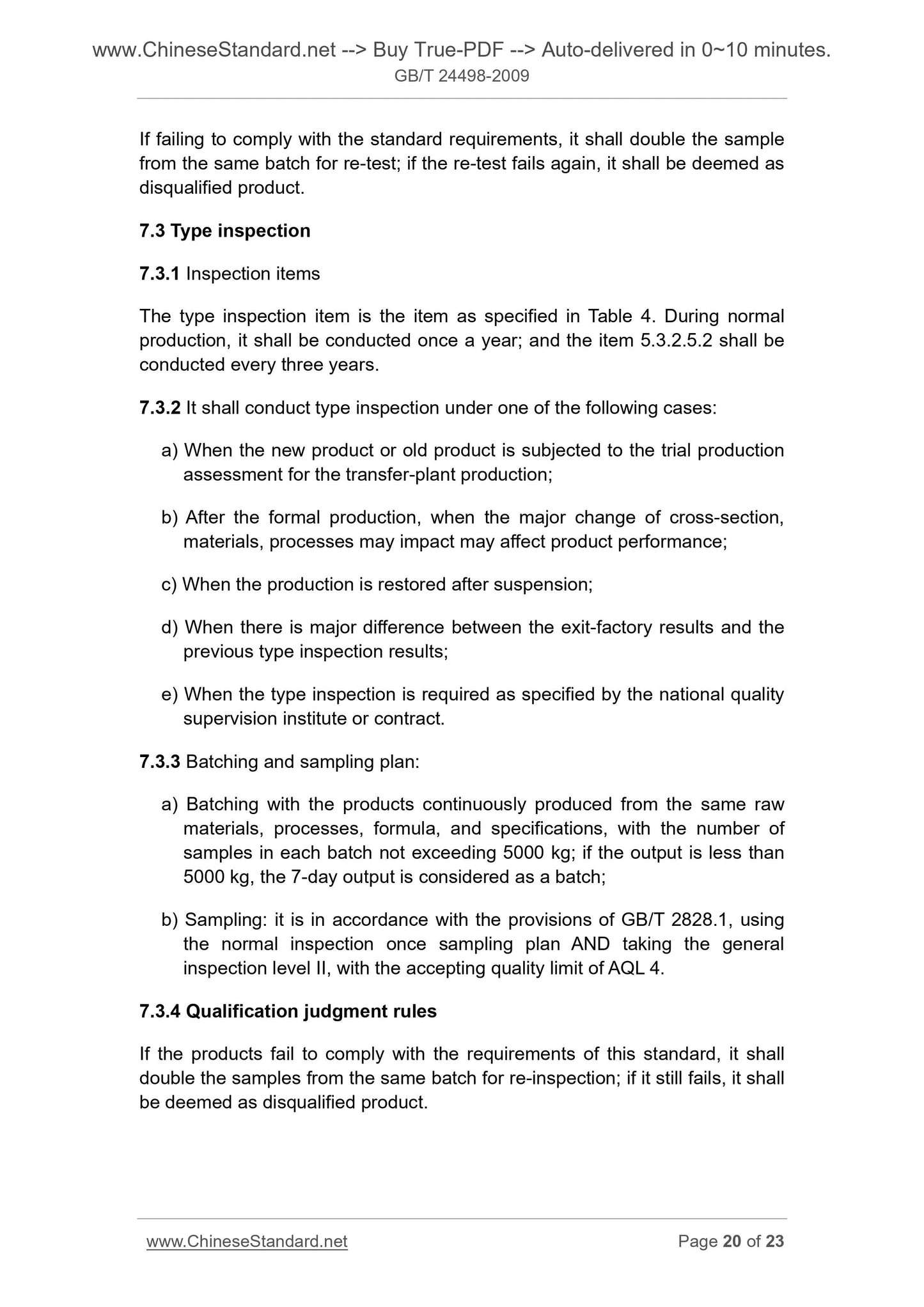

CONDUCT test and calculation in acc...
