GB/T 24338.6-2018: Railway applications -- Electromagnetic compatibility -- Part 5: Emission and immunity of fixed power supply apparatus and systems

This Part of GB/T 24338 specifies the electromagnetic emission and immunity requirements for fixed power supply electronic and electrical apparatus and systems in the railway system, including the apparatus power supply, the apparatus own protection control circuits, as well as substations, autotransformers, booster transformers, substation switch cabinets, local electrical switches, and other trackside apparatus. This Part does not apply to filters of which the operating voltage is the traction power supply voltage (e.g., filters for harmonic suppression or power factor compensation). Usually the filter requires a separate enclosure and access regulations. If there is electromagnetic emission limit requirement, it will be specified in the electronic apparatus standard.

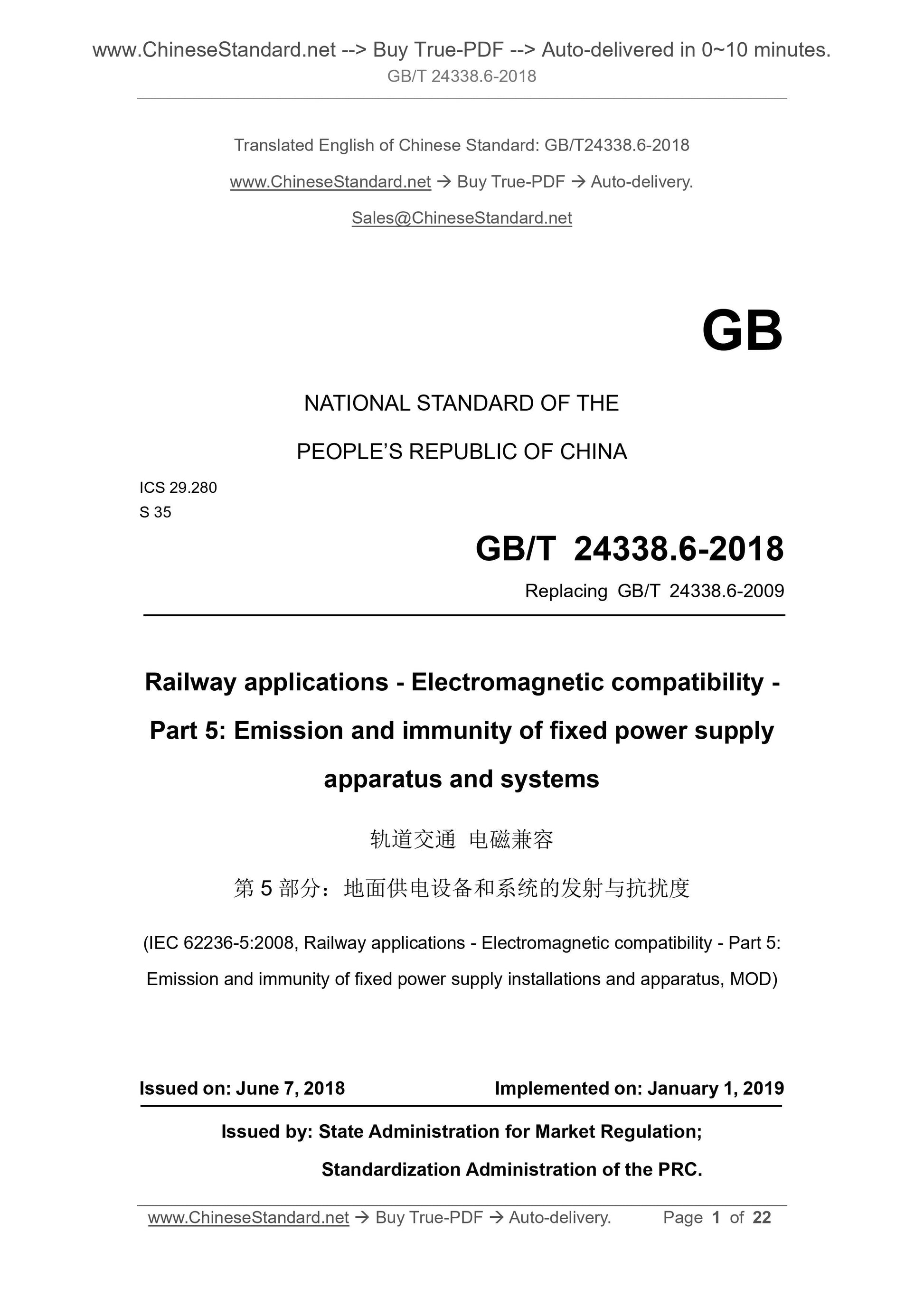

GB/T 24338.6-2018
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 29.280
S 35
Replacing GB/T 24338.6-2009
Railway applications - Electromagnetic compatibility -
Part 5. Emission and immunity of fixed power supply
apparatus and systems
(IEC 62236-5.2008, Railway applications - Electromagnetic compatibility - Part 5. Emission and immunity of fixed power supply installations and apparatus, MOD) ISSUED ON. JUNE 7, 2018
IMPLEMENTED ON. JANUARY 1, 2019
Issued by. State Administration for Market Regulation;
Standardization Administration of the PRC.

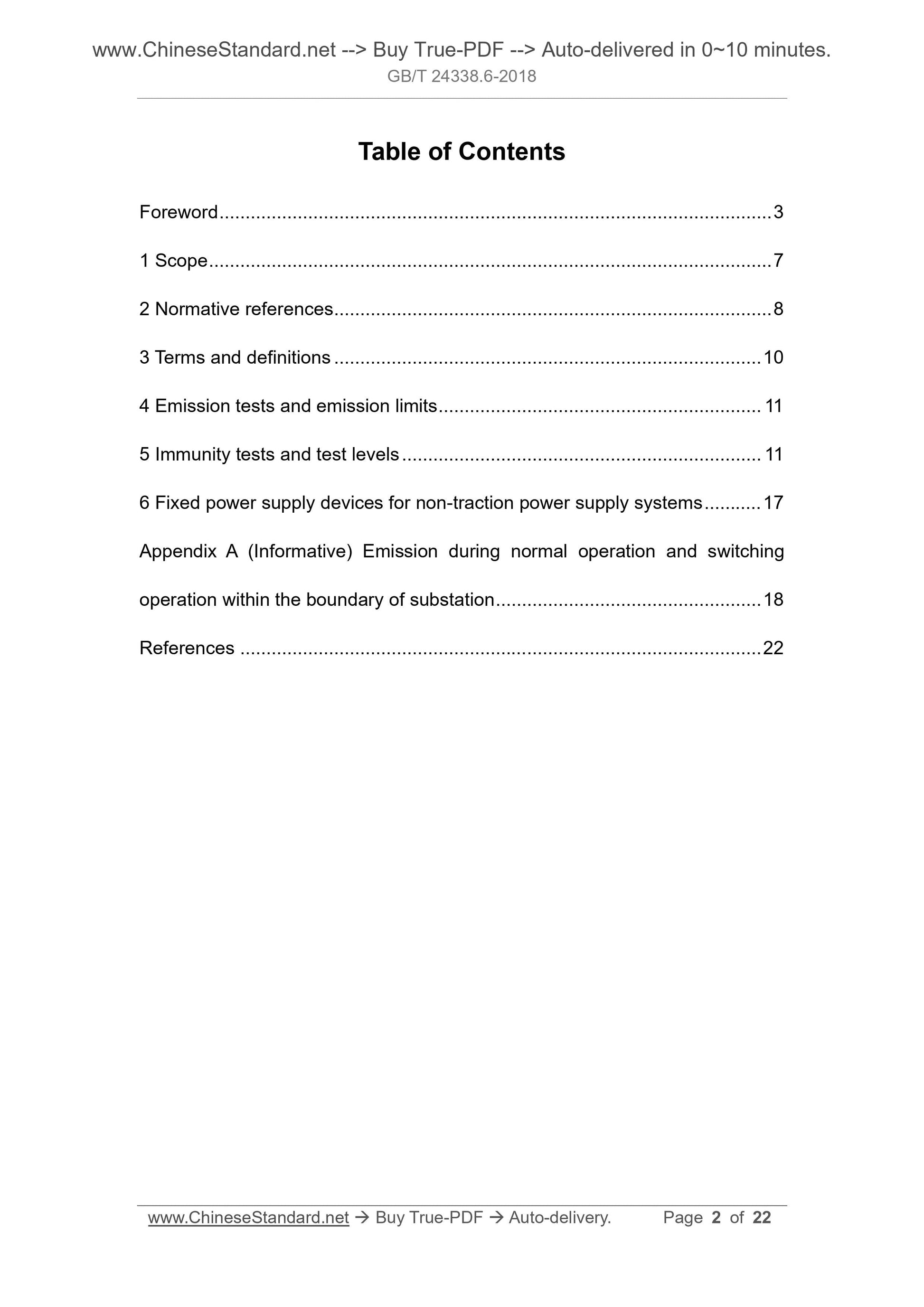

Table of Contents
Foreword ... 3
1 Scope ... 7
2 Normative references ... 8
3 Terms and definitions ... 10
4 Emission tests and emission limits ... 11
5 Immunity tests and test levels ... 11
6 Fixed power supply devices for non-traction power supply systems ... 17 Appendix A (Informative) Emission during normal operation and switching operation within the boundary of substation ... 18
References ... 22

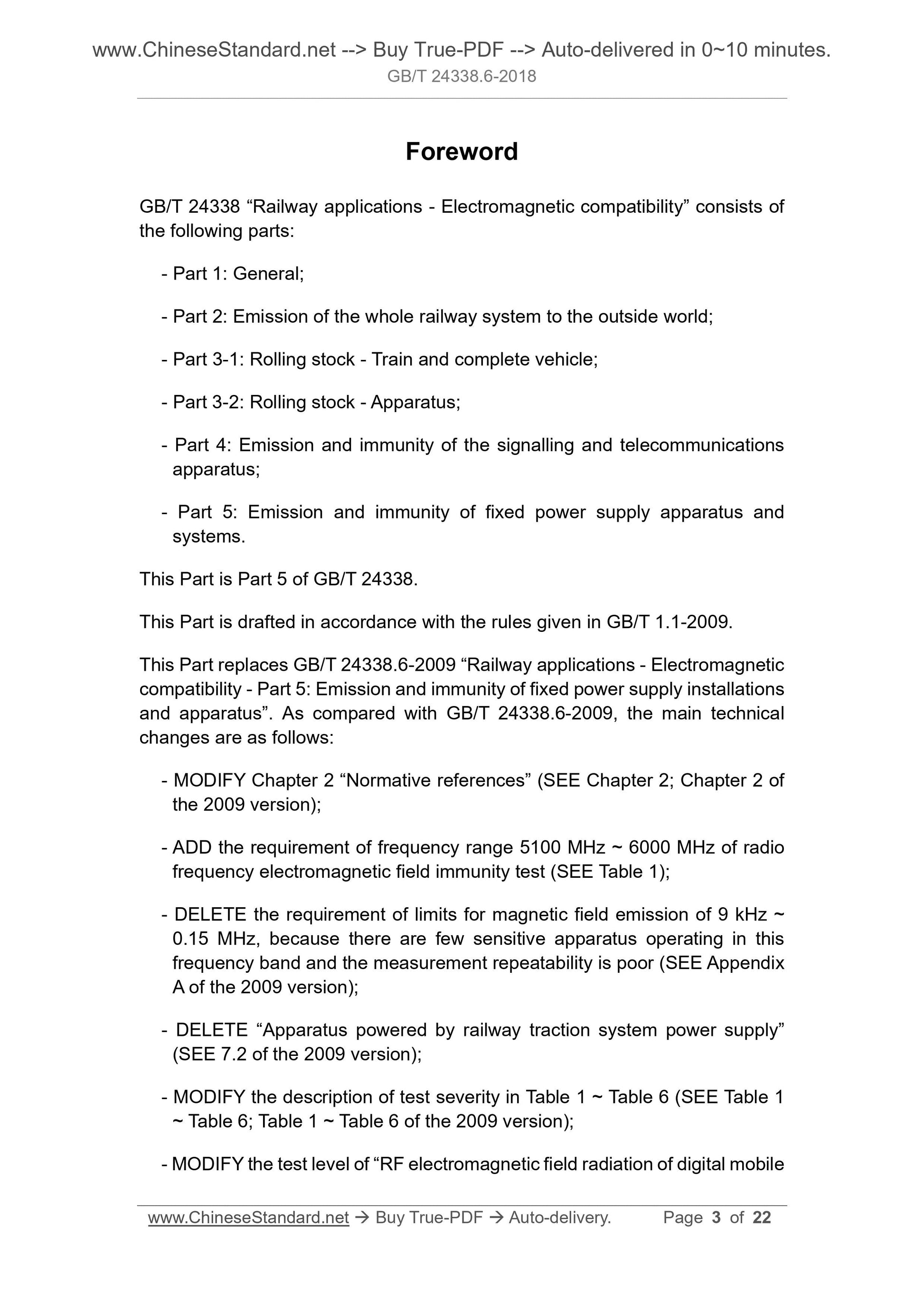

Foreword
GB/T 24338 ?€?Railway applications - Electromagnetic compatibility?€? consists of the following parts.
- Part 1. General;
- Part 2. Emission of the whole railway system to the outside world;
- Part 3-1. Rolling stock - Train and complete vehicle;
- Part 3-2. Rolling stock - Apparatus;
- Part 4. Emission and immunity of the signalling and telecommunications apparatus;
- Part 5. Emission and immunity of fixed power supply apparatus and
systems.
This Part is Part 5 of GB/T 24338.
This Part is drafted in accordance with the rules given in GB/T 1.1-2009. This Part replaces GB/T 24338.6-2009 ?€?Railway applications - Electromagnetic compatibility - Part 5. Emission and immunity of fixed power supply installations and apparatus?€?. As compared with GB/T 24338.6-2009, the main technical
changes are as follows.
- MODIFY Chapter 2 ?€?Normative references?€? (SEE Chapter 2; Chapter 2 of
the 2009 version);
- ADD the requirement of frequency range 5100 MHz ~ 6000 MHz of radio
frequency electromagnetic field immunity test (SEE Table 1);
- DELETE the requirement of limits for magnetic field emission of 9 kHz ~ 0.15 MHz, because there are few sensitive apparatus operating in this
frequency band and the measurement repeatability is poor (SEE Appendix
A of the 2009 version);
- DELETE ?€?Apparatus powered by railway traction system power supply?€?
(SEE 7.2 of the 2009 version);
- MODIFY the description of test severity in Table 1 ~ Table 6 (SEE Table 1 ~ Table 6; Table 1 ~ Table 6 of the 2009 version);

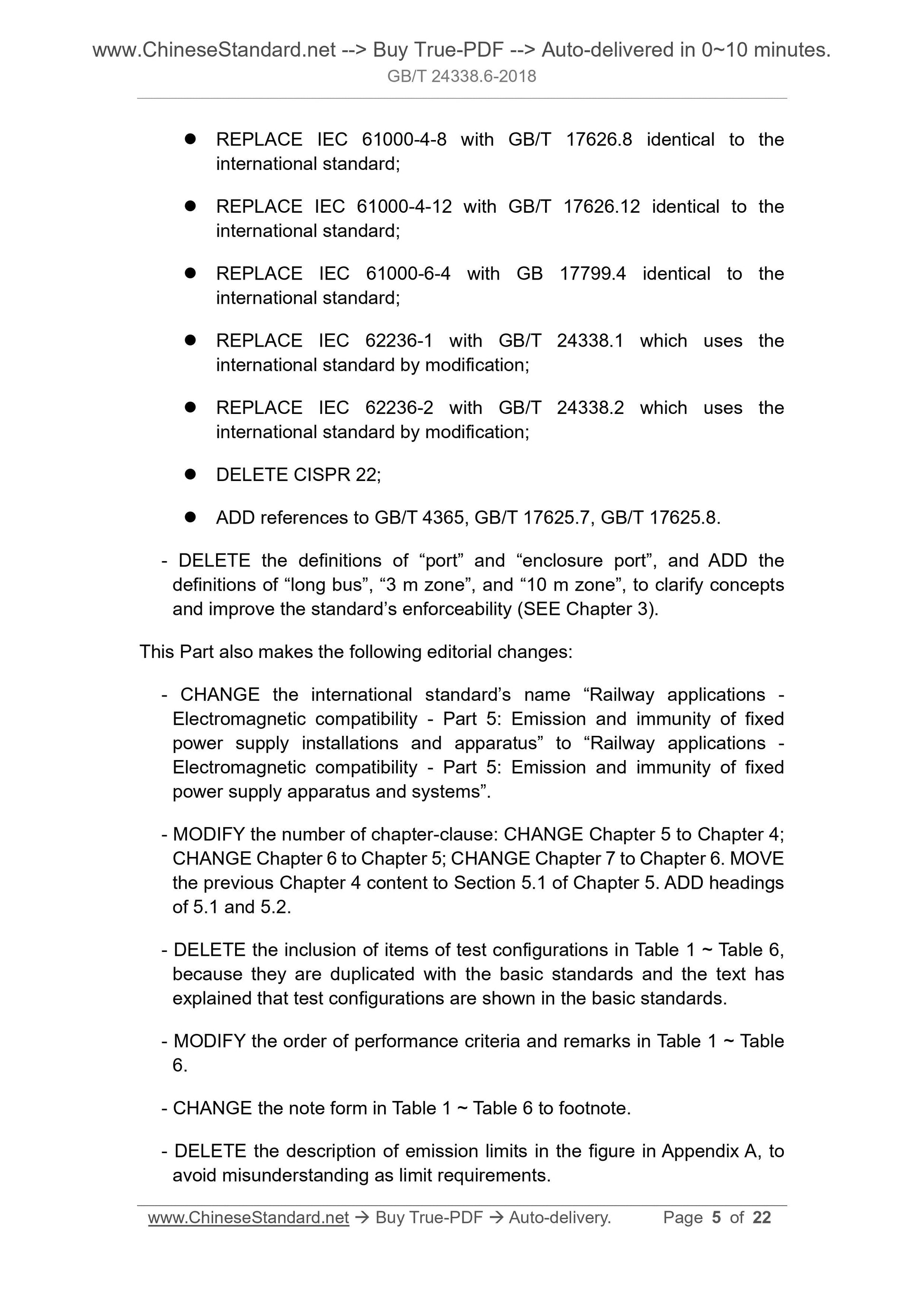

- MODIFY the test level of ?€?RF electromagnetic field radiation of digital mobile ??? REPLACE IEC 61000-4-8 with GB/T 17626.8 identical to the
international standard;
??? REPLACE IEC 61000-4-12 with GB/T 17626.12 identical to the
international standard;
??? REPLACE IEC 61000-6-4 with GB 17799.4 identical to the
international standard;
??? REPLACE IEC 62236-1 with GB/T 24338.1 which uses the
international standard by modification;
??? REPLACE IEC 62236-2 with GB/T 24338.2 which uses the
international standard by modification;
??? DELETE CISPR 22;
??? ADD references to GB/T 4365, GB/T 17625.7, GB/T 17625.8.
- DELETE the definitions of ?€?port?€? and ?€?enclosure port?€?, and ADD the
definitions of ?€?long bus?€?, ?€?3 m zone?€?, and ?€?10 m zone?€?, to clarify concepts and improve the standard?€?s enforceability (SEE Chapter 3).
This Part also makes the following editorial changes.
- CHANGE the international standard?€?s name ?€?Railway applications -
Electromagnetic compatibility - Part 5. Emission and immunity of fixed
power supply installations and apparatus?€? to ?€?Railway applications -
Electromagnetic compatibility - Part 5. Emission and immunity of fixed
power supply apparatus and systems?€?.
- MODIFY the number of chapter-clause. CHANGE Chapter 5 to Chapter 4;
CHANGE Chapter 6 to Chapter 5; CHANGE Chapter 7 to Chapter 6. MOVE
the previous Chapter 4 content to Section 5.1 of Chapter 5. ADD headings of 5.1 and 5.2.
- DELETE the inclusion of items of test configurations in Table 1 ~ Table 6, because they are duplicated with the basic standards and the text has
explained that test configurations are shown in the basic standards.
- MODIFY the order of performance criteria and remarks in Table 1 ~ Table 6.
- CHANGE the note form in Table 1 ~ Table 6 to footnote.
- DELETE the description of emission limits in the figure in Appendix A, to avoid misunderstanding as limit requirements.
Railway applications - Electromagnetic compatibility -
Part 5. Emission and immunity of fixed power supply
apparatus and systems

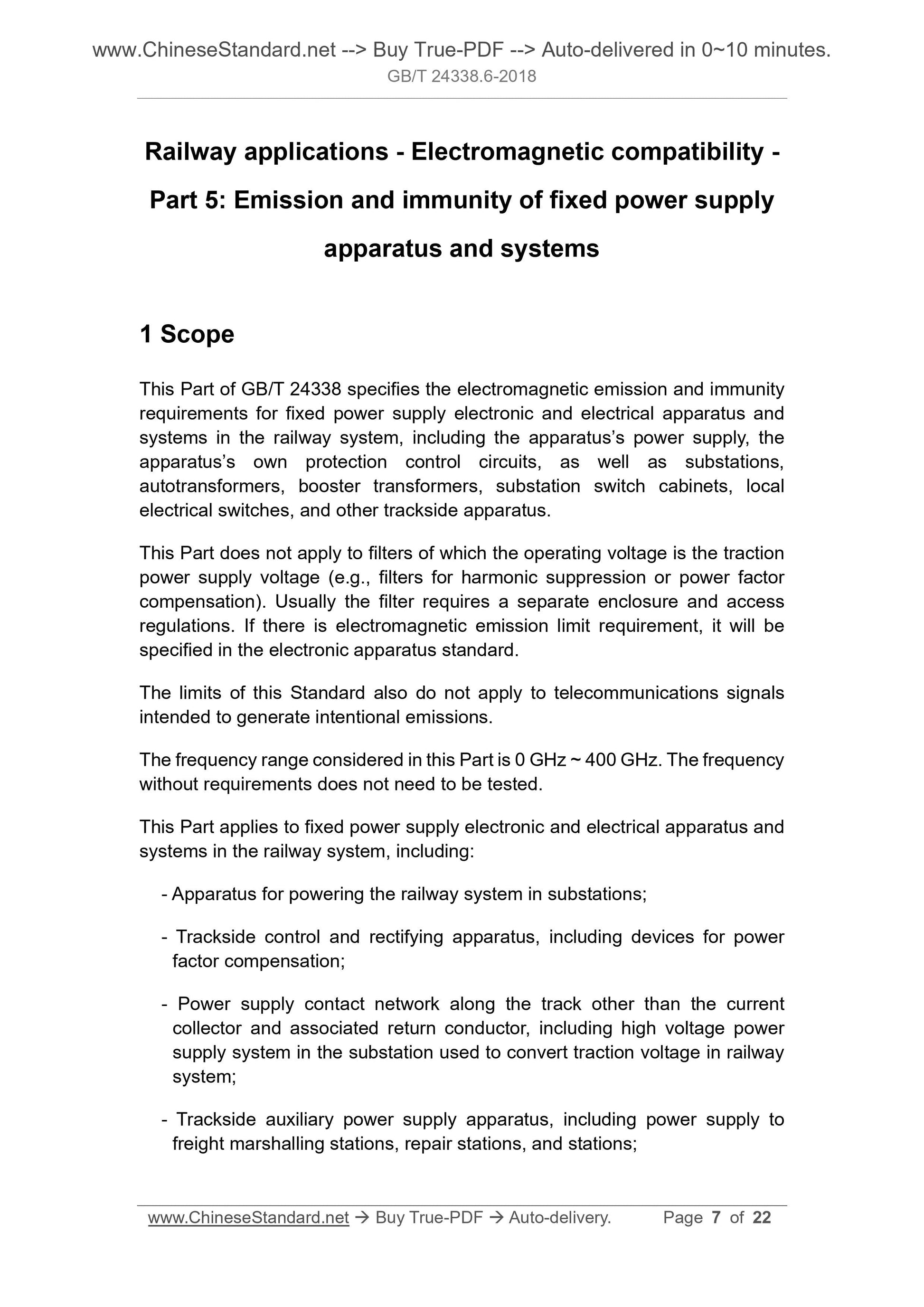

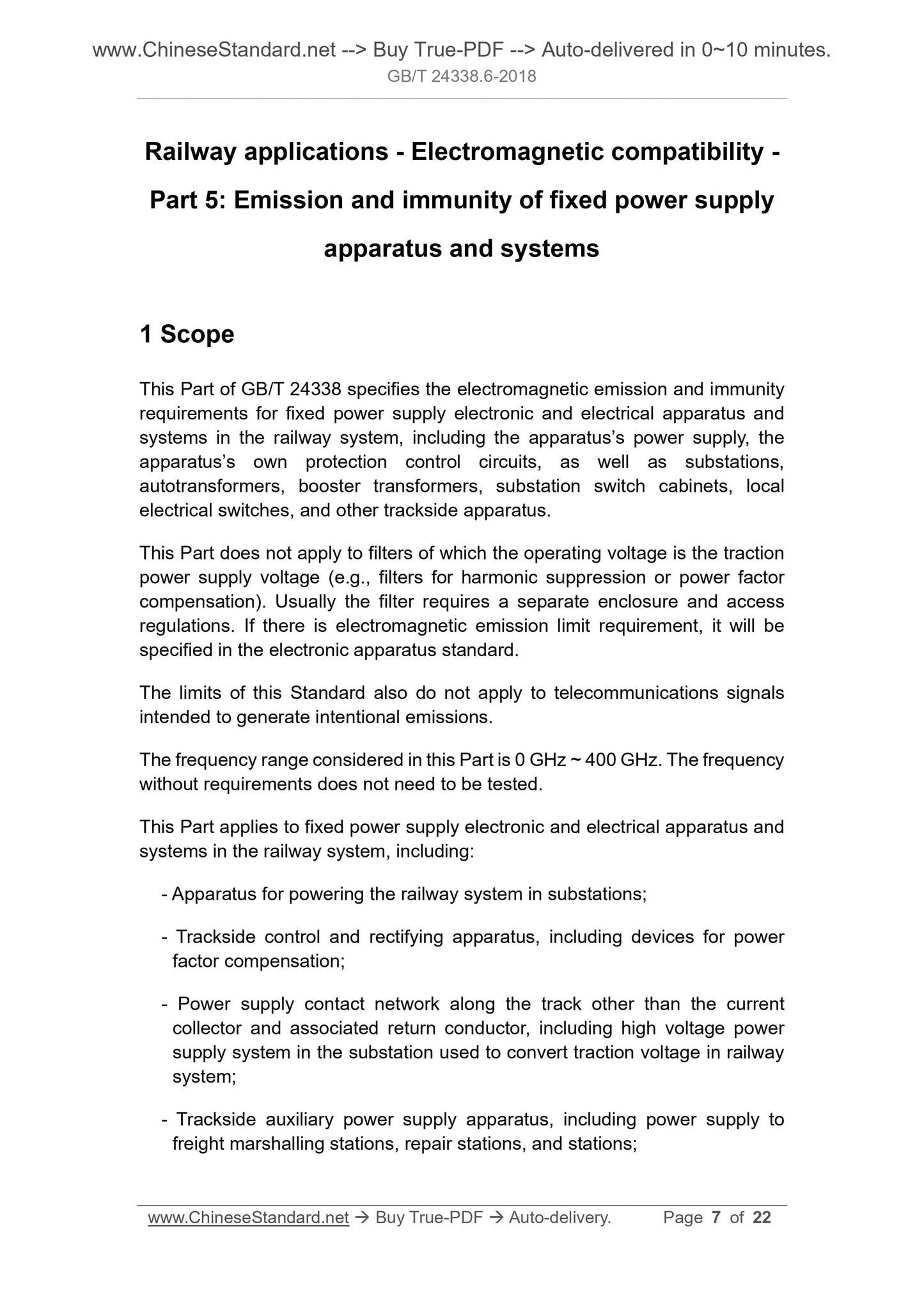

1 Scope
This Part of GB/T 24338 specifies the electromagnetic emission and immunity requirements for fixed power supply electronic and electrical apparatus and systems in the railway system, including the apparatus?€?s power supply, the apparatus?€?s own protection control circuits, as well as substations,
autotransformers, booster transformers, substation switch cabinets, local electrical switches, and other trackside apparatus.
This Part does not apply to filters of which the operating voltage is the traction power supply voltage (e.g., filters for harmonic suppression or power factor compensation). Usually the filter requires a separate enclosure and access regulations. If there is electromagnetic emission limit requirement, it will be specified in the electronic apparatus standard.
The limits of this Standard also do not apply to telecommunications signals intended to generate intentional emissions.
The frequency range considered in this Part is 0 GHz ~ 400 GHz. The frequency without requirements does not need to be tested.
This Part applies to fixed power supply electronic and electrical apparatus and systems in the railway system, including.
- Apparatus for powering the railway system in substations;
- Trackside control and rectifying apparatus, including devices for power factor compensation;
- Power supply contact network along the track other than the current
collector and associated return conductor, including high voltage power supply system in the substation used to convert traction voltage in railway system;
- Trackside auxiliary power supply apparatus, including power supply to freight marshalling stations, repair stations, and stations;

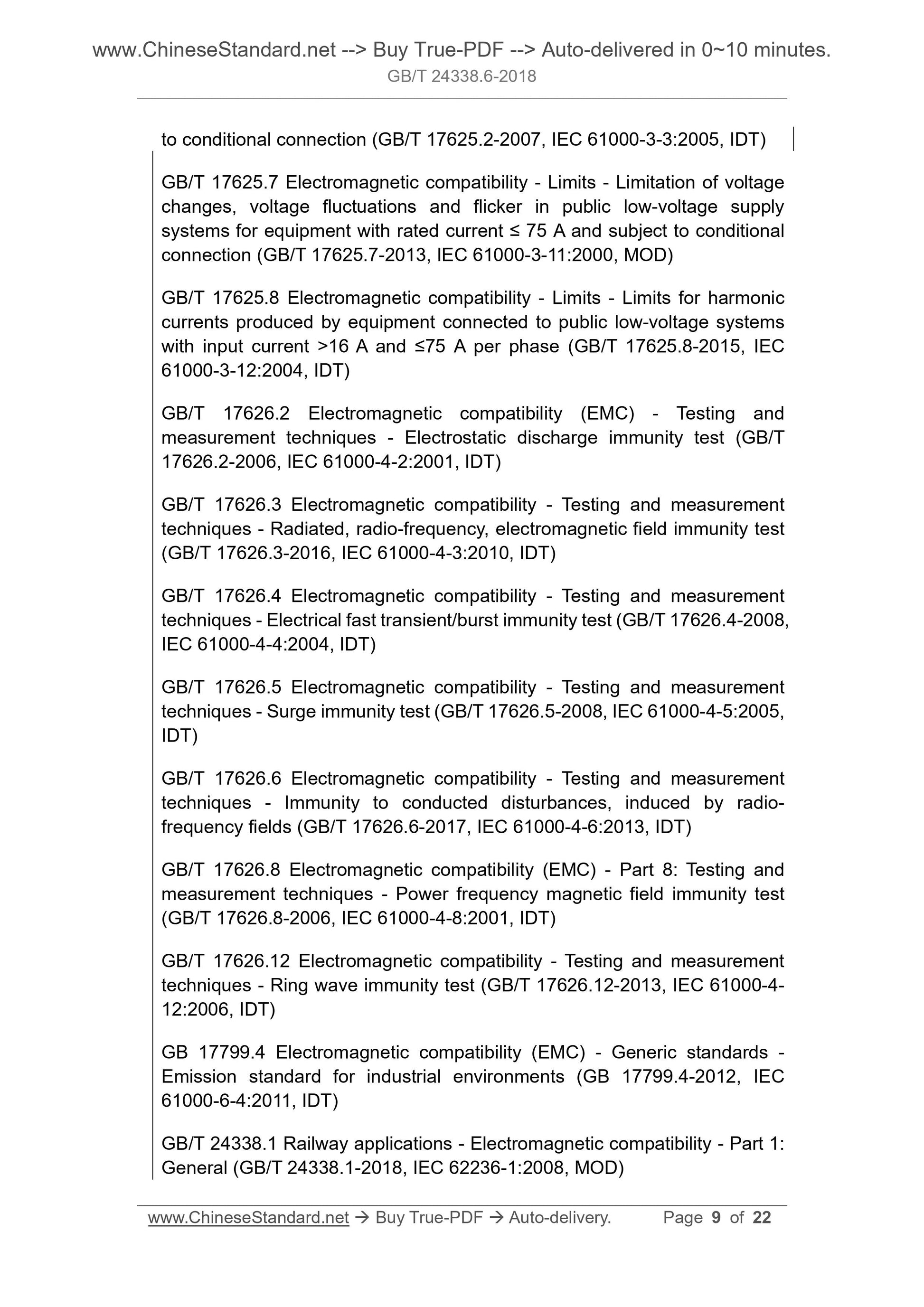

to conditional connection (GB/T 17625.2-2007, IEC 61000-3-3.2005, IDT)
GB/T 17625.7 Electromagnetic compatibility - Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply
systems for equipment with rated current ??? 75 A and subject to conditional connection (GB/T 17625.7-2013, IEC 61000-3-11.2000, MOD)
GB/T 17625.8 Electromagnetic compatibility - Limits - Limits for harmonic currents produced by equipment connected to public low-voltage systems
with input current >16 A and ???75 A per phase (GB/T 17625.8-2015, IEC
61000-3-12.2004, IDT)
GB/T 17626.2 Electromagnetic compatibility (EMC) - Testing and
measurement techniques - Electrostatic discharge immunity test (GB/T
17626.2-2006, IEC 61000-4-2.2001, IDT)
GB/T 17626.3 Electromagnetic compatibility - Testing and measurement
techniques - Radiated, radio-frequency, electromagnetic field immunity test (GB/T 17626.3-2016, IEC 61000-4-3.2010, IDT)
GB/T 17626.4 Electromagnetic compatibility - Testing and measurement
techniques - Electrical fast transient/burst immunity test (GB/T 17626.4-2008, IEC 61000-4-4.2004, IDT)
GB/T 17626.5 Electromagnetic compatibility - Testing and measurement
techniques - Surge immunity test (GB/T 17626.5-2008, IEC 61000-4-5.2005, IDT)
GB/T 17626.6 Electromagnetic compatibility - Testing and measurement
techniques - Immunity to conducted disturbances, induced by radio-
frequency fields (GB/T 17626.6-2017, IEC 61000-4-6.2013, IDT)
GB/T 17626.8 Electromagnetic compatibility (EMC) - Part 8. Testing and
measurement techniques - Power frequency magnetic field immunity test
(GB/T 17626.8-2006, IEC 61000-4-8.2001, IDT)
GB/T 17626.12 Electromagnetic compatibility - Testing and measurement
techniques - Ring wave immunity test (GB/T 17626.12-2013, IEC 61000-4-
12.2006, IDT)
GB 17799.4 Electromagnetic compatibility (EMC) - Generic standards -
Emission standard for industrial environments (GB 17799.4-2012, IEC
61000-6-4.2011, IDT)
GB/T 24338.1 Railway applications - Electromagnetic compatibility - Part 1. General (GB/T 24338.1-2018, IEC 62236-1.2008, MOD)

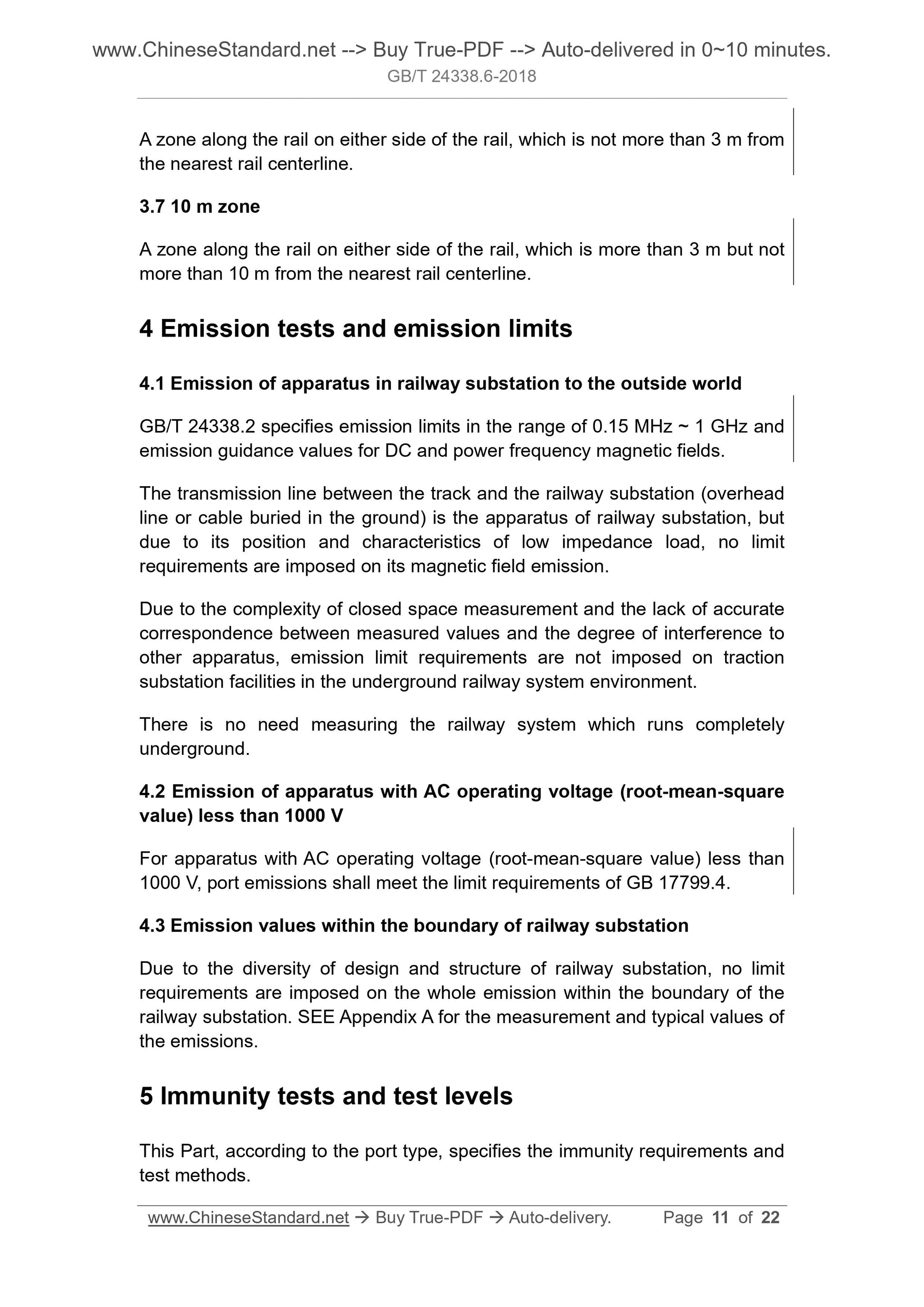

A zone along the rail on either side of the rail, which is not more than 3 m from the nearest rail centerline.
3.7 10 m zone
A zone along the rail on either side of the rail, which is more than 3 m but not more than 10 m from the nearest rail centerline.
4 Emission tests and emission limits
4.1 Emission of apparatus in railway substation to the outside world
GB/T 24338.2 specifies emission limits in the range of 0.15 MHz ~ 1 GHz and emission guidance values for DC and power frequency magnetic fields.
The transmission line between the track and the railway substation (overhead line or cable buried in the ground) is the apparatus of railway substation, but due to its position and characteristics of low impedance load, no limit requirements are imposed on its magnetic field emission.
Due to the complexity of closed space measurement and the lack of accurate correspondence between measured values and the degree of interference to other apparatus, emission limit requirements are not imposed on traction substation facilities in the underground railway system environment.
There is no need measuring the railway system which runs completely
underground.
4.2 Emission of apparatus with AC operating voltage (root-mean-square
value) less than 1000 V
For apparatus with AC operating voltage (root-mean-square value) less than 1000 V, port emissions shall meet the limit requirements of GB 17799.4. 4.3 Emission values within the boundary of railway substation
Due to the diversity of design and structure of railway substation, no limit requirements are imposed on the whole emission within the boundary of the railway substation. SEE Appendix A for the measurement and typical values of the emissions.
5 Immunity tests and test levels
This Part, according to the port type, specifies the immunity requirements and test methods.

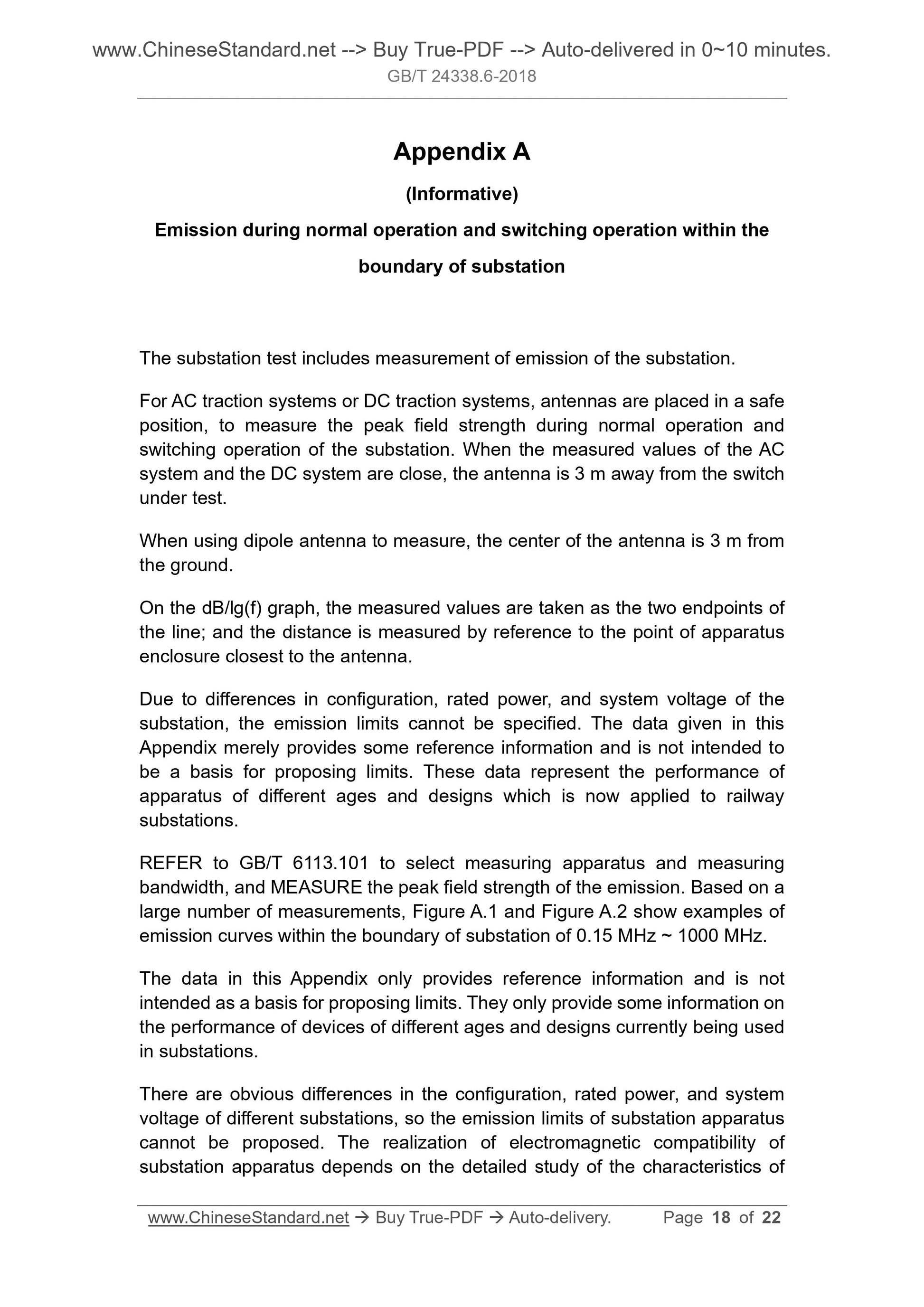

Appendix A
(Informative)
Emission during normal operation and switching operation within the
boundary of substation
The substation test includes measurement of emission of the substation. For AC traction systems or DC traction systems, antennas are placed in a safe position, to measure the peak field strength during normal operation and switching operation of the substation. When the measured values of the AC system and the DC system are close, the antenna is 3 m away from the switch under test.
When using dipole antenna to measure, the center of the antenna is 3 m from the ground.
On the dB/lg(f) graph, the measured values are taken as the two endpoints of the line; and the distance is measured by reference to the point of apparatus enclosure closest to the antenna.
Due to differences in configuration, rated power, and system voltage of the substation, the emission limits cannot be specified. The data given in this Appendix merely provides some reference information and is not intended to be a basis for proposing limits. These data represent the performance of apparatus of different ages and designs which is now applied to railway substations.
REFER to GB/T 6113.101 to select measuring apparatus and measuring
bandwidth, and MEASURE the peak field strength of the emission. Based on a large number of measurements, Figure A.1 and Figure A.2 show examples of emission curves within the boundary of substation of 0.15 MHz ~ 1000 MHz. The data in this Appendix only provides reference information and is not intended as a basis for proposing limits. They only provide some information on the performance of devices of different ages and designs currently being used in substations.
There are obvious differences in the configuration, rated power, and system voltage of different substations, so the emission limits of substation apparatus cannot be proposed. The realization of electromagnetic compatibility of substation apparatus depends on the detailed study of the characteristics of
