GB/T 2423.56-2006: Environmental testing for electric and electronic products - Part 2: Test methods - Test Fh: Vibration, broad-band random (digital control) and guidance

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 2423.56-2006 (Self-service in 1-minute)
Newer / historical versions: GB/T 2423.56-2006

Preview True-PDF

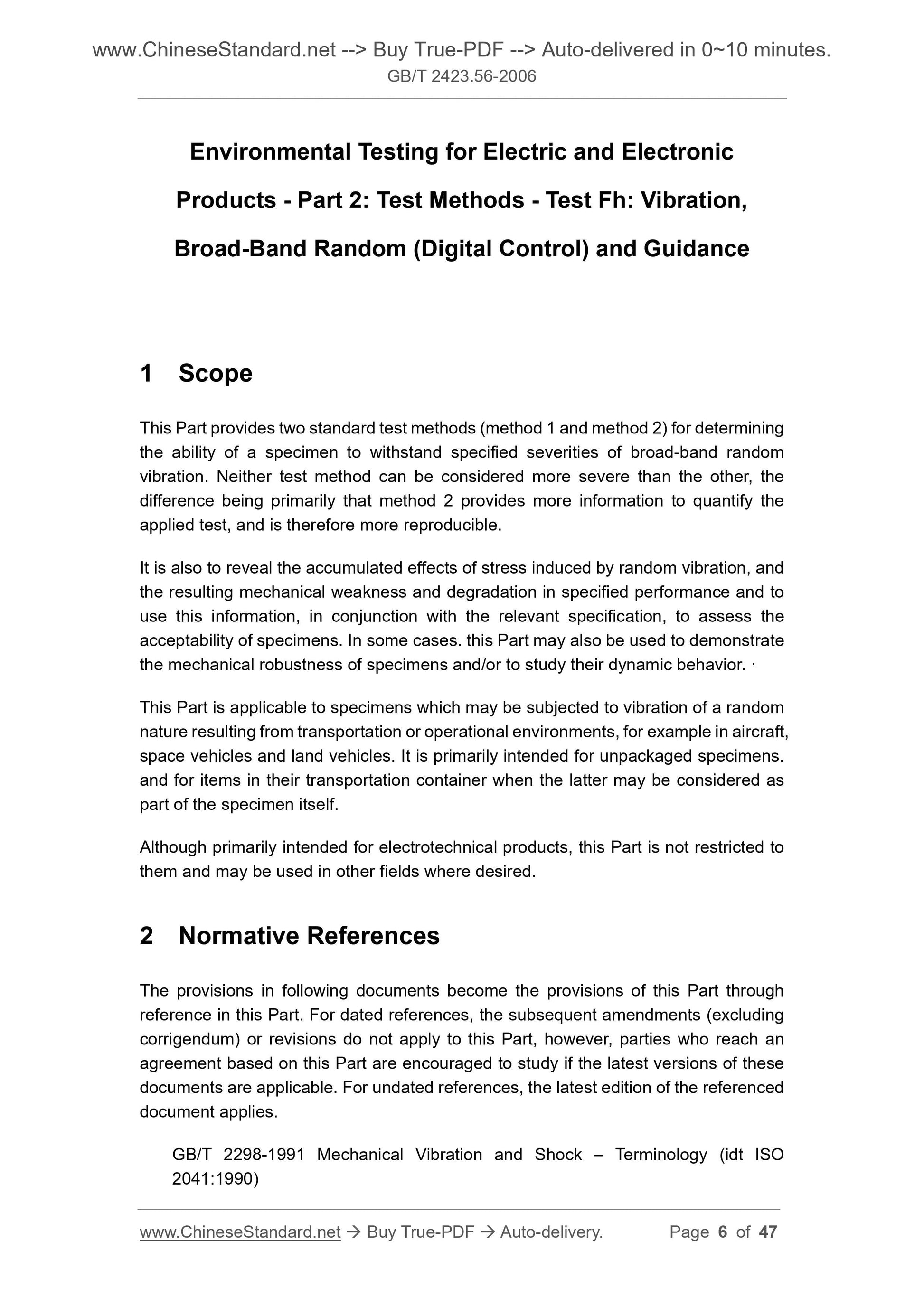

Scope

This Part provides two standard test methods (method 1 and method 2) for determining
the ability of a specimen to withstand specified severities of broad-band random
vibration. Neither test method can be considered more severe than the other, the
difference being primarily that method 2 provides more information to quantify the
applied test, and is therefore more reproducible.
It is also to reveal the accumulated effects of stress induced by random vibration, and
the resulting mechanical weakness and degradation in specified performance and to
use this information, in conjunction with the relevant specification, to assess the
acceptability of specimens. In some cases. this Part may also be used to demonstrate
the mechanical robustness of specimens and/or to study their dynamic behavior...
This Part is applicable to specimens which may be subjected to vibration of a random
nature resulting from transportation or operational environments, for example in aircraft,
space vehicles and land vehicles. It is primarily intended for unpackaged specimens.
and for items in their transportation container when the latter may be considered as
part of the specimen itself.
Although primarily intended for electrotechnical products, this Part is not restricted to
them and may be used in other fields where desired.

Basic Data

Standard ID	GB/T 2423.56-2006 (GB/T2423.56-2006)
Description (Translated English)	Environmental testing for electric and electronic products - Part 2: Test methods - Test Fh: Vibration, broad-band random (digital control) and guidance
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	K04
Classification of International Standard	19.020
Word Count Estimation	30,381
Date of Issue	2006-11-08
Date of Implementation	2007-04-01
Quoted Standard	GB/T 2298-1991; GB/T 2421-1999; GB/T 2423.10-1995; GB/T 2423.43-1995; GB/T 4796; IEC 60050-301-1983; IEC 60050-302-1983; IEC 60050-303-1983; IEC 60068; IEC 60068-2
Adopted Standard	IEC 60068-2-64-1993, IDT
Regulation (derived from)	China Announcement of Newly Approved National Standards No. 11 of 2006 (No. 98 overall)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard provides two standard test method (Method 1 and Method 2) to determine the test sample subjected to a specified band random vibration. Can not be considered an experimental approach than other more severe test method, the main difference is the Test Method 2 provides additional information to quantify the test applied, it has a better reproducibility. This standard also reveals random vibration caused by the cumulative effects of stress and specific mechanical performance, and the use of such information and related specifications to assess the acceptability of the test sample. Sometimes, this standard is also used to demonstrate the adaptability of mechanical environmental samples and/or study their dynamics. This standard applies to the transport or work environment may be subject to random vibration of the sample, as in aircraft, spacecraft and land transport modes, it is mainly used without packaging samples, as well as its packaging during transport as part of test sample itself sample. This standard applies to electrical and electronic products, but is not limited to this, also applicable to other areas of the product.
