GB/T 2423.52-2003: Environmental testing for electric and electronic products - Part 2: Test methods - Test 77: Body strength and impact shock

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 2423.52-2003 (Self-service in 1-minute)
Newer / historical versions: GB/T 2423.52-2003

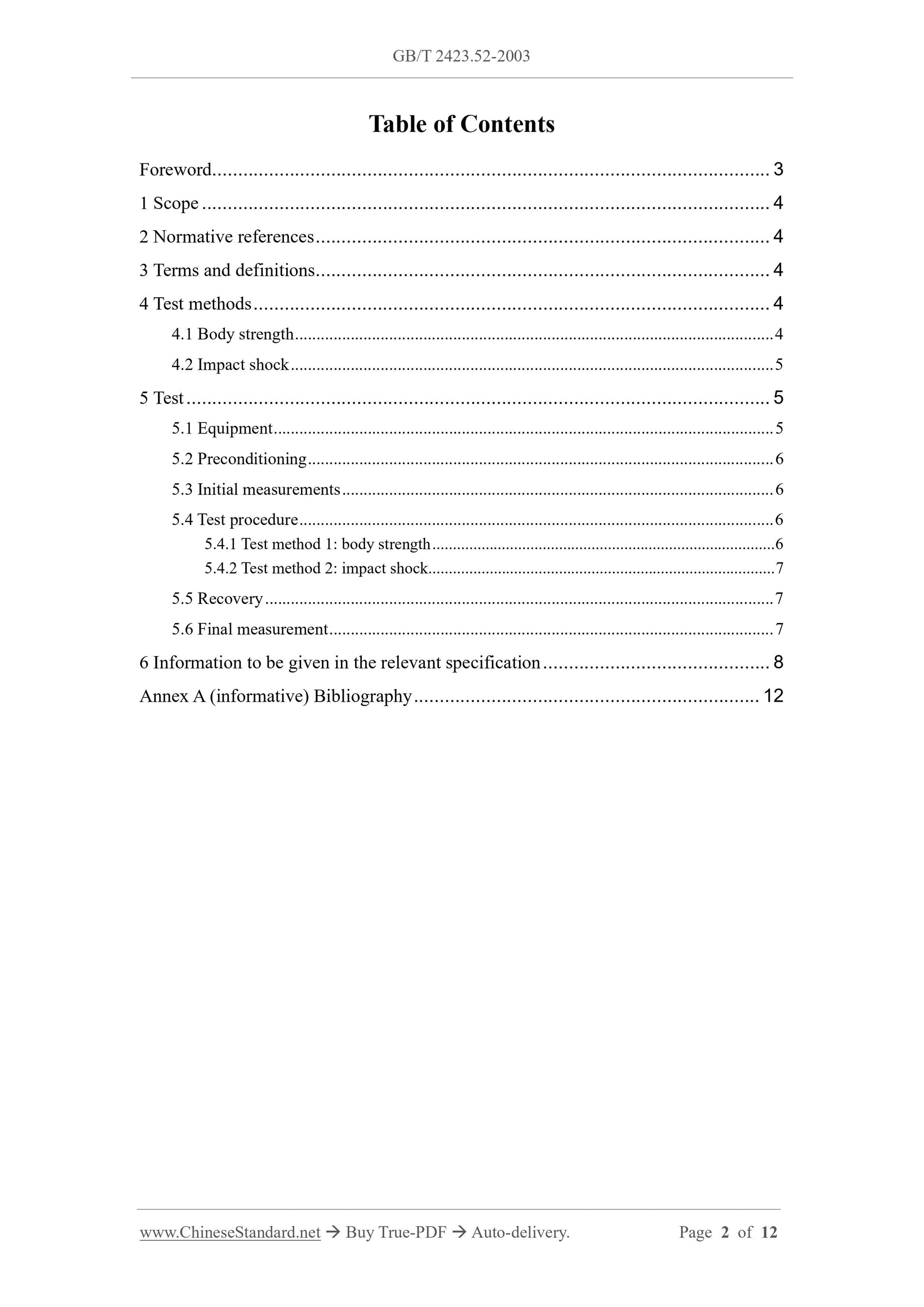

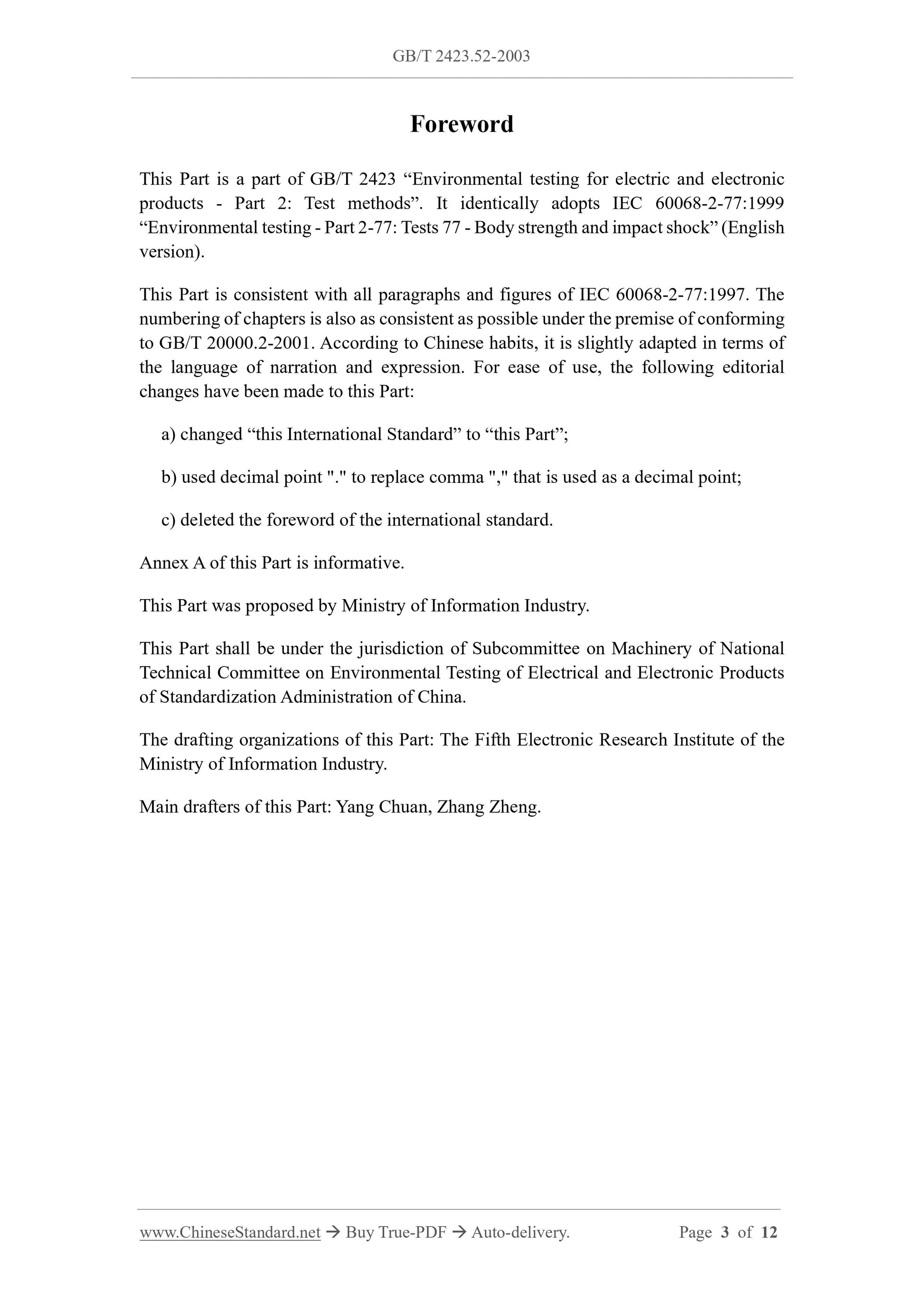

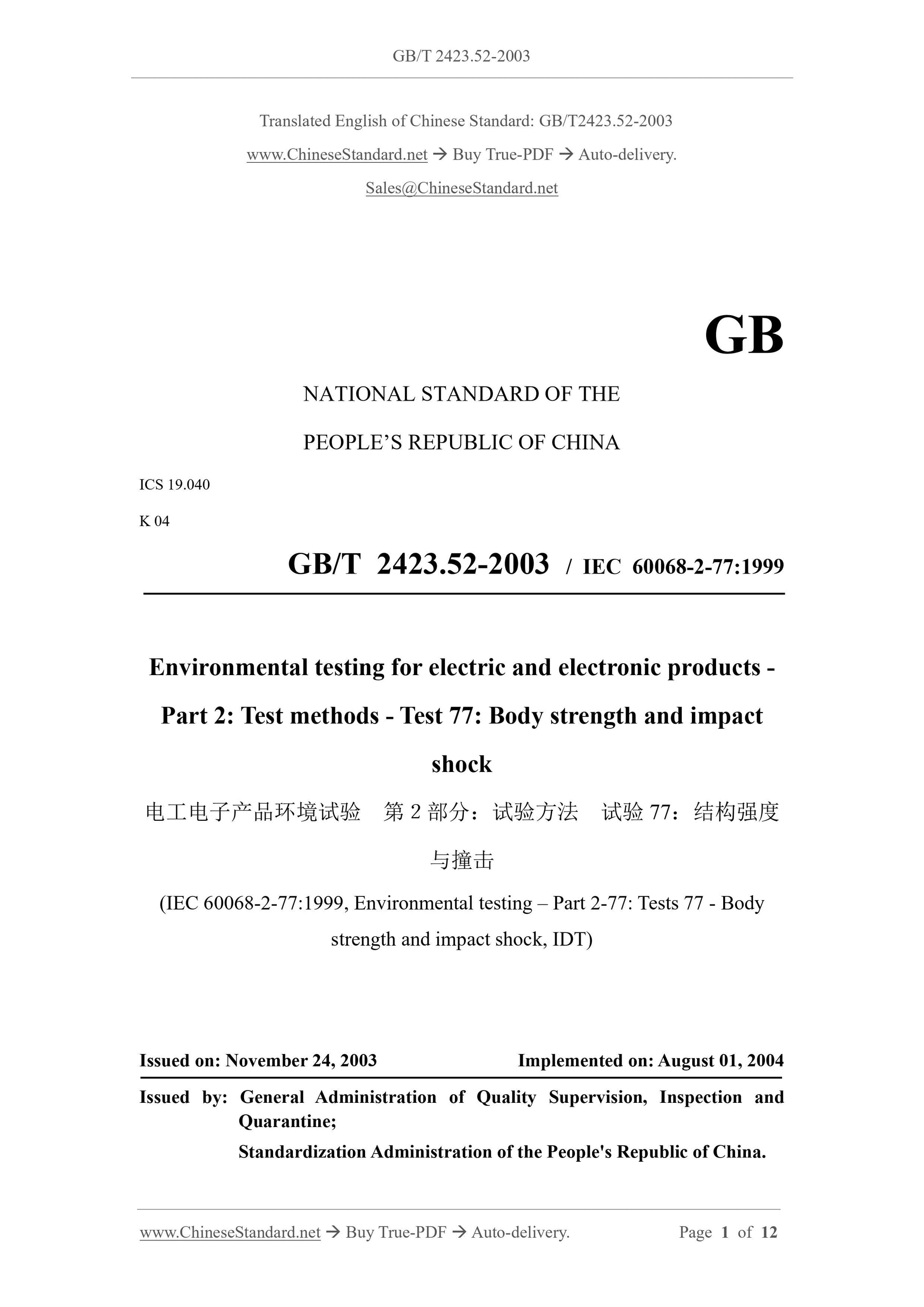

Preview True-PDF

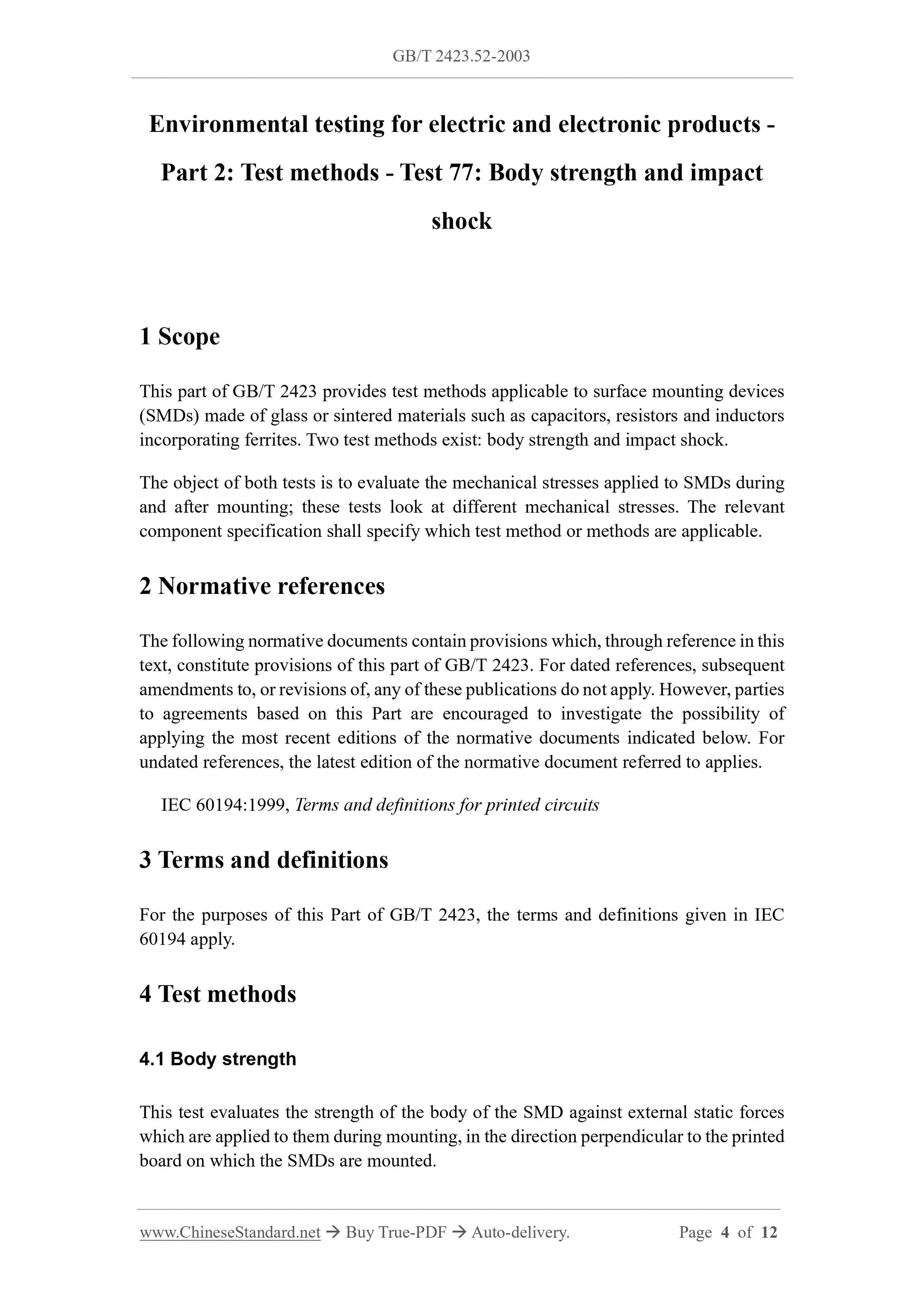

Scope

This part of GB/T 2423 provides test methods applicable to surface mounting devices
(SMDs) made of glass or sintered materials such as capacitors, resistors and inductors
incorporating ferrites. Two test methods exist: body strength and impact shock.
The object of both tests is to evaluate the mechanical stresses applied to SMDs during
and after mounting; these tests look at different mechanical stresses. The relevant
component specification shall specify which test method or methods are applicable.

Basic Data

Standard ID	GB/T 2423.52-2003 (GB/T2423.52-2003)
Description (Translated English)	Environmental testing for electric and electrionic products. Part 2: Test methods. Test 77: Body strength and impact shock
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	K04
Classification of International Standard	19.040
Word Count Estimation	11,170
Date of Issue	2003-11-24
Date of Implementation	2004-08-01
Adopted Standard	IEC 60068-2-77-1999, IDT
Regulation (derived from)	China Announcement of Newly Approved National Standards No. 1, 2004 (No. 63 overall)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People Republic of China, China National Standardization Administration Committee
Summary	This standard shows the two test methods: structural strength and impact. The two methods by the CS or sintered glass material surface mount devices (SMD3), such as capacitors, resistors, inductors and ferrite containing other components of the test.
