GB/T 2423.3-2016: Environmental testing - Part 2: Testing method - Test Cab: Damp heat, steady state

GB/T 2423.3-2016
Environmental testing - Part 2. Testing method - Test Cab. Damp heat, steady state ICS 19.040
K04
National Standards of People's Republic of China
Replacing GB/T 2423.3-2006
Environmental testing - Part 2. Test Method
Test Cab. Damp heat test
(IEC 60068-2-78.2012, Environmentaltesting-Part 2-78. Tests-
TestCab. Dampheat, steadystate, IDT)
Published 2016-12-13
2017-07-01 implementation
Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China issued

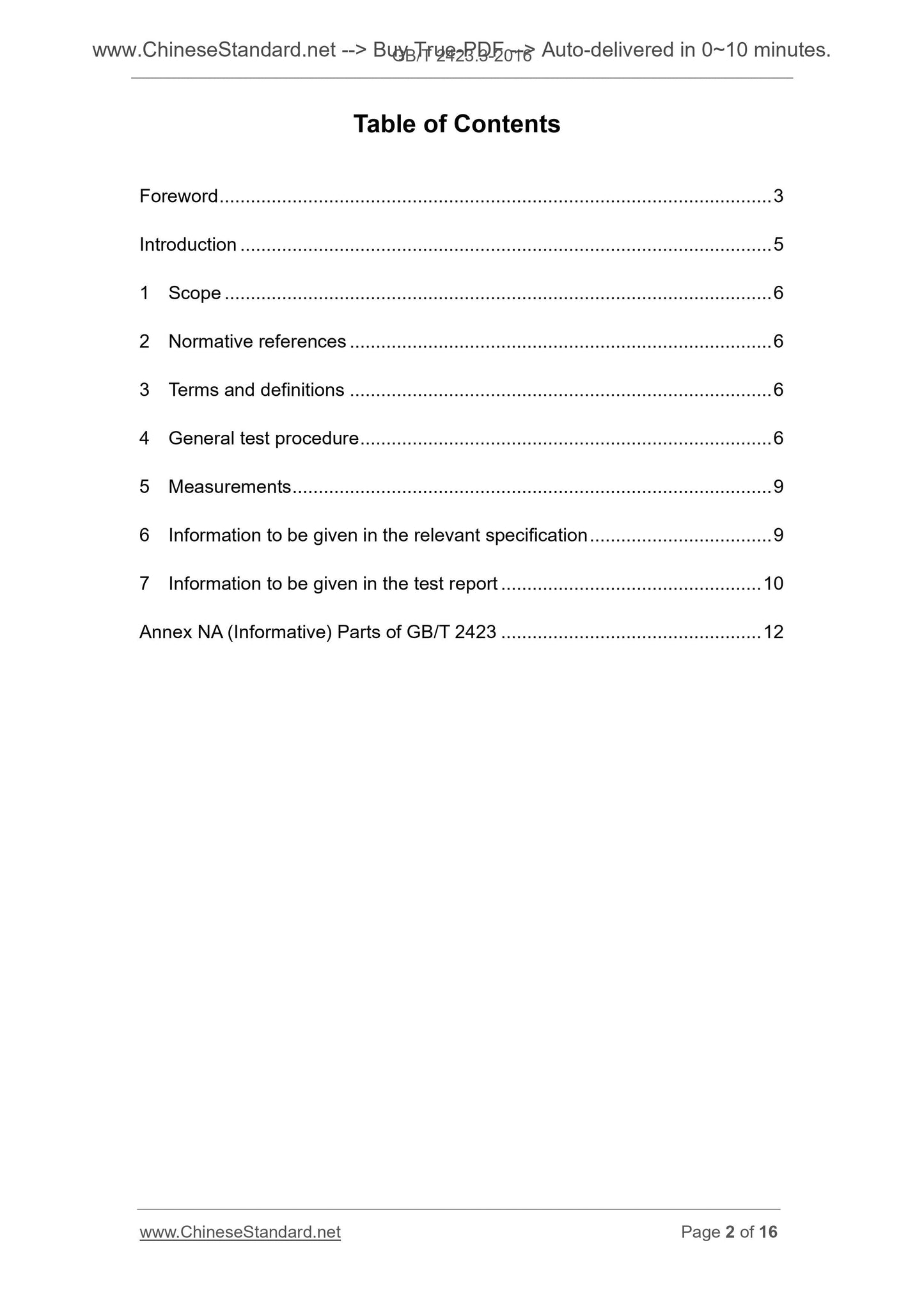

Table of Contents
Preface Ⅰ
Introduction Ⅱ
1 Scope 1
2 Normative References 1
Terms and definitions 1 3
4 1 Test Overview
5 detects 2
6 specifications related information should be given 3
7 the information to be given in 3 test report
Appendix NA (Information Appendix) GB/T 2423 standard part 5

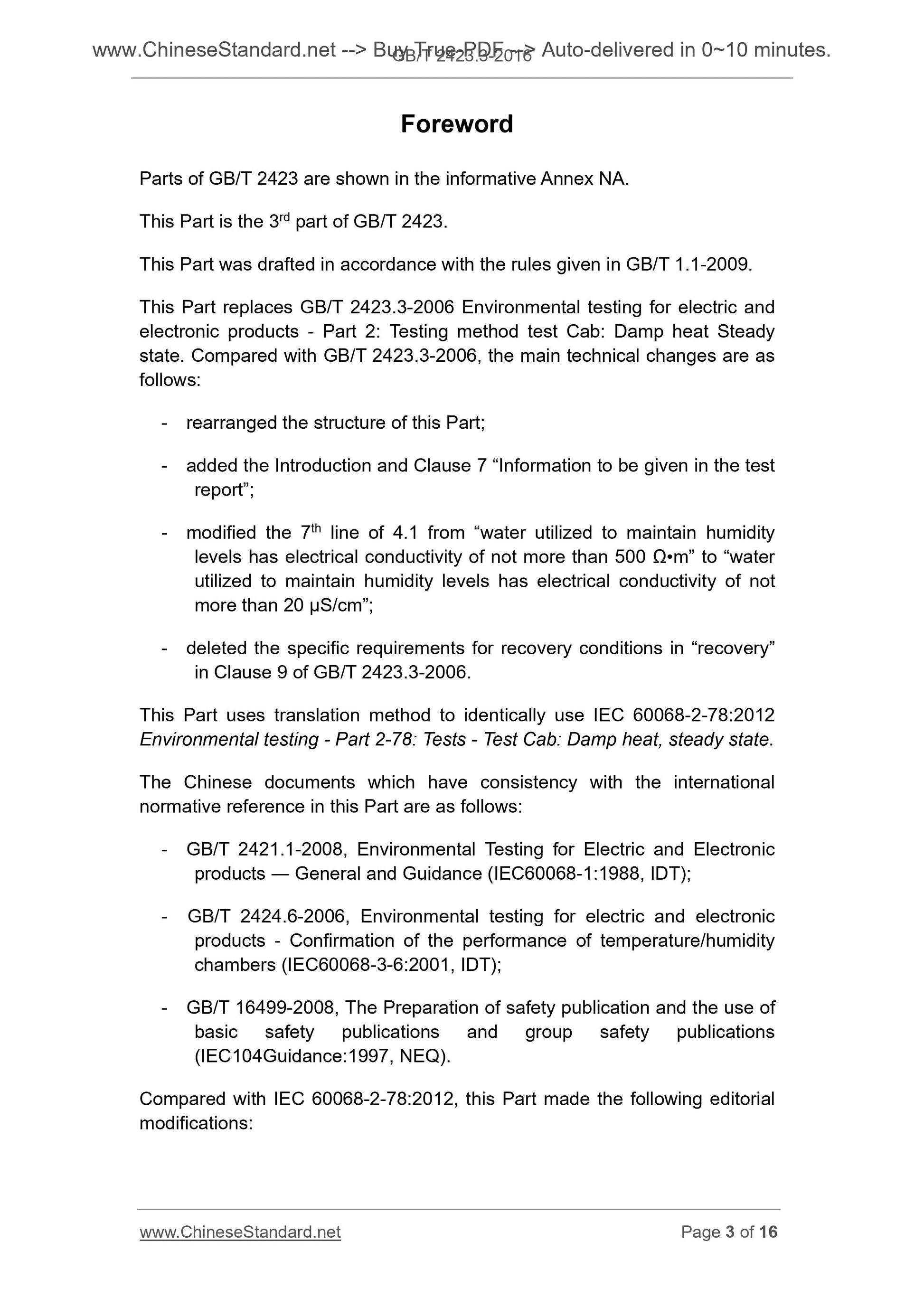

Foreword
Part of GB/T 2423 standard, see informative annex NA.
This section GB/T 2423 Part 3.
This section drafted in accordance with the rules GB/T 1.1-2009 given.
This partial replacement GB/T 2423.3-2006 "Environmental testing electric and electronic products - Part 2. Test Method Test Cab. constant Damp heat test ", compared to major technological changes and GB/T 2423.3-2006 as follows. --- the structure of this part is to rearrange;
--- increased introduction and Chapter 7, "Information should be given in the test report"; 4.1 --- seventh line, the original "water resistivity and humidity should be maintained not less than 500Ω · m" to "water conductance humidity Rate should be kept not more than 20μS/cm ";
--- deleted GB/T 2423.3-2006 Chapter 9, "Recovery" for the specific requirements of the recovery conditions. This part is identical translation method using IEC 60068-2-78.2012 "Environmental testing - Part 2-78. Test Test Cab. constant Damp heat test. "
Consistency correspondence relationship with international documents in this section of our normative references the following documents. --- GB/T 2421.1-2008 Environmental testing for electric and electronic products overview and guidance (IEC 60068-1. 1988, IDT); --- GB/T 2424.6-2006 electric and electronic products environmental testing temperature/humidity chamber Confirmation of the performance (IEC 60068-3-6. 2001, IDT);
--- GB written application and basic safety publications and multi-disciplinary common security publications/T 16499-2008 security publications Guide (IEC 104 Guide.1997, NEQ).
This part of IEC 60068-2-78. compared to 2012, mainly to do the following editorial changes. --- changed name in this section. "Environmental testing - Part 2. Test Method Test Cab. Damp heat test"; --- increasing the informative appendix NA "GB/T 2423 standard part of." This part of the proposed and managed by the National Electrical and Electronic Products Environmental conditions and environmental tests Standardization Committee (SAC/TC8). This part of the drafting units. China Electric Apparatus Research Institute Co., Ltd., Jining semiconductor and display products for Quality Supervision and Inspection Center, Guangdong Grid Electric Power Research Institute Co., Ltd., China National Aviation Holding Company Beijing Great Wall Institute of Measurement and Testing Technology, Wuxi Sunan test set By the Limited.

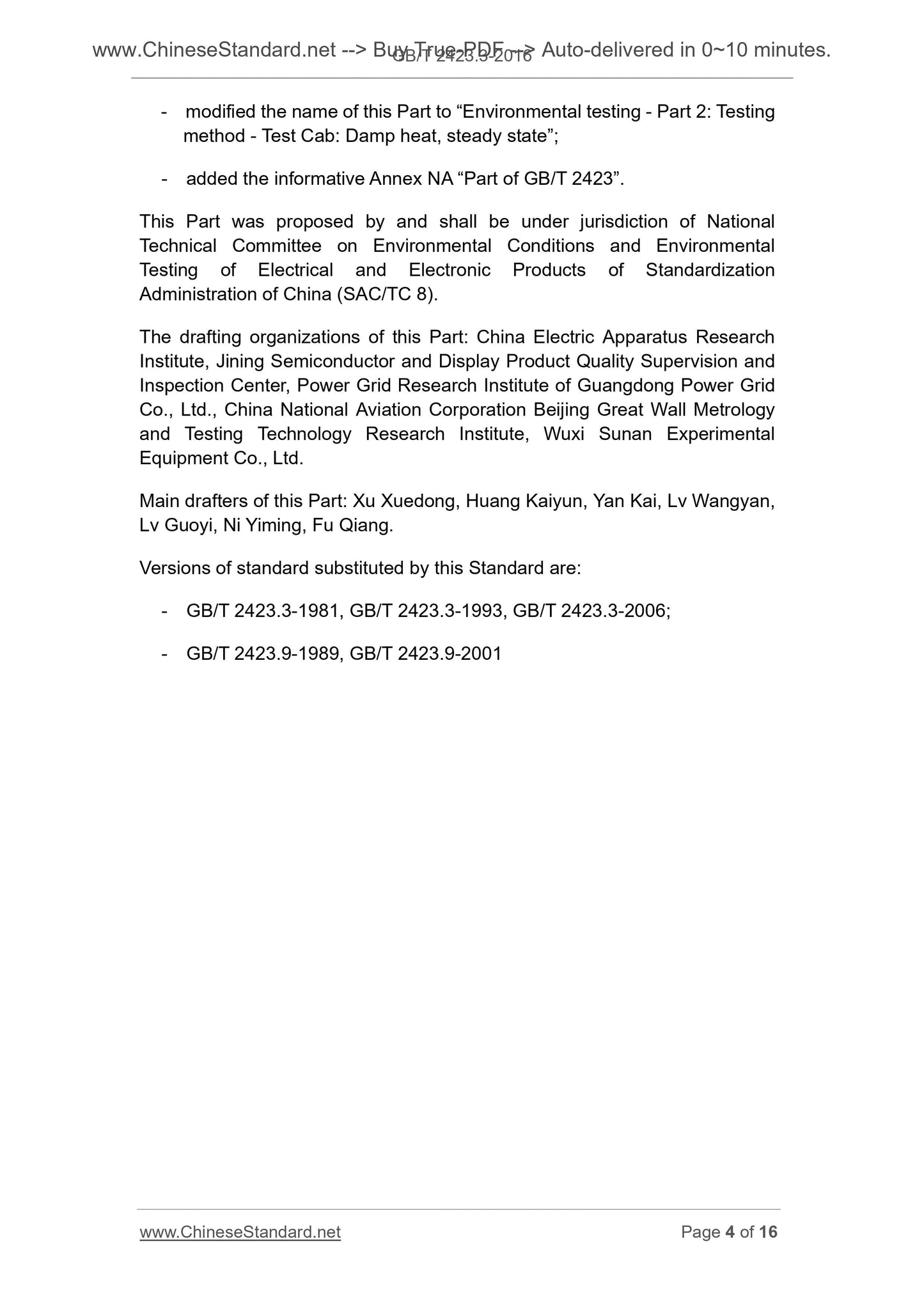

The main drafters of this section. Xu Xuedong, Huang Kaiyun, Yan Kai, Lv Wangyan, Lv Guoyi, Ni Yiming, Fu Qiang. This section replaces the following previously issued as follows.
--- GB/T 2423.3-1981, GB/T 2423.3-1993, GB/T 2423.3-2006;
--- GB/T 2423.9-1989, GB/T 2423.9-2001.
introduction
This part of GB/T 2423 provides a sample at a constant temperature, no condensation, high humidity test methods over a predetermined time environmental impact. This test provides a sample to evaluate the effects of water vapor absorption and diffusion. Environmental testing - Part 2. Test Method
Test Cab. Damp heat test

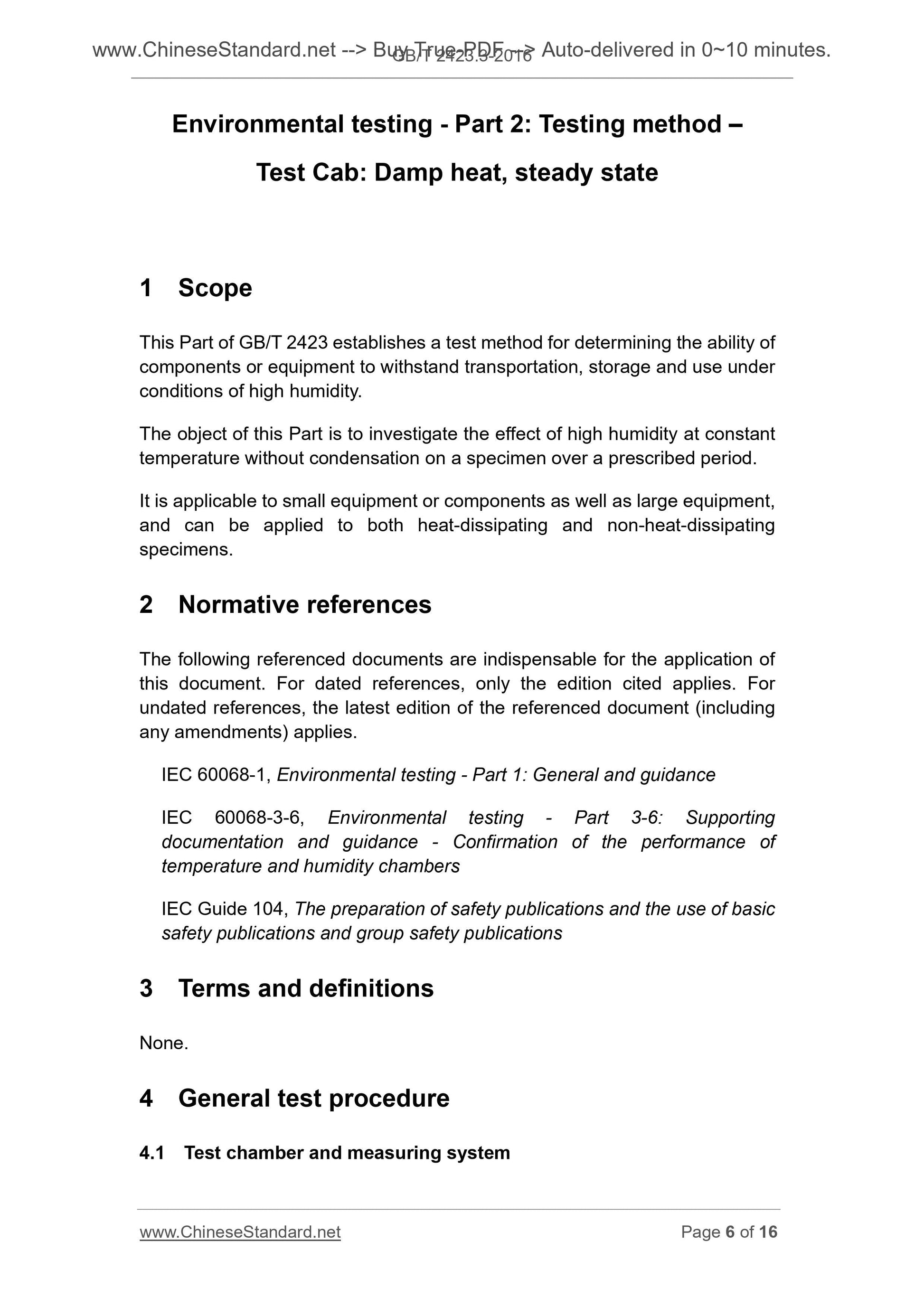

1 Scope
Adaptability of when GB/T 2423 specifies the present section determining element or device used under conditions of high humidity, storage and transport method.
Purpose of this section is a predetermined constant for determining the temperature within the time, the influence of non-condensing humidity environment test sample. This section applies to small devices or elements, are also suitable for larger devices, apply to both heat and non-heat test sample. 2 Normative references
The following documents for the application of this document is essential. For dated references, only applies to the version dated paper Pieces. For undated references, the latest edition (including any amendments) applies to this document. IEC 60068-1 Environmental testing - Part 1. Overview and guidance (Environmental testing-Part 1. General and guidance) 3 Terms and Definitions
4 Test Overview
4.1 chamber and measurement systems
Temperature/humidity chamber should be required to be installed to confirm IEC 60068-3-6. Chamber and measurement systems shall be as follows.
--- sensors should be mounted in the working space of the chamber to monitor the temperature/humidity; NOTE. For heat test sample, the test sample affects the cooling temperature and humidity near the test sample position. --- chamber condensate discharge chamber should be continuous, if not discharged condensate purification can not be reused; Condensate --- the inner wall of the chamber and the top should not drip on the test sample; --- water conductivity humidity in the test chamber should be kept not more than 20μS/cm; --- Test of the test sample should not be subject to direct heat radiation of the air conditioner; --- The spray system of the test chamber, the test sample should be away from the injection port, and the moisture is not directly projected onto the sample; --- volume of the chamber is at least five times the volume of the test sample; Unless otherwise specified in the relevant specification --- When using mounting bracket, with minimal impact to deal with temperature and humidity exchange between the test sample and the surrounding environment. 4.2 severities
The severity of the test temperature, relative humidity, together determine the duration of the test. Unless the relevant specification, and the temperature of the test phase Humidity should be selected in Table 1.
Table 1 Temperature and relative humidity
temperature
Relative humidity RH
30 ± 2 93 ± 3
30 ± 2 85 ± 3
40 ± 2 93 ± 3
40 ± 2 85 ± 3
Recommended duration. 12h, 16h, 24h and 2d, 4d, 10d, 21d or 56d.
The total temperature tolerance of ± 2K absolute error is taken into account, the temperature gradient and the temperature in the working space during testing. In order to maintain The relative humidity of the test chamber within a predetermined tolerance range must be maintained between any two points in the test chamber to make the temperature difference at any time As small as possible. If the temperature difference over 1K, then can not achieve the desired humidity. Short-term temperature fluctuations must be maintained in the range ± 0.5K In order to maintain the desired humidity conditions.
4.3 Pretreatment
Related specifications may require pretreatment.
4.4 Test Conditions
Test samples should be placed in the relevant norms required chamber. Unless otherwise specified, it should be no packaging, no power, "ready to use" shape State test sample was placed in a test chamber.
In particular, when the relevant specifications may allow test sample was placed in the test chamber reached test conditions, and should be avoided samples produced condensate Lu, for small samples can be achieved by preheating the request.
Adjusting the temperature of the test chamber and arriving at the desired severity. In order to avoid condensation generated test sample, the test sample should be temperature controlled Or the test sample reaches the test temperature was adjusted to a relative humidity chamber reaches a predetermined value. Within 2h, the tank by adjusting the humidity reaches the predetermined test severity. The relevant specification shall specify the duration of the test conditions and test. To start the test duration should test conditions reaches a predetermined value Calculation.
Related specifications should provide test samples taken during the test chamber conditions and duration. After the test conditions, before the last test, the test procedures shall provide for the recovery. 4.5 recovery
The relevant specification shall specify the methods and recovery time. Restore the conditions as specified in IEC 60068-1 requirements. 5 Detection
5.1 Initial Detection
According to the specification, visual inspection of the test sample, detecting its electrical and mechanical properties. 5.2 intermediate detector
The relevant specification can be made at the end of the period or conditions for testing test samples remain in the test chamber for testing, if the need for this When the species is detected, the relevant specification shall prescribe testing and project completion time of these tests. When this detection is performed, the test sample should be taken Outside the box.
5.3 final inspection
According to the specification, the appearance of the test sample was examined to detect its electrical and mechanical properties. 6 specifications related information should be given
For the present specification When using test method to deal with the following specifications. a) Pretreatment;
b) initial detection;
c) a support or mounting details described;
d) the state of the test sample (not energized, energized, packaging, no packaging, etc.); e) type of test sample or --- heat dissipation;
Severity f) and tolerance tests
1) temperature,
2) relative humidity,
3) the duration;
g) an intermediate detection;
h) recovery condition;
i) Finally, detected;
j) to reach agreement on any deviations between customers and suppliers. Information should be given in the test report 7
The test report shall contain at least the following information. Listed in parentheses are examples. a) customer (name and address);
b) testing laboratories (name and address, details of recognition, if there should be specified); c) Test Date (date of tests performed);
d) Test type (Cab);
e) test purposes (research, identification, etc.);
f) test standard, version (GB/T 2423.3 and version used);
g) the relevant laboratory test procedure (code and issue number);
h) described in the test sample (drawing, photograph, number, configuration state, etc.); i) identification chamber (manufacturer, model, unique code and the like); j) Performance test equipment (control set point temperature, wind speed, etc.); Uncertainty (uncertainty data) K) of the measurement system;
l) the calibration date (the last and the next calibration should be calibrated date); m) the initial, intermediate and final detection (initial, intermediate and final testing); n) the required severity (obtained from related specifications);
o) The actual test conditions (point measurement, data, etc.);
Performance p) test sample (function test results and the like);
Observations during q) tests and measures (any relevant observations) taken; r) test summary (summary of the test);
s) distribution (distribution list).

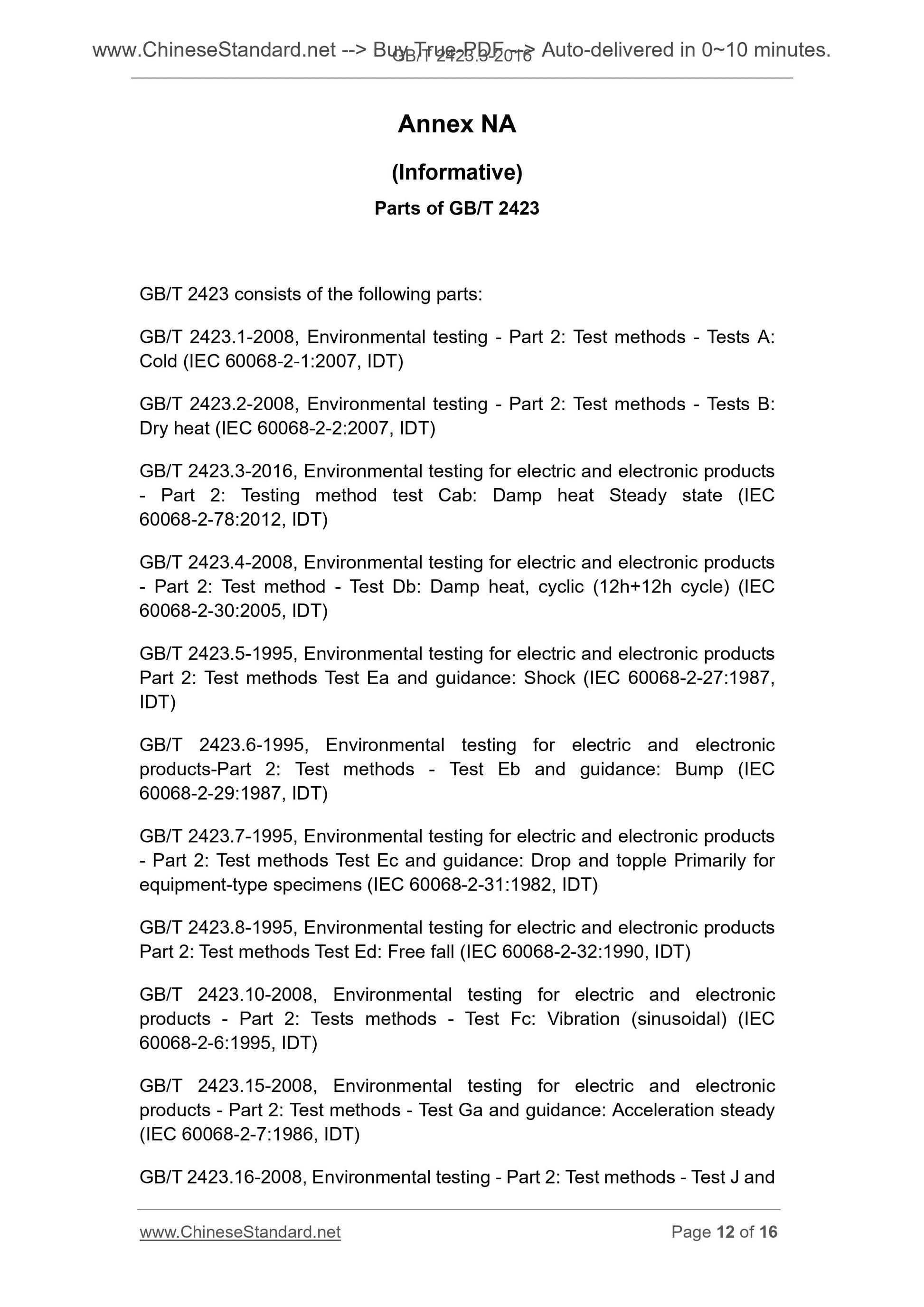

Appendix NA
(Informative)
Component of the GB/T 2423 standard
GB/T 2423 standard components as follows.

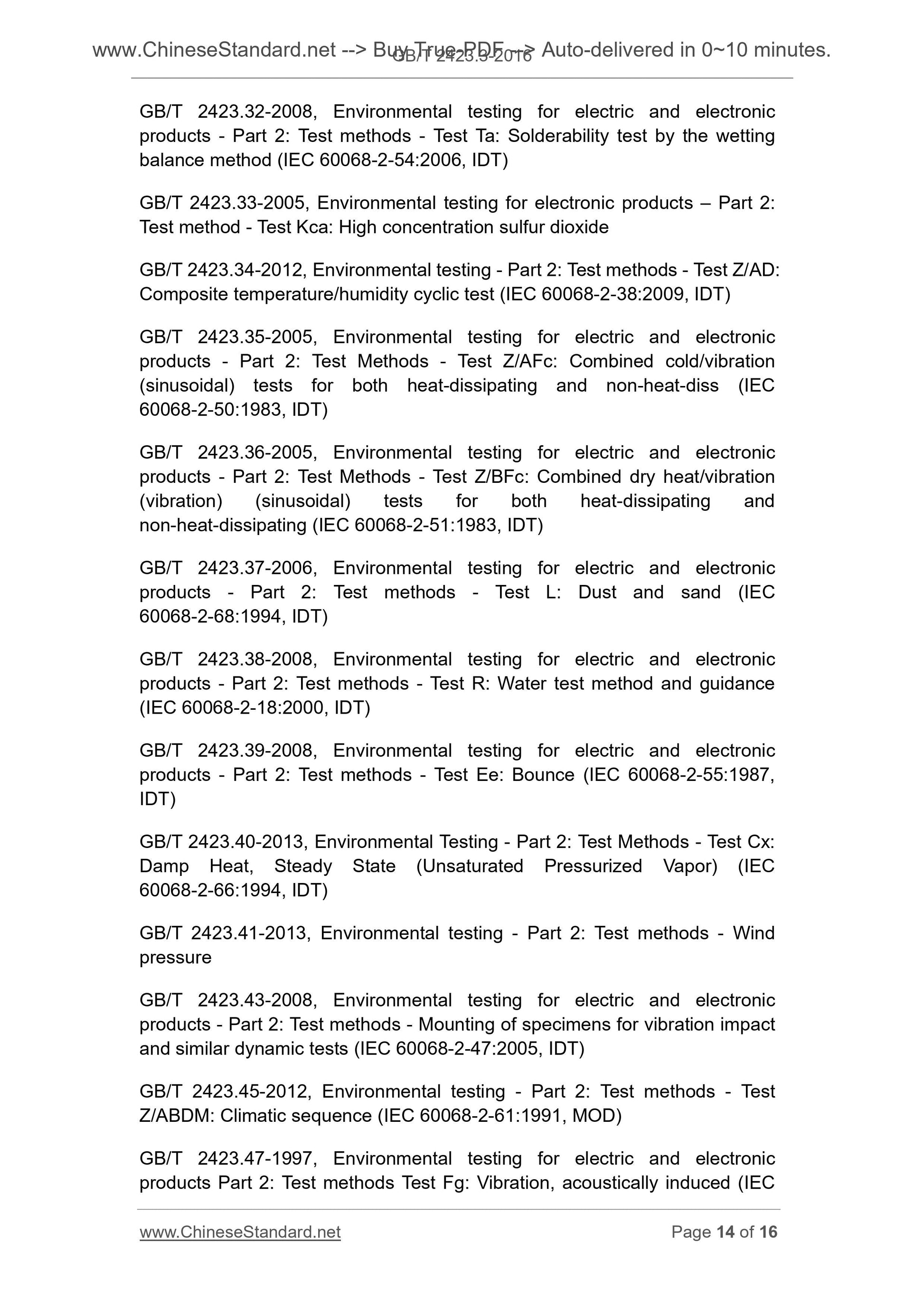

GB/T 2423.1-2008 Environmental testing for electric and electronic products Part 2. Test methods Test A. Cold (IEC 60068-2-1.2007, IDT) GB/T 2423.2-2008 Environmental testing for electric and electronic products - Part 2. Test Test Method B. temperature (IEC 60068-2-2.2007, IDT) GB/T 2423.4-2008 Environmental testing for electric and electronic products - Part 2. Test Db Test Method alternating hot and humid (12h 12h cycle) (IEC 60068-2-30.2005, IDT)
GB/T 2423.5-1995 Environmental testing for electric and electronic products - Part 2. Test methods Test Ea and guidance. Shock (IEC 60068-2-27. 1987, IDT)
GB/T 2423.6-1995 Environmental testing for electric and electronic products - Part 2. Test methods Test Eb and guidance. Bump (IEC 60068-2-29. 1987, IDT)
GB/T 2423.7-1995 Environmental testing for electric and electronic products - Part 2. Test Ec and guidance. Drop and turn Down (primarily for equipment - type specimens) (IEC 60068-2-31. 1982, IDT) GB/T 2423.8-1995 Environmental testing for electric and electronic products Part 2. Test methods Test Ed. Free fall (IEC 60068-2-32.1990, IDT)
GB/T 2423.10-2008 Environmental testing for electric and electronic products - Part 2. Test methods Test the Fc. vibration (sine) (IEC 60068-2-6.1995, IDT)
GB/T 2423.15-2008 Environmental testing for electric and electronic products - Part 2. Test methods Test Ga and guidance. Acceleration, steady state Degree (IEC 60068-2-7. 1986, IDT)

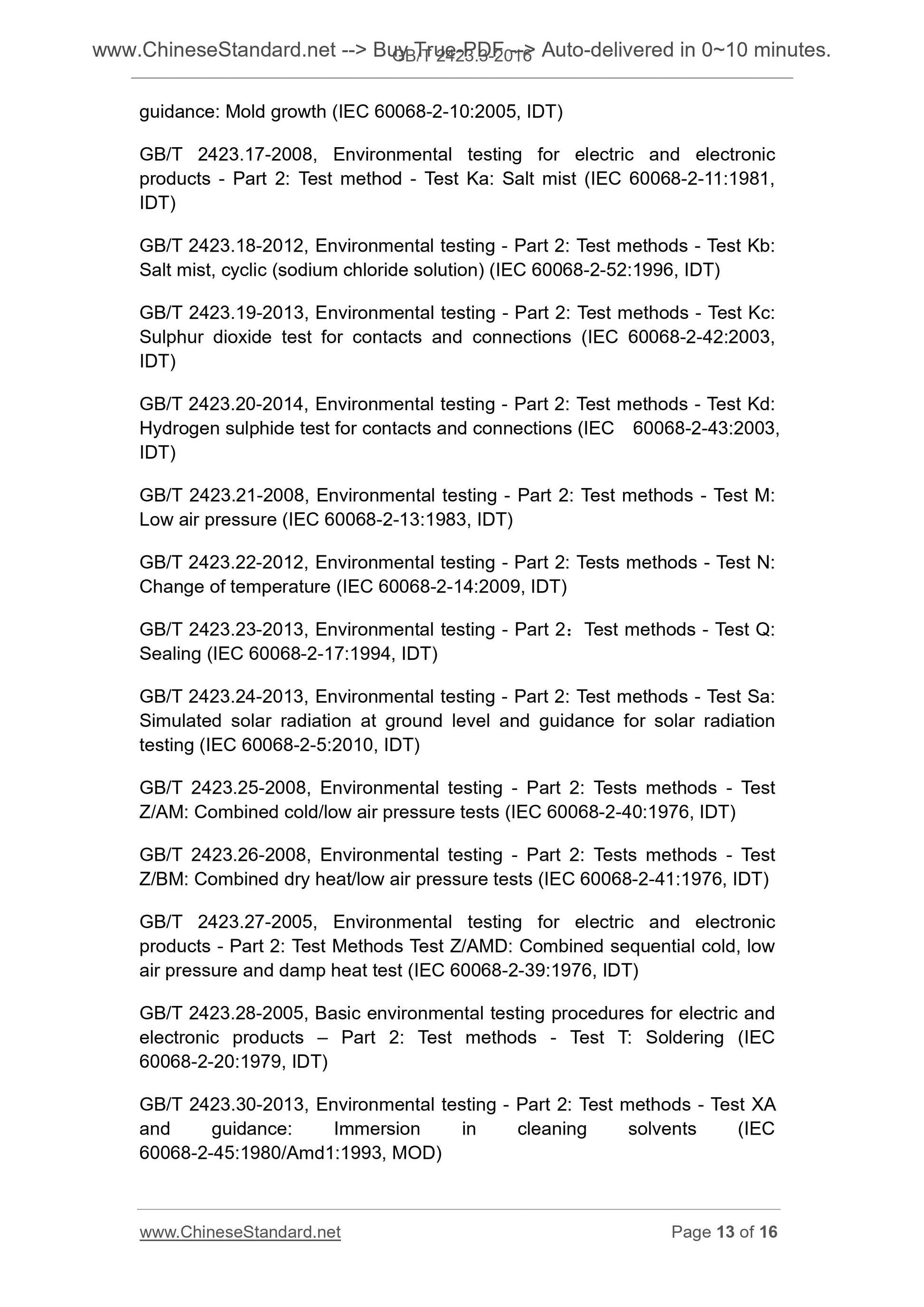

GB/T 2423.16-2008 Environmental testing for electric and electronic products - Part 2. Test methods Test J and guidance. Mold growth (IEC 60068-2-10.2005, IDT)
GB/T 2423.17-2008 Environmental testing for electric and electronic products - Part 2. Test Method Test Ka. Salt (IEC 60068-2-11. 1981, IDT) GB/T 2423.18-2012 Environmental testing - Part 2. Test Method Test Kb. Salt mist, cyclic (sodium chloride solution) (IEC 60068-2-52.1996, IDT)
GB/T 2423.19-2013 Environmental testing - Part 2. sulfur dioxide test connector and the contact point. Test methods Test Kc (IEC 60068-2-42.2003, IDT) The hydrogen sulfide and the connector contact point. GB/T 2423.20-2014 Environmental testing - Part 2. Test methods Test Kd (IEC 60068-2-43.2003, IDT)
GB/T 2423.21-2008 Environmental testing for electric and electronic products - Part 2. Test Test Method M. low pressure (IEC 60068-2-13. 1983, IDT) GB/T 2423.22-2012 Environmental testing - Part 2. Test Test Method N. temperature change (IEC 60068-2-14.2009, IDT) GB/T 2423.23-2013 Environmental testing - Part 2. Test Test Method Q. seal (IEC 60068-2-17.1994, IDT) GB/T 2423.24-2013 Environmental testing - Part 2. Test Test Method Sa. solar radiation on the analog ground and Test Guidelines (IEC 60068-2-5.2010, IDT) GB/T 2423.25-2008 Environmental testing for electric and electronic products Part 2. Test methods - Test Z/AM. Combined cold/low air pressure tests (IEC 60068-2-40. 1976, IDT) GB/T 2423.26-2008 Environmental testing for electric and electronic products Part 2. Test methods - Test Z/BM. high temperature/low air pressure tests (IEC 60068-2-41. 1976, IDT) GB/T 2423.27-2005 Environmental testing for electric and electronic products - Part 2. Test methods Test Z/AMD. low temperature/low gas Pressure/heat continuous comprehensive test (IEC 60068-2-39. 1976, IDT) GB/T 2423.28-2005 Environmental testing for electric and electronic products - Part 2. Test Test Method T. soldering (IEC 60068-2-20. 1979, IDT) GB/T 2423.30-2013 Environmental testing - Part 2. Test methods Test XA and guidance. immersing the cleaning agent in (IEC 60068-2-45. 1980/Amd1.1993, MOD)

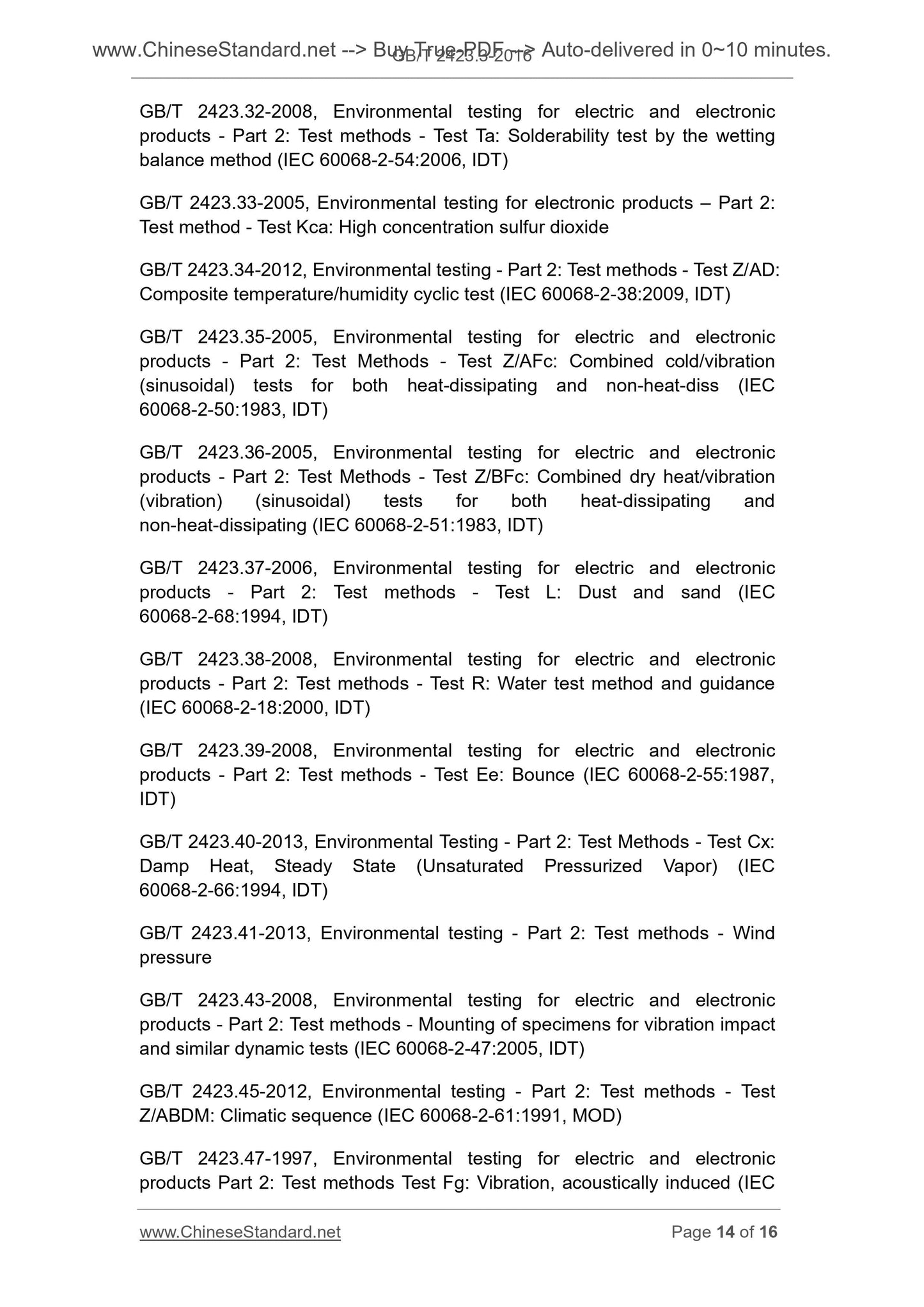

GB/T 2423.32-2008 Environmental testing for electric and electronic products - Part 2. Test Method Test Ta. solderability wetting balance method Sex (IEC 60068-2-54.2006, IDT)
GB/T 2423.33-2005 Environmental testing for electric and electronic products - Part 2. Test the Kca Test Method. Test a high concentration of sulfur dioxide GB/T 2423.34-2012 Environmental testing - Part 2. Test methods Test Z/AD. Composite temperature/humidity cycle test (IEC 60068-2-38.2009, IDT)
GB/T 2423.35-2005 Environmental testing for electric and electronic products - Part 2. Test methods Test Z/AFc. heat and NONDIVERGENCE Low-temperature heat test sample/vibration (sinusoidal) tests (IEC 60068-2-50. 1983, IDT) GB/T 2423.36-2005 Environmental testing for electric and electronic products - Part 2. Test methods Test Z/BFc. heat and NONDIVERGENCE A high temperature heat test sample/vibration (sinusoidal) test (IEC 60068-2-51. 1983, IDT) GB/T 2423.37-2006 Environmental testing for electric and electronic products - Part 2. Test Test Method L. Dust Test (IEC 60068-2-68.1994, IDT)
GB/T 2423.38-2008 Environmental testing for electric and electronic products - Part 2. Test Test Method R. Water test method and guidance (IEC 60068-2-18.2000, IDT)
GB/T 2423.39-2008 Environmental testing for electric and electronic products - Part 2. Test Method Test Ee. Bounce (IEC 60068- 2-55. 1987, IDT)
GB/T 2423.40-2013 Environmental testing - Part 2. Test Method Test Cx. Damp heat, high pressure steam unsaturated (IEC 60068-2-66.1994, IDT)
GB/T 2423.41-2013 Environmental testing - Part 2. Test methods for Pressure GB/T 2423.43-2008 Electrical Part 2 Environmental testing. Test methods for vibration, shock and the like Kinetics Mounting the test sample (IEC 60068-2-47.2005, IDT)

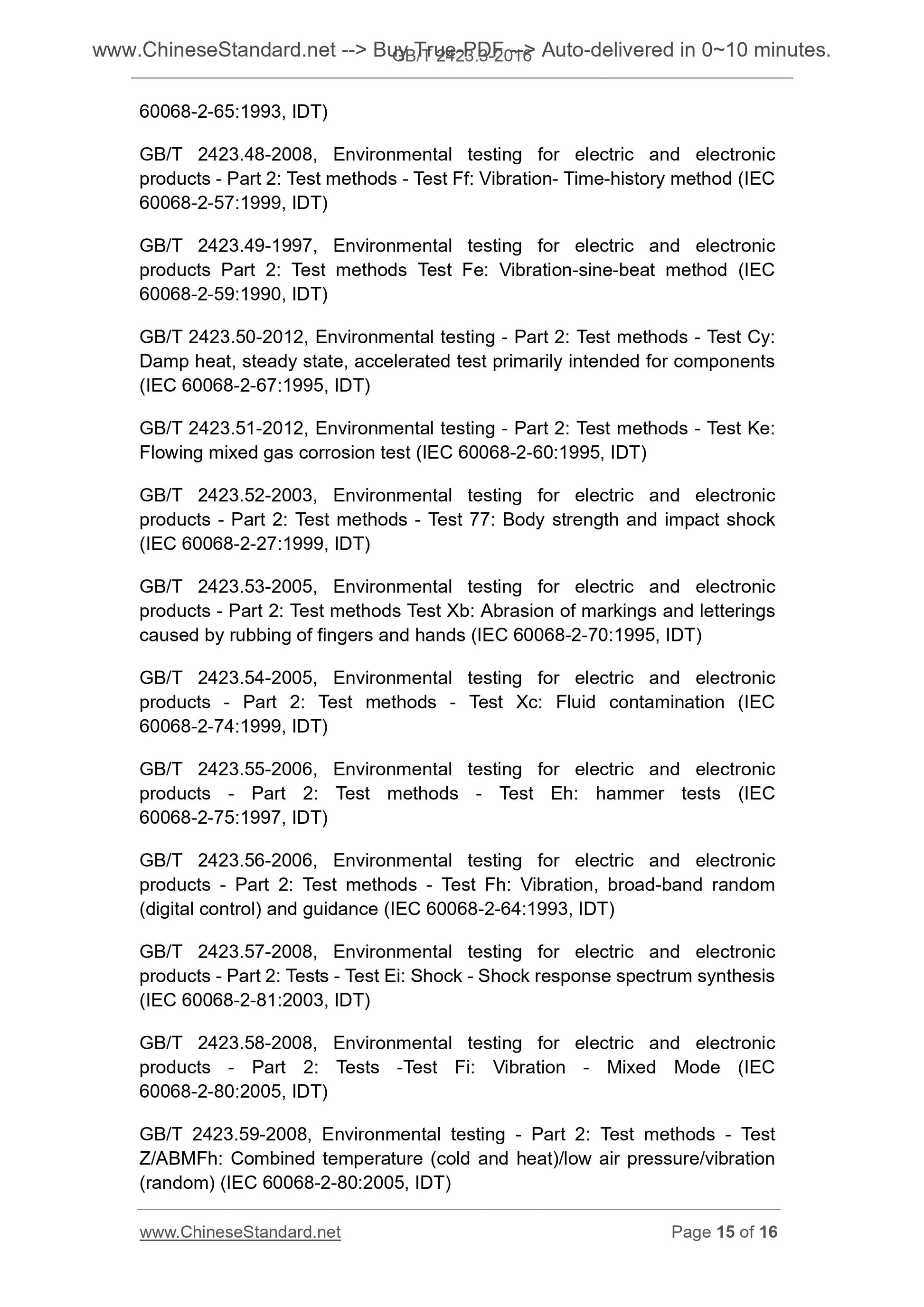

GB/T 2423.45-2012 Environmental testing - Part 2. Test methods Test Z/ABDM. Climatic sequence (IEC 60068-2- 61.1991, MOD)
GB/T 2423.47-1997 Environmental testing for electric and electronic products - Part 2. Test methods Test Fg is. acoustic transducer (IEC 60068- 2-65.1993, IDT)
GB/T 2423.48-2008 Environmental testing for electric and electronic products - Part 2. Test methods Test Ff. Vibration - time history method (IEC 60068-2-57.1999, IDT)
GB/T 2423.49-1997 Environmental testing for electric and electronic products - Part 2. Test methods Test Fe. Vibration - Sine beat method (IEC 60068-2-59.1990, IDT)
GB/T 2423.50-2012 Environmental testing - Part 2. Test Method Test Cy. Damp heat elements added mainly for Speed test (IEC 60068-2-67.1995, IDT)
GB/T 2423.51-2012 Environmental testing - Part 2. Test Method Test Ke. Flowing mixed gas corrosion test (IEC 60068-2-60.1995, IDT)
GB/T 2423.52-2003 Environmental testing for electric and electronic products - Part 2. Test Test Method 77. structural strength and impact (IEC 60068-2-27.1999, IDT)
GB/T 2423.53-2005 Environmental testing for electric and electronic products - Part 2. Test Test Method Xb. friction caused by hand And wear marks printed text (IEC 60068-2-70.1995, IDT)
GB/T 2423.54-2005 Environmental testing for electric and electronic products - Part 2. Test Test Method Xc. Fluid contamination (IEC 60068-2-74.1999, IDT)
GB/T 2423.55-2006 Environmental testing for electric and electronic products - Part 2. Environmental Test Test Eh. Hammer tests (IEC 60068-2-75.1997, IDT)
GB/T 2423.56-2006 Environmental testing for electric and electronic products - Part 2. Test Method Test Fh. Broadband random vibration (Number Word control) and guidance (IEC 60068-2-64.1993, IDT)
GB/T 2423.57-2008 Environmental testing for electric and electronic products - Part 2. Test Method Test Ei. Impact shock response Spectral synthesis (IEC 60068-2-81.2003, IDT)
GB/T 2423.58-2008 Environmental testing for electric and electronic products - Part 2. Test methods Test Fi. Mixed mode vibration (IEC 60068-2-80.2005, IDT)

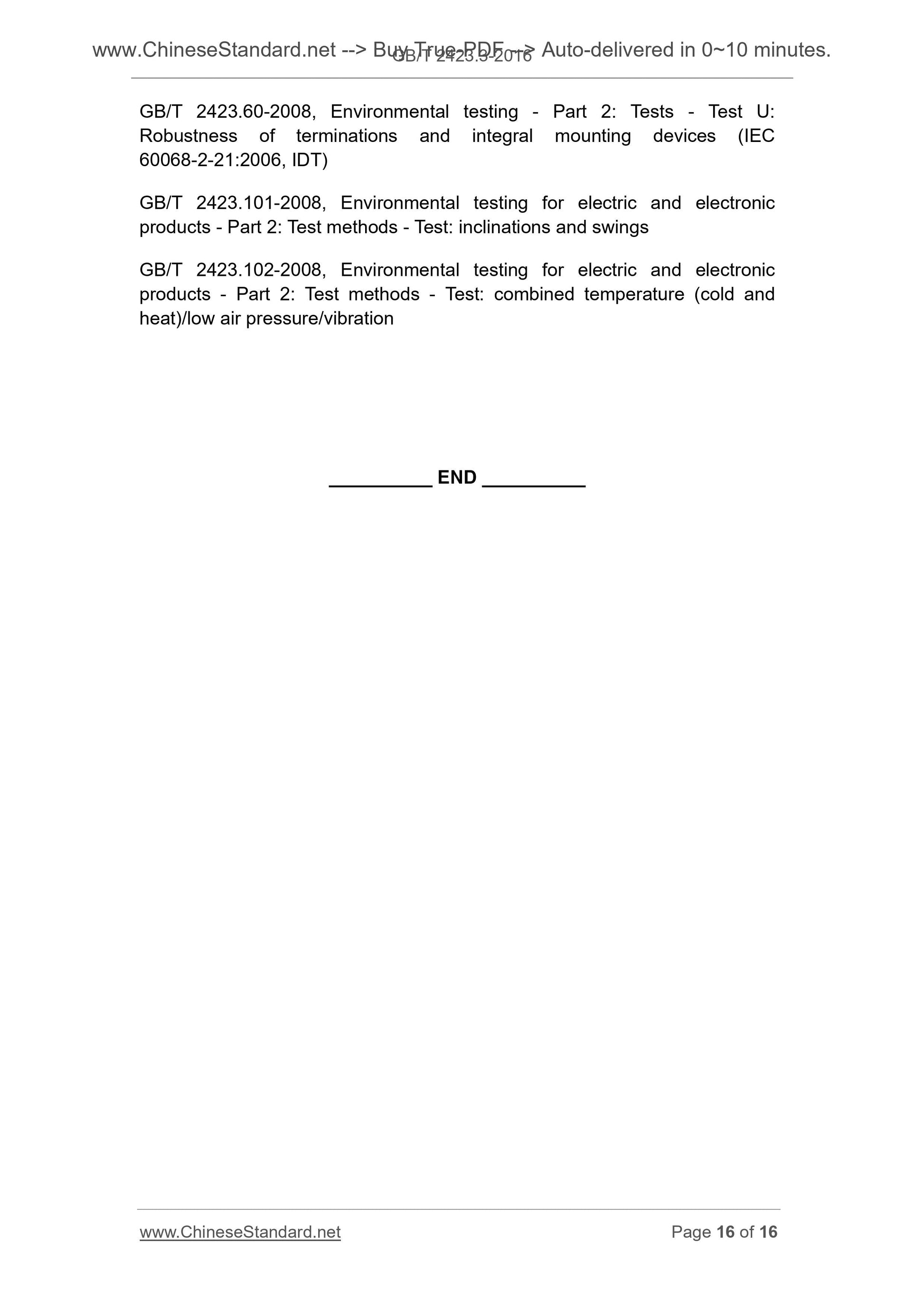

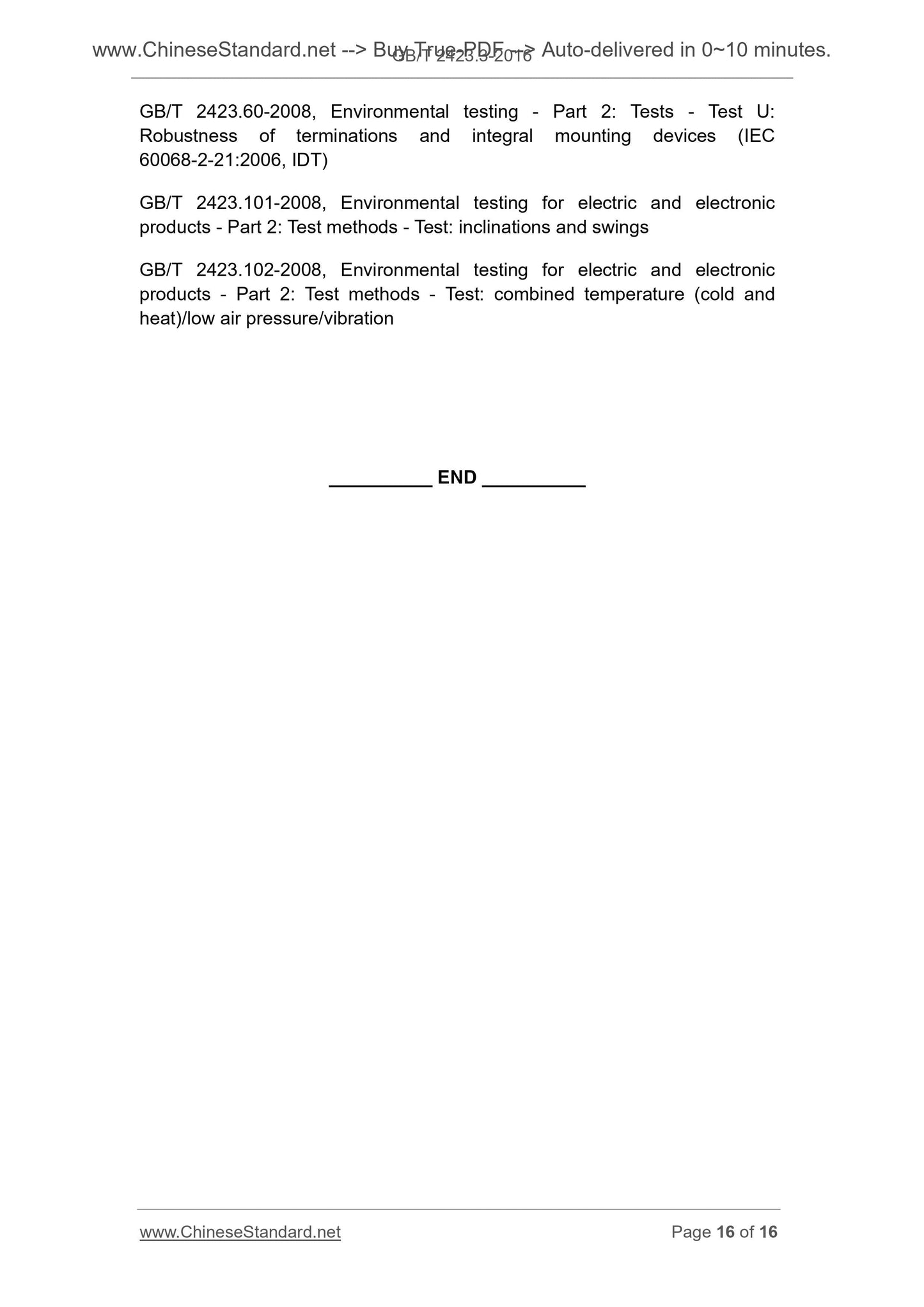

GB/T 2423.59-2008 Environmental testing for electric and electronic products - Part 2. Test methods Test Z/ABMFh. Temperature (Low Temperature, high temperature)/low air pressure/vibration (random) synthesis (IEC 60068-2-80.2005, IDT) GB/T 2423.60-2008 Environmental testing for electric and electronic products - Part 2. Test Test Method U. An terminations and integral Attachments strength (IEC 60068-2-21.2006, IDT)
GB/T 2423.101-2008 electric and electronic products Environmental testing - Part 2. Test Test Method. pitch and roll GB/T 2423.102-2008 electric and electronic products Environmental testing - Part 2. Test Test Method. temperature...
