GB/T 2423.21-2008: Environmental testing - Part 2: Test methods - Test M: Low air pressure

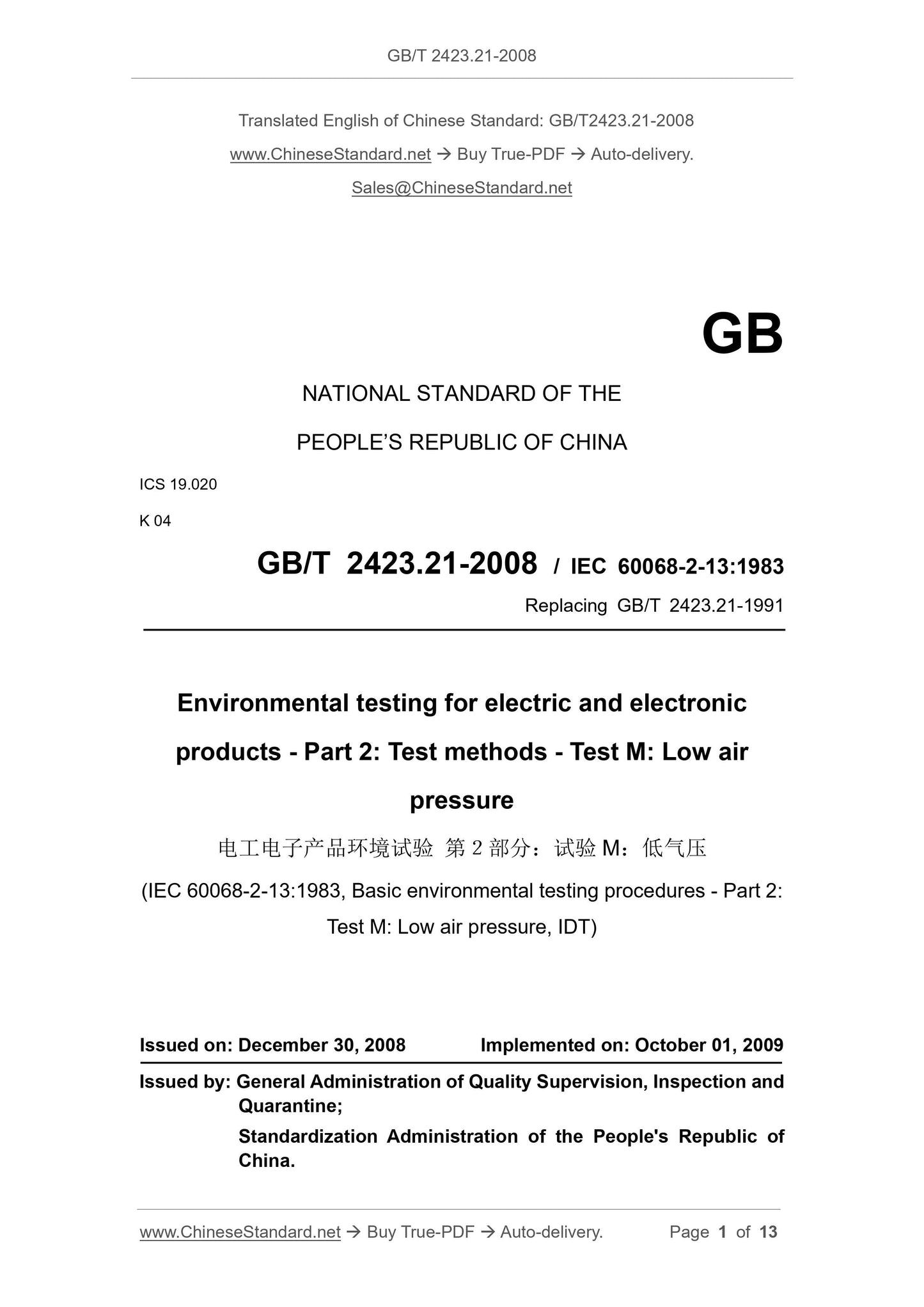

GB/T 2423.21-2008
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 19.020
K 04
GB/T 2423.21-2008 / IEC 60068-2-13:1983
Replacing GB/T 2423.21-1991
Environmental testing for electric and electronic
products - Part 2: Test methods - Test M: Low air
pressure
(IEC 60068-2-13:1983, Basic environmental testing procedures - Part 2:
Test M: Low air pressure, IDT)
ISSUED ON: DECEMBER 30, 2008
IMPLEMENTED ON: OCTOBER 01, 2009
Issued by: General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of the People's Republic of
China.

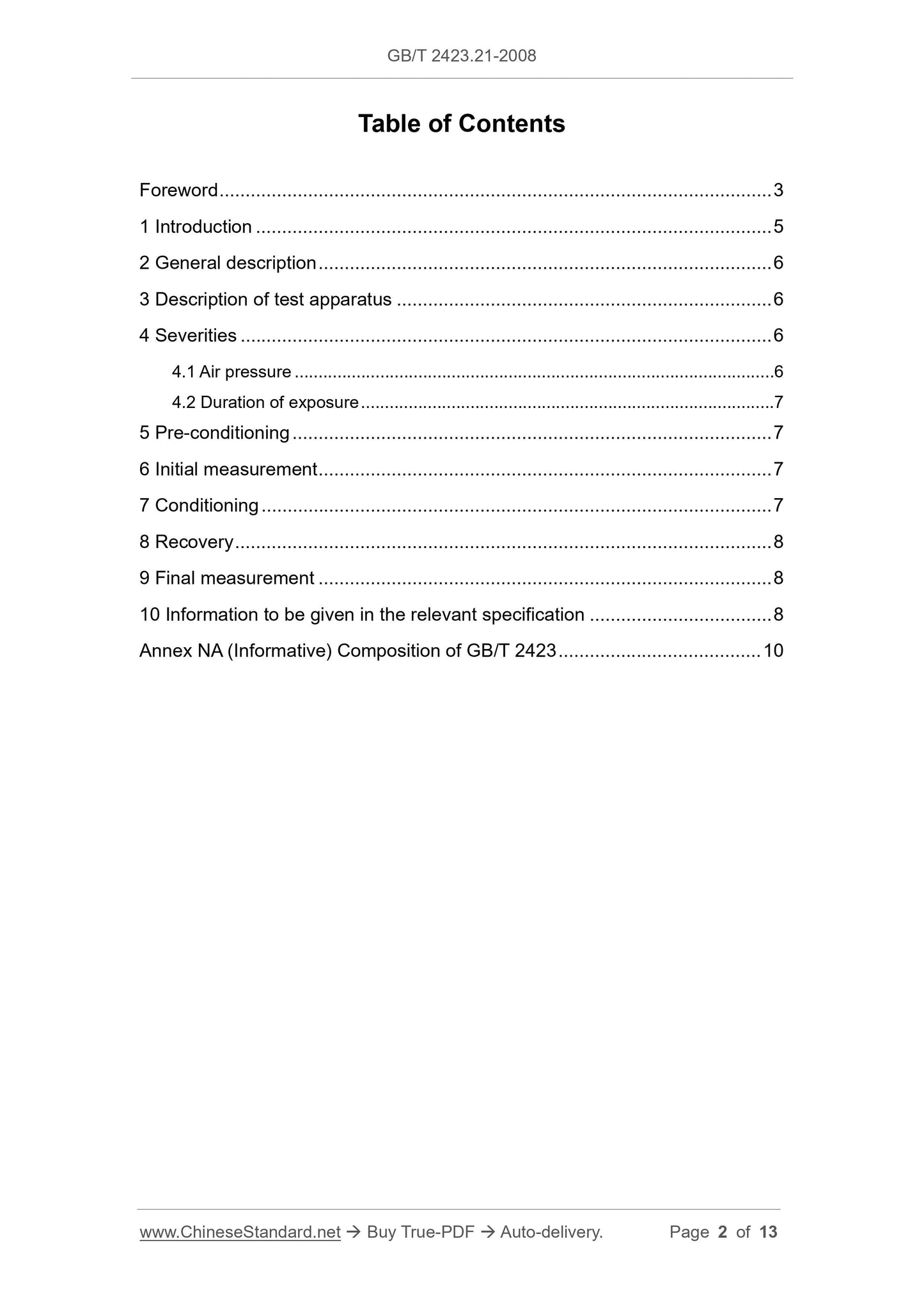

Table of Contents
Foreword ... 3
1 Introduction ... 5
2 General description ... 6
3 Description of test apparatus ... 6
4 Severities ... 6
4.1 Air pressure ... 6
4.2 Duration of exposure ... 7
5 Pre-conditioning ... 7
6 Initial measurement ... 7
7 Conditioning ... 7
8 Recovery ... 8
9 Final measurement ... 8
10 Information to be given in the relevant specification ... 8
Annex NA (Informative) Composition of GB/T 2423 ... 10

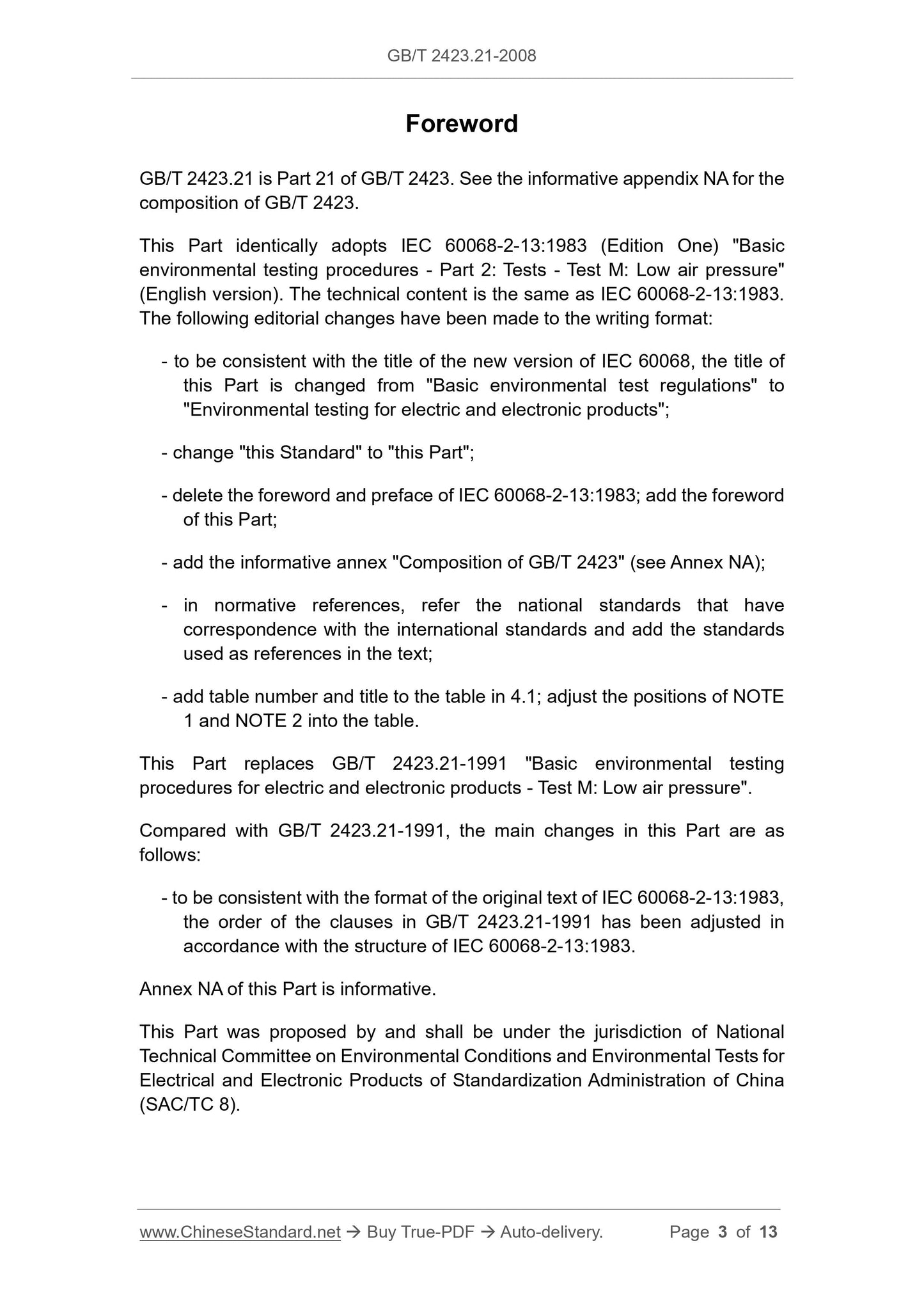

Foreword
GB/T 2423.21 is Part 21 of GB/T 2423. See the informative appendix NA for the composition of GB/T 2423.
This Part identically adopts IEC 60068-2-13:1983 (Edition One) "Basic
environmental testing procedures - Part 2: Tests - Test M: Low air pressure" (English version). The technical content is the same as IEC 60068-2-13:1983. The following editorial changes have been made to the writing format:
- to be consistent with the title of the new version of IEC 60068, the title of this Part is changed from "Basic environmental test regulations" to
"Environmental testing for electric and electronic products";
- change "this Standard" to "this Part";
- delete the foreword and preface of IEC 60068-2-13:1983; add the foreword of this Part;
- add the informative annex "Composition of GB/T 2423" (see Annex NA);
- in normative references, refer the national standards that have
correspondence with the international standards and add the standards
used as references in the text;
- add table number and title to the table in 4.1; adjust the positions of NOTE 1 and NOTE 2 into the table.
This Part replaces GB/T 2423.21-1991 "Basic environmental testing
procedures for electric and electronic products - Test M: Low air pressure". Compared with GB/T 2423.21-1991, the main changes in this Part are as
follows:
- to be consistent with the format of the original text of IEC 60068-2-13:1983, the order of the clauses in GB/T 2423.21-1991 has been adjusted in
accordance with the structure of IEC 60068-2-13:1983.
Annex NA of this Part is informative.
This Part was proposed by and shall be under the jurisdiction of National Technical Committee on Environmental Conditions and Environmental Tests for Electrical and Electronic Products of Standardization Administration of China (SAC/TC 8).

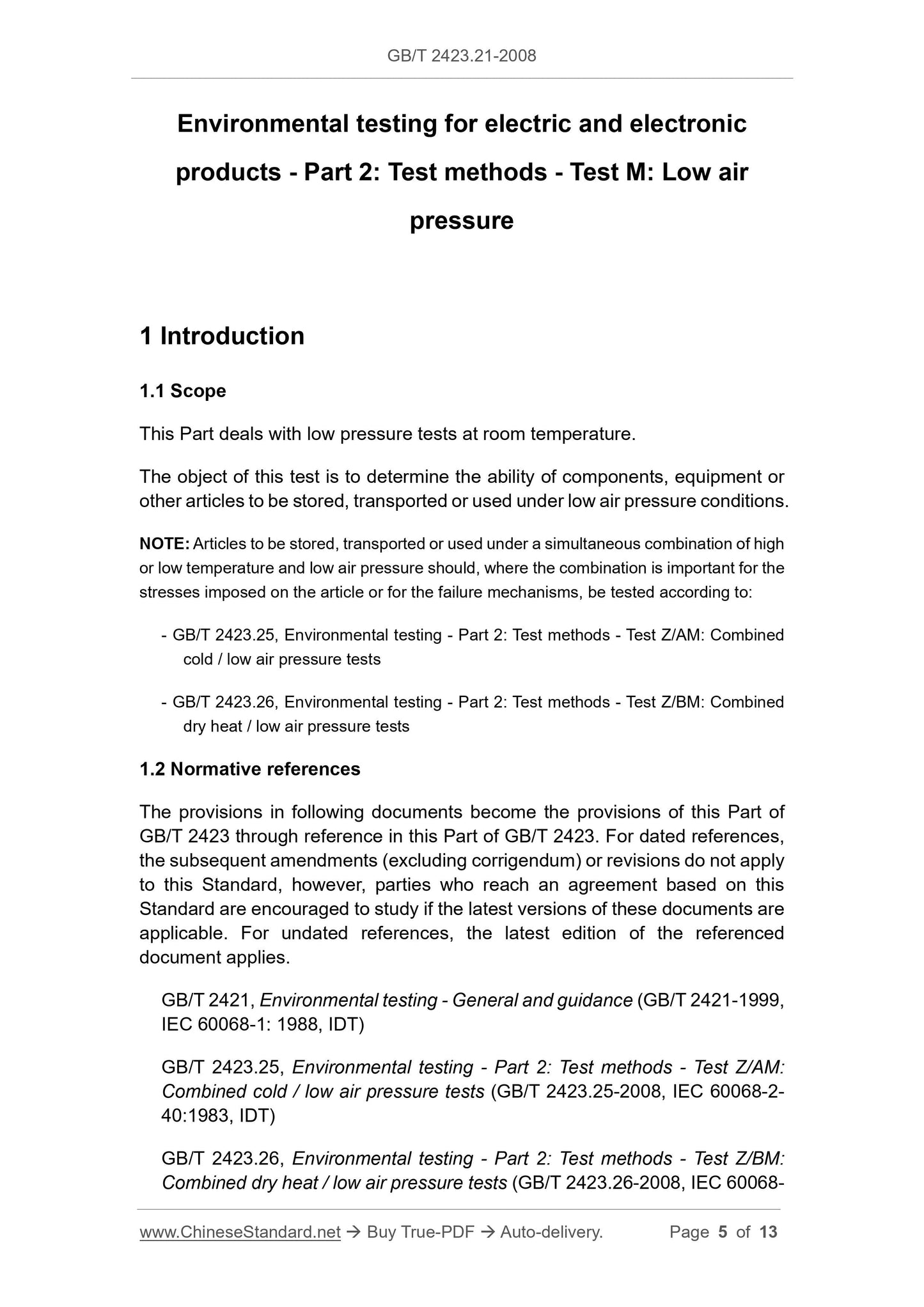

Environmental testing for electric and electronic
products - Part 2: Test methods - Test M: Low air
pressure
1 Introduction
1.1 Scope
This Part deals with low pressure tests at room temperature.
The object of this test is to determine the ability of components, equipment or other articles to be stored, transported or used under low air pressure conditions. NOTE: Articles to be stored, transported or used under a simultaneous combination of high or low temperature and low air pressure should, where the combination is important for the stresses imposed on the article or for the failure mechanisms, be tested according to: - GB/T 2423.25, Environmental testing - Part 2: Test methods - Test Z/AM: Combined cold / low air pressure tests
- GB/T 2423.26, Environmental testing - Part 2: Test methods - Test Z/BM: Combined dry heat / low air pressure tests
1.2 Normative references
The provisions in following documents become the provisions of this Part of GB/T 2423 through reference in this Part of GB/T 2423. For dated references, the subsequent amendments (excluding corrigendum) or revisions do not apply to this Standard, however, parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies.
GB/T 2421, Environmental testing - General and guidance (GB/T 2421-1999, IEC 60068-1: 1988, IDT)
GB/T 2423.25, Environmental testing - Part 2: Test methods - Test Z/AM: Combined cold / low air pressure tests (GB/T 2423.25-2008, IEC 60068-2- 40:1983, IDT)
GB/T 2423.26, Environmental testing - Part 2: Test methods - Test Z/BM: Combined dry heat / low air pressure tests (GB/T 2423.26-2008, IEC 60068-
