GB/T 24129-2009: Outside shoes, sports shoes without leaving marks the end of the test method

This Standard specifies testing method for the non-marking outsole of rubber shoes and sports shoes. This Standard is applicable to the tests of non-marking outsole of all kinds of rubber shoes and sports shoes.

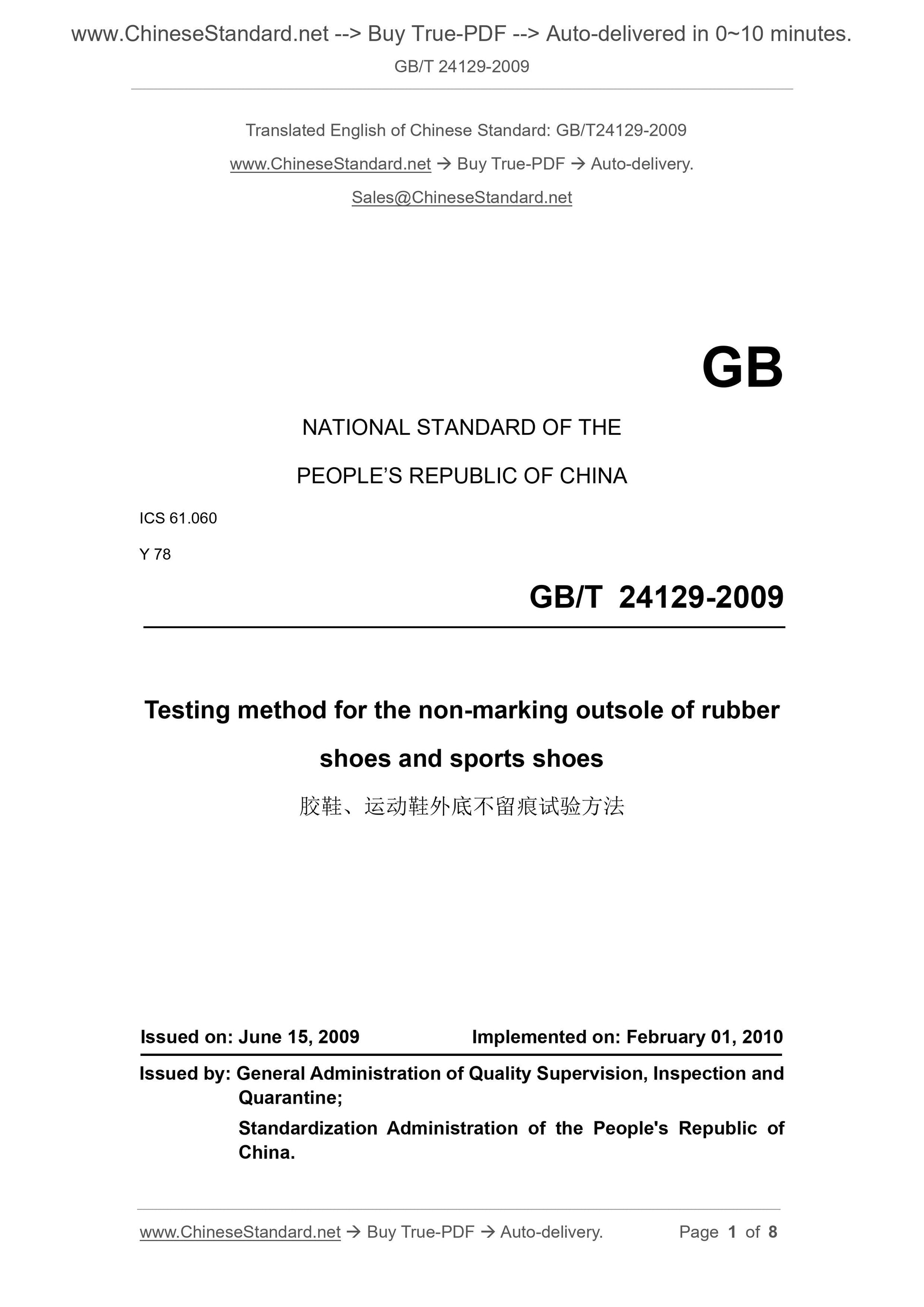

GB/T 24129-2009
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 61.060
Y 78
Testing method for the non-marking outsole of rubber
shoes and sports shoes
ISSUED ON: JUNE 15, 2009
IMPLEMENTED ON: FEBRUARY 01, 2010
Issued by: General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of the People's Republic of
China.

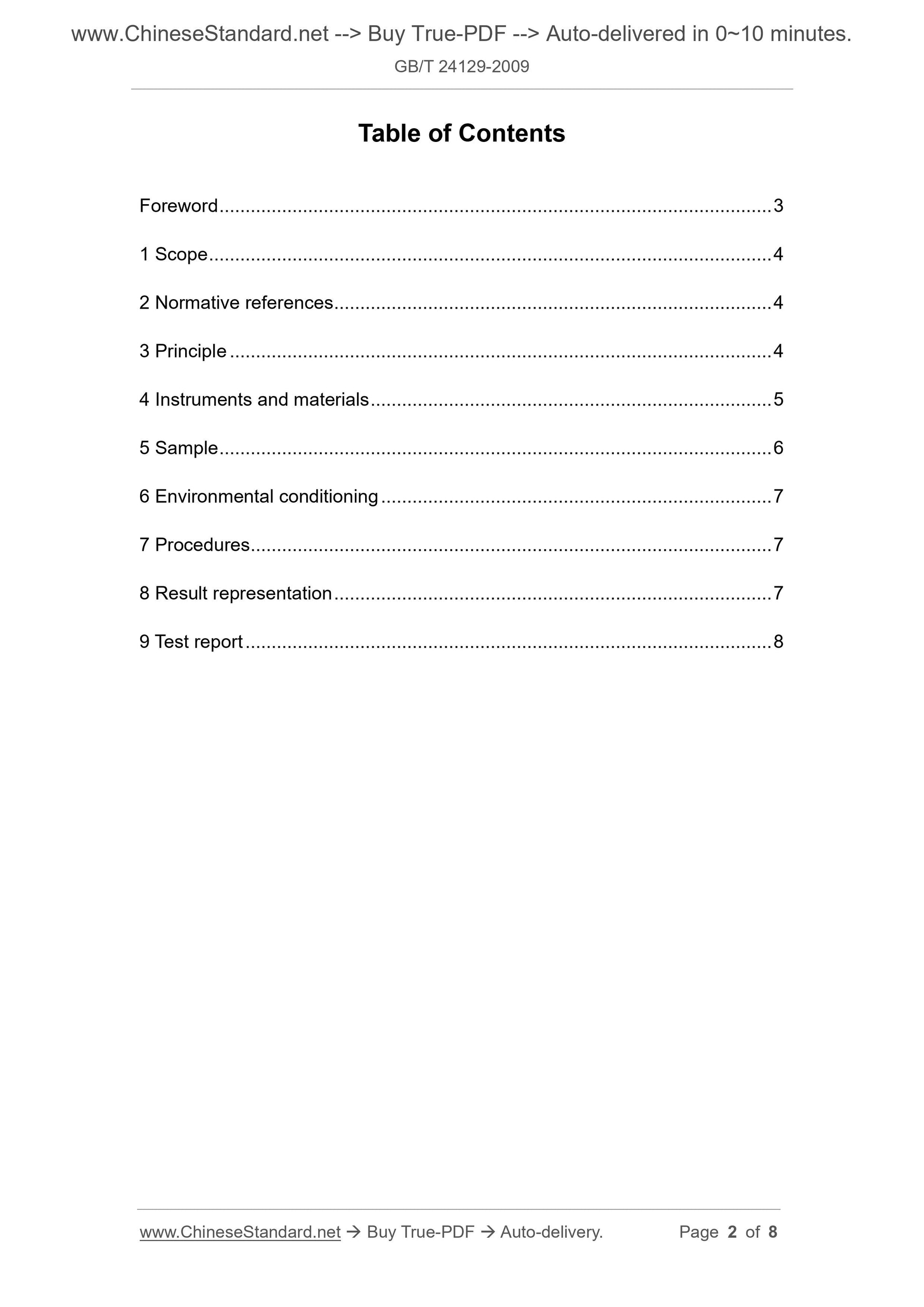

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Principle ... 4
4 Instruments and materials ... 5
5 Sample ... 6
6 Environmental conditioning ... 7
7 Procedures ... 7
8 Result representation ... 7
9 Test report ... 8

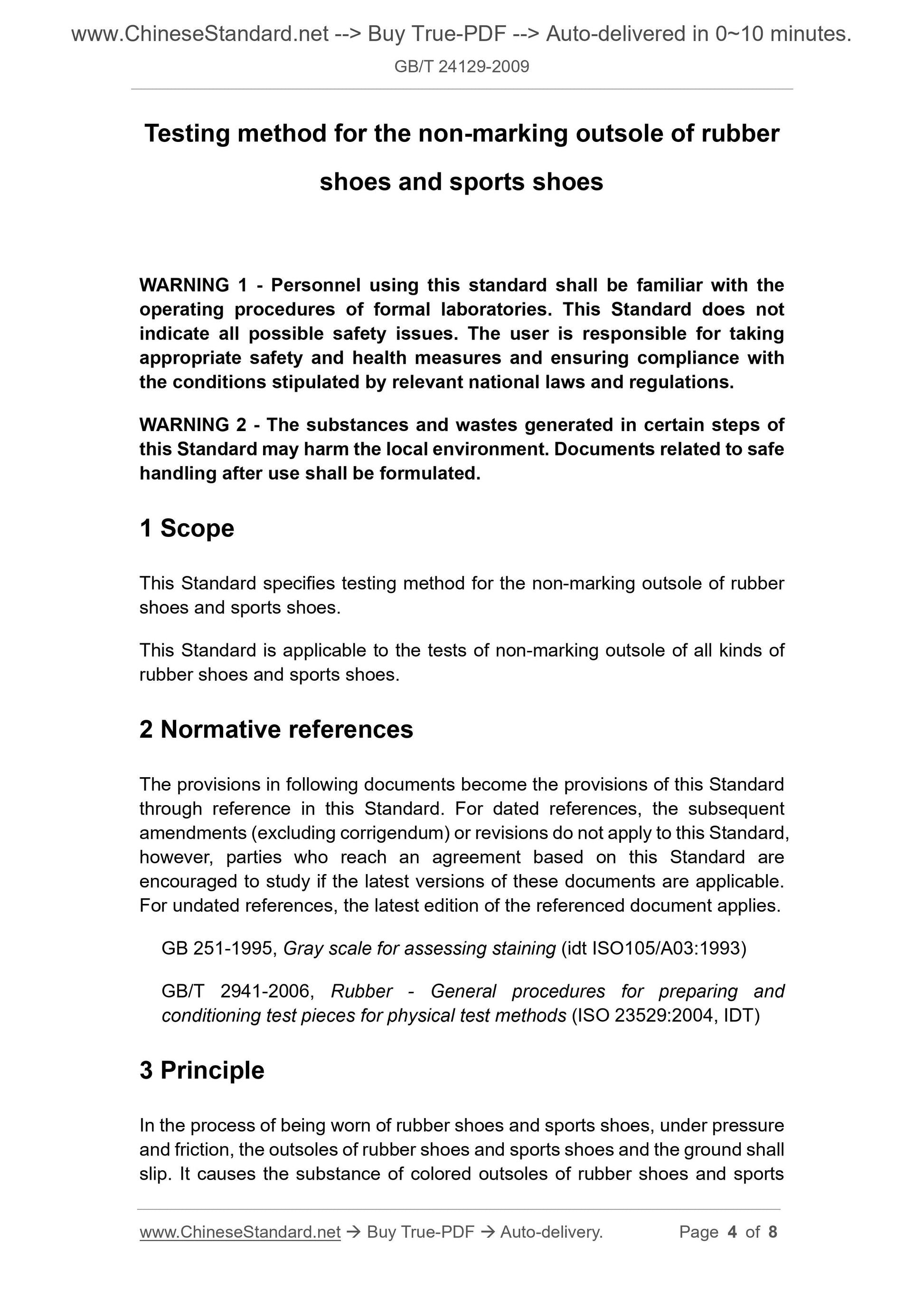

Testing method for the non-marking outsole of rubber
shoes and sports shoes
WARNING 1 - Personnel using this standard shall be familiar with the
operating procedures of formal laboratories. This Standard does not
indicate all possible safety issues. The user is responsible for taking appropriate safety and health measures and ensuring compliance with
the conditions stipulated by relevant national laws and regulations.
WARNING 2 - The substances and wastes generated in certain steps of
this Standard may harm the local environment. Documents related to safe handling after use shall be formulated.
1 Scope
This Standard specifies testing method for the non-marking outsole of rubber shoes and sports shoes.
This Standard is applicable to the tests of non-marking outsole of all kinds of rubber shoes and sports shoes.
2 Normative references
The provisions in following documents become the provisions of this Standard through reference in this Standard. For dated references, the subsequent amendments (excluding corrigendum) or revisions do not apply to this Standard, however, parties who reach an agreement based on this Standard are
encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB 251-1995, Gray scale for assessing staining (idt ISO105/A03:1993)
GB/T 2941-2006, Rubber - General procedures for preparing and
conditioning test pieces for physical test methods (ISO 23529:2004, IDT) 3 Principle
In the process of being worn of rubber shoes and sports shoes, under pressure and friction, the outsoles of rubber shoes and sports shoes and the ground shall slip. It causes the substance of colored outsoles of rubber shoes and sports 4.1.4 Counting device capable of preset counting
4.2 Standard board material
The standard board is white or black PU board. Its size is
(175??5)mm??(70??5)mm. The coefficient of static friction is 0.6??0.02. The hardness is (Shore A) (80??2) degrees.
4.3 Cut-off knife
Rotary cut-off knife. The inner diameter of the cut-off knife is ( ) mm. The rotation speed is greater than 1000 r/min.
4.4 Vernier caliper
The resolution is 0.02 mm.
4.5 Gray scale for staining evaluation
In accordance with GB 251-1995.
5 Sample
5.1 Take 2 samples from the forefoot of the outsole (see Figure 1). From the metatarsophalangeal part of the outsole, at (12??1)mm away from the edge, respectively take one sample from inside and outside. Then, from the center of the outsole heel to the rear end of (12??1) mm, cut a sample (Figure 1). If the thickness is not enough, the test piece can be glued to the substrate of the same material.
5.2 Each group of samples shall not be less than 6. The sample is cylindrical. Its size is: diameter is ( ) mm; height is (6.0??0.2) mm.
