GB/T 2350-2020: Fluid power systems and components - Cylinder piston rod thread types and dimensions

This Standard specifies the common series of piston rod threads for hydraulic cylinders and air cylinders that use hydraulic oil (fluid) or compressed air as the working medium; as well as the wrench face and wrench hole dimensions for assembly and tightening of the piston rod threads. This Standard applies to the external connecting threads of hydraulic cylinder and air cylinder piston rods.

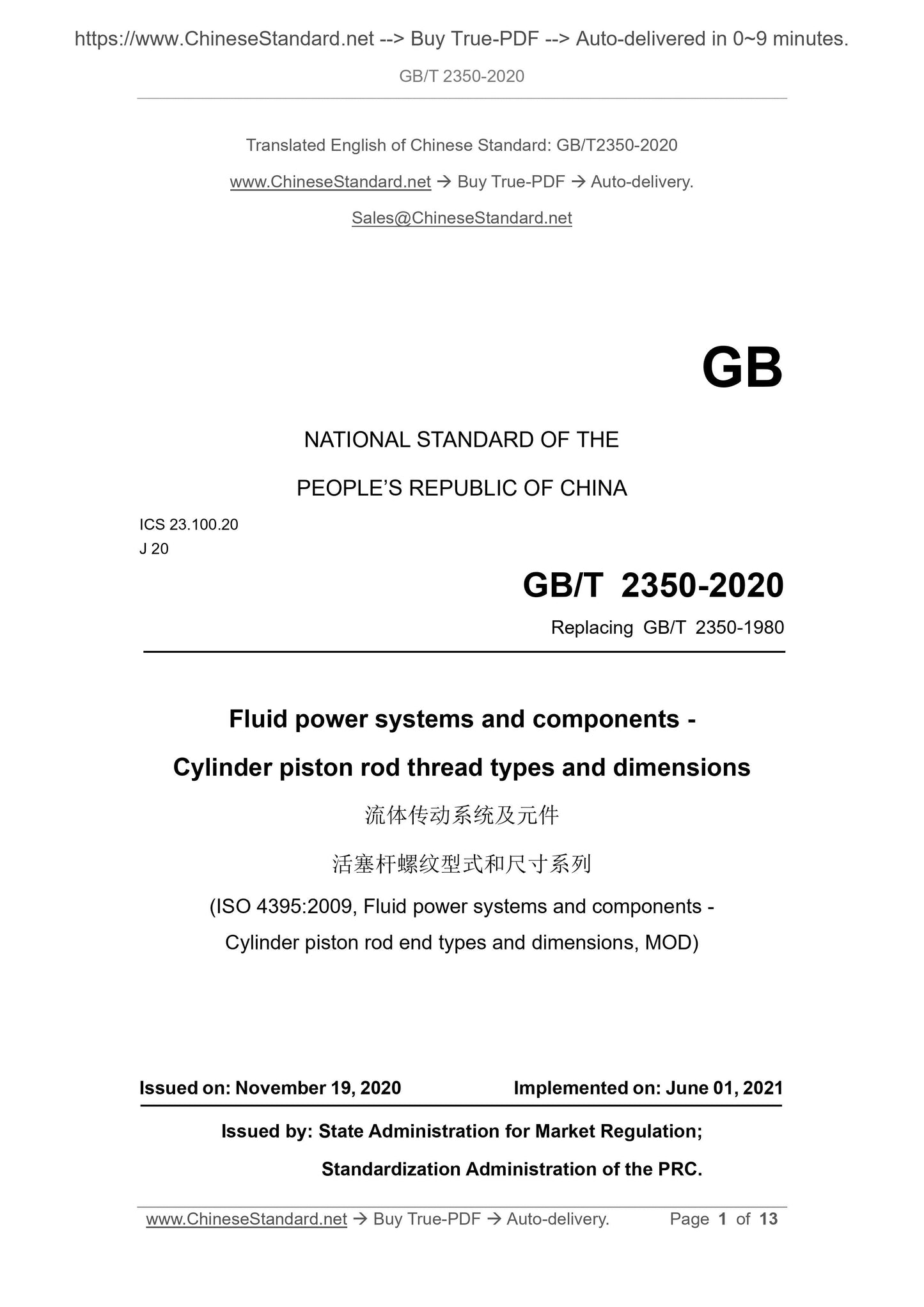

GB/T 2350-2020
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 23.100.20
J 20
Replacing GB/T 2350-1980
Fluid power systems and components -
Cylinder piston rod thread types and dimensions
(ISO 4395:2009, Fluid power systems and components -
Cylinder piston rod end types and dimensions, MOD)
ISSUED ON: NOVEMBER 19, 2020
IMPLEMENTED ON: JUNE 01, 2021
Issued by: State Administration for Market Regulation;
Standardization Administration of the PRC.

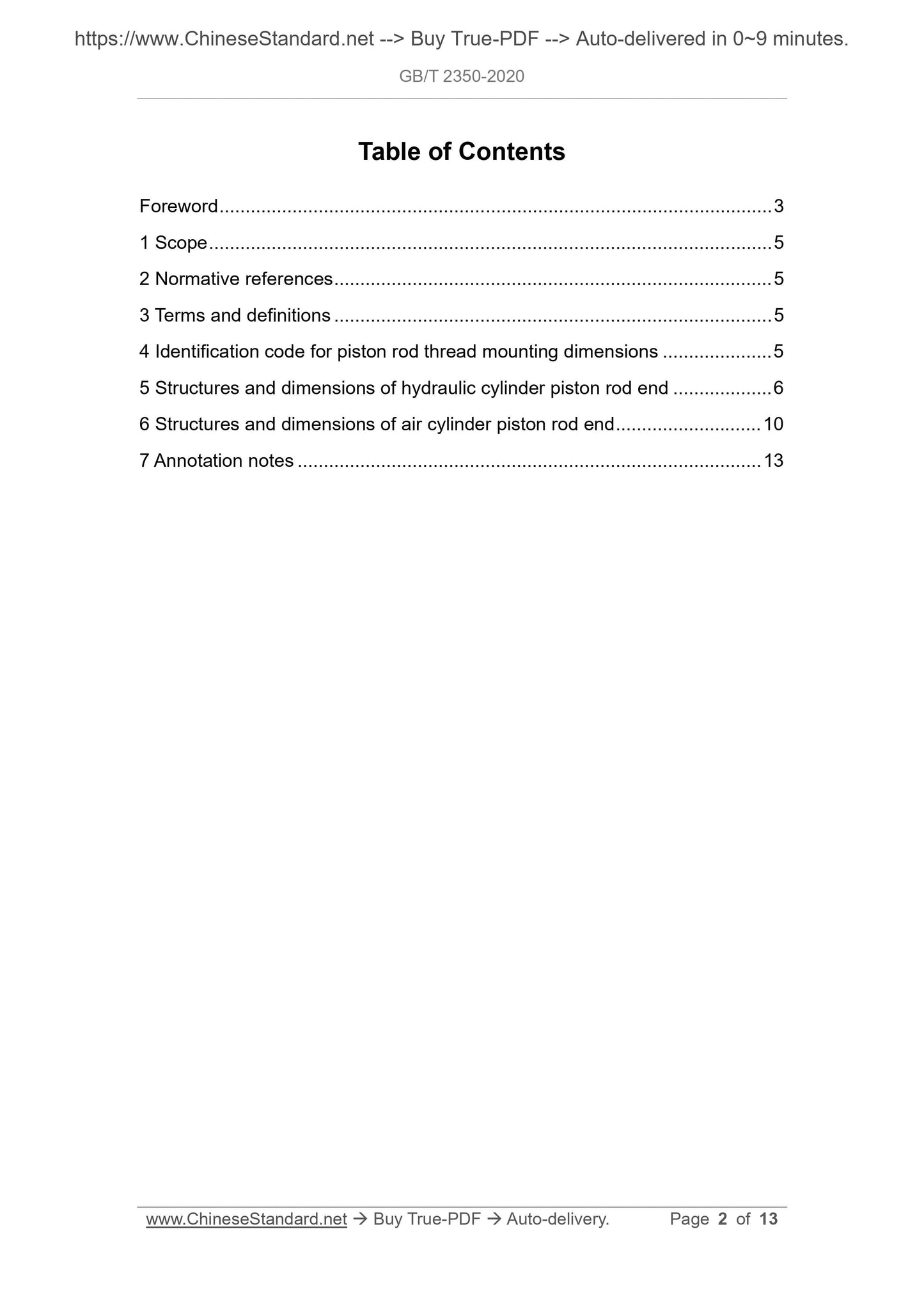

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 5
4 Identification code for piston rod thread mounting dimensions ... 5
5 Structures and dimensions of hydraulic cylinder piston rod end ... 6 6 Structures and dimensions of air cylinder piston rod end ... 10
7 Annotation notes ... 13

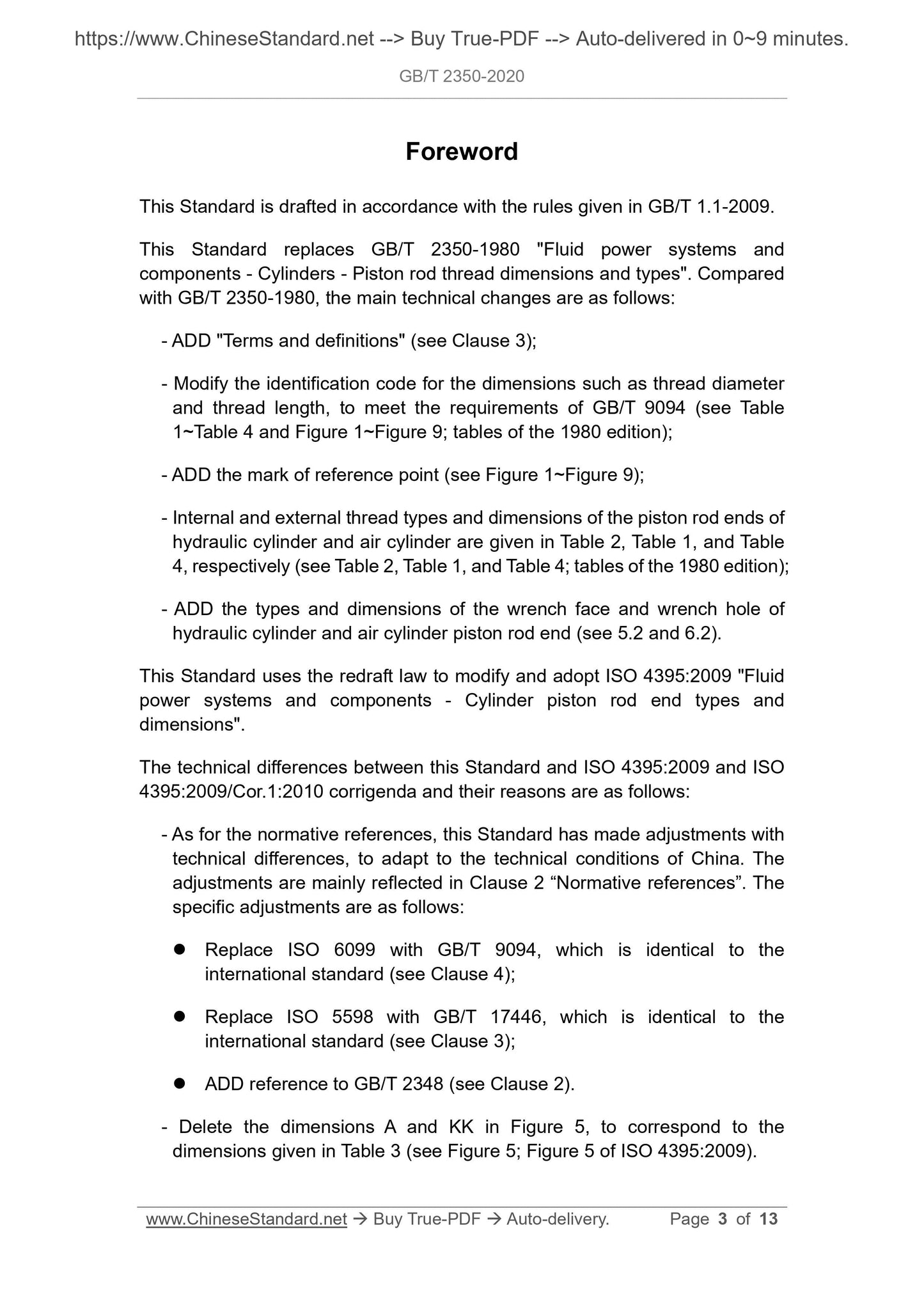

Foreword
This Standard is drafted in accordance with the rules given in GB/T 1.1-2009. This Standard replaces GB/T 2350-1980 "Fluid power systems and
components - Cylinders - Piston rod thread dimensions and types". Compared with GB/T 2350-1980, the main technical changes are as follows:
- ADD "Terms and definitions" (see Clause 3);
- Modify the identification code for the dimensions such as thread diameter and thread length, to meet the requirements of GB/T 9094 (see Table
1~Table 4 and Figure 1~Figure 9; tables of the 1980 edition);
- ADD the mark of reference point (see Figure 1~Figure 9);
- Internal and external thread types and dimensions of the piston rod ends of hydraulic cylinder and air cylinder are given in Table 2, Table 1, and Table 4, respectively (see Table 2, Table 1, and Table 4; tables of the 1980 edition); - ADD the types and dimensions of the wrench face and wrench hole of
hydraulic cylinder and air cylinder piston rod end (see 5.2 and 6.2).
This Standard uses the redraft law to modify and adopt ISO 4395:2009 "Fluid power systems and components - Cylinder piston rod end types and
dimensions".
The technical differences between this Standard and ISO 4395:2009 and ISO 4395:2009/Cor.1:2010 corrigenda and their reasons are as follows:
- As for the normative references, this Standard has made adjustments with technical differences, to adapt to the technical conditions of China. The adjustments are mainly reflected in Clause 2 ?€?Normative references?€?. The specific adjustments are as follows:
??? Replace ISO 6099 with GB/T 9094, which is identical to the
international standard (see Clause 4);
??? Replace ISO 5598 with GB/T 17446, which is identical to the
international standard (see Clause 3);
??? ADD reference to GB/T 2348 (see Clause 2).
- Delete the dimensions A and KK in Figure 5, to correspond to the
dimensions given in Table 3 (see Figure 5; Figure 5 of ISO 4395:2009).
Fluid power systems and components -
Cylinder piston rod thread types and dimensions

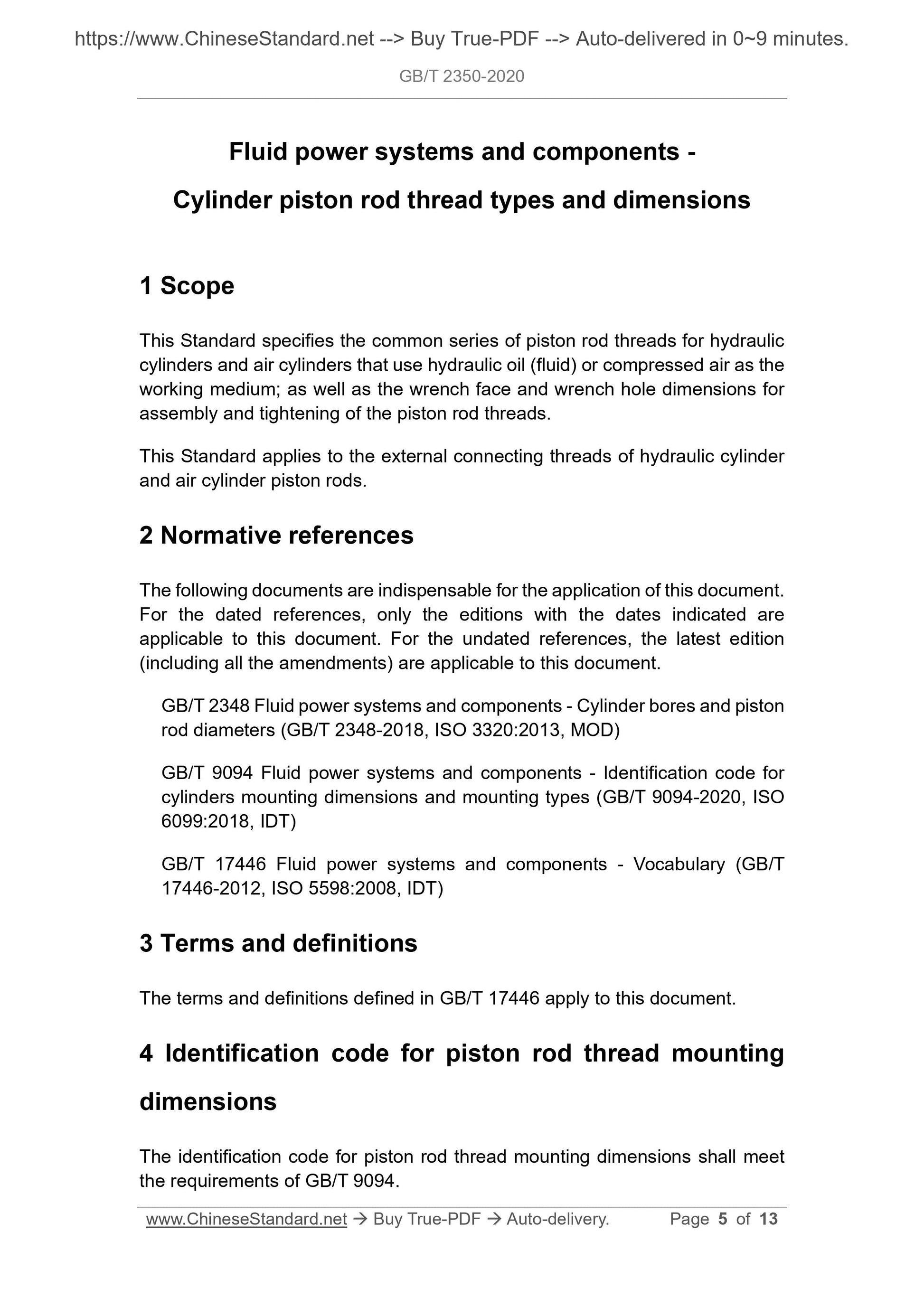

1 Scope
This Standard specifies the common series of piston rod threads for hydraulic cylinders and air cylinders that use hydraulic oil (fluid) or compressed air as the working medium; as well as the wrench face and wrench hole dimensions for assembly and tightening of the piston rod threads.
This Standard applies to the external connecting threads of hydraulic cylinder and air cylinder piston rods.
2 Normative references
The following documents are indispensable for the application of this document. For the dated references, only the editions with the dates indicated are applicable to this document. For the undated references, the latest edition (including all the amendments) are applicable to this document.
GB/T 2348 Fluid power systems and components - Cylinder bores and piston rod diameters (GB/T 2348-2018, ISO 3320:2013, MOD)
GB/T 9094 Fluid power systems and components - Identification code for
cylinders mounting dimensions and mounting types (GB/T 9094-2020, ISO
6099:2018, IDT)
GB/T 17446 Fluid power systems and components - Vocabulary (GB/T
17446-2012, ISO 5598:2008, IDT)
3 Terms and definitions
The terms and definitions defined in GB/T 17446 apply to this document. 4 Identification code for piston rod thread mounting
dimensions
The identification code for piston rod thread mounting dimensions shall meet the requirements of GB/T 9094.
