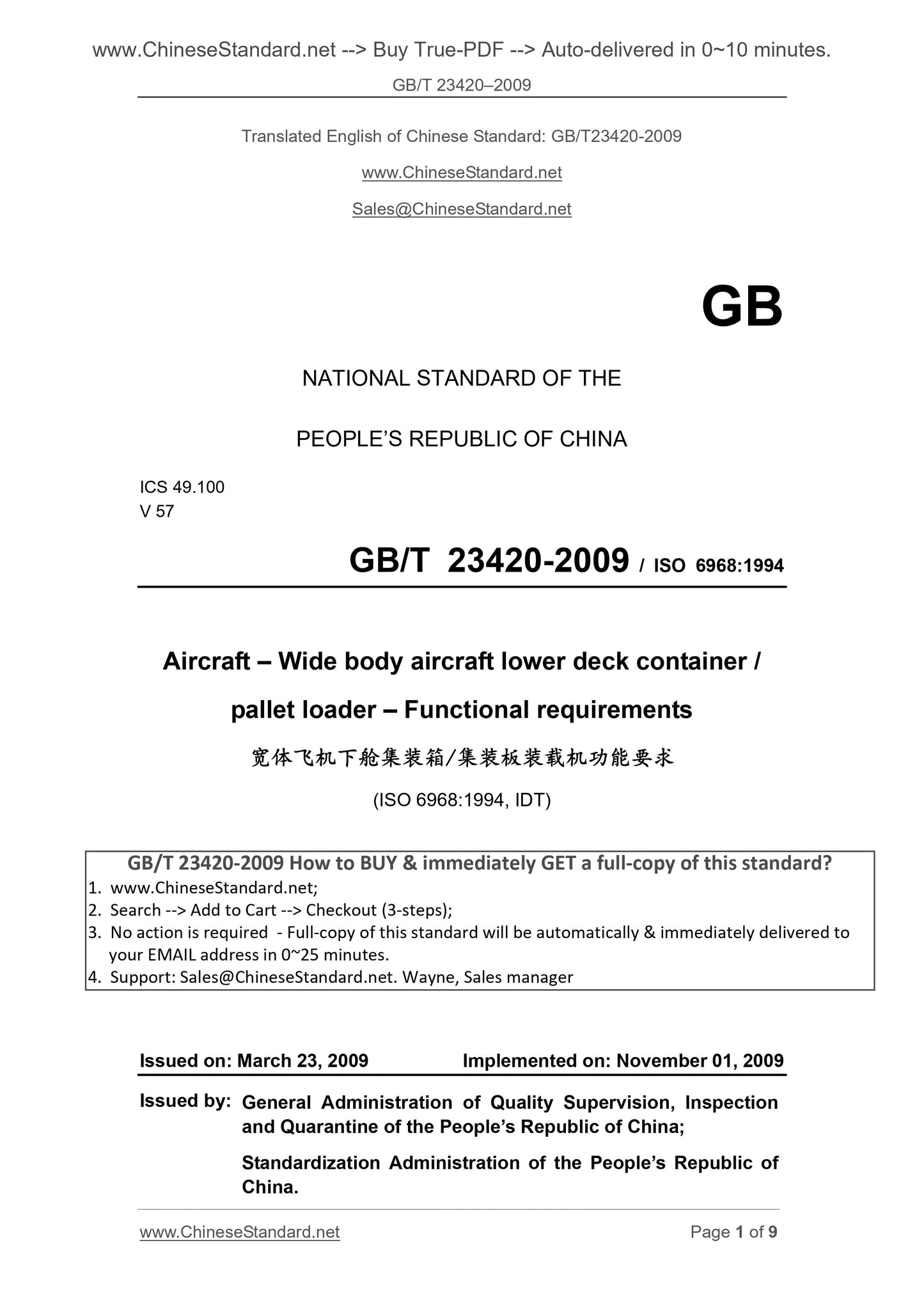

GB/T 23420-2009: Aircraft -- Wide body aircraft lower deck container/pallet loader -- Functional requirements

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 23420-2009 (Self-service in 1-minute)
Newer / historical versions: GB/T 23420-2009

Preview True-PDF

Basic Data

Standard ID	GB/T 23420-2009 (GB/T23420-2009)
Description (Translated English)	Aircraft -- Wide body aircraft lower deck container/pallet loader -- Functional requirements
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	V57
Classification of International Standard	49.100
Word Count Estimation	6,667
Date of Issue	2009-03-23
Date of Implementation	2009-11-01
Quoted Standard	ISO 4116: 1986
Adopted Standard	ISO 6968-1994, IDT
Regulation (derived from)	National Standard Approval Announcement 2009 No.4 (Total No.144)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard provides for the lifting of container, container board self-propelled container, functional requirements Pallet Loader. This standard applies to wide- body aircraft lower deck container, Pallet Loader design, manufacture and use. Aircraft lower deck container, standard size container floor boards and the maximum gross weight shown in Table 1: Table 1 ISO 8097 code base plate Dimensions Length mm (in) Width mm (in) maximum gross weight kg (lb) Pallet M 3175 (125) 2438 (96) 6804 (15000) A 3175 (125) 2235 (88) 6804 (15000) B 2743 (108) 2235 (88) 4536 (10000) containers La 3175 (125) ~ 4724 (186. 6) 1534 (60. 4) 3175 (7000) Kb 1562 (61. 5) ~ 2337 (92) 1534 (60. 4) 1588 (3500) a full-size. B half-size. Note: AHM931 is IATA " Airport Operations Manual " in the content, may be obtained from the following places
