GB/T 232-2010: Metallic materials -- Bend test

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 232-2010 (Self-service in 1-minute)
Newer / historical versions: GB/T 232-2010

Preview True-PDF

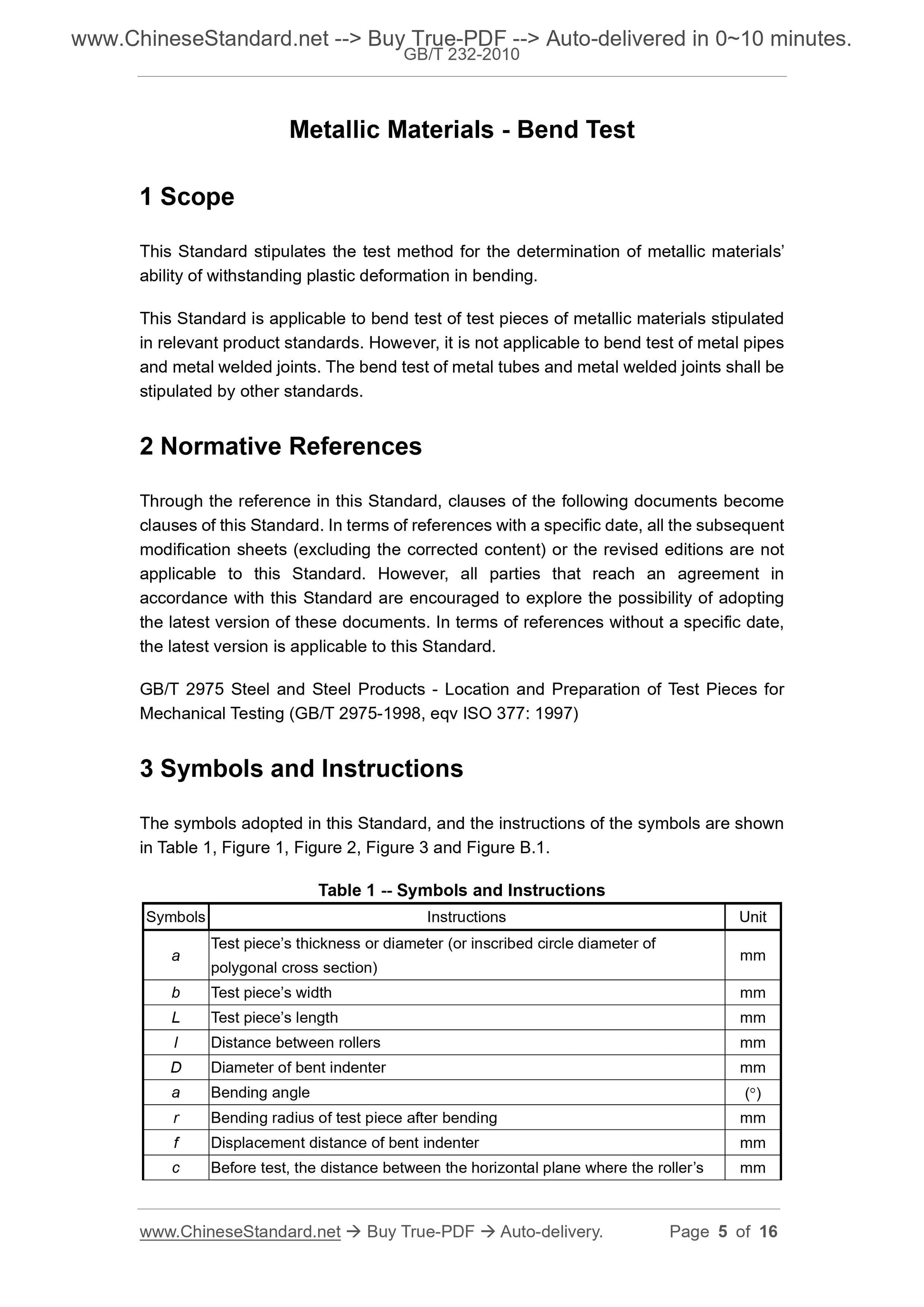

Scope

This Standard stipulates the test method for the determination of metallic materials’
ability of withstanding plastic deformation in bending.
This Standard is applicable to bend test of test pieces of metallic materials stipulated
in relevant product standards. However, it is not applicable to bend test of metal pipes
and metal welded joints. The bend test of metal tubes and metal welded joints shall be
stipulated by other standards.

Basic Data

Standard ID	GB/T 232-2010 (GB/T232-2010)
Description (Translated English)	Metallic materials -- Bend test
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	H23
Classification of International Standard	77.040.10
Word Count Estimation	12,140
Date of Issue	2010-09-02
Date of Implementation	2011-06-01
Older Standard (superseded by this standard)	GB/T 232-1999
Quoted Standard	GB/T 2975
Adopted Standard	ISO 7438-2005, MOD
Regulation (derived from)	National Standard Approval Announcement 2010 No.4 (Total No.159)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies test methods for metallic materials side given plastic deformation ability to withstand bending. This standard applies to metallic materials relevant product standard bend test specimen. But not for metal tubing and metal bending tests of welded joints. Metal pipes and metal welded joints bending test prescribed by other criteria.
