GB/T 23137-2008: Heat pump water heater for household and similar application

This Standard specifies the terms and definitions, product classification, technical requirements, test method, inspection rules, marks, transport, storage of heat pump water heater for household and similar application.

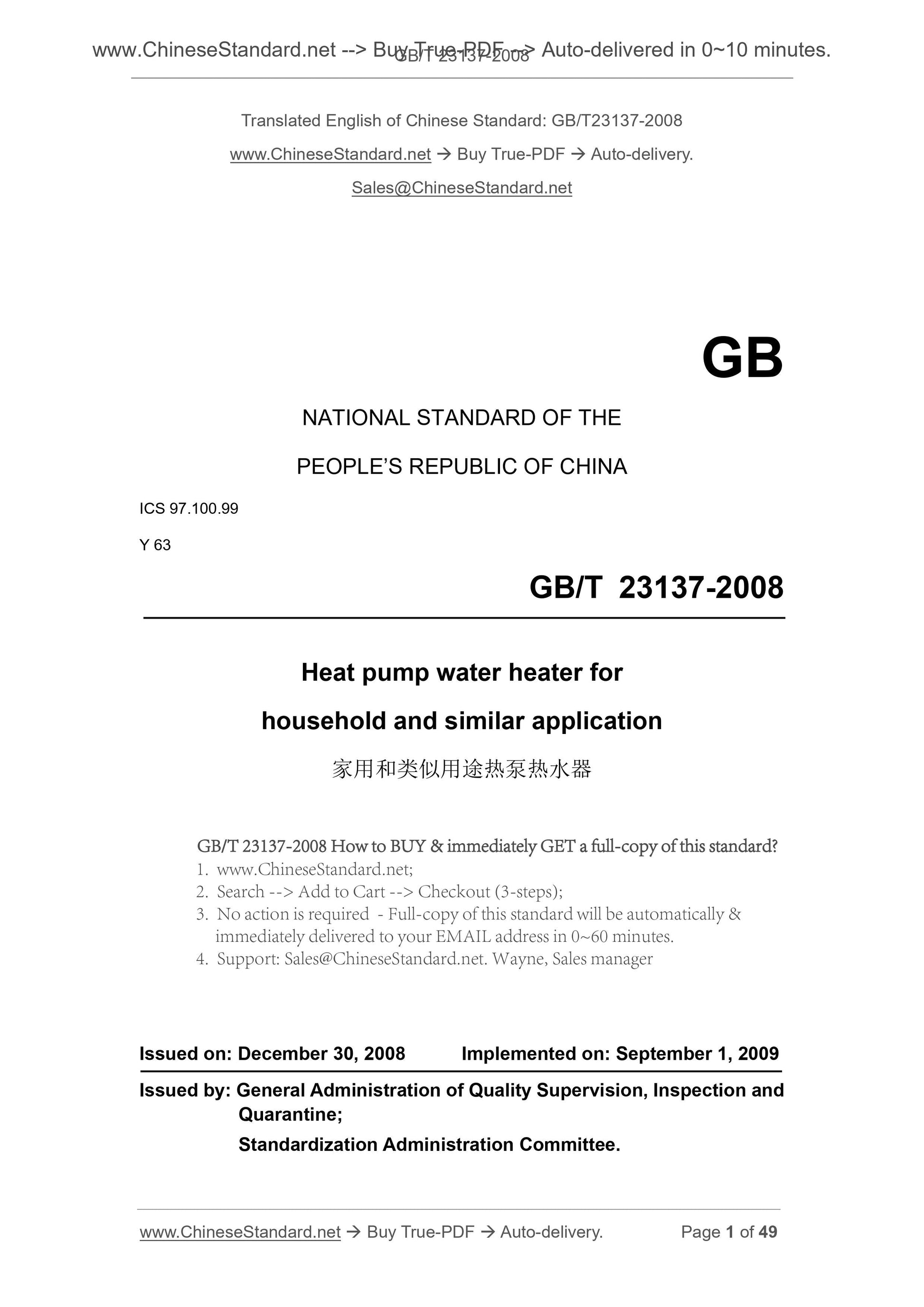

GB/T 23137-2008
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 97.100.99
Y 63
Heat pump water heater for
household and similar application
ISSUED ON. DECEMBER 30, 2008
IMPLEMENTED ON. SEPTEMBER 1, 2009
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration Committee.
3. No action is required - Full-copy of this standard will be automatically and immediately delivered to your EMAIL address in 0~60 minutes.

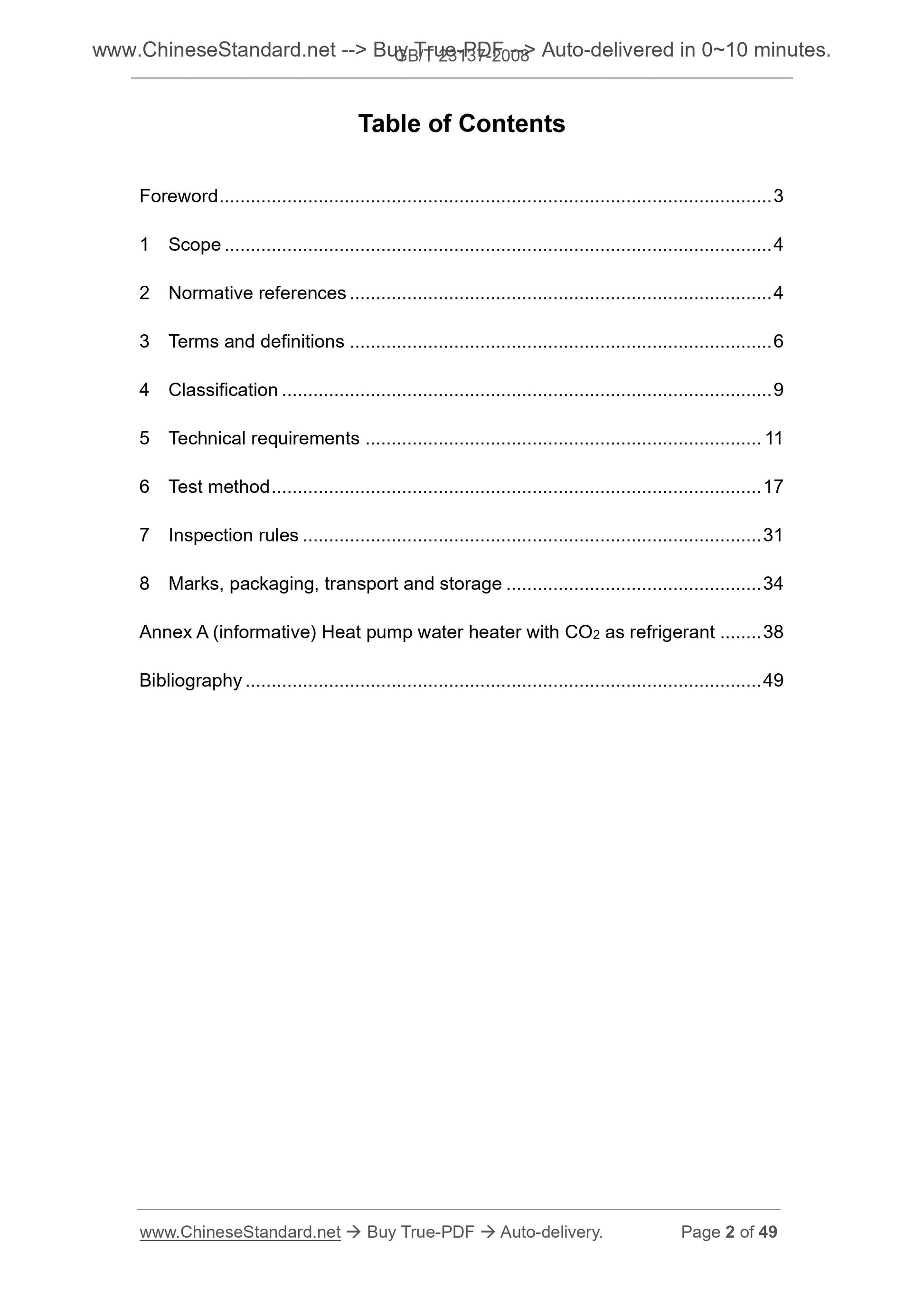

Table of Contents
Foreword ... 3
1 Scope .. 4
2 Normative references ... 4
3 Terms and definitions ... 6
4 Classification .. 9
5 Technical requirements ... 11
6 Test method .. 17
7 Inspection rules .. 31
8 Marks, packaging, transport and storage ... 34
Annex A (informative) Heat pump water heater with CO2 as refrigerant .. 38 Bibliography ... 49

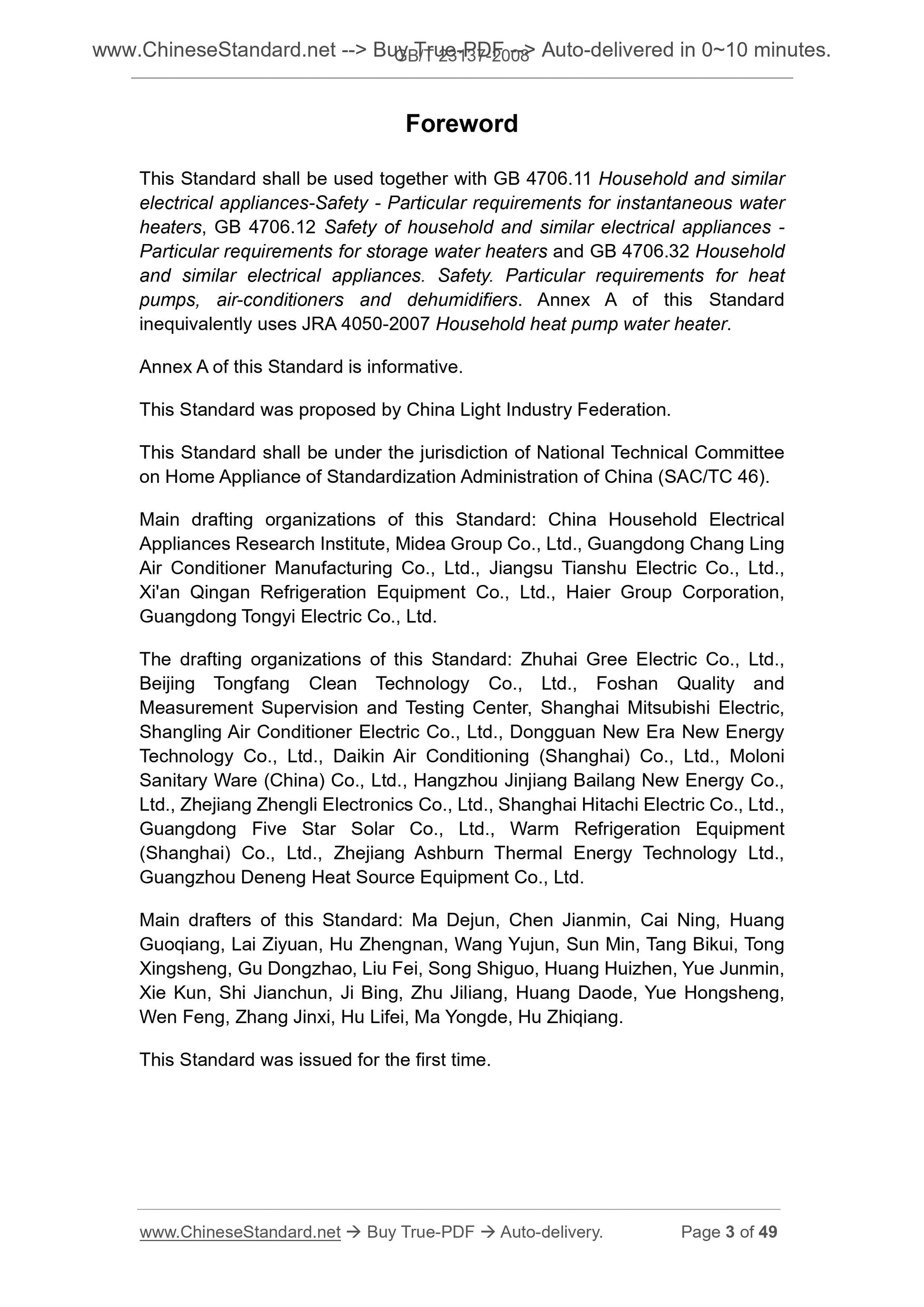

Foreword
This Standard shall be used together with GB 4706.11 Household and similar electrical appliances-Safety - Particular requirements for instantaneous water heaters, GB 4706.12 Safety of household and similar electrical appliances - Particular requirements for storage water heaters and GB 4706.32 Household and similar electrical appliances. Safety. Particular requirements for heat pumps, air-conditioners and dehumidifiers. Annex A of this Standard
inequivalently uses JRA 4050-2007 Household heat pump water heater.
Annex A of this Standard is informative.
This Standard was proposed by China Light Industry Federation.
This Standard shall be under the jurisdiction of National Technical Committee on Home Appliance of Standardization Administration of China (SAC/TC 46). Main drafting organizations of this Standard. China Household Electrical Appliances Research Institute, Midea Group Co., Ltd., Guangdong Chang Ling Air Conditioner Manufacturing Co., Ltd., Jiangsu Tianshu Electric Co., Ltd., Xi'an Qingan Refrigeration Equipment Co., Ltd., Haier Group Corporation, Guangdong Tongyi Electric Co., Ltd.
The drafting organizations of this Standard. Zhuhai Gree Electric Co., Ltd., Beijing Tongfang Clean Technology Co., Ltd., Foshan Quality and
Measurement Supervision and Testing Center, Shanghai Mitsubishi Electric, Shangling Air Conditioner Electric Co., Ltd., Dongguan New Era New Energy Technology Co., Ltd., Daikin Air Conditioning (Shanghai) Co., Ltd., Moloni Sanitary Ware (China) Co., Ltd., Hangzhou Jinjiang Bailang New Energy Co., Ltd., Zhejiang Zhengli Electronics Co., Ltd., Shanghai Hitachi Electric Co., Ltd., Guangdong Five Star Solar Co., Ltd., Warm Refrigeration Equipment
(Shanghai) Co., Ltd., Zhejiang Ashburn Thermal Energy Technology Ltd.,
Guangzhou Deneng Heat Source Equipment Co., Ltd.
Main drafters of this Standard. Ma Dejun, Chen Jianmin, Cai Ning, Huang Guoqiang, Lai Ziyuan, Hu Zhengnan, Wang Yujun, Sun Min, Tang Bikui, Tong Xingsheng, Gu Dongzhao, Liu Fei, Song Shiguo, Huang Huizhen, Yue Junmin, Xie Kun, Shi Jianchun, Ji Bing, Zhu Jiliang, Huang Daode, Yue Hongsheng, Wen Feng, Zhang Jinxi, Hu Lifei, Ma Yongde, Hu Zhiqiang.
This Standard was issued for the first time.

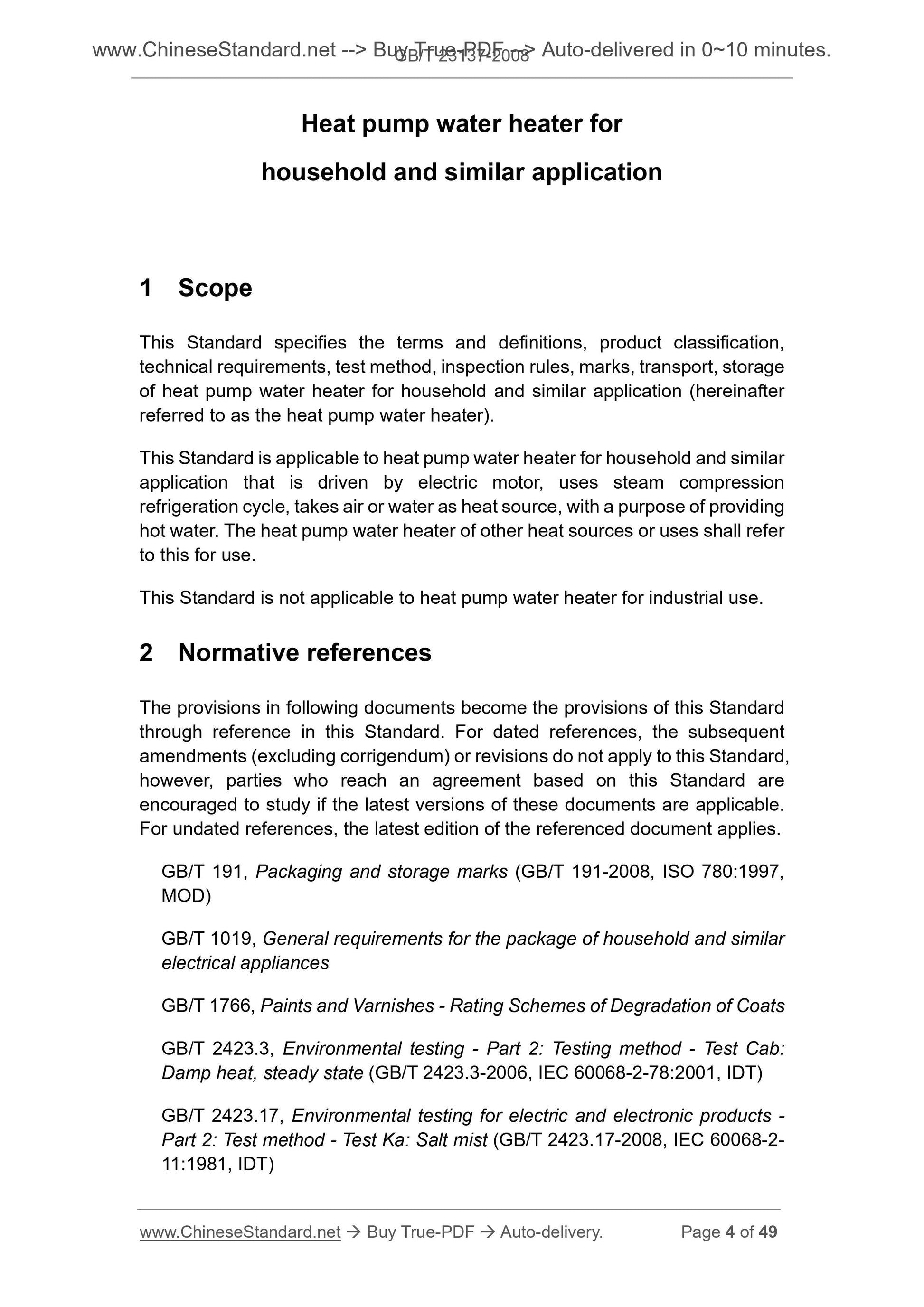

Heat pump water heater for
household and similar application
1 Scope
This Standard specifies the terms and definitions, product classification, technical requirements, test method, inspection rules, marks, transport, storage of heat pump water heater for household and similar application (hereinafter referred to as the heat pump water heater).
This Standard is applicable to heat pump water heater for household and similar application that is driven by electric motor, uses steam compression
refrigeration cycle, takes air or water as heat source, with a purpose of providing hot water. The heat pump water heater of other heat sources or uses shall refer to this for use.
This Standard is not applicable to heat pump water heater for industrial use. 2 Normative references
The provisions in following documents become the provisions of this Standard through reference in this Standard. For dated references, the subsequent amendments (excluding corrigendum) or revisions do not apply to this Standard, however, parties who reach an agreement based on this Standard are
encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB/T 191, Packaging and storage marks (GB/T 191-2008, ISO 780.1997,
MOD)
GB/T 1019, General requirements for the package of household and similar electrical appliances
GB/T 1766, Paints and Varnishes - Rating Schemes of Degradation of Coats GB/T 2423.3, Environmental testing - Part 2. Testing method - Test Cab. Damp heat, steady state (GB/T 2423.3-2006, IEC 60068-2-78.2001, IDT)
GB/T 2423.17, Environmental testing for electric and electronic products - Part 2. Test method - Test Ka. Salt mist (GB/T 2423.17-2008, IEC 60068-2- 11.1981, IDT)

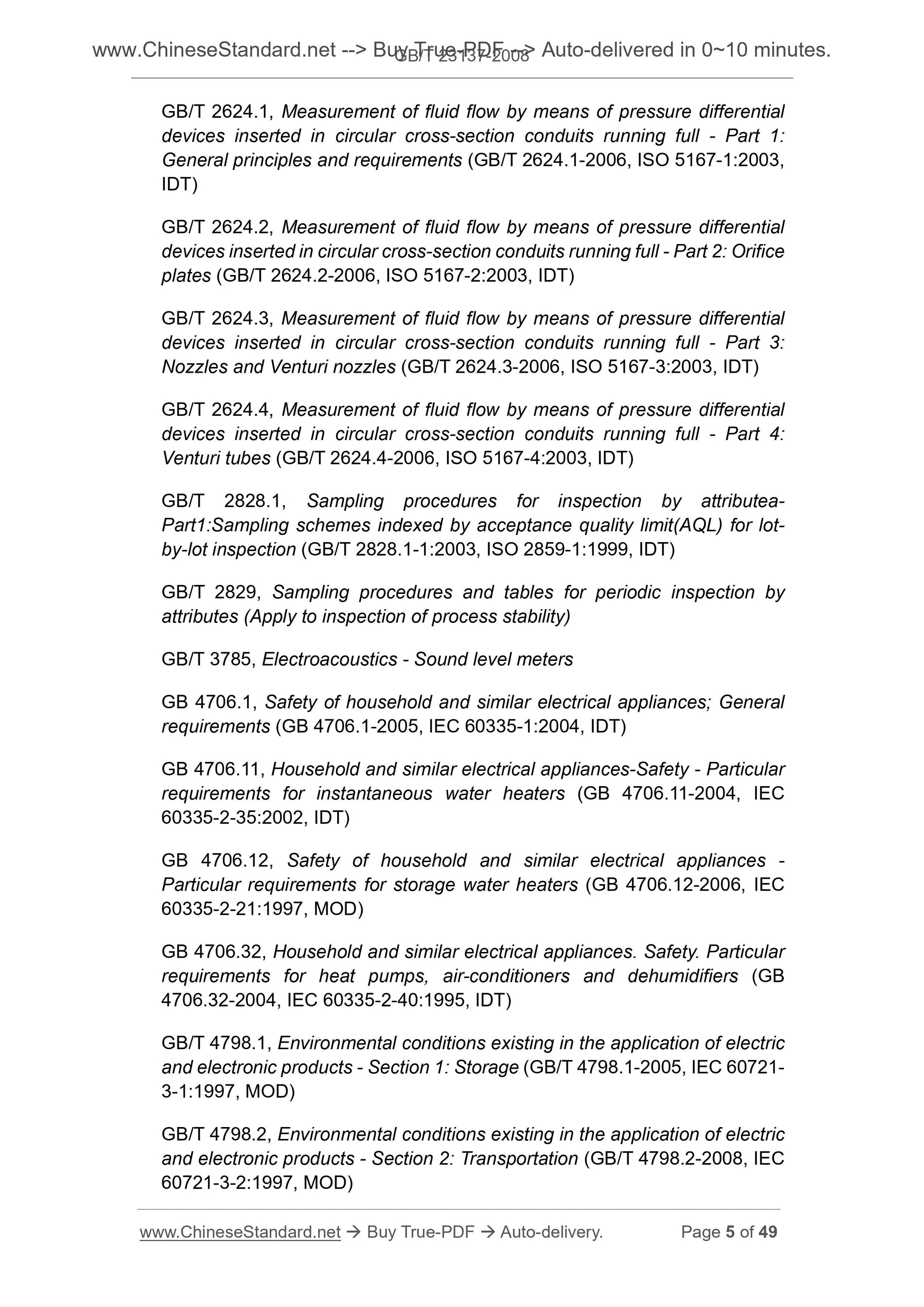

GB/T 2624.1, Measurement of fluid flow by means of pressure differential devices inserted in circular cross-section conduits running full - Part 1. General principles and requirements (GB/T 2624.1-2006, ISO 5167-1.2003, IDT)
GB/T 2624.2, Measurement of fluid flow by means of pressure differential devices inserted in circular cross-section conduits running full - Part 2. Orifice plates (GB/T 2624.2-2006, ISO 5167-2.2003, IDT)
GB/T 2624.3, Measurement of fluid flow by means of pressure differential devices inserted in circular cross-section conduits running full - Part 3. Nozzles and Venturi nozzles (GB/T 2624.3-2006, ISO 5167-3.2003, IDT)
GB/T 2624.4, Measurement of fluid flow by means of pressure differential devices inserted in circular cross-section conduits running full - Part 4. Venturi tubes (GB/T 2624.4-2006, ISO 5167-4.2003, IDT)
GB/T 2828.1, Sampling procedures for inspection by attributea-
Part1.Sampling schemes indexed by acceptance quality limit(AQL) for lot- by-lot inspection (GB/T 2828.1-1.2003, ISO 2859-1.1999, IDT)
GB/T 2829, Sampling procedures and tables for periodic inspection by
attributes (Apply to inspection of process stability)
GB/T 3785, Electroacoustics - Sound level meters
GB 4706.1, Safety of household and similar electrical appliances; General requirements (GB 4706.1-2005, IEC 60335-1.2004, IDT)
GB 4706.11, Household and similar electrical appliances-Safety - Particular requirements for instantaneous water heaters (GB 4706.11-2004, IEC
60335-2-35.2002, IDT)
GB 4706.12, Safety of household and similar electrical appliances -
Particular requirements for storage water heaters (GB 4706.12-2006, IEC 60335-2-21.1997, MOD)
GB 4706.32, Household and similar electrical appliances. Safety. Particular requirements for heat pumps, air-conditioners and dehumidifiers (GB
4706.32-2004, IEC 60335-2-40.1995, IDT)
GB/T 4798.1, Environmental conditions existing in the application of electric and electronic products - Section 1. Storage (GB/T 4798.1-2005, IEC 60721- 3-1.1997, MOD)
GB/T 4798.2, Environmental conditions existing in the application of electric and electronic products - Section 2. Transportation (GB/T 4798.2-2008, IEC 60721-3-2.1997, MOD)

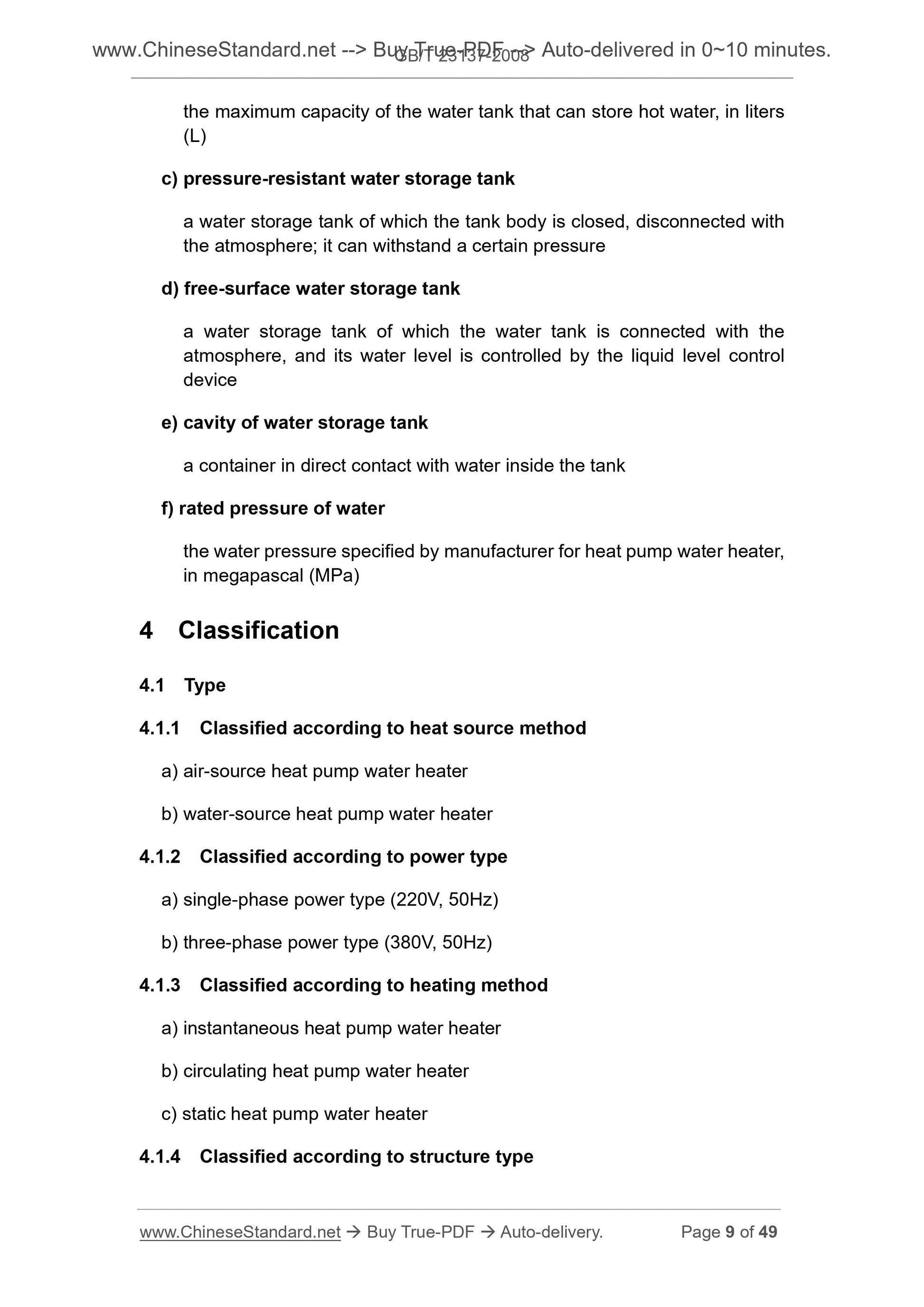

the maximum capacity of the water tank that can store hot water, in liters (L)
c) pressure-resistant water storage tank
a water storage tank of which the tank body is closed, disconnected with the atmosphere; it can withstand a certain pressure
d) free-surface water storage tank
a water storage tank of which the water tank is connected with the
atmosphere, and its water level is controlled by the liquid level control device
e) cavity of water storage tank
a container in direct contact with water inside the tank
f) rated pressure of water
the water pressure specified by manufacturer for heat pump water heater, in megapascal (MPa)
4 Classification
4.1 Type
4.1.1 Classified according to heat source method
a) air-source heat pump water heater
b) water-source heat pump water heater
4.1.2 Classified according to power type
a) single-phase power type (220V, 50Hz)
b) three-phase power type (380V, 50Hz)
4.1.3 Classified according to heating method
a) instantaneous heat pump water heater
b) circulating heat pump water heater
c) static heat pump water heater
4.1.4 Classified according to structure type

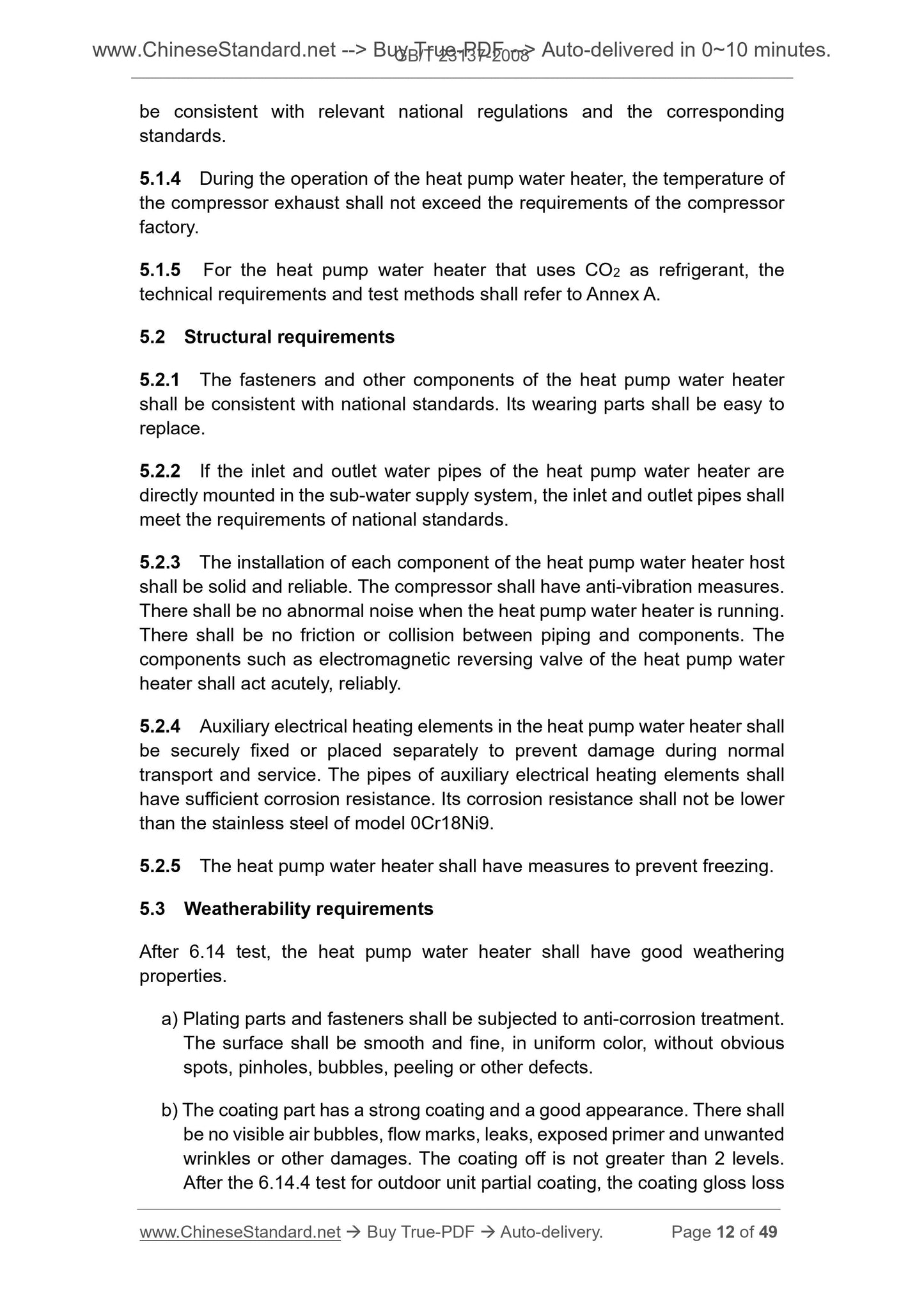

be consistent with relevant national regulations and the corresponding
standards.
5.1.4 During the operation of the heat pump water heater, the temperature of the compressor exhaust shall not exceed the requirements of the compressor factory.
5.1.5 For the heat pump water heater that uses CO2 as refrigerant, the
technical requirements and test methods shall refer to Annex A.
5.2 Structural requirements
5.2.1 The fasteners and other components of the heat pump water heater
shall be consistent with national standards. Its wearing parts shall be easy to replace.
5.2.2 If the inlet and outlet water pipes of the heat pump water heater are directly mounted in the sub-water supply system, the inlet and outlet pipes shall meet the requirements of national standards.
5.2.3 The installation of each component of the heat pump water heater host shall be solid and reliable. The compressor shall have anti-vibration measures. There shall be no abnormal noise when the heat pump water heater is running. There shall be no friction or collision between piping and components. The components such as electromagnetic reversing valve of the heat pump water heater shall act acutely, reliably.
5.2.4 Auxiliary electrical heating elements in the heat pump water heater shall be securely fixed or placed separately to prevent damage during normal
transport and service. The pipes of auxiliary electrical heating elements shall have sufficient corrosion resistance. Its corrosion resistance shall not be lower than the stainless steel of model 0Cr18Ni9.
5.2.5 The heat pump water heater shall have measures to prevent freezing. 5.3 Weatherability requirements
After 6.14 test, the heat pump water heater shall have good weathering
properties.
a) Plating parts and fasteners shall be subjected to anti-corrosion treatment. The surface shall be smooth and fine, in uniform color, without obvious spots, pinholes, bubbles, peeling or other defects.
b) The coating part has a strong coating and a good appearance. There shall be no visible air bubbles, flow marks, leaks, exposed primer and unwanted wrinkles or other damages. The coating off is not greater than 2 levels. After the 6.14.4 test for outdoor unit partial coating, the coating gloss loss 5.6.3 Minimum operation

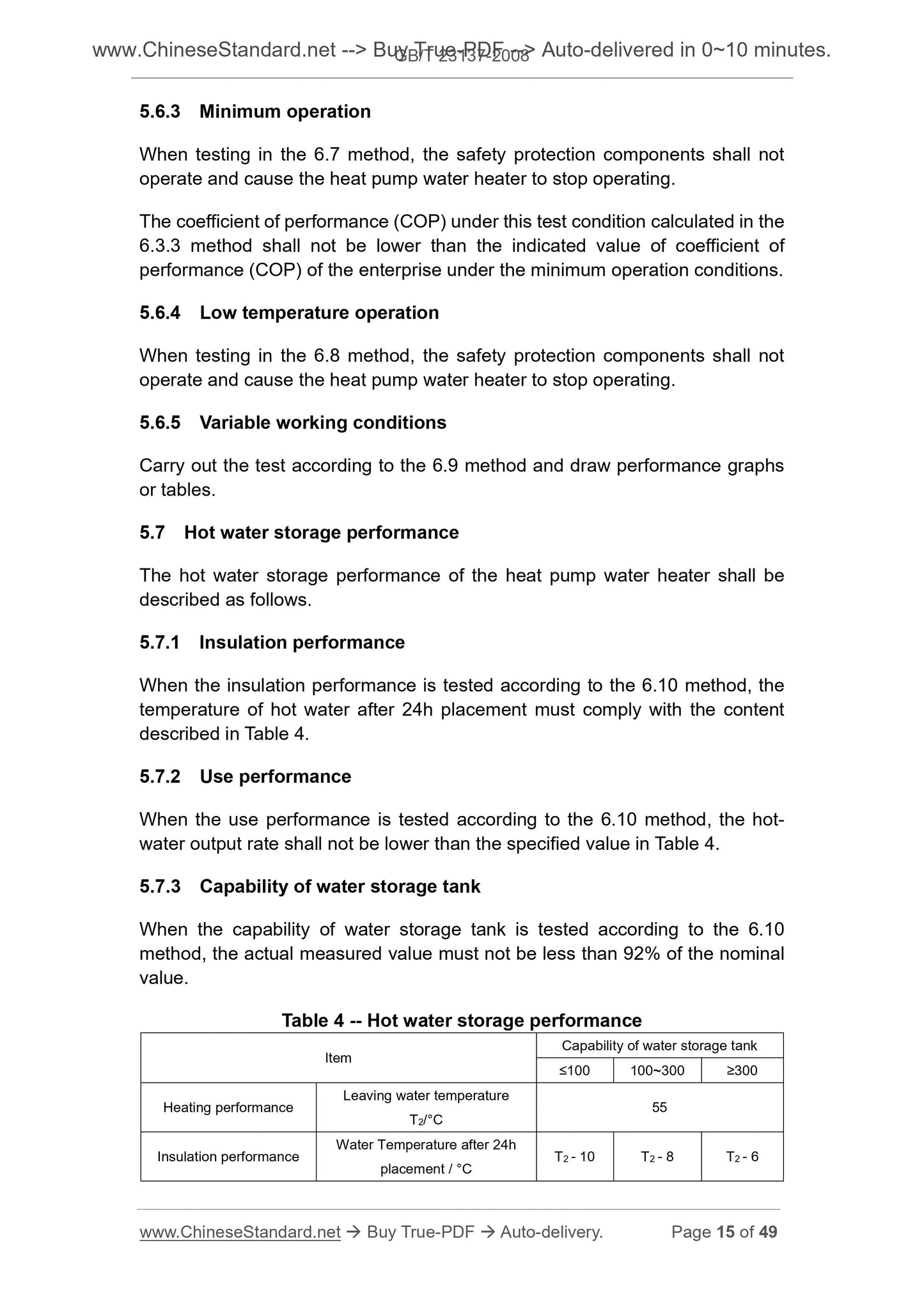

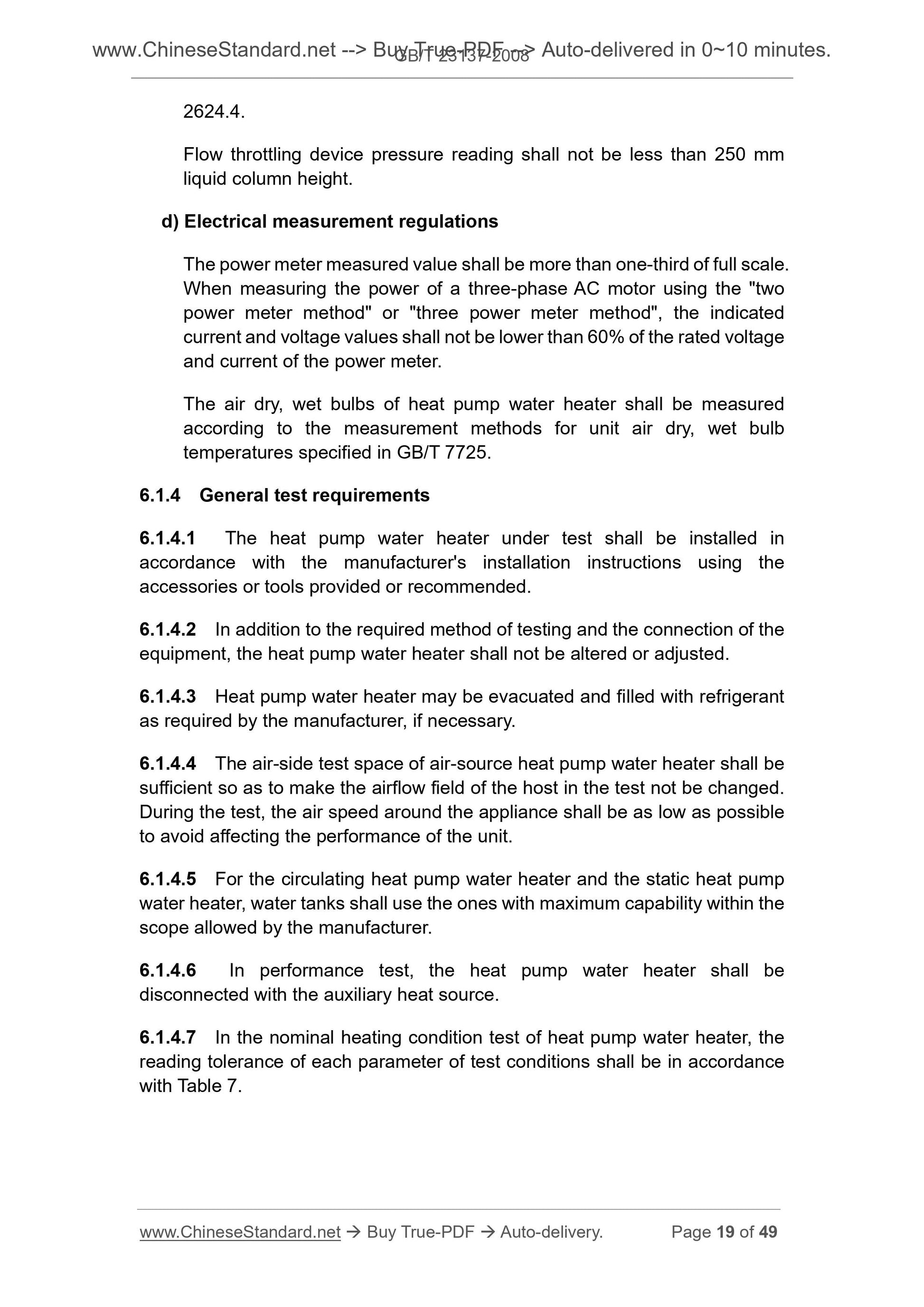

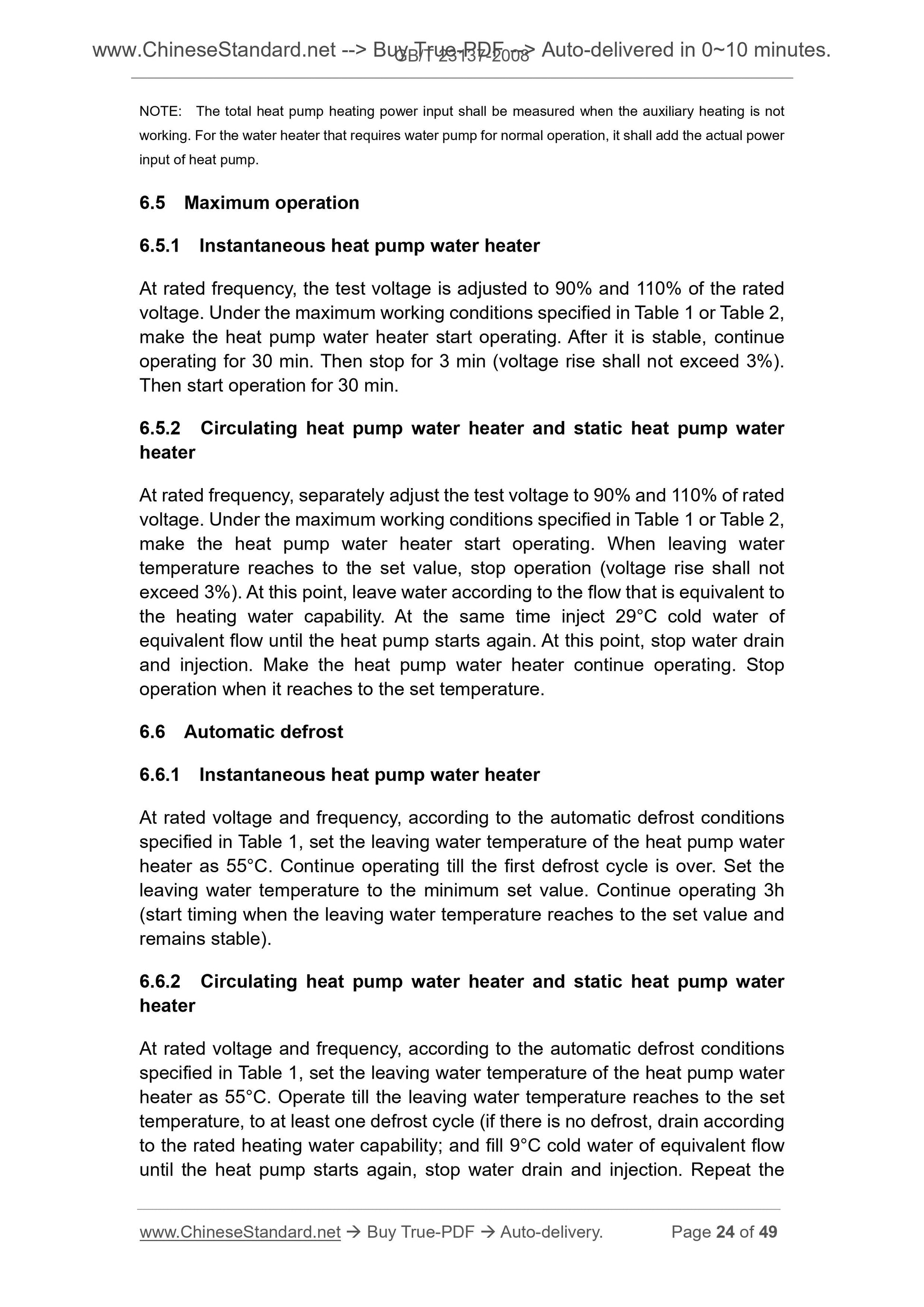

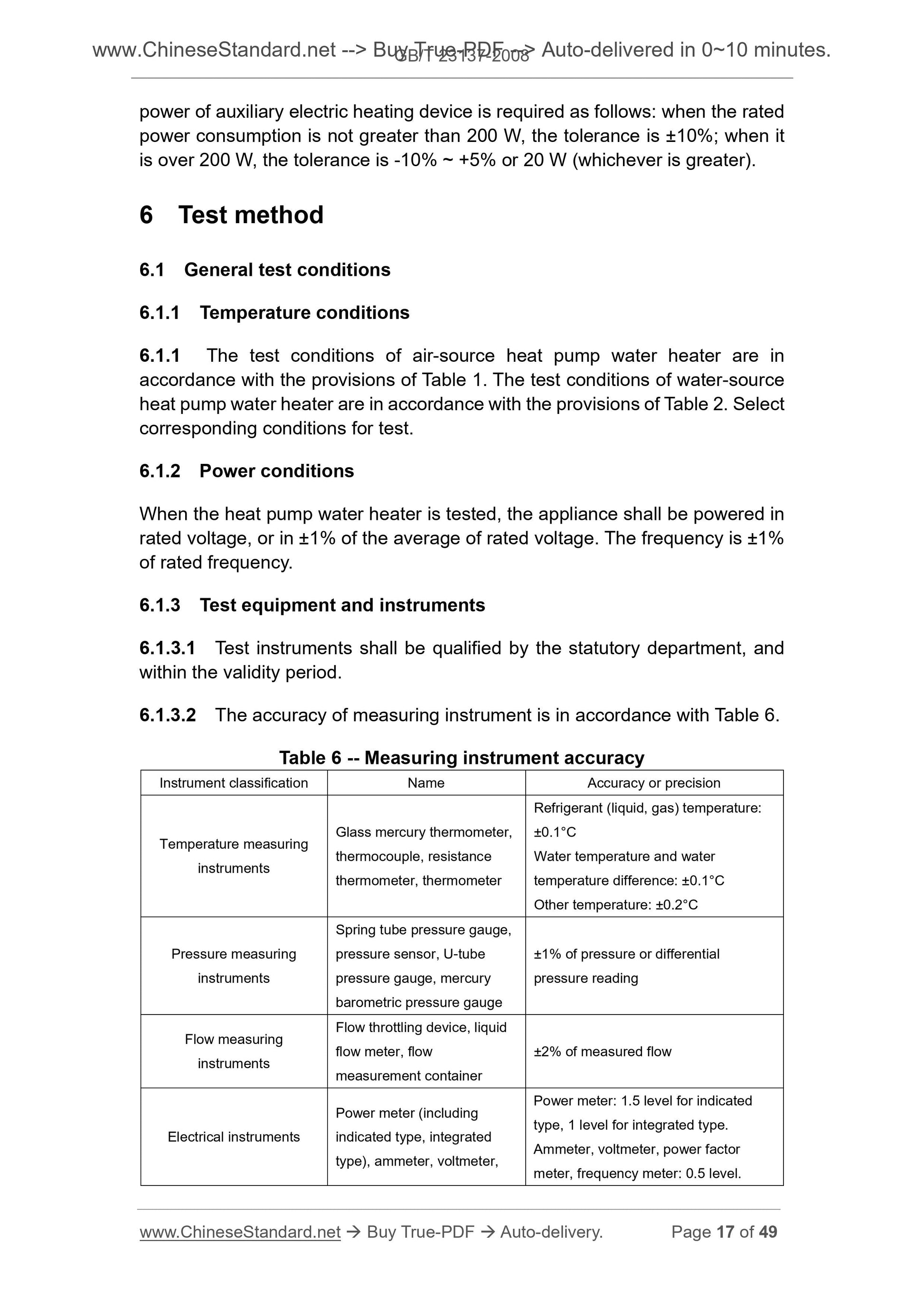

When testing in the 6.7 method, the safety protection components shall not operate and cause the heat pump water heater to stop operating.
The coefficient of performance (COP) under this test condition calculated in the 6.3.3 method shall not be lower than the indicated value of coefficient of performance (COP) of the enterprise under the minimum operation conditions. 5.6.4 Low temperature operation

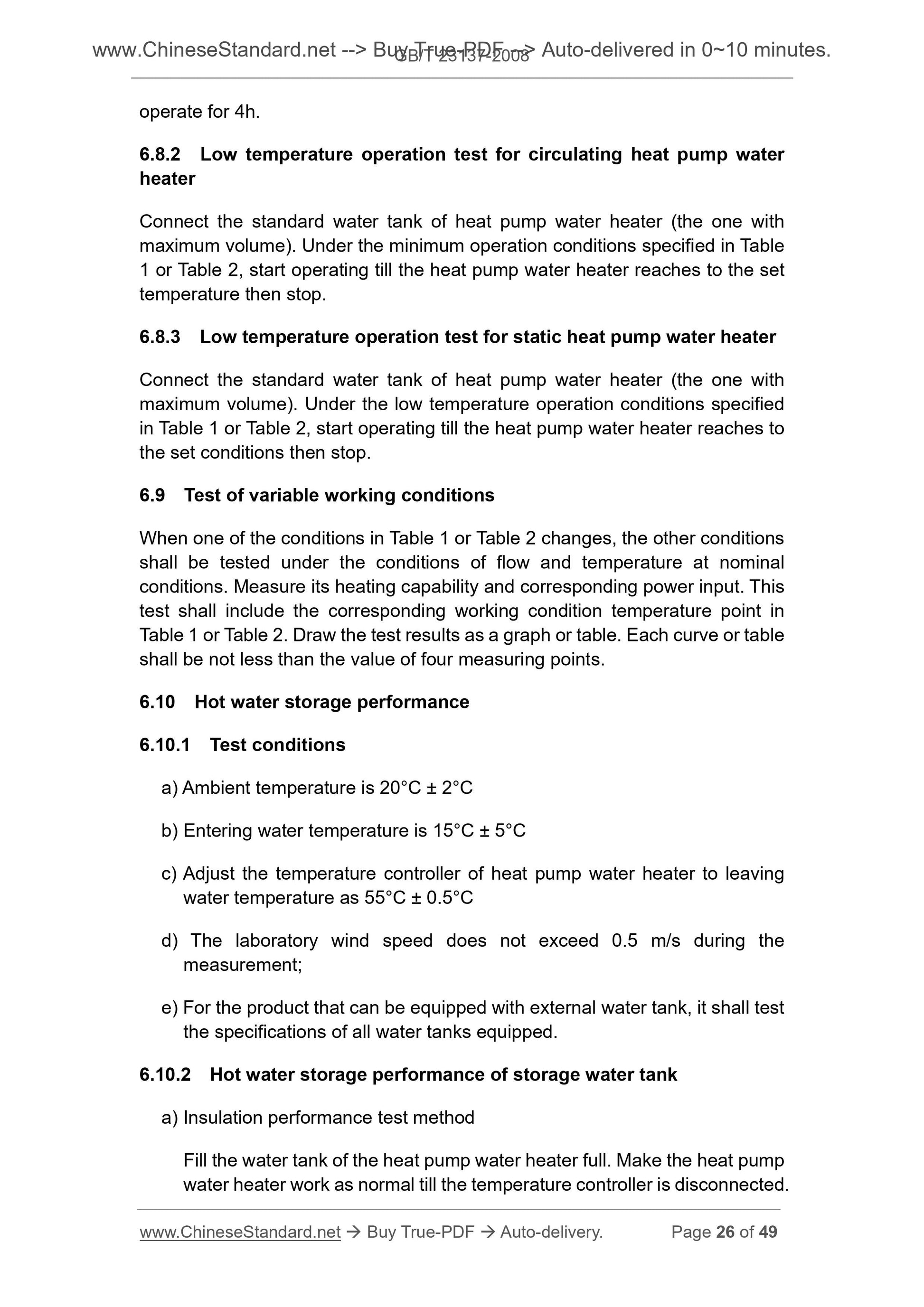

When testing in the 6.8 method, the safety protection components shall not operate and cause the heat pump water heater to stop operating.
5.6.5 Variable working conditions
Carry out the test according to the 6.9 method and draw performance graphs or tables.
5.7 Hot water storage performance
The hot water storage performance of the heat pump water heater shall be described as follows.
5.7.1 Insulation performance
When the insulation performance is tested according to the 6.10 method, the temperature of hot water after 24h placement must comply with the content described in Table 4.
5.7.2 Use performance
When the use performance is tested according t...
